Products Description
Automatic one color silk screen printing machine cheap price single 3 three 6 colour station full auto round cup bottle printer
automatic one color silk screen printing machine Specification:
Brand | Juste |
Model | SC-400R-CSM |
Function | With Color Sensor 2 Servo Motor |
Print color | More 10 Color / customize |
Max Printing diameter | Φ180mm |
Max Printing size | 300*450mm |
Capture accuracy | 0.05mm |
Dynamic type | Pneumatic (need to connect air compressor) |
Control | PLC System |
Printing speed/hr | 500-1500 |
Operation | Auto |
Size | L1050xW1250xH1750MM |
Weight | 280KG |
Air pressure(bar) | 4-6 |
Wattage | 500-1000W |
Power | 220V/ 50HZ-110V/60HZ |
Products Details Images
Servo Motor Optical Color Sensor Silk Screen Printing Machine Description:
1: Fully automatic control with PLC system.
2: Automatic oil scrabbing, oil return and lifting table.
3: Lock marking position by optical color sensor within high Accuracy 0.01mm.
4: Print multi color more than 10 color too easy with optical color sensor.
5: Self-poise scraper to balance printing pressurem.
6: Adjustable table (fluctuation & round) and netting easel (fluctuation & both sides)
7: The printed product is rotated by a servo motor to ensure high accuracy, not by gear
8: Screen plate is controlled by high precision servo motor, Screw rod accuracy is 0.01mm.
2: Automatic oil scrabbing, oil return and lifting table.
3: Lock marking position by optical color sensor within high Accuracy 0.01mm.
4: Print multi color more than 10 color too easy with optical color sensor.
5: Self-poise scraper to balance printing pressurem.
6: Adjustable table (fluctuation & round) and netting easel (fluctuation & both sides)
7: The printed product is rotated by a servo motor to ensure high accuracy, not by gear
8: Screen plate is controlled by high precision servo motor, Screw rod accuracy is 0.01mm.
Machine main part use high quality famous brand imported from Germany Japan Taiwan
1: Servo motor INOVANCE (can customize Yaskawa, Mitsubish, Panasonic, Siemens)
2: High precision optical color sensor is Leuze (German famous brand)
3: PLC system is Mitsubishi (imported from Japanese)
4: Touch Screen is Wigerlon (American Guaranteed brand)
5: Guide screw is TBI (imported from TaiWan)
6: Slide guide is Hiwin (imported from TaiWan)
7: Air cylinder is AIRTAC (Taiwan brand) ( can customize SMC FESTO brand)
8: Solenoid valve is SMC (imported from Japan brand)
2: High precision optical color sensor is Leuze (German famous brand)
3: PLC system is Mitsubishi (imported from Japanese)
4: Touch Screen is Wigerlon (American Guaranteed brand)
5: Guide screw is TBI (imported from TaiWan)
6: Slide guide is Hiwin (imported from TaiWan)
7: Air cylinder is AIRTAC (Taiwan brand) ( can customize SMC FESTO brand)
8: Solenoid valve is SMC (imported from Japan brand)

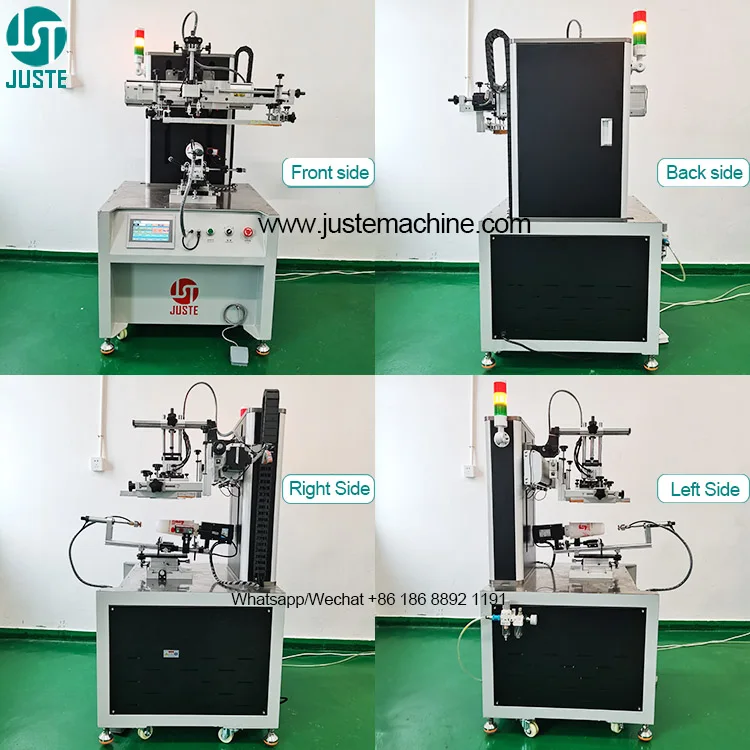

SC400R-CSM round cylindrical screen printing machine Advantage
with 2 full CNC servo motor, PLC system, Touch screen, optical color sensor. it can marking registration automatically by high sensitive optical color sensor, automatic positioning, it can overprint multiple color high precision in 0.01mm. So easy to overprint multiple color 2,3,4, 5, 6, 7, 8, 9, 10, 11, 12,13-20 colors.
What can SC400R-CSM round cylindrical screen printer do?
Specially designed to print on the cylindrical objects which need overprint multiple colors, but without any marking position, such as plastic bottles, glass bottle, cup, can, jar, tube. All circular round cylindrical conical cylinder products etc.

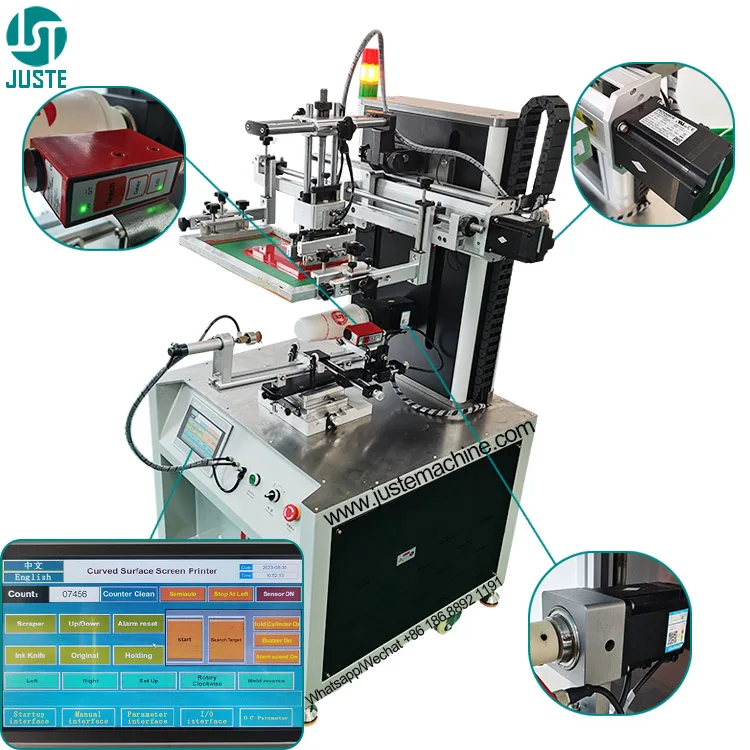

Touch screen PLC contorl sysem
with PLC touch screen control system. We can control almost all kind of movement on the screen, just like use your mobile phone. easy to use and with alarm system.
2 High Accuracy Servo Motor
Screen plate is controlled by high precision servo motor, the printing length is set up at the PLC touch screen, easy to use, high quality accuracy printing logo.

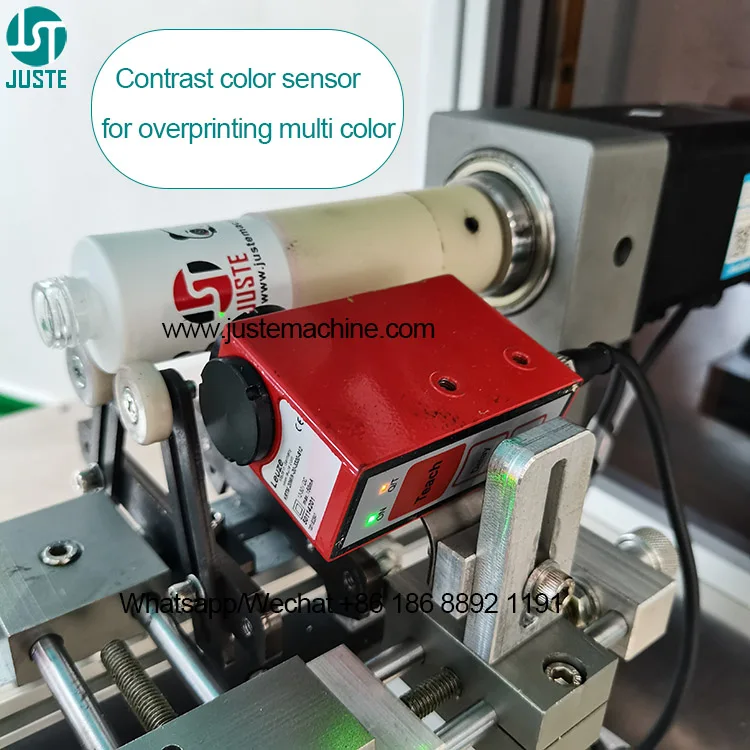

Optical color sensor lock marking position for multi color
Optical color sensor control servo motor with high accuracy locking, it can overprint multiple color 2,3,4, 5, 6, 7, 8, 9, 10, 11, 12,13-20 colors. depend Optical color sensor to Capture marking position
Silk Screen Printing Machine Jig Mould Can Be Customize As Your Requested
Customize Jig Mould To Fit Metal Plastic Glass Cosmetics Bottle Cup Tube Cylindrical Products
automatic one color silk screen printing machine
cup screen printing machine, cup screen printer, water bottle silk creen printing machine

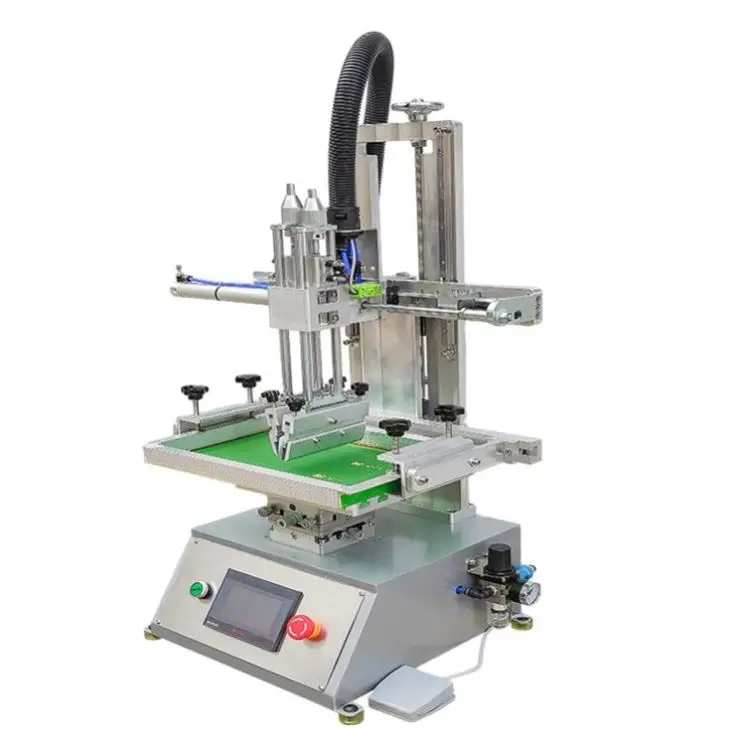

Silk screen printer

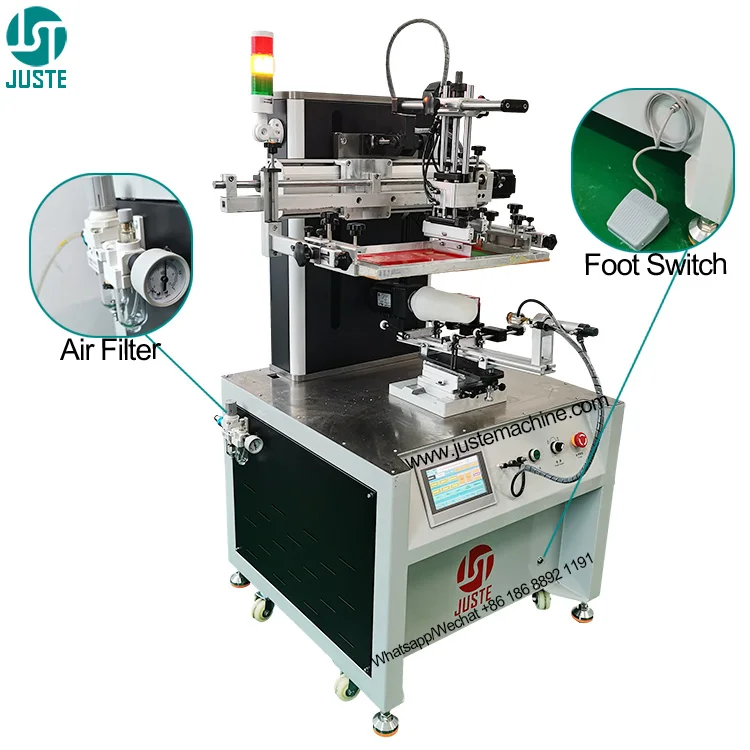

Silk screen printer with foot switch, easy to Operate
Auto screen printing machine
Auto screen printing machine with 3 limit switch
Plastic cup screen printer
Screen printing machine buttons
Glass bottle screen printer
Screen printing machine with customizable frame
Paper cup screen printing machine
This is utilized for adjusting the distance between the entire printing head and the product
Glass cup screen printer
Glass cup screen printer
round silk screen printer machine overprinting sample
milk tea cup screen printer overprinting sample 1 2 3 4 5 6 7 8 9 10 color for tea cup, milk tea cup, plastic cup, paper cup, coffee cup, bubble tea cup.
automatic one color silk screen printing machine Application Area
Printing products shape: All circular round cylindrical conical cylinder products etc.
Printing material: Plastic Metal Aluminium Glass Paper Wood Bamboo Ceramic Silicone PVC PET PP Acrylic Rubber etc.
Application area: Water Bottle, Glass bottles, Coffee Paper Cup, Plastic Cup, Metal Cup, Mug, Pen, Drum, Bowl, Cosmetic Bottle Tube, Can, Buckets, Barrel, Lipstick Tube, Syringe, Wine Beverage Drink Bottle, Honey Jar Lotion, Shampoo Ampoule Perfume Honey Jar Lotion Bottle, Wristband, Scour Bottle, Pots, Oil-filter shells, Cylinder, Cylindrical tube etc.
Printing material: Plastic Metal Aluminium Glass Paper Wood Bamboo Ceramic Silicone PVC PET PP Acrylic Rubber etc.
Application area: Water Bottle, Glass bottles, Coffee Paper Cup, Plastic Cup, Metal Cup, Mug, Pen, Drum, Bowl, Cosmetic Bottle Tube, Can, Buckets, Barrel, Lipstick Tube, Syringe, Wine Beverage Drink Bottle, Honey Jar Lotion, Shampoo Ampoule Perfume Honey Jar Lotion Bottle, Wristband, Scour Bottle, Pots, Oil-filter shells, Cylinder, Cylindrical tube etc.
Packaging & Shipping Term
automatic one color silk screen printing machine Inside packaging
Machine will be Packing with waterproof shrinking film in several layers and 360 degree surround. To ensure the machine is 100% clean when customer unpack it.
Juste Printing Machine Outside packaging
Printing Machine With tri-ply wooden case packing, the wood pallet material as fumigation wooden. It is strong fix wooden case for sea shipment.
automatic one color silk screen printing machine Loading To Containers
Printing Machines will be well packed in tri-ply wooden box then load to container and shipped by sea/by air, as your requested.
Printing Machine Shipping Term
Depend Your Requested by DHL/UPS/TNT/FEDEX express, Sea shipping
Shipping time: 5-15 Workdays by Express / 15-30 days by sea
Shipping time: 5-15 Workdays by Express / 15-30 days by sea
Company Introduction
Shenzhen Juste Machine Co., Ltd.
Juste Machine established in 2002, We are a professional manufacturer in the development Automated machine, Printing machine, Pad Printers, Pad Printing Machine, Screen Printers, Spay Painting Machine, IR Tunnel Dryer, Heat Transfer Machine, UV Curing Machine, Post-Press Equipment, Pre-Press Equipment, Heat Press Machines, Printing Machinery Parts, tshirt printing machine, cup printing machine, etc
What Can We Do?
We are specialized in customize automatic machine, printing machines, silk screen printing machine, Pad Printing Machine, automatic spray painting machine, UV curing machine, IR hot tunnel dryer, Pre-Press Equipment, logo printing machine. Welcome to place customize order. Or tell us your idea or demand, Our engineer can help you that develope new machine to fit and solve your demand. Such as: Size, Function, Color, Speed Any demand if you want.
About Juste Printing Machine Sales Team
Our sales team has more than 20 years of marketing and export experience. Your question will quickly reply and solve the problem and offer you the best service.
About Juste Printing Machine Service
Pre-sale service: We provided video outgoing-inspection and manual instructions for machine operation. All machines must be passed by our QA inspection department before shipping.
After-sales Service Provided Warranty: 1: All machine guaranteed 1 year for free and maintain is lifelong. 2: If there is damaged parts within guarantee period, will send you new parts for free by express
After-sales Service Provided Warranty: 1: All machine guaranteed 1 year for free and maintain is lifelong. 2: If there is damaged parts within guarantee period, will send you new parts for free by express
About Juste Printing Machine R&D Department
Professional R&D department has 10 engineers with more than 20 years of experience in Automated machine, Pad Printers, Screen Printers, Spay Painting Machine, Post-Press Equipment, IR Tunnel Dryer, Heat Transfer Machine, t shirt printing machine, UV Curing Machine, cloth printing machine, t-shirt printing machine.
About Juste Printing Machine Certification
All Machine with high quality and certification of CE, ROHS, EMC, FCC, ISO9001.
About Juste Printing Machine Main Markets
Our Machine are hot selling in the America, Europe, Vietnam, Bangladesh, Japan, India, Israel, Thailand, Turkey, France, Germany, UK, South America, Brazil, North America Canada, Australia, Asia, Chile, Colombia, Portugal, Spain, Greece, Pakistan, Malaysia, Korea, Middle East, etc all worldwide.
How To Order?
How To Place customize automatic one color silk screen printing machine order ?
1: Please send us an email or contact us via WhatsApp, Wechat, TM, MSN, SKYPE.
2: Then let us know the pad printing machine model/quantity/color/Function/Speed All demand you want.
3: Our engineer will estimate machine price as your demand
4: We will make PI (Proforma Invoice) for you.
5: Pay the payment to us after you confirmed the P/I.
6: After all info confirmed, we will booking material then assemble machine.
7: Our QA department will inspect before shipping when printing machine ready.
8: We provided video outgoing-inspection and manual instructions for machine operation
9: Goods will be ship out after that printing machine passed testing if all function no problem.
10: You will get the goods about 10-30 workdays to depend on express actual speed.
2: Then let us know the pad printing machine model/quantity/color/Function/Speed All demand you want.
3: Our engineer will estimate machine price as your demand
4: We will make PI (Proforma Invoice) for you.
5: Pay the payment to us after you confirmed the P/I.
6: After all info confirmed, we will booking material then assemble machine.
7: Our QA department will inspect before shipping when printing machine ready.
8: We provided video outgoing-inspection and manual instructions for machine operation
9: Goods will be ship out after that printing machine passed testing if all function no problem.
10: You will get the goods about 10-30 workdays to depend on express actual speed.
FAQ
Q1: What type of sensor does this machine use to print multi color?
Re: We use high precision optical color sensor is Leuze (German famous brand)
Q2: How many colors can this machine printing?
Re: It can printing one color by one time. after done one color can change ink, screen plate to printing another color. it can overprint multiple color 2,3,4, 5, 6, 7, 8, 9, 10, 11, 12,13-20 colors.
Q3: After printing one color it can print another color right?
Re: It can overprint multi color after done last color.
Q4: How much is the sea shipping?
Re: Please advise me port of destination then can check sea shipping cost for you
Q5: Do you provide training once I purchase the machine?
Re: Yeah. we offer engieenr video training and online support.
Q6: Do I need custom broker for this? Or you will arrange?
Re: Yeah. you have to make custom clearance. also we can arrange if you pay custom broker cost.
Q7: What ink does it use?
Re: It use silk screen printing plastisol ink, silk screen UV ink.
Q8: What else is useful for different materials?
Re: We use high precision optical color sensor is Leuze (German famous brand)
Q2: How many colors can this machine printing?
Re: It can printing one color by one time. after done one color can change ink, screen plate to printing another color. it can overprint multiple color 2,3,4, 5, 6, 7, 8, 9, 10, 11, 12,13-20 colors.
Q3: After printing one color it can print another color right?
Re: It can overprint multi color after done last color.
Q4: How much is the sea shipping?
Re: Please advise me port of destination then can check sea shipping cost for you
Q5: Do you provide training once I purchase the machine?
Re: Yeah. we offer engieenr video training and online support.
Q6: Do I need custom broker for this? Or you will arrange?
Re: Yeah. you have to make custom clearance. also we can arrange if you pay custom broker cost.
Q7: What ink does it use?
Re: It use silk screen printing plastisol ink, silk screen UV ink.
Q8: What else is useful for different materials?
Re: Print material: Plastic Metal Aluminium Glass Paper Wood Bamboo Ceramic Silicone PVC PET PP Acrylic Rubber etc.
Q9: Do i need to buy air compressor?
Re: It need to connect air compressor. all penumatic printing machine need air compressor. because penumatic air cylinder part can save electric energy than motor
Q10: Is it can print on bowl cup bottle tube can jar bucket lipstick right?
Re: Yeah. can print All circular round cylindrical conical cylinder products. such as Water Bottle, Glass bottles, Coffee Paper Cup, Plastic Cup, Metal Cup, Mug, Pen, Drum, Bowl, Cosmetic Bottle Tube, Can, Buckets, Barrel, Lipstick Tube, Syringe, Wine Beverage Drink Bottle, Honey Jar Lotion, Shampoo Ampoule Perfume Honey Jar Lotion Bottle, Wristband, Scour Bottle, Pots, Oil-filter shells, Cylinder, Cylindrical tube etc.
Q11: Are you a manufacturer?Q10: Is it can print on bowl cup bottle tube can jar bucket lipstick right?
Re: Yeah. can print All circular round cylindrical conical cylinder products. such as Water Bottle, Glass bottles, Coffee Paper Cup, Plastic Cup, Metal Cup, Mug, Pen, Drum, Bowl, Cosmetic Bottle Tube, Can, Buckets, Barrel, Lipstick Tube, Syringe, Wine Beverage Drink Bottle, Honey Jar Lotion, Shampoo Ampoule Perfume Honey Jar Lotion Bottle, Wristband, Scour Bottle, Pots, Oil-filter shells, Cylinder, Cylindrical tube etc.
1. Yes, we are an experienced Pad Printing Machine, Screen Printers, Heat Press Machines manufacturer.
Q12: Can we put our brand(logo) on the Machine?
Yes, we can do print your brand(logo) on the printing machine.
Q13: What is your delivery port?
Our nearest port is in Shenzhen China.
Q14: Where is your printing machine factory located?
Our printing machine factory is located in Dongguan, near Hong Kong.
Q15: Do you offer a guarantee Warranty for the automatic one color silk screen printing machine?
Yes, we offer 1 Year guarantee for the screen printing machine.
Q16: How does your factory do quality control?
Re: We provided video outgoing-inspection and manual instructions for machine operation.
All machines must be passed by our QA inspection department before shipping.
All machines must be passed by our QA inspection department before shipping.
Phone: +86 186 8892 1191
Whatsapp/wechat:+86 186 8892 1191
Whatsapp/wechat:+86 186 8892 1191
Похожие товары
Новинка полуавтоматический пневматический плоский шелкография для стружки этикеток
218 048,36 ₽
Высокая точность полу-автоматическая шелкотрафаретная печатная машина
Высокоточный автоматический принтер для ручек деревянная стеклянная пластиковая трубка машина трафаретной печати
1 271 419,00-1 907 128,50 ₽
Канцелярские маркер ручка баррель многоцветный автоматическая трафаретная печатная машина для продажи
2 415 568,96 ₽
Новая печатная машина на круглых предметах ручная цилиндрическая трафаретная для ручки
6 цветов станций трафаретная печатная машина цены на текстильная печать шелкографическая
Пластиковый стаканчик бумажный логотип цветной трафаретной печати Футболка 4 цвета шелкография трафаретная печатная машина
Новые поступления
Новинки товаров от производителей по оптовым ценам
Светлая Золотая морская солнечная энергия ландшафтное украшение постмодерн минималистский стиль чистая ручная роспись маслом 24x3 1 дюйм/60x80
35-53 $
Европейские антикварные простой Последние двойной металлической кровати
Автоматизированная складская система автоматического хранения в Гуанчжоу Eyda с эффективными стеллажами и
10 000-35 000 $
Декоративный чехол для PS5 Сменный Чехол консоли пластины Playstation5 пылезащитный с защитой от царапин
7,50-7,70 $
Лучшее качество детские подгузники для сухих подгузников новорожденных размер 2 4 и большие доставка или
3 $
Выключатель для формованного корпуса Schneider NSX100N 50KA AC 3P3D 25A TMD новая модель C10N3TM025
Буф2-.. М .. Краны
Оптовая продажа высококачественный сублимированный клубничный порошок Заводская поставка
5,50-6,40 $
