Высококачественный электрический бесщеточный двигатель suron 60 В 6000 Вт 40 А
282 673,58 ₽ - 295 831,39 ₽
Joyebikes 2023 горный электрический велосипед внедорожник с батареей 6000 Вт 60 в Talaria sting велосипед для мотокросса
- Категория: >>>
- Поставщик: Changzhou Joyebikes Co. ltd.
Сохранить в закладки 1600733222757:
Описание и отзывы
Характеристики
Product Description

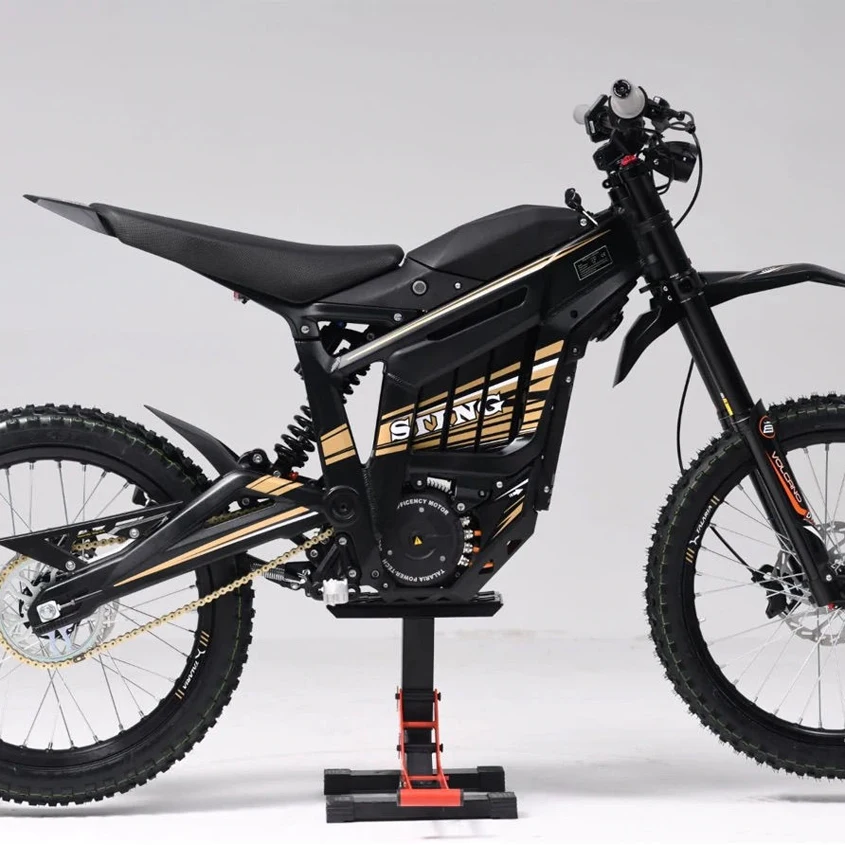

Joyebikes 2023 mountain electric dirt bike sting battery 6000w 60v Talaria sting electric bike for moto cross talaria
Specification
Chassis - Swing Arm Material | 6061 T4 & T6 Aluminium Alloy |
Chassis Construction Method | Forged by 8000 tons pressure |
Rear Shock Absorber | Fastace with Linkage |
Tire Size | Front 70/100-19 / Rear 80/100-19 |
Max Range | 76km @ 45 km/h |
Speedometer | TFT Digital |
Transmission | Gearbox + Chain |
Motor Rated Power / Peak Power | 3000w / 6000w |
Motor Rated Voltage | 60V (DC) |
Motor Rated Torque / Peak Torque | 8.5 n.m / 31.8 n.m |
Motor Shaft Output Torque @ 1000RPM | 29.5 n.m |
Motor Peak Efficiency | 96.60% |
Motor Type | PMSM (Permanent Magnet Synchronous Motor) |
Motor Weight | 7 kg |
Motor External Diameter | 180mm |
Motor Axial Length | 130mm |
Controller Type | FOC |
Controller Dimension | Controller Dimension |
Controller Peak Efficiency | 98.50% |
Controller Traveling Wave Current | 85A |
Powertrain Rated Rotation Speed | 4300 RPM |
Powertrain Range of Rotation Speed | 0-5300 RPM |
Powertrain Peak Efficiency | 98% |
Battery | 60V 38.4A Lithium LG Cells |
Charger | 10A 60V |
Fork | DNM |
Tire | CST |
Brakes | 4-Piston Calliper Hydraulic Brakes |
Brake Disc | 203mm |
Net Weight | 58 Kg |
Vehicle Dimension | 1870mm x 780mm x 1040mm |
Min. Ground Clearance | 270mm |
Wheel Base | 1260mm |

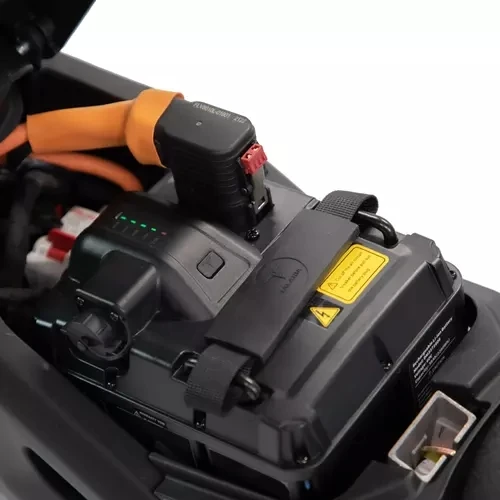

POWER PACK
STING is powered by an impressive 60V 38Ah lithium-ion power pack, which is 2280 watt-hours, and easily swappable. The power packscan be exchanged with another fully charged power pack in seconds for limitless range. With electric automobile grade LG 21700 lithium-ion battery cells, state of the art programmed BMS, and optimized internal structure, thisbattery pack is enabled to ensure the bike brings you safe,hi performance off-road riding.

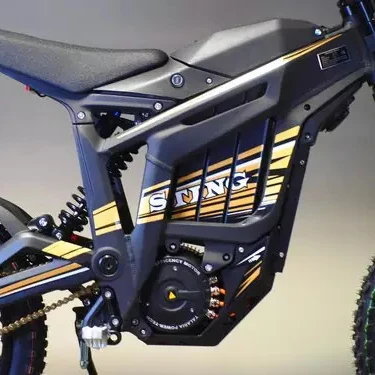

FRAME
Cutting-edgeengineered frame ispure purpose built, light weight and compact. Using 6061 aluminum alloy, and superior forging process by 6000 tons of pressure, the frame is qualified to assure you a safe, fun and fearless ridingexperience through even the toughest terrains.
CONTROLLER
With the high-quality appropriative hardware, superb layout, and ingenious programming, the controller is enabled to have anextraordinaryability for transient currentimpact resistance, ultra strong anti - interference, high-precisionEABS voltage and discharge current control, error inspection, high and low temperature protection, anti-runaway, and smart energy regeneration.This guarantees to bring the rider a powerful, exciting, and safe riding experience with a respectable range.
POWERTRAIN
The customized combination powertrain design is just perfect for the light weight electric MX bike. The high efficiency brushless permanent magnet synchronous mid-drive motor, with top-class magnet material and advanced processing, is available to output 34N.m peak torque, as well as to have 284N.m peak torque to the rear wheel.
With exquisitely crafted high accuracy gears, the gearbox runs even quieter and is much more durable than any belt drive systems.It’s time to say goodbye tothat broken belt anxiety.
With exquisitely crafted high accuracy gears, the gearbox runs even quieter and is much more durable than any belt drive systems.It’s time to say goodbye tothat broken belt anxiety.

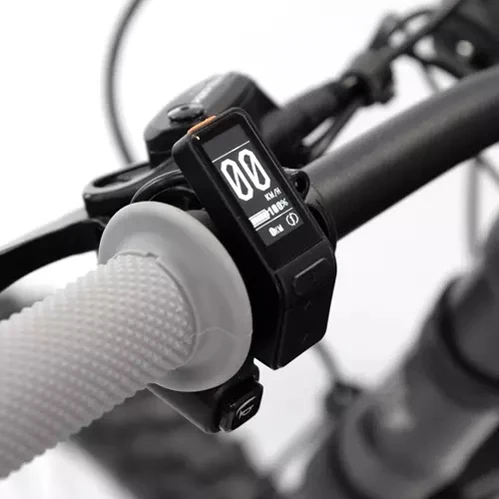

DASH
The dash features a high-contrastOLED display, this will offer riders a clear data display with low power consumption. With CAN communication, the dash is available to have datatransfer with the battery pack’s BMS and the motor controller.The display menu providesa range of information, which include top/average speed, range, battery data, riding mode, error codes, regen level and
more. The dash is also adjustableto allow different settings for different wheel size, sprocket size, motor regen levels, and change between KM/H and MPH to enhance the compatibility of the bike.
more. The dash is also adjustableto allow different settings for different wheel size, sprocket size, motor regen levels, and change between KM/H and MPH to enhance the compatibility of the bike.
THROTTLE
The Sting uses aunique gear twist structure design, the core parts of the throttle can be well protected, even if the throttle tube sufferssome impact damage, the throttle is still workable.And with theautomobile level encoder,the throttle can enable the rider to control the acceleration with ease.It’sa specializedproduct and fantastic for an electric off-road bike.
Packing & Delivery
We will buy insurance for every package
FAQ
1. who are we?
We are based in Jiangsu, China, start from 2022,sell to Central America(30.00%),Eastern Europe(30.00%),Southern Europe(20.00%),Northern Europe(20.00%),South America(10.00%),North America(10.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
electric bikes,electric bike kit,electric scooters,electric bike battery,electric bike motor
4. why should you buy from us not from other suppliers?
We focus on " high-quality products and excellent customer experience " .
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA,DDP,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,GBP,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,Credit Card,PayPal,Western Union;
Language Spoken:English,Chinese,Spanish,German,French,Italian
We are based in Jiangsu, China, start from 2022,sell to Central America(30.00%),Eastern Europe(30.00%),Southern Europe(20.00%),Northern Europe(20.00%),South America(10.00%),North America(10.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
electric bikes,electric bike kit,electric scooters,electric bike battery,electric bike motor
4. why should you buy from us not from other suppliers?
We focus on " high-quality products and excellent customer experience " .
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA,DDP,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,GBP,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,Credit Card,PayPal,Western Union;
Language Spoken:English,Chinese,Spanish,German,French,Italian
