Индукционная дрель внутреннего сгорания YN27C используется для бурения руды и дробления дробленой машины детали горной
- Категория: >>>
- Поставщик: Huamaoji Construction Machinery Trading (beijing) Co. Ltd.Huamaoji Ltd.
Сохранить в закладки 1600733733066:
Описание и отзывы
Характеристики
Product Description
Specification
Technical parameter

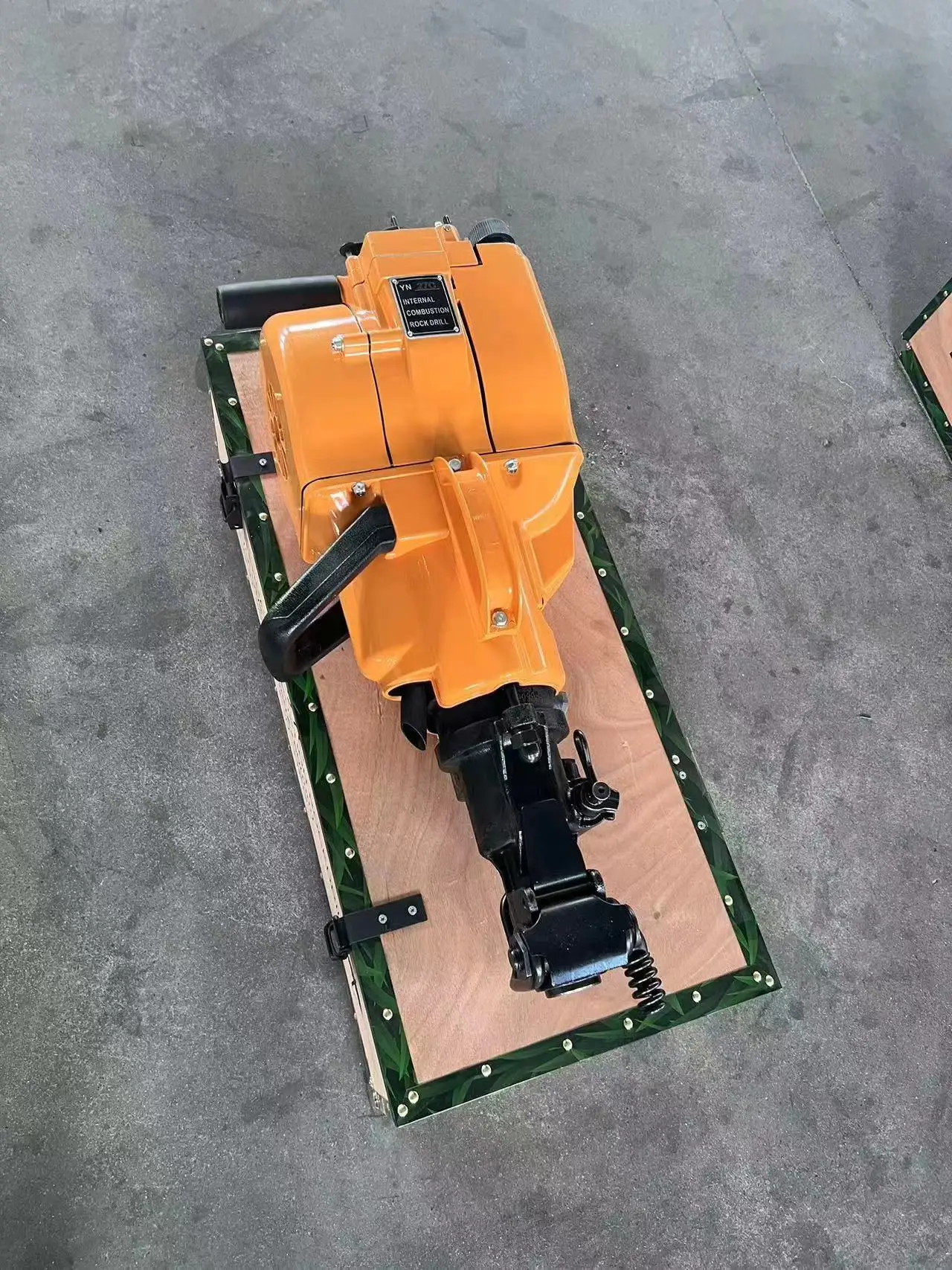

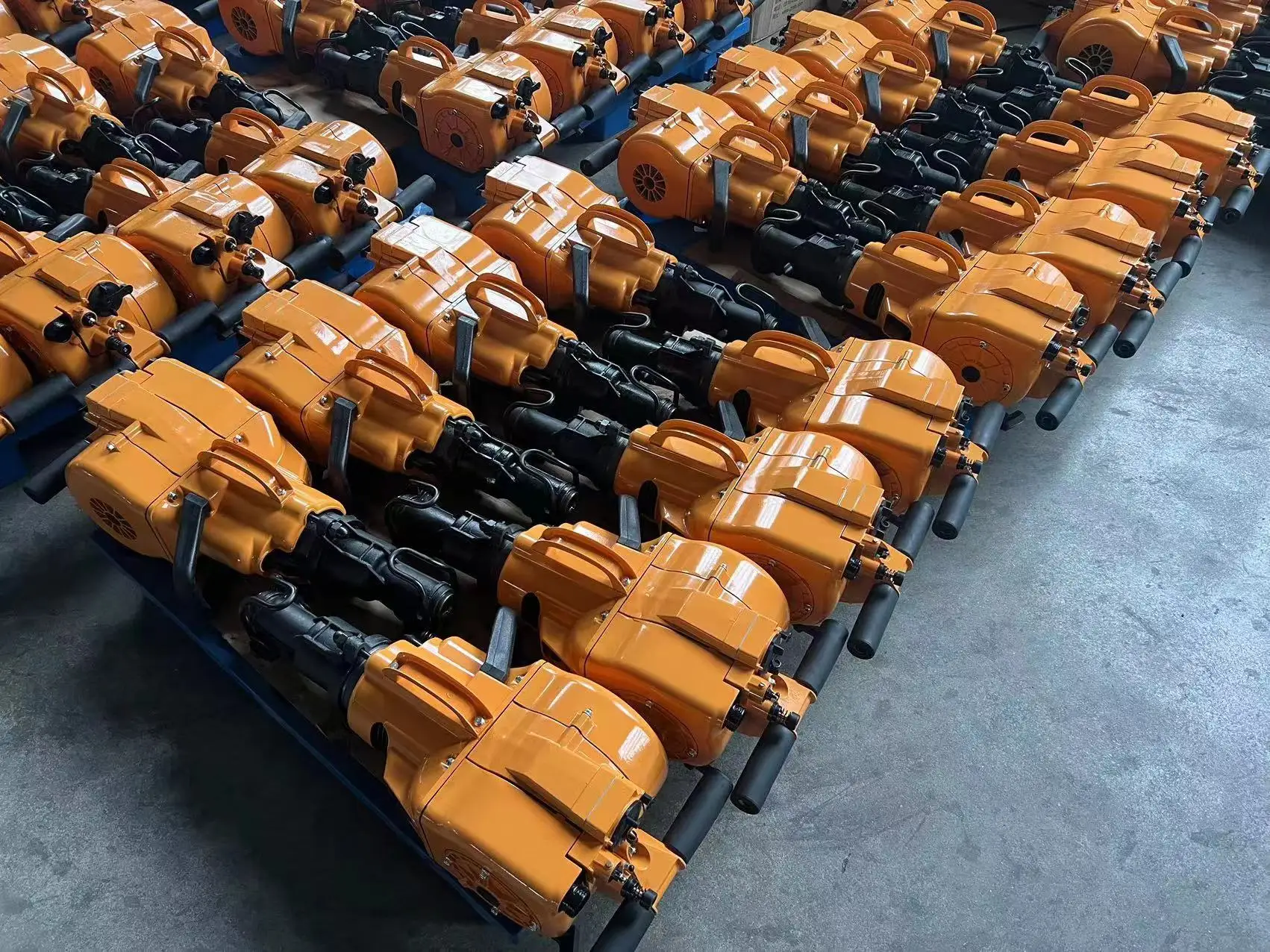

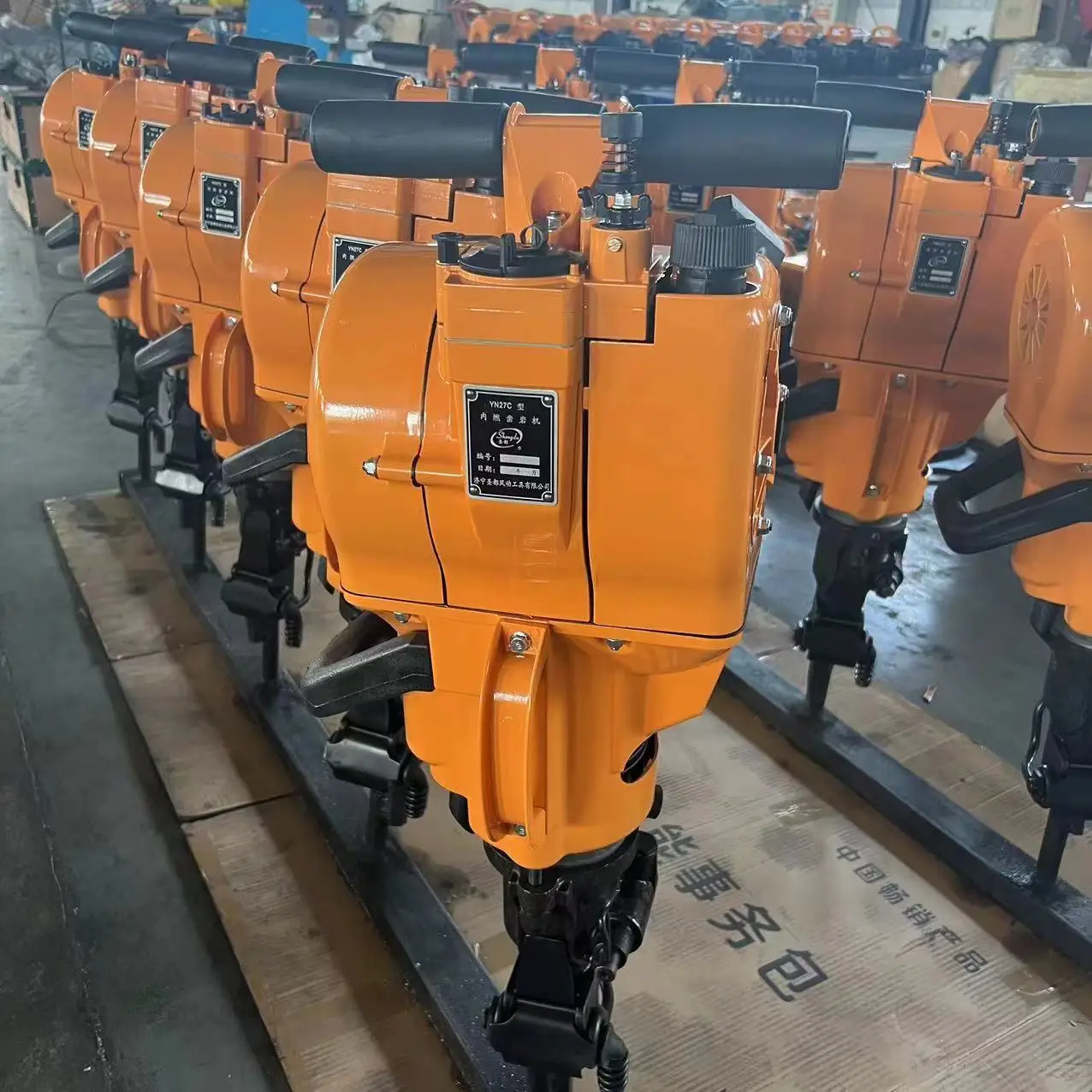

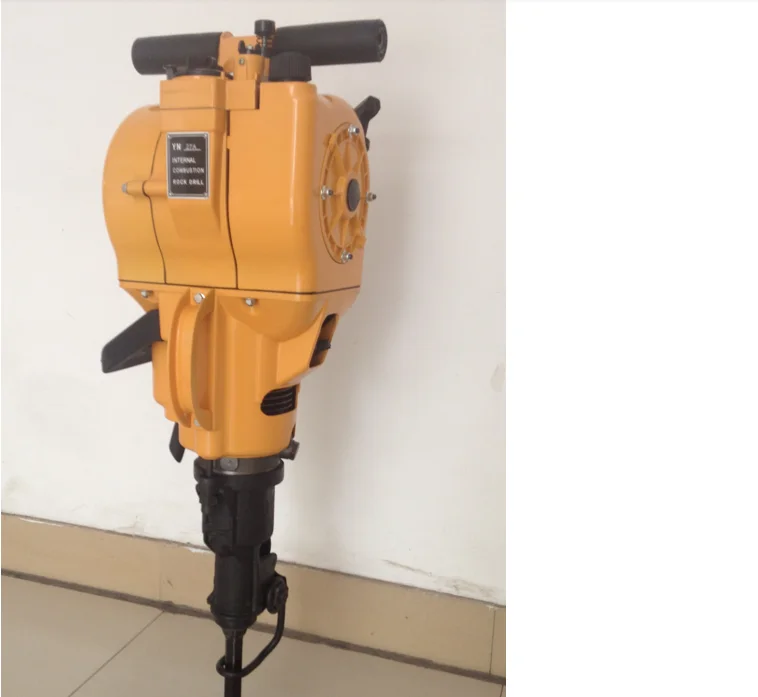

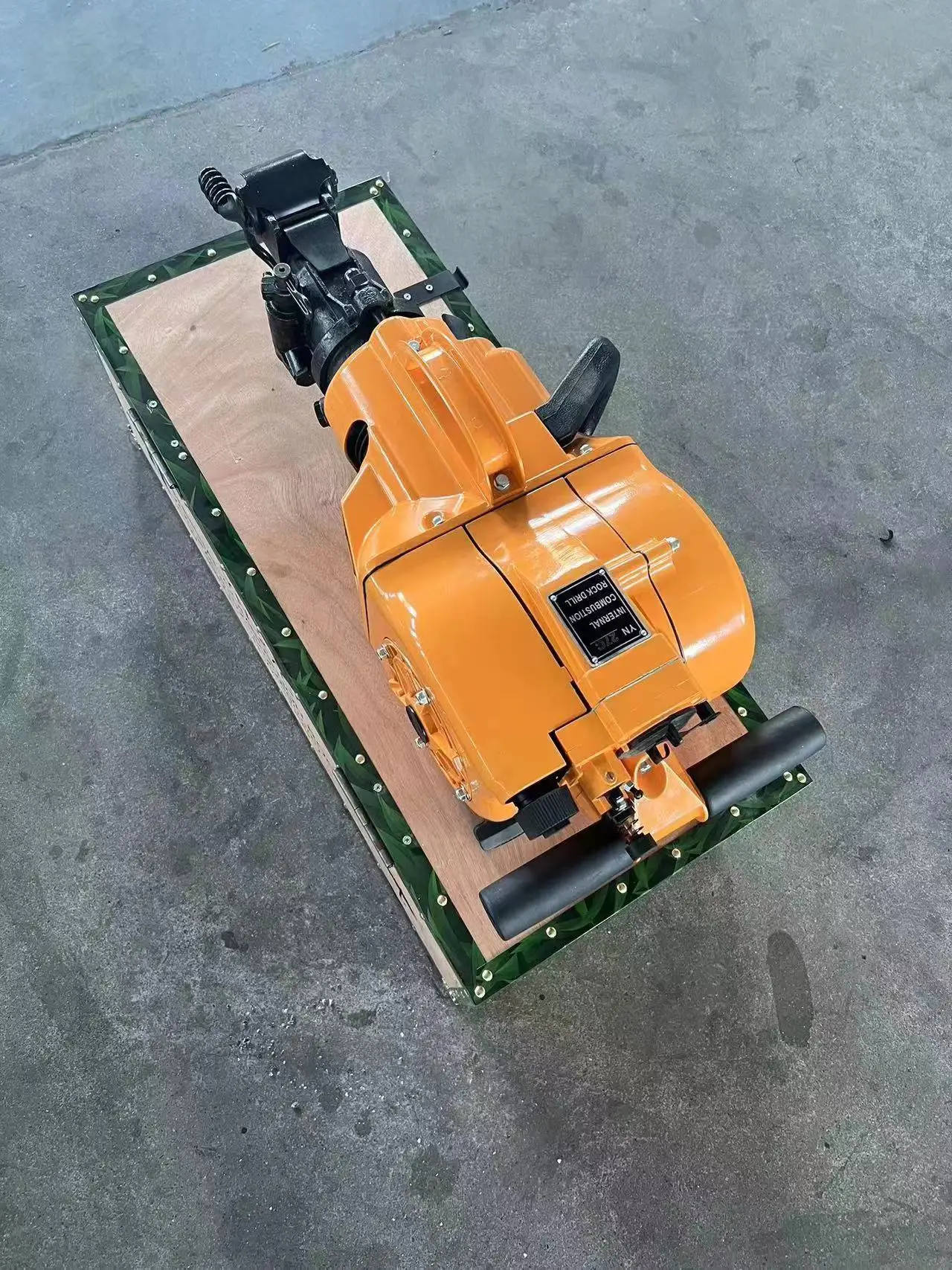

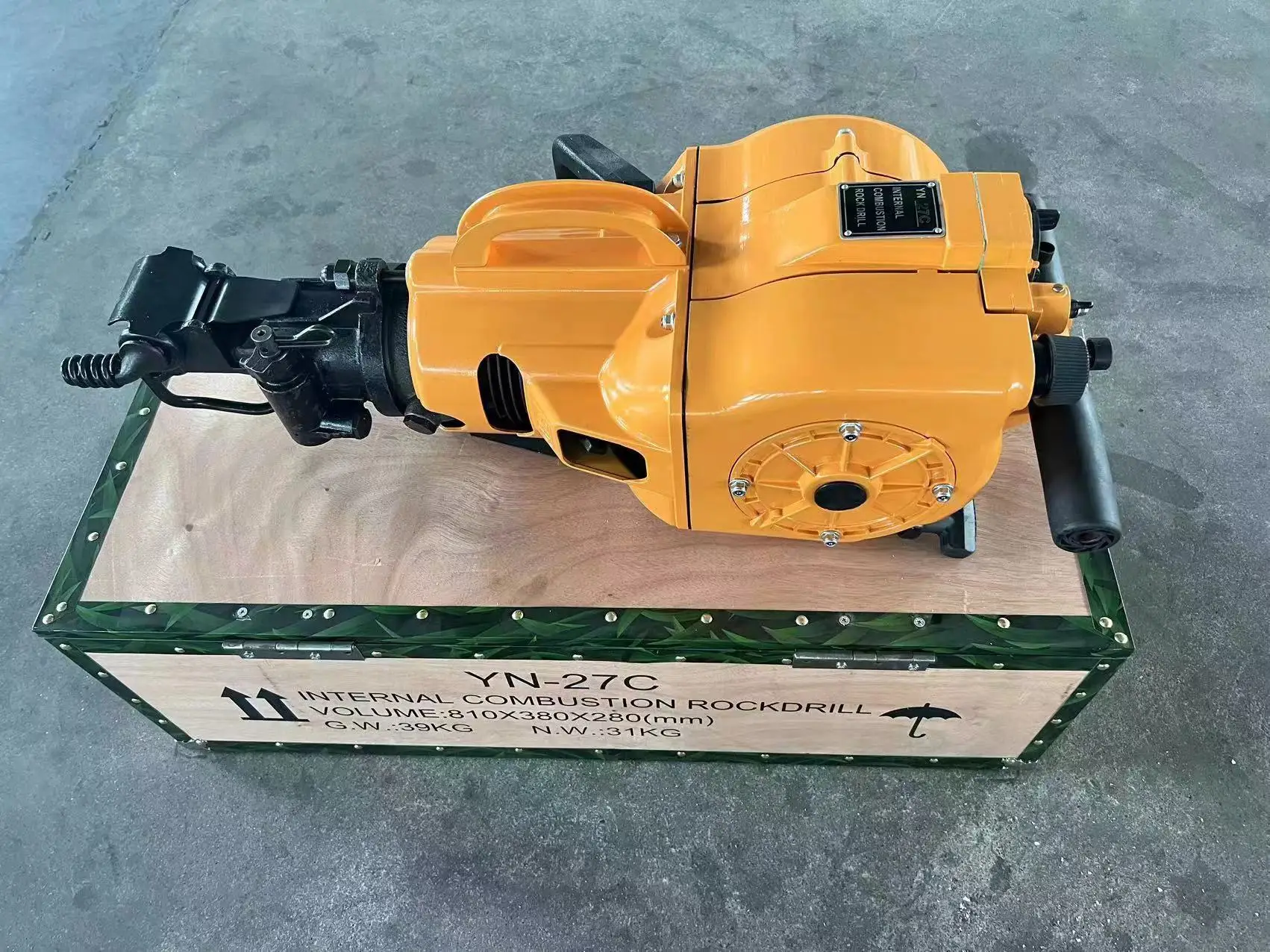

YN27C Internal combustion rock drill (YN27C used in drilling and breaker)
Advantages:
Needless to replace the internals of the engine head,just handle the handle to operate it.
Easy to operate.More time-saving and effortless.Drilling faster and more efficient.
Have reached the Tip-top level of the same field now,and allow to be replaced with the same kind of the domestic products.
Applications:
Available for drilling,splitting breaking, ramming, shovelling. And widely used in mining,road-contruction, quarrying and national defense construction,etc.
Easy to operate.More time-saving and effortless.Drilling faster and more efficient.
Have reached the Tip-top level of the same field now,and allow to be replaced with the same kind of the domestic products.
Applications:
Available for drilling,splitting breaking, ramming, shovelling. And widely used in mining,road-contruction, quarrying and national defense construction,etc.
TECHNICAL SPECIFICATIONS
1.Weight of the main machine: 27kg
2.Overall dimension: 746×315× 229mm
3.Type of engine:single cylinder,air cooled two strokes
4.Cylinder Diameter×Stroke of piston:5 8 × 70mm
5. Rotating speed of engine: ≥2450r/min
6.Displacement of engine plston: 185cm3
7.Type of carburetor: hand needle valve,no floating type
8.Ignition system: Controllable silicon contactless system
9. Drilling speed:(mean value of five holes) ≥ 250mm /min
10. Max. drilling depth: ≥ 6m
11.Fuel consumption: 0.12 L/m
12.Tank capacity:≥ 1.14L
13. Mixing ratio of gasoline and lubrication oil (in volumes):8:1
14. End of drill rod dimensions: hexagonal2 2 × 108mm
15. Rotating speed of drill rod:≥200r/min
16. Clearance of Spark plug :1.5mm
1.Weight of the main machine: 27kg
2.Overall dimension: 746×315× 229mm
3.Type of engine:single cylinder,air cooled two strokes
4.Cylinder Diameter×Stroke of piston:5 8 × 70mm
5. Rotating speed of engine: ≥2450r/min
6.Displacement of engine plston: 185cm3
7.Type of carburetor: hand needle valve,no floating type
8.Ignition system: Controllable silicon contactless system
9. Drilling speed:(mean value of five holes) ≥ 250mm /min
10. Max. drilling depth: ≥ 6m
11.Fuel consumption: 0.12 L/m
12.Tank capacity:≥ 1.14L
13. Mixing ratio of gasoline and lubrication oil (in volumes):8:1
14. End of drill rod dimensions: hexagonal2 2 × 108mm
15. Rotating speed of drill rod:≥200r/min
16. Clearance of Spark plug :1.5mm
Company Profile

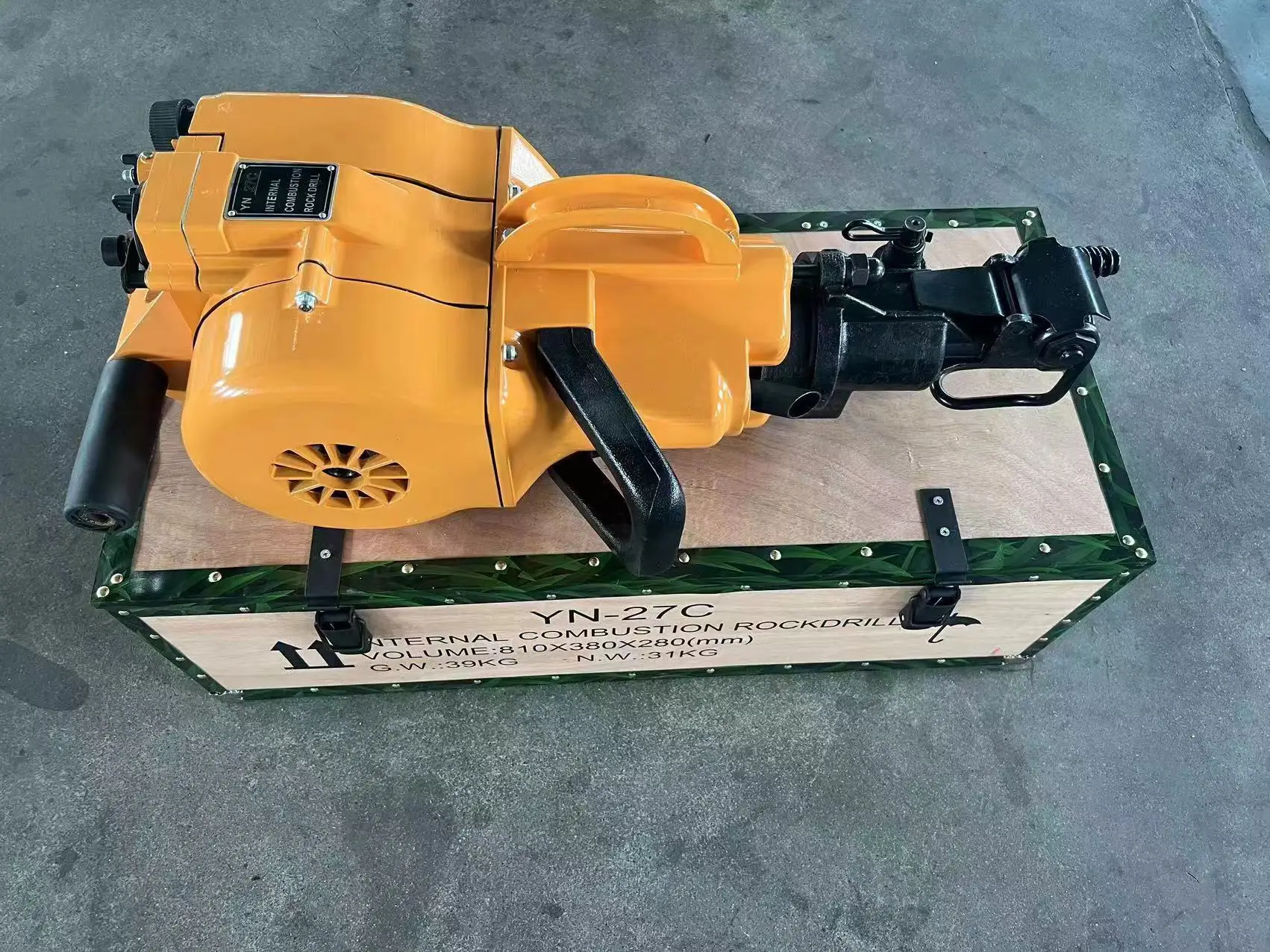

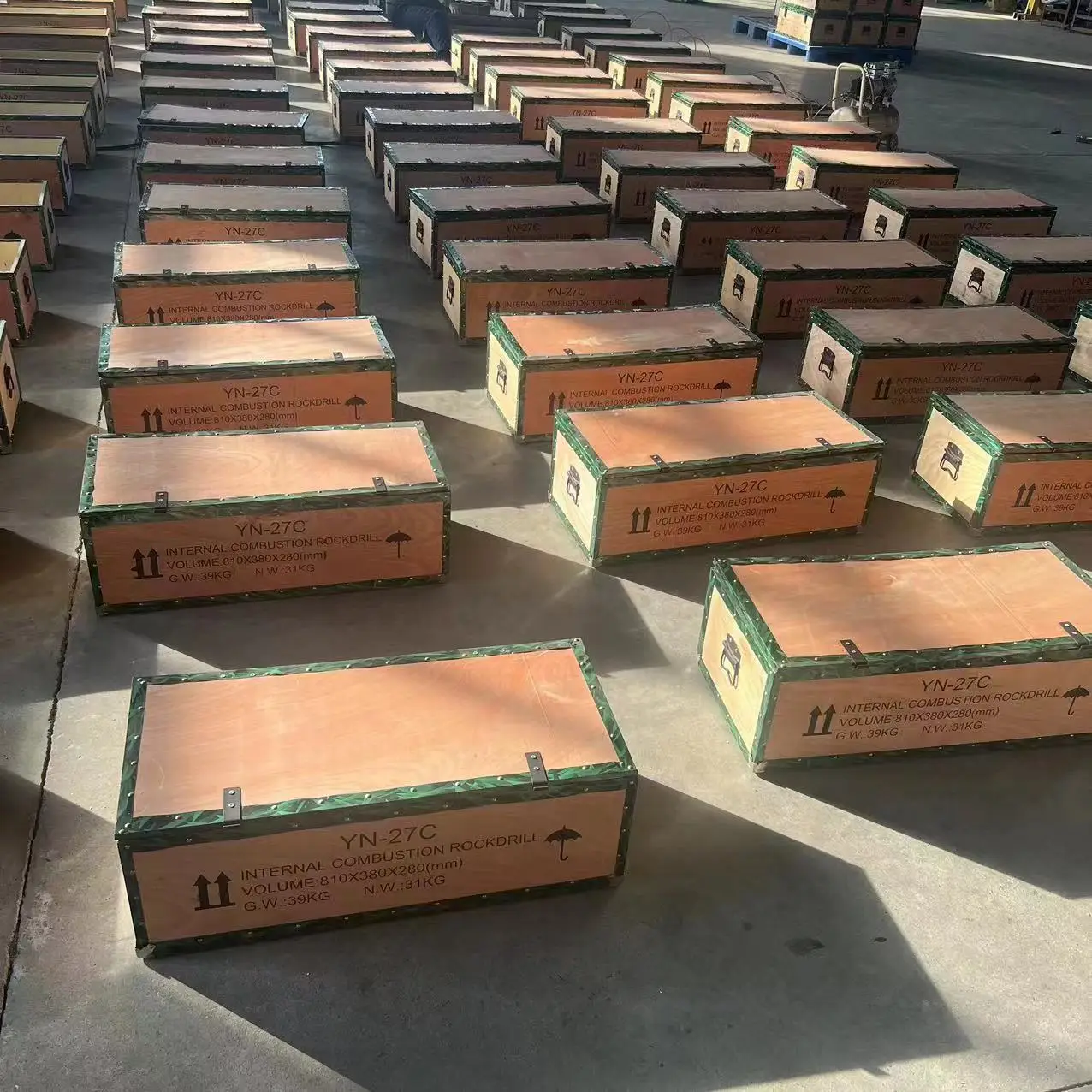

Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
FAQ
1. who are we?
We are based in Beijing, China, start from 2009,sell to Africa(30.00%),Eastern Asia(20.00%),Domestic Market(10.00%),Southeast Asia(7.00%),Oceania(6.00%),South America(5.00%),Mid East(5.00%),South Asia(5.00%),Eastern Europe(2.00%),North America(2.00%),Southern Europe(2.00%),Northern Europe(2.00%),Central America(2.00%),Western Europe(2.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
shovel,Machete,Rake,Snow shovel,Pick
4. why should you buy from us not from other suppliers?
We focus on production of aluminum steel shovel,aluminium shovel, steel fork, steel pick, rake,snow shovel, and hardware tools, more than 580 varieties, there are more than 20 years of experience in design research and development, advanced production equi
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,Express Delivery,DAF；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Russian
We are based in Beijing, China, start from 2009,sell to Africa(30.00%),Eastern Asia(20.00%),Domestic Market(10.00%),Southeast Asia(7.00%),Oceania(6.00%),South America(5.00%),Mid East(5.00%),South Asia(5.00%),Eastern Europe(2.00%),North America(2.00%),Southern Europe(2.00%),Northern Europe(2.00%),Central America(2.00%),Western Europe(2.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
shovel,Machete,Rake,Snow shovel,Pick
4. why should you buy from us not from other suppliers?
We focus on production of aluminum steel shovel,aluminium shovel, steel fork, steel pick, rake,snow shovel, and hardware tools, more than 580 varieties, there are more than 20 years of experience in design research and development, advanced production equi
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,Express Delivery,DAF；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Russian
Похожие товары

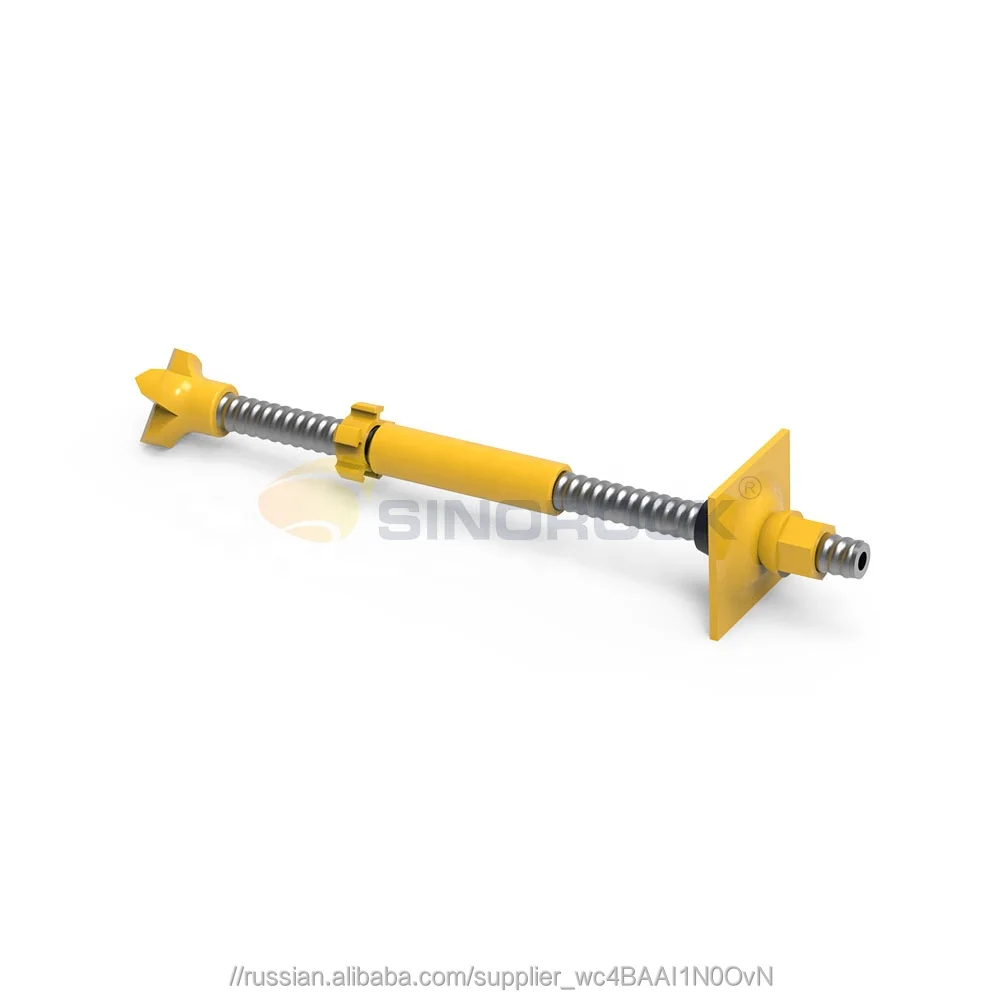

SINOROCK ISO высокое качество 40cr стали ibo самосверлильный анкерный болт для добычи туннелирования стабилизация наклона

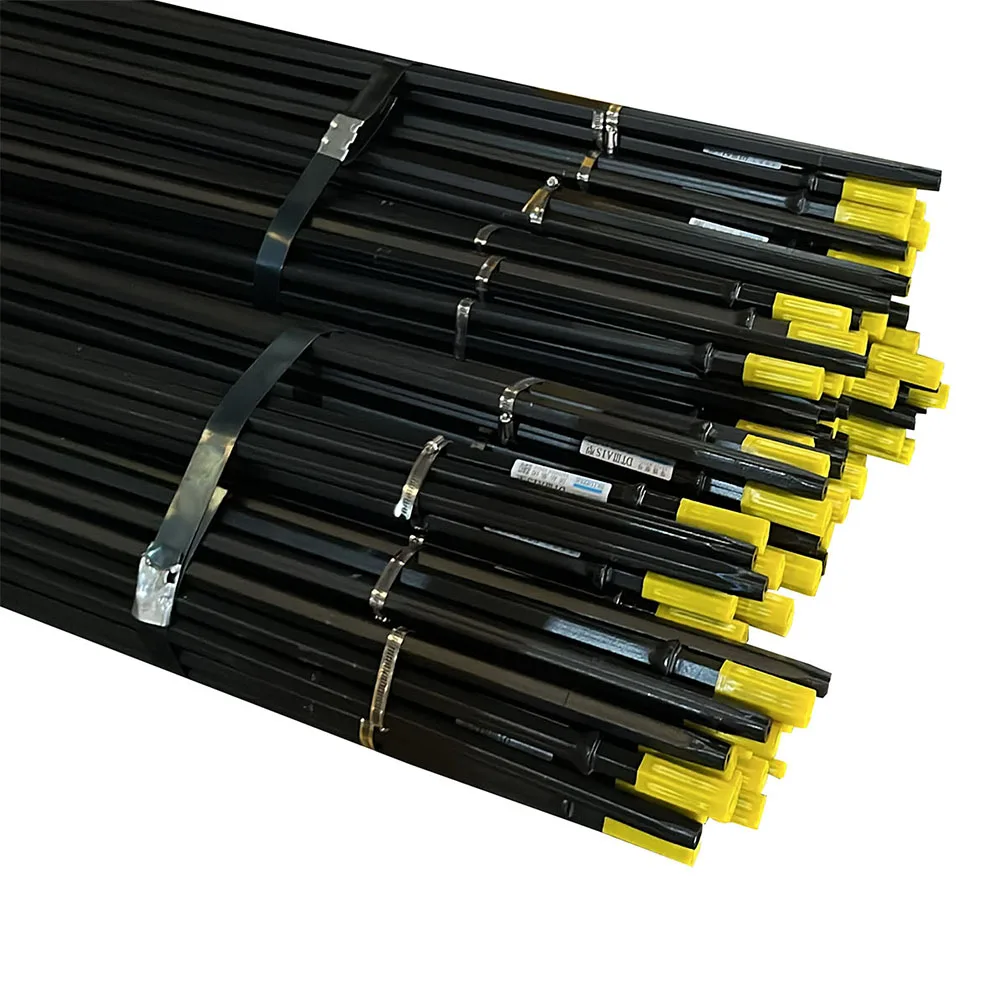

BETOPPER GRADE DTIII A 4 дюйма Длина для мраморного гранитного блока 7 градусов шести-22 коническая буровая Штанга стальная штанга карьера
7,50-8,20 $

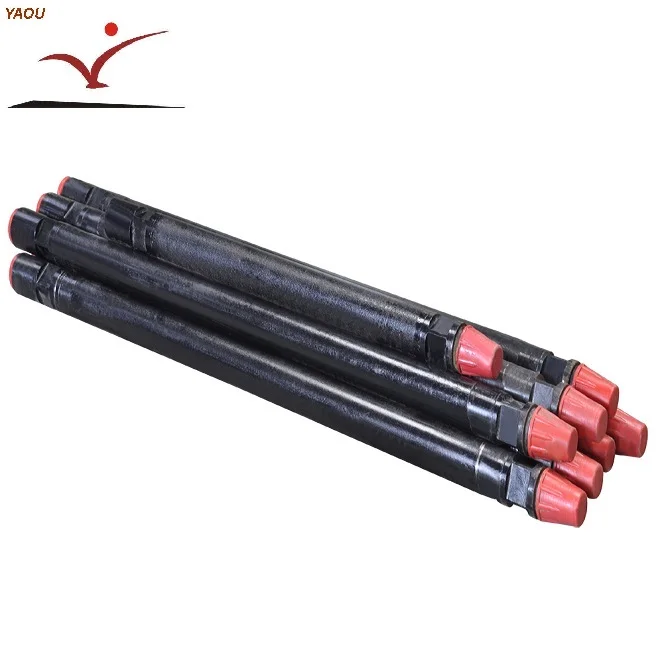

Труба для бурения скважин
1 000,00 $
Инструменты для бурения нефтяных скважин API S135 /G105 вспомогательные буровые инструменты нефтяной вышки
600,00 $

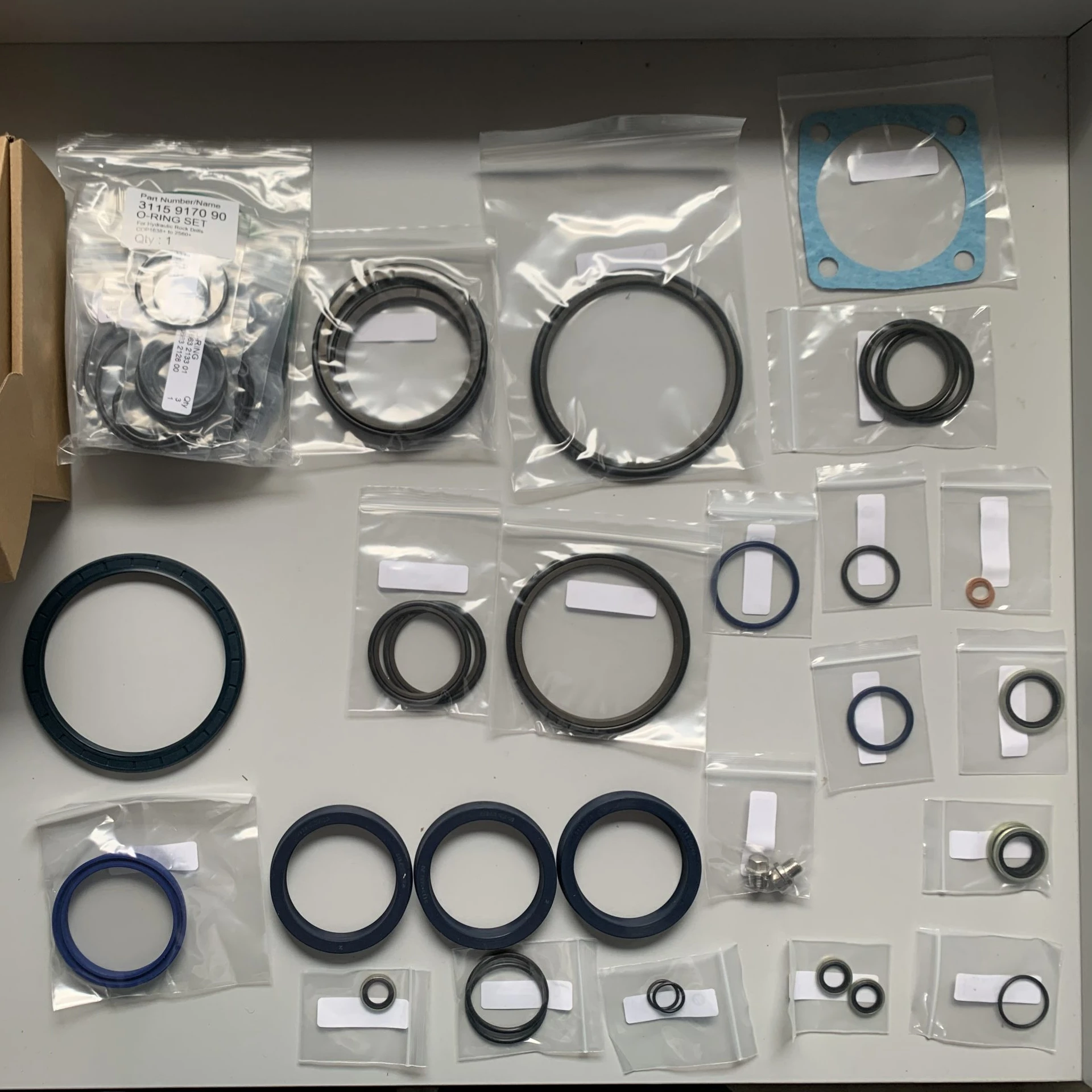

Уплотнительный пакет для капитального ремонта камнедробильной дрели/55173285/SANDVIK RD525 (полный станок)/Детали буровой установки
