Диодный насос оптический импульсный оптоволоконный лазерный источник CW 200 Вт-300 Вт
2 999,00 $
Нм 7 Вт мкм волоконно связанный лазерный диодный модуль высокой мощности
- Категория: >>>
- Поставщик: Wuhan CS Tec Co. Ltd.Wuhan Ltd.
Сохранить в закладки 1600733753923:
Описание и отзывы
Характеристики
Products Description

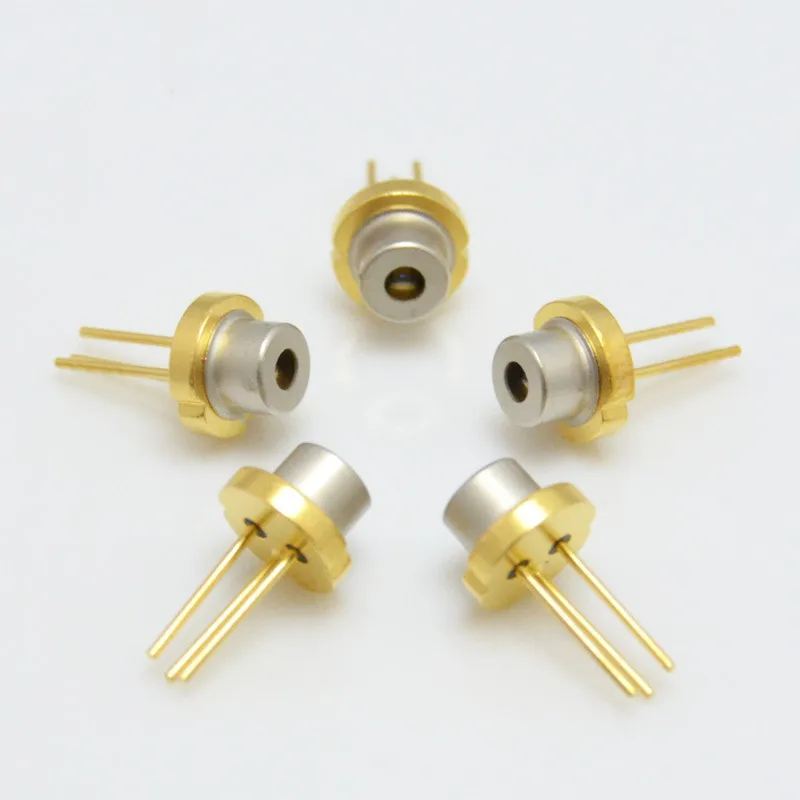

CS delivers CS-TY-450+/-10NM-07.0W-25C- 105-0.22NA-T3S diode lasers employing professional coupling technology, that enjoy multiple advantages, e.g., compact design, stable output power, high power, high
efficiency and convenient packaging. These laser diode modules can provide solutions for fiber laser applications and direct suppliers.
The performance and aging tests have been performed upon the production line to guarantee reliable, stable and long lifetime of products.
To provide customers with high-quality, high -cost performance products is the company’s goal.
efficiency and convenient packaging. These laser diode modules can provide solutions for fiber laser applications and direct suppliers.
The performance and aging tests have been performed upon the production line to guarantee reliable, stable and long lifetime of products.
To provide customers with high-quality, high -cost performance products is the company’s goal.
Key Parameters
*Based on single fire spot laser module
*High output power 7W
*High stability
*0.22NA 105μm core multimode fiber
*Parallel weld 2-Pin sealed *package
*Standard central wavelength 450nm
*RoHS compliance
Application
*Medical
*Lighting
*pump source
*Material
*Lighting
*pump source
*Material
Parameter | Min | Typ | Max | Unit | Conditions |
Output Power | - | 7 | - | W | |
Centre Wavelength | 440 | 450 | 460 | nm | |
Spectral Width (FWHM) | - | 4.0 | 5.0 | nm | |
Threshold Current | - | 0.25 | 0.3 | A | |
Operating Current | - | 2.6 | 2.5 | A | |
Operating Voltage | - | - | 15.0 | V | |
Convention Efficiency | - | 20 | - | % | |
95% Power | - | 0.18 | - | NA | |
Wavelength shift vs. Temperature | - | 0.3 | - | nm/C | |
Slop Efficiency | - | 2.5 | - | W/A | |
Storage Temperature | -30 | 25 | 70 | °C | Non-Condensing |
Operating Temperature | 15 | 25 | 55 | °C | |
Fiber Bend Radius | 37.5 | - | - | mm | |
Buffer Diameter | - | 250 | - | μm | |
Cladding Diameter | - | 125 | - | μm | |
Core Diameter | 102 | 105 | 108 | μm | |
Numeric Aperture | 0.2 | 0.22 | 0.24 | - | |
Fiber length | 0.9 | - | - | M | |
Protection Tube | 0.9 | - | 1.5 | mm | |
Fiber Connector | - | CO | - | - |
Instructions
* Avoid eyes or skin exposure to direct or scattered radiation;
* ESD protection is required for transportation, storage and operation; short-circuit protection between pins is required for transportation and storage
* Please connect pins by solder when operating current is over 6A; solder point should be close to the root of pins with a maxsoldering temperature at 260℃ and a duration less than 10 seconds;
* Drive constant current power supply by laser and avoid surge while working;
* Operate under rated current and rated power;
* Good heat dissipation isrequired;
* Operating temperature is15℃~25℃;
* Storage temperature is－30℃~＋70℃
* Please connect pins by solder when operating current is over 6A; solder point should be close to the root of pins with a maxsoldering temperature at 260℃ and a duration less than 10 seconds;
* Drive constant current power supply by laser and avoid surge while working;
* Operate under rated current and rated power;
* Good heat dissipation isrequired;
* Operating temperature is15℃~25℃;
* Storage temperature is－30℃~＋70℃

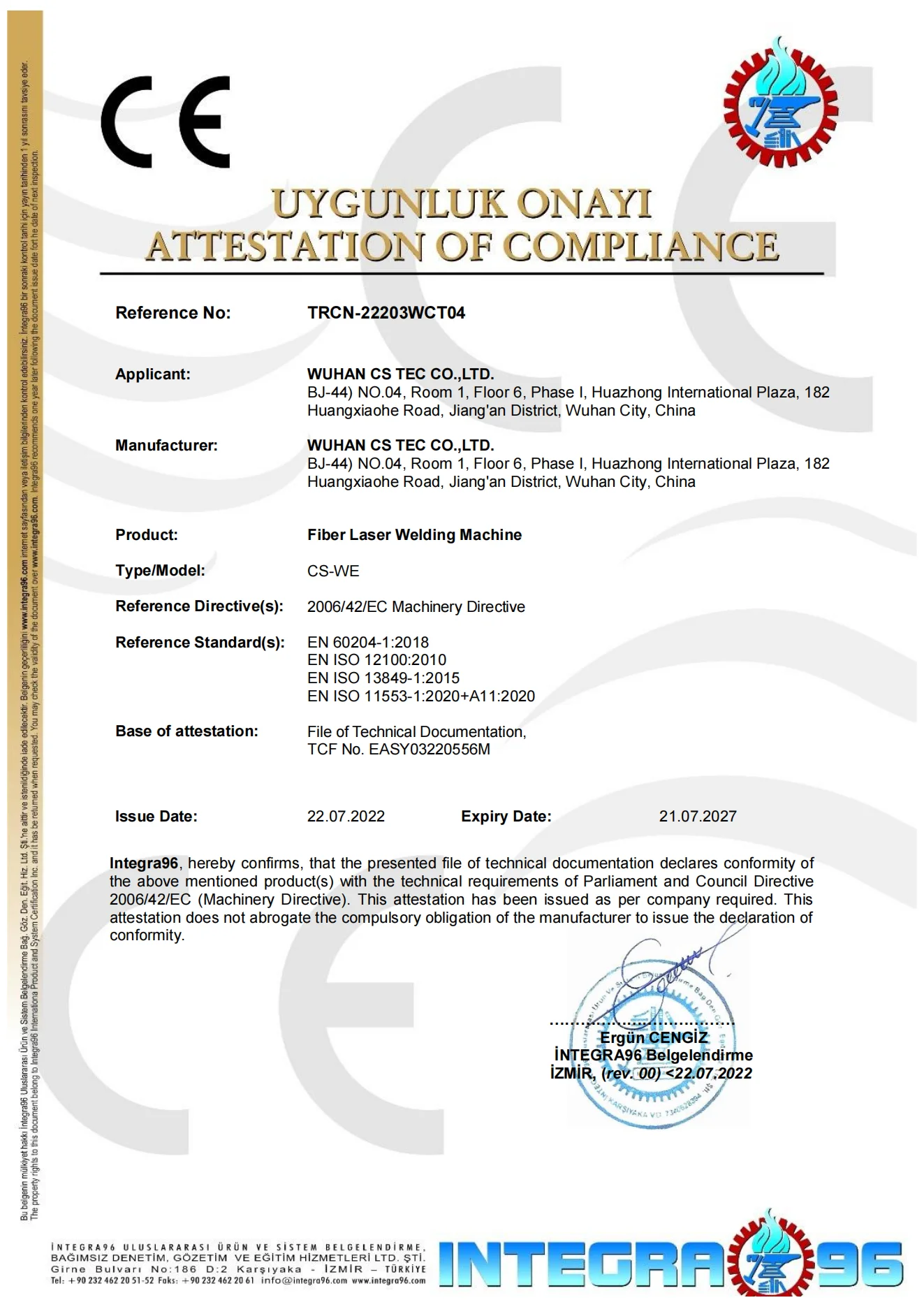

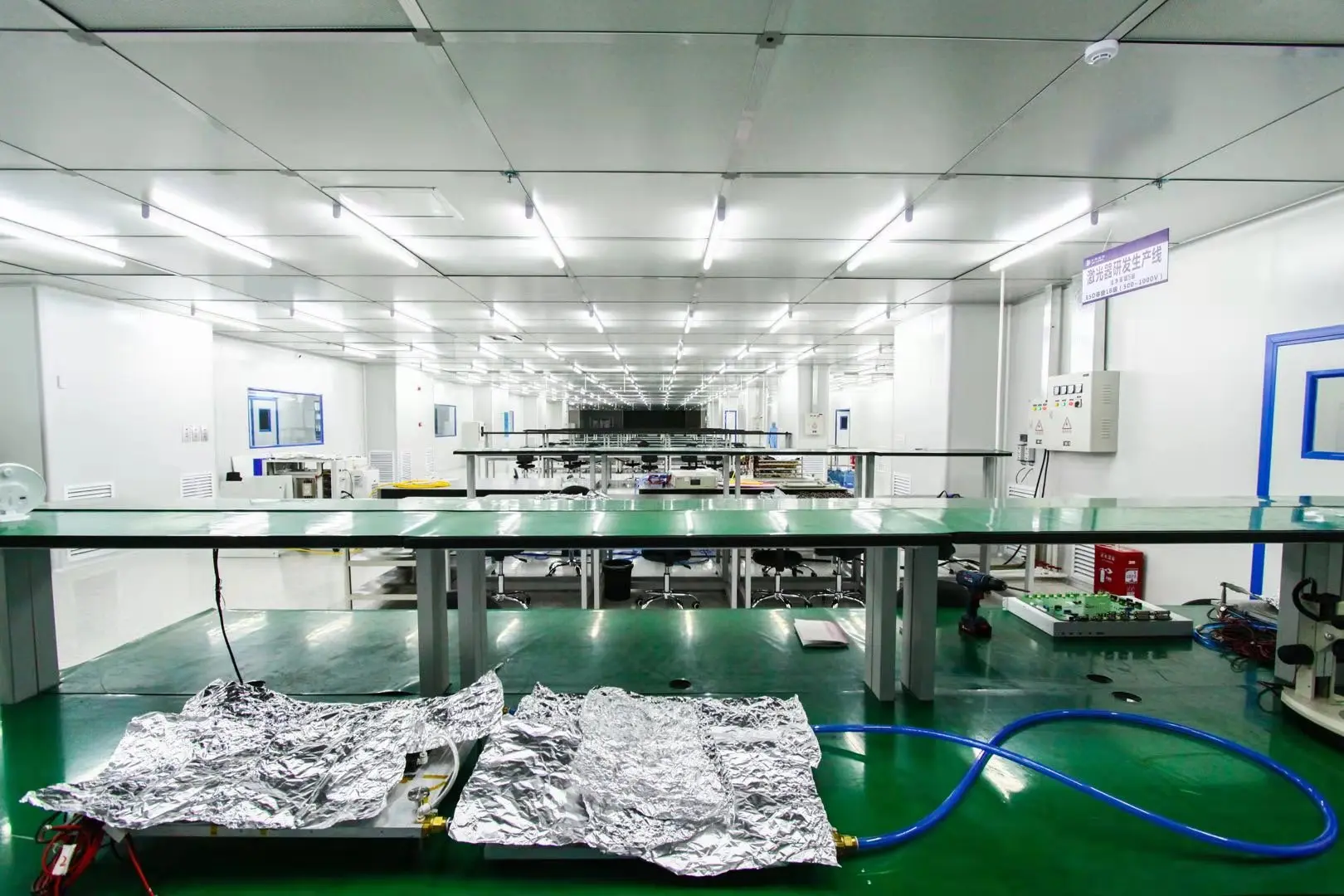

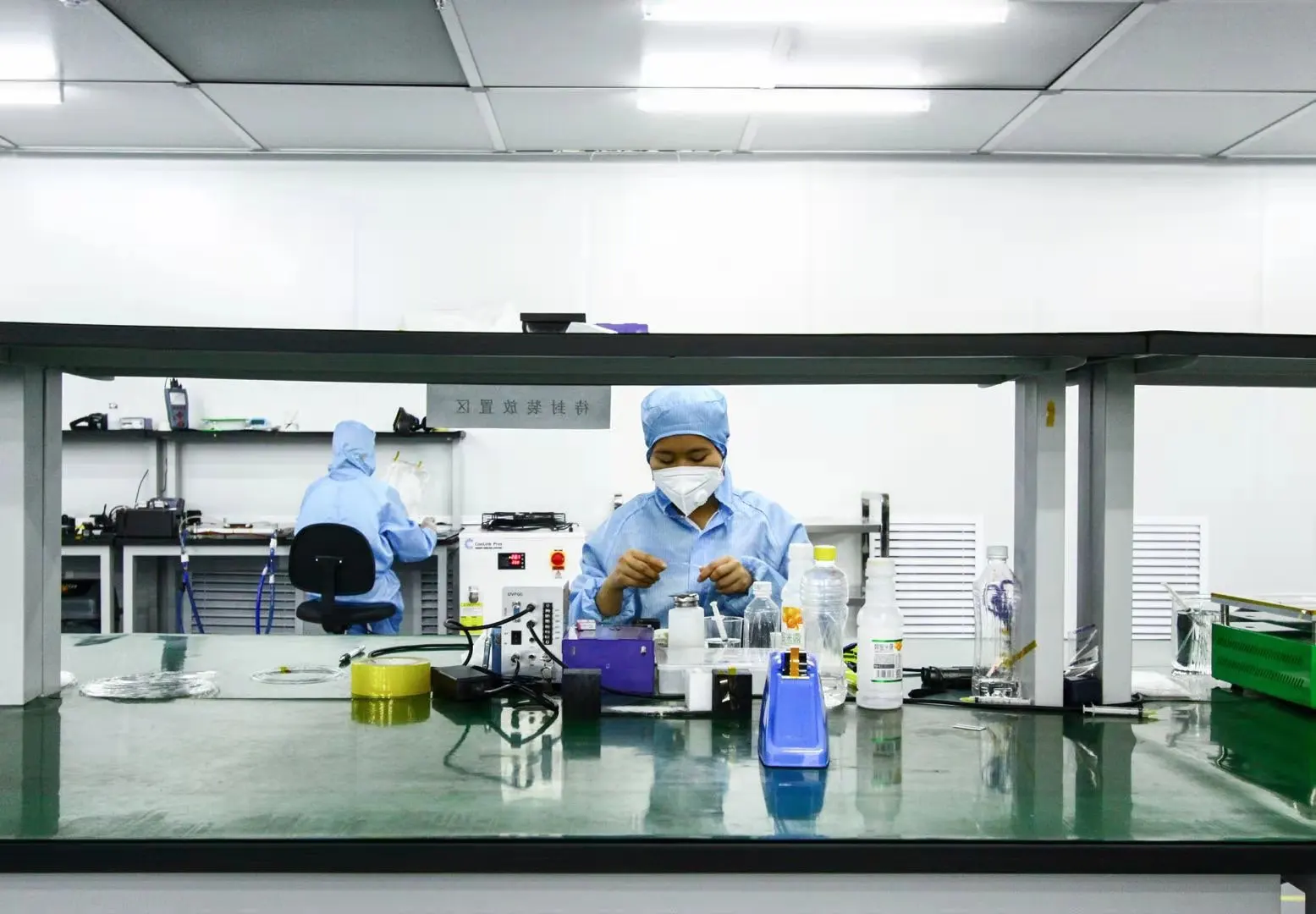

Company Profile
FAQ
Q: DO YOU PROVIDE SAMPLES ? IS IT FREE OR EXTRA ?
A: Yes, we could offer the sample for free but won’t pay the cost of freight.
Q: ARE YOU TRADING COMPANY OR MANUFACTURER ?
A: We are factory and trading company.
Q: Can I get some discount if I order more ?
A: Yes,The more you order,the more you save.
Q: How long is your delivery time?
A: When the order is confirmed, 3 working days for the small order,10~15 days for the bulk.
Q:How to choose suitable model?
A:Please provide a photo of the product you used before or tell us your needs, we will help.
Q:What's your MOQ?
A:Normally one piece. If more, we can talk about discount. You can mix it with other laser machine parts shipping together .
Q:Why choose your company?
A:We are a professional Industrial Solutions company in China. We’re more familiar with customer’s marking or engraving
applications. So we’re in a position to recommend a more suitable model and provide free professional technology.
A: Yes, we could offer the sample for free but won’t pay the cost of freight.
Q: ARE YOU TRADING COMPANY OR MANUFACTURER ?
A: We are factory and trading company.
Q: Can I get some discount if I order more ?
A: Yes,The more you order,the more you save.
Q: How long is your delivery time?
A: When the order is confirmed, 3 working days for the small order,10~15 days for the bulk.
Q:How to choose suitable model?
A:Please provide a photo of the product you used before or tell us your needs, we will help.
Q:What's your MOQ?
A:Normally one piece. If more, we can talk about discount. You can mix it with other laser machine parts shipping together .
Q:Why choose your company?
A:We are a professional Industrial Solutions company in China. We’re more familiar with customer’s marking or engraving
applications. So we’re in a position to recommend a more suitable model and provide free professional technology.
Похожие товары
JPT MOPA волоконно-лазерный источник для волоконно-лазерной резки
ND:YVO4/YB:LIF/Er:YAG/YB:KGW/LiNbO3 кристаллическое покрытие или непокрытый лазерный хрустальный стержень
200,00-500,00 $
Блок питания лазерной машины
replacement handpiece stacks 500W / laser stack 808/755/1064
3-5 в 10 мВт 830нм 850нм точечный диодный модуль ИК-лазер инфракрасный
10,50-12,50 $

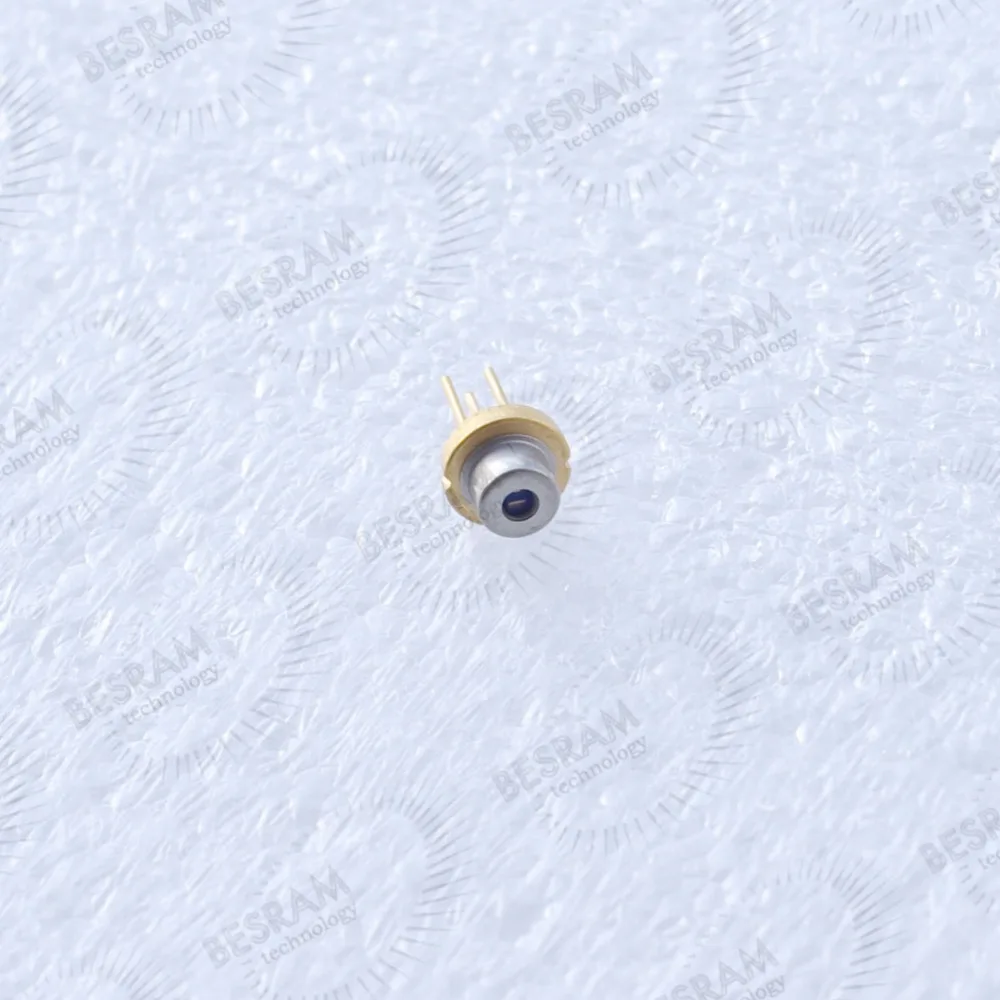

50mW 808nm Infrared IR Laser Diode with PD
