Специализируется на производстве теплового насоса из нержавеющей стали интегрированный резервуар для воды обернутый медной трубы
31 960,44 ₽
Сплит тепловые насосы R32 фотогальванический Солнечный водонагреватель с бесплатным тепловым насосом запчасти для водонагревателя
- Категория: >>>
- Поставщик: Shenzhen Power World New Energy Technology Co. Ltd.
Сохранить в закладки 1600734784711:
Описание и отзывы
Характеристики
Products Description

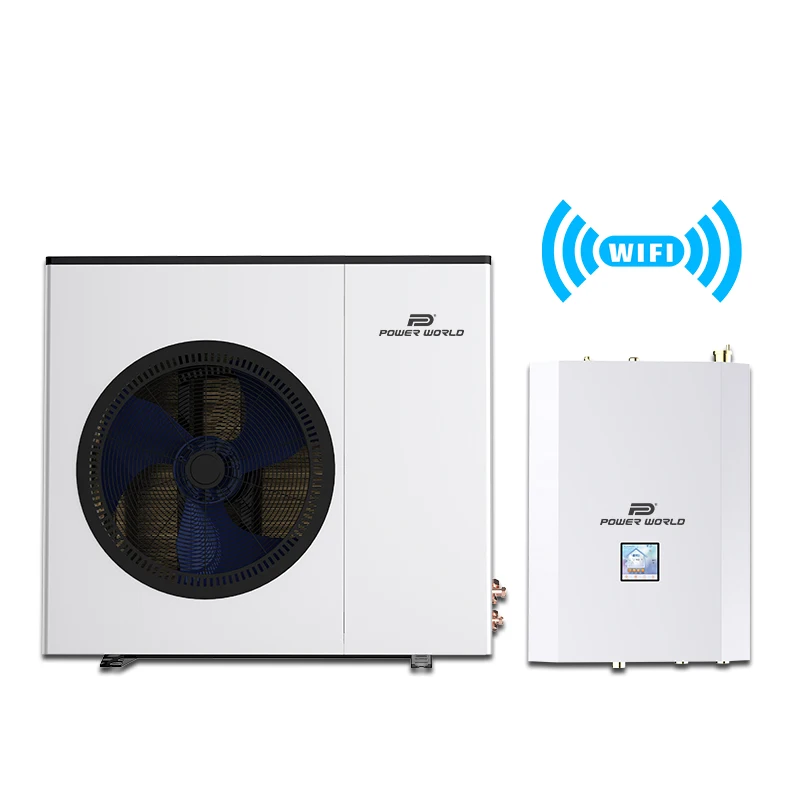

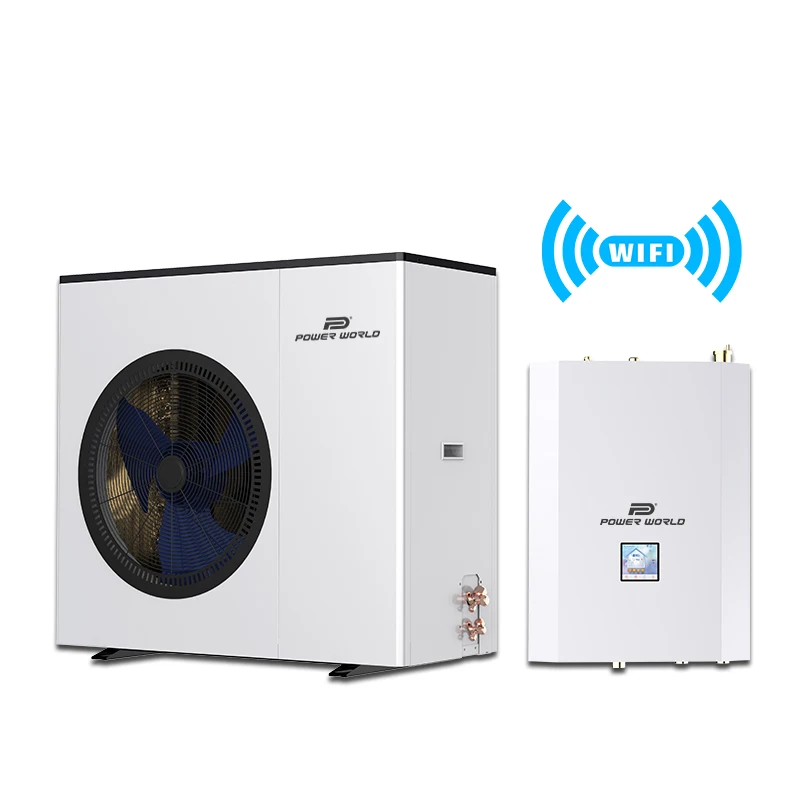

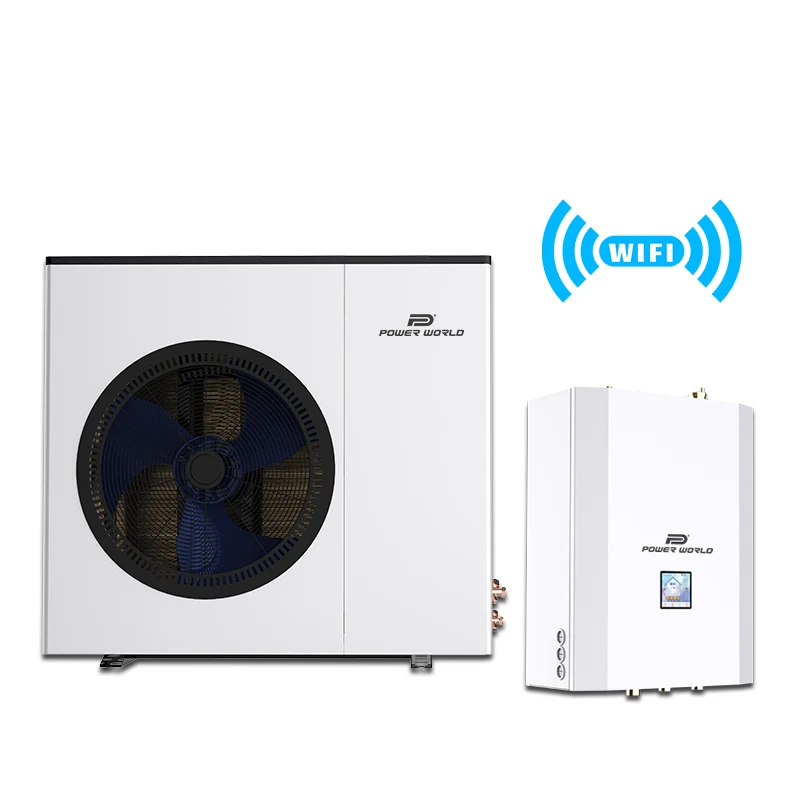

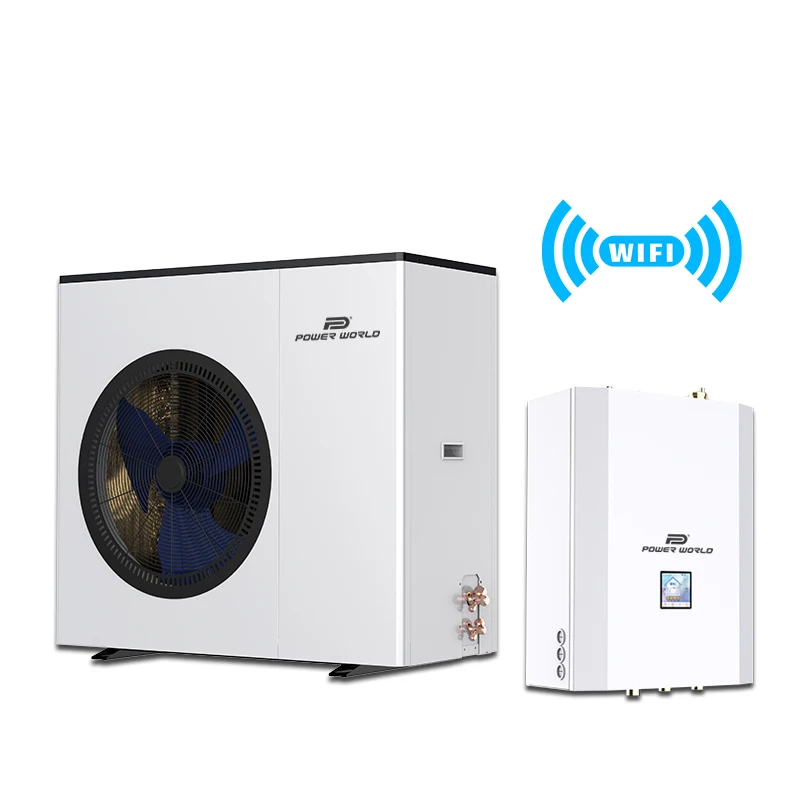

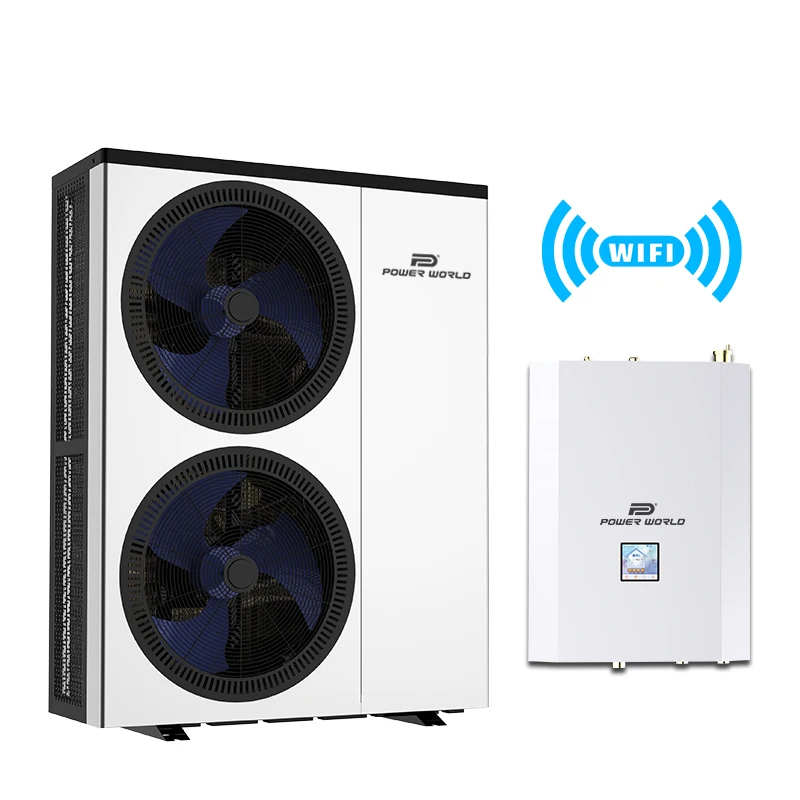

Split EVI DC Inverter Heat Pump For Heating Cooling & Hot Water
Split design with indoor unit and outdoor unit or monoblock design, easy for installation.Screw-less Appearance,Modern Compact structure,Independent IDU & Flexible Installation make the ECO HOME Split EVI DC Inverter heat pump an ideal proposition for Owners of Houses.
1.EVI compressor special designed for high water temperature.
2.Water exchanger equipped with high efficiency tube in shell heat exchanger
3.Intelligent controller and adjustment by quick mind microprocessor.
4.Split design with indoor unit and outdoor unit or monoblock design, easy for installation.
5.Automatic defrosting function included (With reverse valve inside).
6.Can be used for floor heating, fan coils, water heaters and also modern radiators.
7.With perfect system for defrosting which can let the units work under ambient temperature of -20 Centigrade 8.R410a refrigerant, environmentally friendly – Green energy, no CO2 emissions Certificate:CE, CB, RoHS, Conform to EN14825,EN14511 test standard , ISO9001, ISO14001.
OPTIONAL:Galvanized metal cabinet or stainless steel cabinet
Product Features
The ECO HOME SERIES Split EVI DC Inverter Units is designed specially for European Market where there Is a demand for Space heating/Cooling + Hot water,This unit can realize space heating & Sanitary hot water supply through terminal units, like the Fan coil unit, Floor coil,& Radiator, It is widely applicable to small & medium-sized apartment, large-sized villa etc.
ADVANTAGES
*Full DC Inverter Technology
Adopting the most advanced low-temperature Enhanced Vapors Injection compressor technology. Split EVI heat pump delivers higher heating capacity at low evaporation temperature thereby better responding to heating requirements than normal air source heat pump, it also results in less supplementary heating to cover the full heating demand on the coldest days. It has been further optimized to enable heat pumps to efficiently produce water temperature up to 60 DC during cold winter time.
Adopting the most advanced low-temperature Enhanced Vapors Injection compressor technology. Split EVI heat pump delivers higher heating capacity at low evaporation temperature thereby better responding to heating requirements than normal air source heat pump, it also results in less supplementary heating to cover the full heating demand on the coldest days. It has been further optimized to enable heat pumps to efficiently produce water temperature up to 60 DC during cold winter time.
The whole series of products are strictly comply with EN14511 standard,EUROVENT Energy efficiency Class A ans SCOP Class A++ (35C),SCOP CLASS A++(55C) With EN14825 standard
*Smart Control
The intelligent controller is adopted to realize the link age control between the heat pump unit and the terminal application end. With the Cascade function, multiple heat pumps can be controlled at once for greater operating efficiency. The WIFI APP enables users to operate their units through a smart phone wherever and whenever they are.
*Superior Heating Ability
Thanks for Power World unique Power World Split EVI DC Inverter heat pump which can control well the frequency and EEV according to the ambient temperature and water temperature and the refrigerant volume of major loop of refrigerant system,even when ambient temperature is under-15°C,heat pump can still maintain same rated good heating capacity output without any auxiliary electric heater.
50%Speed up Heating Time
Once the heat pump is on, Power World Power World Split EVI DC Inverter heat pump can quickly pick and choose the best compressor and fan motor operating frequencies and the heat pump EEV opening automatically according to the heating or cooling demand by smart inverter control technology for the first time heating,inverter fast heating can save 50%heating time than traditional heat pump.
*Anti-freezing Protection
Consisting of an indoor unit that blows air over evaporator coils and an outdoor unit that powers the system, split heat pumps
have many advantages to offer homeowners. For example, the split model design can better avoid freezing problems. The system will
implement automatic anti-freezing protection by detecting system water temperature.
have many advantages to offer homeowners. For example, the split model design can better avoid freezing problems. The system will
implement automatic anti-freezing protection by detecting system water temperature.
The heat pump utilizes smart defrosting by controlling the frequency and EEV technology to enter the best defrosting status quickly,reduce the defrosting times and extend the effective heating time,fast recovery of water-supply temperature,improve heat pump heating efficiency and keep comfortable temperature.
Outdoor unit | ||||||||||||||
Product model | PW030-DKZLRS-C/S | PW040-DKZLRS-C/S | PW050-DKZLRS-C/S | PW040-DKZLRS-C | PW050-DKZLRS-C | PW060-DKZLRS-C | ||||||||
Heating | Heating Capacity Range (kW) | 4.2~8.0 | 6.5~12.6 | 8.6~18.0 | 6.5~12.6 | 8.6~18.0 | 10.5~22 | |||||||
Heating input Range (kW) | 0.91~1.89 | 1.41~2.99 | 1.85~4.24 | 1.41~2.99 | 1.85~4.24 | 2.27~5.2 | ||||||||
COP Range | 4.23~4.64 | 4.21~4.62 | 4.25~4.65 | 4.21~4.62 | 4.25~4.65 | 4.23~4.63 | ||||||||
Cooling | Cooling capacity Range (kW) | 2.9~5.8 | 4.2~8.2 | 6.2~12.3 | 4.2~8.2 | 6.2~12.3 | 7.2~14.2 | |||||||
Cooling input power(kW) | 0.89~2.33 | 1.30~3.33 | 1.86~4.80 | 1.30~3.33 | 1.86~4.80 | 2.17~5.55 | ||||||||
EER Range | 2.49~3.27 | 2.46~3.23 | 2.56~3.33 | 2.46~3.23 | 2.56~3.33 | 2.56~3.32 | ||||||||
DHW | Heating Capacity Range (kW) | 3.6~6.8 | 5.5~10.5 | 7.3~14.6 | 5.5~10.5 | 7.3~14.6 | 8.8~17.5 | |||||||
Heating input Range (kW) | 0.93~2.19 | 1.42~3.42 | 1.85~4.66 | 1.42~3.42 | 1.85~4.66 | 2.24~5.61 | ||||||||
COP Range | 3.10~3.89 | 3.07~3.86 | 3.13~3.95 | 3.07~3.86 | 3.13~3.95 | 3.12~3.93 | ||||||||
Refrigerant | R32 | |||||||||||||
Power supply | 230V/1Ph/50-60Hz | 380V/3Ph/50-60Hz | ||||||||||||
Working area | -30～43℃ | |||||||||||||
IP Grade (Level of protection) | IPX4 | IPX4 | IPX4 | IPX4 | IPX4 | IPX4 | ||||||||
Anti-electric shock Rate | I | I | I | I | I | I | ||||||||
Noise (dB(A)) | ≤53 | ≤55 | ≤57 | ≤55 | ≤57 | ≤58 | ||||||||
Net weight（kg） | 85 | 95 | 135 | 95 | 135 | 140 | ||||||||
Body size(W*D*H) (mm) | 970×475×820 | 1030×475×970 | 1000×480×1380 | 1030×475×970 | 1000×480×1380 | 1000×480×1380 | ||||||||
ErP Level (35°C) | A+++ | A+++ | A+++ | A+++ | A+++ | A+++ | ||||||||
ErP Level (55°C) | A++ | A++ | A++ | A++ | A++ | A++ | ||||||||
Compressor Brand | Panasonic | |||||||||||||
Four-way valve | Sanhua | |||||||||||||
Expansion valve | Sanhua | |||||||||||||
Operating water temperature (℃) DHW | 20~55℃ | |||||||||||||
Operating water temperature (℃) heating | 20~50℃ | |||||||||||||
Operating water temperature (℃) cooling | 7~35℃ | |||||||||||||
Remark: Heating working condition: Inlet water temperature 30℃, Outlet water temperature 35℃, Dry bulb temperature 7℃, Wet bulb temperature6℃. Cooling working condition:Inlet water temperature 12℃, Outlet water temperature 7℃, Dry bulb temperature 35℃, Wet bulb temperature 24℃. DHW working condition: Inlet water temperature 15℃, Outlet water temperature 55℃, Dry bulb temperature 7℃, Wet bulb temperature 6℃. | ||||||||||||||
Indoor unit | ||||||||
Product model | PW040-DKZLRS-C | PW060-DKZLRS-C | PW040-DKZLRS-C | PW060-DKZLRS-C | ||||
Power supply | 230V/1Ph/50-60Hz | |||||||
Water pump type | SHIMGE / Adjustable DC inverter | |||||||
Max water head(m) | 9 | 12 | 9 | 12 | ||||
Auxiliary electric heater(kW) | 3.00 | 3 | 3.00 | 3 | ||||
Expansion vessel(L) | 2 | 5 | 8 | 8 | ||||
Safety valve(MPa) | 0.3 | 0.3 | 0.3 | 0.3 | ||||
3-Way Valve | / | / | ACOL/DN25 | |||||
2-Way Valve | Honywell/DN25 | / | / | |||||
Diameter of pipe (mm) | DN25 | |||||||
Water pressure drop （kPa） | 25 | 35 | 25 | 35 | ||||
Body size(W*D*H) (mm) | 700×520×272 | 740×520×312 | ||||||
Net weight（kg） | 35 | 40 | 38 | 42 | ||||
Applicable Models | PW030-DKZLRS-C/S | PW050-DKZLRS-C/S | PW030-DKZLRS-C/S | PW050-DKZLRS-C/S | ||||
PW040-DKZLRS-C/S | PW050-DKZLRS-C | PW040-DKZLRS-C/S | PW050-DKZLRS-C | |||||
PW040-DKZLRS-C | PW060-DKZLRS-C | PW040-DKZLRS-C | PW060-DKZLRS-C | |||||
Company Profile
Power World is a professional heat pump manufacturer since 2004,successfully publicly listed on the NEEQ in 2016 with stock code 870092.It covers an area of 30000 m2 factory in Dongguan,China and has more than 500 emplyees.With 8 flexible production line,it's honored to be top 10 brand heat pump supplier in China with one billion USD output value per year.
VR
Market Overview
Through years of technological innovation and strategic market expansion, power world has become one of the
most famous and influential brands of heat pump in china. Now power world committed to development of the international market, the products sold to more than 60countries ,serving more than 1/10 of the world’s population.get highly praised by customers
Exihibition
FAQ
Q1: Are you heat pump supplier of trading company or manufacturer?
A1: We are R&D and manufacturer factory. With 300,000 sq meters modern factory in Shenzhen City & Dongguan City. with OEM service provided, MOQ> 20 Units.
Q2: How long is your Heat Pump delivery time?
A2: Generally it is 1-5 working days if the goods are in stock. or it is 15-25 working days if the goods are not in stock, it is
according to quantity.
Q3: Do you also provide other kind of heat pump?
A3: ASHP of EVI(8KW-132KW) | SWIM POOL(2KW-150KW) I Domestic heat pump(80L-300L tank size),etc.
Q4: Wonder if you accept small orders?
A4: Do not worry. Feel free to contact us .in order to get more orders and give our clients more convener ,we accept small order.
Q5: Can you send products to my country?
A5: Sure, we can. If you do not have your own ship forwarder, we can help you.
Q6: Can you do OEM for me?
A6: We accept all OEM orders,just contact us and give me your design.we will offer you a reasonable price and make samples for you ASAP.
Q7: What's your payment terms?
A7: By T/T,LC AT SIGHT,30% deposit in advance, balance 70% before shipment.
Q8: How can I place the order?
A8: First sign the PI,pay deposit,then we will arrange the production.After finished production need you pay balance. Finally we will ship the Goods.
Q9 When can I get the quotation?
A9: We usually quote you within 24 hours after we get your inquiry. If you are very urgent to get the quotation.Please call us or tell us in your mail, so that we could regard your inquiry priority.
A1: We are R&D and manufacturer factory. With 300,000 sq meters modern factory in Shenzhen City & Dongguan City. with OEM service provided, MOQ> 20 Units.
Q2: How long is your Heat Pump delivery time?
A2: Generally it is 1-5 working days if the goods are in stock. or it is 15-25 working days if the goods are not in stock, it is
according to quantity.
Q3: Do you also provide other kind of heat pump?
A3: ASHP of EVI(8KW-132KW) | SWIM POOL(2KW-150KW) I Domestic heat pump(80L-300L tank size),etc.
Q4: Wonder if you accept small orders?
A4: Do not worry. Feel free to contact us .in order to get more orders and give our clients more convener ,we accept small order.
Q5: Can you send products to my country?
A5: Sure, we can. If you do not have your own ship forwarder, we can help you.
Q6: Can you do OEM for me?
A6: We accept all OEM orders,just contact us and give me your design.we will offer you a reasonable price and make samples for you ASAP.
Q7: What's your payment terms?
A7: By T/T,LC AT SIGHT,30% deposit in advance, balance 70% before shipment.
Q8: How can I place the order?
A8: First sign the PI,pay deposit,then we will arrange the production.After finished production need you pay balance. Finally we will ship the Goods.
Q9 When can I get the quotation?
A9: We usually quote you within 24 hours after we get your inquiry. If you are very urgent to get the quotation.Please call us or tell us in your mail, so that we could regard your inquiry priority.
Power World
Email:marketing@powerworld-e.com
WhatsApp:+86-13763165244
Wechat: 13763165244
TEL:+86-0769-89979297
Website: www.powerworld-e.com
Add:Headquarters Add:No.24,the fourth industrial zone,HouTing Street,ShaJing Town,BaoAn District,Shenzhen China.
Fatory Add: No.32 Luxi 2nd Road,Xixi Street,Liaobu Town,Dongguan,China.
WhatsApp:+86-13763165244
Wechat: 13763165244
TEL:+86-0769-89979297
Website: www.powerworld-e.com
Add:Headquarters Add:No.24,the fourth industrial zone,HouTing Street,ShaJing Town,BaoAn District,Shenzhen China.
Fatory Add: No.32 Luxi 2nd Road,Xixi Street,Liaobu Town,Dongguan,China.
If you are interested in this product,please fill in the below and send us,we will reply you and also send you the latest product catalog and latest quotation within 1 hour.
↓↓↓↓↓
Похожие товары
Solarshine R134a R32 верхний воздушный микроканал A + все в одном тепловой насос водонагреватели с Wi-Fi 200 л 250 300 горячей воды
23 364,19 ₽ - 33 062,52 ₽
Оптовая продажа низкая температура горячей воды машина-30 Deg воздух водонагреватель бассейн тепловой насос
Настенный 60L/80L/100L горизонтальный/вертикальный водонагреватель R134a тепловой насос с электрическим нагревателем
37 239,42 ₽ - 40 963,37 ₽
Санитарный резервуар для горячей воды хранения воздух-вода теплового насоса проверено
39 675,03 ₽ - 41 879,20 ₽
Энергосберегающий источник воздуха Электрический инвертор 400 Вт бассейн тепловой насос
Тепловой насос с источником воздуха R410a 10 кВт 50 100 200 230 коммерческий водонагреватель тепловой
148 671,14 ₽ - 176 223,24 ₽

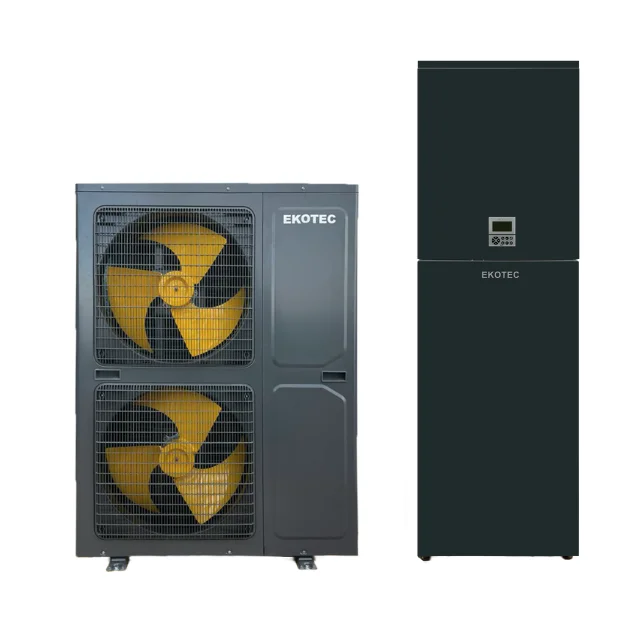

Eti14m Eko Tower Pro водонагреватели с тепловым насосом для домашнего отопления и бытовых нужд горячей воды
