Product Overview

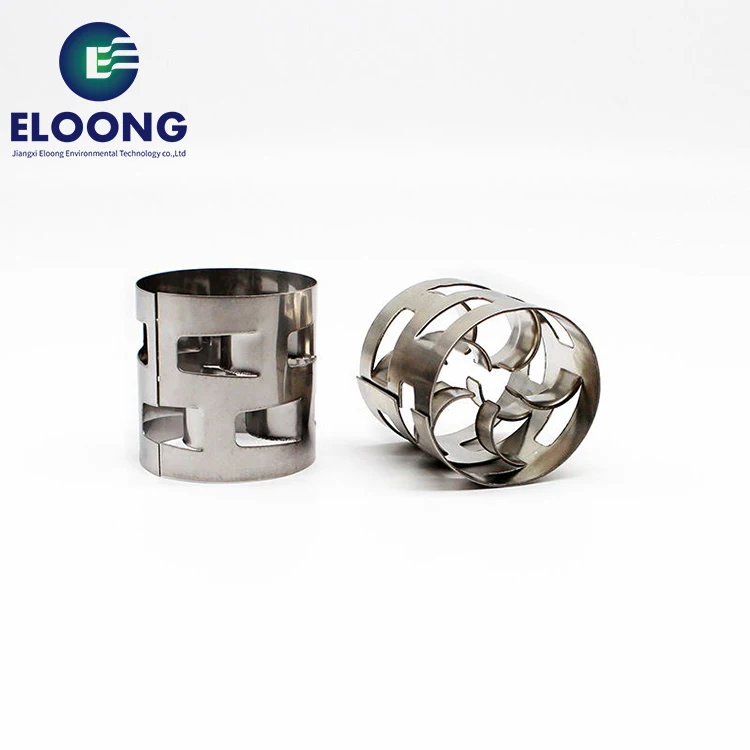

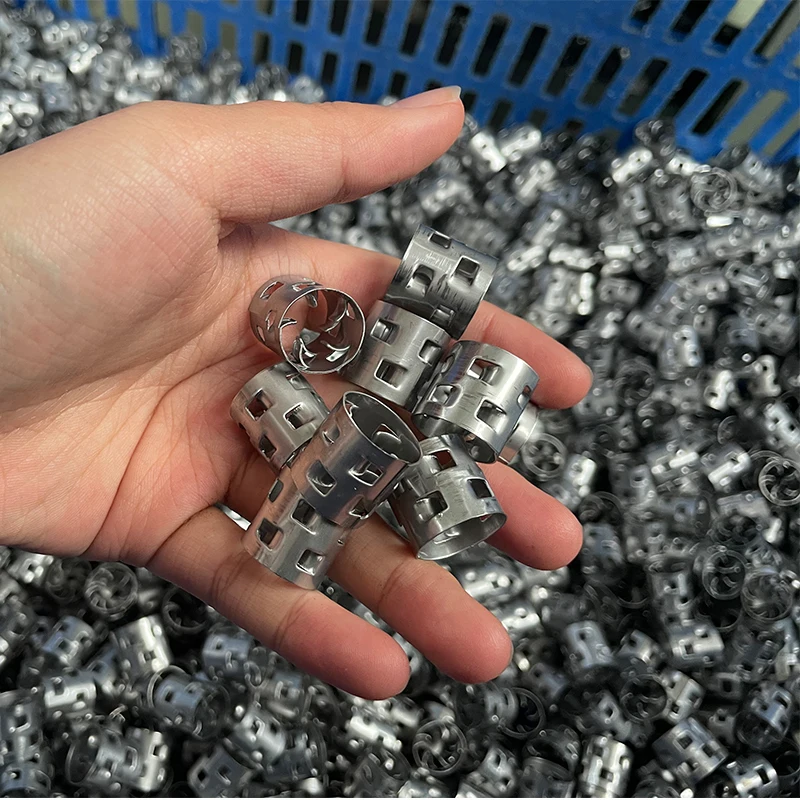

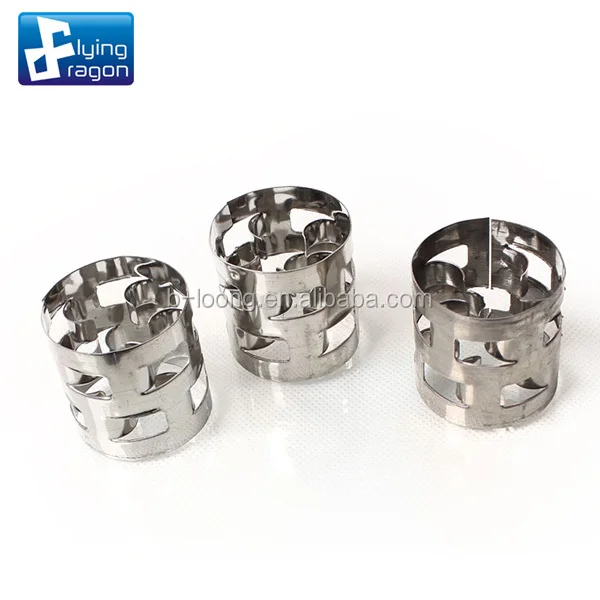

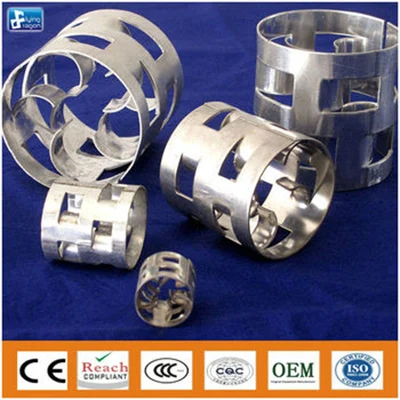

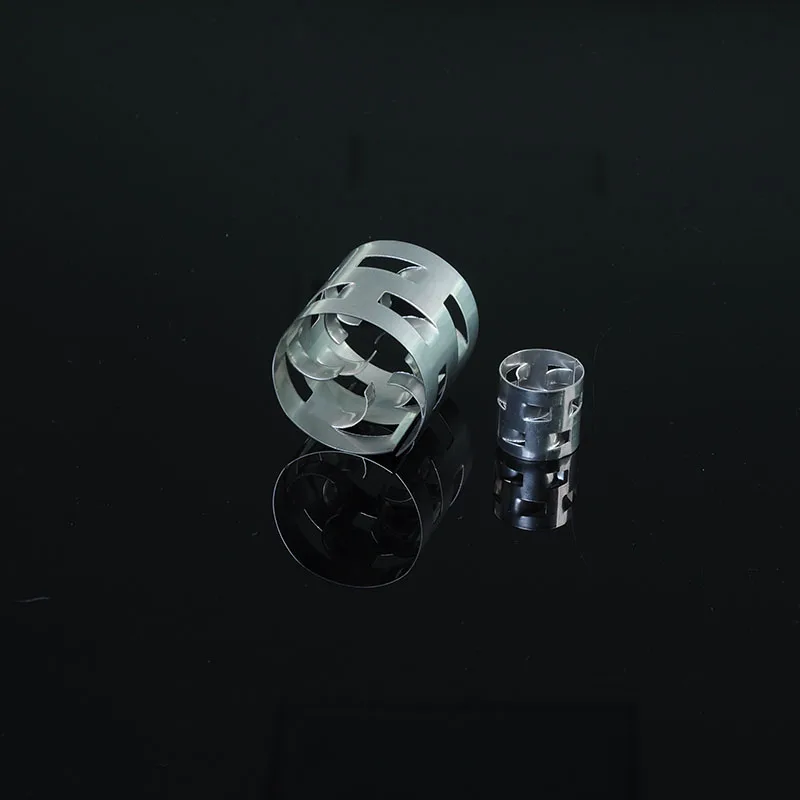

Pall Ring

Metal Pall ring is one of the most common and well known packing, Metal Pall Ring is an industry standard design media developed from the Raschig Rings and is used widely in all variety of applications. By minimizing the number of contours and crevices that can cause liquid hold-up and potential entrainment, the Metal pall ring geometry enables high gas and liquid transfer rates. The opened cylinder walls and inward bent protrusions of the Metal pall Ring allow greater capacity and lower pressure drop than standard cylindrical rings. This open ring design also maintains an even distribution and resists wall-channeling tendencies. The interior and exterior contacting surfaces of the Metal pall ring provide for an effective distribution of liquids and gasses and resist plugging, fouling and nesting. Pall rings are available in a wide range of materials.

Capacity vs Pressure Drop
• High loading & throughput / low pressure drop;
• Good liquid / gas distribution and high mass transfer efficiency.
Metal Pall Ring 304 316 201 /Metal Pall Ring 304 316 201
Versatility
• Easily wettable;
• High resistance to fouling;
• High Temperature.

Mechanical Strength
• High temperature applications;
• Mechanically robust, lesser probability of breakage, suitable for deeper beds.

Metal Pall Ring Application:
Metal Pall Ring Packing is widely used in All kinds of separation, absorb plants, constant decompress plants, compounding ammonia plant, decarburization, de-sulfuration, separation of ethyl benzene, separation of isooctane/ methylbenzene, Absorption, Aeration,Degassing, Desorption, Distillation, Stripping, Heat Recovery, Extraction, Various separation and absorption applications at atmospheric pressure and under vacuum, where a low pressure drop is critical,H2S, NH3 & SO2 Absorption & Stripping, Steam Stripping, Quench towers, Direct contact cooling.

• Absorption • Aeration • Degassing • Desorption
• Distillation • Stripping • Heat Recovery • Extraction

Material: Stainless steel, Carbon Steel, Special Alloys, Aluminum, Titanium, Hastelloy and Bronze

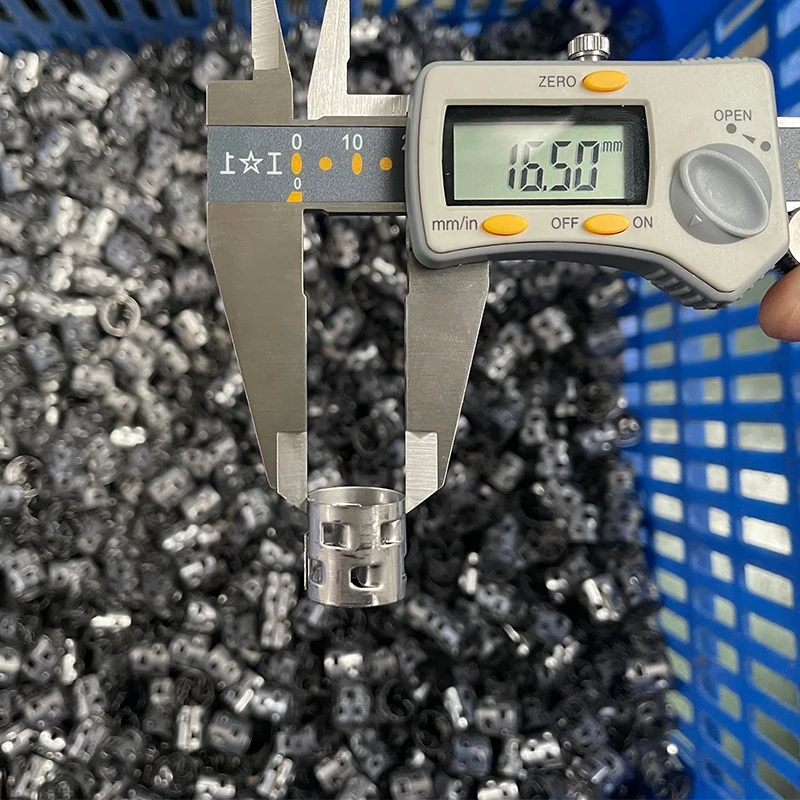

Technical data//Metal Pall Ring 304 316 201
Sizes (mm)	Surface (m2/m3)	94.9Free Vol. (%)	Number (per m3)	Weight (kg/ m3)
16160.3	362	94.9	220000	380
25250.4	219	95	52380	310
38380.5	146	95.9	15200	260
50500.6	109	96	6500	230
76761	71	96.1	1980	271

Our workshop

Plastic Random Packing Workshop

The injection molding workshop has 28 advanced production lines in the world. It adopts European standard large tonnage precision injection molding machine, equipped with three-axis servo manipulator, visual monitor and centralized feeding system to ensure that the annual output of 100000 cubic meters of finished products without any quality problems. Only 15 working days from design to proofing to finished products.

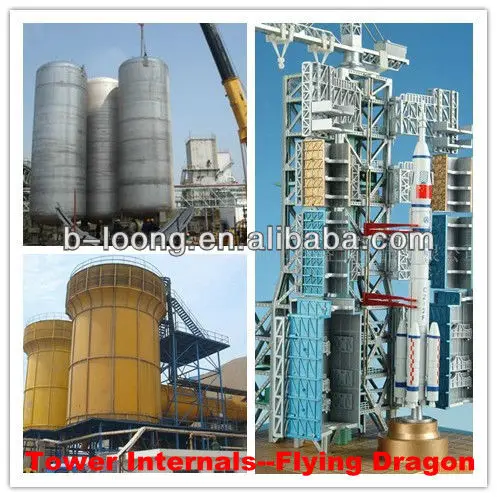

Tower internals workshop

The workshop is equipped with 2 * 6m 3000W large laser cutting equipment, servo CNC bending machine, CNC turret punch, laser welding machine, shearing machine and other high-end equipment. The workshop has an annual output of 8000 tons of trays and internals, and is equipped with automatic degreasing and pickling purification line to meet the different needs of customers and keep improving.

Precision mold workshop

The workshop is equipped with the

CNC machining center ,CNC engraving

machine,large-scale electric pulse machine lathe,NC lathe,medium speed wire-cut EDM. Automation matching, molding technology molding, extrusion, stamping, blow molding, development, production improvement and efficiency improvement, covering injection rolling mold manufacturing capacity.

Intelligent Stereoscopic warehouse

The single cargo space largest intelligent warehouse in China, which is calculated and managed by WMS, WCS system.The whole integrated workshop through AGV automatic distribution, realize the unified collection and distribution of raw materials, finished products and packaging. The capacity of 80000 cubic meters that can store 20000 cubic meters of finished products & 3000 ton of raw material.

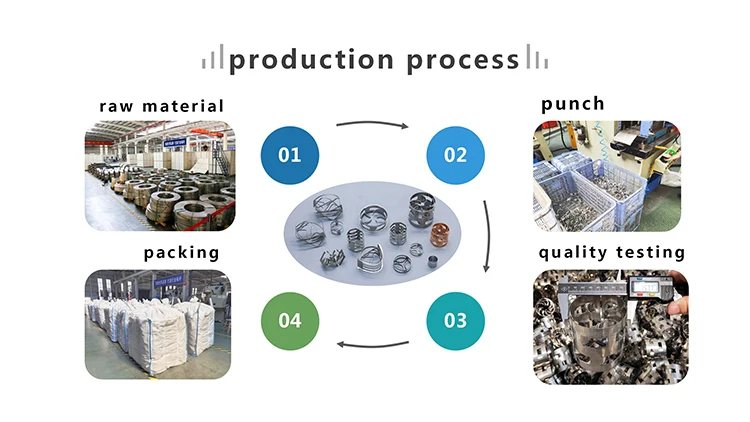

Metal Random packing Workshop

The workshop has 22 full-automatic stamping production lines, The original
multi process integrated stamping die is equipped with intelligent detection device, which is free of maintenance for 300000 times and repair free for 500000 times.With an annual output of 30000 cubic meters of finished products.

Metal structured Packing Workshop

The metal structured packing workshop has an annual output of 20000 cubic meters of finished products. It is equipped with eight advanced high-speed stamping production lines. It adopts Sanyuan guideway machine equipped and high-speed servo feeding technology to stamping 600 times / min, and keep the forming accuracy within 0.1 mm. Also it is equipped with two top-level automatic plate wave production lines independently researched and developed.
