2 полости ПВХ НПВХ водопровод пластиковая труба производственная линия/машина для производства
- Категория: >>>
- Поставщик: Zhangjiagang Huade Machinery Technology Co. Ltd.
Сохранить в закладки 1600736244946:
Описание и отзывы
Характеристики
2 cavity pvc upvc water supply plastic pipe production line/making machine
No. | Name | Number |
1 | Screw Feeder | 1set |
2 | SJSZ-80/156 Extruder | 1set |
3 | 50-110mm PVC Mould/die | 1set |
4 | Vacuum calibration | 1set |
5 | Two claw haul-off unit | 1set |
6 | Knift-lift cutter | 1set |
7 | Stacker | 1set |
2 cavity pvc upvc water supply plastic pipe production line/making machine
2 cavity pvc upvc water supply plastic pipe production line/making machine is mainly used in the manufacture of the UPVC and PVC pipes with various tube diameters and wall thickness such as the agricultural and constructional plumbing, water supply and drain etc.
This set is composed of conical twin-screw extrude, vacuum calibration tank, haul-off machine, cutter, stacker etc.
The screw extruder and traction machine adopt imported AC frequency control device.
The vacuum pump and traction motor both adopt advanced products.
The haul-off machine has many models, such as two-claw, three-claw, four-claw, six-claw etc.
2 cavity pvc upvc water supply plastic pipe production line/making machine may choose visual blade or cutting type.The unit is of reliable performance and high production efficiency.
Our machine can produce the PVC pipe with diameter from 16mm to 800mm
This set is composed of conical twin-screw extrude, vacuum calibration tank, haul-off machine, cutter, stacker etc.
The screw extruder and traction machine adopt imported AC frequency control device.
The vacuum pump and traction motor both adopt advanced products.
The haul-off machine has many models, such as two-claw, three-claw, four-claw, six-claw etc.
2 cavity pvc upvc water supply plastic pipe production line/making machine may choose visual blade or cutting type.The unit is of reliable performance and high production efficiency.
Our machine can produce the PVC pipe with diameter from 16mm to 800mm
Processing flow of 2 cavity pvc upvc water supply plastic pipe production line/making machine:
PVC powder + additive → spring feeding → twin screw extruder → mould and calibrator→ vacuum forming machine → haul off machine → cutting machine → discharging rack
PVC powder + additive → spring feeding → twin screw extruder → mould and calibrator→ vacuum forming machine → haul off machine → cutting machine → discharging rack
2 cavity pvc upvc water supply plastic pipe production line/making machine photos
1.Main technical parameters | ||
Model | SJSZ-80/156 | |
Screw diameter | Φ80/156mm, conical screw structure | |
Screw speed | 0-36r/min | |
Driving motor | 37KW | |
Speed control mode | Frequency control | |
Central height | 1000mm | |
Screw structure | Barrier screw | |
Barrel structure | Slotted feeder barrel, barrel heating section: 4 sections (using cast aluminum heating ring)，22kw | |
Barrel cooling mode | Air cooling，cooling fan 0.25kw，3sets | |
Transmission structure | Horizontal reducer, distribution box | |
2.Main configuration and electrical parts | ||
Screw brand | Zhoushan Mulong Screw | |
Screw and barrel material | 38CrMoAlA(Nitriding treatment HV≥700-940) | |
Gear distribution box | Jiangyin gear box products | |
Motor | Siemens Bede motor | |
Contactor | Schneider | |
Frequency converter | Jiale inverter | |
Temperature control meter | OMRON | |
DIE/MOULD
40Cr/42CrMo

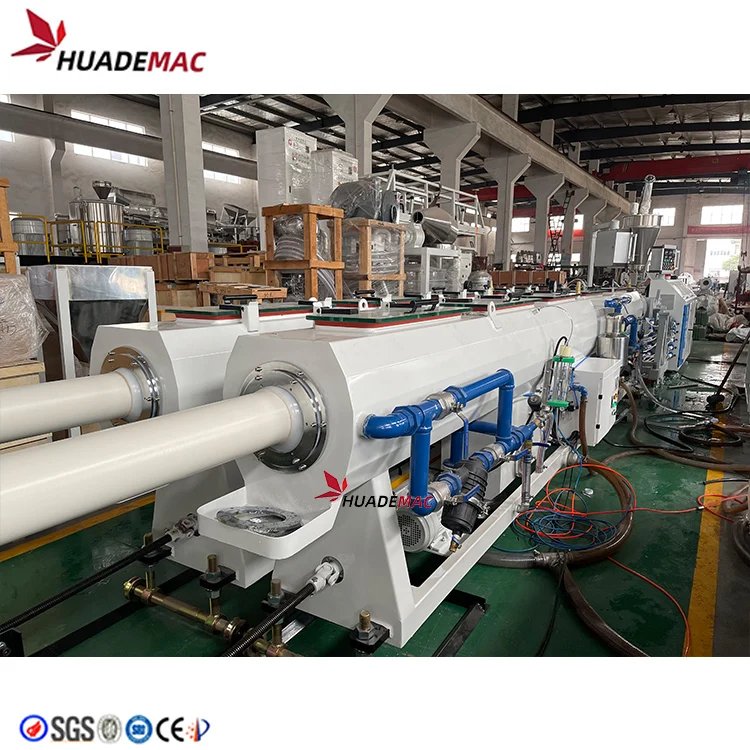

VACUUM CALIBRATING
1.Main technical parameters | ||
Total length | 6000mm | |
Vacuum pump power | 4KW | |
Pump power | 4KWx2sets | |
Central height | 1000mm | |
Cooling form | Spray forced cooling | |
Control mode | Manual control | |
Move back and forth | Motor operation; moving distance: ±600mm | |
Spray point | Four | |
2.Main configuration | ||
Origin of water pump | Ningbo | |
Origin of vacuum pump | Ningbo | |
Nozzle material | Nylon PA66 | |
Cabinet material | Stainless steel | |

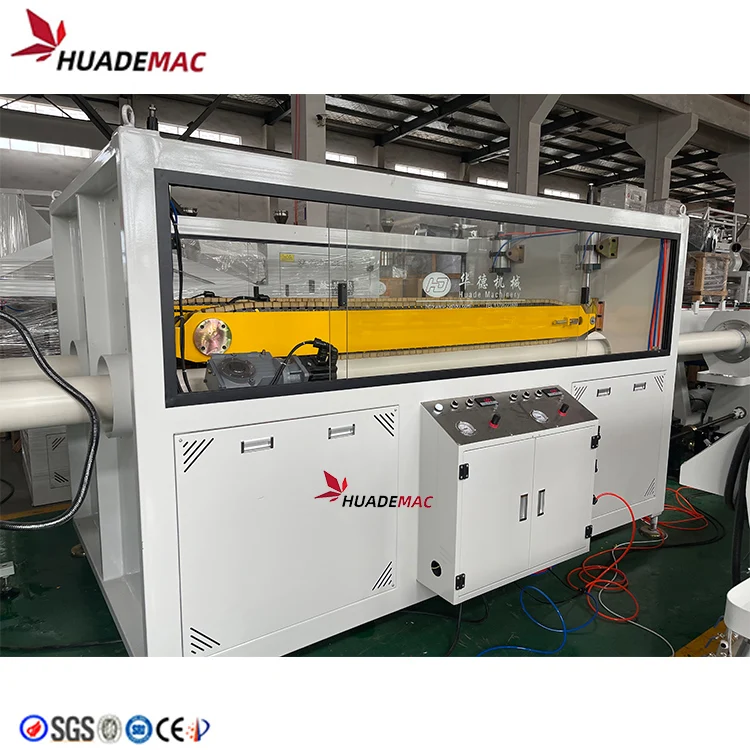

HAUL-OFF MACHINE
1.Main technical parameters | ||
Traction range | Φ50-110mm Maximum traction diameter | |
Traction speed | 0.5-6M/min | |
Maximum traction | 2000N | |
Main motor power | 1.5KW*2 Ssets | |
Effective traction length of track | 1800mm | |
Speed control mode | Frequency control | |
Central height | 1000mm | |
2.Main configuration | ||
Motor | Changzhou motor | |
Frequency converter | Jiale brand inverter | |

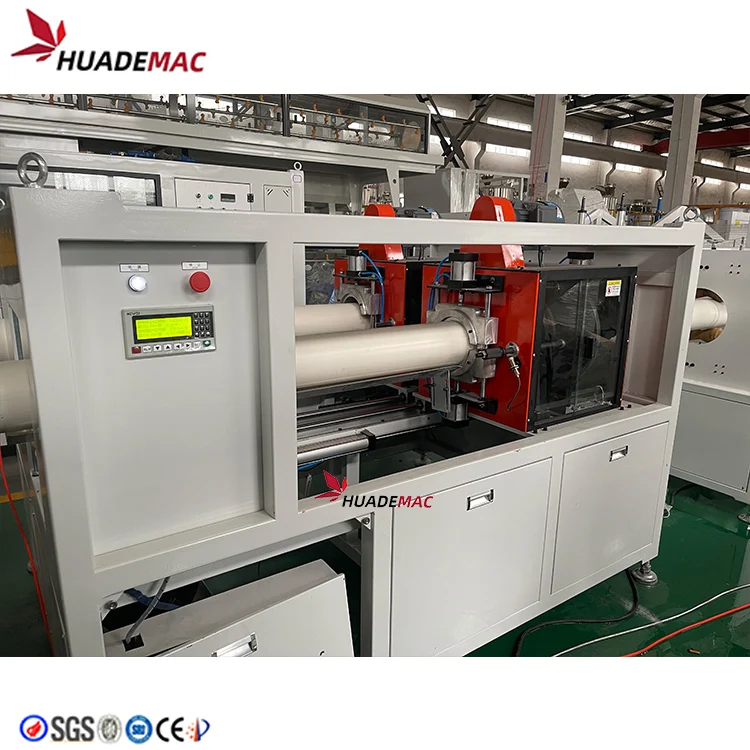

KNIFE-LIFT CUTTER
1. Main technical parameters | ||
Cutting saw blade diameter | Φ130 （The material is alloy steel ） | |
Work line speed of products | ＜10M/min | |
Cutting motor power | 3KW | |
Clamping mode and cutting feed mode | Feed wire | |
Working procedure | Linkage with main engine | |
Central height | 1000mm | |
2. Main configuration | ||
Electric machinery | Changzhou electric machinery Co., Ltd | |
Saw blade | Alloy hacksaw blade | |
Pneumatic components | 2-position 5-way solenoid valve | |
Service
1. We not only provide machines, but also provide technical guidance and market evaluation.
1. We not only provide machines, but also provide technical guidance and market evaluation.
2. We will provide complete production of all machines according to customer requirements.
3. We will provide complete service for factory layout and other information
to help customers build factories.
to help customers build factories.
4. We will provide good service for machine installation and training until customers can run
the machine and stabilize production.
the machine and stabilize production.
5. In addition to one-year quality assurance, we will provide lifelong after-sales service.
6. Long term cooperation, we always provide customers with good quality, good price and good service.
6. Long term cooperation, we always provide customers with good quality, good price and good service.
