ДТЛ 2 4G/5G MIMO двухдиапазонный 6 порт интеллигентая (ый) всенаправленная антенна применим к H3C/huasan/Ruijie и другие AP

ДТЛ 2 4G/5G MIMO двухдиапазонный 6 порт интеллигентая (ый) всенаправленная антенна применим к H3C/huasan/Ruijie и другие AP

Категория: >>>
Поставщик: Beijing Jingyuan Sicheng Network Technology Co. Ltd.

Цена:82,00 $ - 85,00 $*

Количество:

В избранное

Описание и отзывы

Характеристики

Product Description

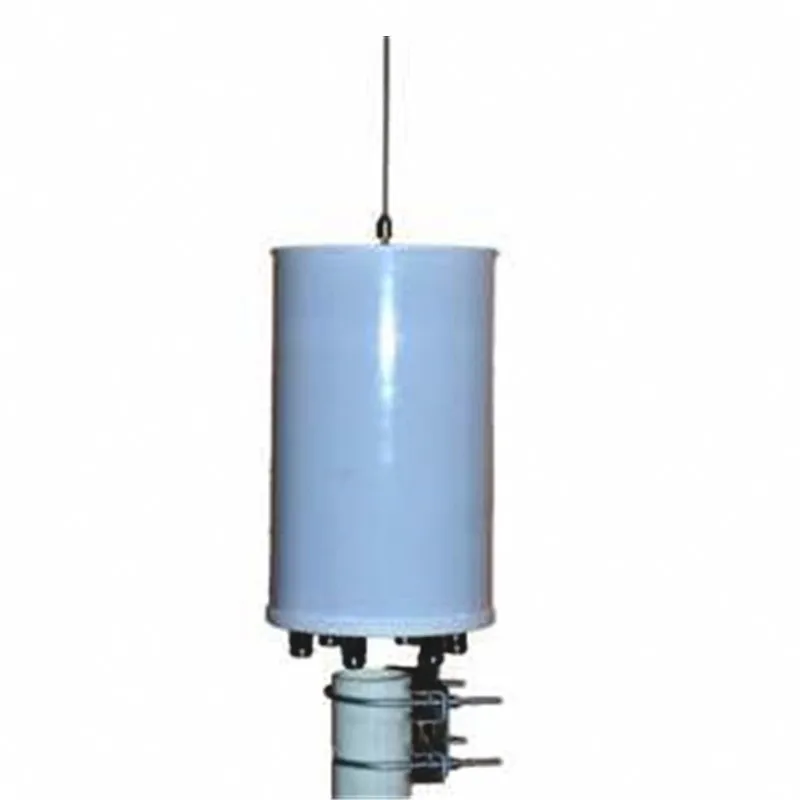

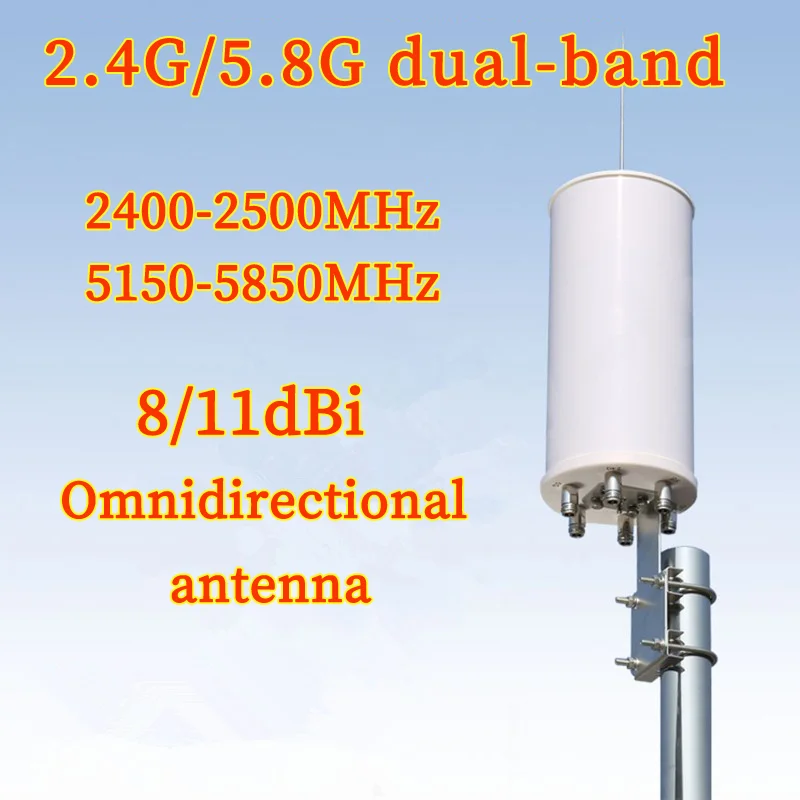

Omnidirectional antenna, that is, 360 ° uniform radiation on the horizontal pattern, is commonly known as directionless. In the vertical pattern, it is a beam with a certain width. Generally, the smaller the lobe width, the greater the gain. After optimized design, the antenna has the characteristics of high gain, good standing wave characteristics and strong anti-interference performance. The antenna is packaged with high-strength glass steel pipe, with good wind resistance, moisture resistance, smoke corrosion resistance and high reliability. Omnidirectional antenna is generally used in communication systems with short distance and wide coverage.
2.4/5.8GHz WLAN/WFi system

High gain, low standing wave

2.4/5.83Hz ISm band

Strong anti-interference ability

Public wireless hotspot

Strong environmental adaptability

Point to multipoint

Steel mounting kit

Specification

Main performance indicators
Model Number	LBD-S2458Q0811
Frequency range(MHz)	2400-2500MHz / 5150--5850MHz
Bandwidth (MHz)	100 / 700
Gain-dBi	8 / 11
Vertical lobe width (°)	17 / 10
Voltage standing wave ratio	≤1.5 / ≤2
Polarization mode	Vertical and horizontal
Impedance(Ω)	50Ω
Maximum bearing power-W	50W
Main mechanical performance indexes
Interface type	6master seats or customized
Number of joints	3 2.4GHz ports, 3 5.8GHz ports
Metal mounting rod size-mm	145x320
Weight-kg	1
Diameter of support rod - mm	30-50
Wind resistance - m/s	60

Company Profile

Since its establishment, Beijing Jingyuan Sicheng Network Technology Co., Ltd. has been focusing on WLAN technology and products (wireless communication field), a new high-tech enterprise integrating R & D, production, agency, sales, integration and service of wireless communication products.

The core members of the company are composed of senior personnel who have many years of experience in the field of wireless communication technology. They have a very deep understanding of the industry and more than ten years of experience in wireless network construction. They have a good reputation among users. The company's management team has rich management experience in the industry, and technical executives and key personnel have many years of experience.

FAQ

1. who are we?
We are based in Beijing, China, start from 2011,sell to Domestic Market(98.00%),Mid East(2.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Yagi Antenna,Glass Fiber Antenna,Sector Antenna,Let antenna,Lora Antenna

4. why should you buy from us not from other suppliers?
We have more than 10 years of design and development experience, excellent team, large factory, support processing customization and OEM, welcome to consult and discuss!

5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,DDP；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,Western Union,Cash;
Language Spoken:English,Chinese
