Мини-колесный погрузчик EVERUN нового дизайна сертифицированный CE EURO5 & EPA4 1 2 тонны
11 700,00 $ - 13 950,00 $
Производитель 4x4 экскаватор погрузчик ретроэкскаватор Китай колесный
- Категория: Loaders >>>
- Поставщик: Xiamen LTMG co. ltd
Сохранить в закладки 1600736680735:
Описание и отзывы
Характеристики

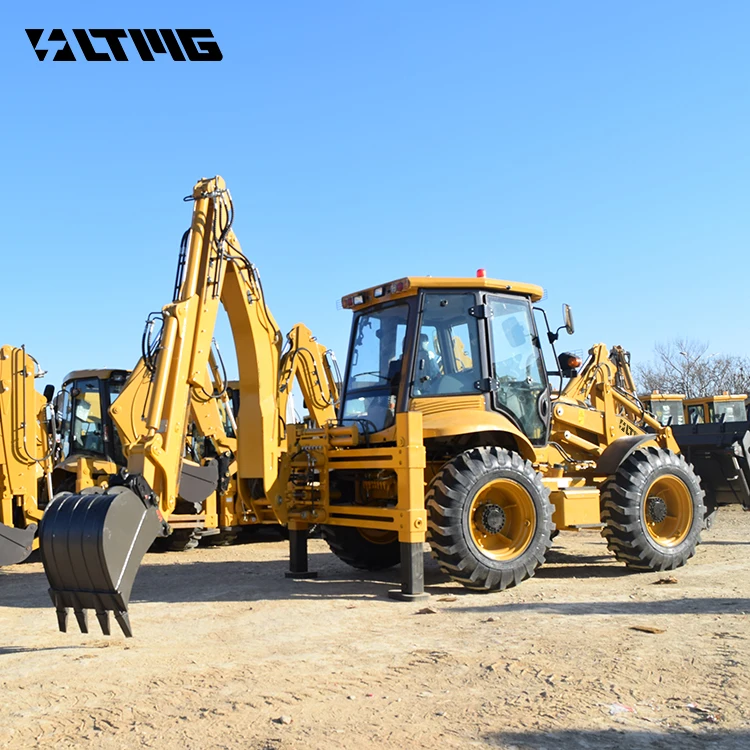

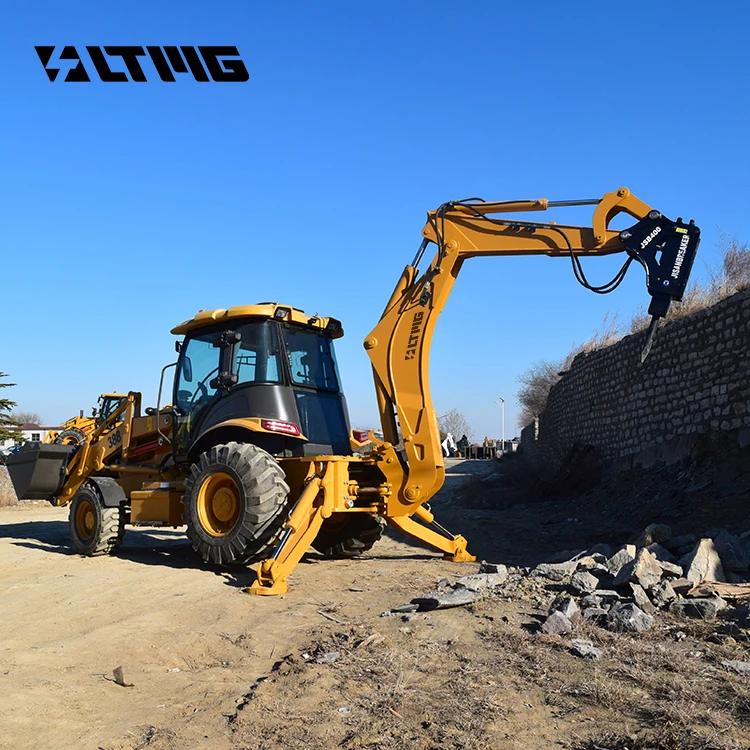

The specification of 2.5ton backhoe loader 388 Mini Excavator | The specification of 2.5ton backhoe loader | |||
Transport Dimension | Overall Operating Weight | 8200KG | ||
mm L*W*H | 6230×2365×3752 | |||
Wheel base | 2200mm | |||
Min. Ground Clearance | 300mm | |||
Bucket Capacity | 1.0m3 | |||
Breakout Force | 38KN | |||
Loading Lifting Capacity | 2500KG | |||
Bucket Dumping Height | 2650mm | |||
Bucket Dumping Distance | 1025mm | |||
Digging Depth | 52mm | |||
Backhoe Capacity | 0.3 m3 | |||
Max. Digging Depth | 4085mm | |||
Swing Angle of Excavator Grab | 190o | |||
Max. Pulling Force | 39KN | |||
Engine | Model | YC4A105Z-T20 | ||
Type | turbocharging four-stroke | |||
Cylinder-Inside Diameter*Stroke | 4—105 | |||
Rated Power | 75KW/100HP | |||
Rated Speed | 2400r/min | |||
Min. Fuel Consumption | 235g/kw.h | |||
Max.Torque | 310NM | |||
Displacement | 4.3L | |||
Steering System | Model of Steering Device | BZZ5-250 | ||
Steering Angle | ±36 o | |||
Min. turning radius | 6581mm | |||
Pressure of the system | 12Mpa | |||
Axle | Manufacturer | Feicheng Axle Factory | ||
Main Transmission Type | Double Reduction | |||
Final Reducer | Single Stage Final Reducer | |||
Rated Loader of Axle | 4/18.5t | |||
Transmission System | ||||
Torque Converter | Model | YJ280 | ||
Type | Single-stage Three Elements | |||
Max. Efficiency | 84.40% | |||
Inlet Pressure | 0.4Mpa—0.55 Mpa | |||
Outlet Pressure | 1.2Mpa—1.5 Mpa | |||
Cooling Method | Oil-cooling Pressure Circulation | |||
Gearbox | Type | Fixed Shaft Power Transmission | ||
Oil Pressure of Clutch | 1373Kpa—1569 Kpa | |||
Gears | Two Gears Ahead, Two Gears Astern | |||
Max.Speed | 22Km/h | |||
Tyre | Model | 14-17.5/19.5L-24 | ||
Pressure of Front wheel | 0.22 Mpa | |||
Pressure of Back Wheel | 0.22 Mpa | |||
Brake System | Service Brake | Air Over Oil Caliper Brake | ||
External Type | ||||
Self-regulation | ||||
Self-balance | ||||
Emergency Brake | Operation Power Implementing brake | |||
Manual Operation Power Terminating Brake | ||||
Hydraulic System | Digging Power of Excavator Grab | 46.5KN | ||
Digging Power of Dipper | 31KN | |||
Bucket Lifting Time | 5.4S | |||
Bucket Lowering Time | 3.1S | |||
Bucket Discharge Time | 2.0S | |||

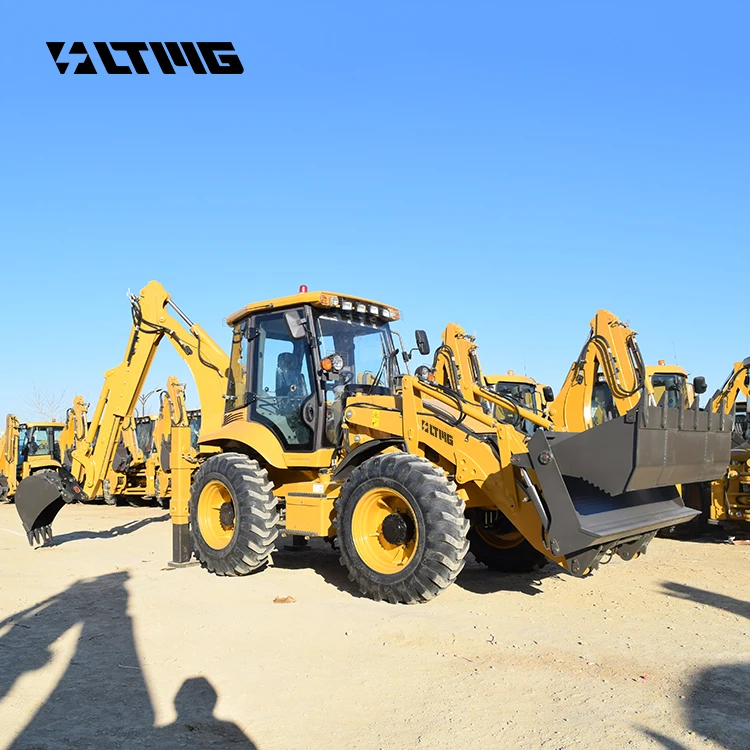

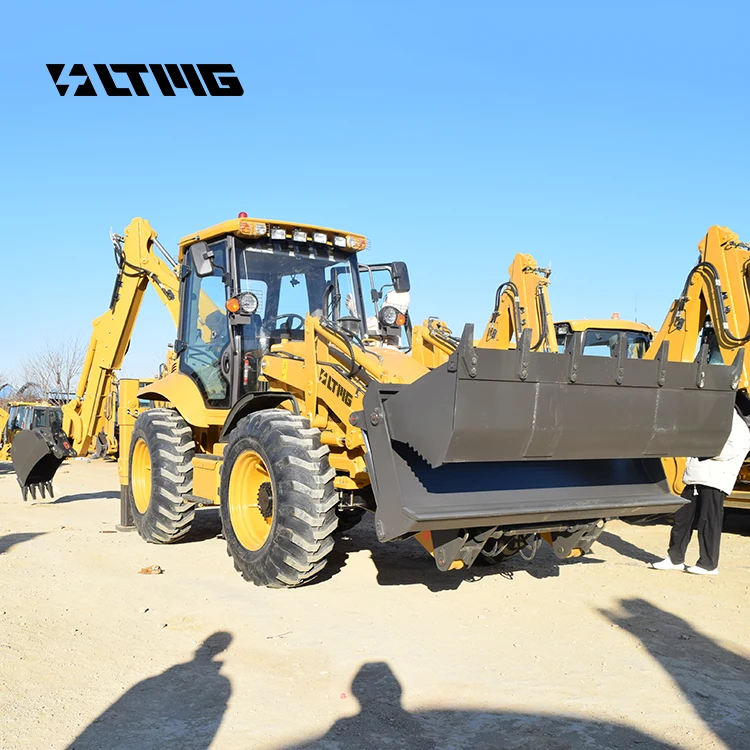

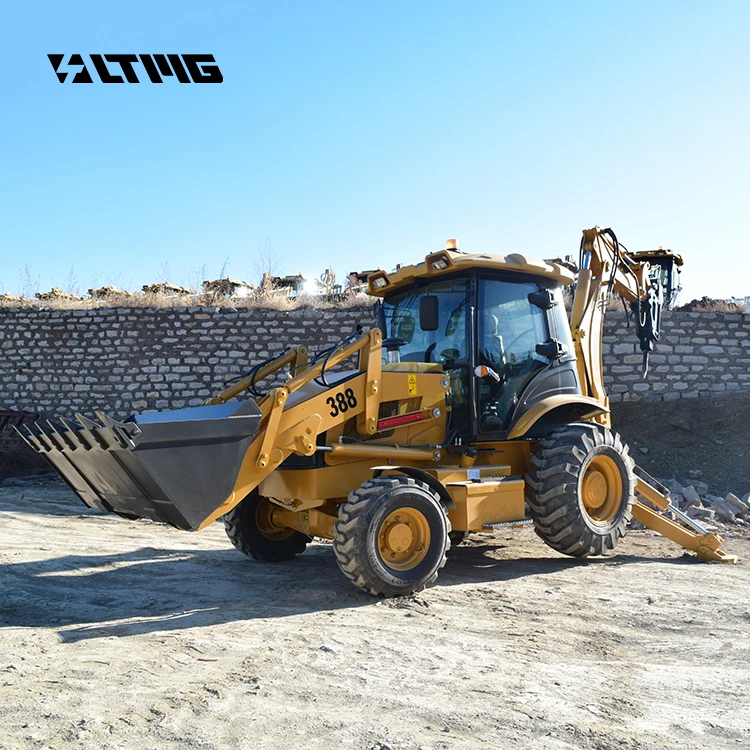

China Compact Garden Loader 2.5 ton Backhoe Loader 388 Mini Excavator Cheap Price
1. The integral body frame with more stable operating condition, more suitable for digging work;
2. The excavating working structure is side shift type, higher strength, good structural stability; and the loading end adopt eight -bar linkage mechanism.
2. Rear and front body, with small rotary radius,hydraulic steering,comfy and convenient to operate. heavy duty hinge joint and hydraulic pipe protection
3. Lifting enlarge operator cabin with secure glass and wide field, comfortable steering wheel, high quality seat and suitable joystick control
FAQ
1.Are you factory or trading company?
We are the factory which have been manufacture loader backhoe for more than 20 years.
2.What is the delivery time?
Generally it is can delivery immediately if the backhoe excavator loaders are in stock. Or it is 30 days if the backhoe loaders are out of stock.
3.What is the Payment?
TT(bank transfer), LC at sight or Alibaba , all will be accepted.
4.Is OEM & ODM available?
1). We can do the product according your design
2). We can provide customized solutions according your requirements.
5.Can you provide training for the customer?
Yeah. We can provide training for our customer.
6.What certification do you have?
Our company has passed ISO 9001:2008 and all of the tractor loader backhoe have CE certification.
8.How can I get the best price?
Price is the most concerning problem of every customer,if you want to know the price.We need to know your detailed requirements.
We are the factory which have been manufacture loader backhoe for more than 20 years.
2.What is the delivery time?
Generally it is can delivery immediately if the backhoe excavator loaders are in stock. Or it is 30 days if the backhoe loaders are out of stock.
3.What is the Payment?
TT(bank transfer), LC at sight or Alibaba , all will be accepted.
4.Is OEM & ODM available?
1). We can do the product according your design
2). We can provide customized solutions according your requirements.
5.Can you provide training for the customer?
Yeah. We can provide training for our customer.
6.What certification do you have?
Our company has passed ISO 9001:2008 and all of the tractor loader backhoe have CE certification.
7.Do you have after-sales service center oversea?
Yes, LTMG provide oversea service for our machine front loader with backhoe.
8.How can I get the best price?
Price is the most concerning problem of every customer,if you want to know the price.We need to know your detailed requirements.
Похожие товары

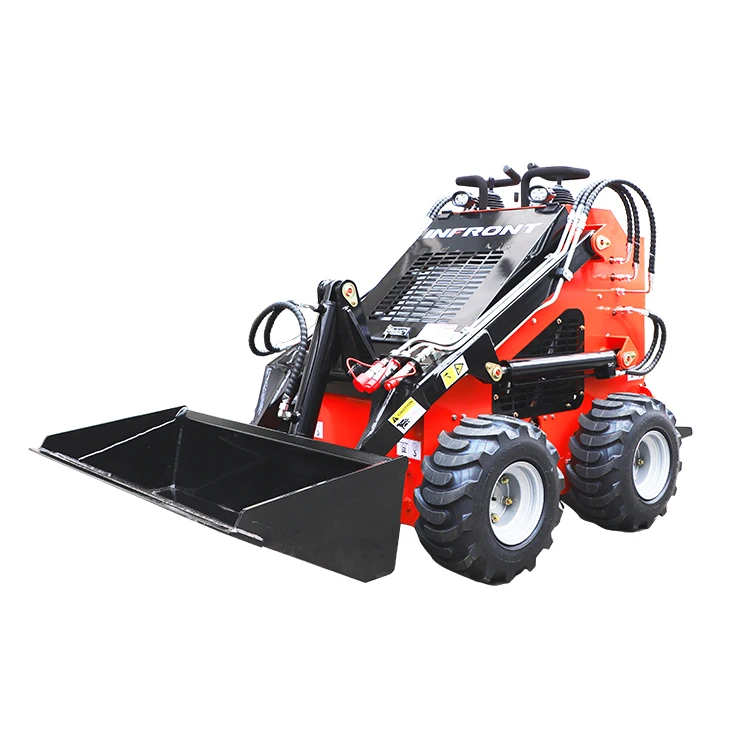

Мини-погрузчик с бортовым поворотом, маленький трактор, фронтальное электрическое фронтальное колесо, мини 4x4 экскаватор-погрузчик с бортовым поворотом, дизельный
3 500,00 $
Бесплатная доставка 1,5 тонн 3 тонны 4 тонны дизель сочлененный компактный колесный мини-погрузчик трактор мини фронтальные погрузчики для продажи
2 000,00 $ - 4 000,00 $

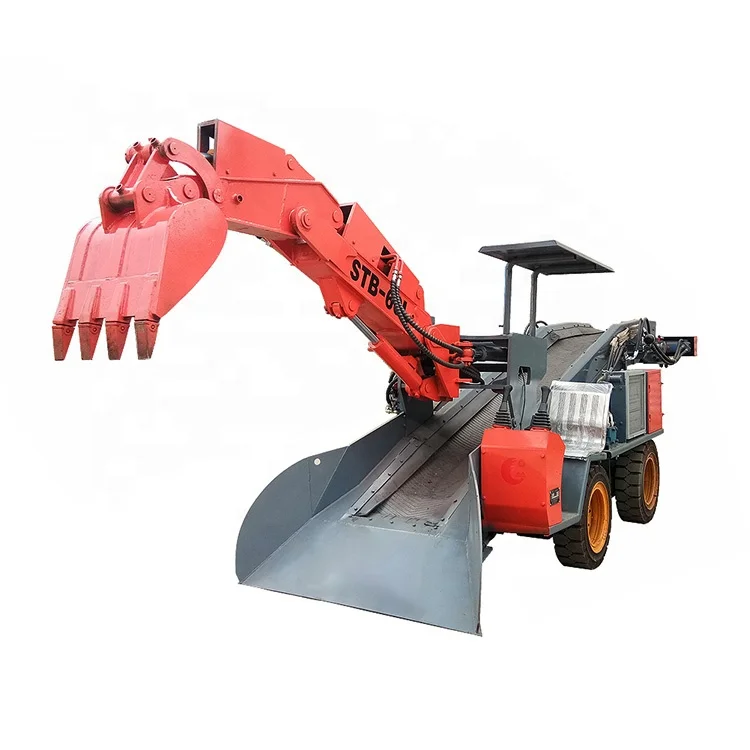

Погрузчик для угольной шахты гидравлический погрузчик горных пород колесный

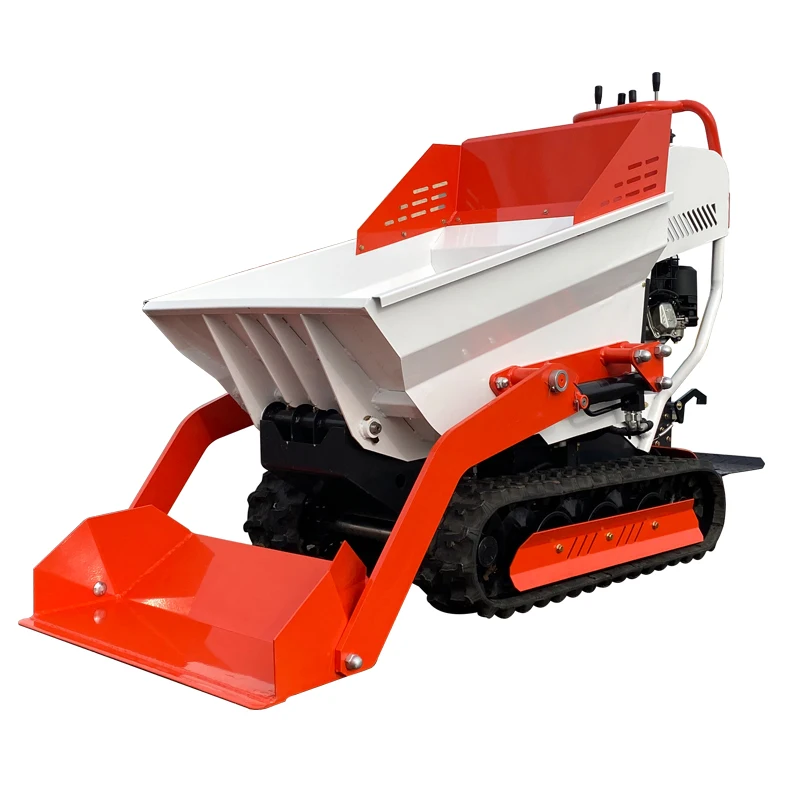

Сертификация CE грузоподъемность 500 кг EPA бензиновый двигатель мощность резиновая гусеница небольшая ручка для сельского хозяйства
2 100,00 $ - 2 870,00 $
Высококачественный компактный 3-тонный маленький мини-погрузчик с шарнирным соединением сделано в
23 500,00 $

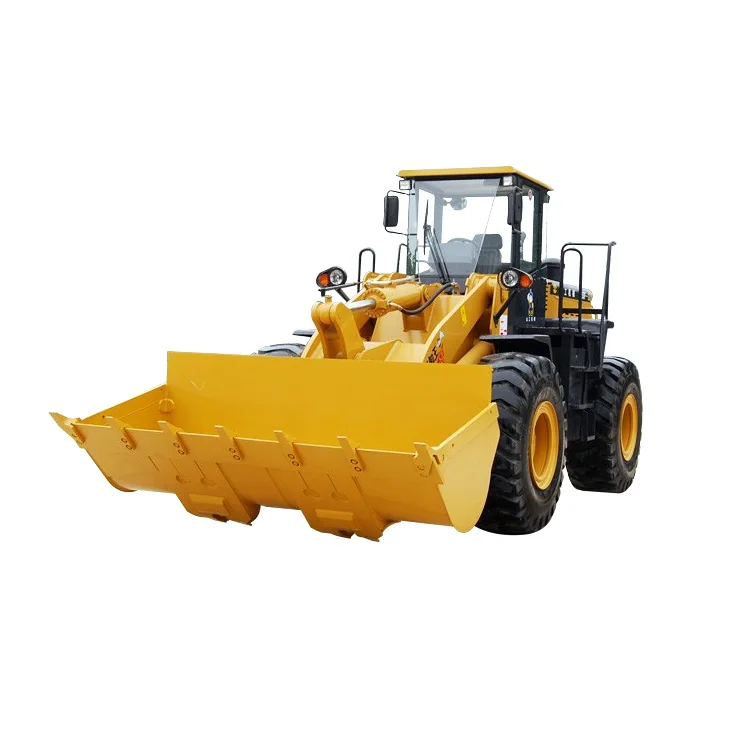

Китайский бренд SEM Новый 7-тонный фронтальный погрузчик SEM676F
24 000,00 $ - 59 000,00 $

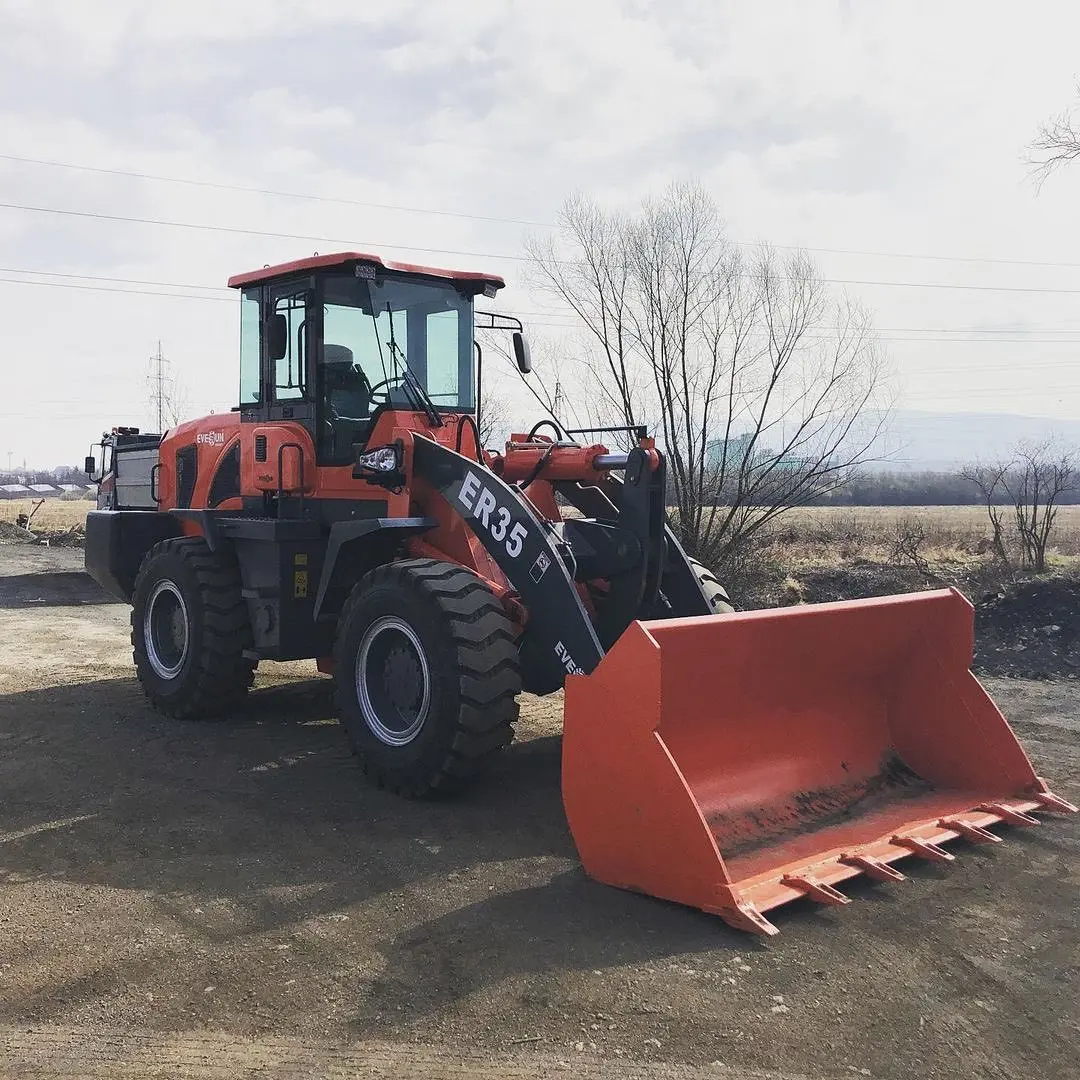

EVERUN 3ton new ER35 Строительная ферма гидравлическое ведро компактный шарнирный колесный погрузчик с низкой
