9XXnm 80W 500um волоконно оптический лазерный диодный модуль высокой мощности CS TEC
- Категория: >>>
- Поставщик: Wuhan CS Tec Co. Ltd.Wuhan Ltd.
Сохранить в закладки 1600736852267:
Описание и отзывы
Характеристики
Products Description
CS delivers TY-9XXNM+/-10NM-80.0W-25C-CS single bar diode lasers, employing AuSn bonding technology with multiple advantages of low smile, stable output power, high power, high efficiency, long lifetime and high compatibility, and are widely applied in the market.
The performance and aging tests have been performed upon the production line to ensure reliable, stable and long lifetime of products.
To provide customers with high-quality, high cost performance products
is the company’s goal.
The performance and aging tests have been performed upon the production line to ensure reliable, stable and long lifetime of products.
To provide customers with high-quality, high cost performance products
is the company’s goal.
Key Parameters
*Single Bar sealed package
*High output power 80W
*High stability
*Long lifetime
*Low smile
*AuSn bonding
*RoHS compliance
Application
*Medical
*Printing
*Industry
*Pumping
*Printing
*Industry
*Pumping
Parameters | Min | Typ | Max | Unit | Conditions | ||||
Output Power | - | 80 | 80 | 80 | - | W | |||
Center Wavelength TY-CS | - - | - 915±10 | - 940±3 | - 975±3 | - - | - nm | |||
Spectral Width(FWHM) | - | 3 | 3 | 3 | 6 | nm | |||
Spectral Width (90%) | - | 5 | 5 | 5 | - | nm | |||
Fax-Axis Divergence(FWHM) | - | 28 | 28 | 28 | - | ° | |||
Slow-Axis Divergence (FWHM) | - | 8 | 8 | 8 | - | ° | |||
Pitch | - | 500 | 500 | 500 | - | μm | |||
Emitter Width | - | <100 | <100 | <100 | - | μm | |||
Wavelength Shift vs. Temperature | - | 0.3 | 0.3 | 0.3 | - | nm/C | |||
Polarization Mode | - | TE | TE | TE | - | - | |||
Threshold Current | - | 7.0 | 7.0 | 7.0 | - | A | |||
Operating Current | - | 78.0 | 80.0 | 86.0 | - | A | |||
Operating Voltage | - | 1.9 | 1.8 | 1.8 | 2.0 | V | |||
Power Conversion Efficiency | - | 52.0 | 52.0 | 52.0 | - | % | |||
Slope Efficiency | - | 1.10 | 1.10 | 1.00 | - | W/A | |||
Storage Temperature | 0 | 55 | °C | ||||||
Operating Temperature | 15 | 35 | °C | ||||||
Recommended Heatsink Capacity | - | 100 | - | W | |||||
Fiber Connector | - | CO | - | - | |||||
Fiber Connector | - | CO | - | - | |||||
Instructions
* Avoid eyes or skin exposure to direct or scattered radiation;
* ESD protection is required for transportation, storage and operation; short-circuit protection between pins is required for transportation and storage
* Please connect pins by solder when operating current is over 6A; solder point should be close to the root of pins with a maxsoldering temperature at 260℃ and a duration less than 10 seconds;
* Drive constant current power supply by laser and avoid surge while working;
* Operate under rated current and rated power;
* Good heat dissipation isrequired;
* Operating temperature is15℃~35℃;
* Storage temperature is 0℃~＋55℃
* Please connect pins by solder when operating current is over 6A; solder point should be close to the root of pins with a maxsoldering temperature at 260℃ and a duration less than 10 seconds;
* Drive constant current power supply by laser and avoid surge while working;
* Operate under rated current and rated power;
* Good heat dissipation isrequired;
* Operating temperature is15℃~35℃;
* Storage temperature is 0℃~＋55℃
Company Profile
FAQ
Q: DO YOU PROVIDE SAMPLES ? IS IT FREE OR EXTRA ?
A: Yes, we could offer the sample for free but won’t pay the cost of freight.
Q: ARE YOU TRADING COMPANY OR MANUFACTURER ?
A: We are factory and trading company.
Q: Can I get some discount if I order more ?
A: Yes,The more you order,the more you save.
Q: How long is your delivery time?
A: When the order is confirmed, 3 working days for the small order,10~15 days for the bulk.
Q:How to choose suitable model?
A:Please provide a photo of the product you used before or tell us your needs, we will help.
Q:What's your MOQ?
A:Normally one piece. If more, we can talk about discount. You can mix it with other laser machine parts shipping together .
Q:Why choose your company?
A:We are a professional Industrial Solutions company in China. We’re more familiar with customer’s marking or engraving
applications. So we’re in a position to recommend a more suitable model and provide free professional technology.
A: Yes, we could offer the sample for free but won’t pay the cost of freight.
Q: ARE YOU TRADING COMPANY OR MANUFACTURER ?
A: We are factory and trading company.
Q: Can I get some discount if I order more ?
A: Yes,The more you order,the more you save.
Q: How long is your delivery time?
A: When the order is confirmed, 3 working days for the small order,10~15 days for the bulk.
Q:How to choose suitable model?
A:Please provide a photo of the product you used before or tell us your needs, we will help.
Q:What's your MOQ?
A:Normally one piece. If more, we can talk about discount. You can mix it with other laser machine parts shipping together .
Q:Why choose your company?
A:We are a professional Industrial Solutions company in China. We’re more familiar with customer’s marking or engraving
applications. So we’re in a position to recommend a more suitable model and provide free professional technology.
Похожие товары

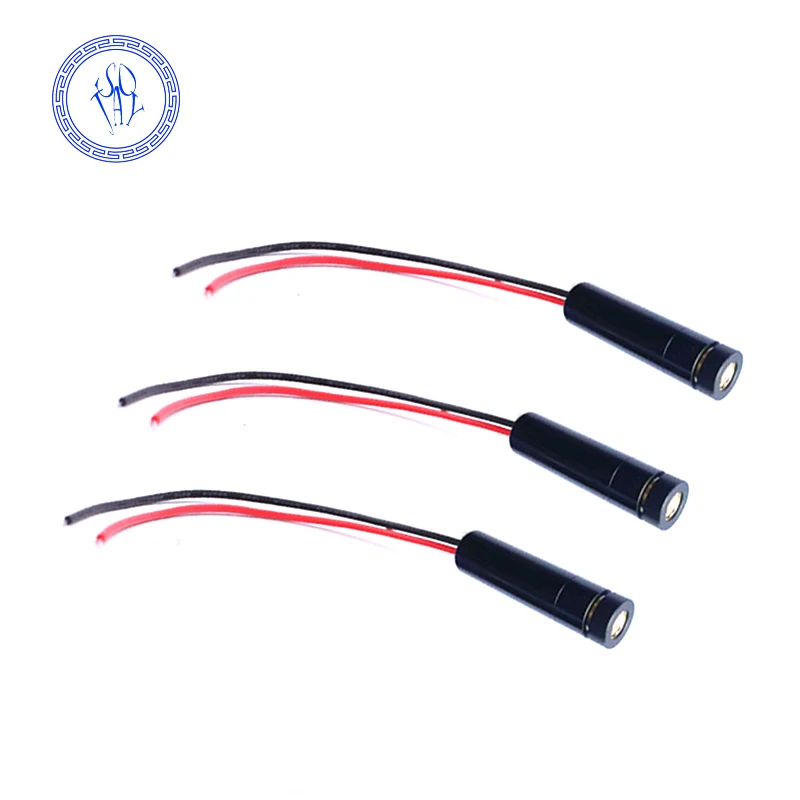

ИК 780nm 20 мВт 3-5 в инфракрасный Крест линии лазерный модуль дизайн
6,50-8,50 $

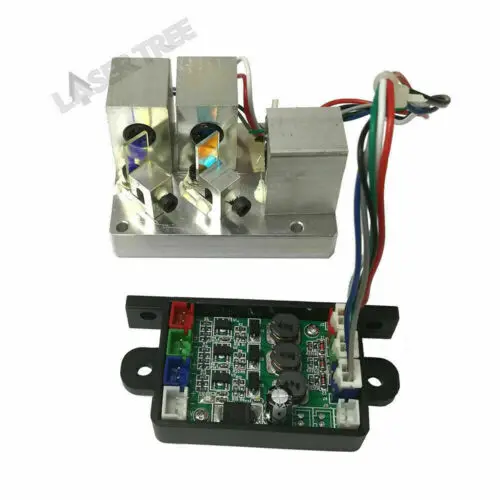

Полупроводниковый лазер RGBW с TTL-модуляцией 450 МВт
50,00-60,00 $
12v PWM аппарат для лазерной порезки голову наборы 450nm 5W лазерный модуль с 0 08 мм сжатого лазерного луча
72,00-100,00 $

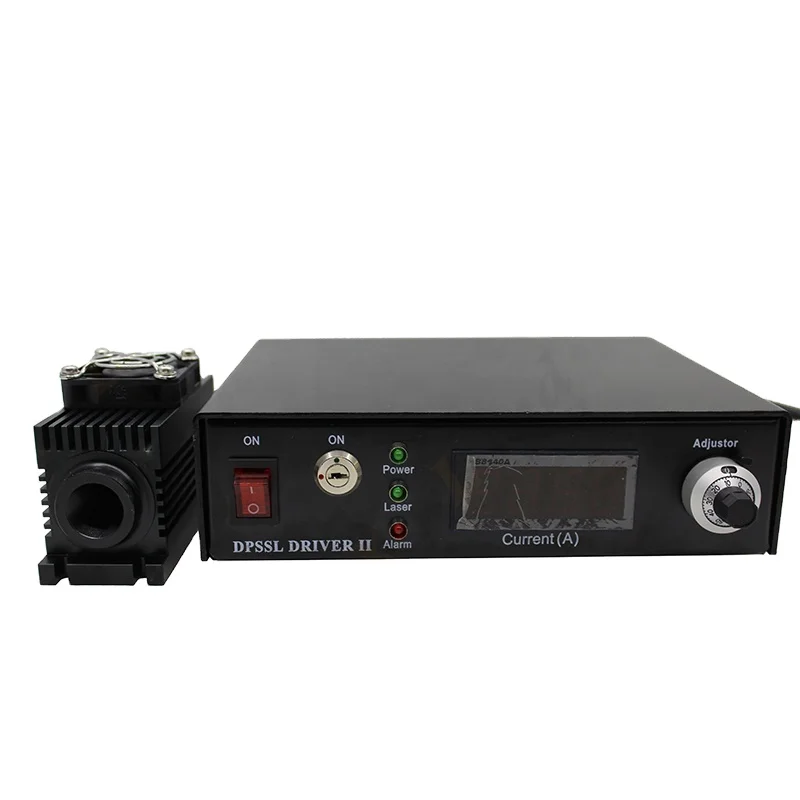

2 ватт высокое качество 808nm 2000 МВт DPSS лазерный модуль Вт ИК

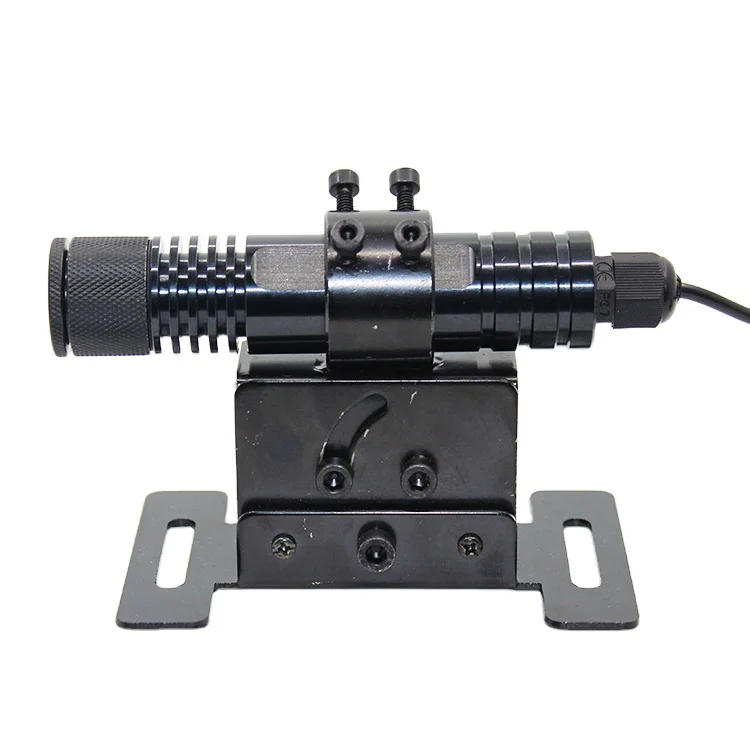

Новейший водонепроницаемый и пыленепроницаемый зеленый лазерный линейный генератор диодный модуль
86,52-93,60 $

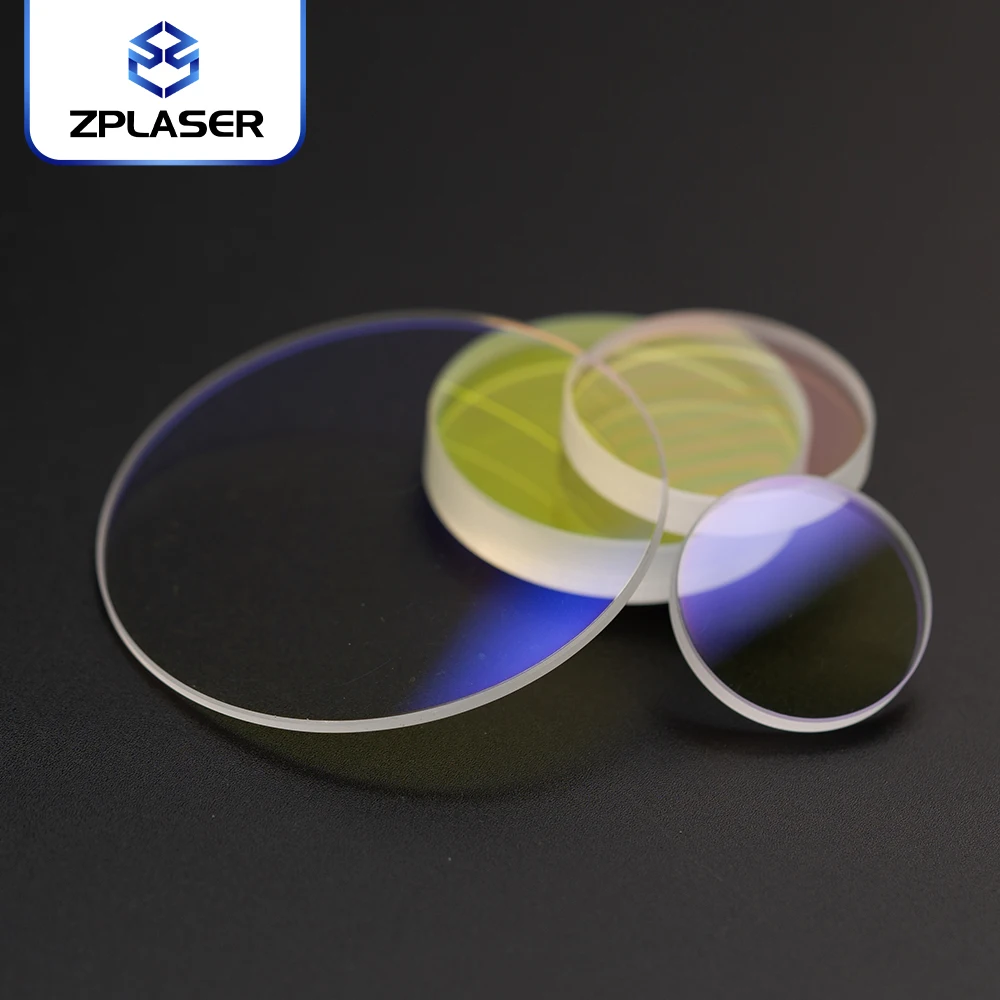

Лазерная линза ZPLASER 1064 нм

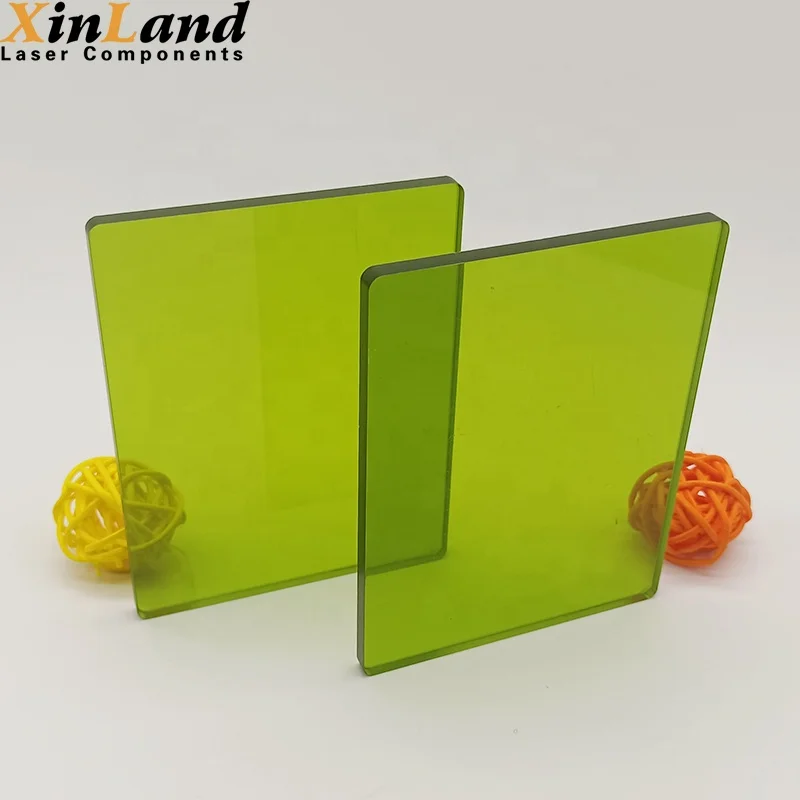

Акриловое безопасное лазерное окошко 1064 нм высокий VLT лазерный Защитный Объектив акриловое окно
