Z208 Cast Iron Welding Electrode      Accord with:GB/T 10044 EZC

Description:

Z208 is a graphitic type coating cast iron electrode with carbon steel core. Both AC and DC can be applied in welding. Weld seam metal has excellent crack resistibility. And its price is cheaper.

Applications:

It is used for repairing welding defects for gray cast iron.

Chemical Composition of Deposited Metal: (%)

Attention:

a.       welding electrodes must be baked for 1 hour at the temperature of 150℃ before welding.

b.       For cast iron parts bearing impact stress, it is not good to use it.

c.       For welding detects of small and thin cast iron parts fabricated by low steel, welding electrodes need not be preheated. For general welding pipes, welding electrodes should be preheated to around 400℃, cool it after welding and the welding zone may be processed by cutting.

Z308 Cast Iron Welding Electrode

Accord with:GB/T 10044 EZNi-1           Equivalent norm: AWS A5.15 ENi-C1

Description:

Z308 is a covered welding electrode with pure nickel core and graphitic coating for cast iron. The Weld seam metal has excellent machinability and crack resistibility. Both AC and DC can be applied.

Applications:

It is used for repairing welding thin pieces and processing surface of cast iron, as well as important grey cast iron pieces, such as engine gear box, machining tools, guideway, etc

Attention:

a.       welding electrodes must be baked for 1 hour at the temperature of 80-120℃ before welding.

b.       Hammering the welded seam to dispel stress around the welding region and to avoid cracking.

c.       Large current should be avoided in cold welding for cast iron, so as to reduce impurities of base metal to penetrate the weld seam and to reduce the width of the weld zone, and then to improve the ability of crack-resistance and capability of machine processing of the weld seam.

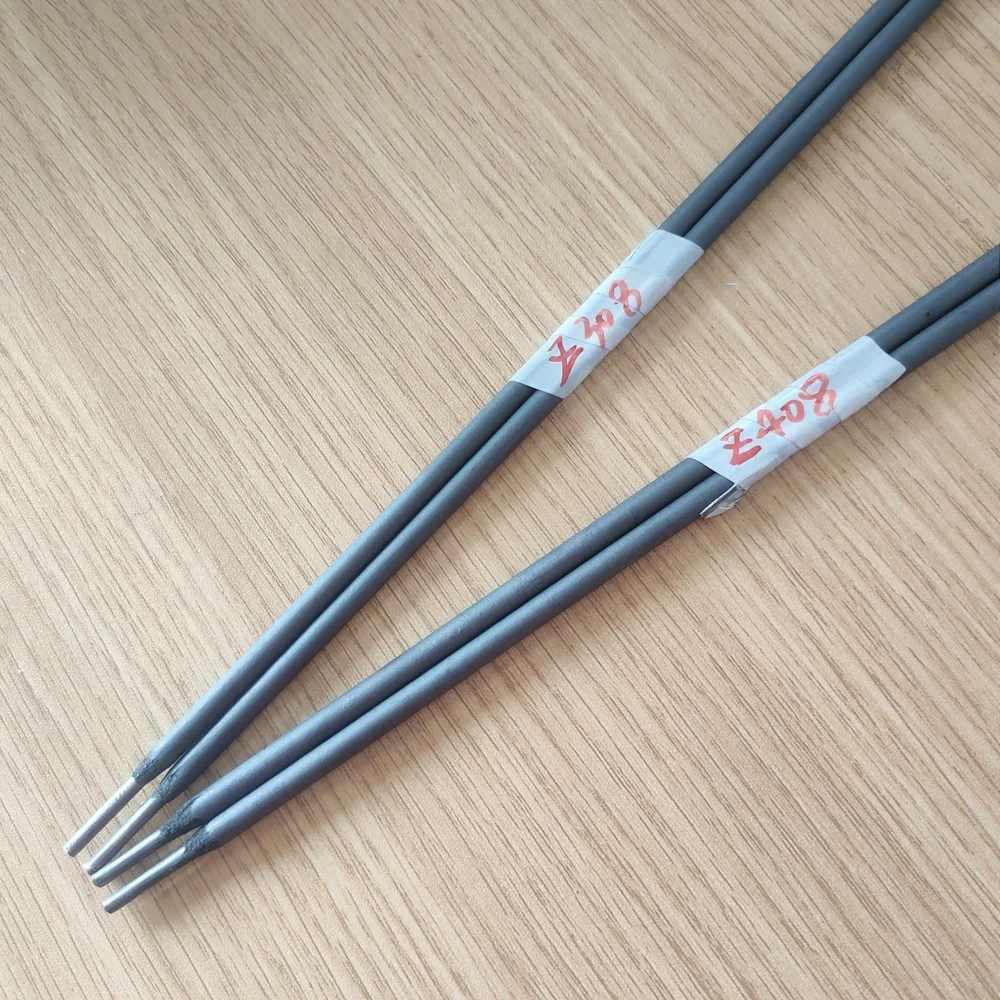

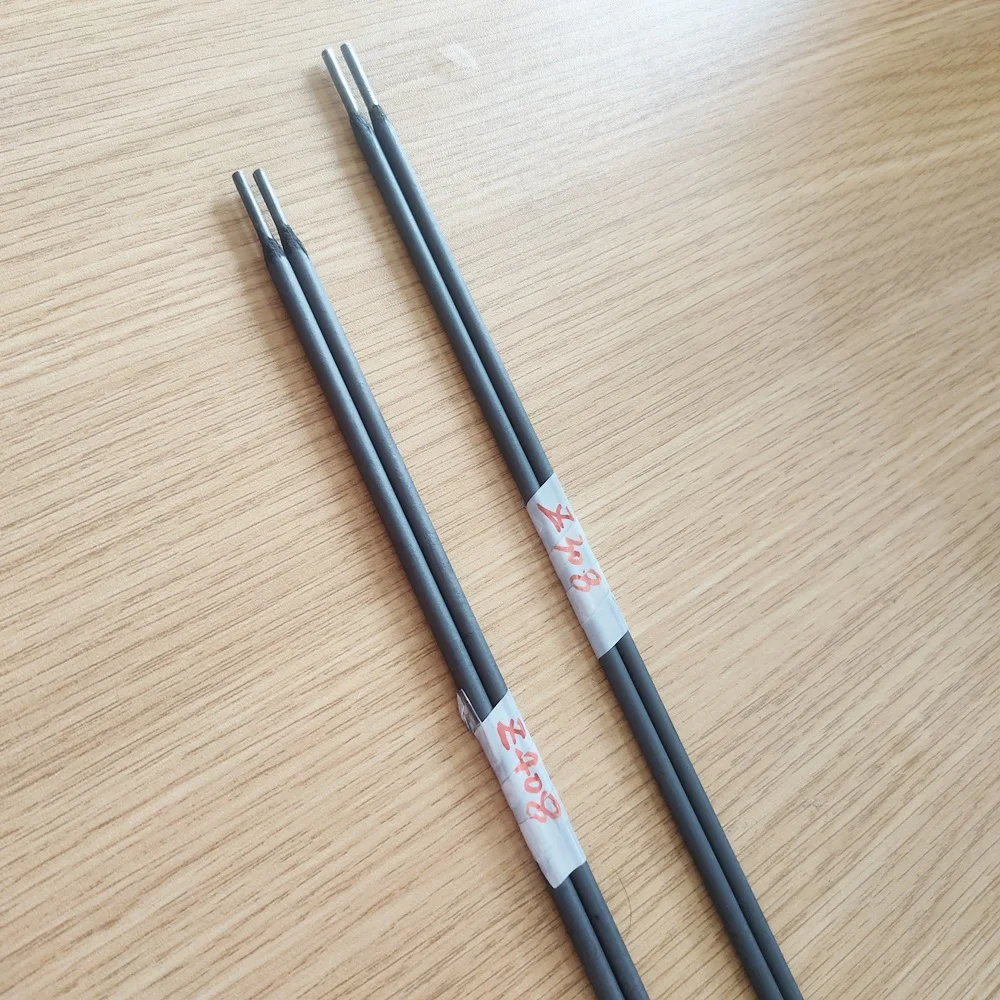

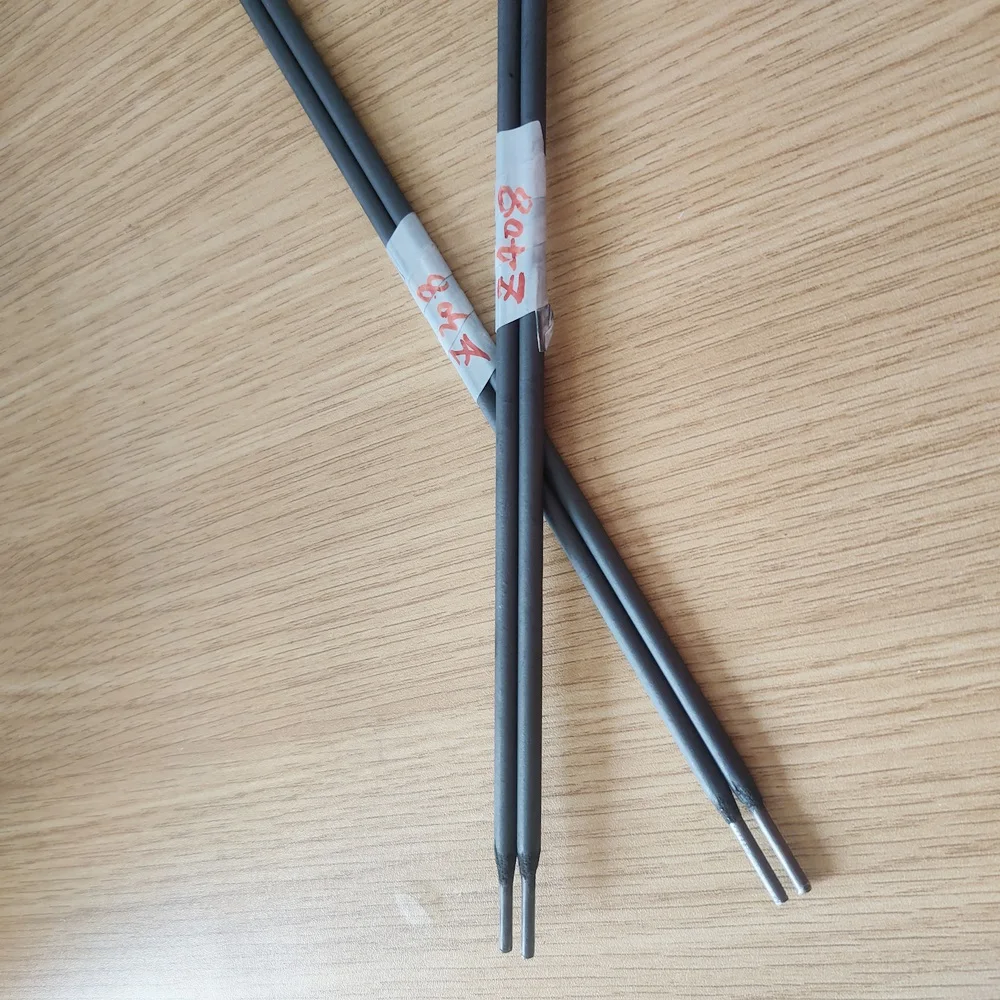

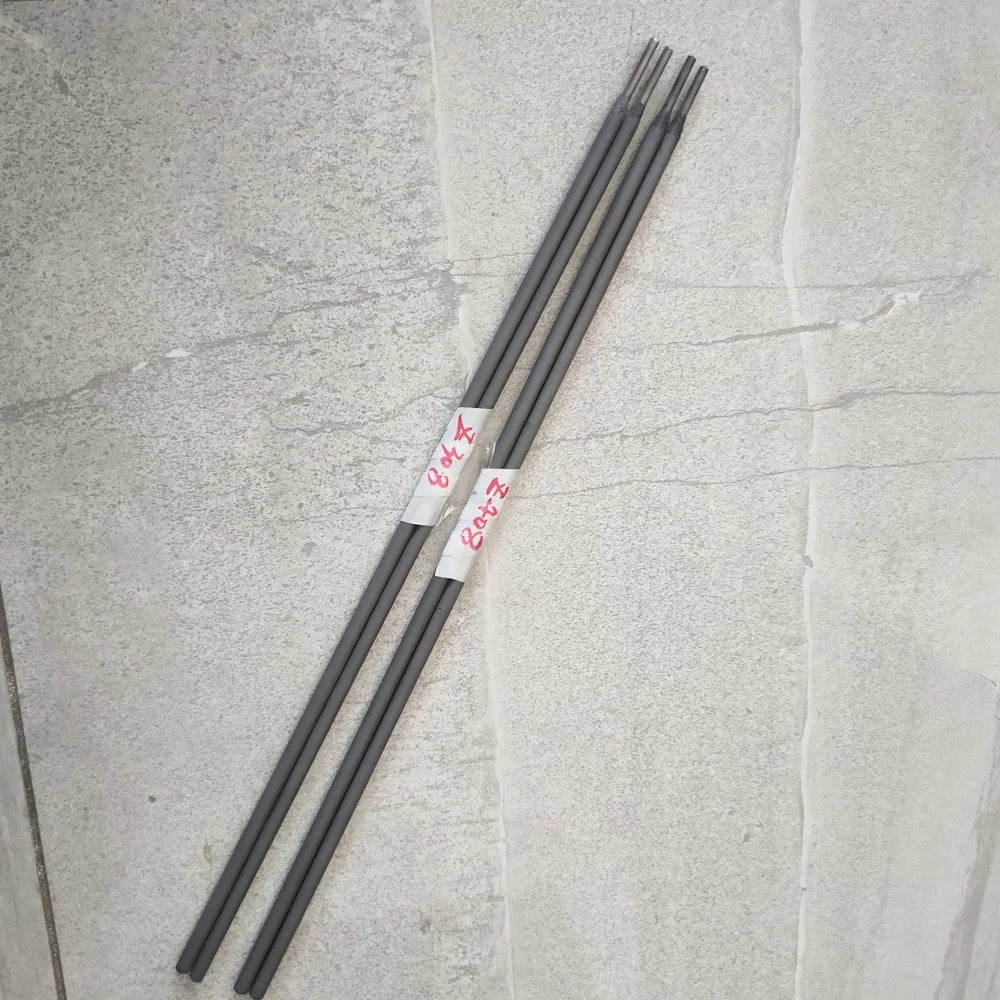

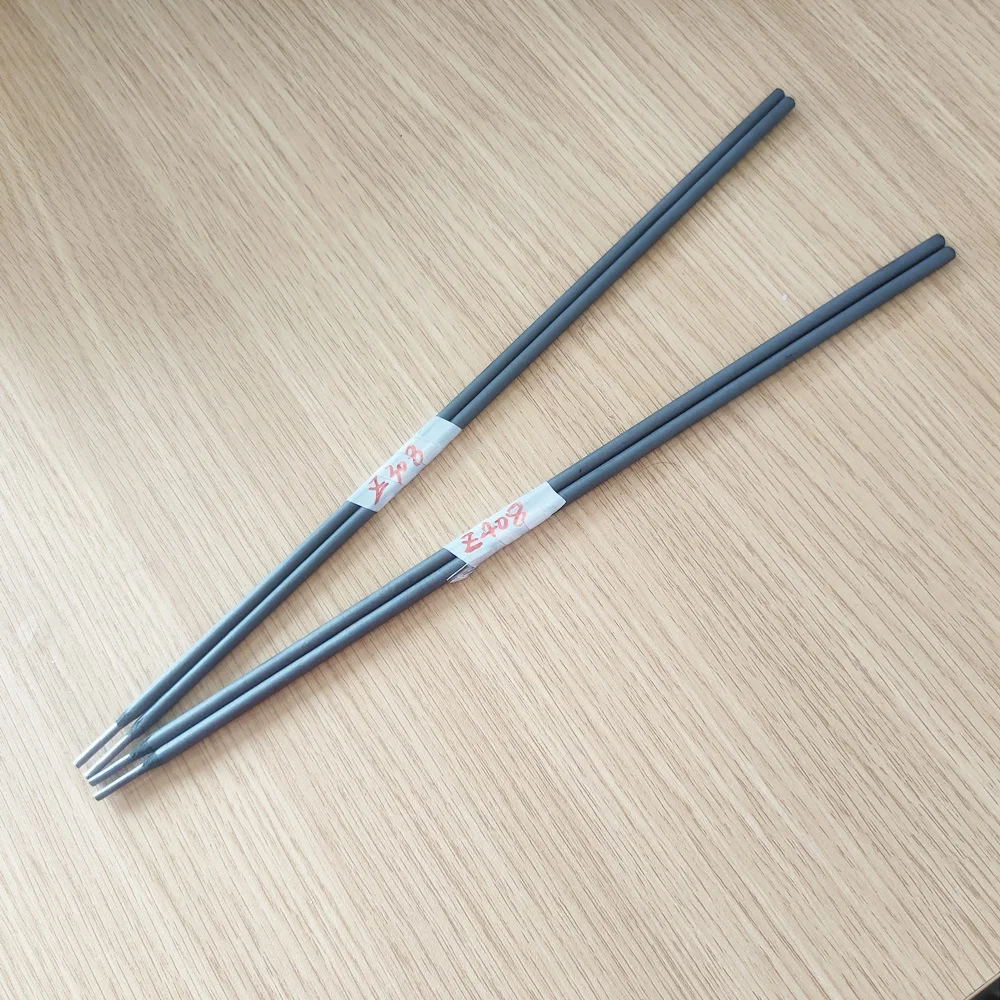

Z408 Cast Iron Welding Electrode

Accord with:GB/T 10044 EZNiFe-1             Equivalent norm: AWS A5.15 ENiFe-C1

Description:

Z408 is a graphitic (with strong reducing) type coating with Ni/Fe core welding electrodes for cast iron. It has features as follows: high toughness, excellent plasticity, low linear expansion coefficient, etc. Both AC and DC can be applied with welding.

Applications:

It is used for repairing welding important and high toughness parts made of cast iron and modular iron, such as cylinder head, motor stand, gear wheel, etc.

Attention:

a.       welding electrodes must be baked for 1 hour at the temperature of 150℃ before welding.

b.       Small current is the best to be adopted.

Z508 Cast Iron Welding Electrode

Accord with:GB/T 10044 EZNiCu-1       Equivalent norm: AWS A5.15 ENiCu-B

Description:

Z508 is a graphitic (with strong reducing) type coating with Cu-Ni alloy (Monel) core welding electrodes for cast iron. Its technology properties and machinabilities are both close to those of Z308 and it is not suitable for welding pressed position, but suitable for welding gray cast iron.

Applications:

It is used for repairing welding gray iron casting strength of which is not so highly required.

Attention:

a.       welding electrodes must be baked for 1 hour at the temperature of 150℃ before welding.

b.       When welding, narrow weld seam is recommended and its length should be less than 50mm, and after welding, hammer the weld metal immediately to dispel stress around the welding region and avoid cracking.

2.5kgs/plastic box;

Support customized packaging

We maily produce and export the following products:

Carbon steel strcture welding rods ,like E6013 E7018 E6010 E6011 E7016,

Stainess steel electrode, Cast iron electrode.

We can satisfy customers' needs according to their national standards:

2.0*300mm, 2.5*300mm

2.5*350mm, 3.2*350mm

4.0*400mm, 5.0*400mm

MIG welding wire,Flux-cored welding wire,Sumbered arc welding wire,

CO2 Gas Shielded Welding Wire,ect.

We can also provide nearly every national standards:

AWS ER70S-6 0.8MM, 1.0MM, 1.2MM, 1.6MM.
