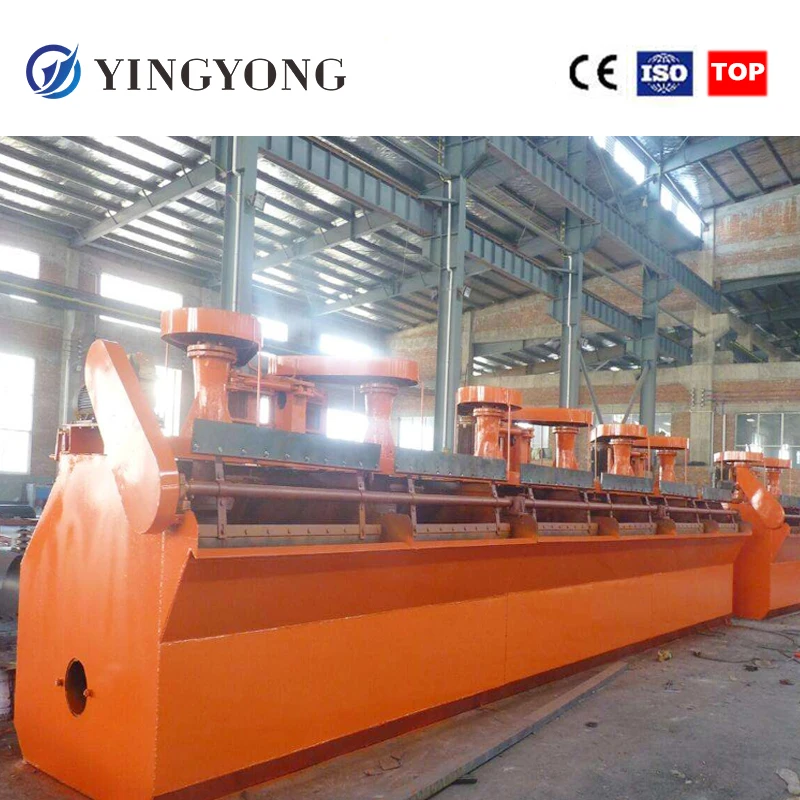

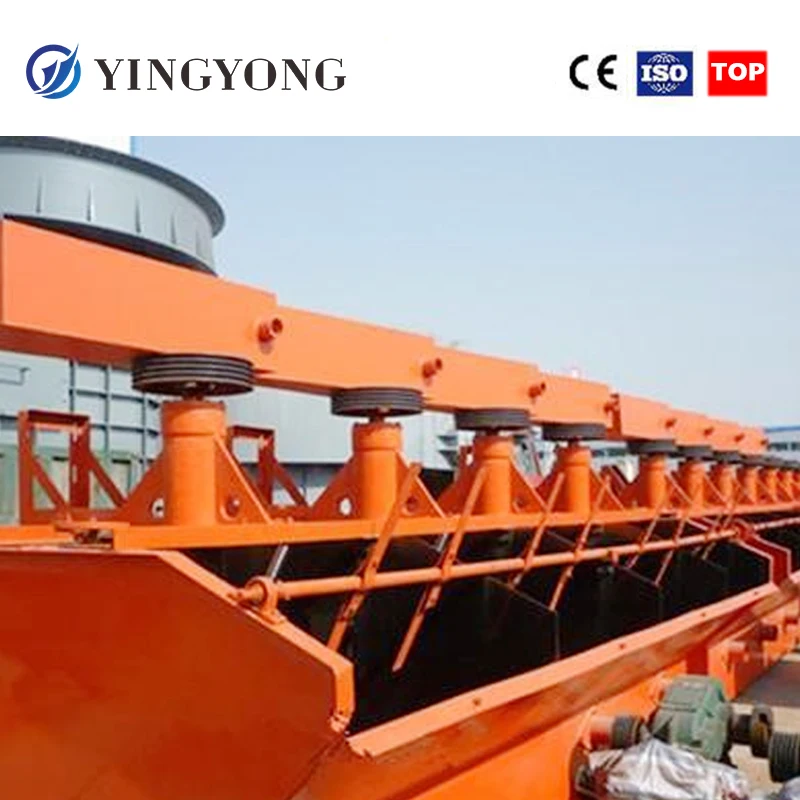

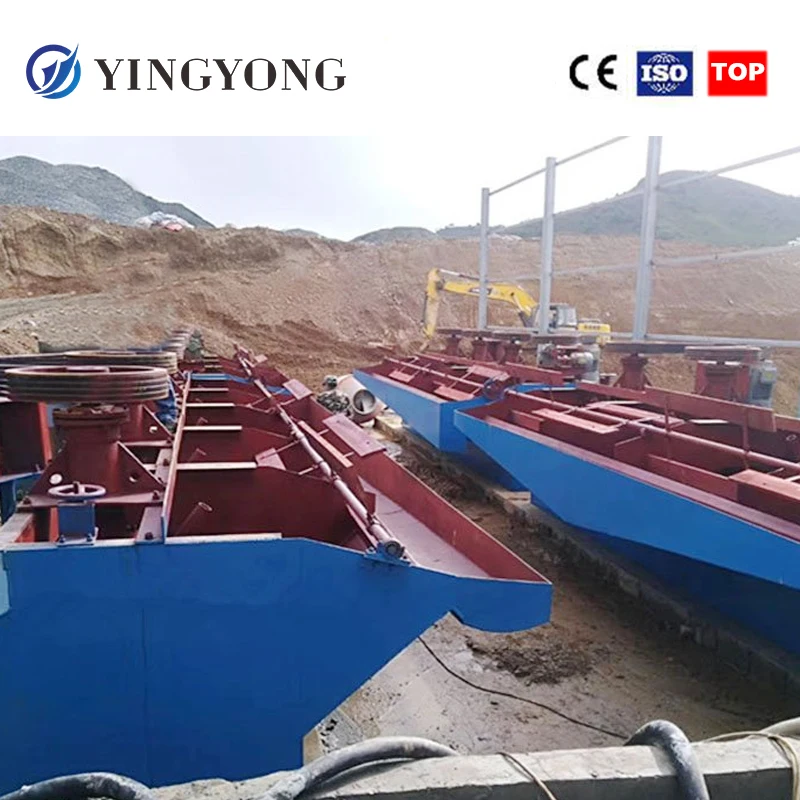

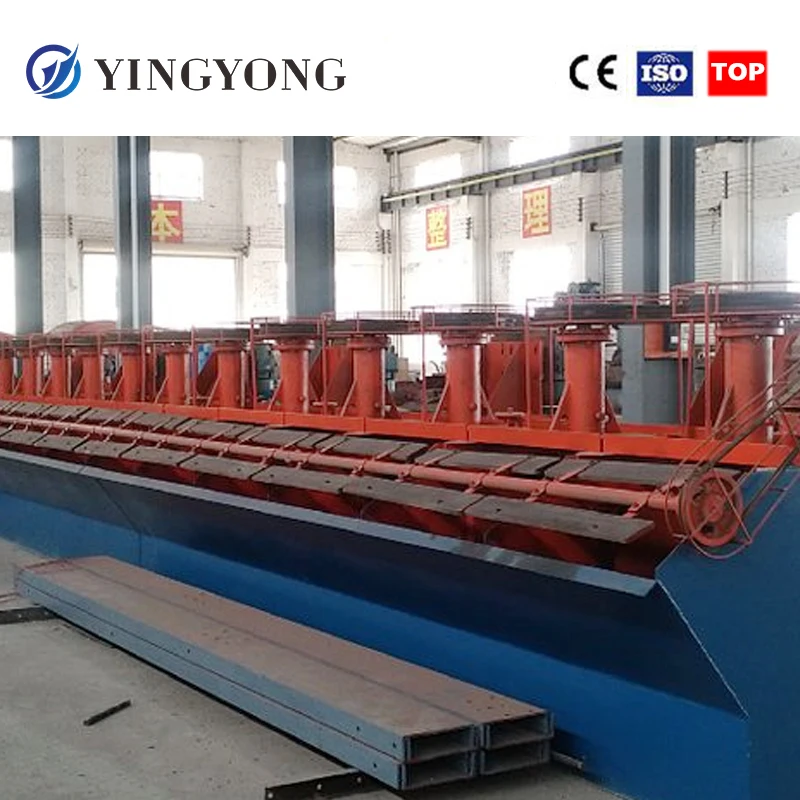

Оборудование для переработки минерального железа меди руды Флотационная Машина Для Сепарации угля продажа
- Категория: >>>
- Поставщик: Shanghai Yingyong Machinery Co. Ltd.
Сохранить в закладки 1600737654155:
Описание и отзывы
Характеристики
Product Description

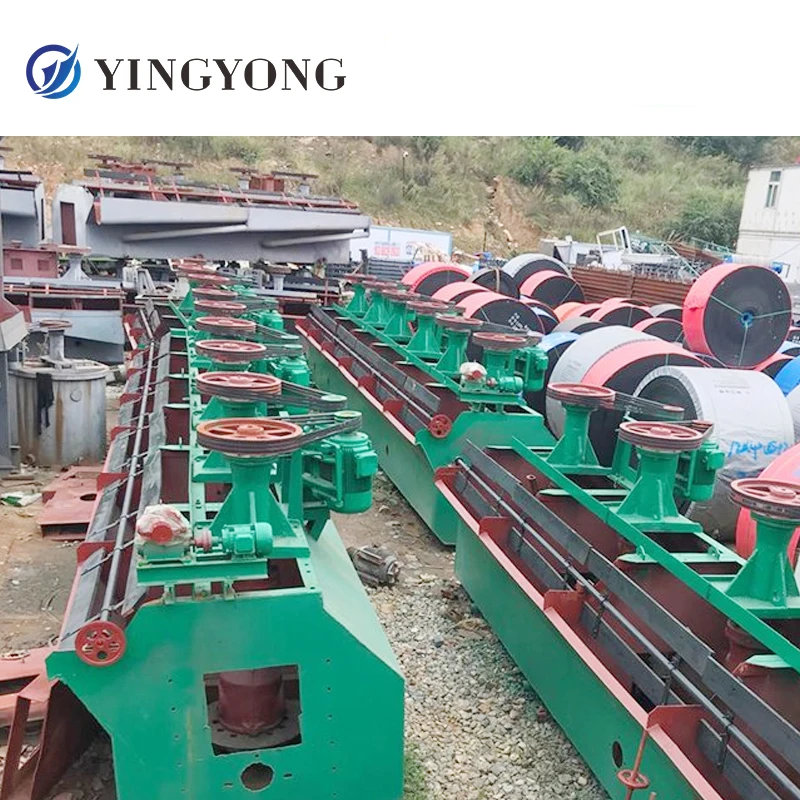

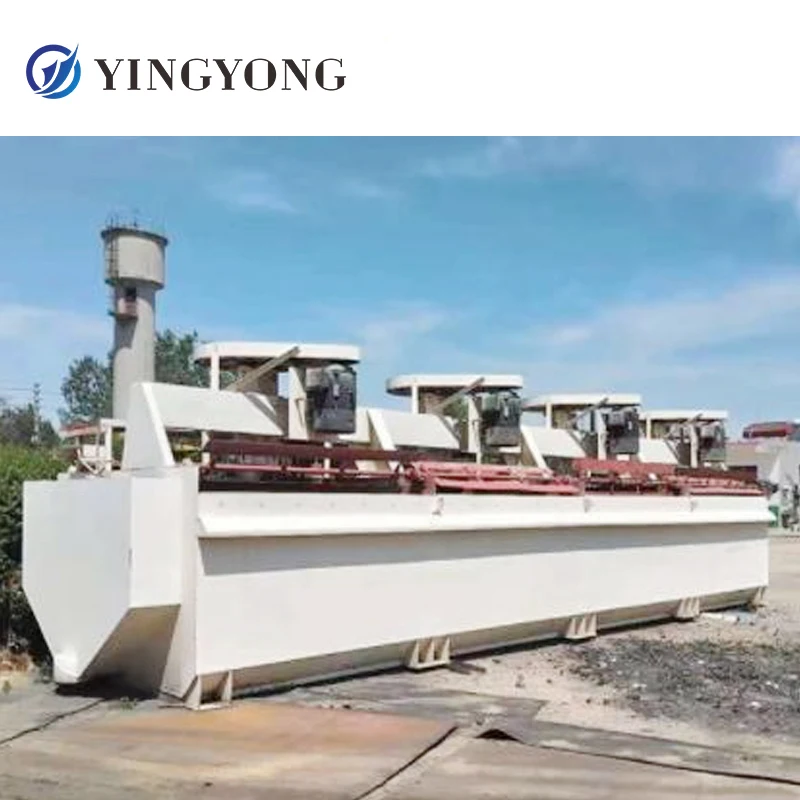

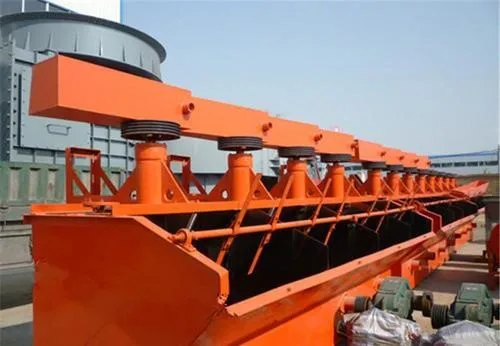

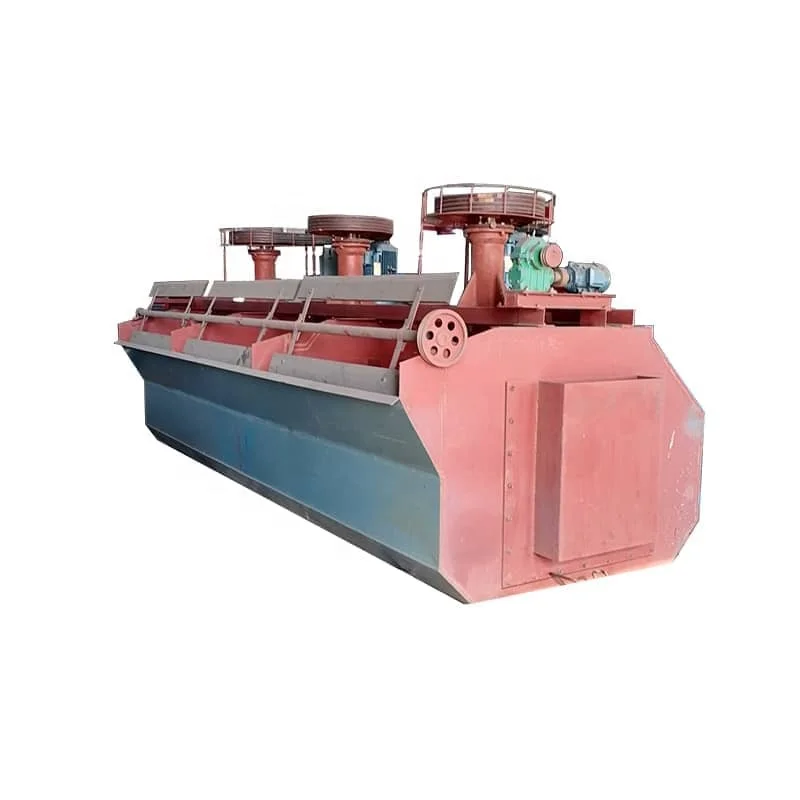

Flotation Concentrator
Flotation machine is the abbreviation of floating concentrator, which refers to the mechanical equipment to complete the flotation process. In the floatation machine, the slurry is treated by mixing and aerating, so that some of the ore particles are selectively fixed on the bubbles, and the floating surface is scraped out to form foam products, while the rest is retained in the pulp to achieve the purpose of separating minerals. There are many structural forms of flotation machine, and the most commonly used one is mechanical stirring flotation machine.

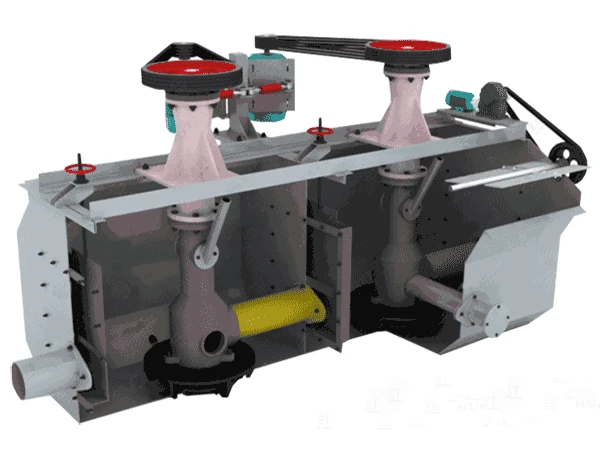

Structural features
The aerated agitated flotation machine is equipped with mechanical stirring device, and forced air is blown into the flotation machine with external characteristics. However, the mechanical stirring device generally only plays the role of mixing pulp and distributing air flow. The air is mainly pressed into pulp by external fan, and aeration and mixing are separated. Therefore, this kind of flotation machine has the following characteristics compared with the general mechanical stirring flotation machine:
1、 The aeration rate can be increased or decreased according to the demand and can be easily adjusted and kept constant, which is conducive to improving the processing capacity and separation index of the flotation machine;
1、 The aeration rate can be increased or decreased according to the demand and can be easily adjusted and kept constant, which is conducive to improving the processing capacity and separation index of the flotation machine;
2、The impeller has no suction function, so the speed is low, the power consumption is small, and the brittle minerals are not easy to produce mud phenomenon;
3、Due to the large processing capacity and shallow tank, the power consumption per unit capacity is low. The disadvantage is that a set of compressed air system is needed, and the sand pump is used to lift the intermediate products back. There are chf-x, xjc, bs-c, KYF, bs-k, lch-x, CLF and so on.
Application

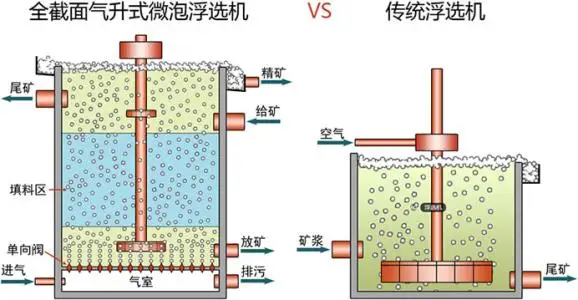

Full section air lift microbubble flotation machine vs traditional flotation machine：
Application
It is mainly used for the separation of copper, zinc, lead, nickel, gold and other non-ferrous metals, and can also be used for the roughing and cleaning of ferrous metals and nonmetals.

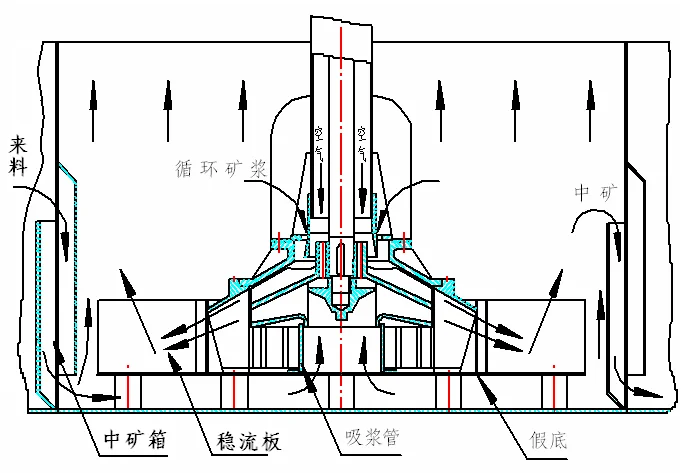

Working Principle
The floatation machine is driven by the triangle belt of the motor to drive the impeller to rotate, resulting in centrifugal action to form negative pressure. On the one hand, the sufficient air is mixed with the slurry. On the one hand, the slurry is mixed with the medicine, and the foam is refined at the same time, so that the mineral adheres to the foam and floats to the slurry surface to form a mineralized foam. Adjust the height of the gate and control the liquid level, so that the useful foam is scraped out by the scraper.
The separation ring rotates slowly. When the separation chamber enters the floating field area, the selected materials are sent to six separation points through the pulp distributor, and the weakly magnetic mineral particles are absorbed on the toothed plate and rotate with the separation ring. Under the action of gravity and pulp flow, the non-magnetic mineral particles pass through the gap of the toothed plate and discharge into the tailings tank at the lower part of the separation ring. When the separation room is transferred to the middling cleaning position, a small amount of cleaning water is fed to wash the gangue, synbiotic and
slime into the tailings tank (the machine does not have a middling tank), so as to improve the quality of concentrate. When the separation chamber is turned to the position with weak magnetic field (concentrate washing area), pressure water is injected to flush the weakly magnetic ore particles absorbed on the toothed plate into the concentrate tank. After that, the separation chamber turns to another magnetic field with opposite polarity. The separation ring rotates once, and each separation chamber repeats this six times.
Specifications
volume(m³) | cell size(mm) | impeller Dia.(mm) | impeller speed (r/min) | capacity（m³/min） | power （kw） | air flow sucked (m³/㎡min) | singe cell weight (kg） | |
XJZ-3.5 | 0.35 | 700X700X700 | 300/160 | 470/787 | 0.18-0.4 | 2.2/0.55 | 0.9-1 | 450 |
XJZ-6.2 | 6.2 | 900X900X850 | 350/216 | 400/583 | 0.3-0.9 | 4/1.1 | 0.9-1 | 870 |
XJZ-11 | 1.1 | 1100X1100X1100 | 500/280 | 330/485 | 0.6-1.6 | 5.5/1.1 | 0.9-1.1 | 1500 |
XJZ-28 | 2.8 | 1750X1600X1100 | 600/350 | 280/360 | 1.5-3 | 11/1.1 | 0.9-1 | 2200 |
XJZ-58 | 5.8 | 2200X2200X1200 | 750/430 | 240/320 | 3-6 | 17/1.5 | 0.9-1 | 3900 |
JJF-1 | 1 | 1400X1400X650 | 280 | 443 | 0.3-1 | 5.5/1.1 | 1 | |
JJF-2 | 2 | 1400X1400X1150 | 280 | 443 | 0.5-2 | 5.5/1.1 | 1 | |
JJF-3 | 3 | 1500X1850X1200 | 350 | 360 | 1-3 | 11/1.5 | 1 | |
JJF-4 | 4 | 1600X2150X1250 | 410 | 305 | 2-6 | 11/1.5 | 1 | 2302 |

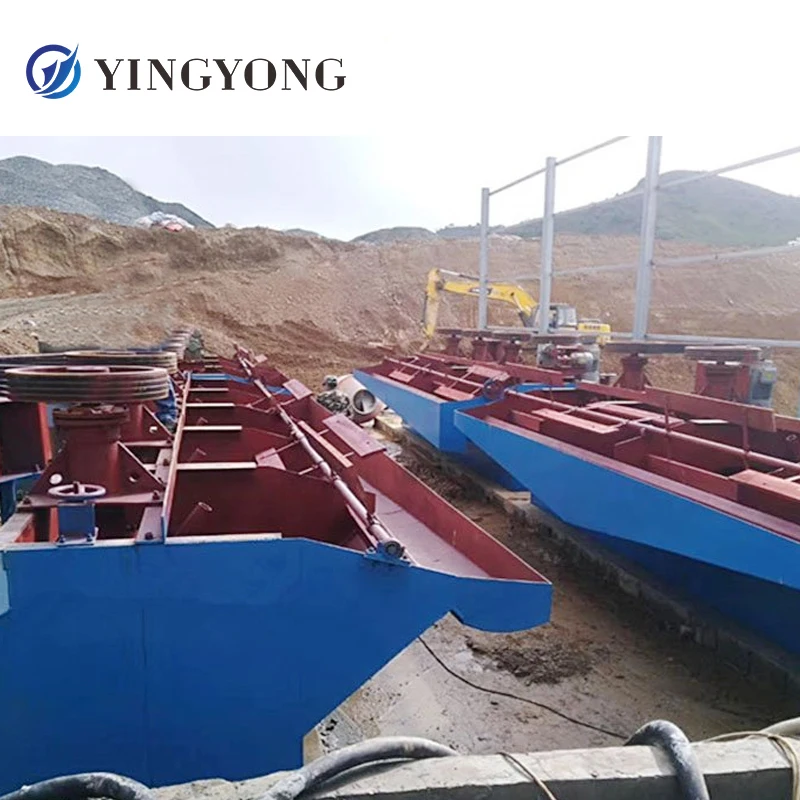

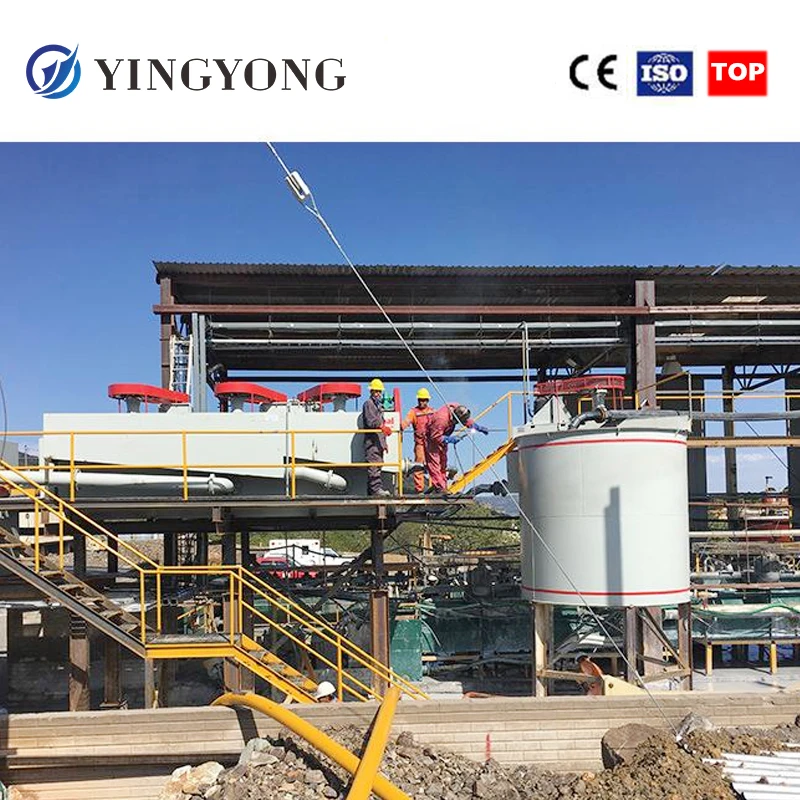

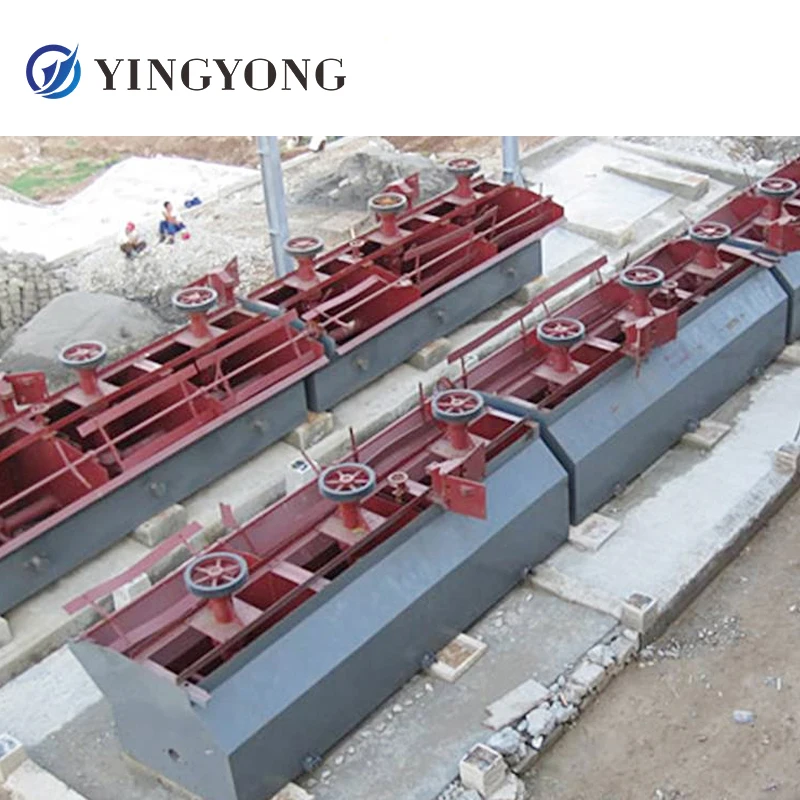

Product Case
Since the 1960s, Beijing General Institute of mining and Metallurgy (BGRIMM) has been committed to the research and application of BGRIMM series flotation equipment technology. Up to now, it has developed into a complete flotation machine system. At present, there are more than ten types and nearly 100 specifications of flotation machines and flotation machine combined units, such as chf-x, JJF, KYF, SF, XJZ, XCF, lch-x, CLF, YX and BF
Our Business
Shanghai YINGYONG Machinery Co., Ltd was found in 1986, formerly known as Shanghai Mining Machinery Factory. is a professional manufacturer of complete set mining equipments.
Our machine : flotation machine， Crusher， raymond mill , feeder, ball mill, sand making machine are widely used in mining materials treatment, cement and construction materials production, thermal power stations, chemical industry, fertilizer production, metallurgy and environment production etc.
Our machine : flotation machine， Crusher， raymond mill , feeder, ball mill, sand making machine are widely used in mining materials treatment, cement and construction materials production, thermal power stations, chemical industry, fertilizer production, metallurgy and environment production etc.
Our Core Advantages as below :
1. many years history FACTORY at mining machinery
2. Provide engineer team after sales service
3.Provide Complete set mineral processing plant
4. Provide Sample testing service in factory for free
5. Provide professional Mining Solution Consulting
Customer Visiting
FAQ
1.How is the quality of your products?(mining equipment/machine)
Answer: Our products are manufactured strictly according to national and international standard, and we will take a test on every grinder before delivery.
2.Guaranteed:
Answer: All of our products are guaranteed for one year. If products quality is not consistent with the description as we described or the promise before you place order, we promise 100% refund.
3.How about price?
Answer: For the complete same machine, we can promise our quality is the best when the price same as other competitors, and our price can be lowest when the quality at standard level.
4.Service and Payment Terms?
Answer: We can accept T/T and L/C; 30% deposit, 70% balance before delivery, which is international trade practice; Finished product pictures will provide to customers before delivery.
5.Our service：
Answer: Our products are manufactured strictly according to national and international standard, and we will take a test on every grinder before delivery.
2.Guaranteed:
Answer: All of our products are guaranteed for one year. If products quality is not consistent with the description as we described or the promise before you place order, we promise 100% refund.
3.How about price?
Answer: For the complete same machine, we can promise our quality is the best when the price same as other competitors, and our price can be lowest when the quality at standard level.
4.Service and Payment Terms?
Answer: We can accept T/T and L/C; 30% deposit, 70% balance before delivery, which is international trade practice; Finished product pictures will provide to customers before delivery.
5.Our service：
Pre-sales service: We provide you with the prophase plan, process flow design and manufacturer equipment according to your special
demand.
demand.
Sales service: Send technicians to the jobsite guiding the installation and adjustment, training operators and finishing the check
and accept together with you.
After-sales service: To establish long term friendship, we will reg-ularly pay return visit to customers. Supplying technique,building design, instruction, installation and debugging for free.
Lifelong service: One year warranty to make sure your machine runs constantly.Always offer lifelong service and provide spare parts for a long term.
Very good service help us win many clients from all over the world.
and accept together with you.
After-sales service: To establish long term friendship, we will reg-ularly pay return visit to customers. Supplying technique,building design, instruction, installation and debugging for free.
Lifelong service: One year warranty to make sure your machine runs constantly.Always offer lifelong service and provide spare parts for a long term.
Very good service help us win many clients from all over the world.
