Распродажа промышленный термоусадочный расширитель для труб FEP PFA
- Категория: >>>
- Поставщик: Dongguan Songhu Plastic Machinery Corp.
Сохранить в закладки 1600738568743:
Описание и отзывы
Характеристики
Product Specification

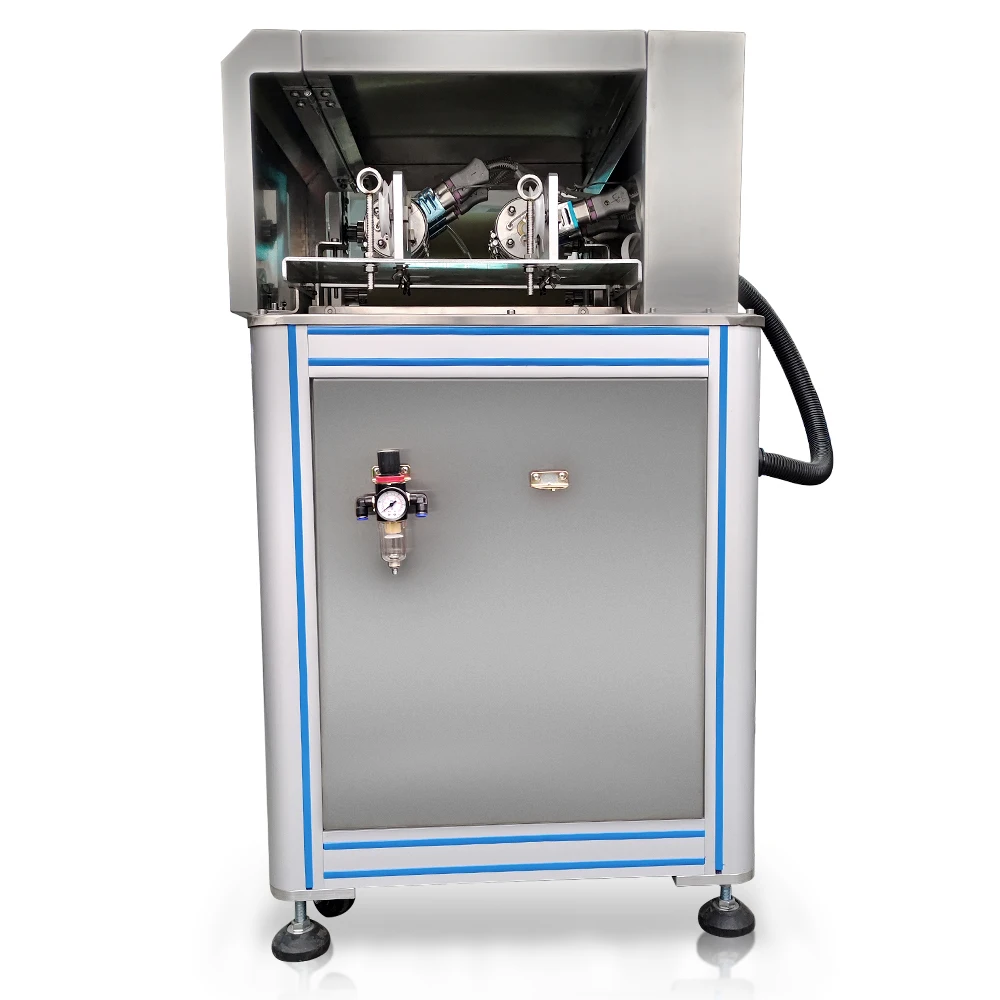

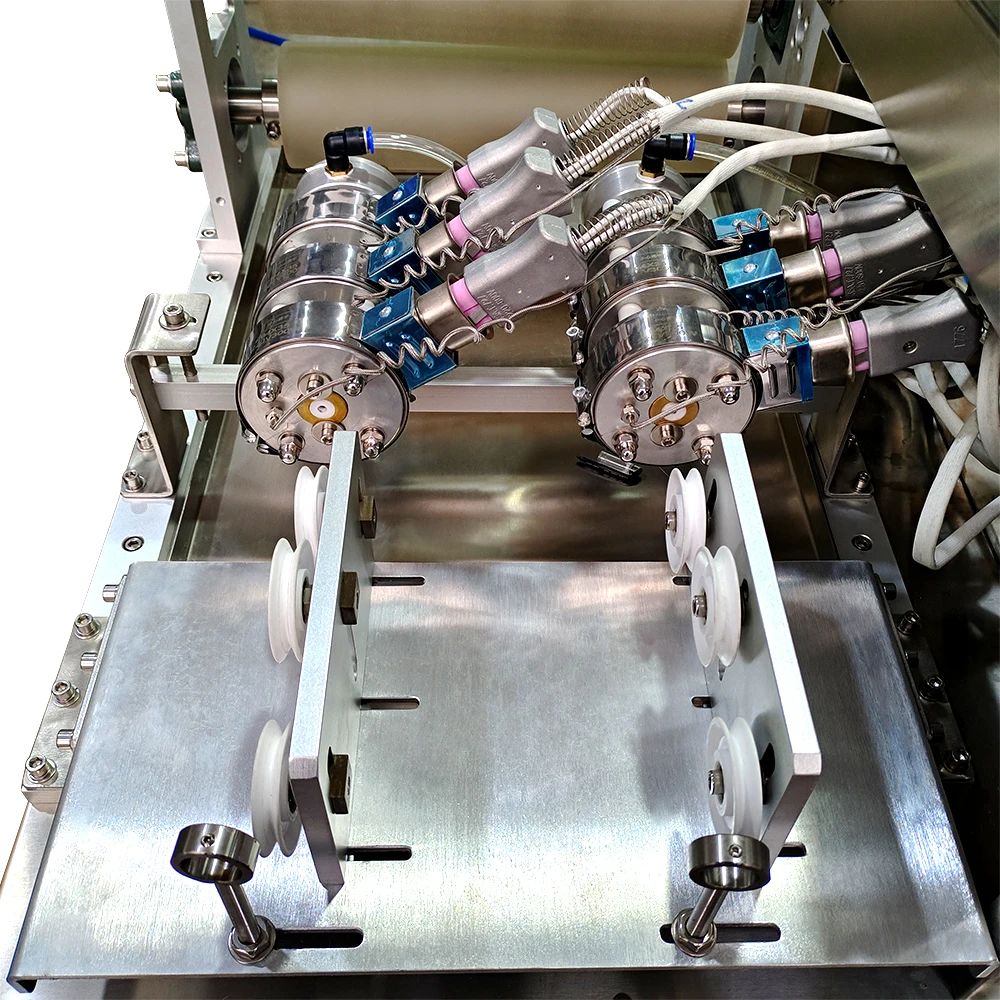

1. Equipment Introduction
FEP expanding machine is an equipment independently developed by Songhu for the production of FEP, PFA and other heat-shrinkable tubes. The fuselage adopts an integrated stainless steel + aluminum frame structure, which greatly improves the overall stability of the fuselage. Adopting the positive pressure expansion method, the expansion form of one out of two, to improve the expansion efficiency. This machine features a heating system with three temperature zones, which can make the plastic pipe heated evenly and soften more completely. Heating step by step to ensure stable expansion and prevents rupture due to high temperature.
2. Equipment Use

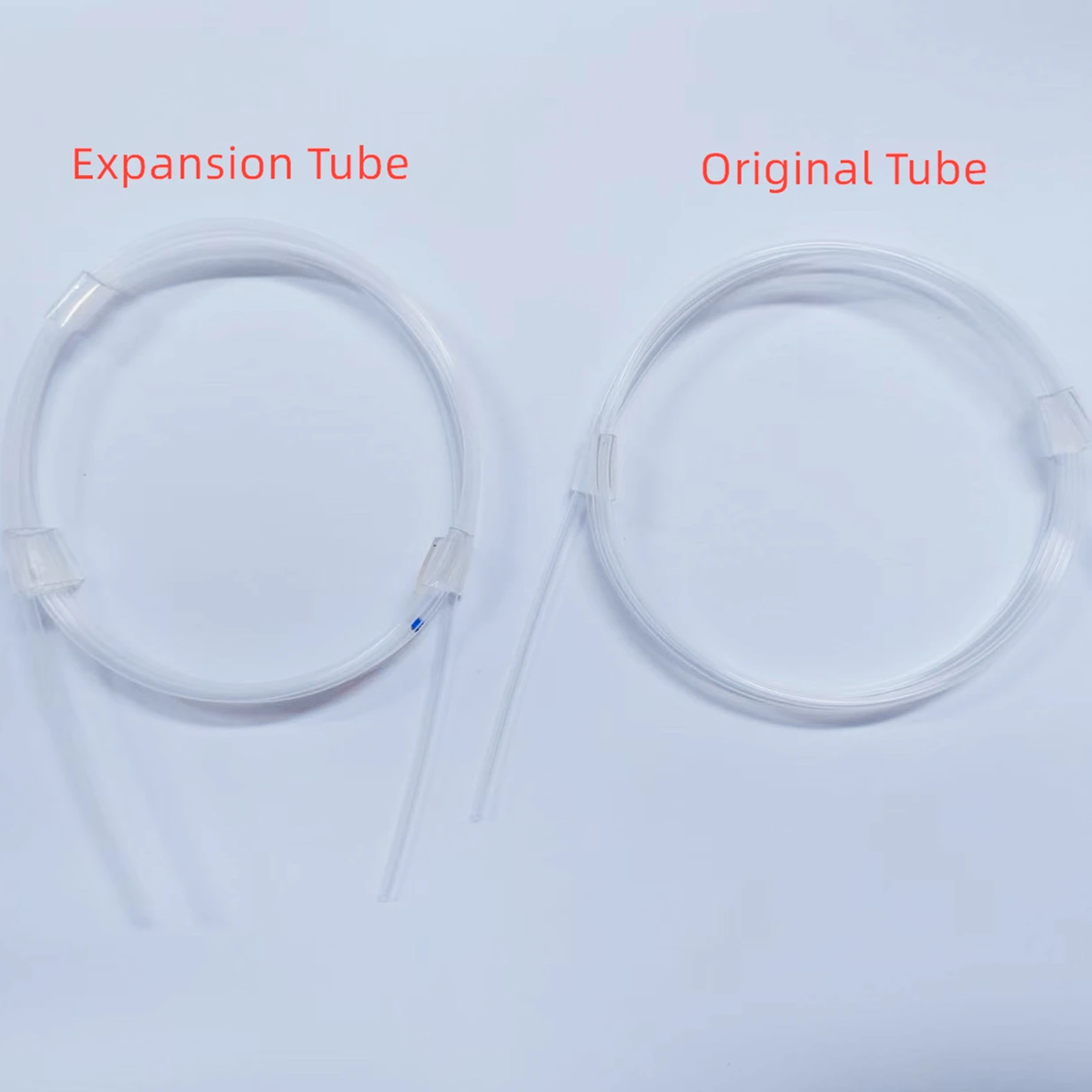

The expanding machine expands FEP, PFA and other fluorine plastic tubes to make the plastic tubes have thermal shrinkage, so as to produce FEP heat shrink tubes.
3. Brief Introduction Of FEP Heat Shrinkable Tube
FEP heat shrink tubing has excellent wear resistance, chemical corrosion resistance and high temperature performance, especially suitable for high temperature occasions and chemical dissolution resistant environments.
Manufacturing process of FEP heat shrink tube:
FEP heat shrink tube forming process: FEP base tube manufacturing (using extruder to heat and pressure FEP pellet raw materials into FEP tube) - blowing (expanding with expanding machine) - cooling finalize - inspection - packaging - finished product.
FEP heat shrink tube forming process: FEP base tube manufacturing (using extruder to heat and pressure FEP pellet raw materials into FEP tube) - blowing (expanding with expanding machine) - cooling finalize - inspection - packaging - finished product.
4. Equipment Parameters And Characteristics
Model: ZTJX-KZ-02
Input Power: 380V three-phase 5-wire 50/60HZ
Equipment Area: Length x width x height (800 x 800 x 135 cm)
Compressed Air: 100PSI clean, up to 300PSI nitrogen
Applicable Specifications: The outer diameter of the design product ranges from 1.5-10 mm, which can be achieved by replacing the molding die. The equipment is equipped with an expanded specification die.

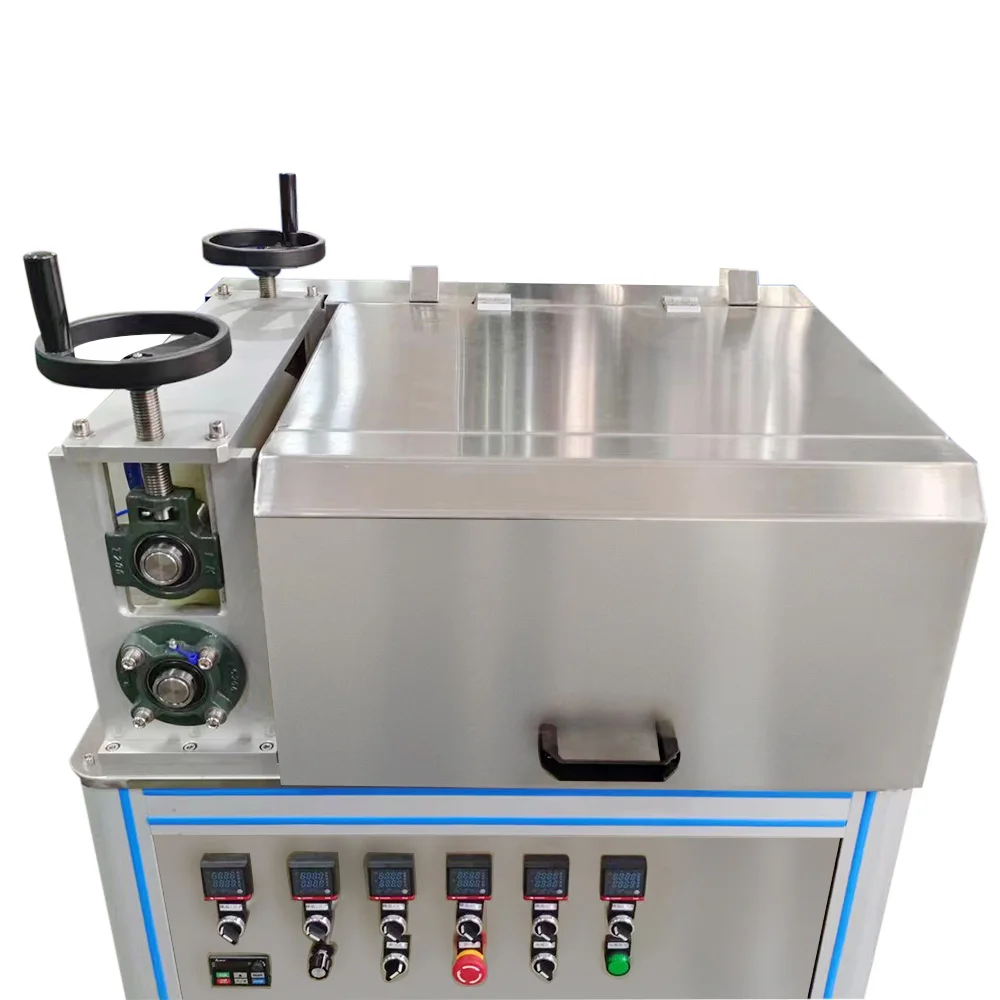

Heating Chamber: according to the product process requirements, set the corresponding temperature value.
Molding Room: According to product requirements, replace different molding dies to achieve.
Cooling Chamber: non-contact water chamber cooling, to meet the cooling needs of products.

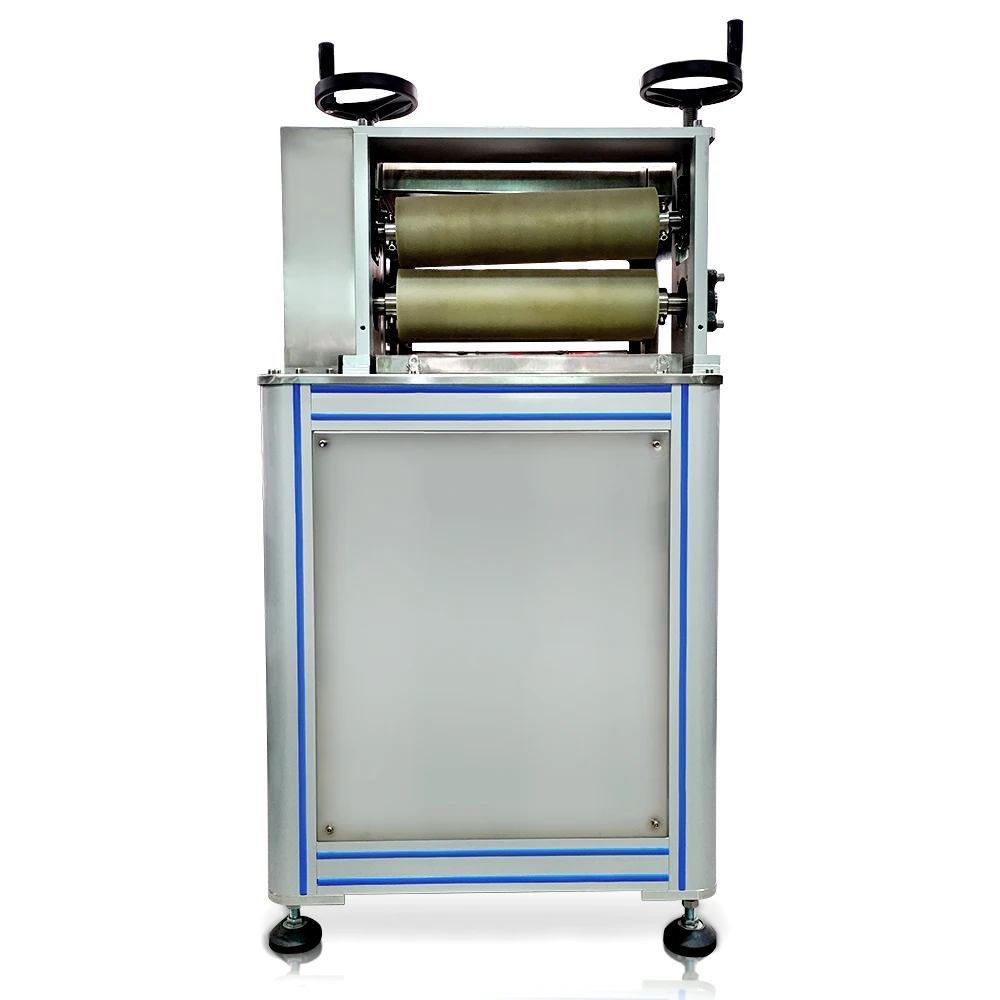

Traction Machine: two-wheeled traction, can achieve one out of two expansion needs.
Speed Adjustment: traction speed is adjustable, frequency conversion drive control.
Temperature control: temperature control table set the corresponding temperature, according to the product process set freely.
Pressure Regulation: It can satisfy 0-300 PSI.
Aluminum alloy + stainless steel sealing plate.
Expansion ratio: 1.3-1.4 times. Expansion speed: 5-10min/m for single root
Input Power: 380V three-phase 5-wire 50/60HZ
Equipment Area: Length x width x height (800 x 800 x 135 cm)
Compressed Air: 100PSI clean, up to 300PSI nitrogen
Applicable Specifications: The outer diameter of the design product ranges from 1.5-10 mm, which can be achieved by replacing the molding die. The equipment is equipped with an expanded specification die.
Heating Chamber: according to the product process requirements, set the corresponding temperature value.
Molding Room: According to product requirements, replace different molding dies to achieve.
Cooling Chamber: non-contact water chamber cooling, to meet the cooling needs of products.
Traction Machine: two-wheeled traction, can achieve one out of two expansion needs.
Speed Adjustment: traction speed is adjustable, frequency conversion drive control.
Temperature control: temperature control table set the corresponding temperature, according to the product process set freely.
Pressure Regulation: It can satisfy 0-300 PSI.
Aluminum alloy + stainless steel sealing plate.
Expansion ratio: 1.3-1.4 times. Expansion speed: 5-10min/m for single root
Our Company
Dongguan Songhu Plastic Machinery Co., Ltd (Stock Code: 834005) was established in 2010. The company's head-quarter is located in Dongguan city, Guangdong province of China, and covering an area of more than 10,000 square meters. SONGHU company own 100 employees with some of them have been working in the field for over 20 years experiences.
With more than ten years of production experience, our core business expanded from the high precision extrusion equipment lines to FDM 3D printers and 3D printer filaments. We developed a strong researching and developing team, skilled workers, and rich successful cases, and have enough ability to customize the products according to the special requirements of our customers.
We earned a high reputation in the market by offering high-quality products and professional services. As the leading manufacturer in China, our products were certificated with CE, ISO, ROHS, and also many advanced technical certificated with the patent.
Our Customers
Contact us
Похожие товары

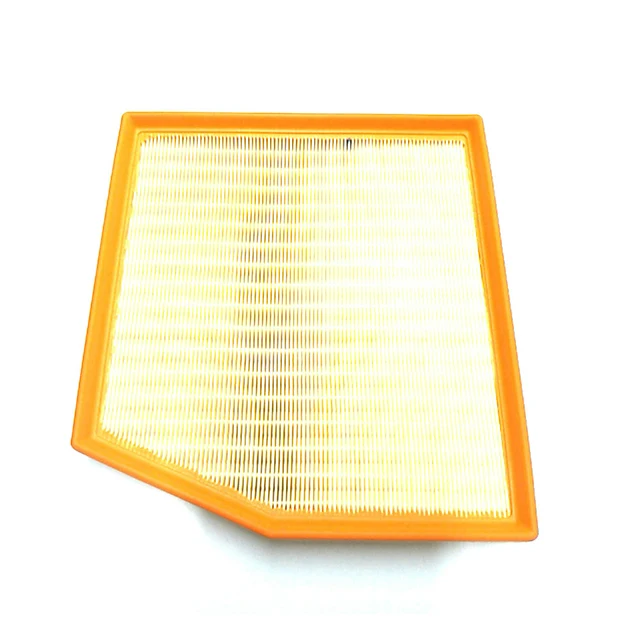

Используйте для BMW воздушный фильтр 13718577171 для G11/G12/730I/750I OE 13718577170

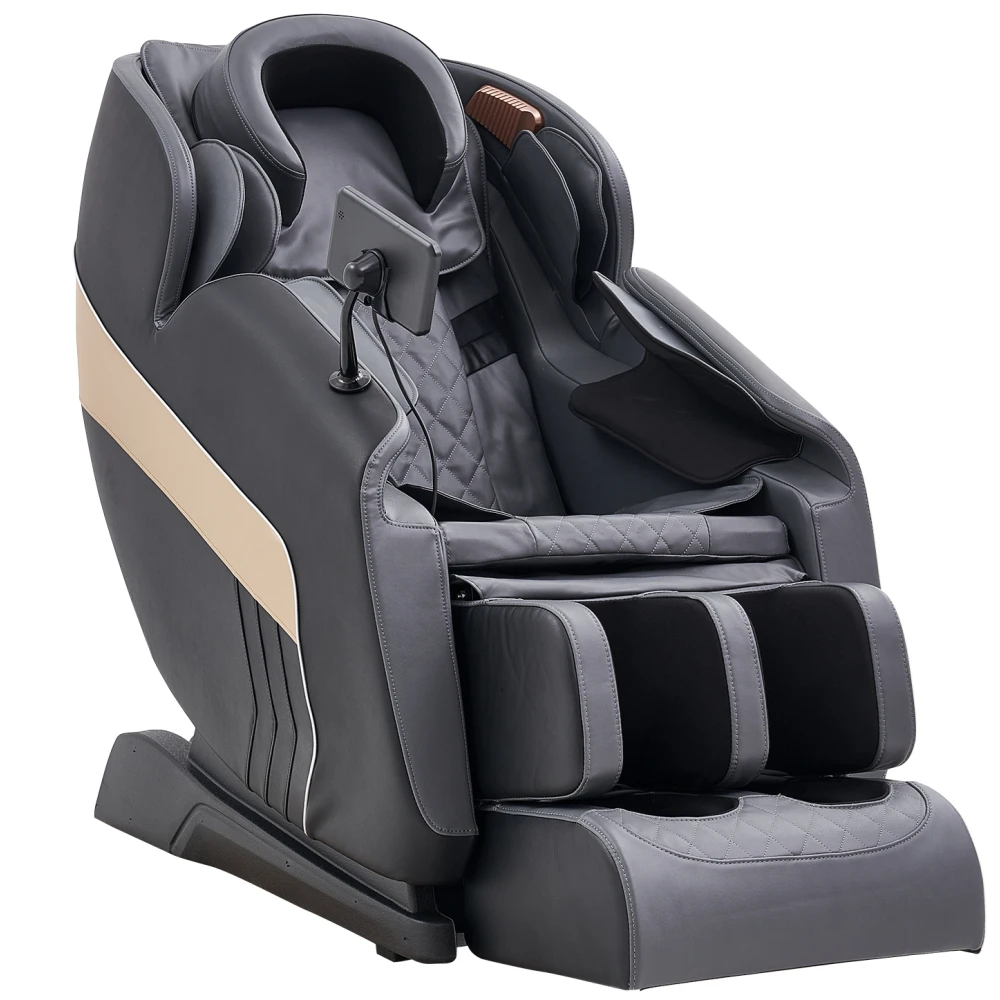

Электрическое кресло для массажа
99,00 $ - 199,00 $
Оптовая продажа, пустые капсулы для таблеток, 005 капсулы, желатин золотого цвета, пустые капсулы

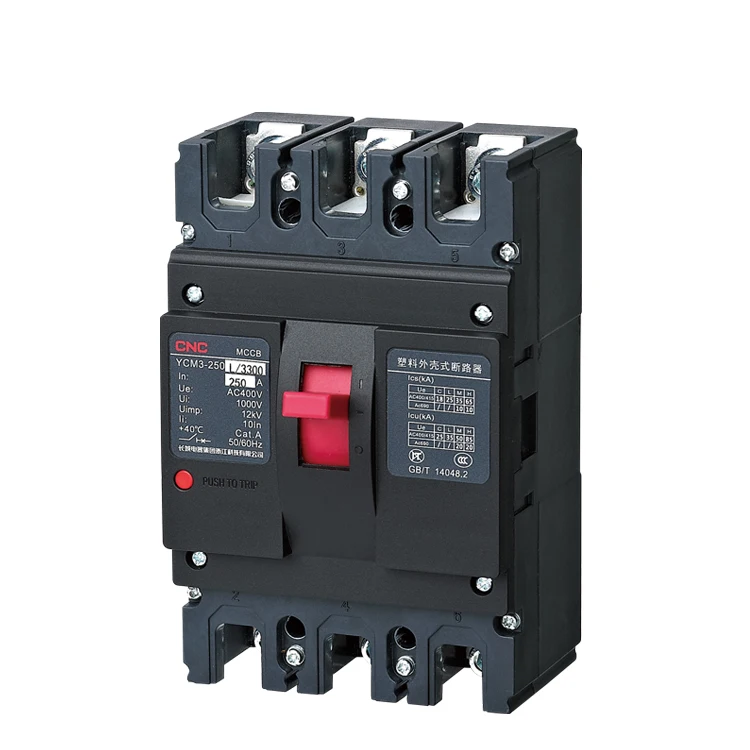

Мануфактура прямые 4-полюсный автоматический 63amp выключатель mccb 630a 63 ампер

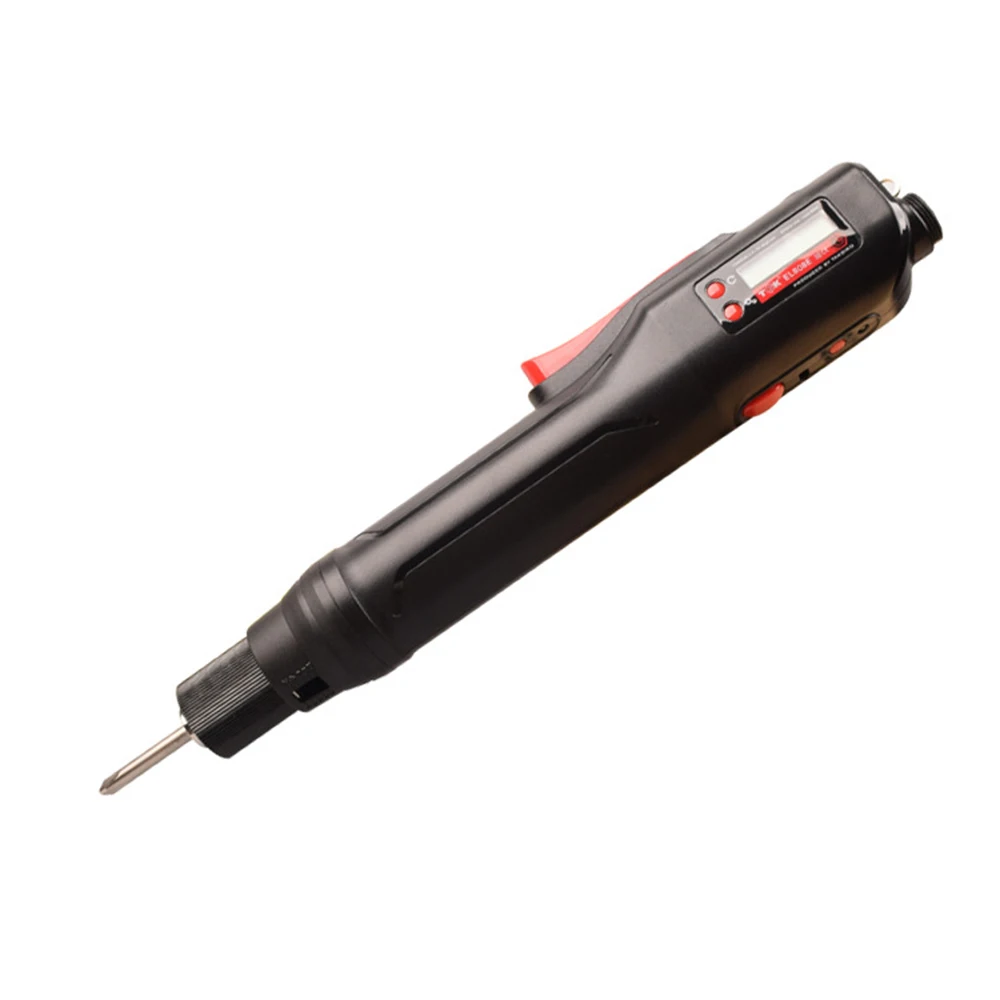

Электрический шуруповерт TGK EL808, 4 мм бита, автоматический крутящий момент, с блоком питания

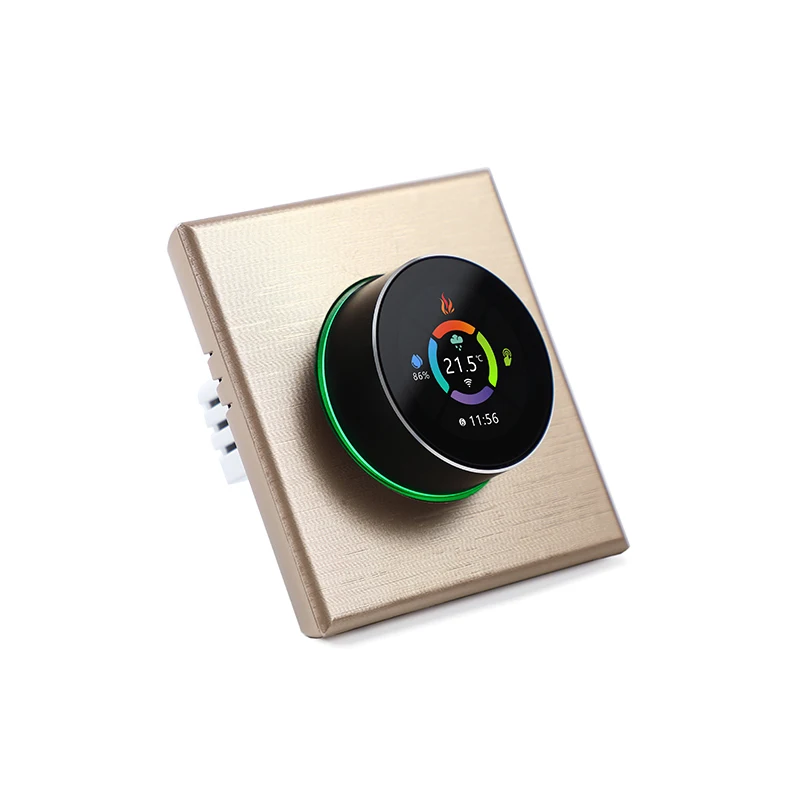

Термостат для подогрева пола Becasmart, умный программируемый термостат для подогрева
