Gv2me07 gv2me08 Замена MPCB защита двигателя автоматический выключатель

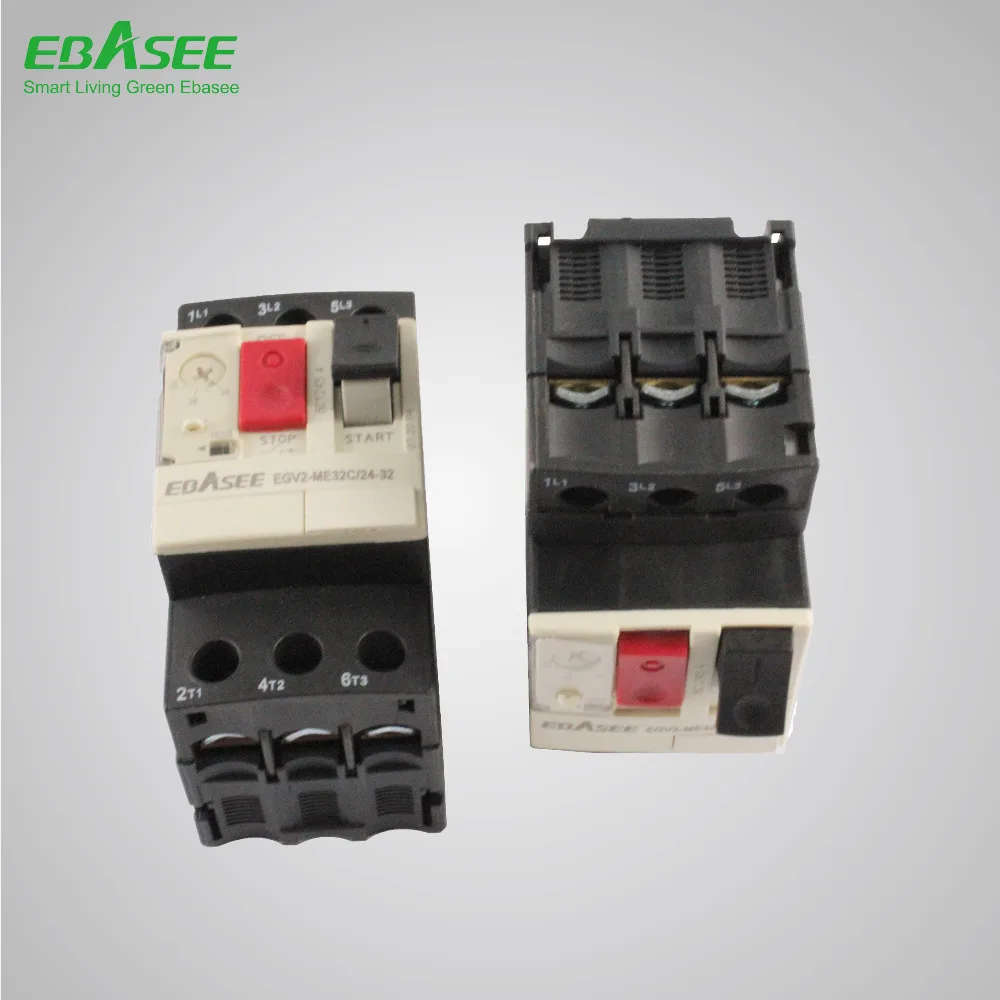

Motor protection circuit breaker

Function

EGV2 Motor protector apply to AC50/60Hz, rated insulation voltage 750V,rated operating voltage 660V.Rated operating current 0.1A~25A.It’s used for the overload and short circuit protection of the motor. It can also directly start and motive power of starter and full pressure rated current from 0.1A to 25A circuit protection.

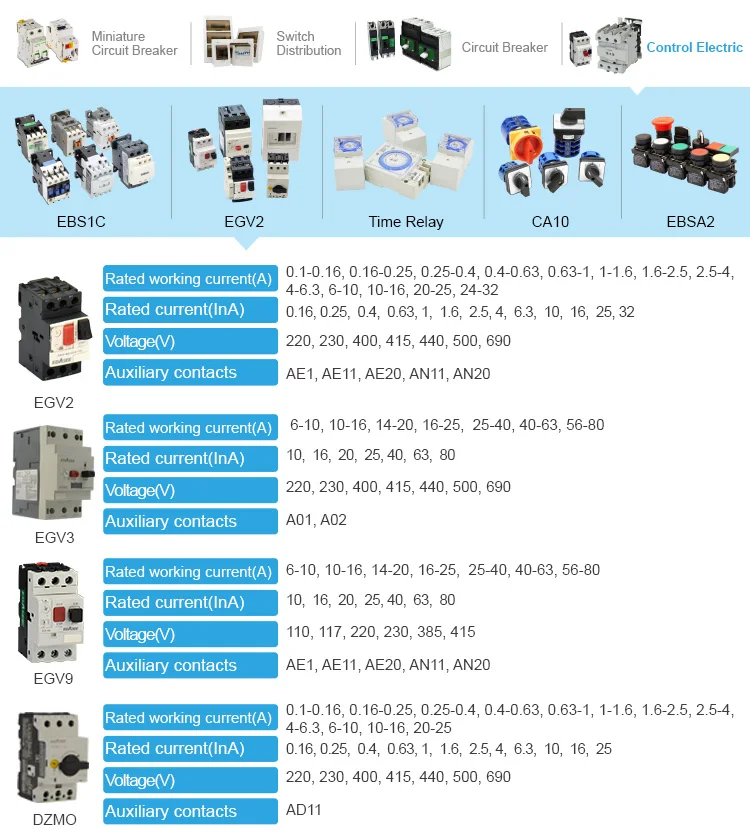

Technical Parameter

Features

n The product has beautiful appearance and compact structure,small volume,high breaking capacity,long life and other characteristics.

n Compact design ; Screw or Din rail mounting ; Standard breaking capacity; Thermal and electromagnetic trip; Rated operational current up to 25A; Switching capacity 150/150kA/415V; Short-circuit release,fixed setting to 14 X lu; Single phasing sensitive; With screws or spring loaded terminals.

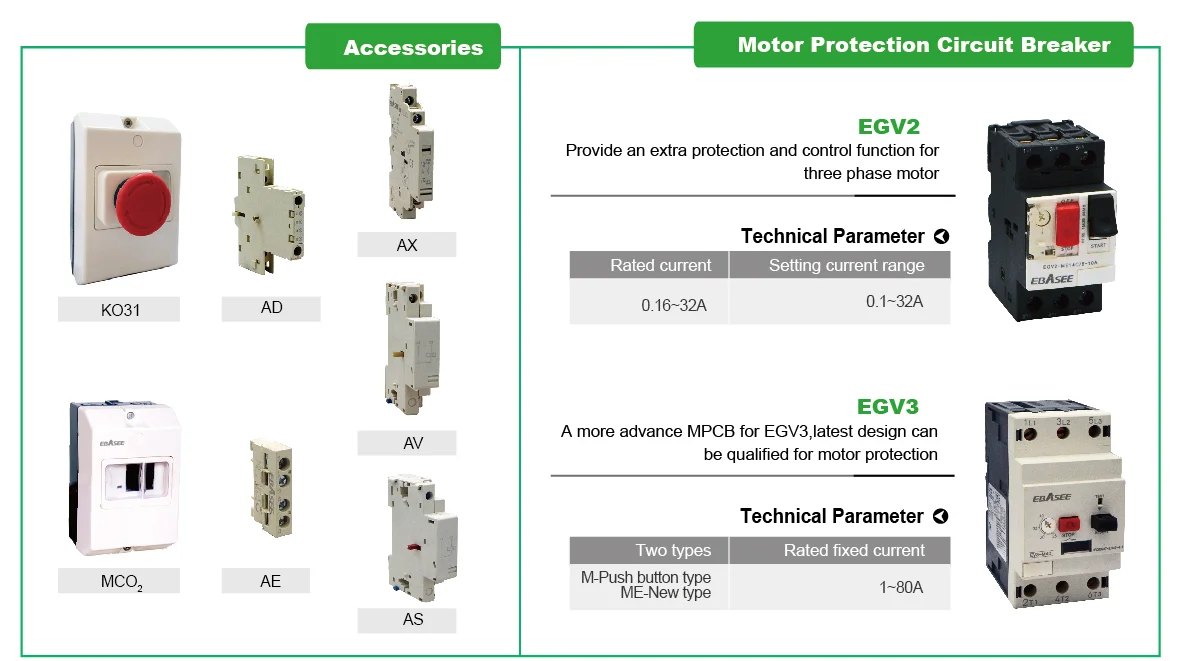

n DZMO motor protector accessories AD11(1NO+1NC)

Applicable Working

1. About us

Shanghai EBASEE Electric Co., Ltd. has been committed to low voltage electric products’ designing, R&D, manufacturing and marketing for decades.

EBASEE factory locates in Shanghai,China, covering an area of 5000m².There are 300 well-trained workers, more than 30 rich experience production and R&D engineers. EBASEE product portfolio have 4 lines and 8000+ items in application of power distribution, circuit protection, electricity control and power measuring.

QUALITY is our CULTURE.  With qualified raw materials and components, all products are manufactured to defined specifications, applying ISO9001 quality control system and in compliance with relevant international approvals, such as RoHS, CE, CB, SEMKO, TUV, KEMA. CNAS approved laboratory enables EBASEE to develop and test new products to meet variable markets’ tailored demands. EBASEE branded and OEM/ODM products are widely served for residential, commercial and industrial applications in 60+ countries and districts.
