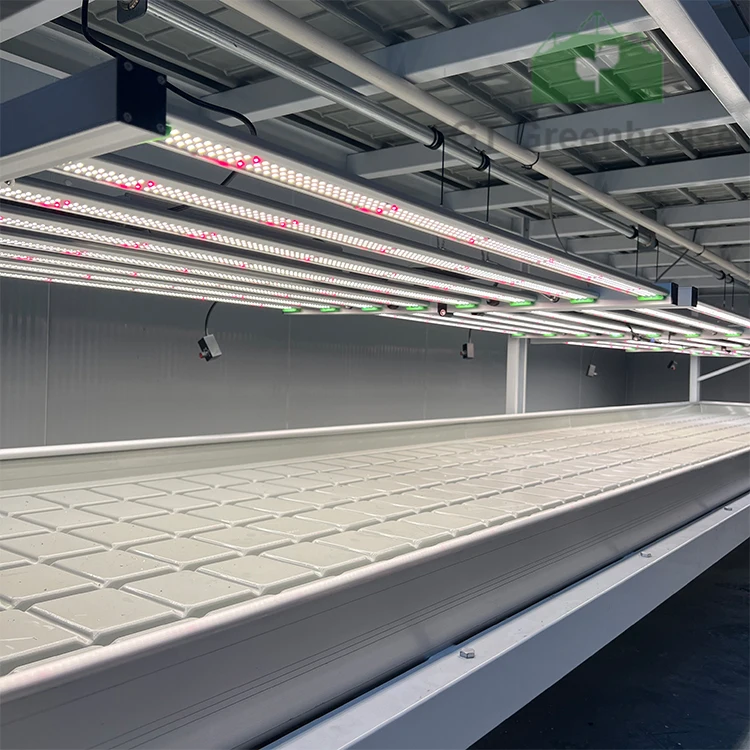

GT 2022 новый дизайн вертикальная стойка для выращивания растений система Ebb и поточные лотки стойки
36,00 $ - 59,00 $

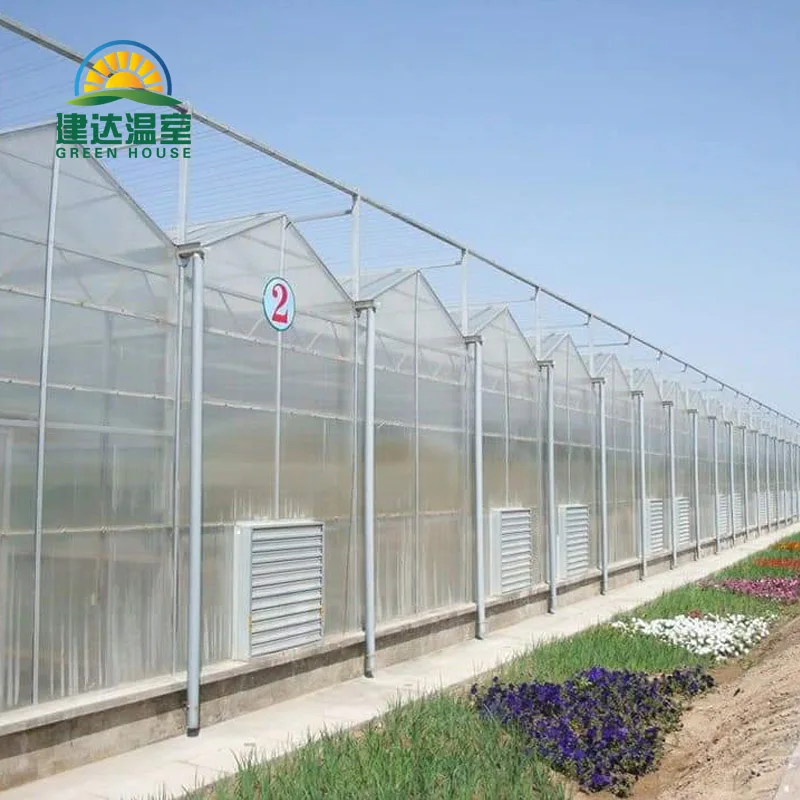

Многопролетная поликарбонатная Гидропоника теплица продажа
- Категория: Agriculture >>>
- Поставщик: Weifang Jianda Greenhouse Material Co. Ltd.
Сохранить в закладки 1600739771807:
Описание и отзывы
Характеристики
Multi-span polycarbonate hydroponics greenhouse
Products Description

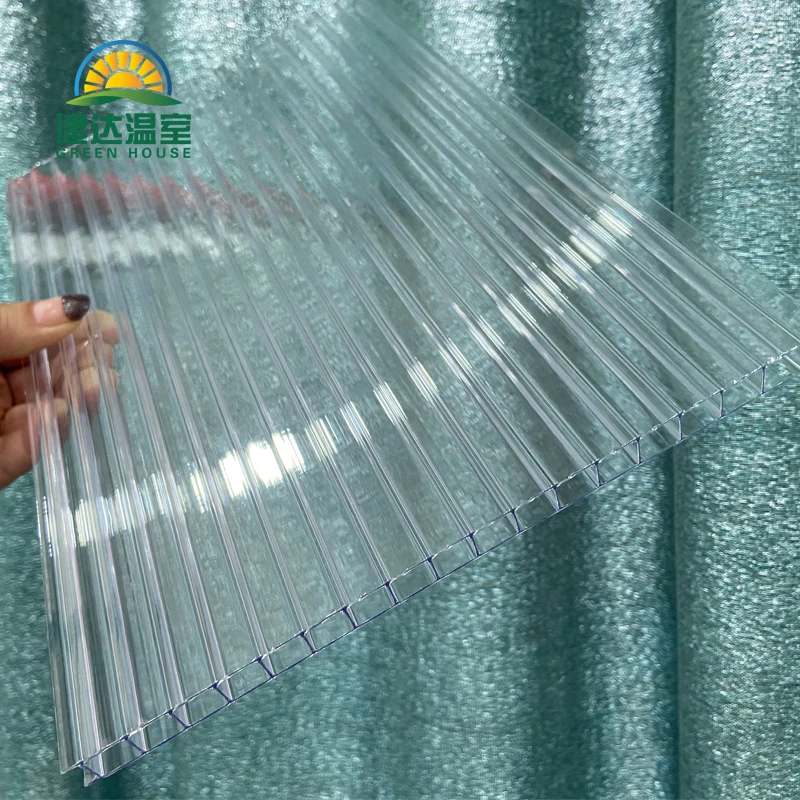

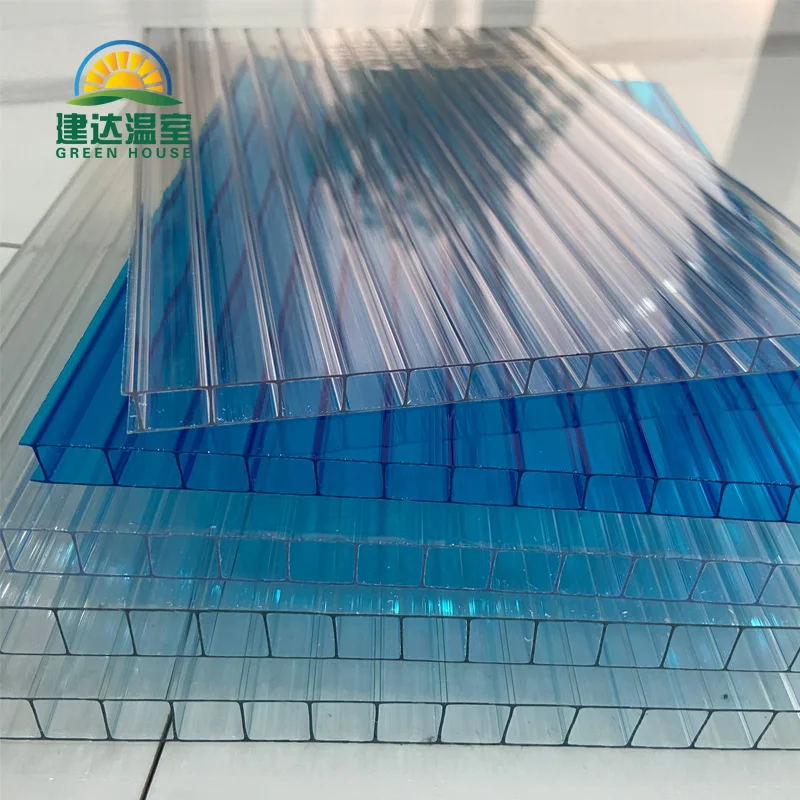

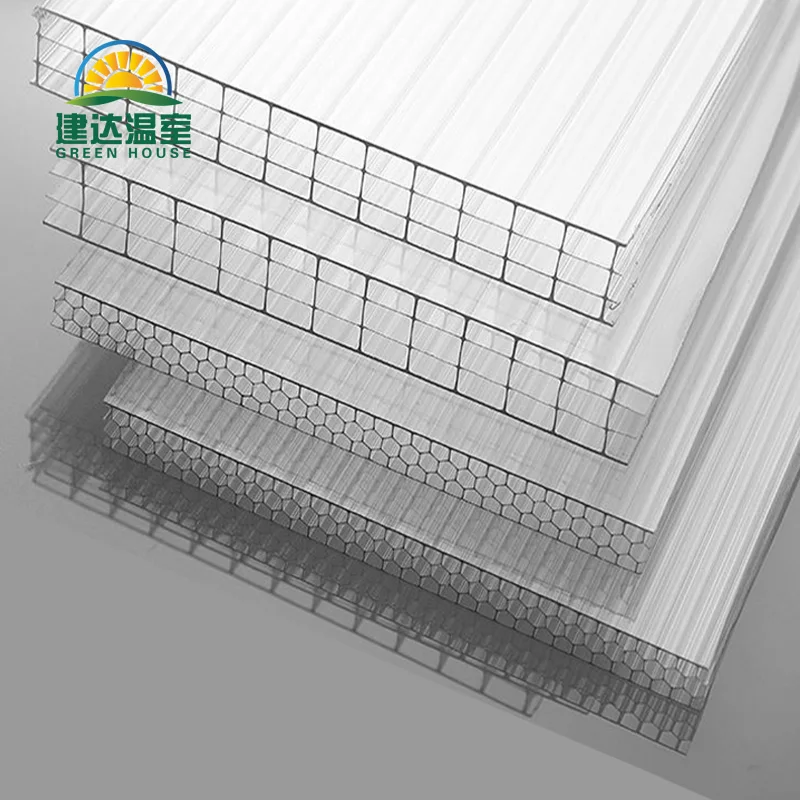

1.PC sheet have many merits of good impact resistance, heat insulation, sound insulation, lighting, anti-UV, fire-retardation.
2.The main framework designed to meet the "GB50017-2003Steel Design Code";
3.The steel material meets the "GB700-88carbon steel";
4.Hot dip galvanizing layer steel products technical requirements hot.
2.The main framework designed to meet the "GB50017-2003Steel Design Code";
3.The steel material meets the "GB700-88carbon steel";
4.Hot dip galvanizing layer steel products technical requirements hot.
Product Paramenters
Span | Bay | Gutter height | Greenhouse height | Wind Load | Snow Load | Rainfall | Lifetime |
9.6m/10.8m/12m | 4.0m | 3.0m-6.0m | 4.5m-7.5m | 0.6KN/M2 | 0.5KN/M2 | 140mm/h | ≧20years |
greenhouse system
Plastic film
1.Cost is low
2.Anti-drip, anti-UV
3.Low Energy consumption.
4.Quality assurance at least 5 years.
2.Anti-drip, anti-UV
3.Low Energy consumption.
4.Quality assurance at least 5 years.
Shading System
The Shading system can keep out redundant sunshine, preventing the plants from being burned in the greenhouse. And it can regulate the heat or reduce the cost for the operations.
Outside Shading System is fixed above the frame of greenhouse, supported by the uprights and beams. Outside shading net is made by black and round-wire materials and fastened by black polyester strings.
Outside Shading System is fixed above the frame of greenhouse, supported by the uprights and beams. Outside shading net is made by black and round-wire materials and fastened by black polyester strings.
Outside Shading System
Outside Shading System is fixed above the frame of greenhouse, supported by the uprights and beams. Outside shading net is made byblack and round-wire materials and fastened by black polyester strings.
Inside Shading System
Inside Shading System is installed in the greenhouse, fixed on the truss and with the frame of greenhouse. Inside shading net is
made by white aluminum-alloy materials, fastened by white polyester strings.
made by white aluminum-alloy materials, fastened by white polyester strings.
Internal insulation system
Internal insulation system is installed in the greenhouse, fixed on the truss and with the frame of greenhouse. Internal insulation quilt is made by white cloth and cotton core materials, fastened by white polyester strings.
cooling system
Our company is specialized at the products of cooling pads and fans, usually used cooperatively. The cooling pads are installed on one side of the greenhouse, the exhaust fans, the other. (The air-circulating fans are installed in the greenhouse.) The exhaust fans eject the air from the greenhouse (The air-circulating fans promote the circulation of the air in the greenhouse), negative pressure formed in the greenhouse. The air enters the greenhouse through the cooling pads, resulting in the effects of cooling, moistening and air-dedusting.
Cooling pads
1.Use new materials and advanced spatialcross-connection technology
2.The raw material is imported kraft paper, which has high absorption rate, water
resistance, mildew resistance and long service life
3.All use aluminum alloy frame, beautiful appearance
2.The raw material is imported kraft paper, which has high absorption rate, water
resistance, mildew resistance and long service life
3.All use aluminum alloy frame, beautiful appearance
Cooling fans
1.Hot Galvanized sheet frame with coat thickness 0.17mm.
2.Special designed for the biggest efficiency, made of stainless steel by punch forming.
2.Special designed for the biggest efficiency, made of stainless steel by punch forming.
Hydroponics System
Hydroponic System of greenhouse applies the hydroponics, which refers to the means of cultivation that is equipped with the base materials, not natural soil, when plants are in seed-breeding period and that is fixed with nutrient solutions for irrigation after they are settled, preventing the diseases due to the soil frequently used and the physiological barriers because of the salt accumulation of it and meeting the needs of plants with minerals, water, air and other conditions. The base materials can be recycled, and the hydroponics is characterized with water-saving, fertilizer-saving, labor-saving as well as great harvest and superior quality, etc.
Product packaging
FAQ
1. How long is the delivery time?
The delivery time is from 10days to 60 days after getting deposit. It depends on the size of greenhouse.
2. How long is the warranty period?
We will supply free spare parts if any problem occurred in 12 months after installations.
3. Is your company foreign trade company or manufacturer?
We are manufacturer.
4. Can you supply sample?
Small parts can be supplied, but clients should pay the express fee.
5. Can your company supply greenhouse design?
Our company can give greenhouse design according to your land and plant after getting deposit. And we can give simple drawing
before signing contract.
6. How to install greenhouse?
We will send our engineers to clients's site for guiding the installations.
Client should hire enough local workers for doing the installation work.
7. When installing, what cost should we pay?
Our engineers' airline tickets, local accommodations, visa fees, etc are taken by the clients.
Our engineers' salary is $100 /day per person.
8. What is the payment terms?
Generally, our payment way is 30%-50% TT deposit, the balance by TT before loading.
Or you can give your own payment term, then we can negotiate it.
The delivery time is from 10days to 60 days after getting deposit. It depends on the size of greenhouse.
2. How long is the warranty period?
We will supply free spare parts if any problem occurred in 12 months after installations.
3. Is your company foreign trade company or manufacturer?
We are manufacturer.
4. Can you supply sample?
Small parts can be supplied, but clients should pay the express fee.
5. Can your company supply greenhouse design?
Our company can give greenhouse design according to your land and plant after getting deposit. And we can give simple drawing
before signing contract.
6. How to install greenhouse?
We will send our engineers to clients's site for guiding the installations.
Client should hire enough local workers for doing the installation work.
7. When installing, what cost should we pay?
Our engineers' airline tickets, local accommodations, visa fees, etc are taken by the clients.
Our engineers' salary is $100 /day per person.
8. What is the payment terms?
Generally, our payment way is 30%-50% TT deposit, the balance by TT before loading.
Or you can give your own payment term, then we can negotiate it.
contact us
Похожие товары

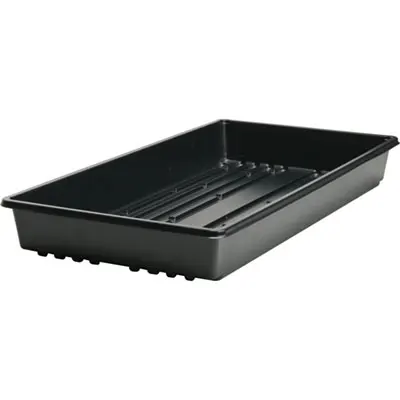

Оптовая продажа с завода пластиковый лист лоток для выращивания рассады риса толстый жесткий
0,37 $ - 0,50 $
Автономная система контроля распыления уличная зимняя теплицы производство объекта

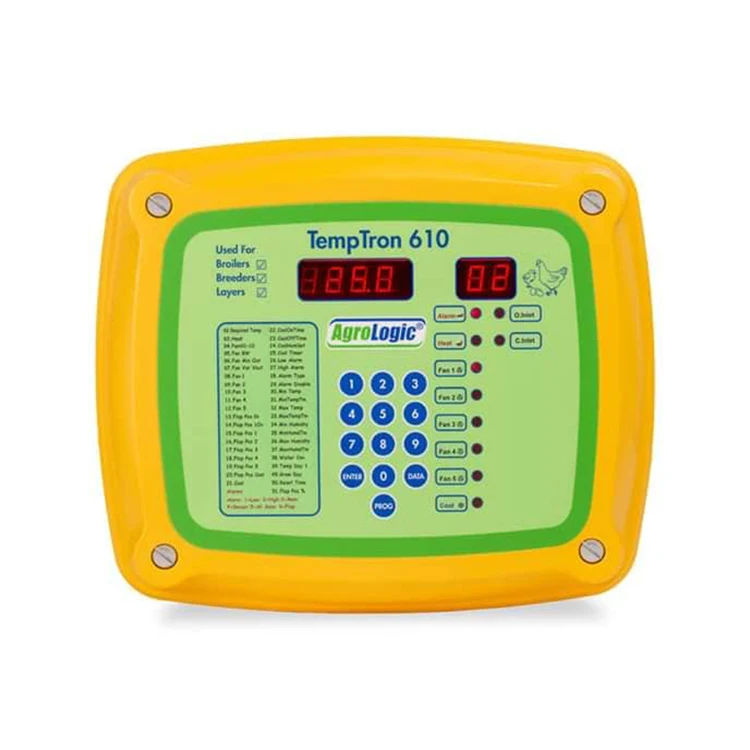

Система автоматического полива домашней птицы система контроля климатического воздействия для птицефабрик с

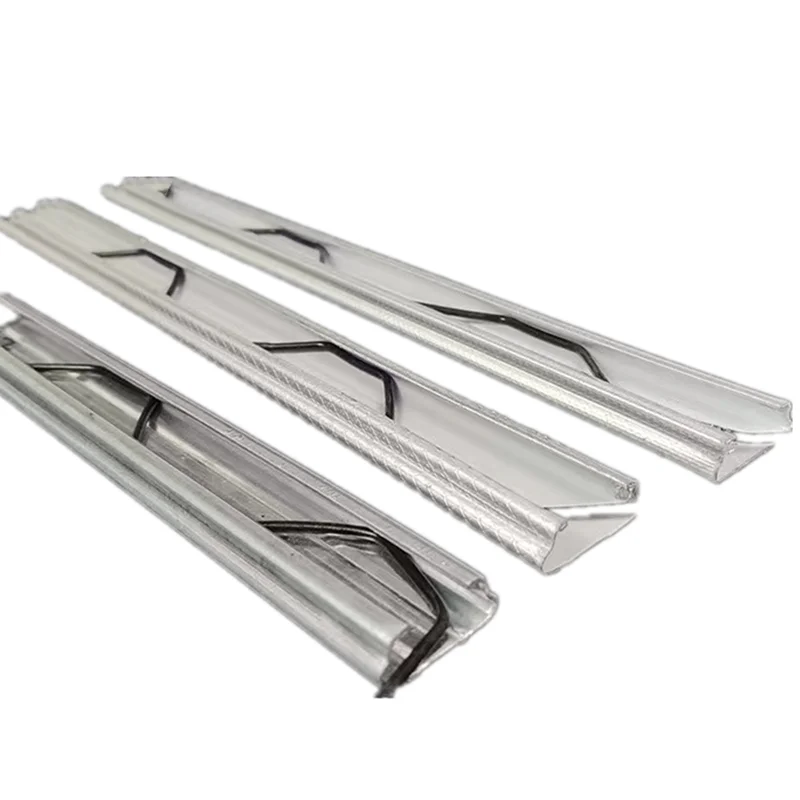

Горячеоцинкованная тепличная пленочная блокировка проволока зеленое домашнее блокировочное

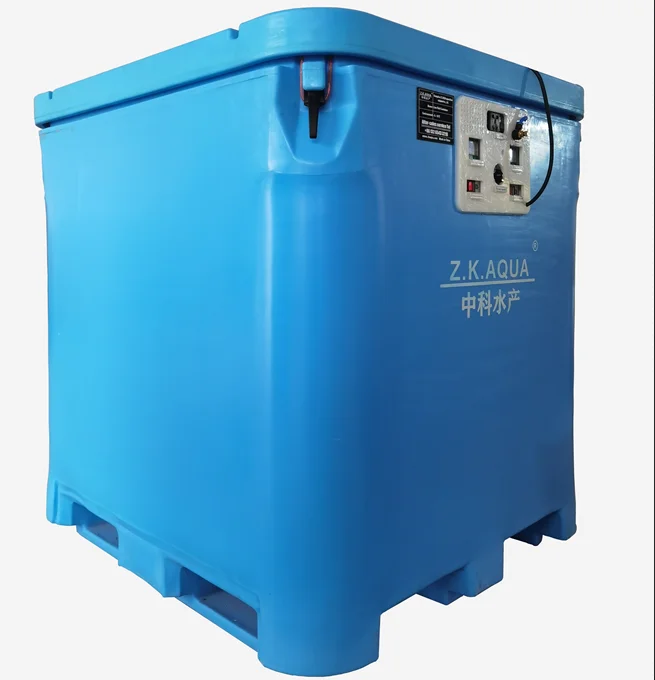

Резервуар для перевозки живой рыбы объемом 600 л пластиковый
1 435,00 $ - 1 485,00 $
Индивидуальная торговая марка наращивание мышц сывороточный протеин порошок добавка для

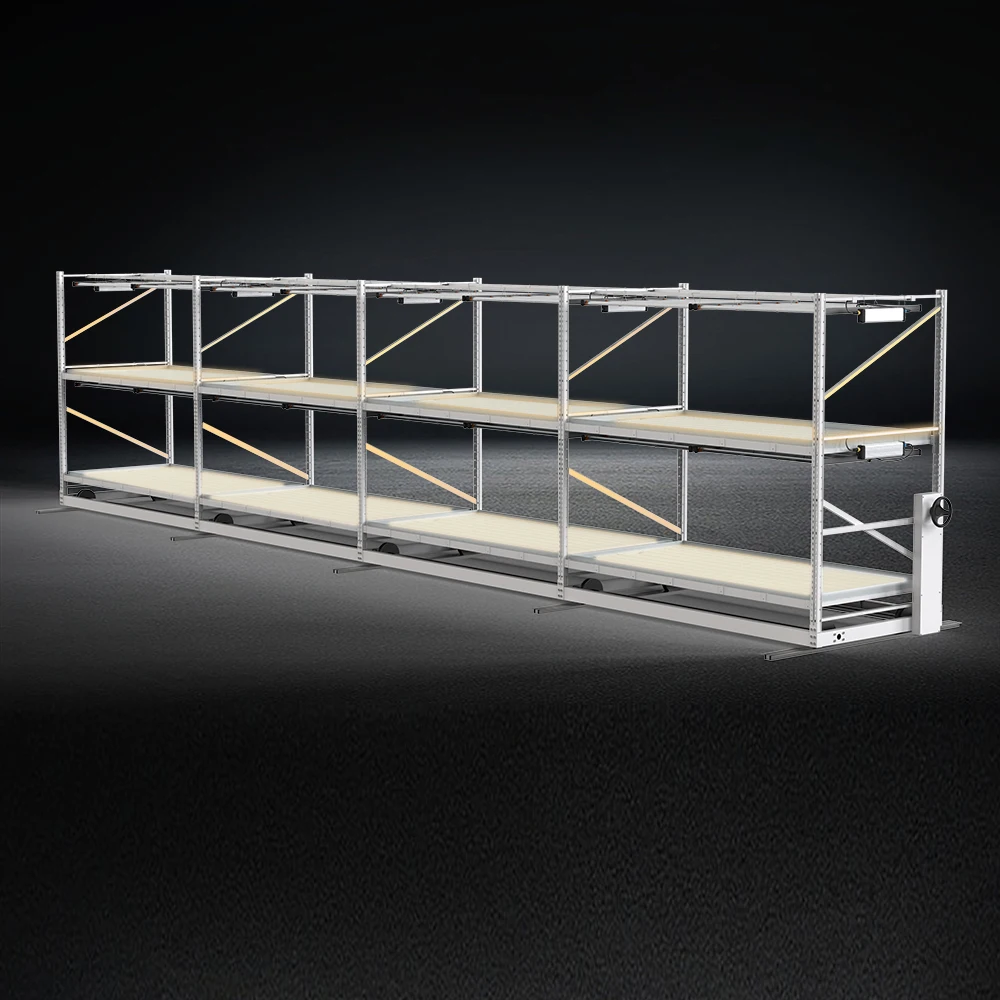

2022 г. многоуровневый высококачественный стол для выращивания растений вертикальная стойка двухуровневые полки
