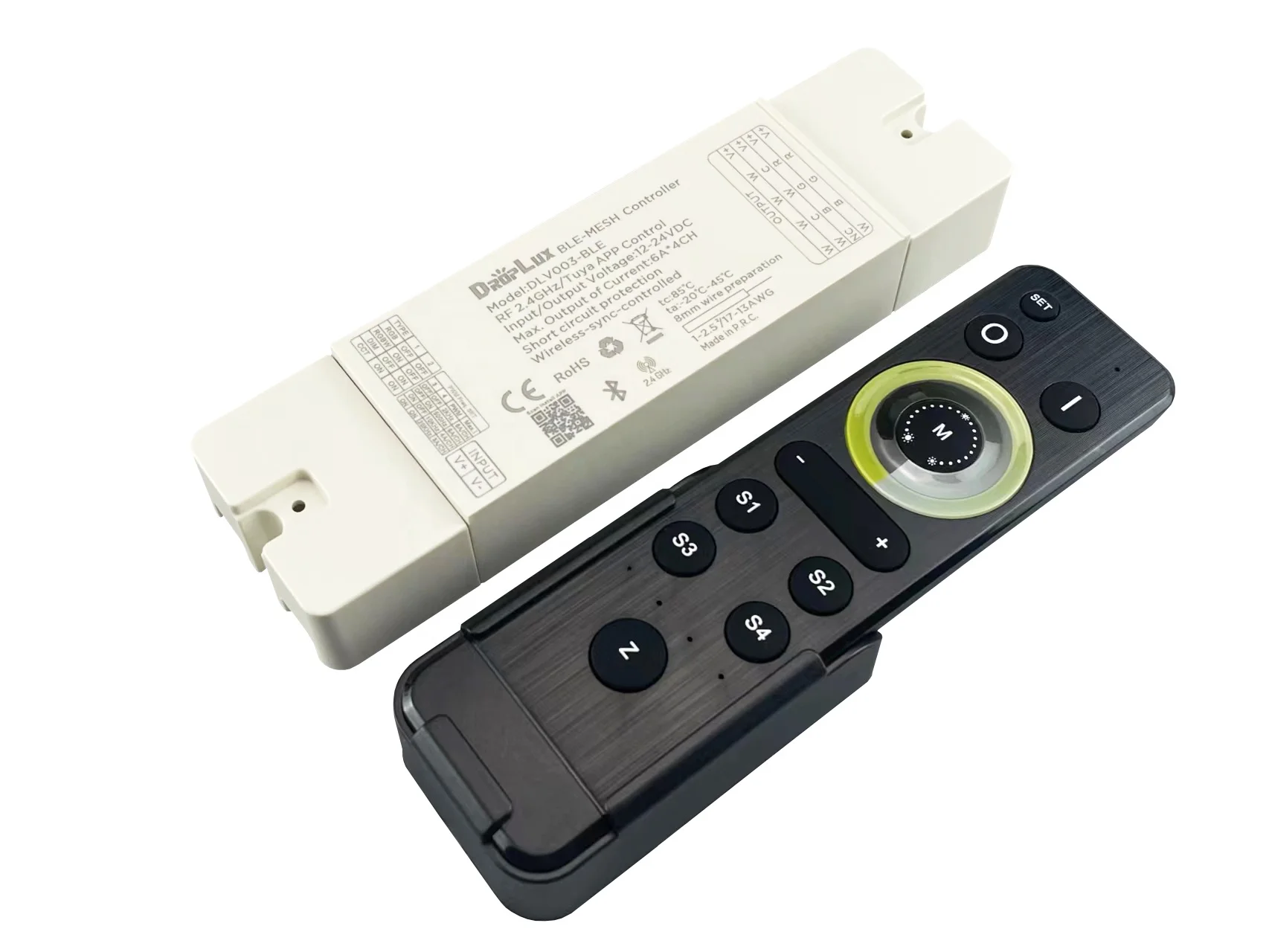

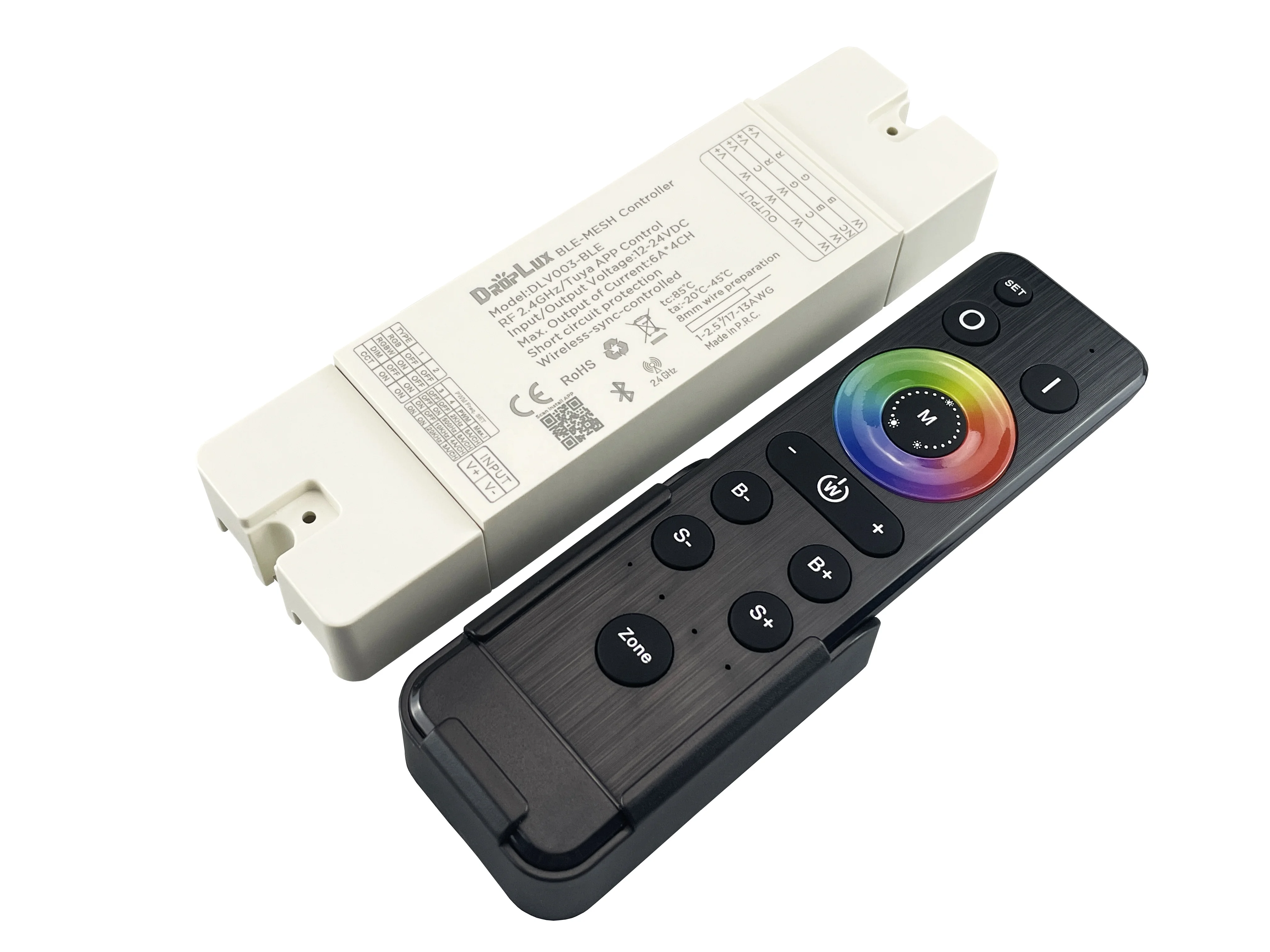

Светодиодный контроллер 4 в 1 DIM/CCT/RGB/RGBW/RGBCW PWM Регулируемый беспроводной сетчатый для светодиодной ленты 2 4G
- Категория: >>>
- Поставщик: Shenzhen Hoion Lighting Co. Limited
Сохранить в закладки 1600740480200:
Описание и отзывы
Характеристики
Product Description
HX-DLV003-BLE
4 in 1 2.4GHz wireless-sync-control RF remote controller-DIM/CCT/RGB/RGBW
Controller adopts the most advanced PWM (Pulse Width Modulation) digital control technology, it is used for controlling constant voltage LED lamps. For instance, point source of light, flexible light strip, led modules, led strings and so on; It belongs to low-voltage DC power input and output with five interfaces, including V+ is extremely common interfaces, the other four for the 4 channels output control interface. Meanwhile, you could adjust brightness, static color choices and various dynamic changes in lighting effects through RF remote control. Especially, it is integrated 4 optional programs for different color type LEDs, contains single color/CW+WW/RGB/RGBW. It means only one item stock for 4 types applications. DLV003-BLE Bluetooth controlled by Tuya Application to achieve smart control like group control, scene control, timer control and so on.
Controller adopts the most advanced PWM (Pulse Width Modulation) digital control technology, it is used for controlling constant voltage LED lamps. For instance, point source of light, flexible light strip, led modules, led strings and so on; It belongs to low-voltage DC power input and output with five interfaces, including V+ is extremely common interfaces, the other four for the 4 channels output control interface. Meanwhile, you could adjust brightness, static color choices and various dynamic changes in lighting effects through RF remote control. Especially, it is integrated 4 optional programs for different color type LEDs, contains single color/CW+WW/RGB/RGBW. It means only one item stock for 4 types applications. DLV003-BLE Bluetooth controlled by Tuya Application to achieve smart control like group control, scene control, timer control and so on.
Detailed Images

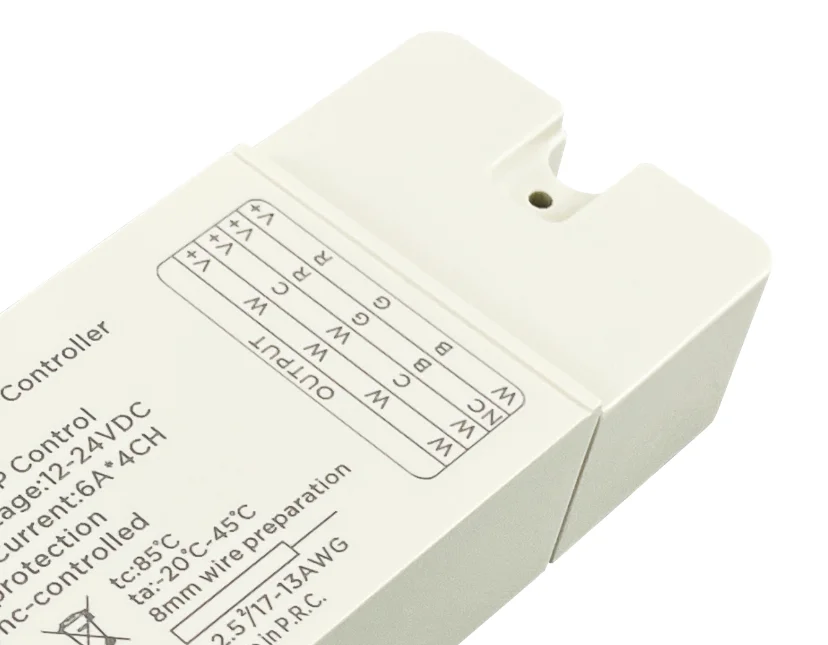

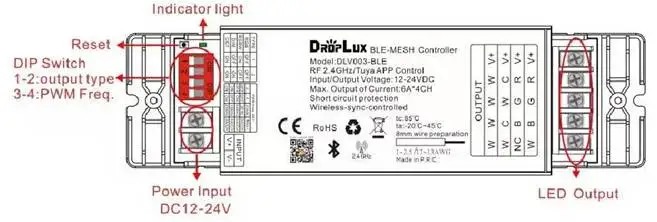

1. Interface Specifications
2. Demension
3. Product feature
(1) 4 in 1
DIM/CCT/RGB/RGBW 4 types controllers combine in 1 controller
(2) Wireless sync control
Adopt 2.4G technic.
Controllers could send signal to each other when theire distace bleow 10 meters.
At some extent, 1 remote could contorl unlimited pcs controllers
(3) Short Circuit Protection

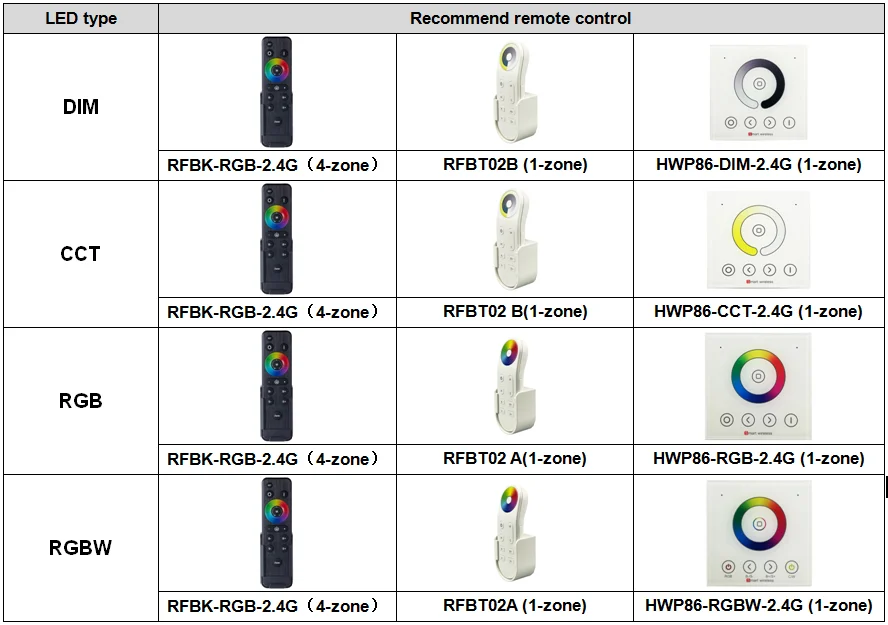

(4) Controlled by remote
(5) Controlled by BLE APP
BLE Technology powered by APP "Tuya", compatible with Google, Alexa and so on voice device control

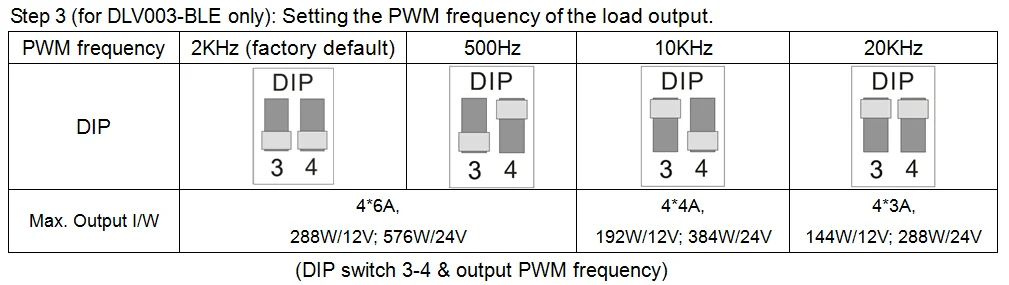

(6) Could adjust PWM
PWM frequency is adjustable
2KHz (factory default), 500Hz, 10KHz, 20KHz optional

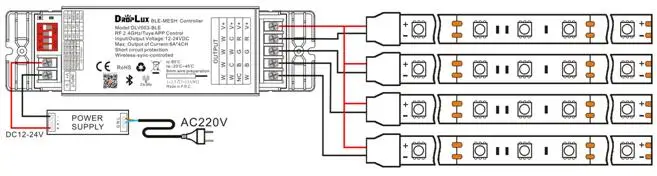

4. Typical Applications
Single color
CCT
RGB
RGBW

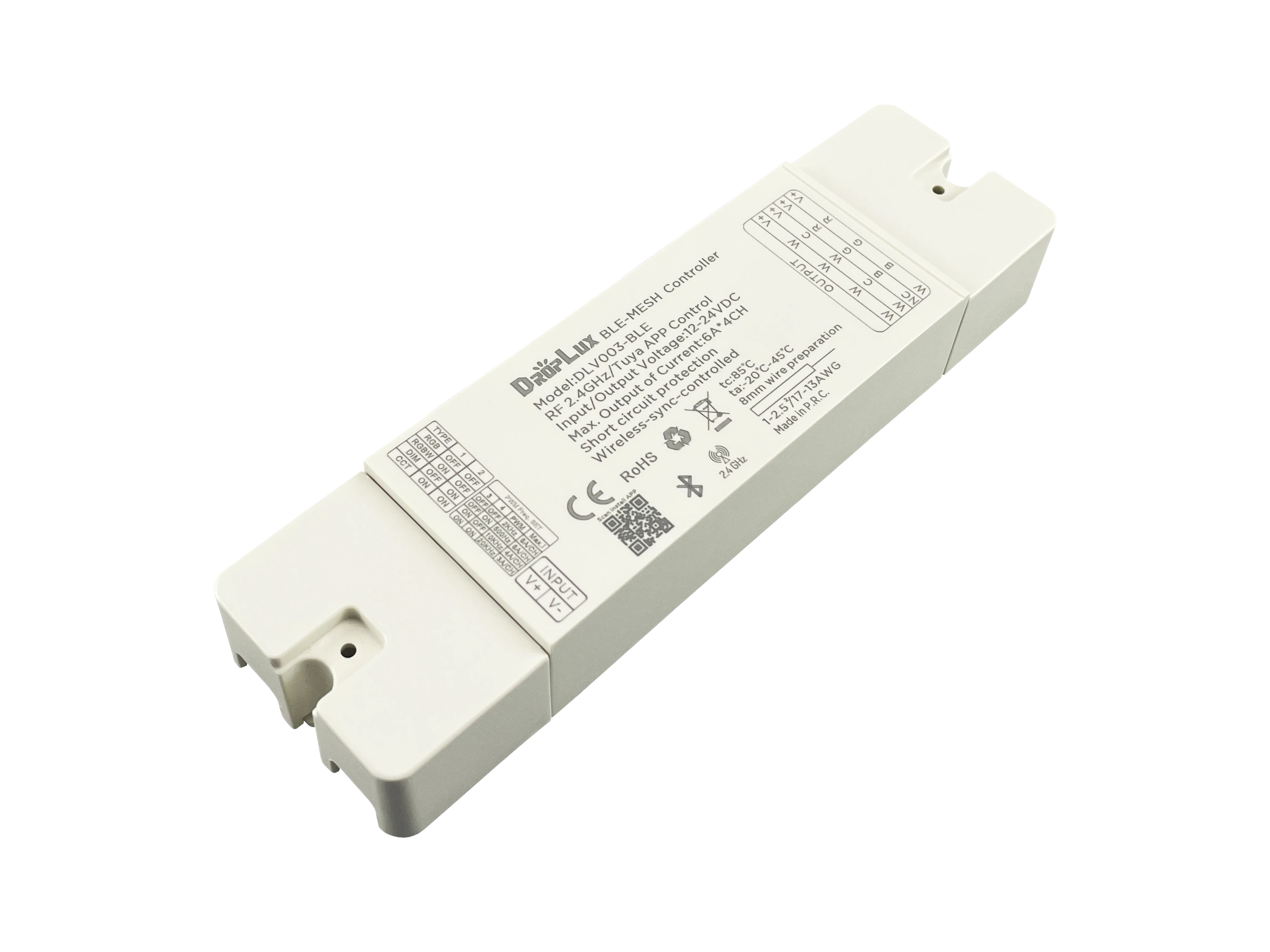

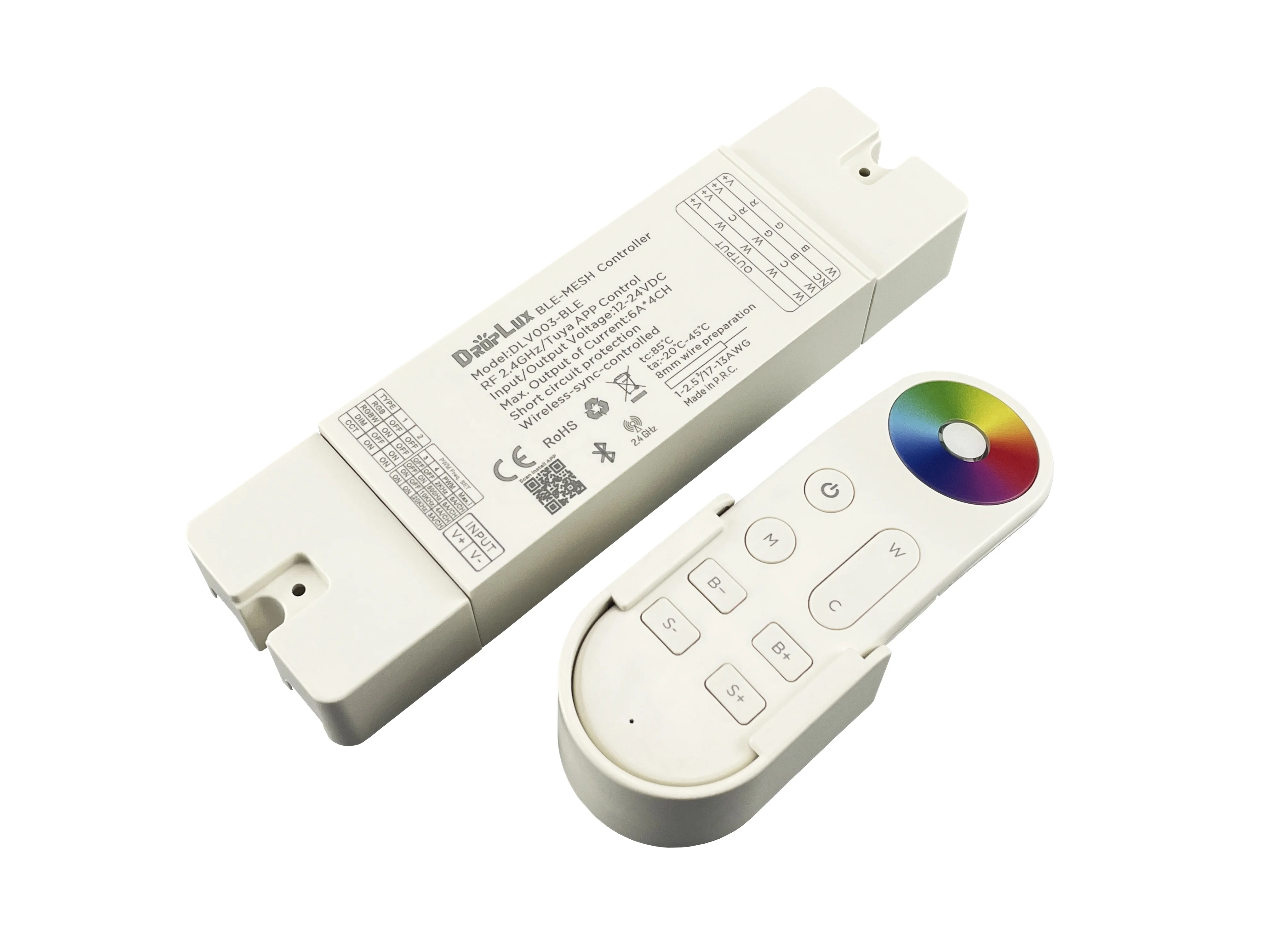

Product Presentation
Technical Parameters
Working temperature | -20-60℃ |
Supply voltage | DC12V-24V |
Static power consumption | <1W |
Output current | PWM<=2KHz: 4CH*6A PWM=10KHz: 4CH*4A, PWM=20KHz: 4CH*3A |
PWM frequency | 2KHz (factory default), 500Hz, 10KHz, 20KHz |
Short circuit protection | Yes |
Control method | RF remote control, TUYA APP |
Certificate
CE Certification
RoHS Certification
Company Introduction
Shenzhen Hoion Lighting Co.,LTD
Laser machine
Avoid Signal interpreted test machine
Test
Packing&Shipping
FAQ
Q 1. What is your factory's advantage?
A. 1. All products are researched by our own R&D department. High quality with CE&ROHS certification;
2. One-line service of research-material purchasing-producing-selling, price is very competitive and reasonable;
3. Special Assemble to keep function stable with Utility Model patent and Appearance patent;
4. Materials are selected strictly with high qualtity;
5. Strict test sysstem and excerllent service after selling
Q2. Could you customized?
A. Yes, we've seviced many customers from various contries for over 8 years.
Please kindly let us what controller you would like to adjust and any of your requirement.
A. 1. All products are researched by our own R&D department. High quality with CE&ROHS certification;
2. One-line service of research-material purchasing-producing-selling, price is very competitive and reasonable;
3. Special Assemble to keep function stable with Utility Model patent and Appearance patent;
4. Materials are selected strictly with high qualtity;
5. Strict test sysstem and excerllent service after selling
Q2. Could you customized?
A. Yes, we've seviced many customers from various contries for over 8 years.
Please kindly let us what controller you would like to adjust and any of your requirement.
Title goes here.
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Похожие товары

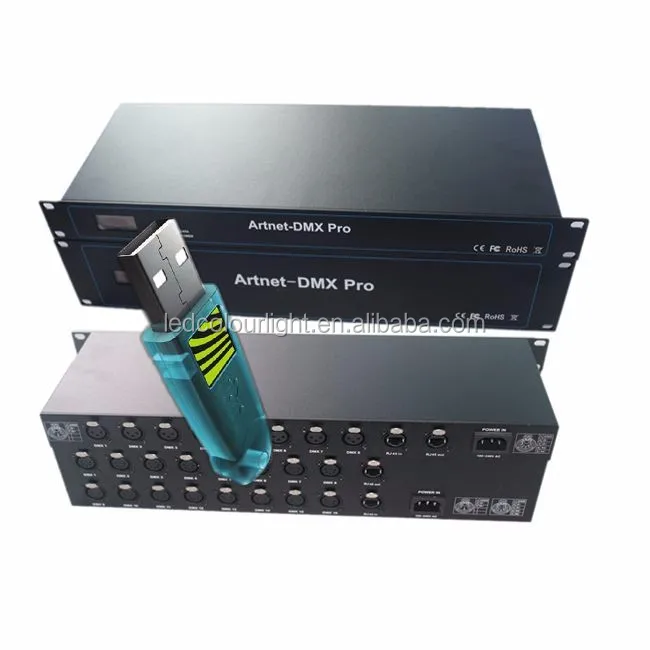

IBESTWORK светодиодный фонарь 512 Dmx Artnet контроллер Dmx Artnet управляемый СВЕТОДИОДНЫЙ занавес Artnet Dmx контроллер 8 12 20 30 портов
