Высококачественный настенный конденсаторный нагревательный газовый котел, нагревательный котел для домашнего использования
24 613,52 ₽ - 26 254,42 ₽

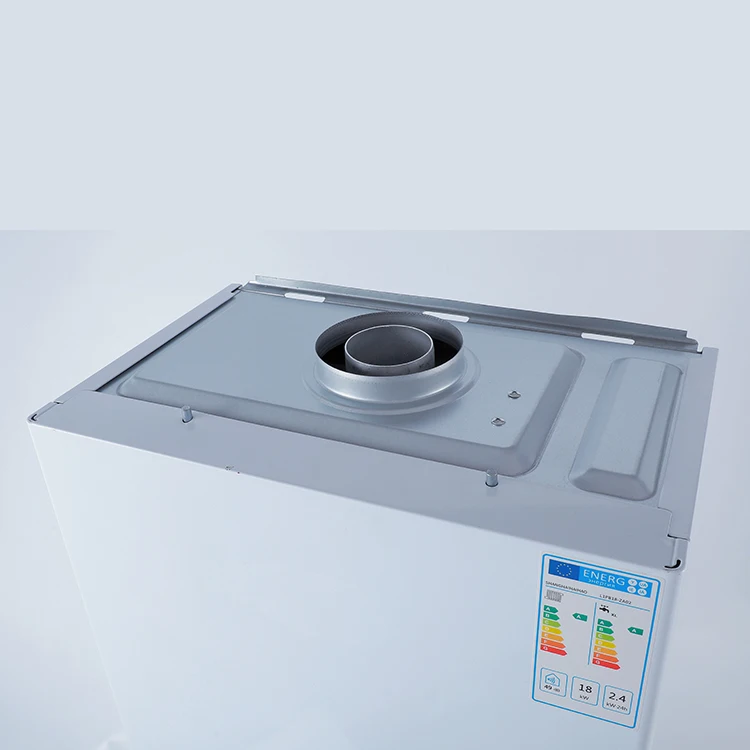

Газовый настенный котел 20 кВт № 15 котлы для горячей и газовой воды с настенным креплением Отопительная система купания
- Категория: >>>
- Поставщик: Zhongshan Huaning Electric Appliance Co. Ltd.
Сохранить в закладки 1600740732998:
Описание и отзывы
Характеристики
Project | Unit | Model | ||||||||||||
L1P18/20-B | L1P24-B | L1P28-B | L1P32-B | L1P36-B | L1P40-B | |||||||||
Gas type | G20 | |||||||||||||
Gas pressure | mbar | 20 | ||||||||||||
Heating circuit | ||||||||||||||
Rated input power | kW | 18/20 | 24 | 28 | 32 | 36 | 40 | |||||||
Heat input power (min) | kW | 5.4/6 | 7.2 | 8.4 | 9.6 | 10.8 | 12 | |||||||
Thermal efficiency | % | >90 | ||||||||||||
Adjust temperature | °C | 30-80 | ||||||||||||
Working pressure (max/min) | bar | 3/0.8 | ||||||||||||
NOx | 3 | |||||||||||||

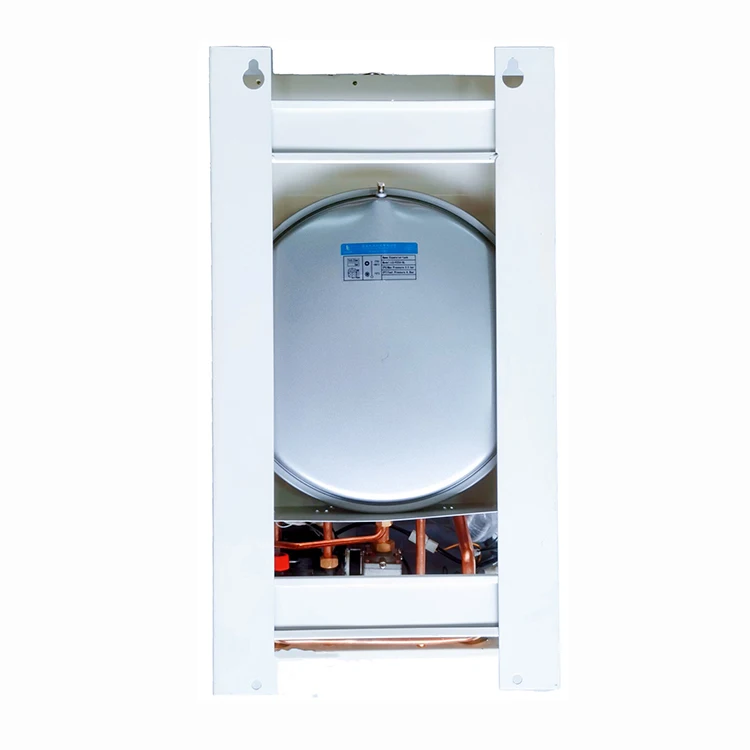

Expansion tank capacity | L | 5 | 6 | 8 | ||||||||||
Pre pressure of expansion tank | bar | 1 | ||||||||||||
Connection diameter | Inch | 3/4 | ||||||||||||
Gas connection diameter | inch | 3/4 | ||||||||||||
Domestic water | ||||||||||||||
DHW flow（ΔT = 25°C） | Kg/min | 10/11.3 | 13.5 | 15.7 | 17.7 | 19.9 | 22.1 | |||||||
DHW flow（ΔT = 30°C） | Kg/min | 8.3/9.4 | 11.3 | 13.1 | 14.8 | 16.6 | 18.4 | |||||||
DHW Adjust temperature | °C | 35-60 | ||||||||||||
Working pressure (max/min) | bar | 8/0.2 | ||||||||||||
Hot/Cold water connection diameter | inch | 1/2 | ||||||||||||
Electrical specifications | ||||||||||||||
Power Supply | V/Hz | 220/50 | ||||||||||||
Electrical load | W | 110 | 115 | 125 | 135 | 145 | 165 | |||||||
Degree of protection | IPX4D | |||||||||||||
Noise | dB | <42 | ||||||||||||
General functions | ||||||||||||||
Product dimensions (H x W x D) | mm | 660x410x250 | 700x430x250 | 740x400x300 | 740x430x340 | 740x460x340 | 740x518x340 | |||||||
NW | Kg | 25/26 | 27 | 31.5 | 34.5 | 40 | 44 | |||||||

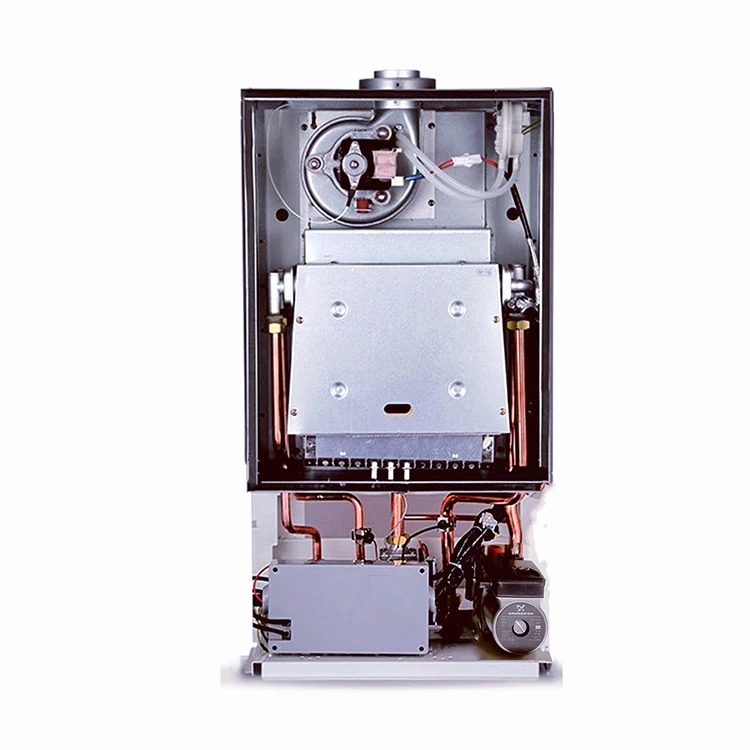

01 High quality material
The heat exchanger is made of high quality purple copper, with high thermal efficiency. The burner adopts high quality stainless steel, high temperature and corrosion resistant, long service life. The shell is made of high quality steel, high strength, strong protection and durable.
02 Exquisite technology
The automatic production line is adopted, with fine and reasonable division of labor, and each work station is compiled with detailed operation instructions and operating procedures, so that the production quality is always guaranteed in a controllable state.
03High quality performance
(一) The product should have a full range of safety protection functions.
(1) with water system overheating protection, anti-backdraft, anti-scaling, water flow monitoring and other protection devices, with water shortage protection, wind pressure protection, water system overpressure and low pressure protection, pump anti-stall protection, pump bypass protection, anti-dry overtemperature protection, heating system overpressure safety protection, water temperature sensor failure protection and other protection functions.
(2) has a temperature sensor, water temperature constant adjustment function and can be connected to the indoor temperature controller.
(3) must have electronic ignition induction, leakage grounding, lightning protection, with automatic flame detection device, flame accidentally extinguished, the gas stove automatically cut off the gas valve; in the water circuit, circuit, gas circuit failure or pressure is not normal when the automatic stop furnace and alarm.
(4) leakage protection, anti-freeze protection, explosion-proof combustion protection, heating system voltage stabilization protection, heating pipeline antioxidant protection, three-minute delay protection, temperature limit protection.
The heat exchanger is made of high quality purple copper, with high thermal efficiency. The burner adopts high quality stainless steel, high temperature and corrosion resistant, long service life. The shell is made of high quality steel, high strength, strong protection and durable.
02 Exquisite technology
The automatic production line is adopted, with fine and reasonable division of labor, and each work station is compiled with detailed operation instructions and operating procedures, so that the production quality is always guaranteed in a controllable state.
03High quality performance
(一) The product should have a full range of safety protection functions.
(1) with water system overheating protection, anti-backdraft, anti-scaling, water flow monitoring and other protection devices, with water shortage protection, wind pressure protection, water system overpressure and low pressure protection, pump anti-stall protection, pump bypass protection, anti-dry overtemperature protection, heating system overpressure safety protection, water temperature sensor failure protection and other protection functions.
(2) has a temperature sensor, water temperature constant adjustment function and can be connected to the indoor temperature controller.
(3) must have electronic ignition induction, leakage grounding, lightning protection, with automatic flame detection device, flame accidentally extinguished, the gas stove automatically cut off the gas valve; in the water circuit, circuit, gas circuit failure or pressure is not normal when the automatic stop furnace and alarm.
(4) leakage protection, anti-freeze protection, explosion-proof combustion protection, heating system voltage stabilization protection, heating pipeline antioxidant protection, three-minute delay protection, temperature limit protection.
(二) technical characteristics
1、Low noise operation, quick installation, easy operation.
2、Sanitary hot water low water pressure start function (2 L/min).
3、The temperature of heating water and sanitary hot water is precisely set by the temperature adjustment button.
4、Proportional continuous flame adjustment, according to the change of heat load demand automatically adjust the size of the flame, to achieve automatic control of heating water and sanitary hot water temperature.
5、With digital display, it can digitally display the temperature of heating system water output and bath water temperature. When the system fails, it can automatically detect and display the fault code to facilitate maintenance and find the cause of the fault.
6、Micro-negative pressure closed combustion, does not consume indoor air, can be installed in any indoor location.
7、Electrical ion flame monitoring device to achieve flame out protection.
8、The heating and bathing state can be switched freely.

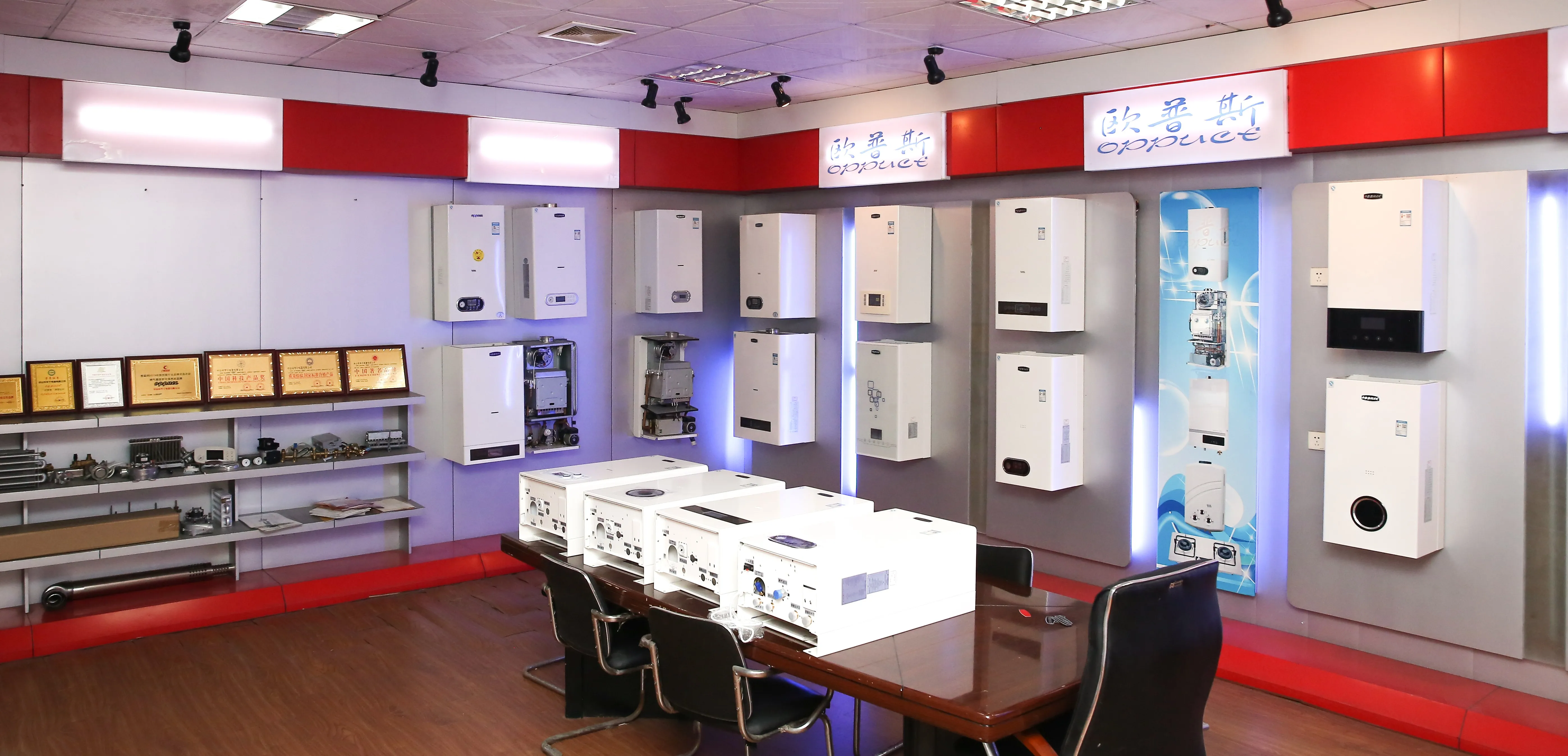

04Adequate inventory/products can be customized
The company is strong and has a large warehouse, with a complete inventory of products can be customized.
1、Low noise operation, quick installation, easy operation.
2、Sanitary hot water low water pressure start function (2 L/min).
3、The temperature of heating water and sanitary hot water is precisely set by the temperature adjustment button.
4、Proportional continuous flame adjustment, according to the change of heat load demand automatically adjust the size of the flame, to achieve automatic control of heating water and sanitary hot water temperature.
5、With digital display, it can digitally display the temperature of heating system water output and bath water temperature. When the system fails, it can automatically detect and display the fault code to facilitate maintenance and find the cause of the fault.
6、Micro-negative pressure closed combustion, does not consume indoor air, can be installed in any indoor location.
7、Electrical ion flame monitoring device to achieve flame out protection.
8、The heating and bathing state can be switched freely.
04Adequate inventory/products can be customized
The company is strong and has a large warehouse, with a complete inventory of products can be customized.
