NP-VF Automatic Liquids Filling Machine
The NP-VF automatic servo piston filling machine is extremely flexible filler, is capable of filling accurately and rapidly any viscous material,such as detergent liquid，shampoo, hand soap,dishwashing liquid, shower gel and so on.
MAIN FEATURE
304 Stainless steel construction and the material contact parts.
Controlled by panasonic servo motor
Schneider touch screen and PLC
Accuracy+0.2% for 1000ML
Three-step filling to prevent liquid foaming and splashing
Use anti-drip filling head to prevent the last drop after filling and with automatic drop collection tray double safety system
304 Stainless steel construction and the material contact parts.
Controlled by panasonic servo motor
Schneider touch screen and PLC
Accuracy+0.2% for 1000ML
Three-step filling to prevent liquid foaming and splashing
Use anti-drip filling head to prevent the last drop after filling and with automatic drop collection tray double safety system
Model | NP-VF-2 | NP-VF-4 | NP-VF-6 | NP-VF-8 | NP-VF-10 | NP-VF-12 | NP-VF-16 | ||||||
Heads | 2 | 4 | 6 | 8 | 10 | 12 | 16 | ||||||
Range（ml） | 100-500,100-1000,1000-5000 | ||||||||||||
Capacity（bpm）base on 500ml | 12-14 | 24-28 | 36-42 | 48-56 | 60-70 | 70-80 | 80-100 | ||||||
Air Pressure（mpa） | 0.6 | ||||||||||||
Accuracy（%） | ±0.1-0.3 | ||||||||||||
Power | 220VAC SINGLE PHASE 1500W | 220VAC SINGLE PHASE 3000W | |||||||||||
Main features
1. High degree of automation, simple operation, stable operation, can effectively save enterprise costs, improve production efficiency.
2. Each stand-alone machine can complete its work independently. It has independent operating system, digital control display and other electrical components to control and adjust various parameters and display settings. It can help enterprises realize standardized production
3. The single machine linkage, separation fast, and adjust fast, simple, so that each production process to ensure coordination.
4. Each stand-alone machine can adapt to the packaging of various specifications of bottles with few adjusting parts.
5. The packaging production line adopts the international new process design, in line with GMP standards.
6. The production line runs smoothly, the combination of various functions is convenient, and the maintenance is convenient
2. Each stand-alone machine can complete its work independently. It has independent operating system, digital control display and other electrical components to control and adjust various parameters and display settings. It can help enterprises realize standardized production
3. The single machine linkage, separation fast, and adjust fast, simple, so that each production process to ensure coordination.
4. Each stand-alone machine can adapt to the packaging of various specifications of bottles with few adjusting parts.
5. The packaging production line adopts the international new process design, in line with GMP standards.
6. The production line runs smoothly, the combination of various functions is convenient, and the maintenance is convenient

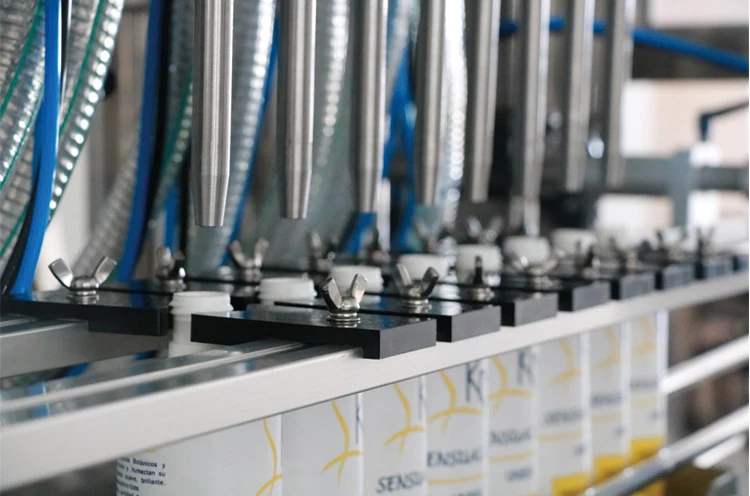

Long Diving Filling Head
1.Filling nozzles are diving design and anti drops
2.With Drop tray
3.High Filling Accuracy
4.Diving Nozzles are optional for foamy Liquid
5.304SS contruction
6.High quality O rings and seals inside of the nozzles
ESG Valve
1.Easy disassembly three way connectors
2.ESG long life valve and high performace
3.ESG valve to gurantee the shut off accuracy and more stably
4.Sutiable for thin to viscous liquid

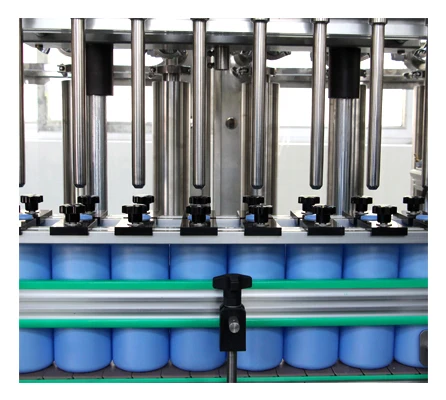

Tools Free Adjustment System
1.No need tools adjustment for different size of bottles
2.All adjustment parts with measurement and easy for record
3.Filling nozzles are easy for moving right and left for the slider system
4.Adjust the Filling Volume by one touch and operation by touch screen

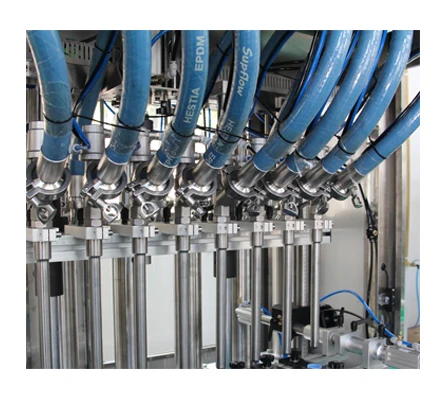

High Quality Hose
Adapt world top brand of hose,such as TOYOX.
hose characteristics:
With stand pressure
With SUS316 reinforced coil and special reinforced structure, it has excellent stereotypes and is suitable for pressure and vacuum conveying
High heat resistance
It can withstand high-temperature fluids within 150 ℃, and can be used to clean the inside of food hoses and the floor (conditional restrictions)
With stand pressure
With SUS316 reinforced coil and special reinforced structure, it has excellent stereotypes and is suitable for pressure and vacuum conveying
High heat resistance
It can withstand high-temperature fluids within 150 ℃, and can be used to clean the inside of food hoses and the floor (conditional restrictions)

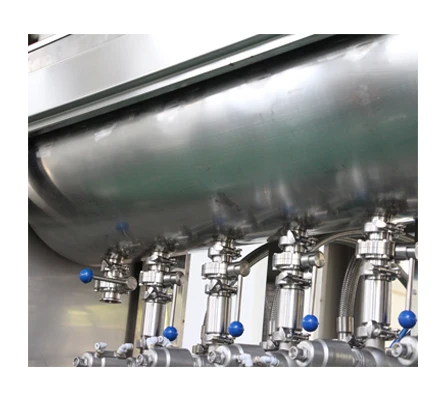

No Dead Corner Top Tank.
1.The top tank is with round or semi round design no dead corner, more easy cleaning
2.Double jacket hopper optional
3.Mixing system optional
4.CIP system optional
5.304SS constuction material, 316SS for option

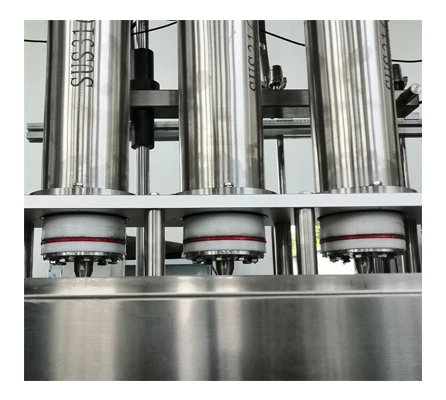

Automatic Piston Take Off System
1.Easy cleaning
2.No need tools to clean the pistons which gurantee the food grade,save time and labor.
3.CIP system is for option
3.CIP system is for option
