Переходник для велосипеда
7,68 ₽ - 9,87 ₽

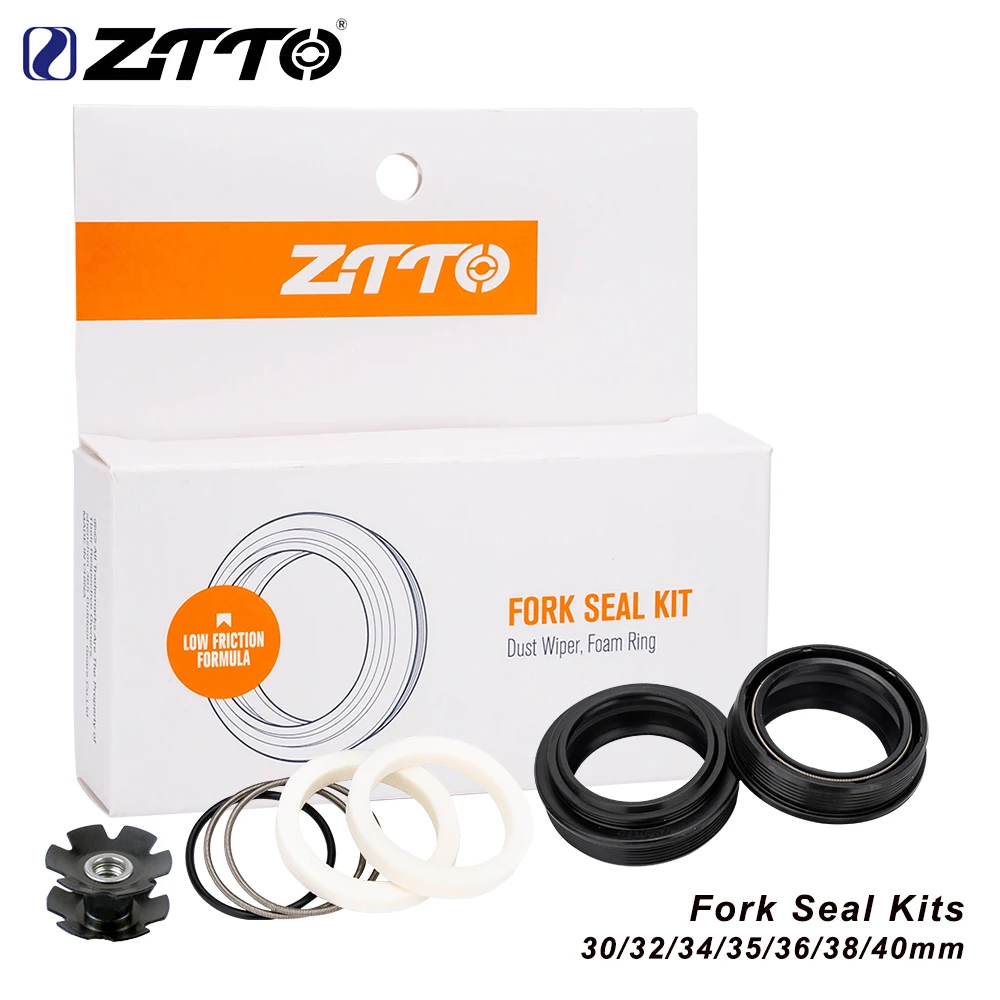

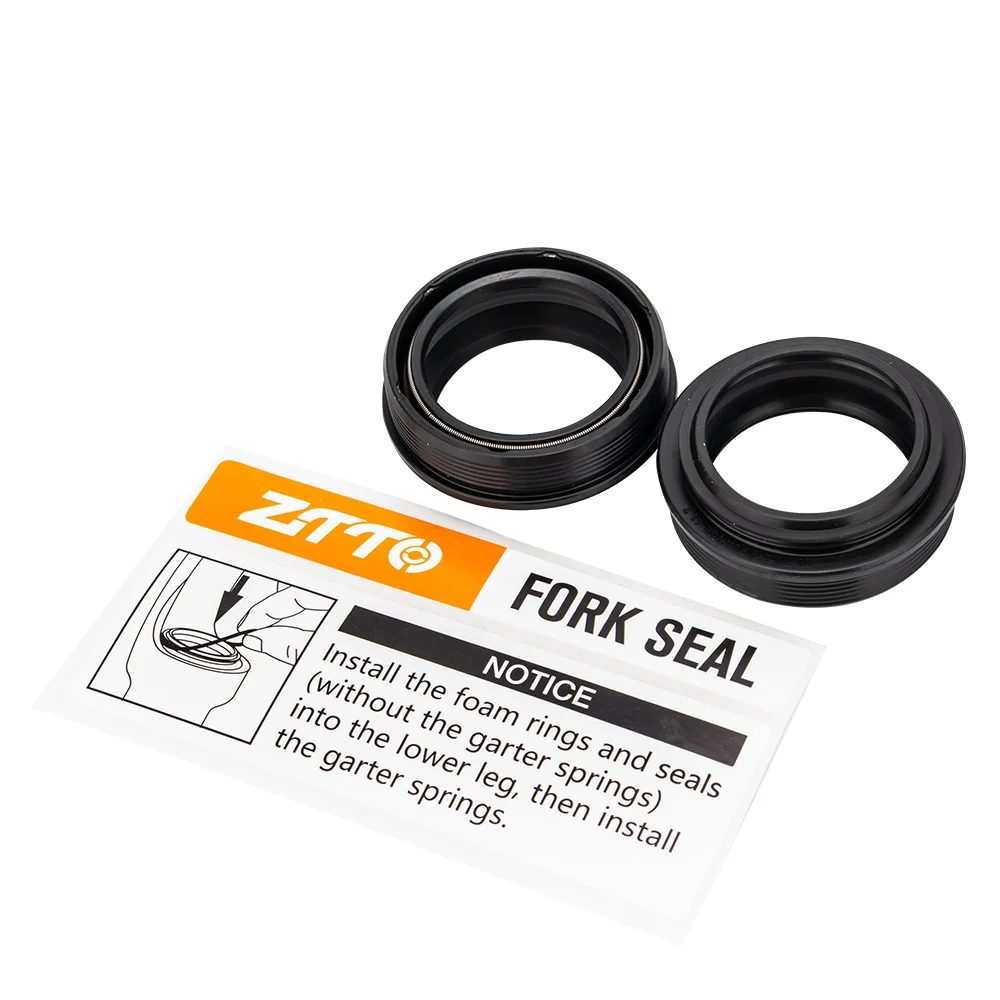

Комплект уплотнений для вилки ZTTO MTB пенопластовое кольцо масляное уплотнение стеклоочиститель 30 32 34 36 38 40 мм Fox Suntour Epixon Rockshox SID Manitou вилка
- Категория: >>>
- Поставщик: Shenzhen 365 Outdoor Gears Co. Ltd.
Сохранить в закладки 1600743515078:
Описание и отзывы
Характеристики
Specification
ZTTO MTB Suspension Fork Seal Service Kit Type: Oil and Gas Fork (Air Resilience/Oil Damping) Use: Mountain Bikes. Material: Rubber. Brand Name: ZTTO. Origin: Mainland China. Recommended Use: annual maintenance. Fit for Rock shox: SID REBA PIKE,Tora XC30 Recon. Fit for RS: ZEB Lyric Boxxer. Fit for Fox: 32/34/36/38/40. Fit for manitou: M30 R7 Marvel Match Minute. Fit for SR SUNTOUR: Epixon Axon. Net Weight: About 33g Includes Dust Wiper*2 Foam rings*2 304 stainless steel springs*2 O-rings *1 |
Products Description

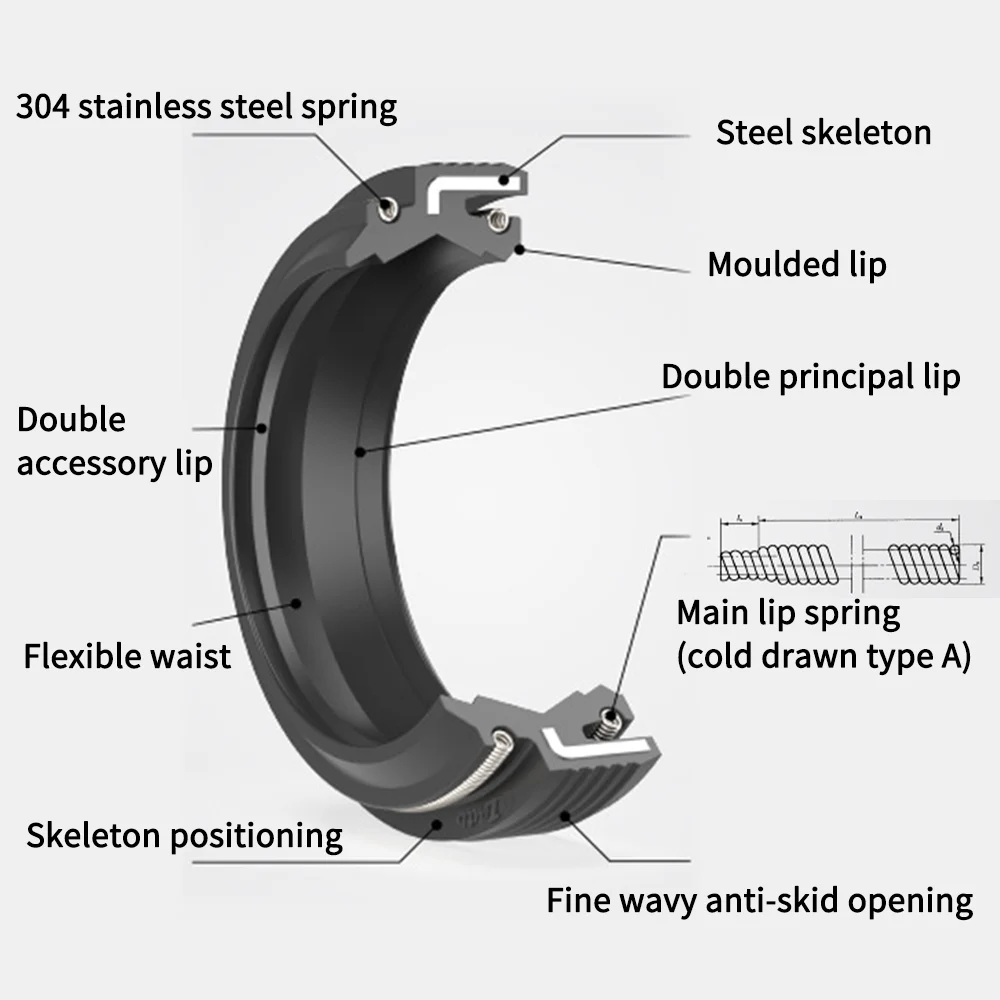

Steel skeleton
Assembly support structure: the inner wrapped steel skeleton creates an perfect sealing contact mode for the shell.
Double principal lip
Double main lips are designed for dynamic load, which can quickly complement the sealing when the twist angle reaches the preset lower limit.
Assembly support structure: the inner wrapped steel skeleton creates an perfect sealing contact mode for the shell.
Double principal lip
Double main lips are designed for dynamic load, which can quickly complement the sealing when the twist angle reaches the preset lower limit.
304 stainless steel spring
Corrosion resistance, weather resistance, tensile load 1.0/N, 1.6 * 0.3mm machine rounding, high standard self-locking seam.
Double accessory lip
Strengthen the design of the secondary lip, and the dust scraping angle provides dual protection for dust isolation.
Only Grade A products
Only the best Class A products will be sold as co branded products This product is in cooperation with EZ. Thanks for their efforts, so EZ's logo is on the product, which is normal. If you buy it, it means you know and agree.
Corrosion resistance, weather resistance, tensile load 1.0/N, 1.6 * 0.3mm machine rounding, high standard self-locking seam.
Double accessory lip
Strengthen the design of the secondary lip, and the dust scraping angle provides dual protection for dust isolation.
Only Grade A products
Only the best Class A products will be sold as co branded products This product is in cooperation with EZ. Thanks for their efforts, so EZ's logo is on the product, which is normal. If you buy it, it means you know and agree.
Special Synthetic Rubber
The seal raw material is a combination of special synthetic rubber and high structure reinforcing agent with low surface area. It is added with nano molybdenum disulfide (MoS) stripped by liquid phase method. It has a special layered structure, which makes the friction coefficient lower. After two-stage vulcanization at 150 ° C, the wiper has excellent anti-wear sliding performance and oil film maintenance ability.
The seal raw material is a combination of special synthetic rubber and high structure reinforcing agent with low surface area. It is added with nano molybdenum disulfide (MoS) stripped by liquid phase method. It has a special layered structure, which makes the friction coefficient lower. After two-stage vulcanization at 150 ° C, the wiper has excellent anti-wear sliding performance and oil film maintenance ability.
The wiper is finely carved with S136 steel, heated to 780 ° C, and then cooled at 10 ° C per hour for stress relief, so as to make the rubber coating density on the surface of oil seal products more uniform and the stressed structure more stable.
Dynamic lip shape
According to the mechanical model of reciprocating motion and dynamic load, the dynamic lip shape design divides the oil sealing and dust scraping into four functional lips. The main and auxiliary lips can realize complementary sealing under a wide range of twisting angles. In response to multi angle impact and vibration, the oil gas separation is accelerated by optimizing the lip angle, and the resistance is minimized to optimize the damping setting.
According to the mechanical model of reciprocating motion and dynamic load, the dynamic lip shape design divides the oil sealing and dust scraping into four functional lips. The main and auxiliary lips can realize complementary sealing under a wide range of twisting angles. In response to multi angle impact and vibration, the oil gas separation is accelerated by optimizing the lip angle, and the resistance is minimized to optimize the damping setting.

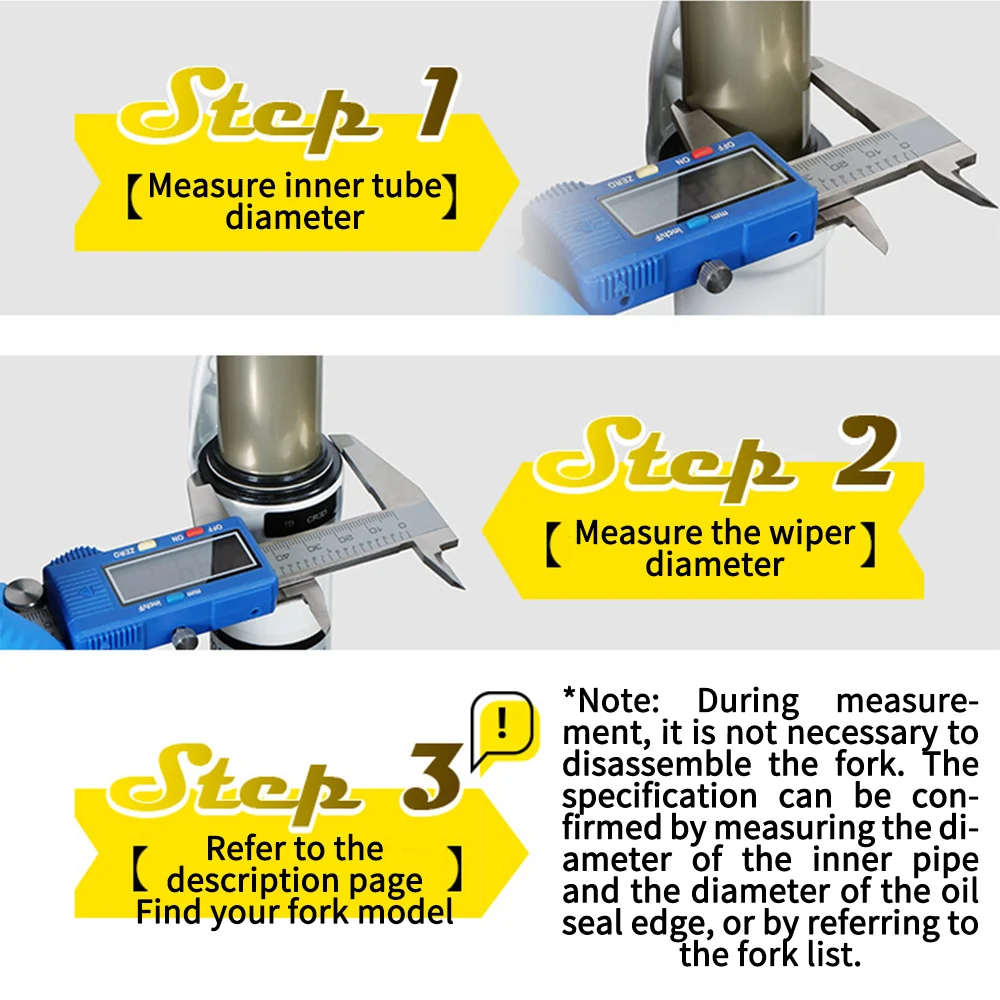

Confirm Wiper Specification in Three Steps
The specification of wiper is:
Diameter of Fork Inner Tube x Diameter of Wiper Edge
For example, the specification is 30x42mm, which means that the diameter of the fork inner pipe is 30mm, and the diameter of the wiper is 42mm (there is a tolerance on the diameter of the seal wiper,and it's soft and elastic, so accurate measurement is not required, And DO NOT take the inner diameter of the wiper when there is no inner tube inserted as the measurement reference! ).
The specification of wiper is:
Diameter of Fork Inner Tube x Diameter of Wiper Edge
For example, the specification is 30x42mm, which means that the diameter of the fork inner pipe is 30mm, and the diameter of the wiper is 42mm (there is a tolerance on the diameter of the seal wiper,and it's soft and elastic, so accurate measurement is not required, And DO NOT take the inner diameter of the wiper when there is no inner tube inserted as the measurement reference! ).
30x42
MANITOU All diameter 30mm tube. Including M30/ 30G/R7 /R7 PRO/ M30 etc..
ROCKSHOX All diameter 30mm tube. Including Duke / Psylo 2001-2005 / Xc30/ Xc30 gold / Xc30 Silver/ Paragon etc..
32x41
ROCKSHOX some diameter 32mm tube. Including Bluto/ RS-1/
Reba A7/ SID RLC A1/ SID XX/ RL B12017+ etc..
SR SUNTOUR diameter 32mm tube. Including Epixon / Axon32 /Raidon xc / Raidon32 boost etc..
32x42
FOX 2016 -2022 All diameter 32mm tube.
32x45
FOX 2003-2015 All diameter 32mm tube.
MANITOU some diameter 32mm tube. Including Machete / JUNIT /
Marvel / Match / Minute/ R7 etc..
ROCKSHOX some diameter 32mm tube. Including Reba 2005 -2014/ Sid 2012-2014 / Tora / Recon / Revelation / Reba /Argyle / Pike Sektor etc..
34x44
FOX 2016 -2022 All diameter 34mm tube.
34x47
FOX 2012-2015 All diameter 34mm tube.
MARZOCCHI 2008- 2014 some diameter 34mm tube.
MANITOU some diameter 34mm tube. Including Magnum / Mastodon / Mattoc etc. .
SR SUNTOUR 2014-2018 some diameter 34mm tube. Including Auron 34 / raidon34 2018+ / axon34 2018+ / xcr34 2018+etc..
X- FUSION All diameter 34mm tube.
35x45
ROCKSHOX 2016 -2022 All diameter 35mm tube. Including Boxxer RC 2014-2016 / Boxxer Team 2014-2016 / Boxxer World Cup 2014-2016 /
Domain Dual Crow RC 2007-2016/ Lyric RC 2010-2016 / Lyric RC2 DH 2010-2016 / Lyric RCT3 2010-2016 / Pike DJ 2014-2016 / Pike RC
2014-2016 /
Pike RCT3 2014-2016 / Yari RC 2016 etc..
35x 47
ROCKSHOX Before 2014 All diameter 35mm tube. Including Pike /Lyrik / Yari / Boxxer etc..
SR SUNTOUR some 35mm tube. Including Aion / Auron/Zeron etc..
36x46
FOX 2015 -2022 All diameter 36mm tube.
36x49
FOX 2007 -2014 All diameter 36mm tube.
SR SUNTOUR Duroluxdiameter 36mm tube.
MANITOU some diameter 36mm tube. Including Dorado Pro & Expert (Pre 2021) etc..
38x48
FOX 2020 -2022 All diameter 38mm tube.
ROCKSHOX 2021 -2022 diameter 38mm tube.
40x50
FOX 2016 -2022 All diameter 40mm tube.
40x 53
FOX 2003-2015 All diameter 40mm tube.
ROCKSHOX diameter 40mm tube. Including Totem etc.
MANITOU All diameter 30mm tube. Including M30/ 30G/R7 /R7 PRO/ M30 etc..
ROCKSHOX All diameter 30mm tube. Including Duke / Psylo 2001-2005 / Xc30/ Xc30 gold / Xc30 Silver/ Paragon etc..
32x41
ROCKSHOX some diameter 32mm tube. Including Bluto/ RS-1/
Reba A7/ SID RLC A1/ SID XX/ RL B12017+ etc..
SR SUNTOUR diameter 32mm tube. Including Epixon / Axon32 /Raidon xc / Raidon32 boost etc..
32x42
FOX 2016 -2022 All diameter 32mm tube.
32x45
FOX 2003-2015 All diameter 32mm tube.
MANITOU some diameter 32mm tube. Including Machete / JUNIT /
Marvel / Match / Minute/ R7 etc..
ROCKSHOX some diameter 32mm tube. Including Reba 2005 -2014/ Sid 2012-2014 / Tora / Recon / Revelation / Reba /Argyle / Pike Sektor etc..
34x44
FOX 2016 -2022 All diameter 34mm tube.
34x47
FOX 2012-2015 All diameter 34mm tube.
MARZOCCHI 2008- 2014 some diameter 34mm tube.
MANITOU some diameter 34mm tube. Including Magnum / Mastodon / Mattoc etc. .
SR SUNTOUR 2014-2018 some diameter 34mm tube. Including Auron 34 / raidon34 2018+ / axon34 2018+ / xcr34 2018+etc..
X- FUSION All diameter 34mm tube.
35x45
ROCKSHOX 2016 -2022 All diameter 35mm tube. Including Boxxer RC 2014-2016 / Boxxer Team 2014-2016 / Boxxer World Cup 2014-2016 /
Domain Dual Crow RC 2007-2016/ Lyric RC 2010-2016 / Lyric RC2 DH 2010-2016 / Lyric RCT3 2010-2016 / Pike DJ 2014-2016 / Pike RC
2014-2016 /
Pike RCT3 2014-2016 / Yari RC 2016 etc..
35x 47
ROCKSHOX Before 2014 All diameter 35mm tube. Including Pike /Lyrik / Yari / Boxxer etc..
SR SUNTOUR some 35mm tube. Including Aion / Auron/Zeron etc..
36x46
FOX 2015 -2022 All diameter 36mm tube.
36x49
FOX 2007 -2014 All diameter 36mm tube.
SR SUNTOUR Duroluxdiameter 36mm tube.
MANITOU some diameter 36mm tube. Including Dorado Pro & Expert (Pre 2021) etc..
38x48
FOX 2020 -2022 All diameter 38mm tube.
ROCKSHOX 2021 -2022 diameter 38mm tube.
40x50
FOX 2016 -2022 All diameter 40mm tube.
40x 53
FOX 2003-2015 All diameter 40mm tube.
ROCKSHOX diameter 40mm tube. Including Totem etc.
Provide customized services. If you want please contact us.
packing & Delivery
Certifications
Company Profile
We just keep making it better!
This is what ZTTO is all about. With experiences of doing bicycle parts business for more than a decade. We are already providing a vast variety of drivetrain components to the riders for more than 150 countries. We make the best cassettes on aliexpress and we had the vision and desire to expand our presence in the cycling industry, so we are now expanding our Headset and Bottom Bracket business. Sure, a casual rider will appreciate solid performance, reliability, dependability and all the standard qualities one would expect. But it's the riders who live and breathe bicycles who love us most because bicycles are what we love, too. In fact, they're our only love. Bike components are all we do and how we live- which is why we do them so well.
ZTTO began with the goal of creating the best drivetrain system and changed the cycling world with our innovative products. We are continuing to seek and deploy technological and engineering advancements, we are also expanding our B2B business, trying to keep making your cycling experience better.
This is what ZTTO is all about. With experiences of doing bicycle parts business for more than a decade. We are already providing a vast variety of drivetrain components to the riders for more than 150 countries. We make the best cassettes on aliexpress and we had the vision and desire to expand our presence in the cycling industry, so we are now expanding our Headset and Bottom Bracket business. Sure, a casual rider will appreciate solid performance, reliability, dependability and all the standard qualities one would expect. But it's the riders who live and breathe bicycles who love us most because bicycles are what we love, too. In fact, they're our only love. Bike components are all we do and how we live- which is why we do them so well.
ZTTO began with the goal of creating the best drivetrain system and changed the cycling world with our innovative products. We are continuing to seek and deploy technological and engineering advancements, we are also expanding our B2B business, trying to keep making your cycling experience better.
FAQ
Q1. Can I have a sample order for your product?
A: Sample order is welcome here. Mixed samples are acceptable. We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q8: How to deal with the faulty?
A: All our products are produced in strict quality control system and the defective rate will be less than 0.2%. During the guarantee period, we will send new products for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
A: Sample order is welcome here. Mixed samples are acceptable. We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q2. What about the lead time?
A: Most of our products are in stock ,1-3 days for sample or small amount orders, 20-30 days for mass production depending on actual order size.
A: Most of our products are in stock ,1-3 days for sample or small amount orders, 20-30 days for mass production depending on actual order size.
Q3. Do you have any MOQ limit for the order?
A: Low MOQ, 1pc for sample checking is available
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by express way like DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping arealso optional.
A: We usually ship by express way like DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping arealso optional.
Q5. How to proceed an order?
A: Firstly, let us know your requirements or application. Secondly, we quote according to your requirements or our suggestions. Thirdly, customer confirms the samples and places deposit for formal order. Fourthly, we arrange the production.
A: Firstly, let us know your requirements or application. Secondly, we quote according to your requirements or our suggestions. Thirdly, customer confirms the samples and places deposit for formal order. Fourthly, we arrange the production.
Q6. Is it OK to print my logo on the product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 1-year warranty to our products.
A: Yes, we offer 1-year warranty to our products.
Q8: How to deal with the faulty?
A: All our products are produced in strict quality control system and the defective rate will be less than 0.2%. During the guarantee period, we will send new products for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
Похожие товары

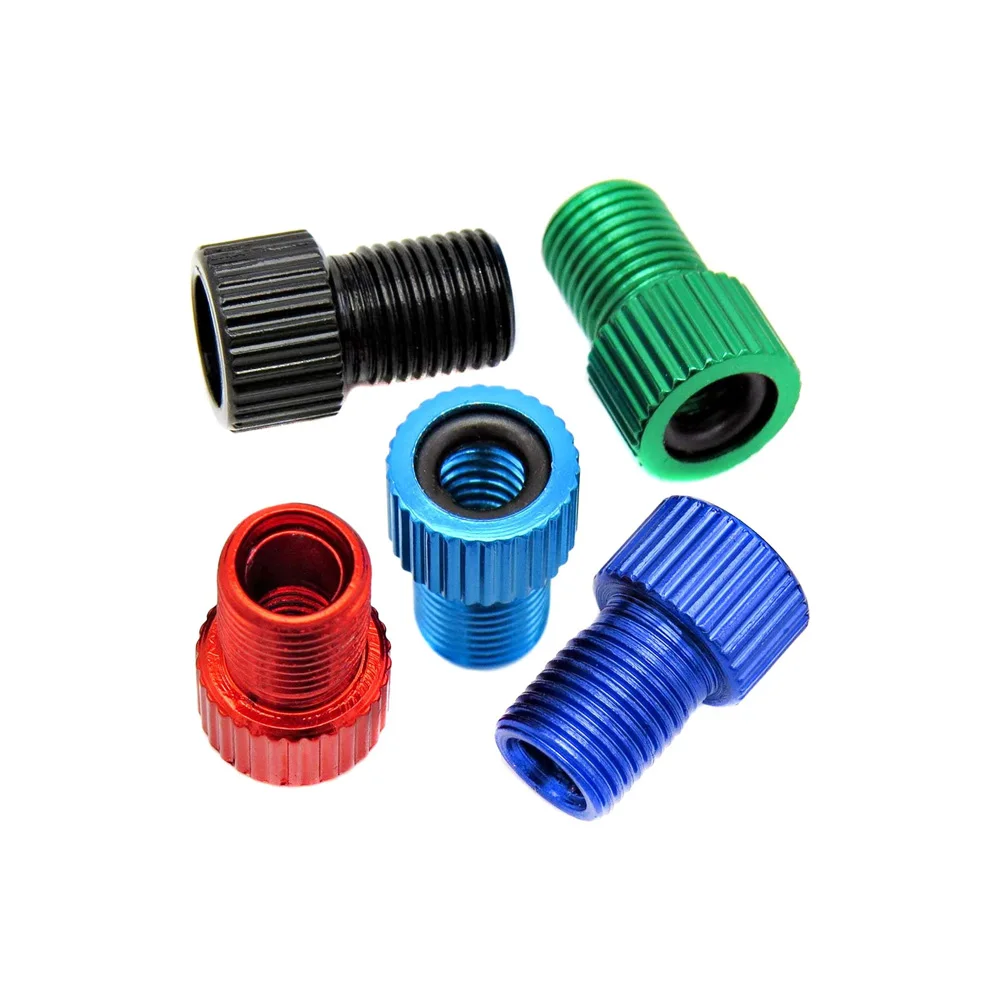

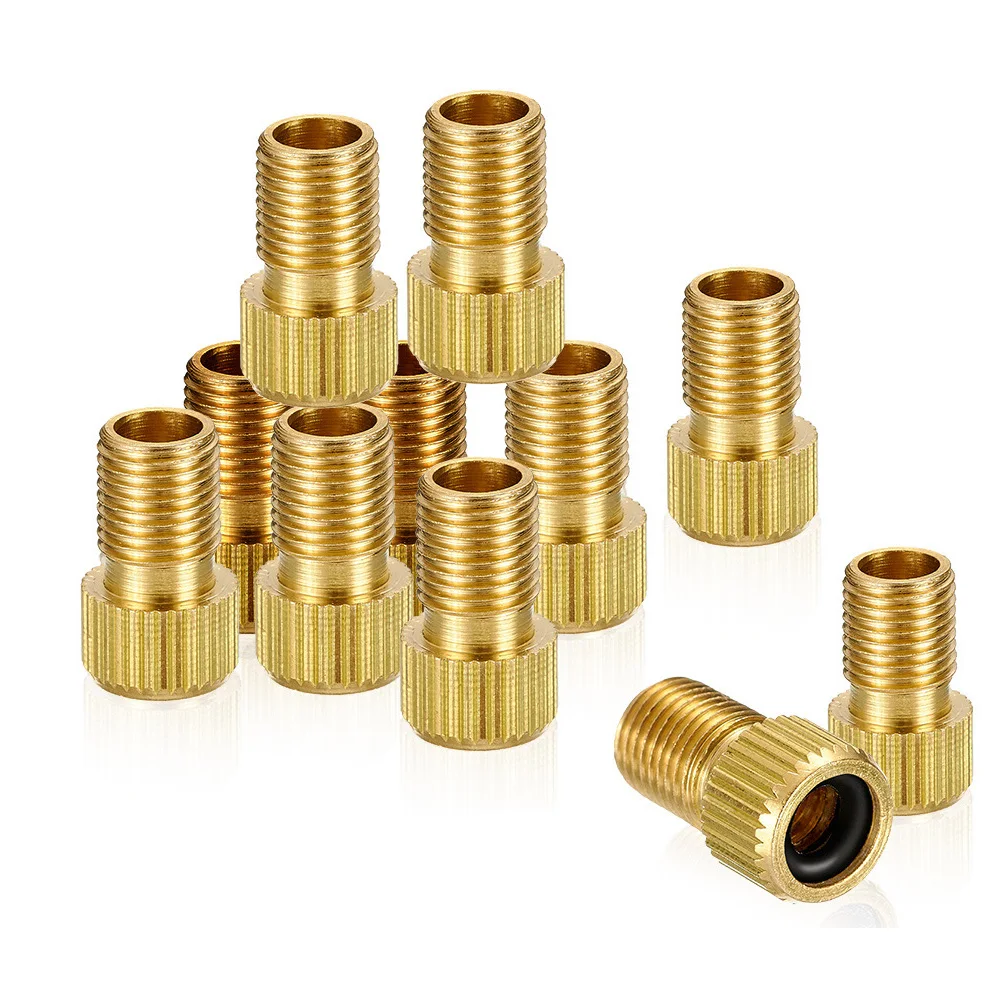

Преобразователь переходника штока клапана Presta to Schrader для велосипедной шины
7,68 ₽ - 9,87 ₽
Аксессуары для велосипеда дорожный велосипед велосипедный алюминиевый сплав адаптер надувания шин с использованием стандартного велосипедного насоса
7,68 ₽ - 9,87 ₽

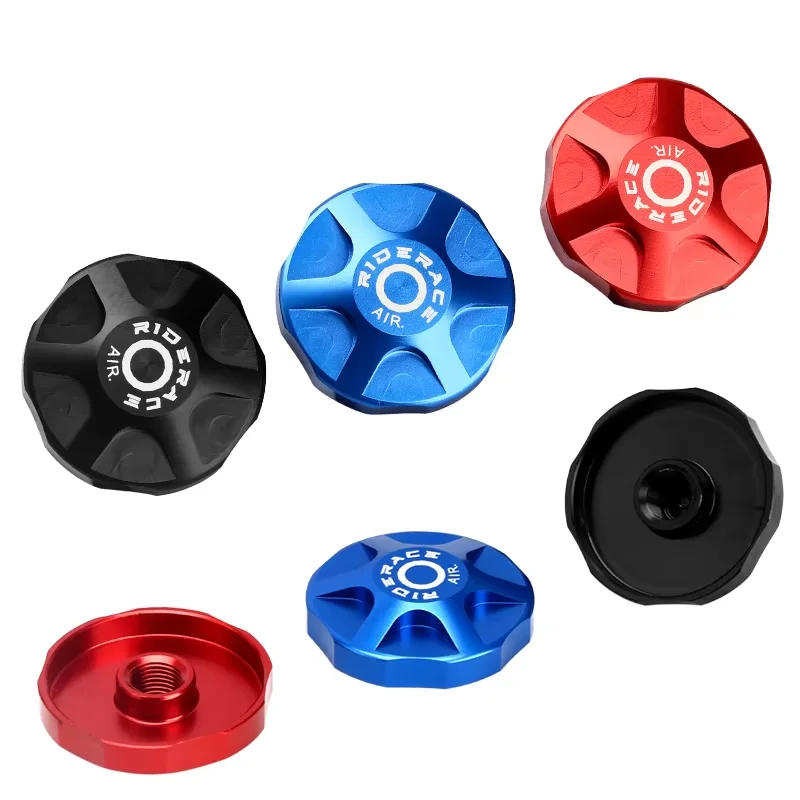

RIDERACE наплечная Крышка для велосипеда
110,75 ₽ - 120,62 ₽
Шимано L05A смоляные ледяные технологические DURA-ACE L04C N04C K04Ti Металл K03Ti K05S N03A подушечки для R9170 R8070 RS805 RS505 M7120 M8120

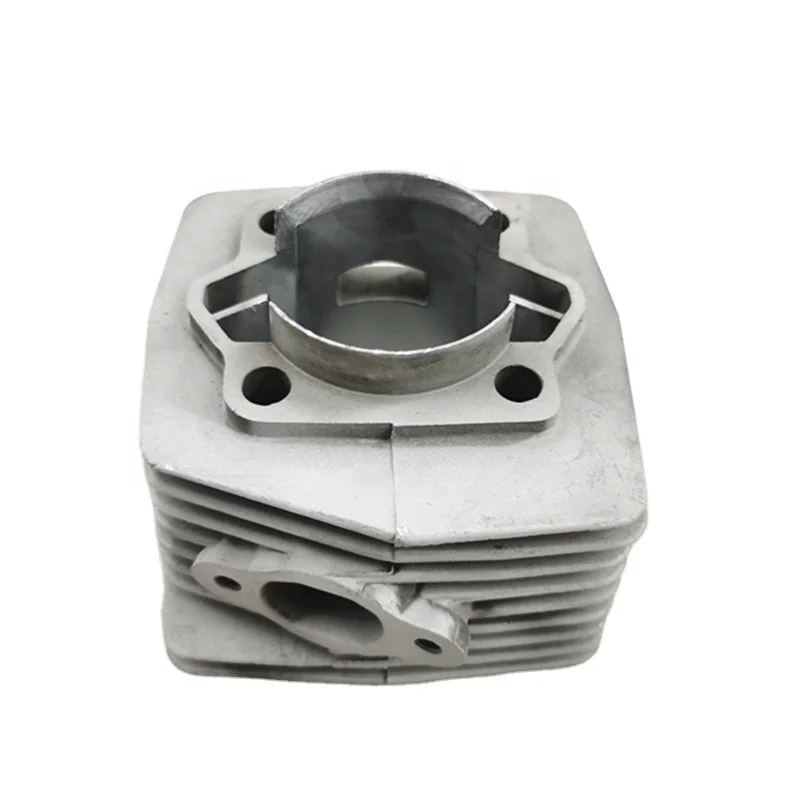

Бензин моторизованный велосипед блок цилиндров 47 мм 2-х тактный 80cc двигателя комплект

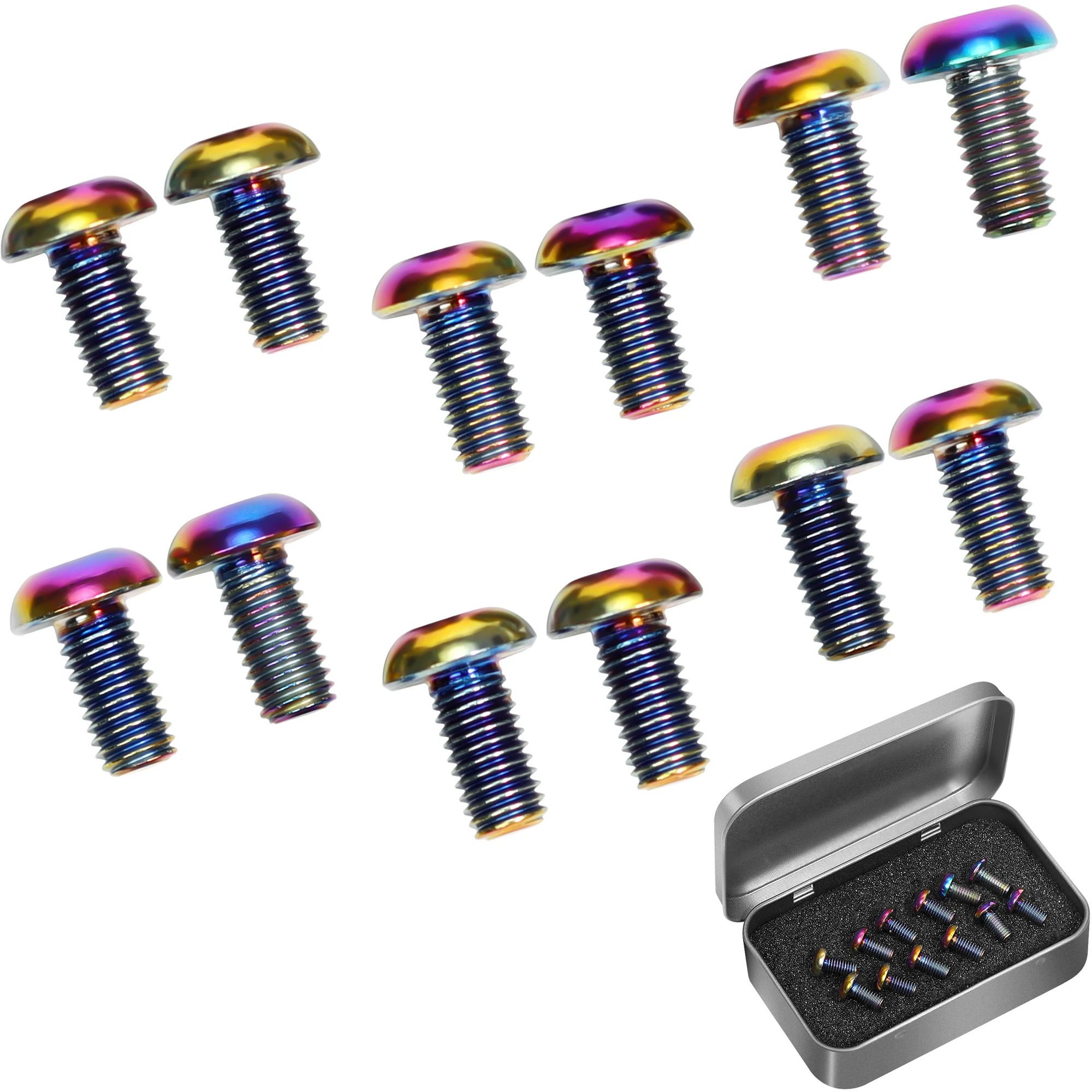

12 шт. титановые роторные винты
1 206,14 ₽ - 1 315,79 ₽

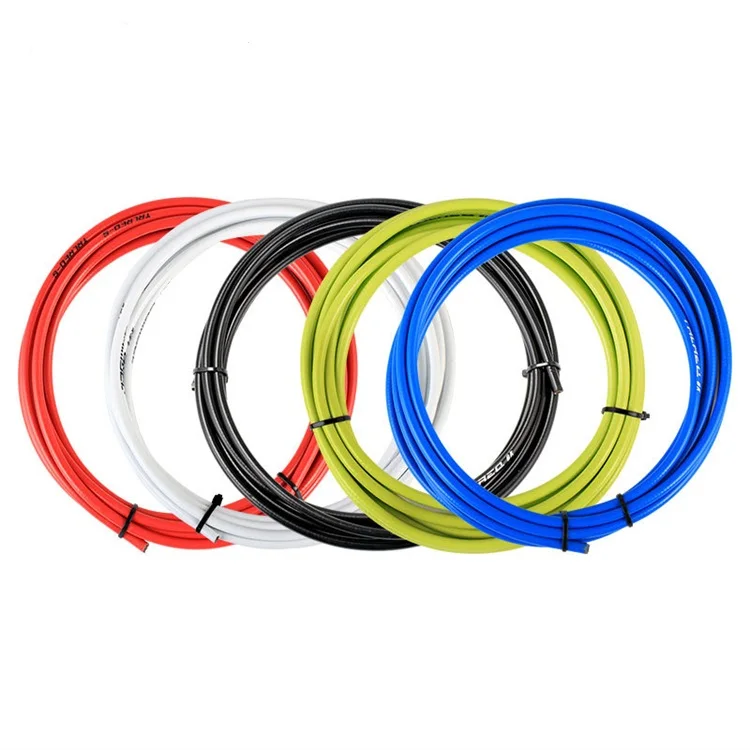

Группа тормозных линий для велосипеда высокоуглеродистая стальная проволока корпус с ПВХ покрытием высокая совместимость
