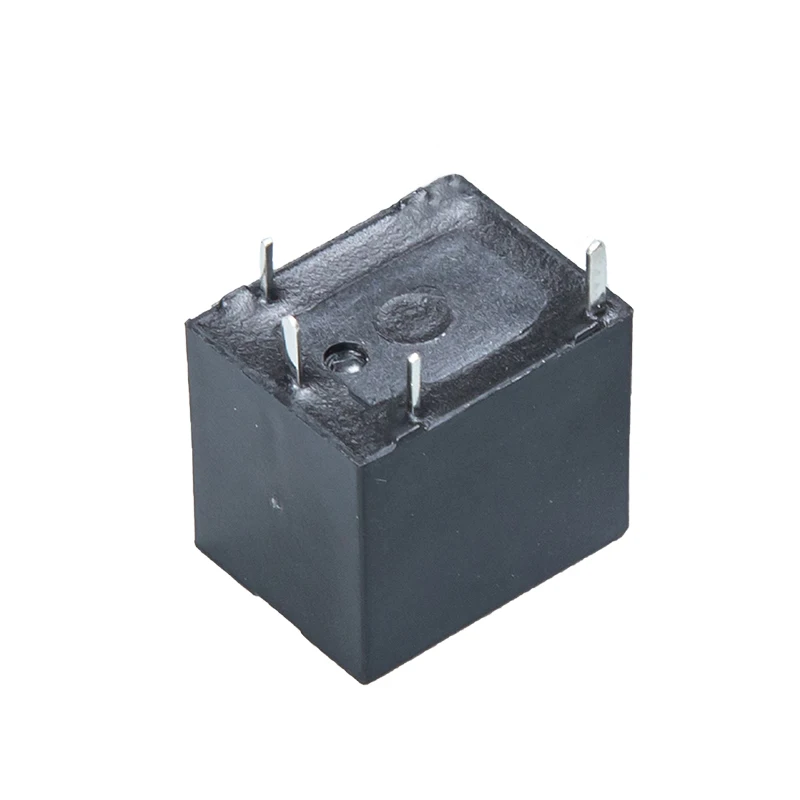

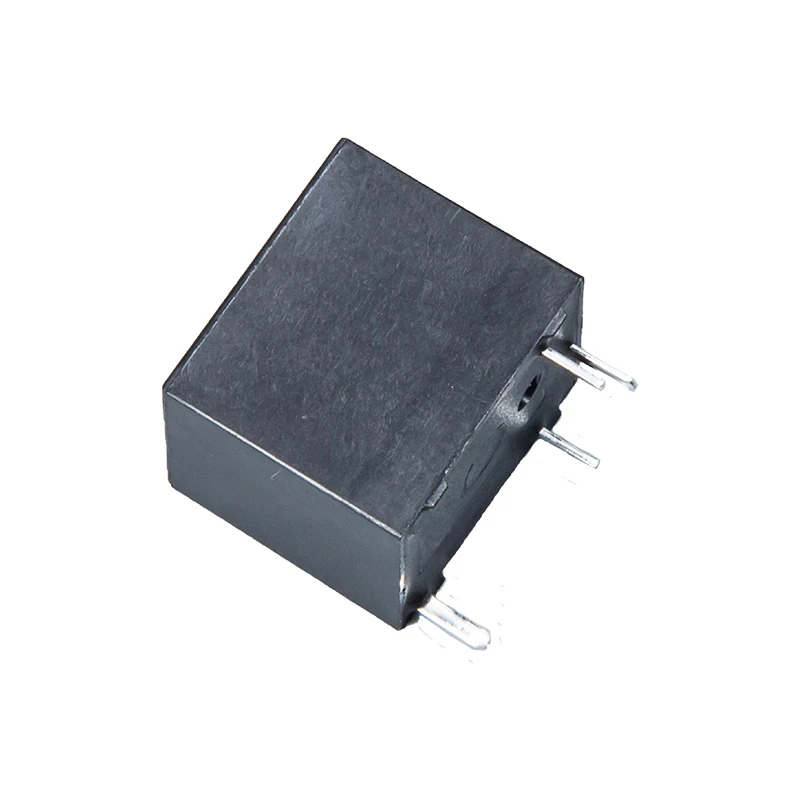

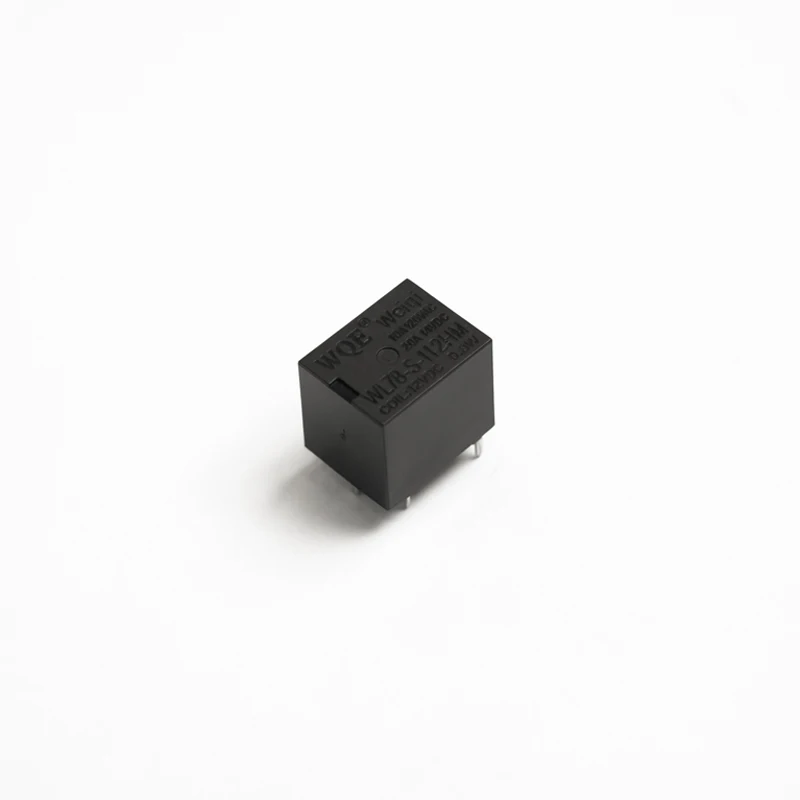

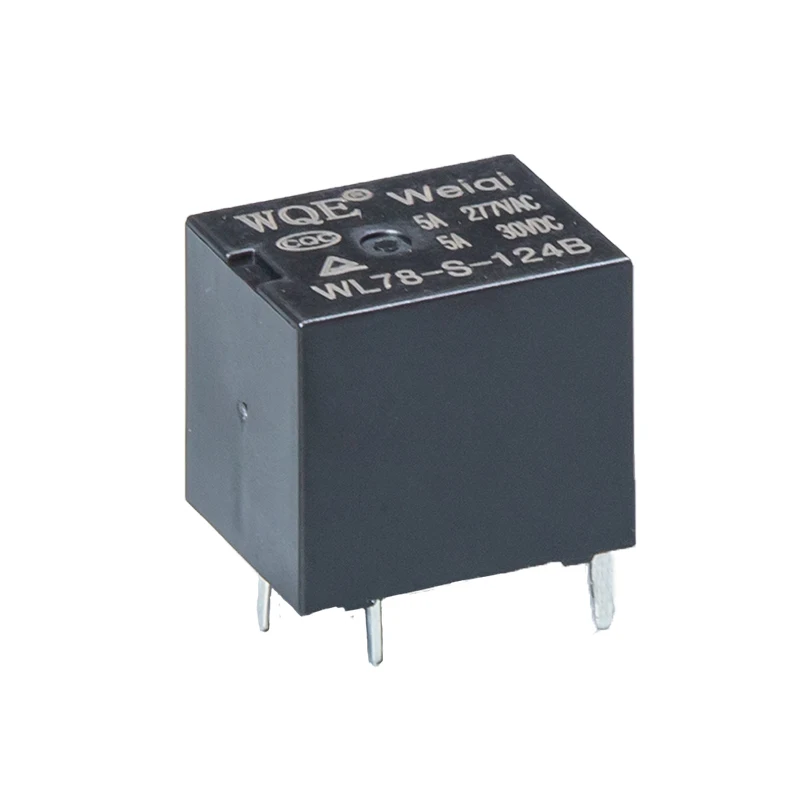

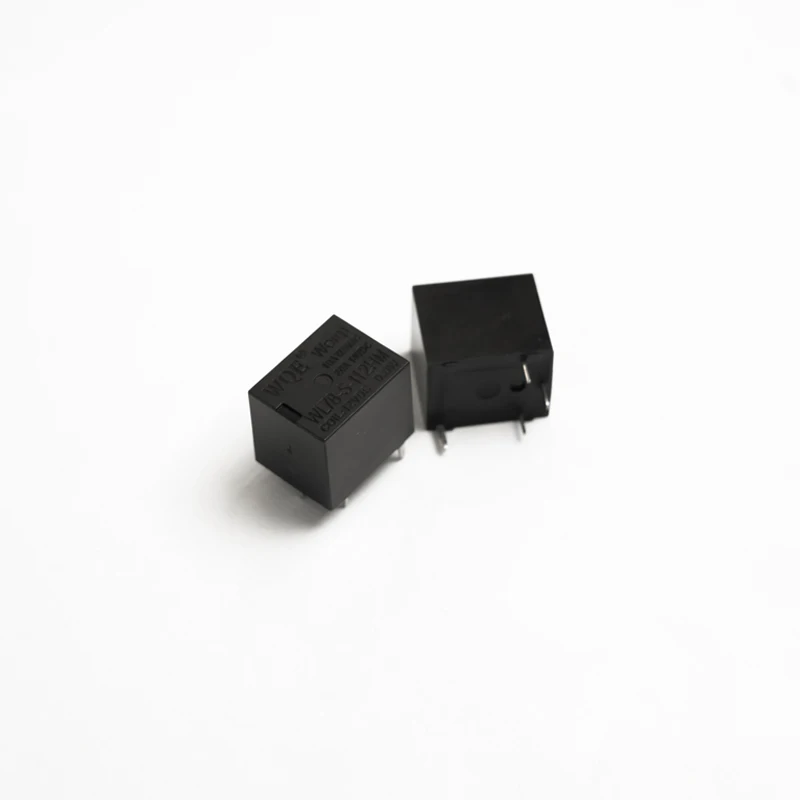

Weiqi регулируемое 4/5pin 5a Макс 20a 9 ~ 48vdc ac реле безопасности бытовой техники WL78 t78 автомобильное
- Категория: >>>
- Поставщик: Jiangxi Weiqi Electric Co. Ltd.
Сохранить в закладки 1600744487112:
Описание и отзывы
Характеристики
Products Description
1.Up to 20A contact switching capability
2. 1 Form A,1 FormB,1 Form C and 2 Form A configurations
3. Small volume and anti-shock
4. Overall dimensions
（15.5×12.1×13.8）mm
Contact load | ||||||
Model | WL78 | |||||
Contact Arrangement | NO/NC | NO | NC | |||
Maximum switching current | 20A | 20A | 5A | |||
Maximum switching voltage | 30VDC 277VAC | |||||
Maximum switching power | 1875VA/280W | 1875VA/280W | 1385VA/150W | |||
Rated load (resistive) | NO 5A 277VAC NC5A 125VAC、 NO 10A 125VAC NC 5A 125VAC、 NO 20A 14VDC NC5A 30VDC、 NO 10A 30VDC NC5A 30VDC; | |||||
Contact material | Ag alloy | |||||
Contact resistance | Max 100MΩ | |||||
Action time | ≤10ms | |||||
Release time | ≤5ms | |||||
Insulation resistance | Min 100MΩ （500VDC) | |||||
Dielectric Strength | Between contacts | AC 550VAC 50/60Hz 1min | ||||
Between contact coils | AC 550VAC 50/60Hz 1min | |||||
To attack | Stability | 98m/S2 | ||||
Strength | 980m/S2 | |||||
Vibration | 10~55Hz 1.5mm Double Amplitude | |||||
Mechanical endurance min | 1×107 | |||||
Electrial eddurance min | 1×105 | |||||
Humidity | 5%~85%RH | |||||
Ambient temperature | -40℃~105℃ | |||||
Weight | Approx.6g | |||||
Coil parameters （at 20°C） | ||||||||||
Coil Voltage | Coil Resistance | Pick-up Voltage 70% of rated voltage | Drop-out Voltage 10% of rated voltage | Coil Power | ||||||
Rated | Max | |||||||||
VDC | VDC | Ω±10% | VDC | VDC | W | |||||
9 | 9.9 | 225 | 7.2 | 0.45 | 0.36 | |||||
12 | 13.2 | 400 | 9.6 | 0.6 | ||||||
24 | 26.4 | 1600 | 19.2 | 1.2 | ||||||
6 | 6.6 | 60 | 4.8 | 0.3 | 0.6 | |||||
9 | 9.9 | 135 | 7.2 | 0.45 | ||||||
12 | 13.2 | 240 | 9.6 | 0.6 | ||||||
24 | 26.4 | 960 | 19.2 | 1.2 | ||||||
12 | 13.2 | 180 | 9.6 | 0.6 | 0.8 | |||||
48 | 52.8 | 2880 | 38.4 | 2.4 | ||||||
Safetu standard | ||||||||||
Certification category | CQC | TUV | UL | |||||||
Certified load | NO 5A 277VAC NC5A 125VAC NO 10A 125VAC NC 5A 125VAC NO 20A 14VDC NC5A 30VDC、 NO 10A 30VDC NC5A 30VDC; | NO 5A 277VAC NC5A 125VAC NO 10A 125VAC NC 5A 125VAC NO 20A 14VDC NC5A 30VDC、 NO 10A 30VDC NC5A 30VDC; | NO 5A 277VAC NC5A 125VAC NO 10A 125VAC NC 5A 125VAC NO 20A 14VDC NC5A 30VDC、 NO 10A 30VDC NC5A 30VDC | |||||||
Product Usage
Related Products
Company Introduction
Jiangxi Weiqi Electrical Appliance Co.,Ltd
Jiangxi Weiqi Electric Co., Ltd. was established in 2007. It is a high-tech enterprise specializing in the production, research and development and sales of electromagnetic relays, automotive relays
and magnetic latching relays. The company has more than 100 people, including 15 R&D personnel.
and magnetic latching relays. The company has more than 100 people, including 15 R&D personnel.
Certifications
Packaging&Shipping
FAQ
Q1. Can I have sample for relay?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about lead time?
A:Sample needs 3-9 days, mass production time needs 1-2 weeks for order quantity more than
Q3. Do you have any MOQ limit for relay order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long dose it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for relay?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it ok to print my logo on relay?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
we are always here for you！
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about lead time?
A:Sample needs 3-9 days, mass production time needs 1-2 weeks for order quantity more than
Q3. Do you have any MOQ limit for relay order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long dose it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for relay?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it ok to print my logo on relay?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
we are always here for you！
Похожие товары
GZ tusheng дизель в сборе для грузовиков двигатель в сборе для JAC 1,9 T HF4DB1-2C Национальный четвертой голый двигатель Длинный Блок
2 380,00 $
Холодильная лабораторная Центрифуга West Tune L530R с поворотными кронштейнами 5300
3 587,00 $

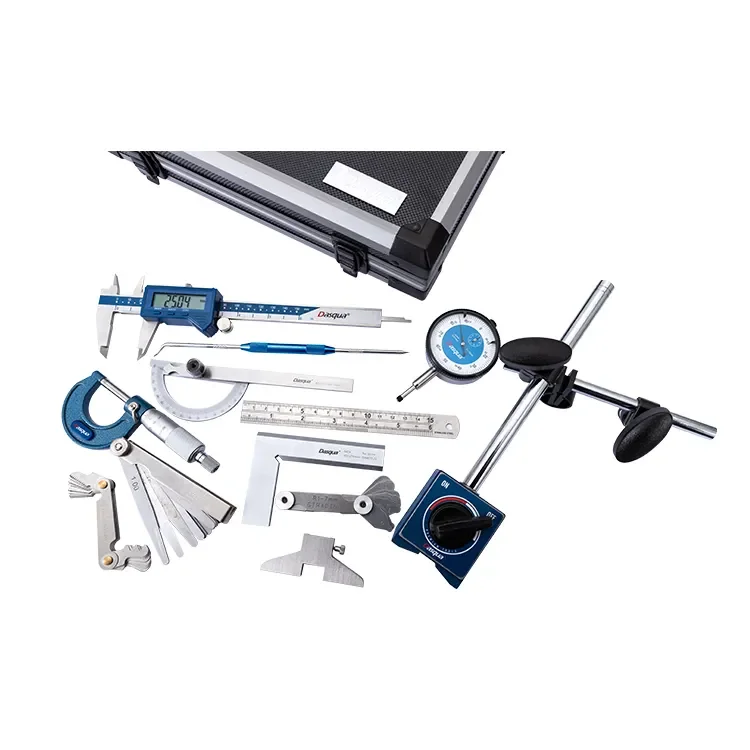

Цифровой штангенциркуль Dasqua 0-150 мм, магнитное основание 0-25 мм, внешний микрометр, датчик радиуса 0-10 мм, индикатор циферблата 0-10 мм
217,32 $ - 225,20 $

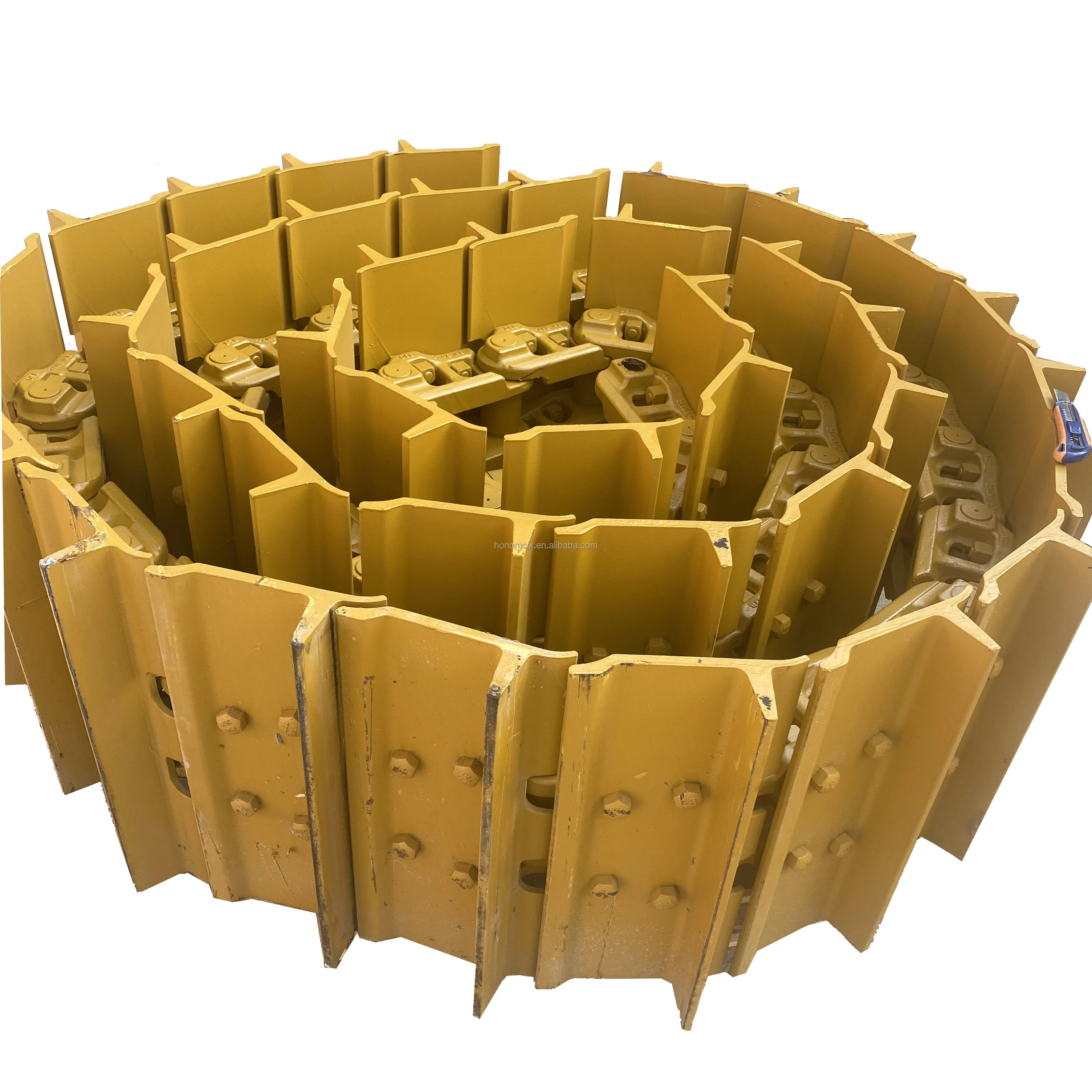

Запасные части для SEM DOZER 822D-K021 track 5594951
5 140,00 $ - 5 295,00 $

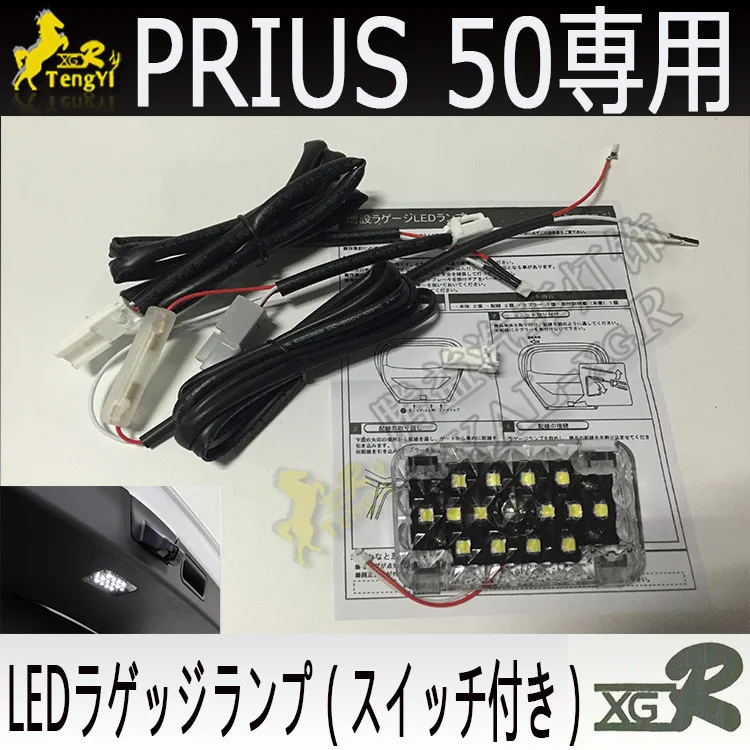

Светодиодное освещение для багажника автомобиля, дополнительный внутренний фонарь для задней двери багажника для серии prius 50 с переключателем
Фотоподшипник автомобильного водяного насоса WB1226104 WB1630071 WB1630118 WB1730087A
2,50 $

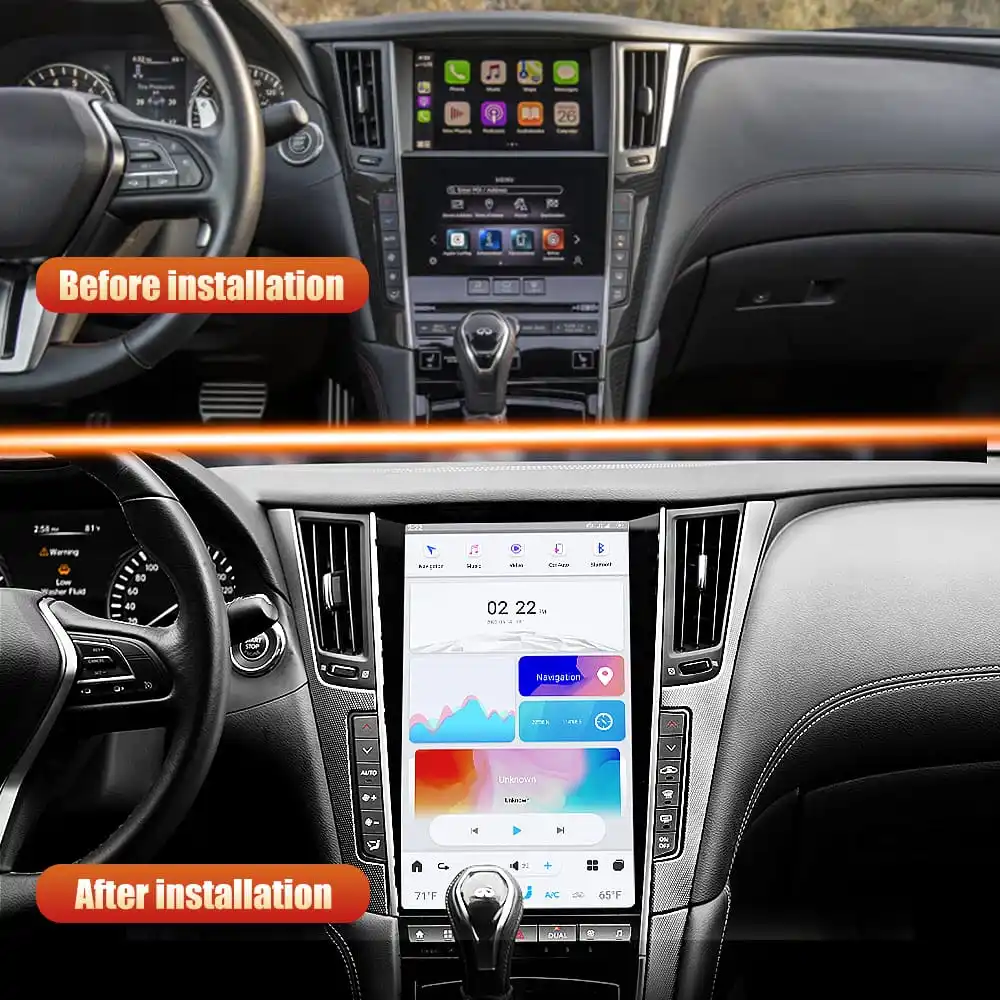

Автомобильный DVD-плеер AuCar 13,6 дюйма, Android 11, автомобильное стерео радио, видео головное устройство GPS для Mark 6 Infiniti Q50 Q50L Q60 Q60L 2020-2022
