Products Description

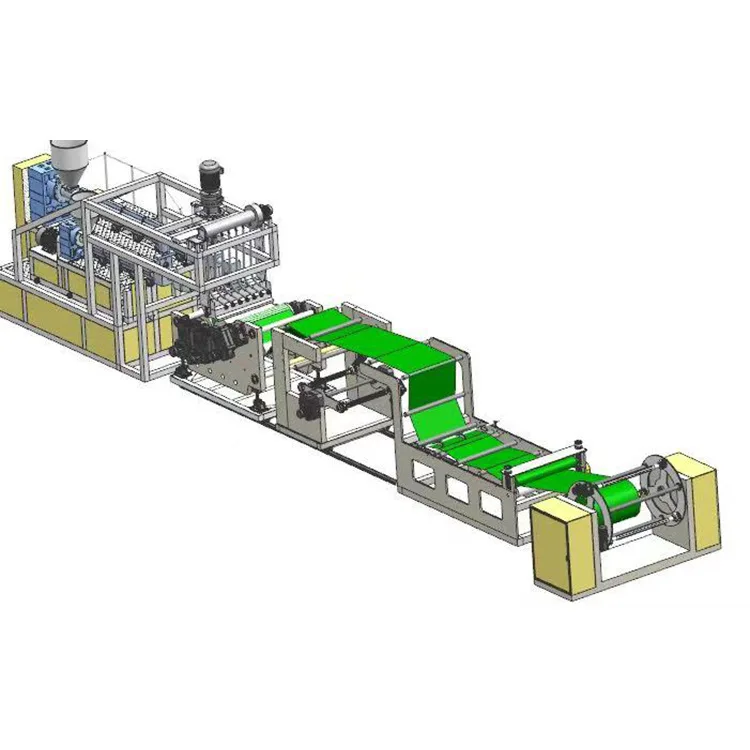

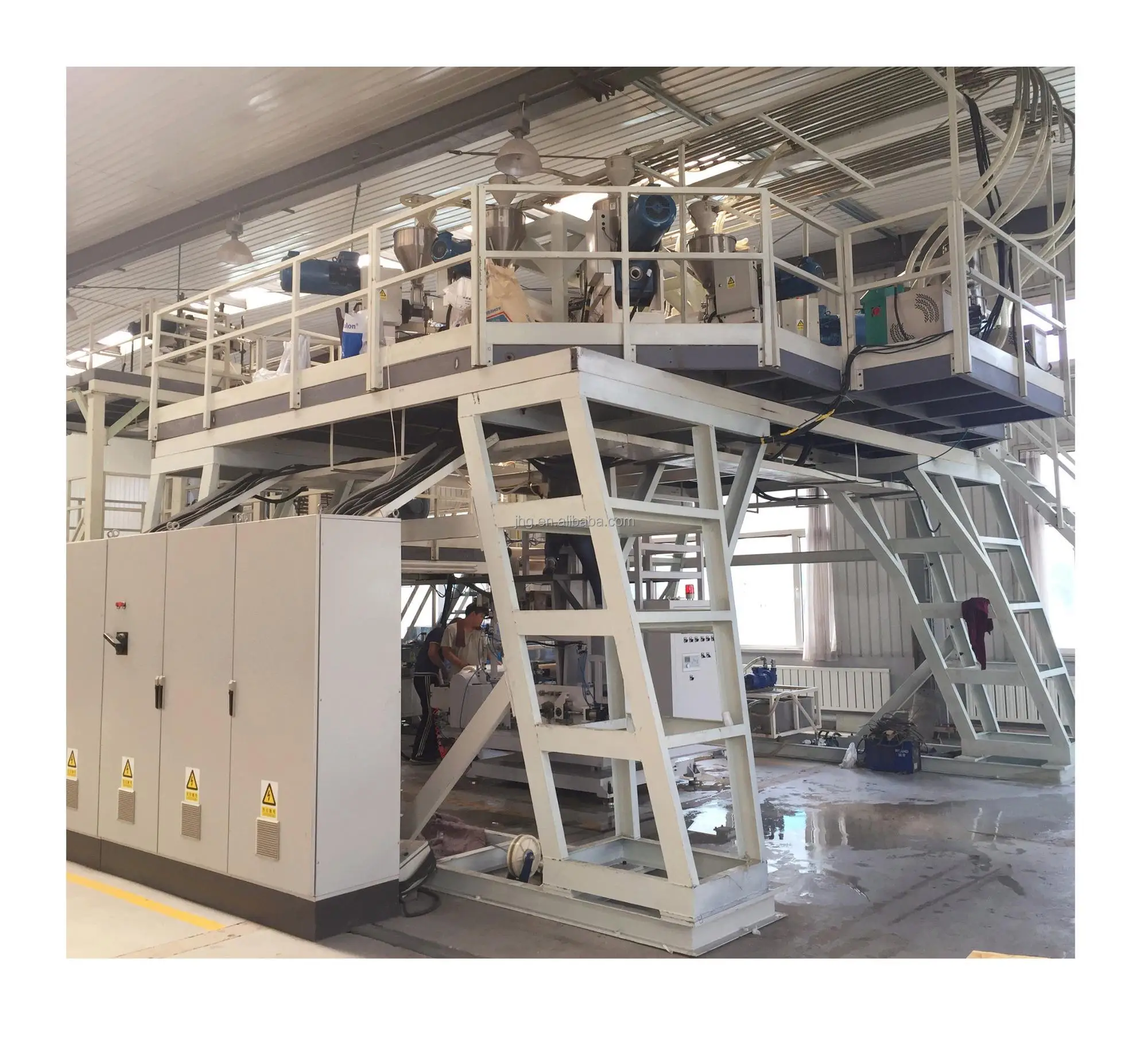

Three-Layer High Quality Plastic Extrusion Machines Plastic Sheet Extrusion Line Abs Pc Sheet Extruder




Technique parameter


Plate thickness
1-4mm
Plate Width
1-900mm
Weight
14T
Total Power
130kw
Overall Dimension
17600*5700*3300mm
Yield
Around 300KG/HR
Auto Grade
Full Auto
Diameter of Roller
400mm or customized
Diameter of Barrel
100/70/50mm or customized
Lamination Device
Included,printed film on the sheet is ok
Distribution Device
Included,more layers sheet can be made
Layers of Sheet
1-5 layers
OEM and ODM

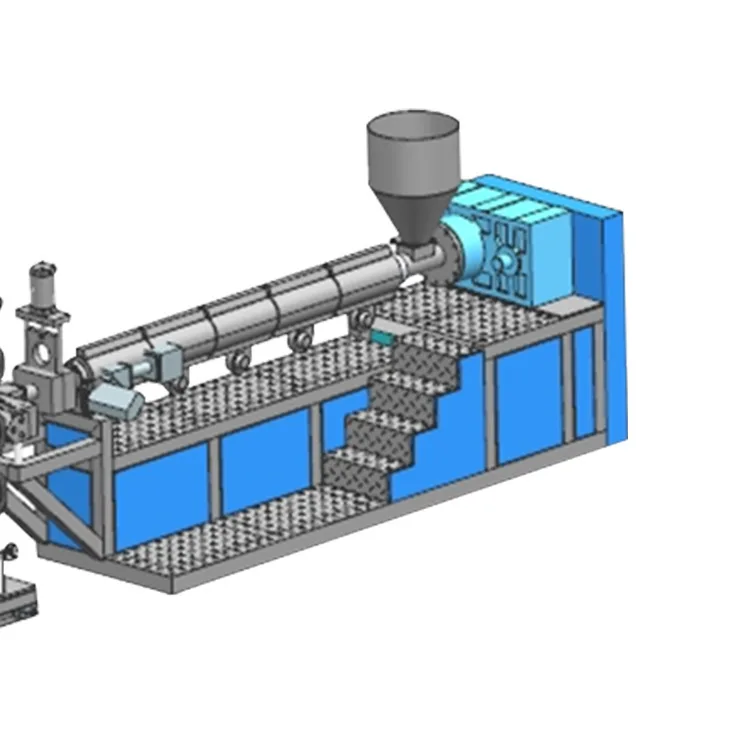

Extrusion Screws

According to the different material features, it adopts ideal, reasonable and high-efficiency single-layers extruder, which has the characteristics of high output, good plasticizing capacity.






Mould

This mono-layer of multi-layer co-extrusion mould is adopted hanger design.

It processes hard chrome plating and mirror polishing, ensuring to extrude stable, uniform, good smooth finish sheet.

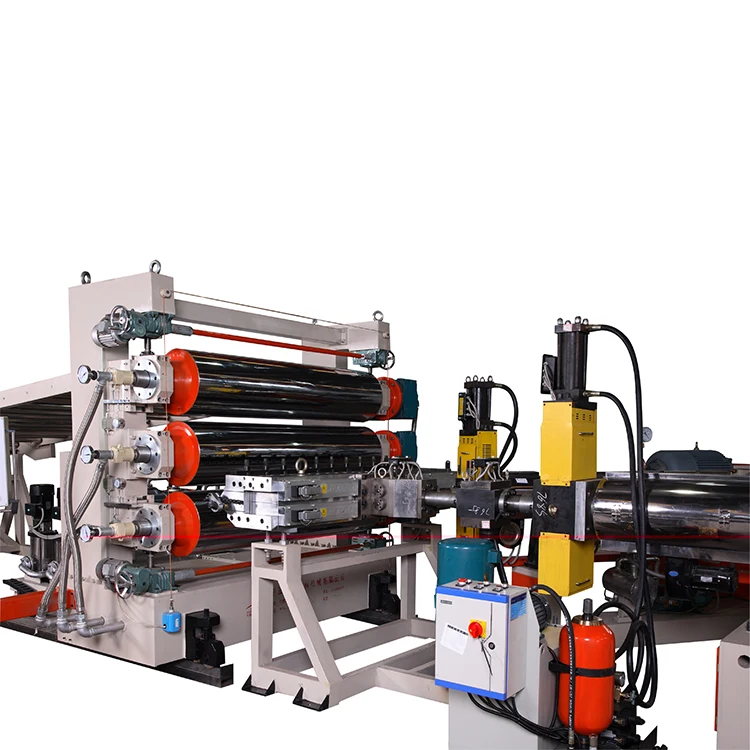

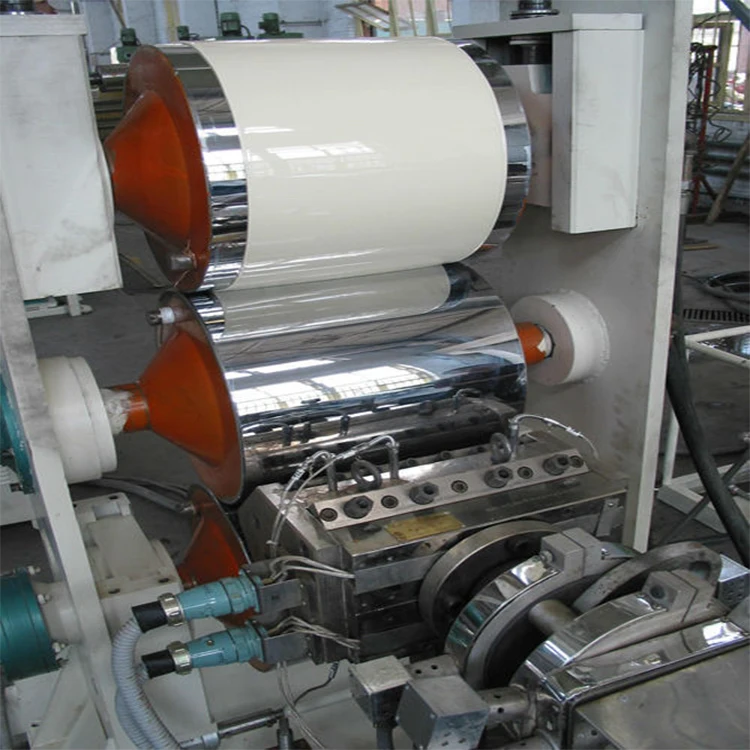

Three-roller Calender
It adopts vertical structure and the independent control of oil and water control device, to ensure precise constant temperature control.

Rollers adjust the speed independently, which has the characteristics of easy operation, easy to adjust thickness, high density sheet.




Haul-off Unit
It adopts the design of upper-lower cylinder pressure type, stepless frequency conversion timing, which is suitable for different extruded speed.

Track the length of sheet transfer, it provides strong guarantee for the stable production.



Cutter
The cutting board is adopted motor drive type, which has the function of auto measuring length and cutting.

It can cut the sheet length effectively and smoothly.


Application
This production line is capable of continuously produce mono-layer or multi-layer ABS, PC, PP, PE, PS, PMMA, HIPS sheet. The products are widely used in the fields of luggage, refrigerator, air conditioner, advertisement, bathroom, automotive trim etc.
