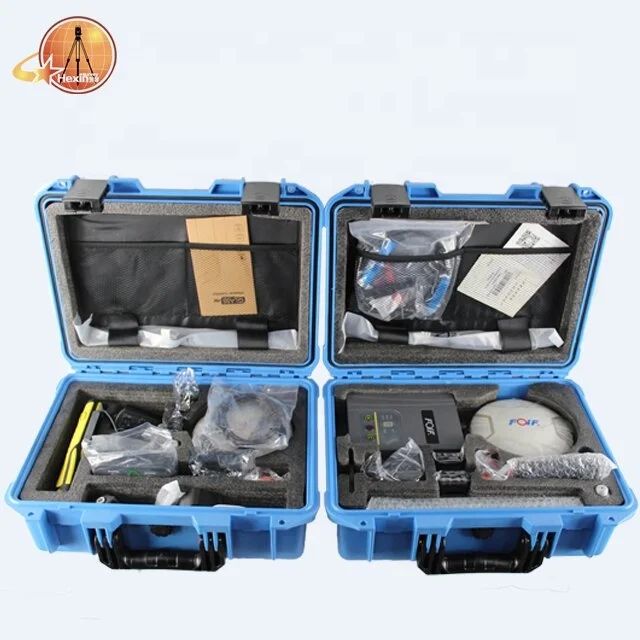

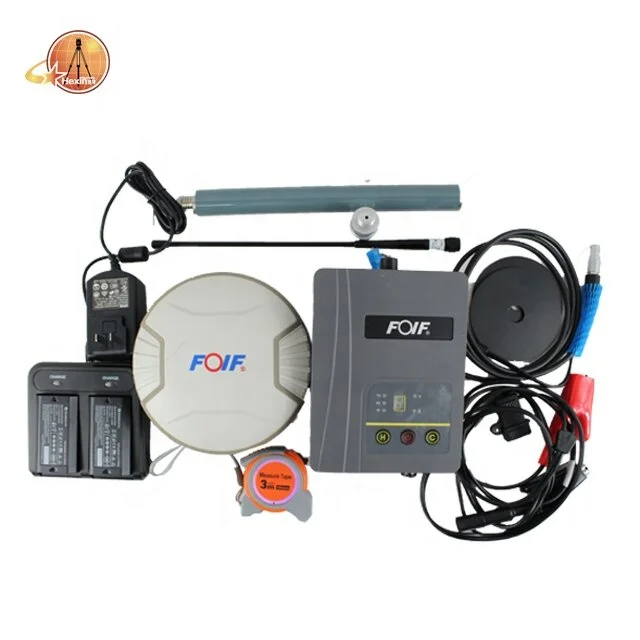

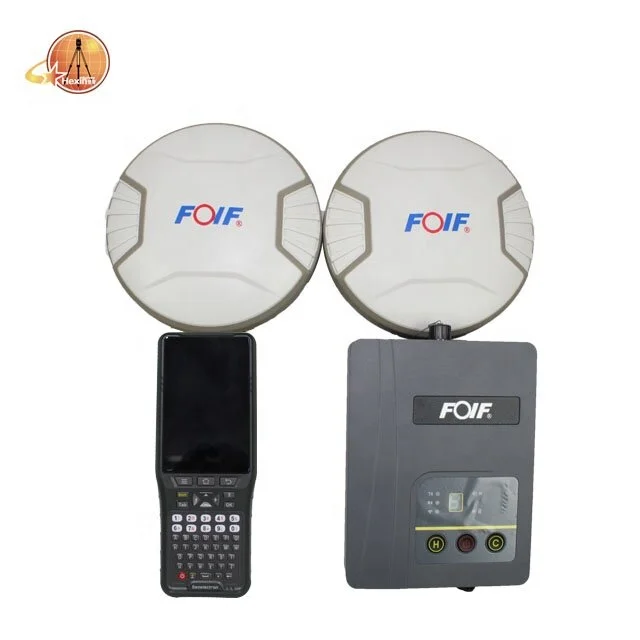

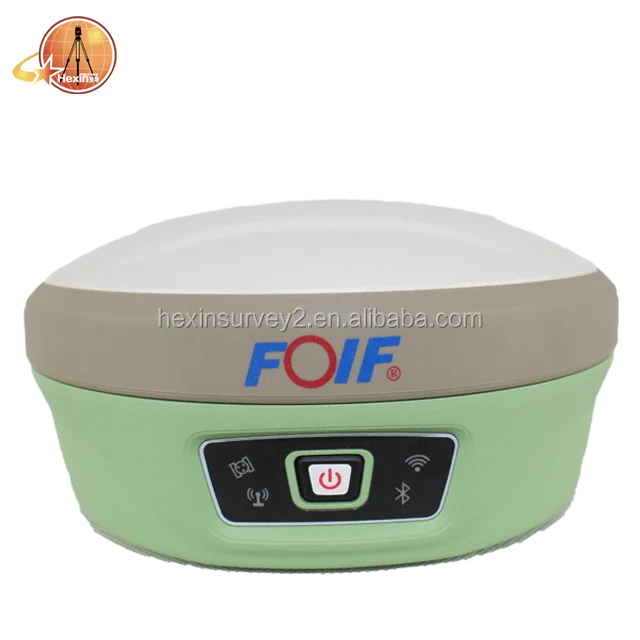

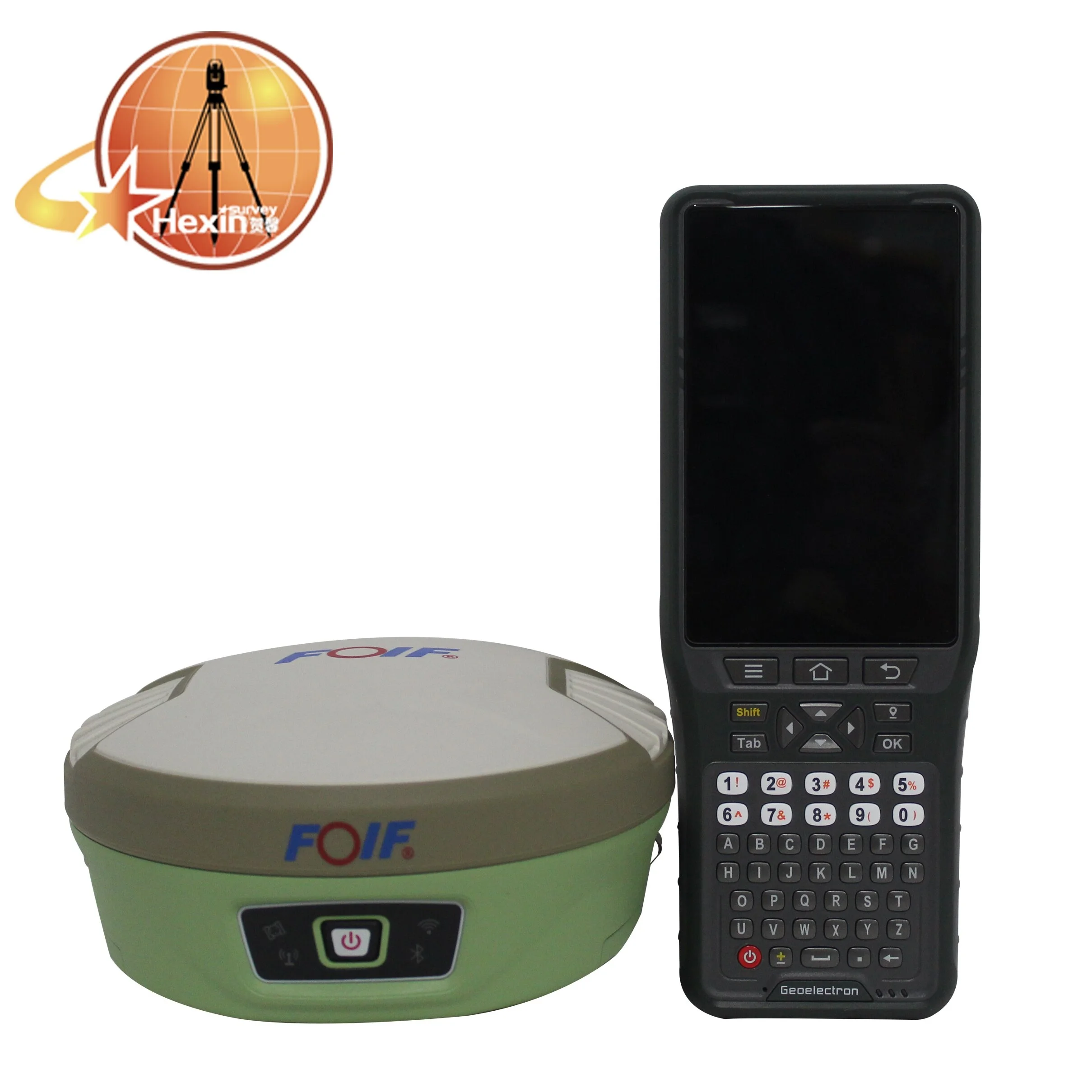

Новая версия доска для наблюдения за Землей FOIF ру RTK GNSS A90 полусферический P40 антенна GPS оборудование с каналом 800
- Категория: >>>
- Поставщик: Shanghai Hexin Survey Instrument Company Ltd.
Сохранить в закладки 1600745157343:
Описание и отзывы
Характеристики
Product Description
Title goes here.
Key features
1) Advanced GNSS engines
2) Support GPS, GLONASS, BDS, GALLILEO
3) Tilt sensor and electronic bubble integrated
4) NFC and WiFi functionality
1) Advanced GNSS engines
2) Support GPS, GLONASS, BDS, GALLILEO
3) Tilt sensor and electronic bubble integrated
4) NFC and WiFi functionality
Detail advantage functions
1 Multi-constellation Tracking
2) NGS approved full-wave GNSS antenna
3) Supports GPS,GlONASS,GALILEO,BDS,SBAS
4) Supports a wide range of satellite signals
5) A large receiving area designed for multipath mitigation
6) Air dielectric is light and stable
1 Multi-constellation Tracking
2) NGS approved full-wave GNSS antenna
3) Supports GPS,GlONASS,GALILEO,BDS,SBAS
4) Supports a wide range of satellite signals
5) A large receiving area designed for multipath mitigation
6) Air dielectric is light and stable
Specification
* 555 channels Advanced interface detection and mitigation Maximum data rate: 100Hz -GPS: LI C/A, L1C, L2C, L2P, L5 GLONASS: LI C/Ar L2 C/A, L2P, L3, L5 BeiDou: Blr B2, B3 Calileo:El, E5 AltBOC, E5a, E5br E6 NavlC(IRNSS) : L5 SBAS : Llr L5 QZSS : LI C7A, L1C, L2C, L5r L6 L-Band: Up to 5 channels | |
* Time to First Fix(TTFF): Cold start:<40s(typical) hot start:<19s(typical) Signal reacquisition: Ll<0.5s(typical) L2*RTK Initialization time: <10 s RTK Initialization reliability: >99.9% | |
* SBAS Horizontal: 60cm( 1.97ft), Vertical:120cm(3.94ft)* Real-Time DGPS position Horizontal: 40cm (1.31ft), Vertical:80cm(2.62ft) *Real-Time Kinematic Position (fine mode) Horizonta1:8mm( 0.03ft)+1.0 ppm Vertical: 15mm{0.05ft)+1.0 ppm | |
Post Processing Accuracy (rms)*2 | * Static, Rapid Static Horizontal 2.5 mm (0.008 ft) + 1.0 ppm Vertical 5 mm (0.016 ft) + 1.0 ppm |
Physical | * Flat design Size: 156mm*76mm(0 x H) Bottom cover: Aluminium magnesium alloy |
Memory | *Internal memory: 8GB standard; Supports extending to 32GB |
Operating system | *Based on Linux; Supports Web Ul |
Tilt survey sensor | Automatic correct system by 30degree |
*RTK rover/base,post-processing RTK Network rover: VRS, FKP, MAC Point-to-Point GPRS through Real-time Data Server Software (internal GPRS or external cell phone) LandXML(FOIF FieldGenius support) Total Station support (FOIF FieldGenius) Import and stake directly from a DXF File (FOIF FieldGenius) | |
* Operating temperature:-30°C to +65°C(-22°F to 149°F) *Storage temperature: -40°C to +80<,C(-40°F to +176°F) * Humidity: 100% condensing * Waterproof: IP67(IEC60529| * Shock: 2 m (6.56 ft) pole drop 1.2m(3.94ft) free drop | |
Power | * 7.2V, 6800mAhrremovable battery *Over 13 hours when simultaneous use of 2 batteries |

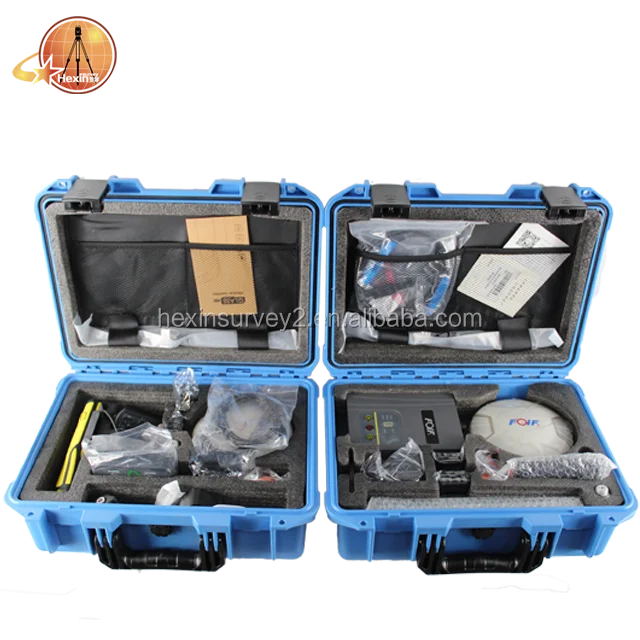

Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

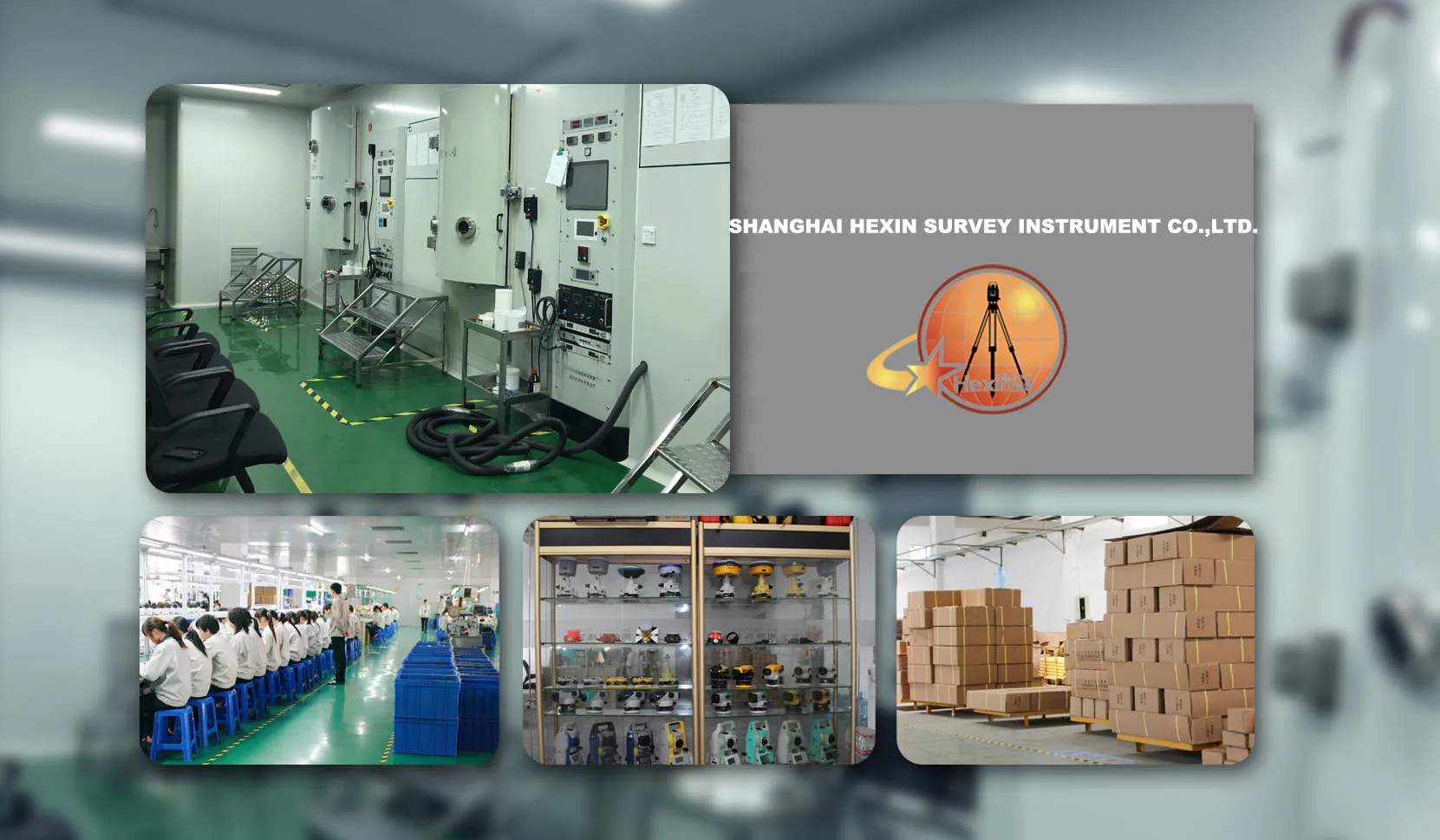

Company Profile
With 8 years' experience in geodetic surveying and cadastration surveying, we are a professional and leading enterprise in the surveying industry in Mainland China. We specialize in the R&D and manufacturing and sales of all kinds of surveying products, including total station, electronic theodolite, electronic distance meter, automatic level, laser level, reflector prism, surveying accessory, GPS receiver, mapping software, etc.
The marketing model advocated by us is not a simple sense of "selling products", instead, pre-sales service, services during operation and after-sales service are integrated in entire operating activities. It makes the customers feel that they purchased not only a commodity, but also a professional service.
We welcome new and old customers from all walks of life to contact us for future business relationships and achieving mutual success!
The marketing model advocated by us is not a simple sense of "selling products", instead, pre-sales service, services during operation and after-sales service are integrated in entire operating activities. It makes the customers feel that they purchased not only a commodity, but also a professional service.
We welcome new and old customers from all walks of life to contact us for future business relationships and achieving mutual success!
FAQ
1. who are we?
We are based in Shanghai, China, start from 2013,sell to Africa(40.00%),Eastern Asia(25.00%),Mid East(10.00%). There are total about 5-10 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
RTK GPS,Total station,Automatic levels,tripod prism staff pole,all battery charger cables
4. why should you buy from us not from other suppliers?
Established in 2013 and headquartered in shanghai. Hexin has been well developed to a professional manufacturer and geographic information industrial group fully integrating with R&D, marketing and services as well.
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW；
Accepted Payment Currency:USD;
Accepted Payment Type: T/T,PayPal,Western Union;
Language Spoken:English,Chinese
We are based in Shanghai, China, start from 2013,sell to Africa(40.00%),Eastern Asia(25.00%),Mid East(10.00%). There are total about 5-10 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
RTK GPS,Total station,Automatic levels,tripod prism staff pole,all battery charger cables
4. why should you buy from us not from other suppliers?
Established in 2013 and headquartered in shanghai. Hexin has been well developed to a professional manufacturer and geographic information industrial group fully integrating with R&D, marketing and services as well.
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW；
Accepted Payment Currency:USD;
Accepted Payment Type: T/T,PayPal,Western Union;
Language Spoken:English,Chinese
Похожие товары

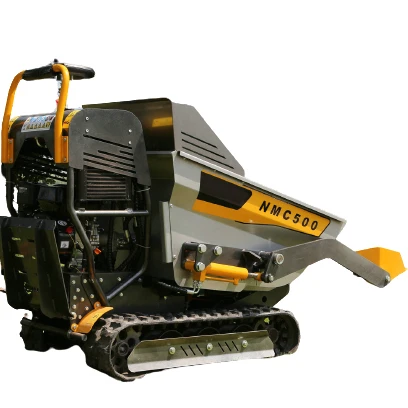

Китайский самозагружающийся мини-гусеничный транспортер, резиновый гусеничный самосвал, 500 кг, 800 кг, 1000 кг, мини-самосвал
