XCMG официальный yanmar двигатель мини экскаватор XE35U одобренный epa 4 тонны Подержанный с насадкой
- Категория: >>>
- Поставщик: Xcmg E-Commerce Inc.
Сохранить в закладки 1600745562154:
Описание и отзывы
Характеристики
Product Description

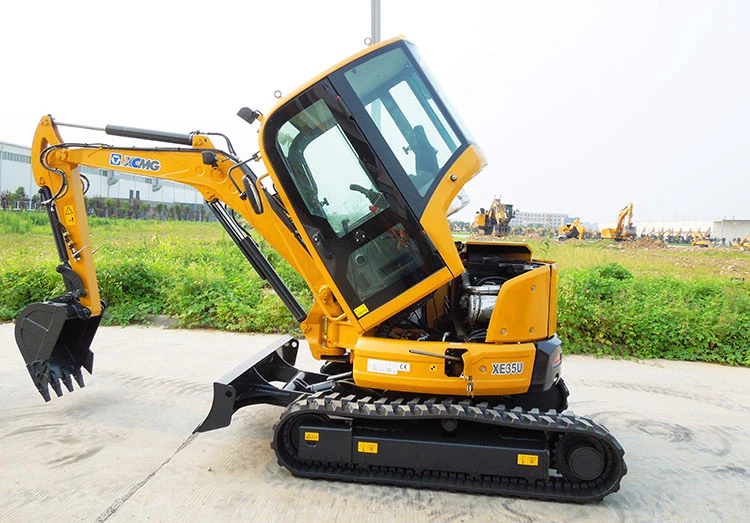

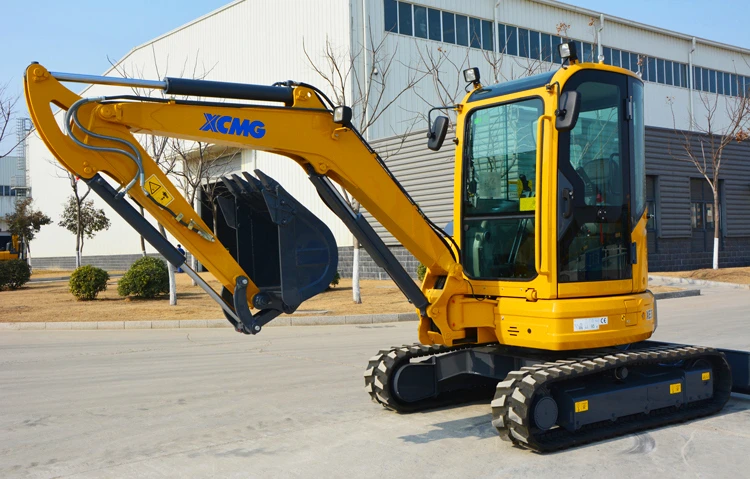

XCMG official yanmar engine mini excavator XE35U epa approved 4 ton used mini excavator with attachment.
XE35U hydraulic excavator cooperates with multi-functional working tools to complete tasks such as excavation,
loading, leveling, trenching, crushing, drilling, pinching, lifting, etc. It is widely used in the construction and
production of hydropower, transportation, municipal, garden, farmland transformation, oil pipelines, etc.
Advantages and highlights:
XE35U hydraulic excavator cooperates with multi-functional working tools to complete tasks such as excavation,
loading, leveling, trenching, crushing, drilling, pinching, lifting, etc. It is widely used in the construction and
production of hydropower, transportation, municipal, garden, farmland transformation, oil pipelines, etc.
Advantages and highlights:
* More energy-conservation and environmental protection
By adopting Yanmar engine meeting national stage III emission standard, mechanical fuel injection pump has
reliable performance. With compact size, the maintenance is convenient. Enough low torque reserve can ensure
strong power. High reliability can reduce the maintenance cost.
* More efficient return
Rear-end swing radius adopts tailless design, which can ensure that the tail part will not collide with obstacles
under narrow working conditions. Deflectable working device can deflect to left and right at 75° and 50° separately,
which can achieve compound action with superstructure. Through swing cooperation with superstructure, digging
operation parallel to the wall surface will be achieved and various kinds of working conditions can be coped with
easily.
* More reliable and durable
Partial strengthen the parts with great stress on boom and arm, and meanwhile adjust the structure to disperse the
stress, which makes the life longer. With standard configured new bucket, the depth of bucket is reduced and
unloading material will be faster and easier.
By adopting Yanmar engine meeting national stage III emission standard, mechanical fuel injection pump has
reliable performance. With compact size, the maintenance is convenient. Enough low torque reserve can ensure
strong power. High reliability can reduce the maintenance cost.
* More efficient return
Rear-end swing radius adopts tailless design, which can ensure that the tail part will not collide with obstacles
under narrow working conditions. Deflectable working device can deflect to left and right at 75° and 50° separately,
which can achieve compound action with superstructure. Through swing cooperation with superstructure, digging
operation parallel to the wall surface will be achieved and various kinds of working conditions can be coped with
easily.
* More reliable and durable
Partial strengthen the parts with great stress on boom and arm, and meanwhile adjust the structure to disperse the
stress, which makes the life longer. With standard configured new bucket, the depth of bucket is reduced and
unloading material will be faster and easier.
Advantages and highlights:
1.Offer Test Report of Professional Institute.
2.Details Of Maintenance And Repair Items Included.
3.Price Concessions.
4.Official Factory Sourcing.
5.Reconditioning Directly From XCMG.
6.Vehicle Condition of Perfection.
7.XCMG Official Endorsement.
8.SGS Provides The Third-Party Inspection Certificate.
1.Offer Test Report of Professional Institute.
2.Details Of Maintenance And Repair Items Included.
3.Price Concessions.
4.Official Factory Sourcing.
5.Reconditioning Directly From XCMG.
6.Vehicle Condition of Perfection.
7.XCMG Official Endorsement.
8.SGS Provides The Third-Party Inspection Certificate.
Specification
Model | Metric unit | XE35U | ||||
Operating weight | kg | 4200 | ||||
Bucket capacity | m3 | 0.11 | ||||
Engine | Model | 3TNV88-BPXG | ||||
Displacement Standard | Tier IIIA | |||||
Style | Direct injection | --- | √ | |||
Four strokes | --- | √ | ||||
Water cooling | --- | √ | ||||
No. of cylinders | --- | 3 | ||||
Output power | kW/ r/min | 21.6/2400 | ||||
torque/speed | N.m | 107.2/1444 | ||||
Displacement | L | 1.642 | ||||
Main performance | Travel speed(H/L) | km/h | 3.6/2.2 | |||
Gradeability | % | 58 | ||||
Rotating speed | r/min | 8.5 | ||||
Ground pressure | kPa | 36.6 | ||||
Bucket digging force | kN | 24.6 | ||||
Arm crowd force | kN | 17.8 | ||||
Appearance size | A | Overall length | mm | 4960 | ||
B | Overall width | mm | 1740 | |||
C | Overall height | mm | 2535 | |||
D | Width of platform | mm | 1585 | |||
E | Length of crawler | mm | 2220 | |||
F | Overall width of chassis | mm | 1740 | |||
G | Width of crawler | mm | 300 | |||
H | Track length on ground | mm | 1440 | |||
I | Crawler gauge | mm | 1721 | |||
J | Clearance under counterweight | mm | 587 | |||
K | Min. ground clearance | mm | 297 | |||
L | Min. tail swing radius | mm | 870 | |||
Working scope | A | Max. digging height | mm | 5215 | ||
B | Max. dumping height | mm | 3760 | |||
C | Max. digging depth | mm | 3060 | |||
D | Max. vertical wall digging depth | mm | 2260 | |||
E | Max. digging reach | mm | 5415 | |||
F | Min. swing radius | mm | 2170 | |||

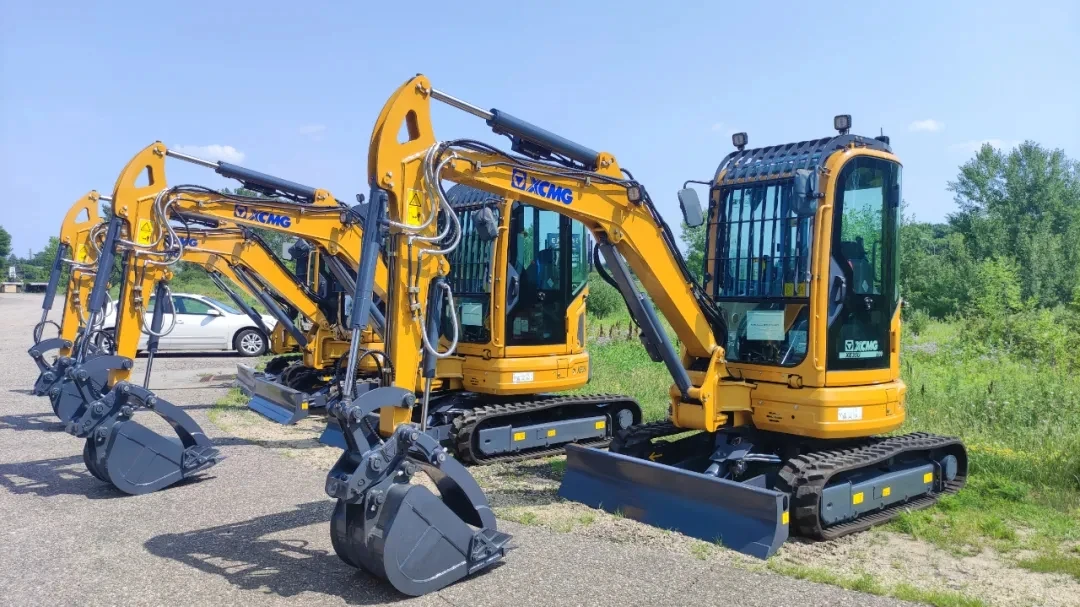

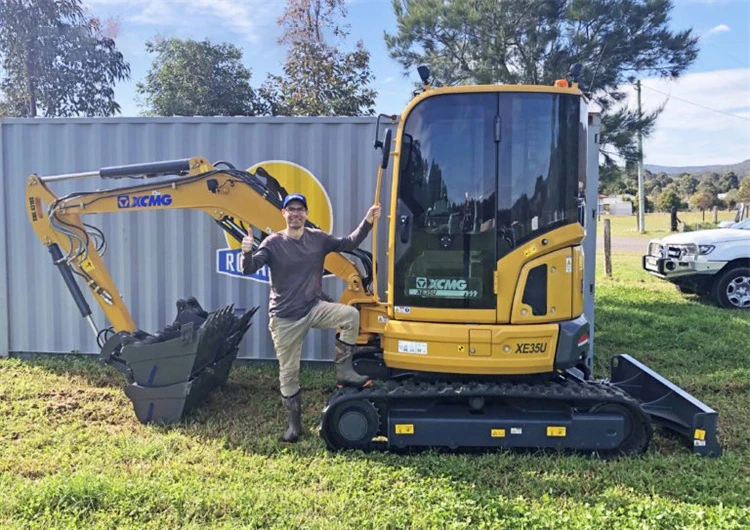

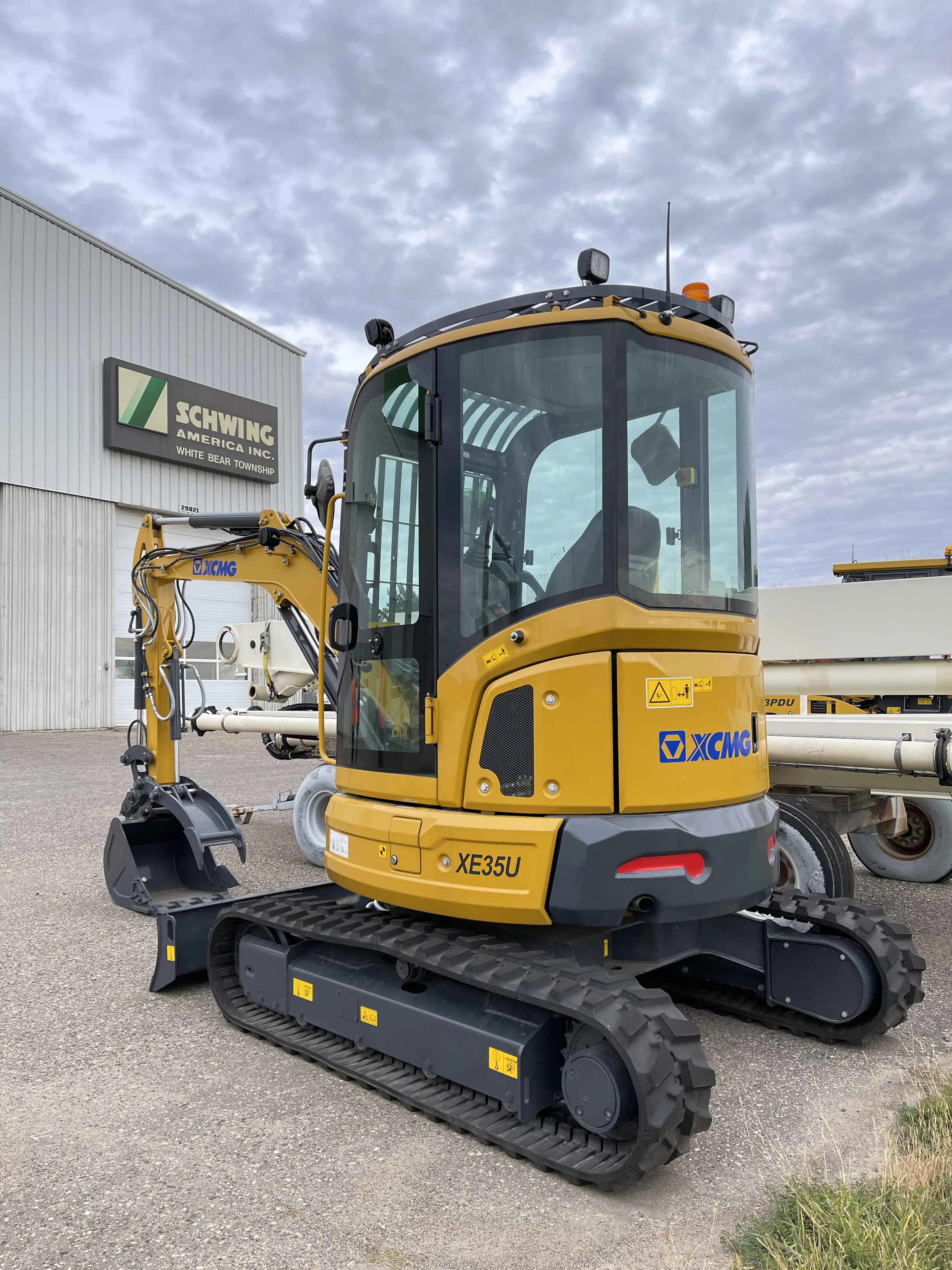

Product Show
\t\t\t\t\t\t\t\t\tYou May Like \t\t\t\t\t\t\t
XCT80 Truck crane is widely used for the lifting operations in general engineering projects, such as construction site, urban renewal, communication and transportation, ports, bridge, oilfields and mine, and complex working environments.
Low speed large torque power transmission system, contributes to perfect combination of optimal power and optimal economical efficiency, leading to more than 12% reduction in fuel consumption and 10% improvement in grade ability.
Hydraulic motor drive, built-in planetary gear reducer and normally closed brake, dedicated anti chaos rope drum, anti winding steel wire rope. Both the main and auxiliary lifting mechanisms operate separately.
1.Offer Test Report of Professional Institute.
2.Details Of Maintenance And Repair Items Included.
3.Price Concessions.
4.Official Factory Sourcing.
Fully equipped self-assembly/disassembly system (Optional) can easily achieve: rear counterweight self-assembly/disassembly, track
frame self-assembly/disassembly, and boom base self-assembly/disassembly.
>>>>> More Choices
Похожие товары
Высококачественный подержанный экскаватор Hitachi ZX200 бесплатная доставка 20 тонн использованный землеройный с одобренным EPA
1 331 130,00 ₽ - 2 218 550,00 ₽

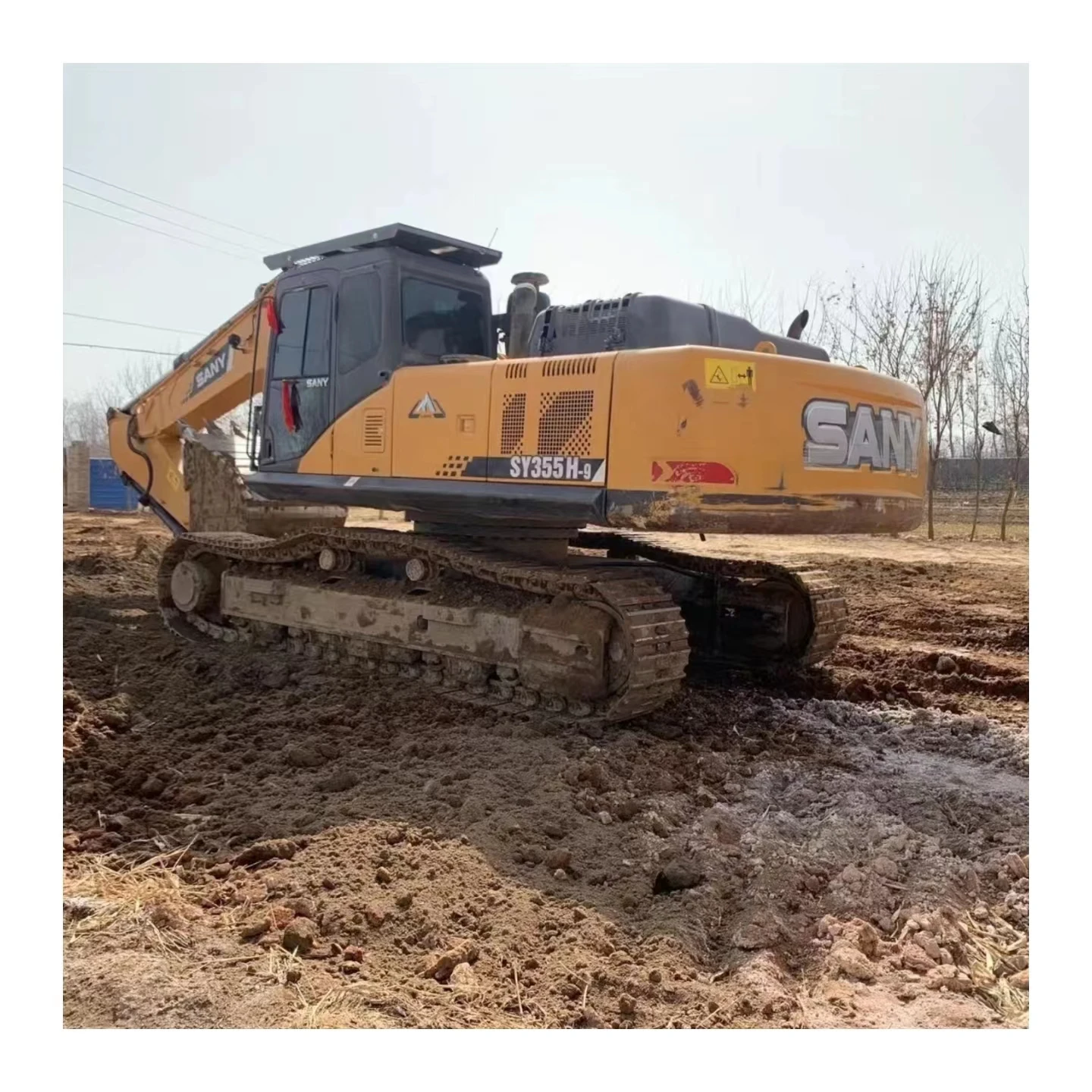

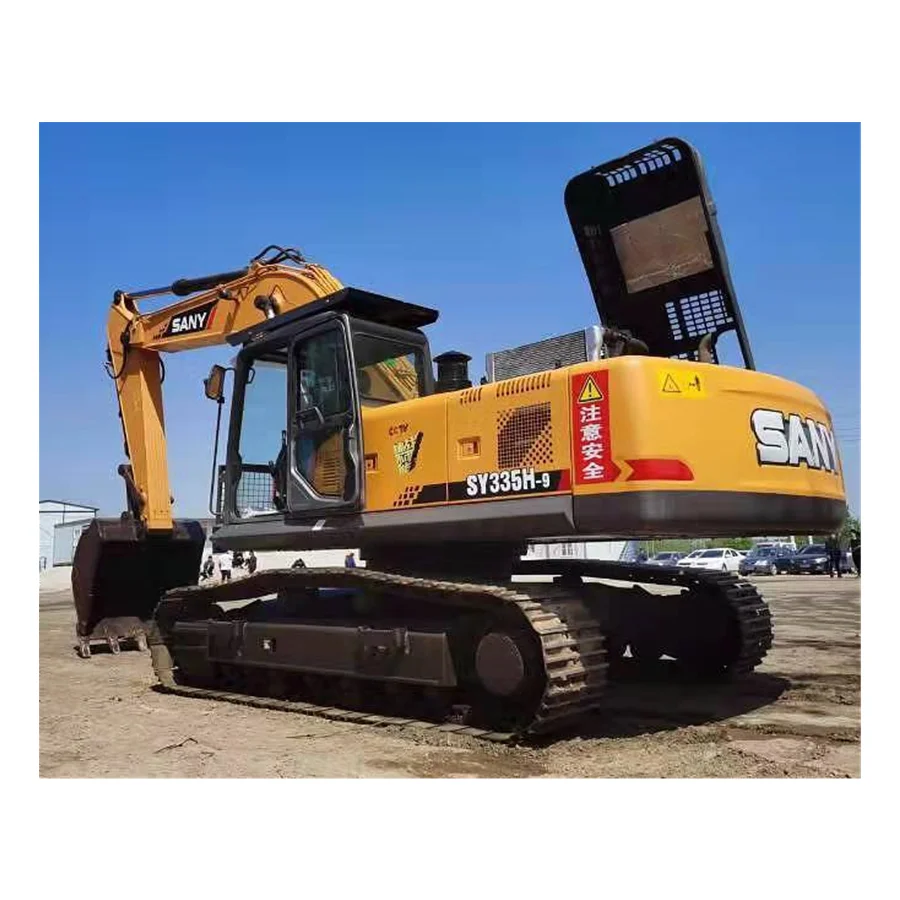

Высокопроизводительный 355 SANY высокомощный экскаватор SY355 японский желтый гусеничный дизельный мощностью 30-40 л.с.
1 663 912,50 ₽
Высокопроизводительный 355 SANY высокомощный экскаватор SY355 японский желтый гусеничный дизельный мощностью 30-40 л.с.
499 173,75 ₽

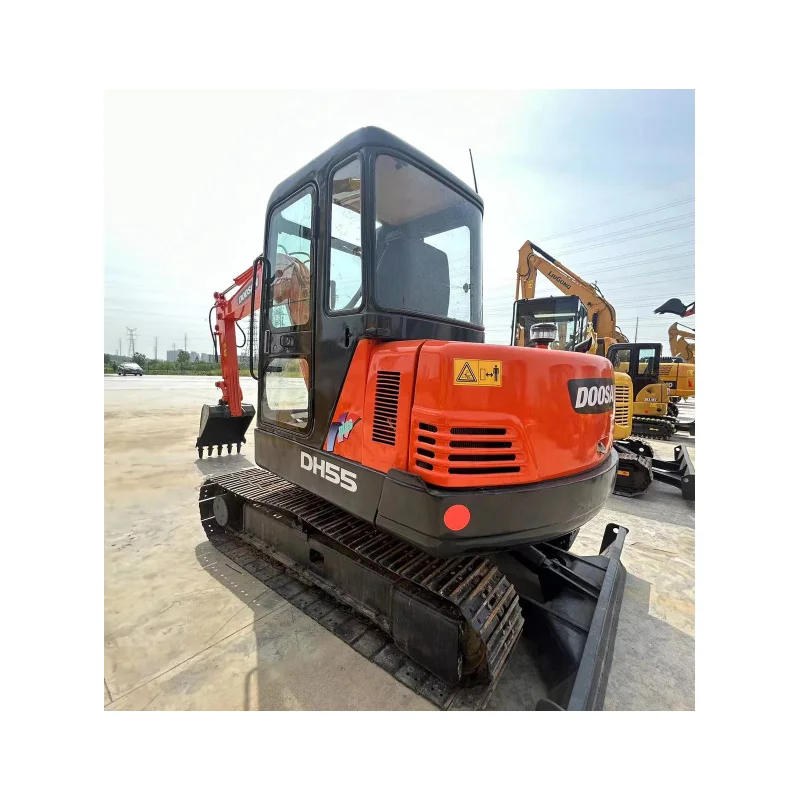

Землеройная машина Doosan DH55 гидравлический гусеничный экскаватор высокого качества и высокой производительности DX60/140/225/300
887 420,00 ₽ - 1 331 130,00 ₽

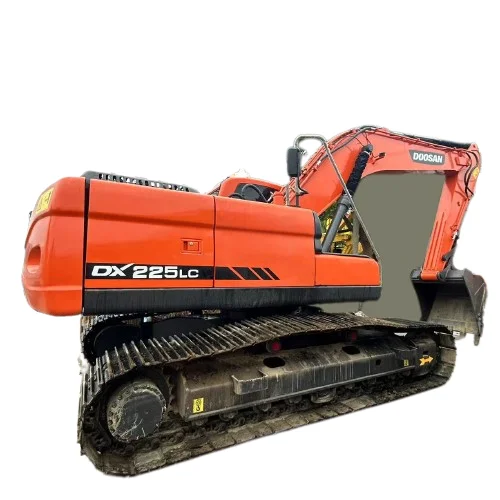

Землеройная техника Doosan DX225/DX225LC/225LCA/LC-9C экскаватор с высокой эффективностью в хорошем состоянии
