Product Description

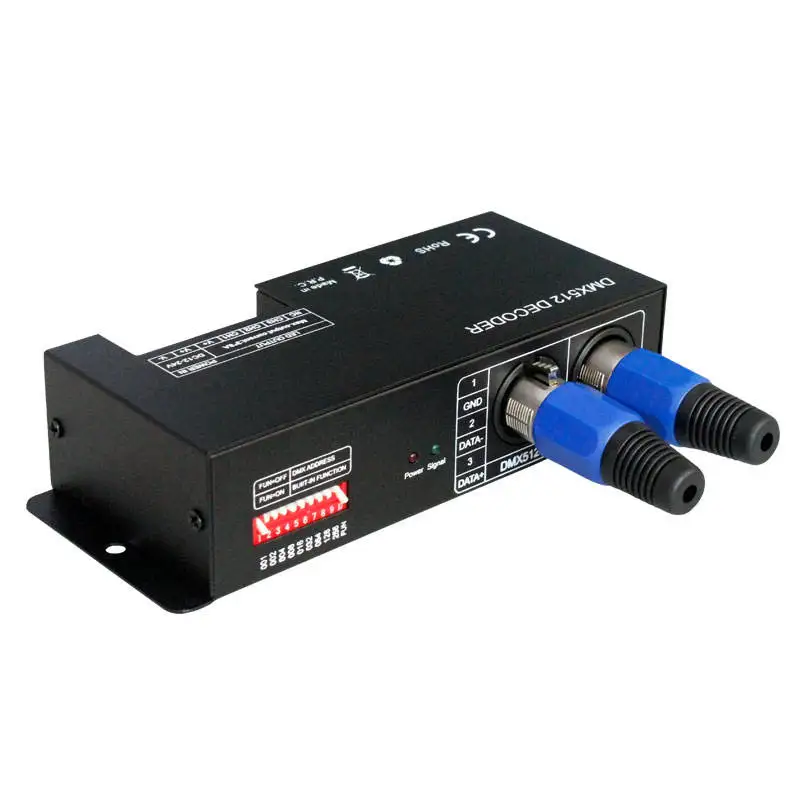

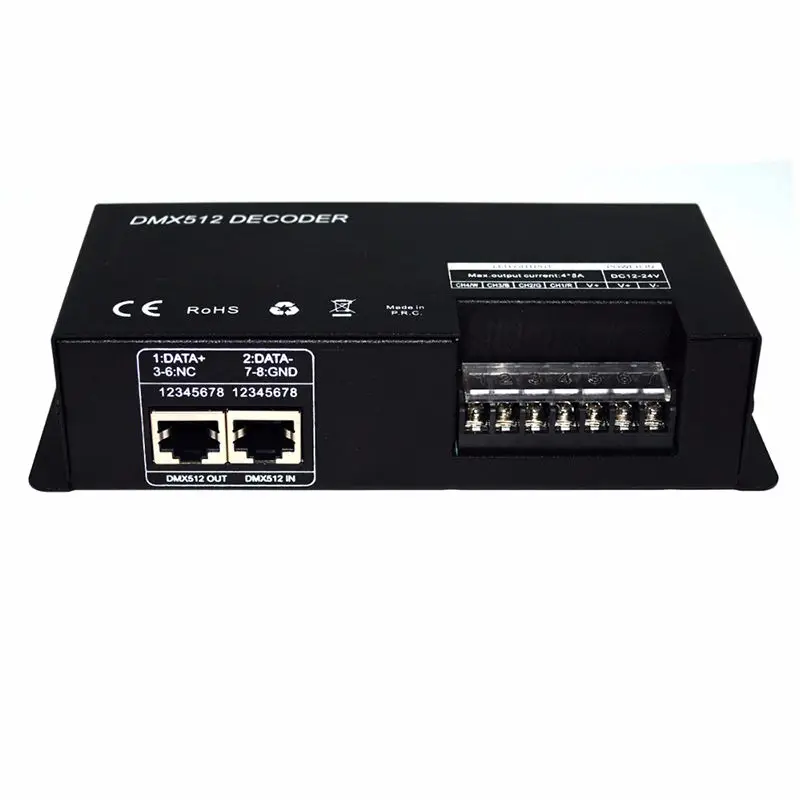

Products name: 4 Channel DMX512 decoder
This DMX decoder adopts advanced computer control chip,can receive the international DMX - 512 standard digital control signals and converted into PWM controller signal to drive the LED.It can be controlled by the DMX Console,and can connected with numbers of DMX Decoder to increase the output power to realize all kinds of changing mode.Besides, this DMX decoder can be used as the synchronous controller to controlled the LED alone,it can realize the synchronous effects.This decoder adopt the digital tube to show the address code,and with 3 buttons to setting,make it more easy to used.
This product is in compliance with DMX512 protocol, and compatible auto-index addressing and manual establishment address.

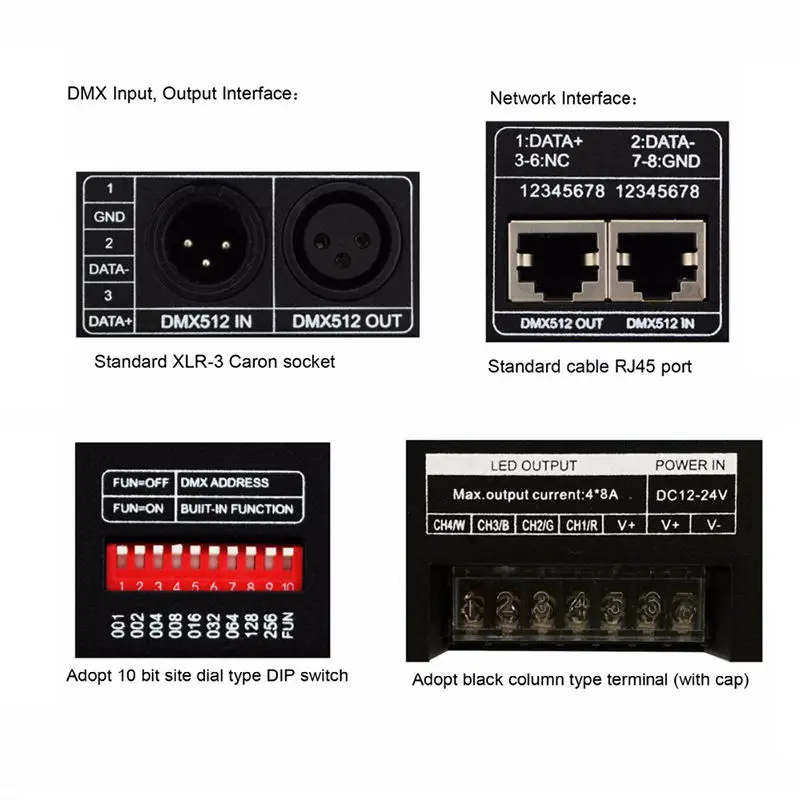

Each universal DMX controller takes up 4 DMX addresses. It adopts 2 ways (auto-index addressing and code switch) to set up the address. When adopting the auto-index addressing, all switches are “off” status. When adopting the code switch to set up address, the 10th bit(FUN) is “off” status, and other 9 bits are binary value code switch which are used to set up the DMX starting address code. The first bit is the lowest order bit, and the ninth is the highest order bit. That can set up 511 address codes. The DMX starting address code is equal to the sum of 1st to 9th bit. If move down one bit of code switch (“ON” set “1”), you can get the place-value of this bit. If move up (set “0”), the place-value is 0. For example: if you want to set up DMX starting address code for 73, you should move down the 7th, 4th, and 1st bit of code switch for “1”, and others for “0”, Then the place-value’s sum of 1st to 9th bit is 64+8+1. That is to say, the DMX512 starting address code is 73. (The correspondence dials code position is as follows)
To choose the channel from the Dial in-line Package(DIP) Switch:
Each universal DMX controller takes up 4 DMX addresses. It adopts 2 ways (auto-index addressing and code switch) to set up the address. When adopting the auto-index addressing, all switches are “off” status. When adopting the code switch to set up address, the 10th bit(FUN) is “off” status, and other 9 bits are binary value code switch which are used to set up the DMX starting address code. The first bit is the lowest order bit, and the ninth is the highest order bit. That can set up 511 address codes. The DMX starting address code is equal to the sum of 1st to 9th bit. If move down one bit of code switch (“ON” set “1”), you can get the place-value of this bit. If move up (set “0”), the place-value is 0. For example: if you want to set up DMX starting address code for 73, you should move down the 7th, 4th, and 1st bit of code switch for “1”, and others for “0”, Then the place-value’s sum of 1st to 9th bit is 64+8+1. That is to say, the DMX512 starting address code is 73. (The correspondence dials code position is as follows)
To choose the channel from the Dial in-line Package(DIP) Switch:
Decimals | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 |
Weight-number | 1 | 2 | 4 | 8 | 16 | 32 | 64 | 128 | 256 |
Company Profile
Packing & Delivery
FAQ
Q1: Are you a factory or trading company?
A: We are a factory as a munufacturer, welcome to our factory in Shenzhen.
A: We are a factory as a munufacturer, welcome to our factory in Shenzhen.
A：MOQ 1pcs.
Q2: How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
Q3: What's your main products?
A: Our main products cover LED Controller, LED Strip, Power Supply, LED Accessories.
Q4: Do you have any MOQ limit for led dimmer order?
A: 1 set.
Q5: What about the lead time?
A: 7-15 days.
Our best quality, the efficiency of the agile rapid sincere service users are welcome to cooperate！
Похожие товары
Skydance V4-K 12 В 24 4-канальный поворотный светодиодный диммер RGB RGBW контроллер RF пульт дистанционного управления 000/2000/4000/8000 PWM
20,99 $
Неоновый AC110V-220V RGB-контроллер
7,60-7,80 $
3 Years Warranty Dmx512 Console Mini Command Wing
Output 8 Channel 2 X RGBW LED DMX Controller for Project

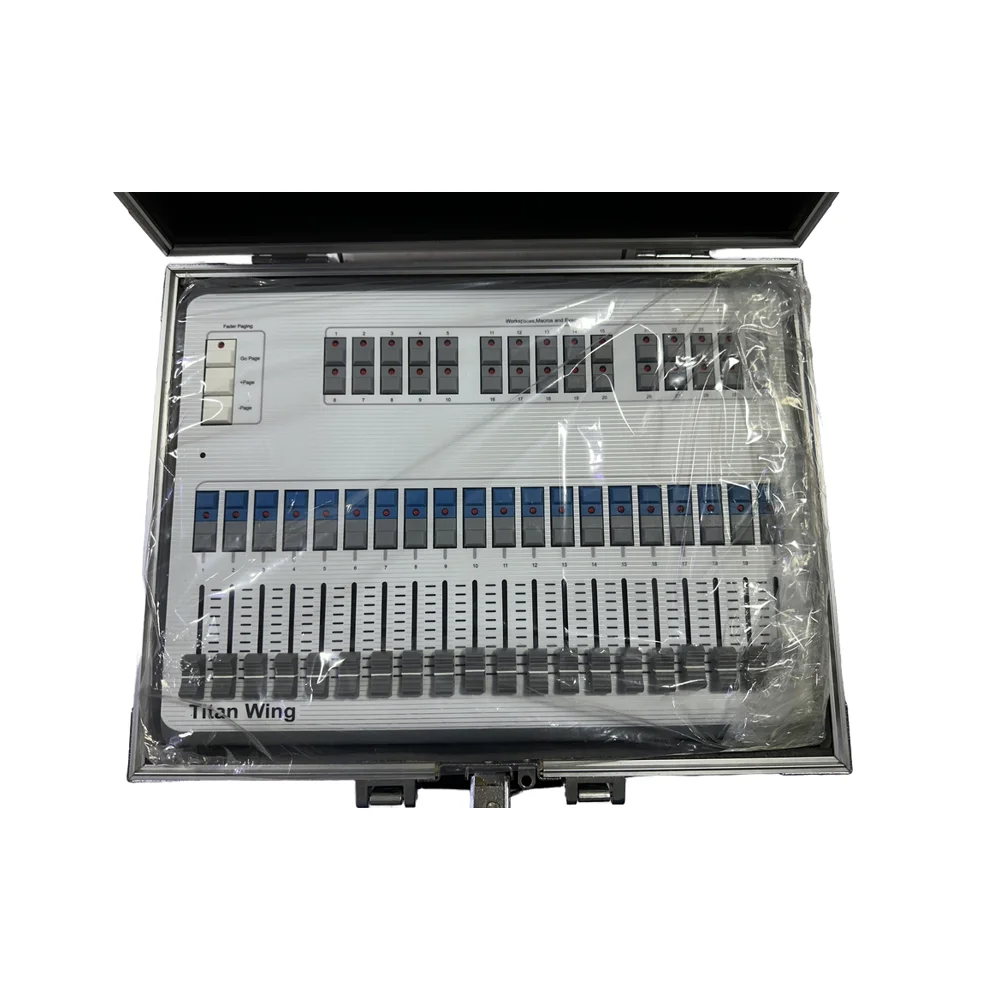

Titan Wing Touch DMX512 контроллер для сценического освещения диммер продукт категории
