Ручной Стальной гравировальный станок с цифрами 20 Вт 30

Name: Ручной Стальной гравировальный станок с цифрами 20 Вт 30
SKU: 1600747678375
Price: 238 558,98 ₽ USD
Availability: InStock

Цена:238 558,98 ₽*

Количество:

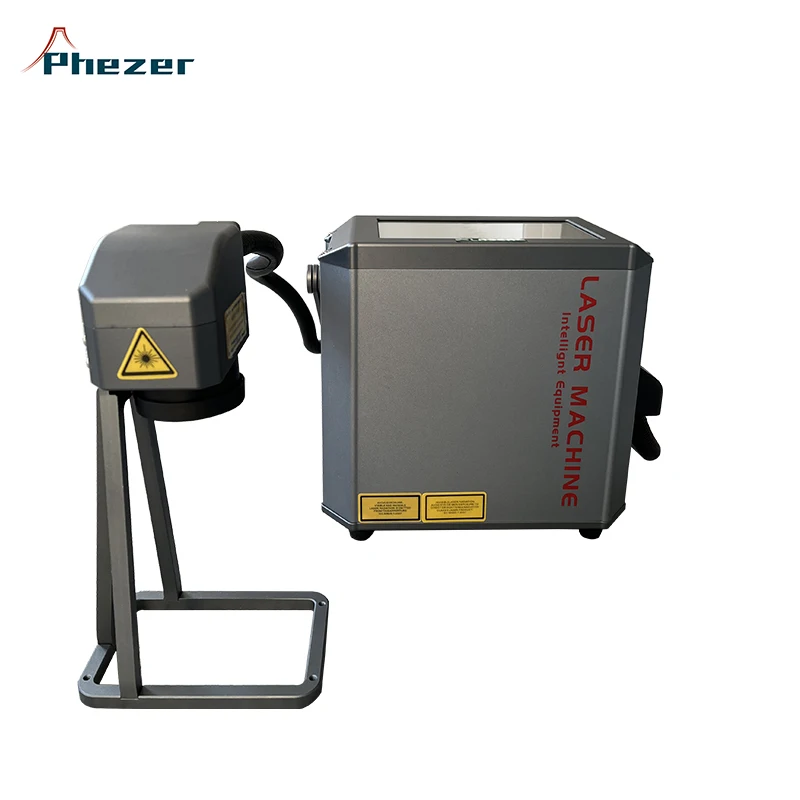

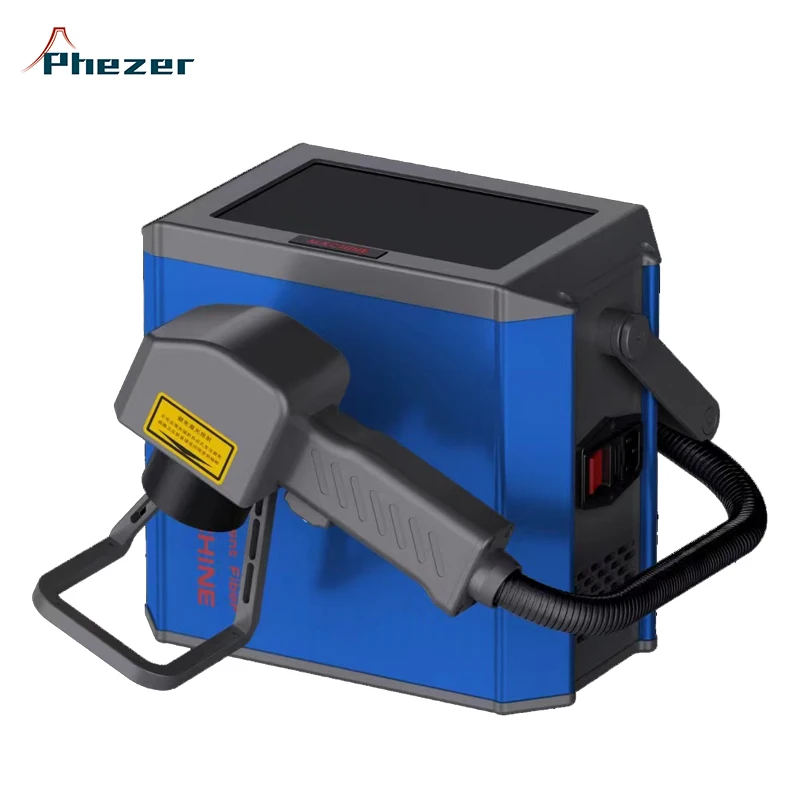

Handheld Fiber Laser Marking machine

Product Description

Parameters	PL5-20W	PL5-30W
Machine material	Anodized aluminum structure
Laser type	Fiber laser generator
Output Power	≥20W ≥30W
Laser wavelength	1064nm
Marking method	High-precision 2D scanning method
Marking speed	≤7000mm/s
Main control	Highly integrated motherboard, embedded 7 inch screen.(Can connect to external 10 inch touch screen, dual system operation)
Operating system	WIN CE
Cooling System	Room temperature and air cooling
Marking & Lineation type	Dot matrix and vector (both dot matrix and vector can be used)
Reflecting Mirror size	Standard configuration: 8.5mm
Marking range	Standard configuration: 55mm×55mm
Positioning	Red light positioning
Marking lines	Multi lines within the marking range
Print speed	650 characters/second (related to product material and printing content)
Font	Simplified Chinese, Traditional Chinese, English, Korean, Russian, Arabic number and other standard font libraries
File format	BMP/DXF/HPGL/JPEG/PLT
Bar code / QR code	CODE39,CODE128,CODE126,QR,Z-Code,DM Code,Visual Code, etc
Power supply	220V
Power consumption	≤300W
Machine net weight	(Host + Control cabinet) 12kg
Handheld host size	241.5mmX79mmX151mm
Control cabinet size	320mmX170mmX270mm
Pollution level	2
Overvoltage category	II
Working conditions	0-40℃
Relative humidity	30%-85 % RH (No condensing)

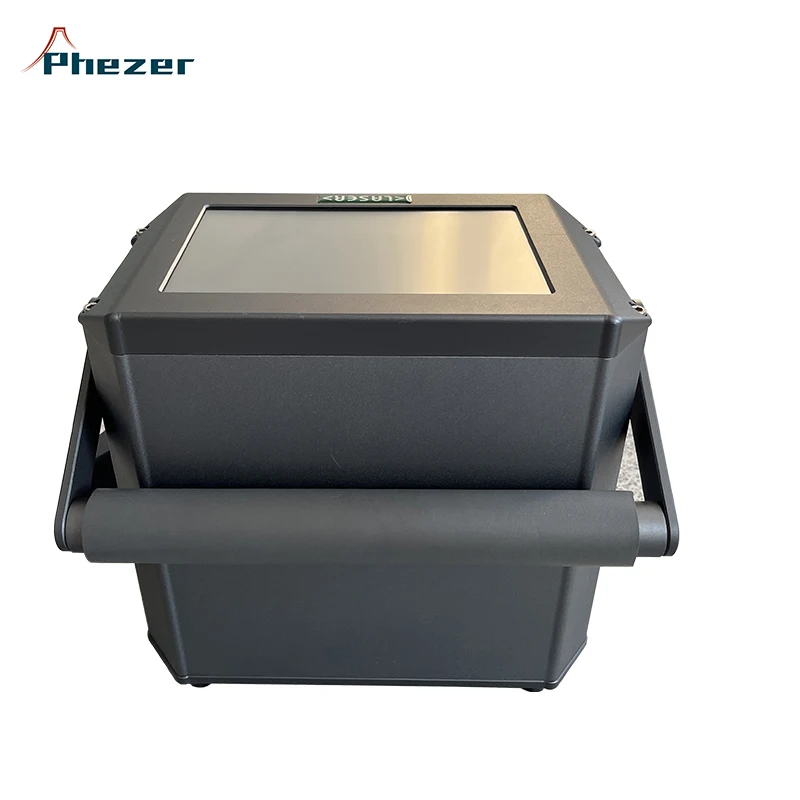

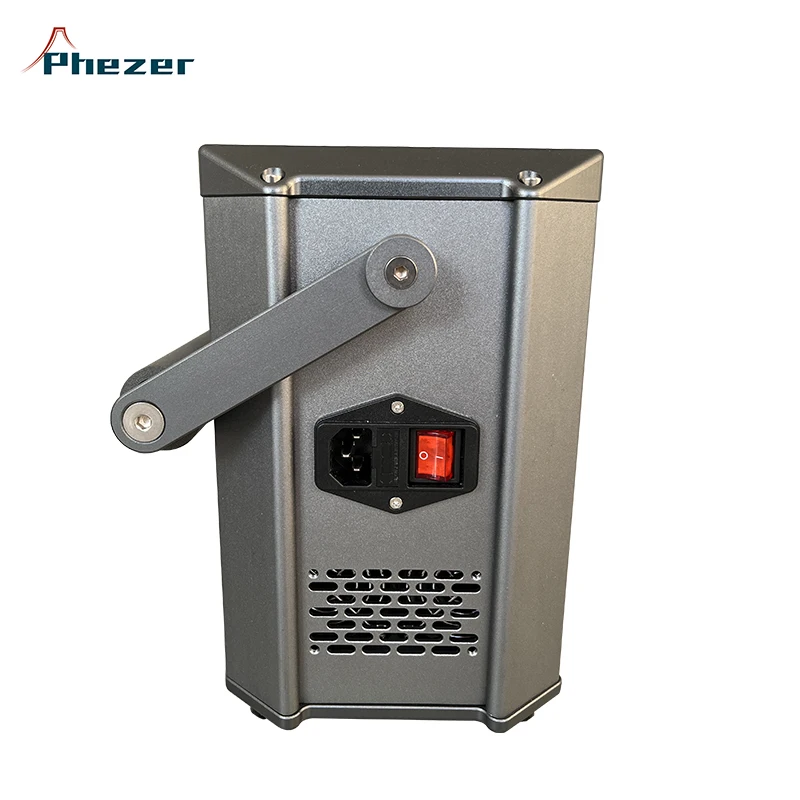

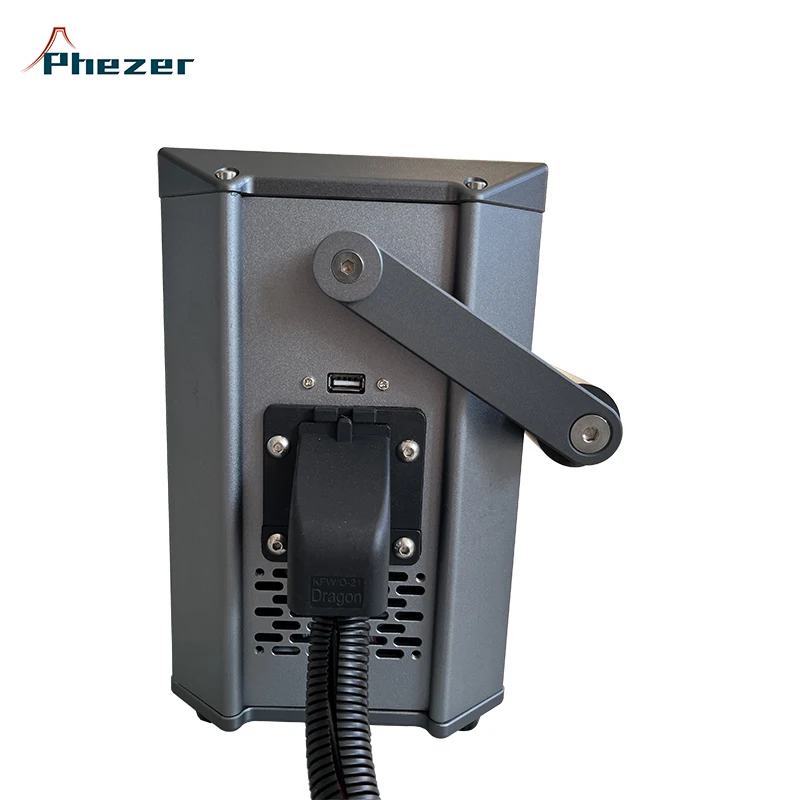

Product Design
