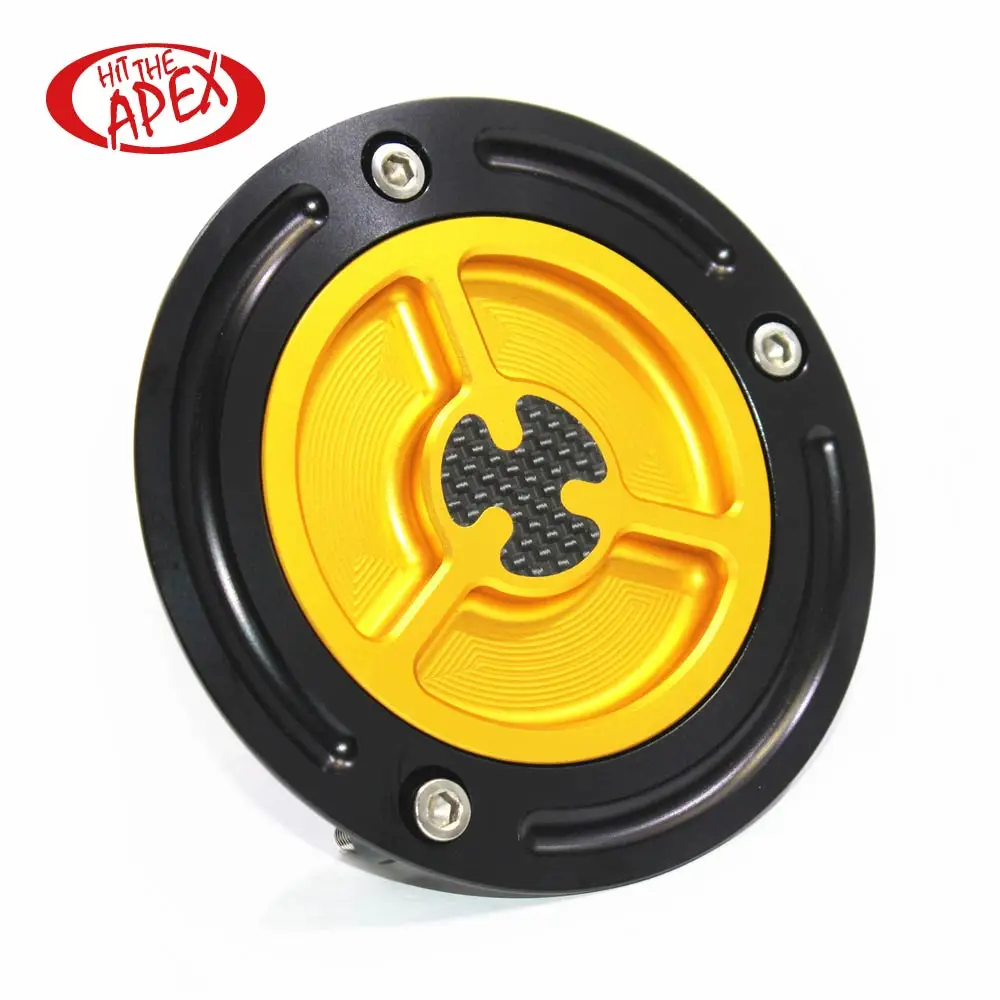

Для SUZUKI GSR750 GSX-S750 топливный бак мотоцикла gascap с ЧПУ Алюминиевый без ключа откручивающаяся Nimble/быстрая фиксация газовой
16,00 $ - 18,00 $
OEM718D полносистемная многочастотная Одиночная плата DF GPS BDS GLONASS Galileo
- Категория: >>>
- Поставщик: Shenzhen Cool Life Technology Co. Ltd.
Сохранить в закладки 1600751823898:
Описание и отзывы
Характеристики
Product Description
OEM718 adopts 555 tracking channel design and supports all GNSS systems, including GPS, GLONASS, BEIDOU and Galileo. Small form factor design, new hardware platform, high anti-jamming algorithm, support dual-antenna input, provide users with centimeter-level differential positioning and high-precision heading measurement, low power consumption, light weight, flexible interface and other characteristics are particularly suitable for integrated applications in various fields.
555 tracking channel, supporting multi-frequency direction finding and positioning solution of the whole systemRich communication
interfaces (serial port, USB, CAN, Ethernet)Advanced visual interference suppression technologyEasy to integrate, small size, 20g
high anti-vibration performanceSupport RTK, GLIDE and STEADYLINE ® Function optionsSupport SPAN GNSS+INS integrated navigation
technology
interfaces (serial port, USB, CAN, Ethernet)Advanced visual interference suppression technologyEasy to integrate, small size, 20g
high anti-vibration performanceSupport RTK, GLIDE and STEADYLINE ® Function optionsSupport SPAN GNSS+INS integrated navigation
technology
size | 46 × 71 × 11 mm | ||
weight | 35 g | ||
input voltage | 3.3 VDC±5% | ||
power waste | 1.3W,GPS L1 | ||
1.8W, full system/full frequency | |||
Antenna interface feed output | Output voltage | 5.0VDC ± 5% | |
Maximum current | 200mA | ||
Connector | Main interface | 28-pin double-row male | |
Antenna input interface | MMCX female | ||
Signal tracking | 555 channels | ||
GPS： | L1 C/A,L1C,L2C,L2P,L5 | ||
GLONASS： | L1 C/A,L2C,L2P, L3,L5 | ||
BeiDou： | B1,B2 | ||
Galileo： | E1,E5 AltBOC, E5a,E5b | ||
IRNSS： | L5 | ||
SBAS： | L1,L5 | ||
QZSS： | L1 C/A,L1C,L2C,L5 | ||
Horizontal positioning accuracy (RMS) | Single point L1 | 1.5m | |
Single point L1/L2 | 1.2m | ||
NovAtel CORRECT | |||
SBAS | 60cm | ||
DGPS | 40cm | ||
RTK | lcm+1ppm | ||
Initialization time | < 10s | ||
Initialize reliability | >99.9% | ||
Data update rate | raw data | Up to 100Hz | |
Positioning data | Up to 100Hz | ||
First positioning time | cold boot | <40 s (typical) | |
Hot start | <19 s (typical) | ||
Signal recapture | L1： | <0.5 s (typical value) | |
L2： | <1.0 s (typical value) | ||
Time accuracy | 20ns RMS | ||
Speed measurement accuracy | <0.03m/s RMS | ||
Speed limit | 499m/s | ||
Specification
item | value |
Model Number | OEM718D |
Type | GPS/GNSS Antenna |
Place of Origin | China |
Guangdong | |
size | 46 × 71 × 11 mm |
weight | 35 g |
input voltage | 3.3 VDC±5% |
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
Shenzhen Uonel Technology Ltd the company main business is manufacturing and selling diversified consumer electronic products
Our factory products have very good sales in China local and abroad, exported to more than 30 countries in the world, and gained good market in Far East, Africa, South and East Asia, America, and Europe, and so on. With ISO9000 certificate and CE, UL certification, Our products have gained a high reputation and won deep trust locally and abroad.
We will always persist in No.1 products quality, No.1 after sales service, and best cooperation with all dealers in the world. Your any feedback will receive our instant reply and technical support.
Once you got any enquiry, please don't hesitate to contact us again.
Our factory products have very good sales in China local and abroad, exported to more than 30 countries in the world, and gained good market in Far East, Africa, South and East Asia, America, and Europe, and so on. With ISO9000 certificate and CE, UL certification, Our products have gained a high reputation and won deep trust locally and abroad.
We will always persist in No.1 products quality, No.1 after sales service, and best cooperation with all dealers in the world. Your any feedback will receive our instant reply and technical support.
Once you got any enquiry, please don't hesitate to contact us again.
FAQ
1. who are we?
We are based in Guangdong, China, start from 2007,sell to Western Europe(11.11%),Eastern Asia(11.11%),Mid East(11.11%),Oceania(11.11%),Africa(11.11%),Southeast Asia(11.11%),Eastern Europe(11.11%),South America(11.11%),North America(11.11%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
ZTE products,Cisco Products,HUAWEI products,H3C Products
4. why should you buy from us not from other suppliers?
20 years international trade and R&D experience , member of alibaba for 10 years , best service and long term cooperation with customer , reliable partner for customers.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,DDP；
Accepted Payment Currency:USD,EUR;
Accepted Payment Type: T/T,L/C,D/P D/A,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish
We are based in Guangdong, China, start from 2007,sell to Western Europe(11.11%),Eastern Asia(11.11%),Mid East(11.11%),Oceania(11.11%),Africa(11.11%),Southeast Asia(11.11%),Eastern Europe(11.11%),South America(11.11%),North America(11.11%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
ZTE products,Cisco Products,HUAWEI products,H3C Products
4. why should you buy from us not from other suppliers?
20 years international trade and R&D experience , member of alibaba for 10 years , best service and long term cooperation with customer , reliable partner for customers.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,DDP；
Accepted Payment Currency:USD,EUR;
Accepted Payment Type: T/T,L/C,D/P D/A,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish
Похожие товары

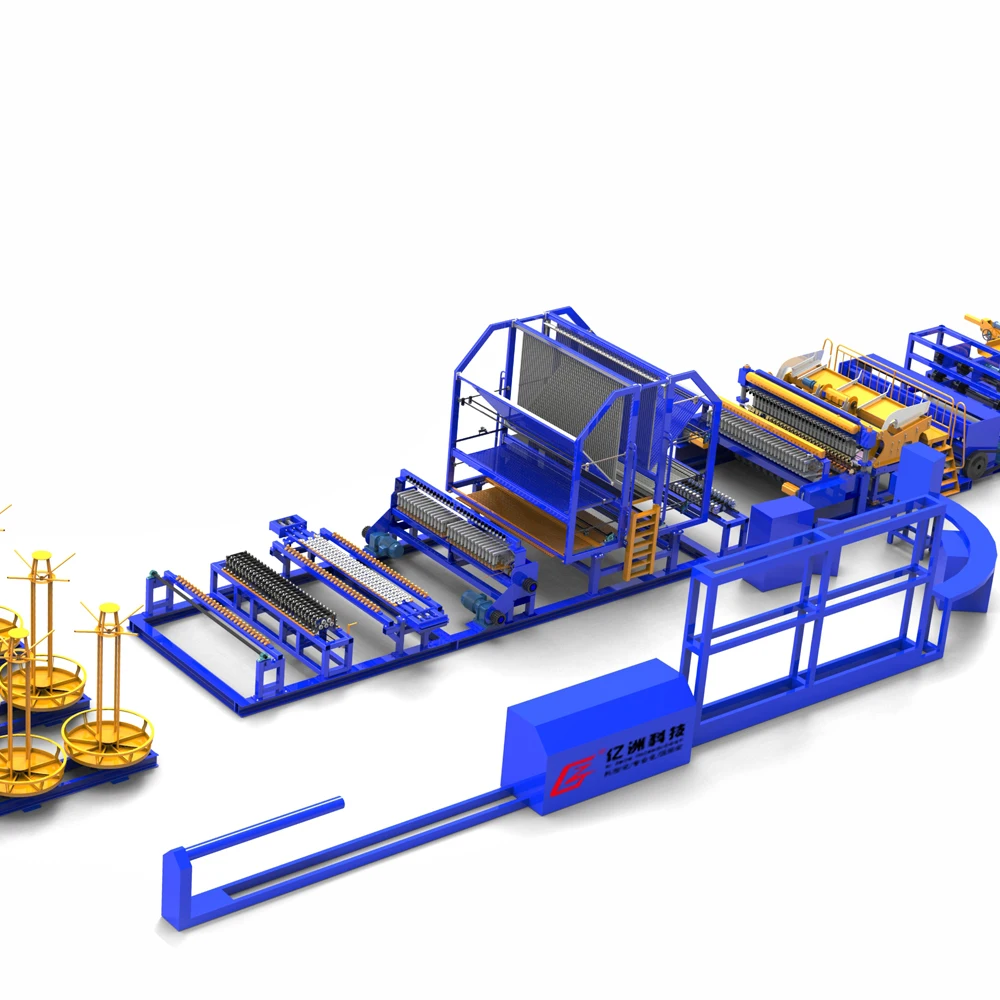

YZ, автоматическая сварочная машина для проволочной сетки, машина для изготовления сварной проволоки для строительства
320 000,00 $ - 340 000,00 $

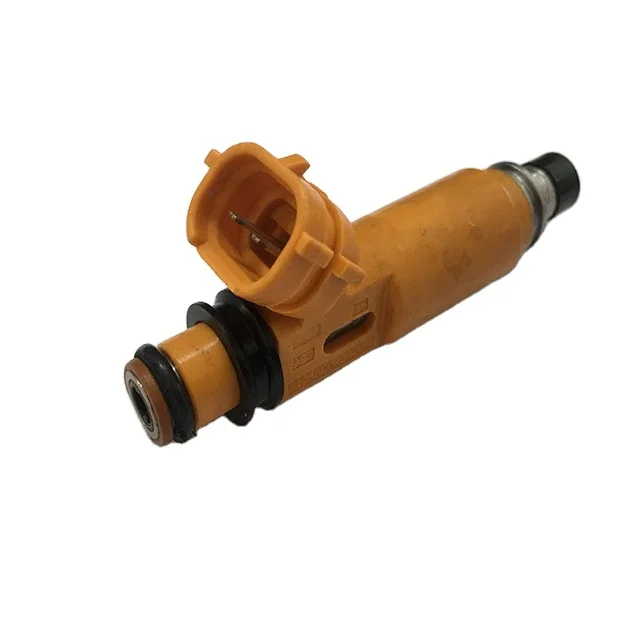

Топливная форсунка 195500-3300, Электрический Топливный Инжектор 1955003300 в автомобиле
5,00 $

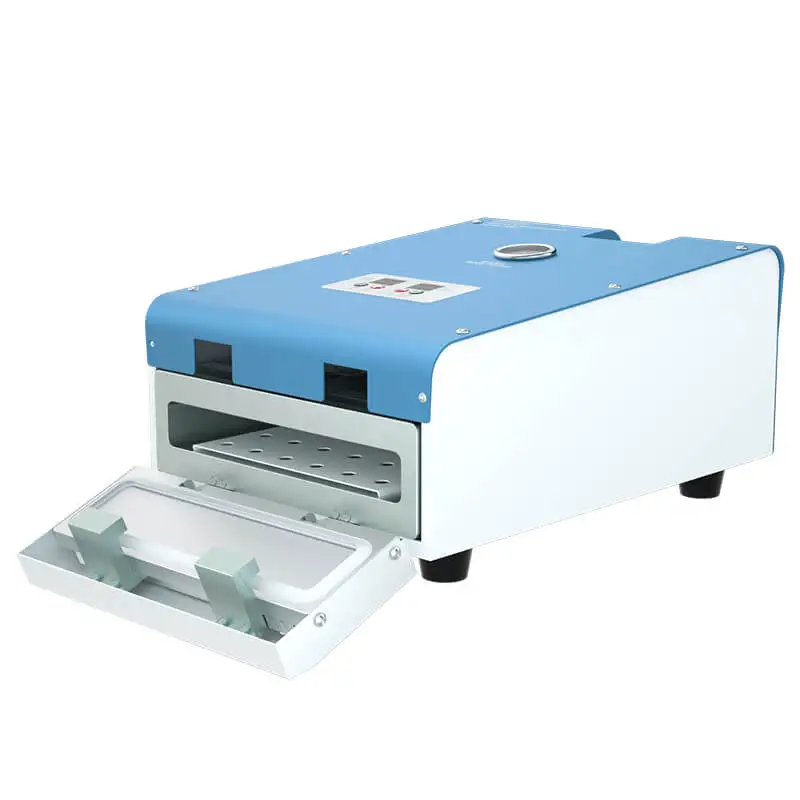

Вперед пузырьковая машина FW-16R iPad удаления пузырей для планшета ipad Pro 12 9 дюймов OCA LCD экран
180,93 $

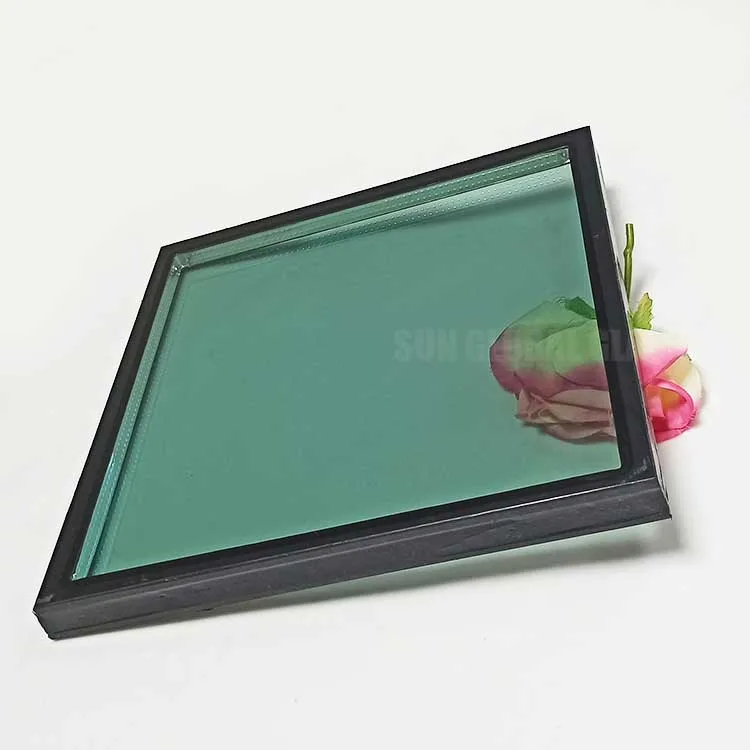

CE сертифицированный воздушный разделитель звуконепроницаемое Закаленное Изолированное строительное стекло Low E энергосберегающее с двойным
6,90 $ - 49,90 $
4,3 дюймов, AHD, 720P, 1080P

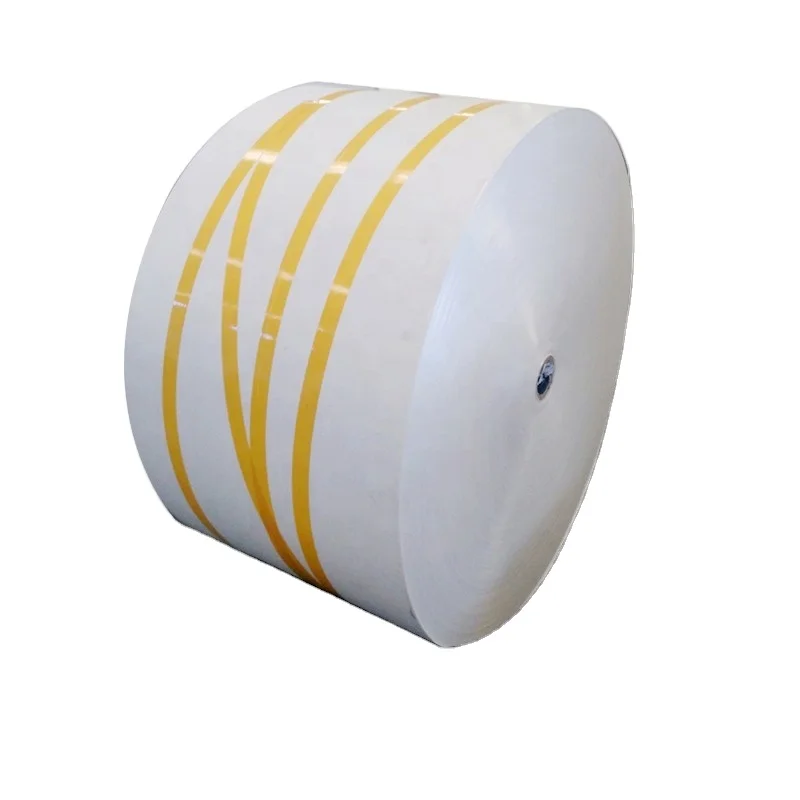

Высокообъемный водонепроницаемый ламинированный картон для бумажных стаканчиков
