SVA D 57 Высококачественная уплотненная амортизация обоих крыльев сломанного моста из нержавеющей стали гидравлическая деревянная стеклянная дверная петля
- Категория: >>>
- Поставщик: Guangdong SVA Precision Technology Co. Ltd.Guangdong Ltd.
Сохранить в закладки 1600753155756:
Описание и отзывы
Характеристики
SVA-D-57 High Quality Soild Thickened Cushioning Both Wings Of Broken Bridge Stainless Steel Hydraulic Wooden Glass Door Hinge
Hydraulic Door Hinge
SVA-D-57
Product Name | Hydraulic Hinge | |
Model Name | SVA-D-57 | |
Material | Stainless Steel 304 | |
Color | Placer silver,iron gray,placer gold,red bronze,green broneze,black | |
Finish | Oxidation and electroplating | |
Size | 172.5mm*36mm*8.5mm | |
Function | Closing force adjustment,Needle roller bearing connection | |
Door suction | 92°&160° | |
Angle interval | 0°-180° | |
Application | Framework,framed wood doors ,offices,hotels | |
PS:Packing and delivery are not included in the price. | ||
High efficiency hydraulic system
High rigidity integral shaft core design, central shaft diameter 12mm, high quality pressure energy storage spring, ten years of pressure still maintain more than 90%.
Alloy steel piston, cylinder liner after superb heat treatment technology, longer life.
Alloy steel piston, cylinder liner after superb heat treatment technology, longer life.
Finish
*Surface treatment is divided into oxidation and electroplating treatment.
* If the customer needs a different color, you can choose to customize.
High Grade Aluminium Alloy
Products are made of aviation aluminum for hot and cold two kinds of processing, with strong corrosion resistance, hardness and weight bearing farther than ordinary hinge.
Eliminate the closing force adjustment
*Quick installation, more convenient to use, more worry - free, more convenient, more user-friendly.
*Starting and turning, relaxation degree
Mute and lock switch at will
*If you want to close the door and mute it, turn the key to 0-3mm.
*If you want to close the door and lock it, turn the adjusting key 3-5mm.
Optional functions:
positioning (default selection), normally closed (need to specify)
Lock, mute door function users can adjust the conversion
Locate Function
1. The maximum opening Angle is 180°
2. 140-180° will reset to 150° suction position (to prevent collision with the wall)
3. 130°-140° will automatically reset to any stay interval
4. 85°-130° is an arbitrary stay interval
5.*Less than 80° will automatically close
* 80-30° is the faster closing speed
*30°-150° is the slow closing Angle
*15°-0° Slightly fast closing and slow closing can be convertedclosing can be converted
5.*Less than 80° will automatically close
* 80-30° is the faster closing speed
*30°-150° is the slow closing Angle
*15°-0° Slightly fast closing and slow closing can be convertedclosing can be converted
Normally Closed Function
1. The maximum opening Angle is 180°
2. 160°-30° fast closing speed
3. 30°-15° slow closure
4. 15°-0° slightly fast closing and slow closing can be converted

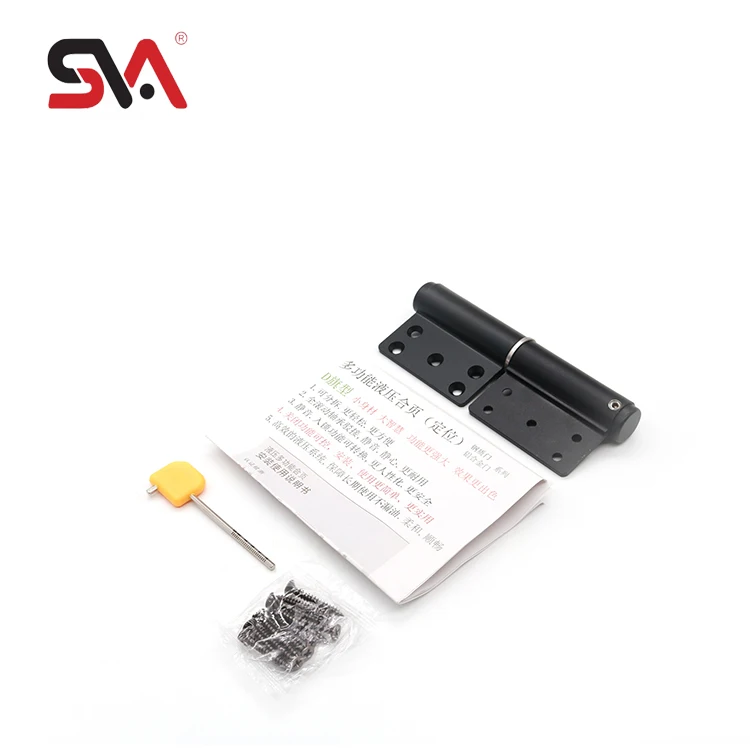

The package contains wooden door hinge*1,adjustable wrench*1, high strength screws*12
AE Wooden Door Hinge
DE Wooden Door Hinge
DE Glass Hinge
D Wooden Door Hinge
Sand Silver
Iron Gray
Placer Gold
Red Bronze
Green Bronze
Installation Method
When installing the hinge, the direction of the arrow is upward. After the hinge is installed, the door closing strength will be adjusted by clockwise rotation to increase the door closing strength, which will be adjusted according to the actual situation.
The force should not exceed the 23mm scale on the adjusting key, otherwise it will cause oil leakage and destroy the hinge closing effect.
1、Plastic bags
2、With accessories and keys
3、A pouch pack
4、Large carton
5、Palletizing
6、Truck loading
1、Q：How are the feature ahout the wooden door hydaulic hinge?
2、Q：Where is your company?
A：Guangdong SVA Precision Technology Co.,Ltd. is located in Jinli Town, Gaoyao District, Zhaoqing City, Guangdong Province,
China.SVA specializes in the production of shower hinge, sliding door accessories series, glass door handle and bathroom
hardware.If you want to visit our company, you can contact our business manager.
3、Q：How long is the delivery period of your company?
A：Under normal conditions, the delivery period of the conventional products, such as shower hinge, glass clamp, sliding door
fitting and door handle , is 7-15 working days.
4、Q：Do you only produce zinc-alloy glass door locks?
A：The glass door locks produced by Guangdong SVA Company are made of stainless steel, zinc alloy and SS304.
5、Q：What are your company of payment?
A：T/T , L/C , Alibab trade assurance ect.
6、Q：Can your company provide free sampling?
A：Some products like shower hinge,glass clamp,glass door lock,can provide 1-2 samples for free.Some bulky products do not provide samples.
A：1.Install both left and right.More worry, more convenient.
2. Full rolling bearing barge, quiet, quiet, more durable.
3. The function of mute and lock can be converted, which is more humanized and safer.
4. The closing force can be adjusted arbitrarily, making the installation and use more convenient.
5. Efficient hydraulic system, to ensure long-term use of oil leakage, soft, smooth.
A：Guangdong SVA Precision Technology Co.,Ltd. is located in Jinli Town, Gaoyao District, Zhaoqing City, Guangdong Province,
China.SVA specializes in the production of shower hinge, sliding door accessories series, glass door handle and bathroom
hardware.If you want to visit our company, you can contact our business manager.
3、Q：How long is the delivery period of your company?
A：Under normal conditions, the delivery period of the conventional products, such as shower hinge, glass clamp, sliding door
fitting and door handle , is 7-15 working days.
4、Q：Do you only produce zinc-alloy glass door locks?
A：The glass door locks produced by Guangdong SVA Company are made of stainless steel, zinc alloy and SS304.
5、Q：What are your company of payment?
A：T/T , L/C , Alibab trade assurance ect.
6、Q：Can your company provide free sampling?
A：Some products like shower hinge,glass clamp,glass door lock,can provide 1-2 samples for free.Some bulky products do not provide samples.
