Products Description

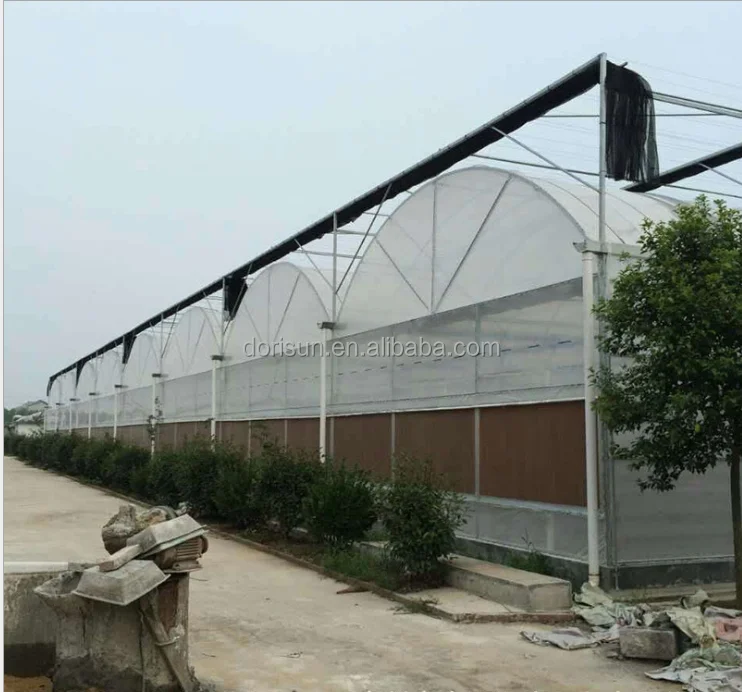

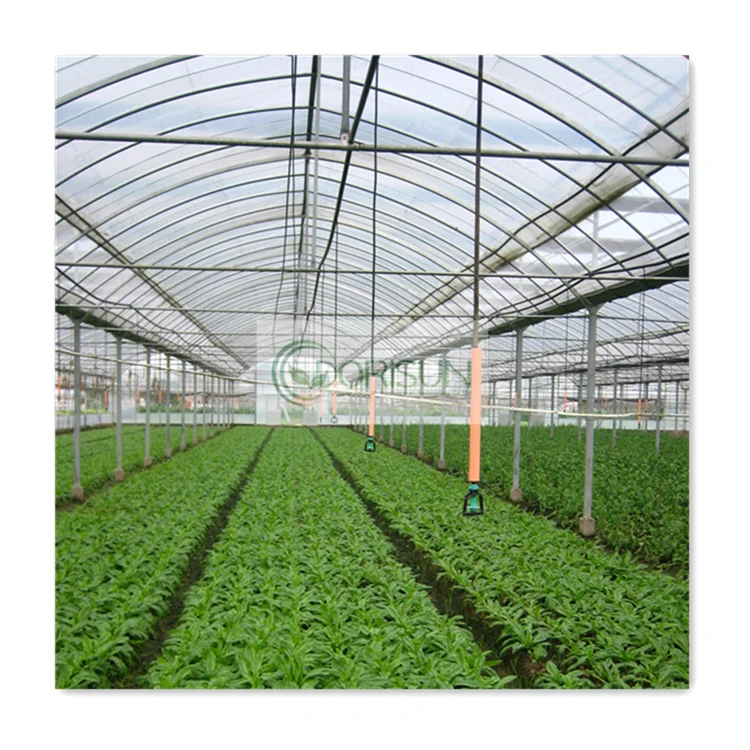

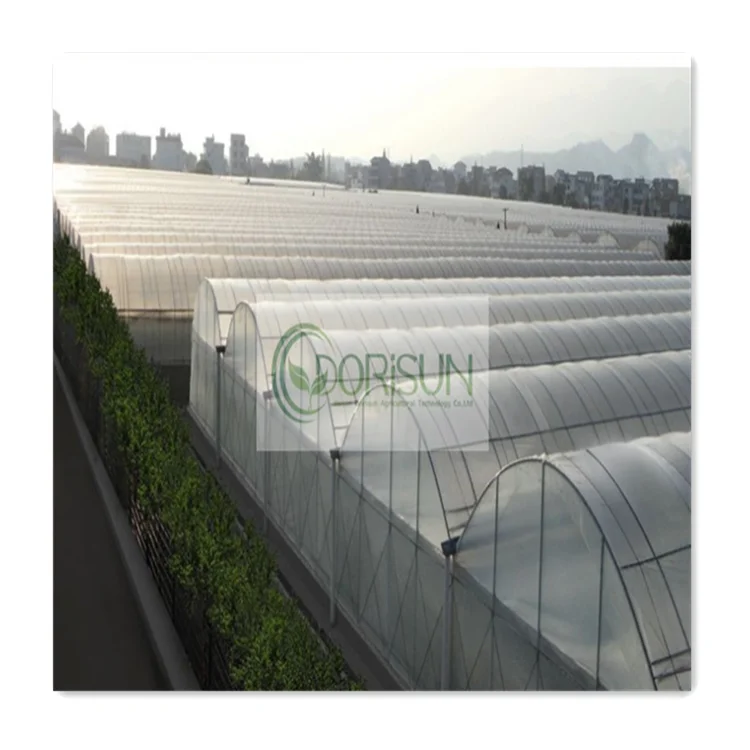

Multi span greenhouse

Multi-span greenhouse is widely used in the cultivation of tomato,vegetables, fruits and flowers. It can provide the conditions of suitable illumination, moisture and temperature, raising the output and resisting the natural disasters.

Multi-Span Greenhouse, cost-saving and convenient to use, is a kind of equipment for cultivation or breeding that is constructed simply. The greenhouse has great space-efficient performance and strong ventilation ability, also preventing the heat loss and the intrusion of cold air.

Product Paramenters

Specification of multi span greenhouse
Steel Structure	275g/m2 zinc coat Hot galvanized steel pipe,life time about 20years
Cover material	PEP 150micon,200micron,customized,life time about 4-8years
Length	20-200m,customized
Width	8m,16m,24m,32m,.......108m,customized
Gutter Height	2m,3m,4m,customized
Roof height	4.5m,5.5m,customized
Wind load	130km/h
Snow load	0.5KN/M2
Temperature resistance	-40 ~ 120°C
Option	Side or top ventilation/heating/cooling/shading system,drip/micro irrigation system
Service	Complete greenhouse solution, overseas after-sales service

Details Images

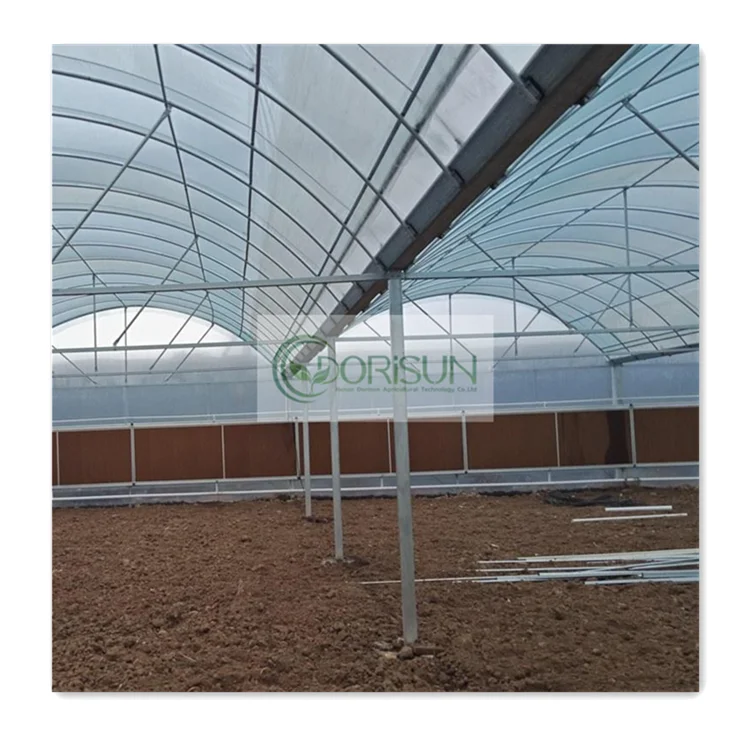

Greenhouse Steel Structure

1.Hot galvanized steel framework,with 275g/m2 zinc coated

2.There is no bare welding points and connected by galvanized bolts, screws, and self-screws
3.Anti-rust for over 20 years
4.Diameter of arch pipe have 25mm,32mm,40mm,48mm,50mm,60mm

Cover film

1.120/150(standard)/200microm2.Anti-drip,Anti-fog,Anti-UV
2.Global light transmission≥90%
3.Diffusion≤20%
4.UV transmission 300%-390%
5.Warranty:4-8 years

Two sides ventilation

Two sides ventilation by manual/electric roll up machine
Roof vebtilation by electric motor
40mesh insect net will be offered for vents

Outside shade net

1.The shate rate have 65%,75%,85%,95% and so on
2.There are two types: one is ribbon-like filament,another is round wire.
3.The function is blocking the strong light into the greenhouse, reduction of temperature.

4.The curtain wire is reliable, beautiful in appearance, high carrying capacity and long service life.

Inside shade net

Shading rate: 75%,Color: silvery, Quality guarantee period: 5 years Function: energy-saving insulation; reflective shade; control lighting
Features: Aluminum foil + polyester film closed,Shade insulation screen from the special aluminum foil, polyester film made of high-strength polyester yarn weaving.

Other system included

Project Show

Why Choose Us

1.We have professional design team and production team

2.Designed according to customer requirements or drawings
3.Best after-sales service:we can provide installation guiding service,provide installation drawings and files,and 24hours online guiding service too
4.Fast production, fast delivery

5.Professional quality inspectors check product quality during and after production

Packaging and delivery
