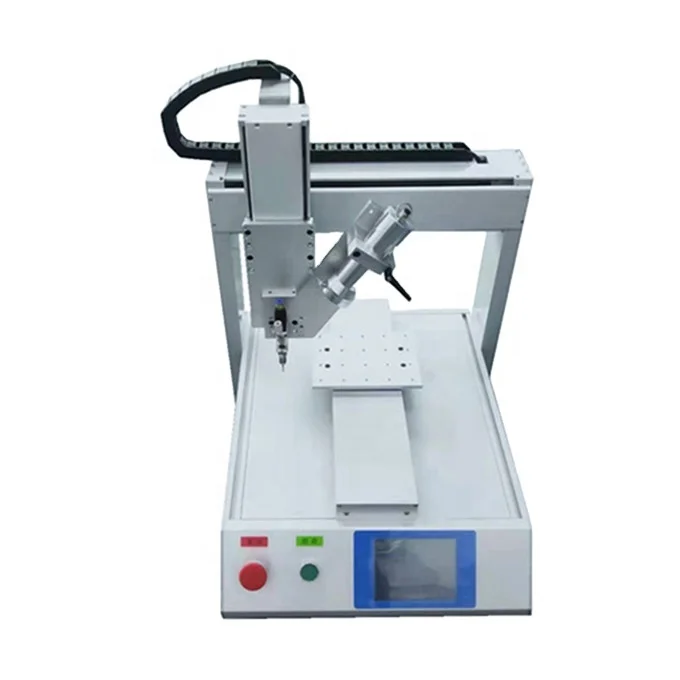

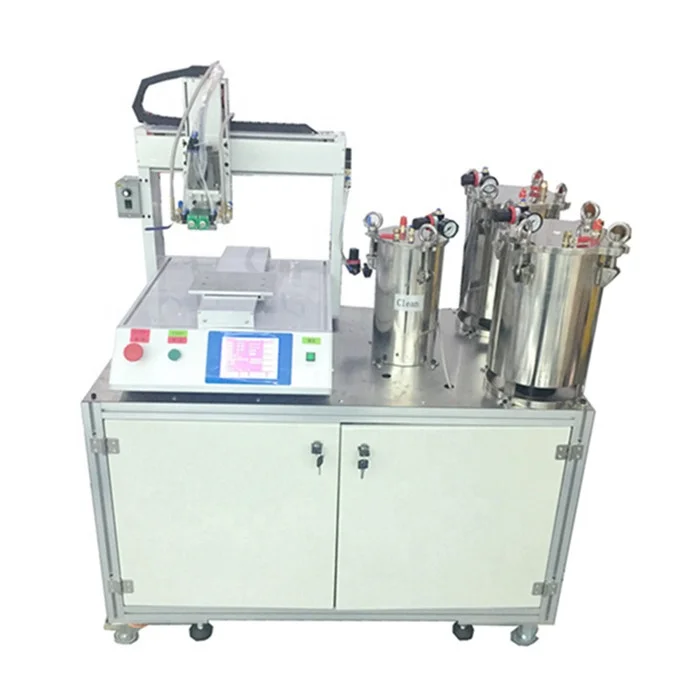

Автоматическая машина для дозирования клея горячего расплава Yuanzhi с Двойной Осью Y
- Категория: >>>
- Поставщик: Shenzhen Yuanzhi Automation Technology Co. Ltd.
Сохранить в закладки 1600754418026:
Описание и отзывы
Характеристики
Product Overview
Automatic glue dispenser machine
1.Wide range of application
1) Applicable glue is silicon,UV glue,AB glue, epoxy resin,instant glue,EMI conducting resin,sealant,hot glue,grease,red gum,solder paste,thermal grease,solder grease, lacquer,screw fixing agent.
2)Application industry,electronic acoustic industry,communication industry,optics,LED industry, etc.
1) Applicable glue is silicon,UV glue,AB glue, epoxy resin,instant glue,EMI conducting resin,sealant,hot glue,grease,red gum,solder paste,thermal grease,solder grease, lacquer,screw fixing agent.
2)Application industry,electronic acoustic industry,communication industry,optics,LED industry, etc.
FEATURES AT A GLANCE
2.High Precision
1)Full automatic glue dispenser can dispense through 3D and 4D path.It can quickly draw dot,line circle and all kinds of irregular figures on the surface,vertical plane,gap and spherical surface.
2)Graphics import or machine screen edit,easy to operate.
3.High efficient

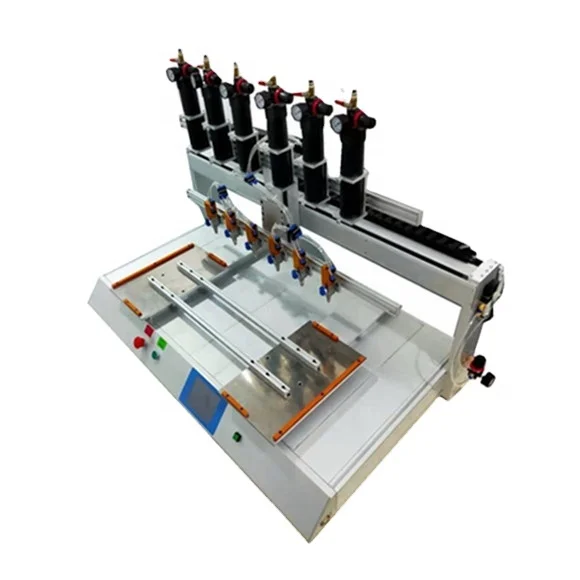

1)Glue dispenser can be equipped with several dispensing heads and operate at the same time,greatly increasing dispensing efficiency.
2)Big scale workstation can place multiple products, which is more efficient .Workstation can be customized according to the size of product.
1)Full automatic glue dispenser can dispense through 3D and 4D path.It can quickly draw dot,line circle and all kinds of irregular figures on the surface,vertical plane,gap and spherical surface.
2)Graphics import or machine screen edit,easy to operate.
3.High efficient
1)Glue dispenser can be equipped with several dispensing heads and operate at the same time,greatly increasing dispensing efficiency.
2)Big scale workstation can place multiple products, which is more efficient .Workstation can be customized according to the size of product.
Right elevation
Left elevation
Front elevation
PRODUCT SPECIFICATIONS
Model | YS-D331E | YS-D441E | YS-D551E | YS-D461E | |||
Working area | 300*300*100mm | 400*400*100mm | 500*500*100mm | 400*600*100mm | |||
Control system | Independent R D | ||||||
Driver | Stepper motor + silver guideway + timing belt | ||||||
Repeatability | +/-0.02-0.05mm | ||||||
Air pressure | 0.4 - 0.7 Mpa | ||||||
Speed | 500mm/s | ||||||
Power | 220/110V 50/60HZ 350W | ||||||
Max load | XYZ 10kg | ||||||
Display | 5.7 inch screen | ||||||
Program Method | Screen operation / connect to PC | ||||||
File total | Number unlimited,16M | ||||||
I/O signal | 16 inputs/16 outputs | ||||||
Weight | 35kg | 45kg | 55kg | 65kg | |||
Size | 680*570*680 | 780*670*680 | 880*770*680 | 880*770*680 | |||
PRODUCT CONFIGURATION
High Quality Material
Hot melt glue dispenser machine

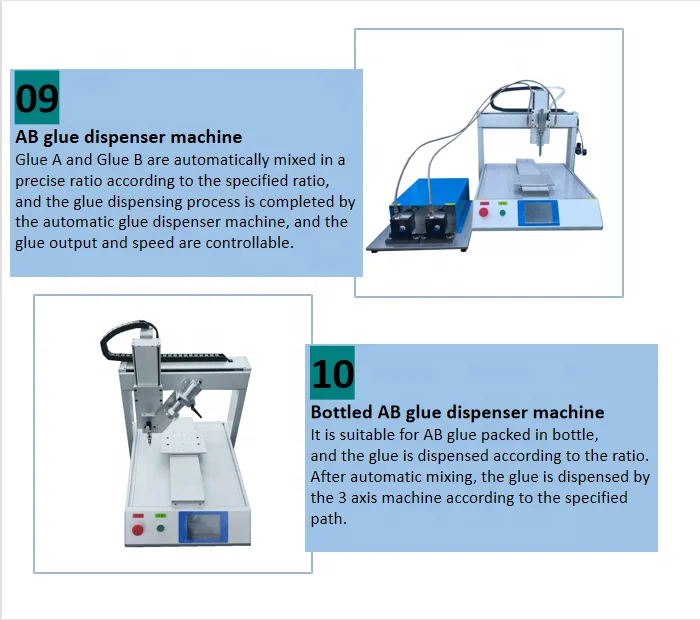

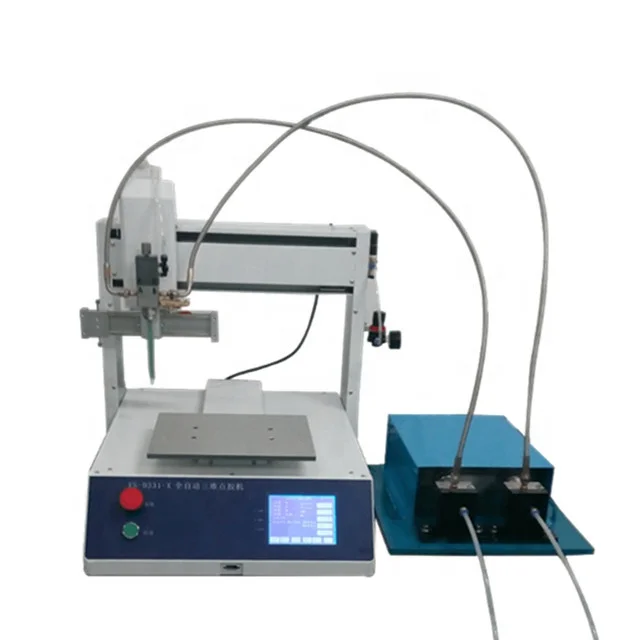

AB glue dispenser machine
SALES AND SERVICE NETWORK
Successful Project
SIMILAR PRODUCTS
FAQ
----Purchase Guidance
If not sure which one is your best choice within the budget, please provide the details or samples to us. We will provide the best solutions and machines.
As one of leading manufacturer in China, we offer factory price and very thorough quality check before
----After Sale Services
We provide lifelong support after sale including operation guidance, parts replacement and maintenance support. Just feel free to contact us.
----Technology Consultation
Any question about wires, cables, machinery, and even the production line please feel free to contact us. We can provide
reasonable budget and suggestions.
If not sure which one is your best choice within the budget, please provide the details or samples to us. We will provide the best solutions and machines.
As one of leading manufacturer in China, we offer factory price and very thorough quality check before
----After Sale Services
We provide lifelong support after sale including operation guidance, parts replacement and maintenance support. Just feel free to contact us.
----Technology Consultation
Any question about wires, cables, machinery, and even the production line please feel free to contact us. We can provide
reasonable budget and suggestions.
Похожие товары

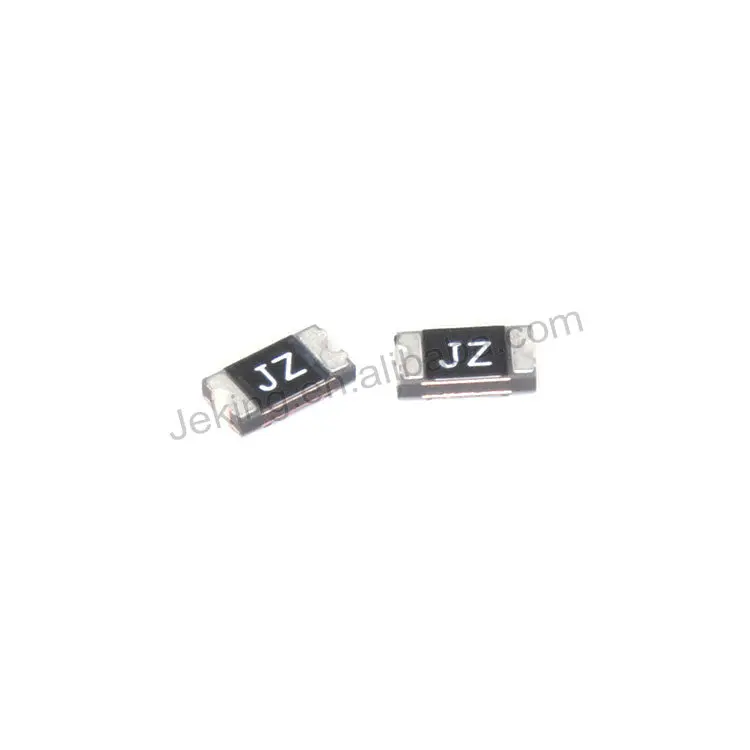

Большое JZ 300C 0.05A чип предохранитель JK-SMD1206-005

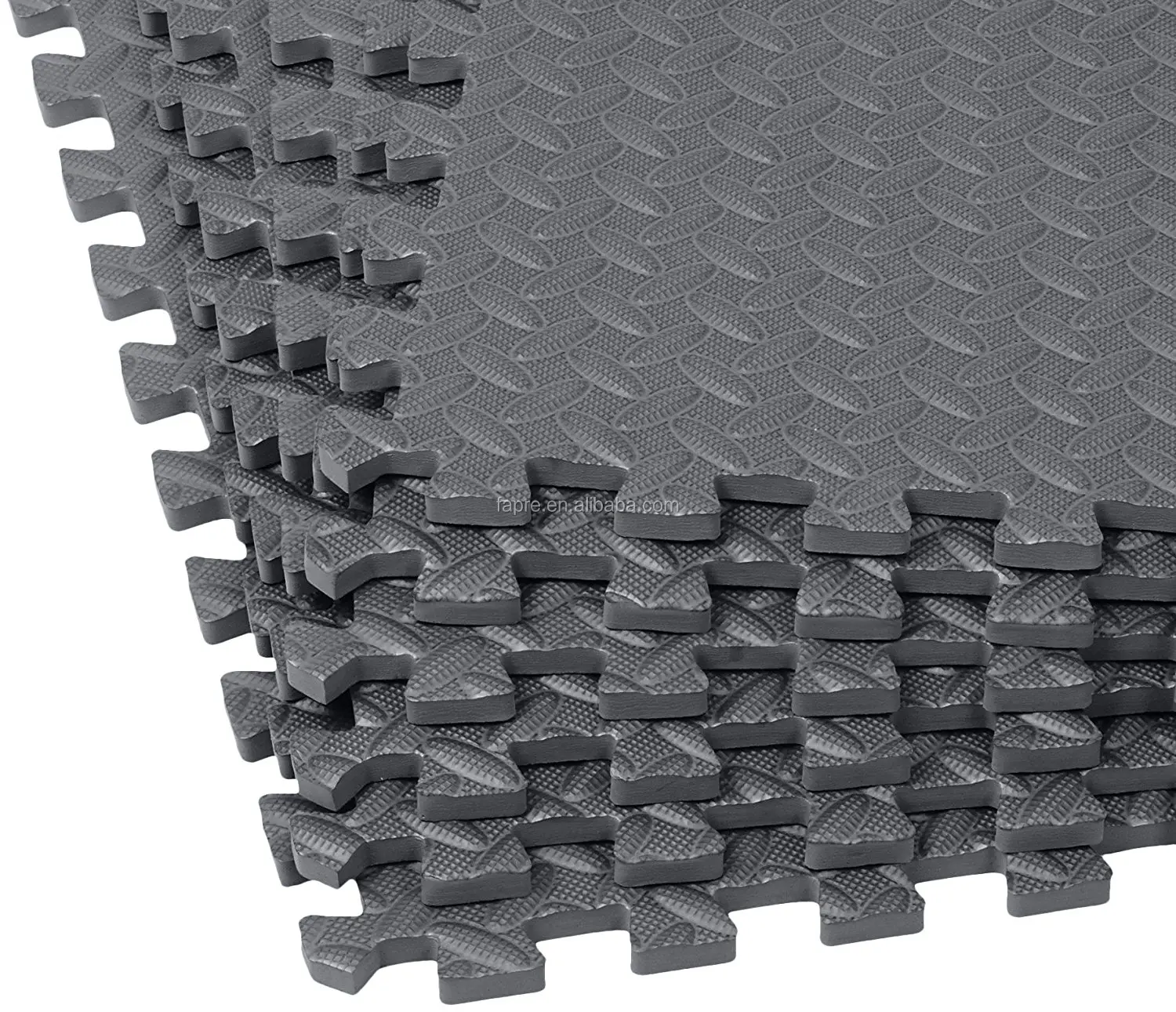

Используется дзюдо/тхэквондо/каратэ/Борьба eva головоломки
Игровой контроллер GameSir-T4 Kaleid
21,50 $ - 25,50 $

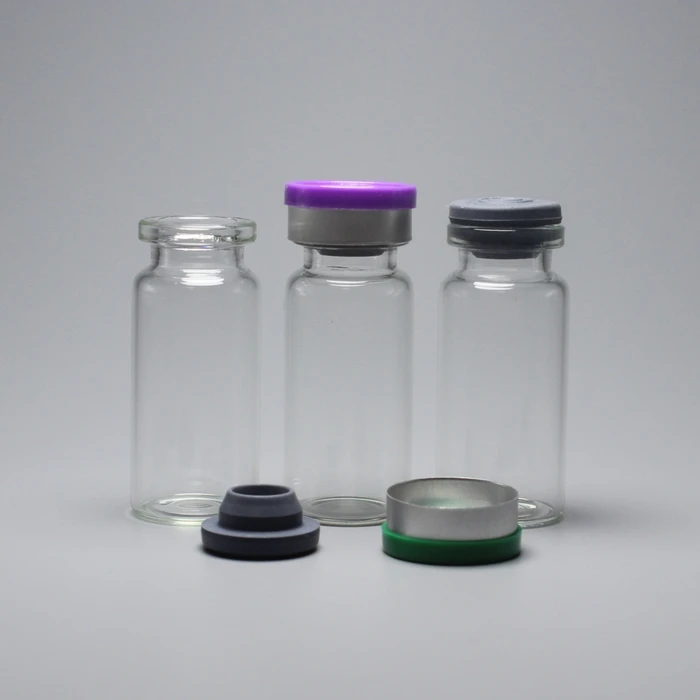

Прозрачная стеклянная бутылка для фармацевтических препаратов
Пляжный зонт овида соломенный популярная ткань из полиэстера 36*8K 170T полипропилена с веревкой Зонт открытыми
25,98 $ - 35,98 $

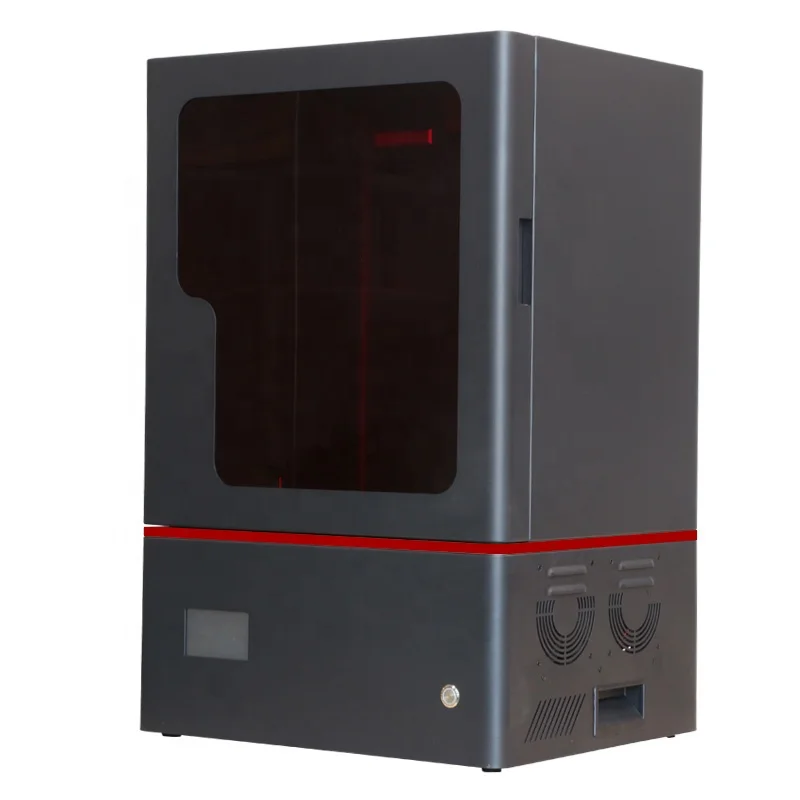

3D принтер Yidimu Falcon Max УФ смола 15 6 дюйма 4K LCD 3d для промышленной

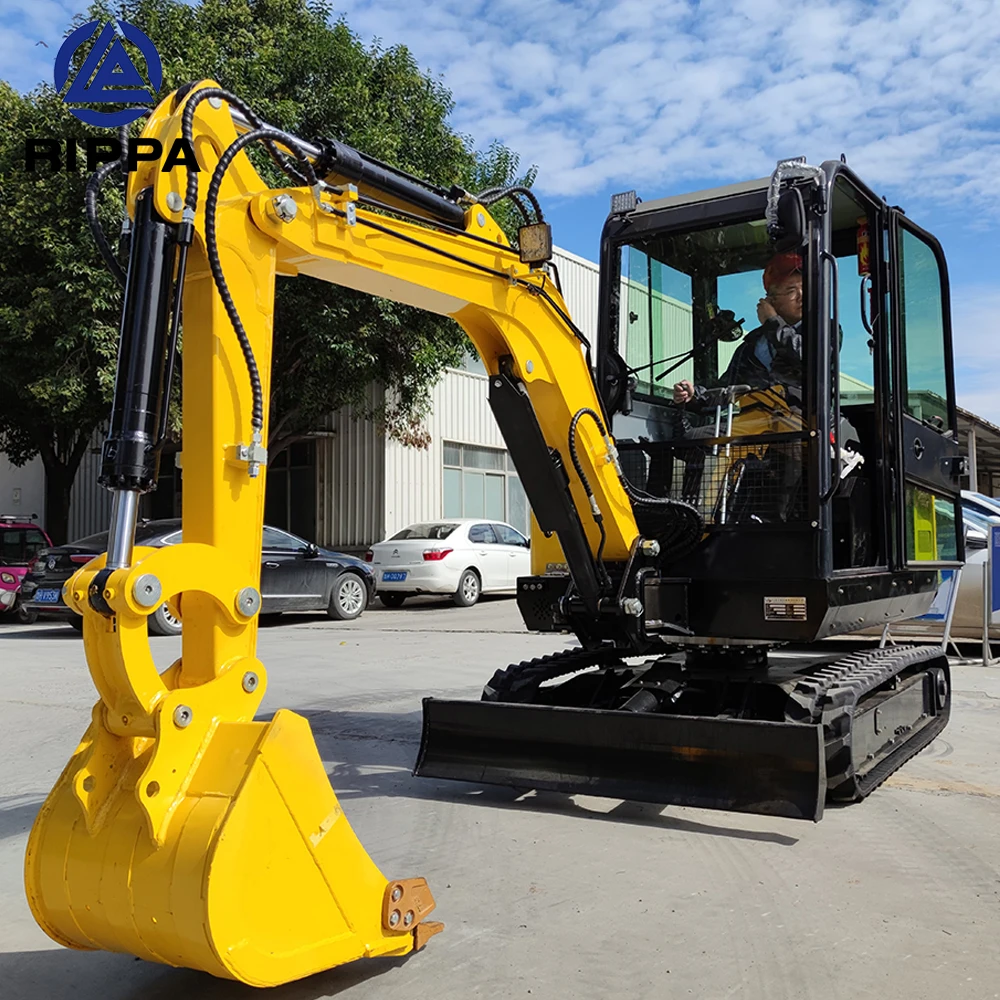

Rippa 3-тонный сельскохозяйственный экскаватор 2-тонный мини-экскаватор китайского бренда, 1 тонна 1,5 тонн, оптовая цена
