Лучшее качество вертикальная ветряная турбина типа H 96 в 220 В 4 кВт 8 10 магнитный ветряной генератор
- Категория: >>>
- Поставщик: Nantong R&x Energy Technology Co. Ltd.
Сохранить в закладки 1600755819868:
Описание и отзывы
Характеристики
You May Like
Specification
Rated power | 4KW |
Max power | 4.5KW |
Rated voltage | 96V-220V |
Start up wind speed | 2m/s |
Rated speed | 12m/s |
Rated rpm | 300 |
Security wind speed | 35m/s |
Top quality except tower | 400kg |
Blade diameter | 2.0M |
Blade high | 3.0M |
Swept area | 4.0mm² |
Blades number | 5 |
Rated RPM | 60r/min |
Rotor blade material | Reinforced glass fiber |
Generator | Three phase permanent magnet generator |
Working temperature | -40℃-80℃ |
Drawing
Project Photos Show
Feature
2,It adopts humanization design, easy to install, mantain, examine and repair.
3,The blades material is made of enhanced glass fiber reinforced plastics. Better configuration design Improve the utilization rate of wind energy, Increase annual electricity output.
4, Permanent magnet rotor alternator with special design of rotor,
reduce the resistance of generator. It makes wind wheel and generator has better fit, work more smoothly
Our Factory
FAQ
1. What kind of region can be installed wind turbine?
Small wind turbines should be applied in the regions which wind resources is sufficient. The annual average wind speed should be
more than 3m/s, the effective wind speed 3-20m/s should be more than 3000h in accumulation per year. The density of 3-20m/s
effectively average wind power should be more than 100W/m2.
It should be noted that choosing the rated design speed wind turbine is in conformity with local design speed. It is significantly
in making use of wind resources and in economic aspect. Wind tunnel test proves that the fan power transformation of the impeller
in the direct ratio with wind speed, that is to say, the wind speed decide the output electrical power.
2. How to calculate the actual need power in my home to configure the appropriate power of wind turbines?
At present, battery stores the power from the wind turbine, then discharge to home appliances. So the power which discharged to
the load and be charged timely by wind turbine is the amount of the actual needs power.
Take an example: the rated output power from wind turbine generator is 100W per hour, the continuous workable hours by wind is 4
hours. The battery can be charged total capacity is 400WH. For only about 70% power from battery can be discharged to the load, so
the actual power which can be used from battery is 280WH.
If there are:
1) Bulb15W x 2 Pieces, working 4 hours one day, consumption 120WH
2) TV 35W x 1 set, working 3 hours one day, consumption 105WH
3) Radio 15W x 1 Piece, working 4 hours one day, consumption 60WH
Above total consumption is 285WH per day. If you only design to install 100W wind turbine generator, the consumption total power
will more than the power from wind turbine generator. In long period of time using power from 100W wind turbine generator, it will
make the battery serious loss of electricity and damaged, and it will cut down your battery service life.
It is assumed that wind turbine at rated wind power generation and energy consumption, but in fact, due to the variability of the
wind, intermittent, there are strong and weak wind different (wind speed) and wind blow in long time and short time
different(frequency). So you should cut down even cut off some electrical application working time when the wind condition is in
poor to protect your battery. If your budget is enough, it will be better to install a diesel generator set or install solar
panels at the same time.
3. How to select the correct battery capacity to get power from wind turbine generator?
Generally, the battery capacity should be equal or smaller than the power from wind turbine generator.
1) 100W wind turbine generator matches 120AH battery (60AH x 2 Pieces)
2) 200W wind turbine generator matches 120-180AH battery (60 OR 90AH x 2 Pieces)
3) 300W wind turbine generator matches 240AH battery (120AH x 2 Pieces)
4) 750W wind turbine generator matches 240AH battery (120AH x 2 Pieces)
5) 1000W wind turbine generator matches 360AH battery (60AH x 3 Pieces)
Small wind turbines should be applied in the regions which wind resources is sufficient. The annual average wind speed should be
more than 3m/s, the effective wind speed 3-20m/s should be more than 3000h in accumulation per year. The density of 3-20m/s
effectively average wind power should be more than 100W/m2.
It should be noted that choosing the rated design speed wind turbine is in conformity with local design speed. It is significantly
in making use of wind resources and in economic aspect. Wind tunnel test proves that the fan power transformation of the impeller
in the direct ratio with wind speed, that is to say, the wind speed decide the output electrical power.
2. How to calculate the actual need power in my home to configure the appropriate power of wind turbines?
At present, battery stores the power from the wind turbine, then discharge to home appliances. So the power which discharged to
the load and be charged timely by wind turbine is the amount of the actual needs power.
Take an example: the rated output power from wind turbine generator is 100W per hour, the continuous workable hours by wind is 4
hours. The battery can be charged total capacity is 400WH. For only about 70% power from battery can be discharged to the load, so
the actual power which can be used from battery is 280WH.
If there are:
1) Bulb15W x 2 Pieces, working 4 hours one day, consumption 120WH
2) TV 35W x 1 set, working 3 hours one day, consumption 105WH
3) Radio 15W x 1 Piece, working 4 hours one day, consumption 60WH
Above total consumption is 285WH per day. If you only design to install 100W wind turbine generator, the consumption total power
will more than the power from wind turbine generator. In long period of time using power from 100W wind turbine generator, it will
make the battery serious loss of electricity and damaged, and it will cut down your battery service life.
It is assumed that wind turbine at rated wind power generation and energy consumption, but in fact, due to the variability of the
wind, intermittent, there are strong and weak wind different (wind speed) and wind blow in long time and short time
different(frequency). So you should cut down even cut off some electrical application working time when the wind condition is in
poor to protect your battery. If your budget is enough, it will be better to install a diesel generator set or install solar
panels at the same time.
3. How to select the correct battery capacity to get power from wind turbine generator?
Generally, the battery capacity should be equal or smaller than the power from wind turbine generator.
1) 100W wind turbine generator matches 120AH battery (60AH x 2 Pieces)
2) 200W wind turbine generator matches 120-180AH battery (60 OR 90AH x 2 Pieces)
3) 300W wind turbine generator matches 240AH battery (120AH x 2 Pieces)
4) 750W wind turbine generator matches 240AH battery (120AH x 2 Pieces)
5) 1000W wind turbine generator matches 360AH battery (60AH x 3 Pieces)
Похожие товары

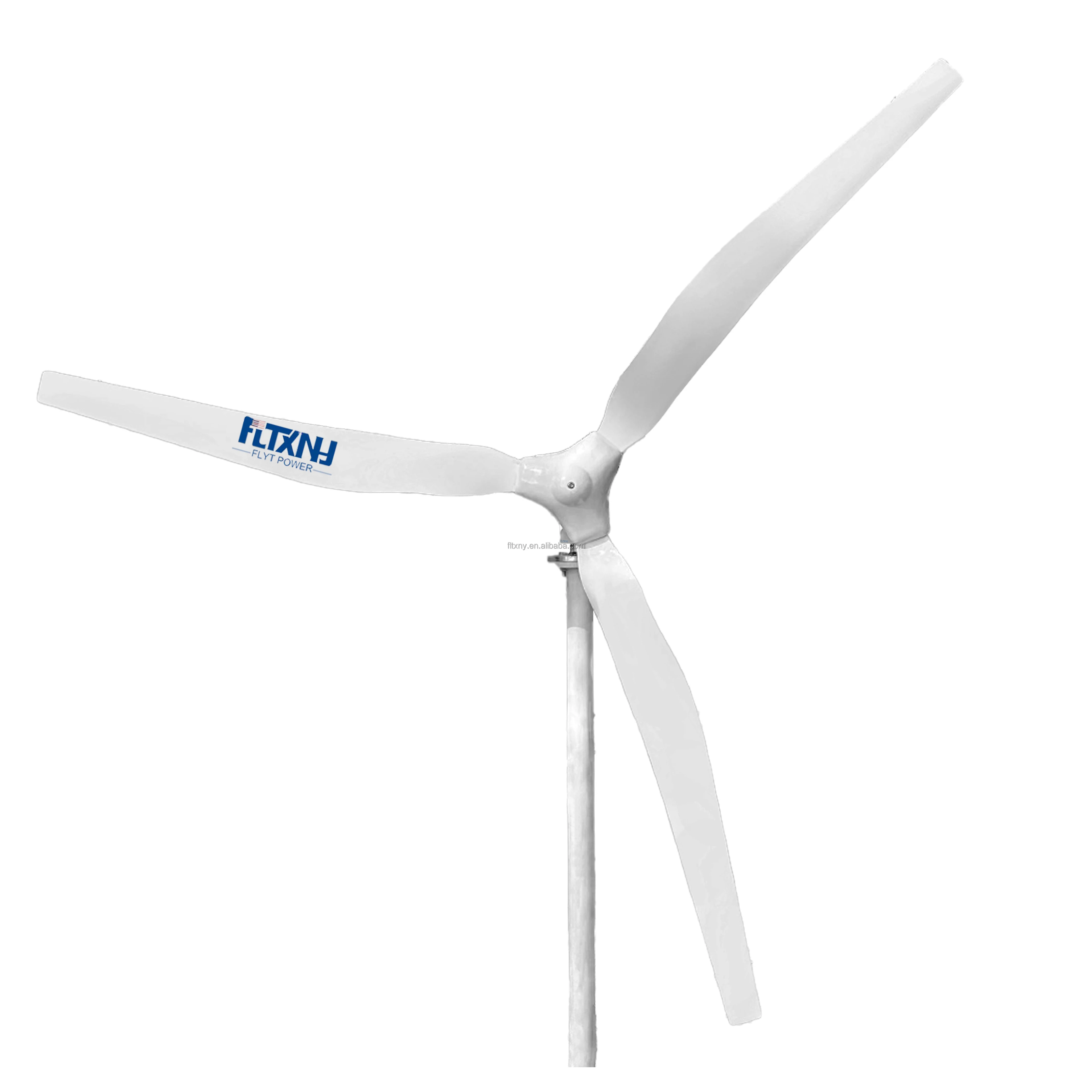

Эффективная реальная мощность, 1000 Вт, 2000 Вт, 3000 Вт, 3-фазный ветряной горизонтальный турбогенератор, ветряная мельница 48 В 96 В, 120 В, 220 В, с контроллером Mppt
42 444,64 ₽ - 44 304,33 ₽
Лидер продаж, китайский завод, 1000 Вт, 2000 Вт, 2500 Вт, ветряная турбина, ветряная мельница 48 В 96 В 120 В с контроллером Mppt для дома
8 204,51 ₽ - 9 298,44 ₽

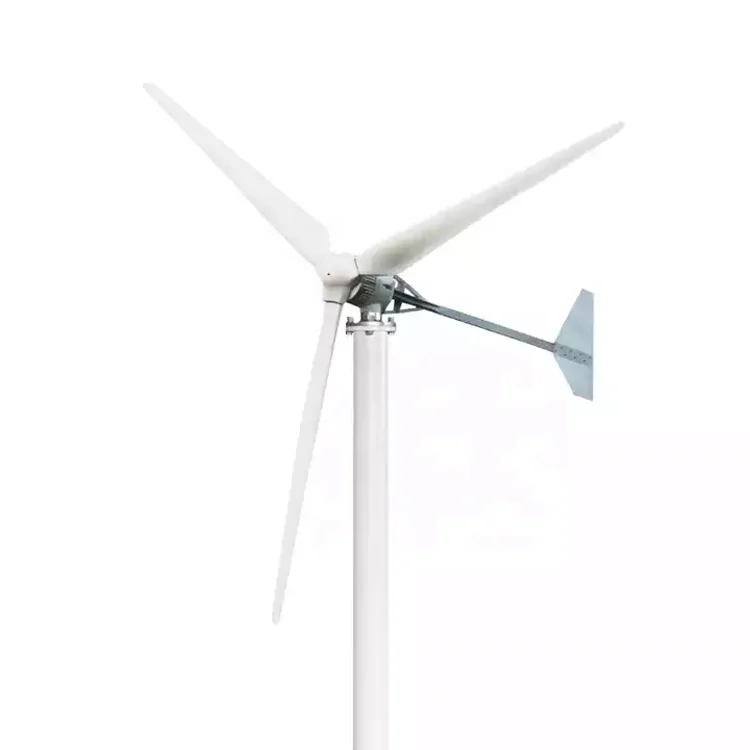

Китайский завод, 1500 Вт, 48 В, ветряной горизонтальный турбинный генератор, ветряная мельница, 3 фазы с контроллером Mppt для дома
38 834,66 ₽ - 49 883,40 ₽

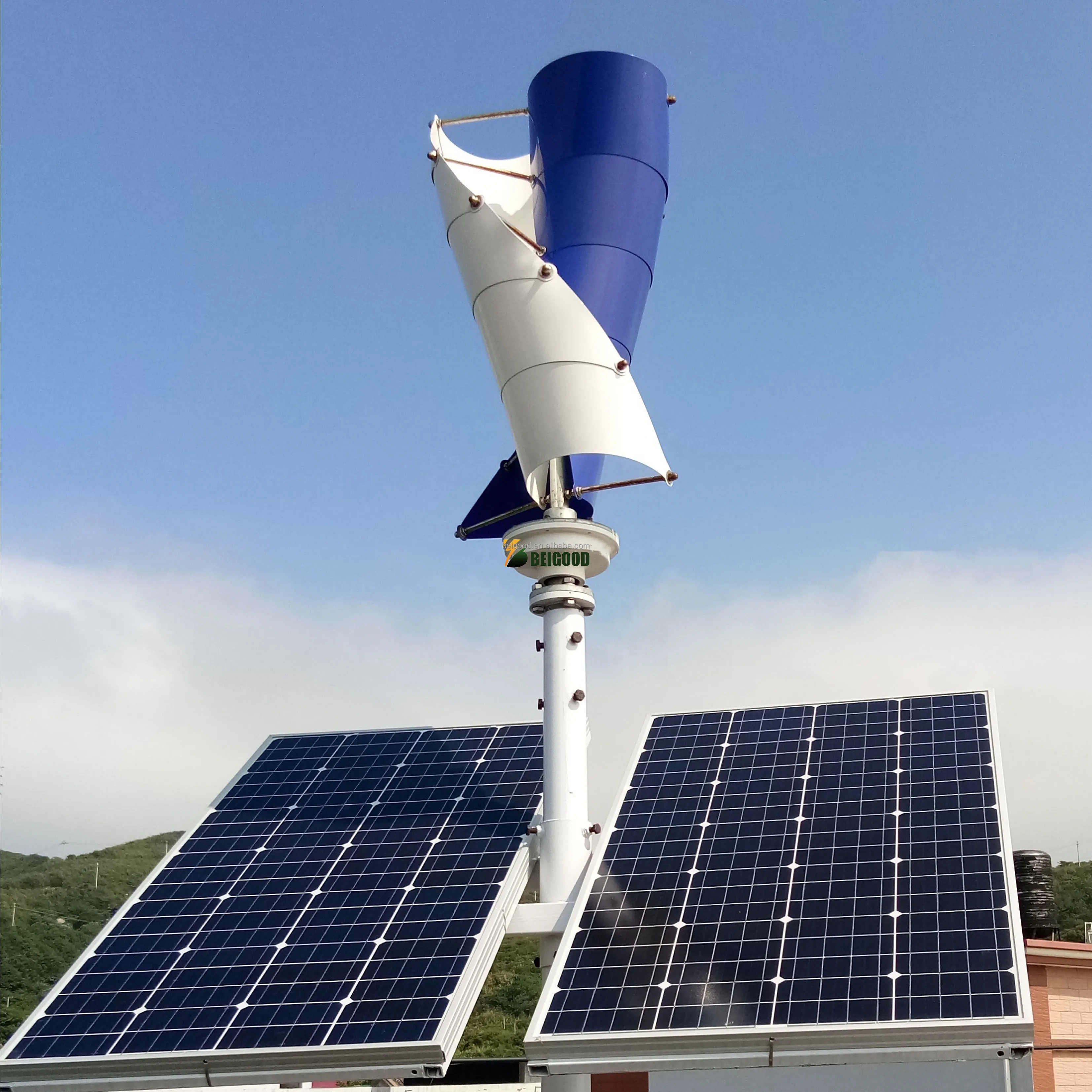

Вертикальные гибридные лопасти и втулки для ветровой турбины на солнечных батареях, 5 кВт
337 478,64 ₽ - 368 108,80 ₽

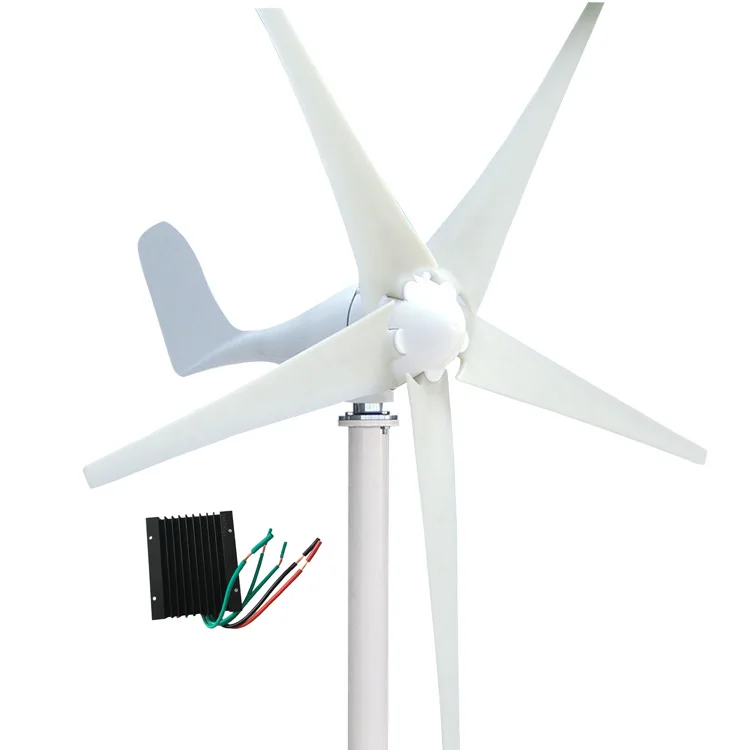

Лидер продаж, ветрогенератор мощностью 400 Вт, 12 В/24 В/48 В, 1,5 м/с, 12 В
12 033,28 ₽ - 13 674,18 ₽

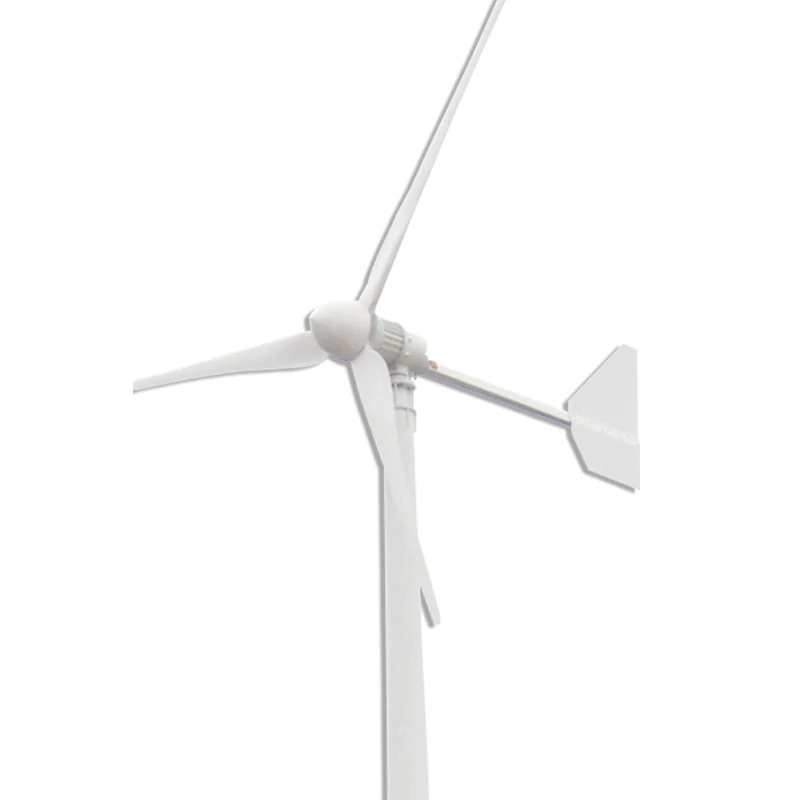

1 кВт низкая скорость ветра с высоким выходным регулятором ветровой турбины силовая Система горизонтальной оси ветровой турбины
546 857,61 ₽

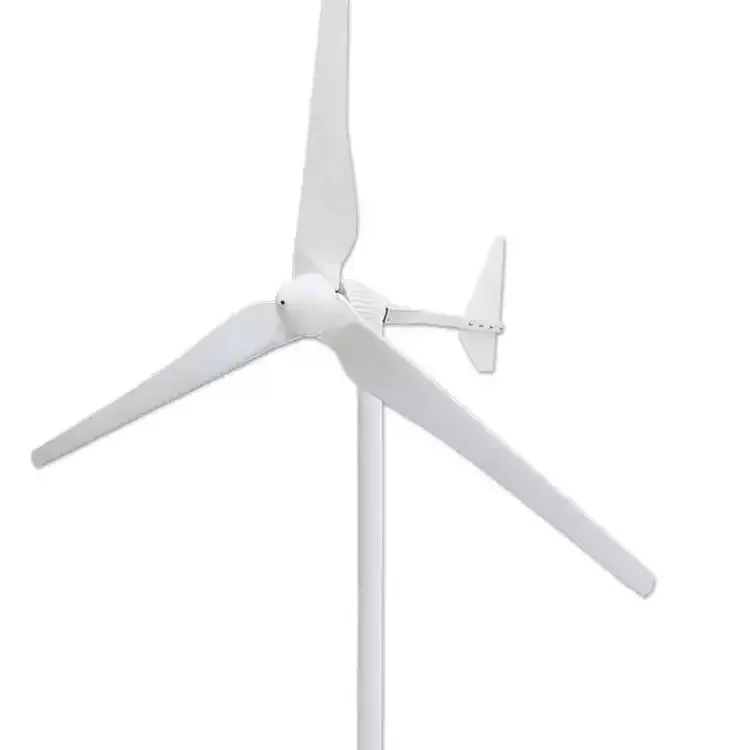

Небольшой ветровой турбины 15KW для дома
