Product Introduction
◆ Product Description
High Intensity Magnetic Separator is to lower the content of ferrous contaminants in non-magnetic materials, or upgrade the ferrous minerals. It is for dry magnetic separation, with great magnetic intensity, it is suitable to treat weakly magnetic
minerals.
minerals.
Our factory produces one roller, two rollers, three rollers, four rollers dry type high intensity magnetic separator and low
intensity magnetic separator, magnetic field intensity from 800 gauss to 20000 gauss. The high gradient magnetic separator is a strong magnetic separator for the screening of weak magnetic minerals the dry magnetic separators are widely used for separate magnetic iron ore,Tin ore, ilmenite, titanium ore, hematile, manganese, cobalt, cassiterite, coltan,tantalum, niobium, zircon sand, beach black sands, Monazite ore, Rutile ore,silica purify sand and so on.
intensity magnetic separator, magnetic field intensity from 800 gauss to 20000 gauss. The high gradient magnetic separator is a strong magnetic separator for the screening of weak magnetic minerals the dry magnetic separators are widely used for separate magnetic iron ore,Tin ore, ilmenite, titanium ore, hematile, manganese, cobalt, cassiterite, coltan,tantalum, niobium, zircon sand, beach black sands, Monazite ore, Rutile ore,silica purify sand and so on.
◆ Features
1.Magnetic intensity: usually high intensity from 11000gauss to 16000gauss, if with belt, the intensity will be weaken a bit
reaching 11000 gauss to 13000 gauss, if with brush, maxi intensity can reach 13000 gauss to 16000 gauss.
reaching 11000 gauss to 13000 gauss, if with brush, maxi intensity can reach 13000 gauss to 16000 gauss.
2. Process method : wet or dry process available
3. Roller quantity : 1 pc or 2 pc or 3 pcs or more

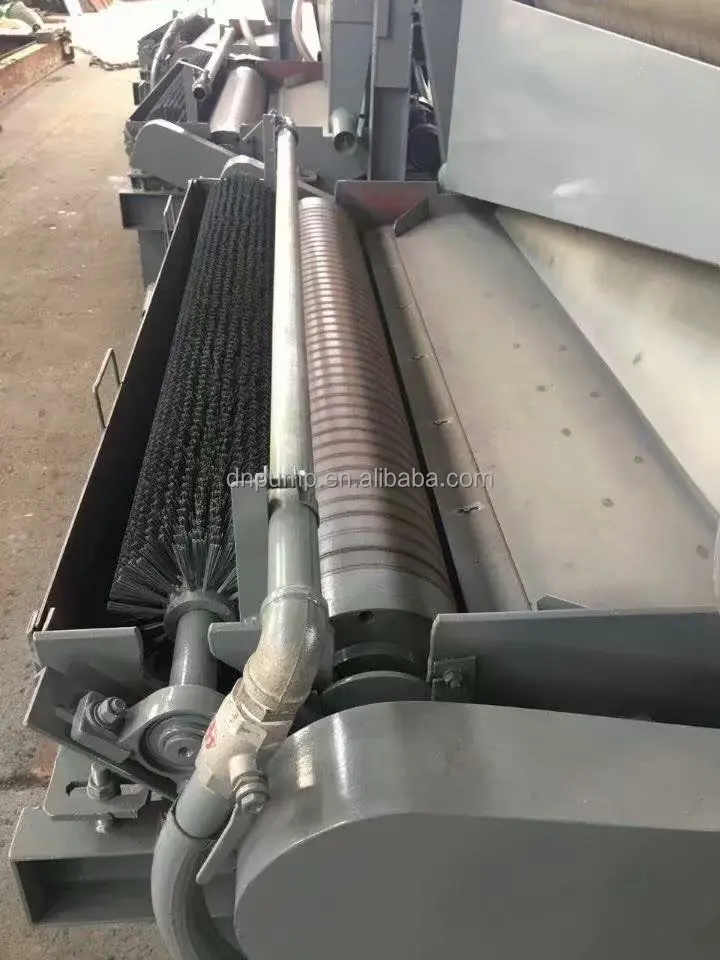

4. Two types: with brush type or with belt type, brush is for help the magnetic minerals to leave the roller more easyly.
5. Feeding position: for wet process, feeding material is from side of machine and with brush, for dry process , feeding material is from top of machine, with belt or brush.
6. Adjustable intenstity: NO
7. Magnetic block: the whole roller is magnetic
8.Roller Diameter: 100-600 mm, most often used diameters are (100-140-160-180-220-240-300-320-380mm), roller length can be (600-800-1000-1200-1500-1800mm)
9. Maxi feeding size: 2 mm
10. Process capacity: Depends on Roller size and feeding size.

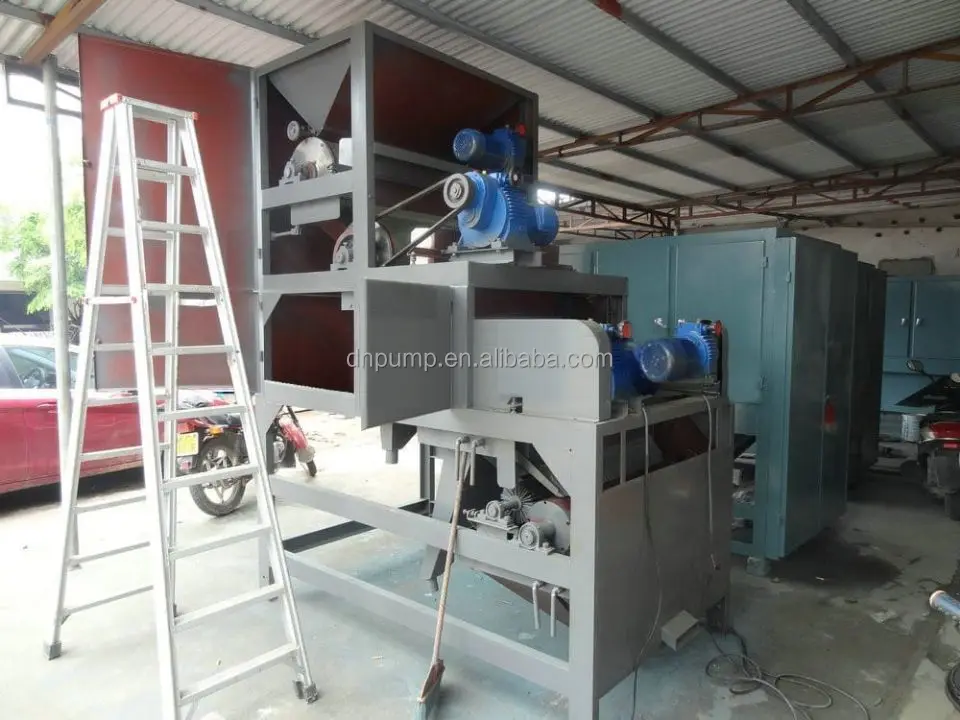

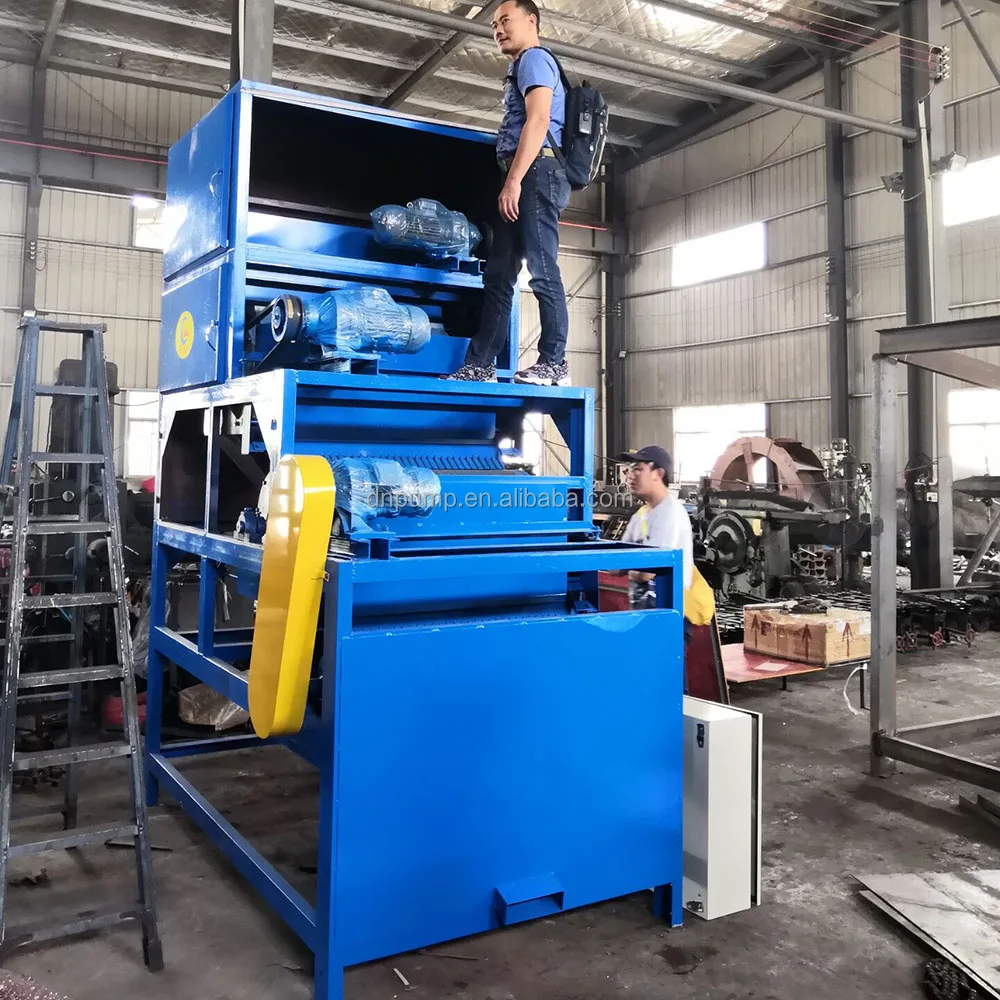

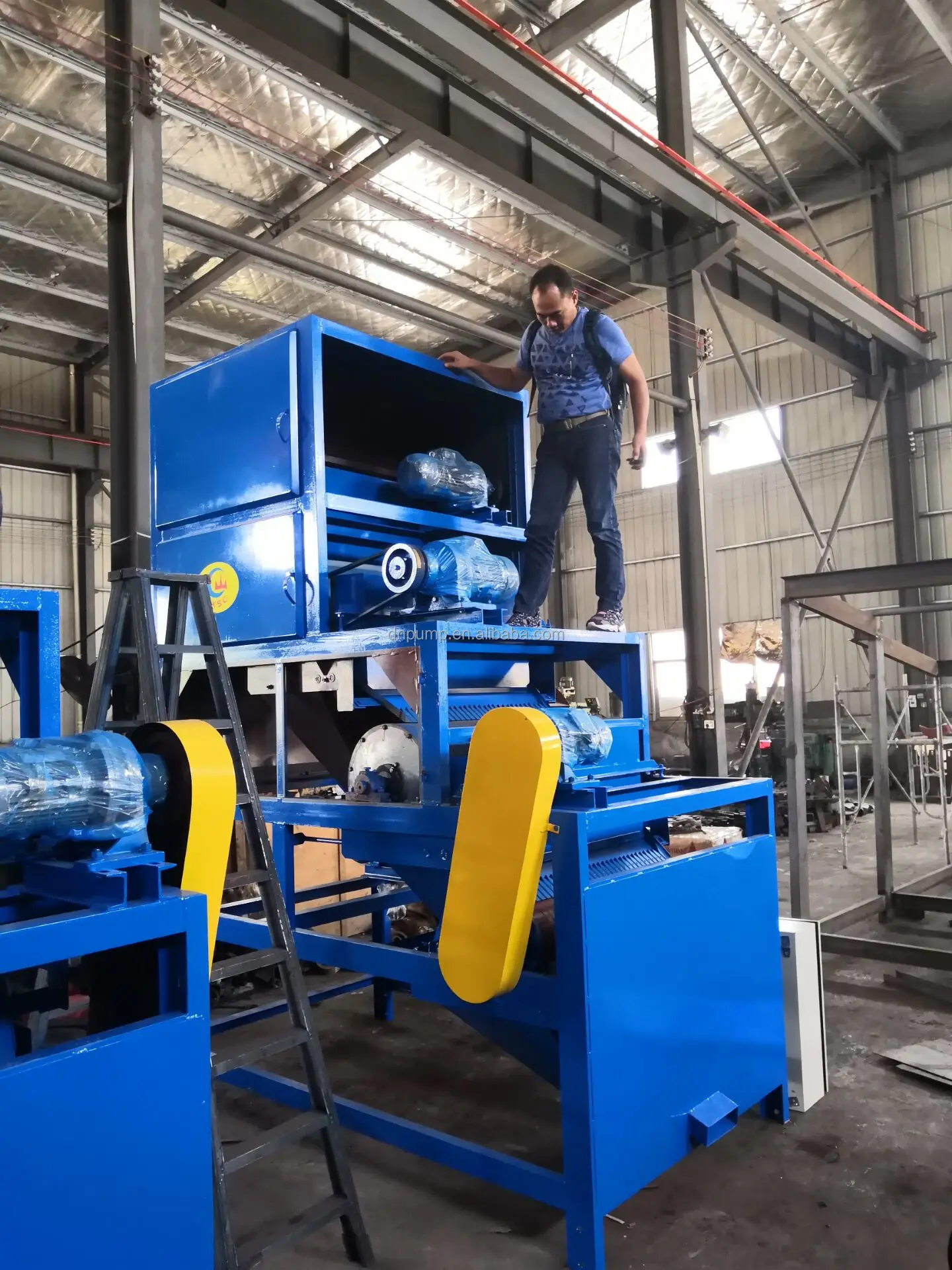

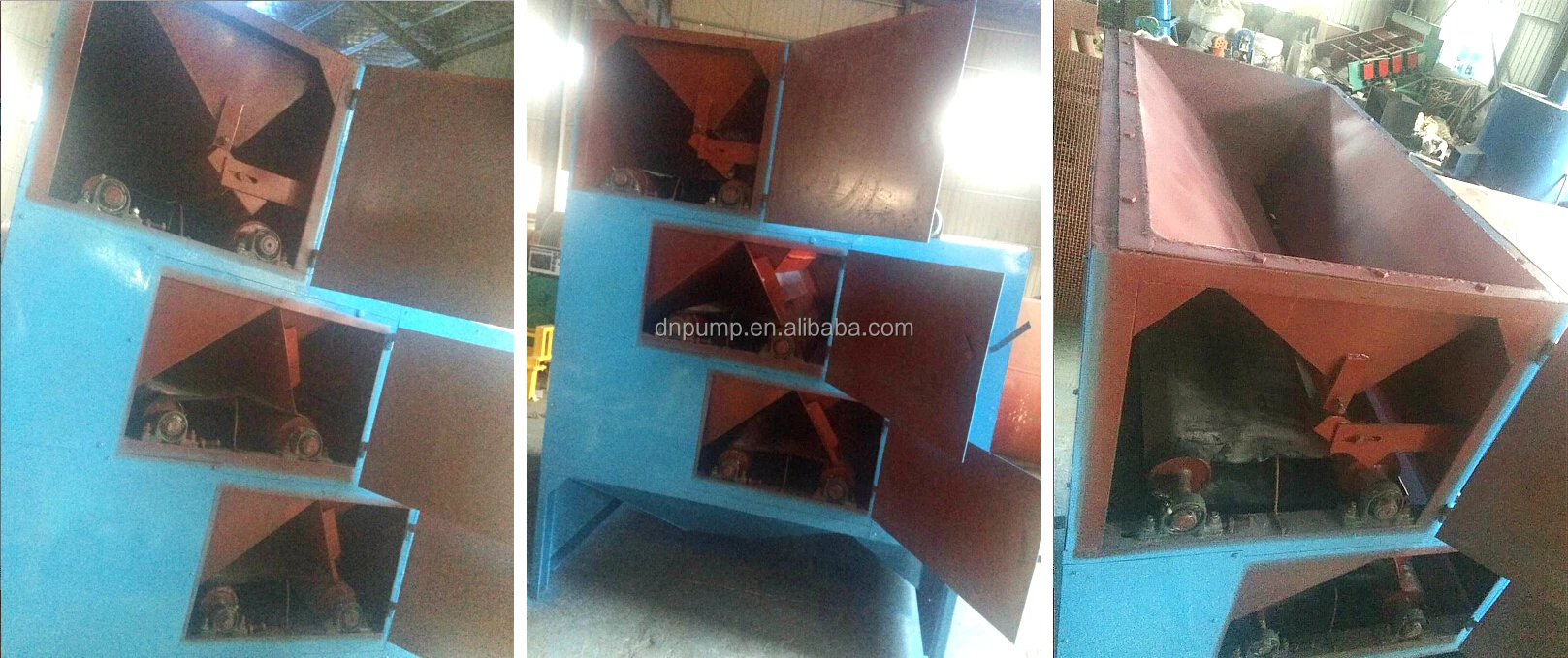

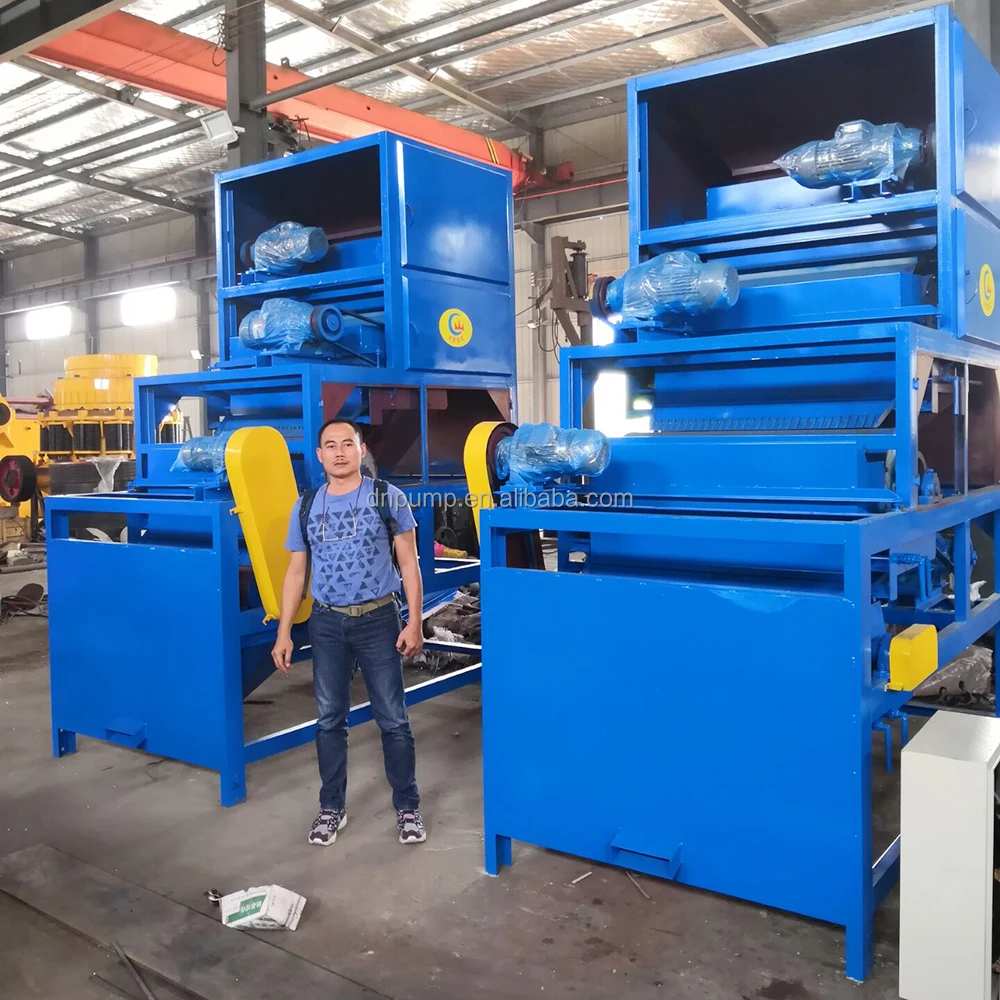

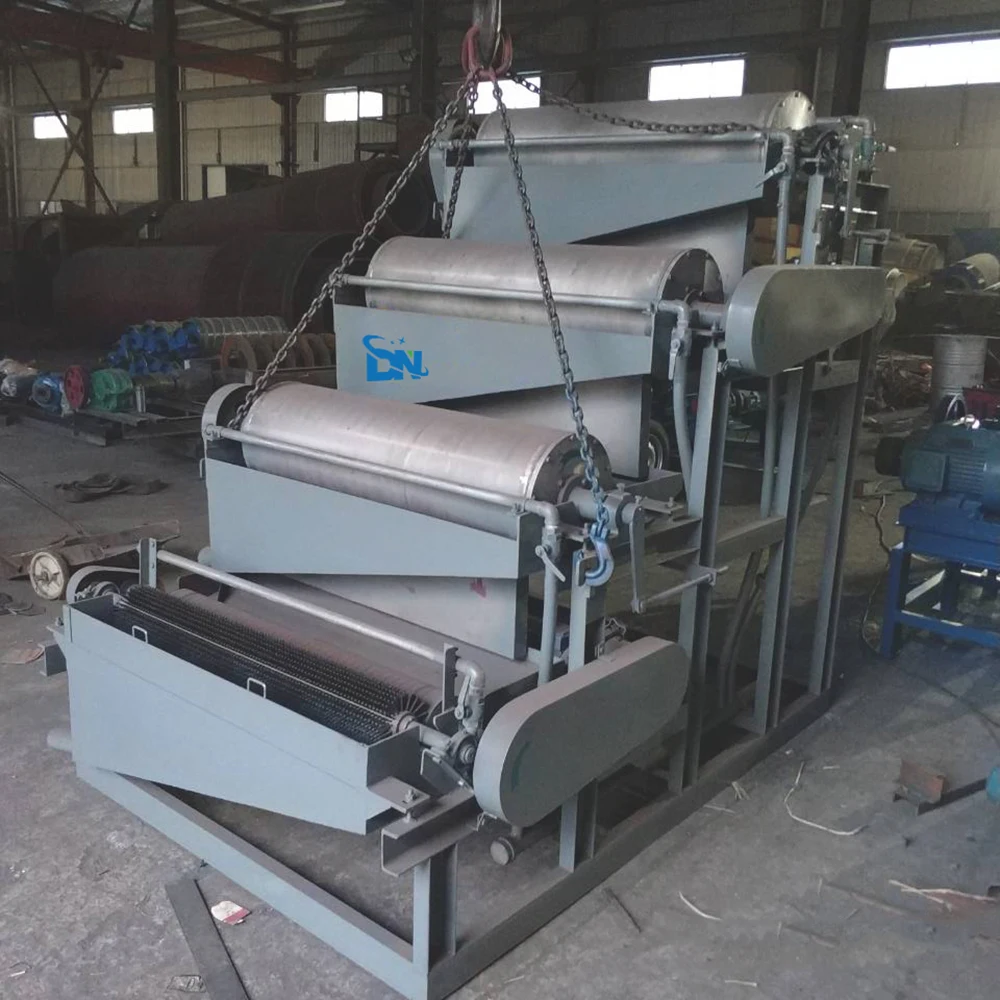

Three rollers high intensity dry type magnetic separator

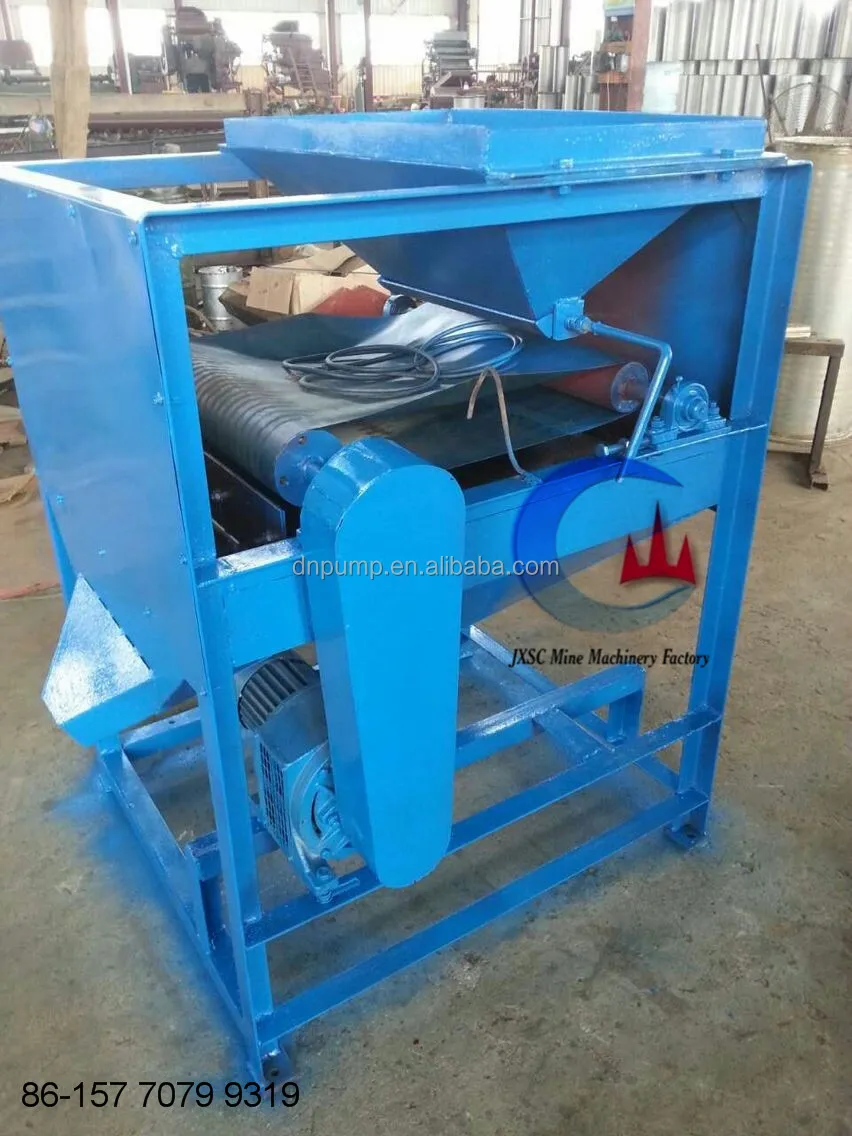

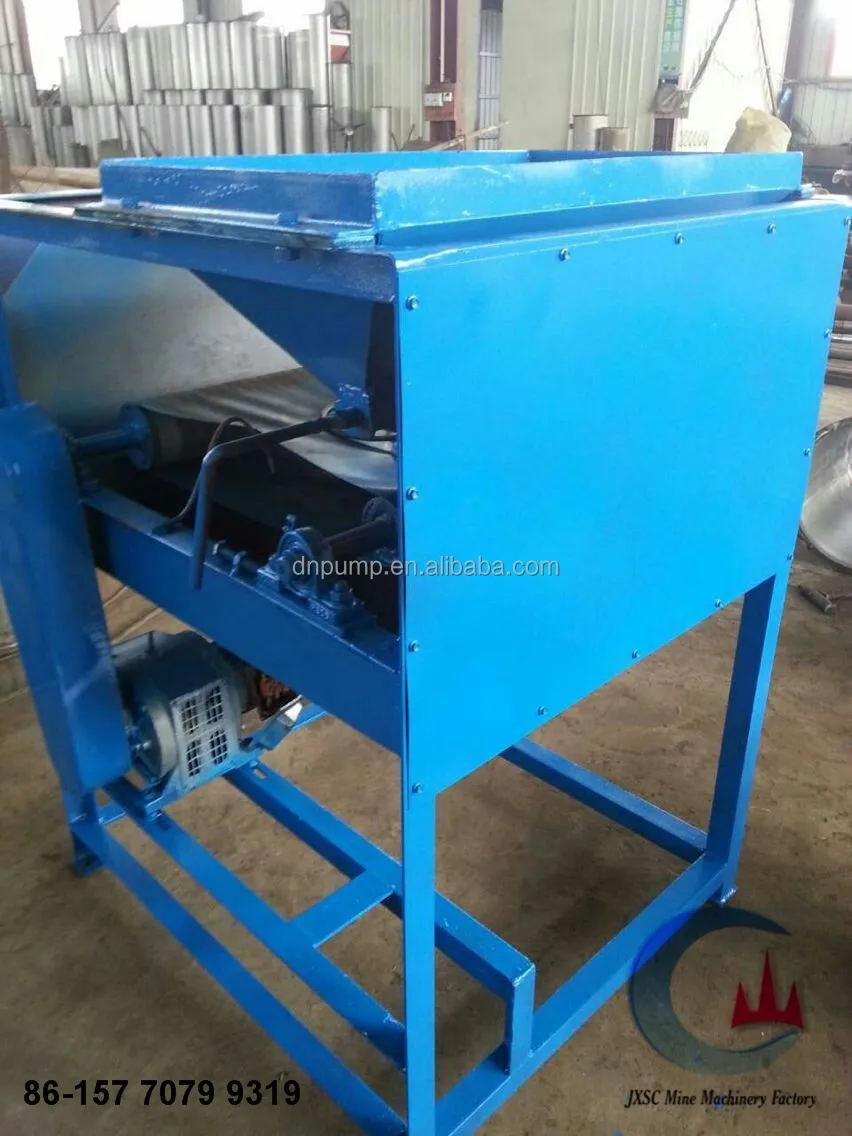

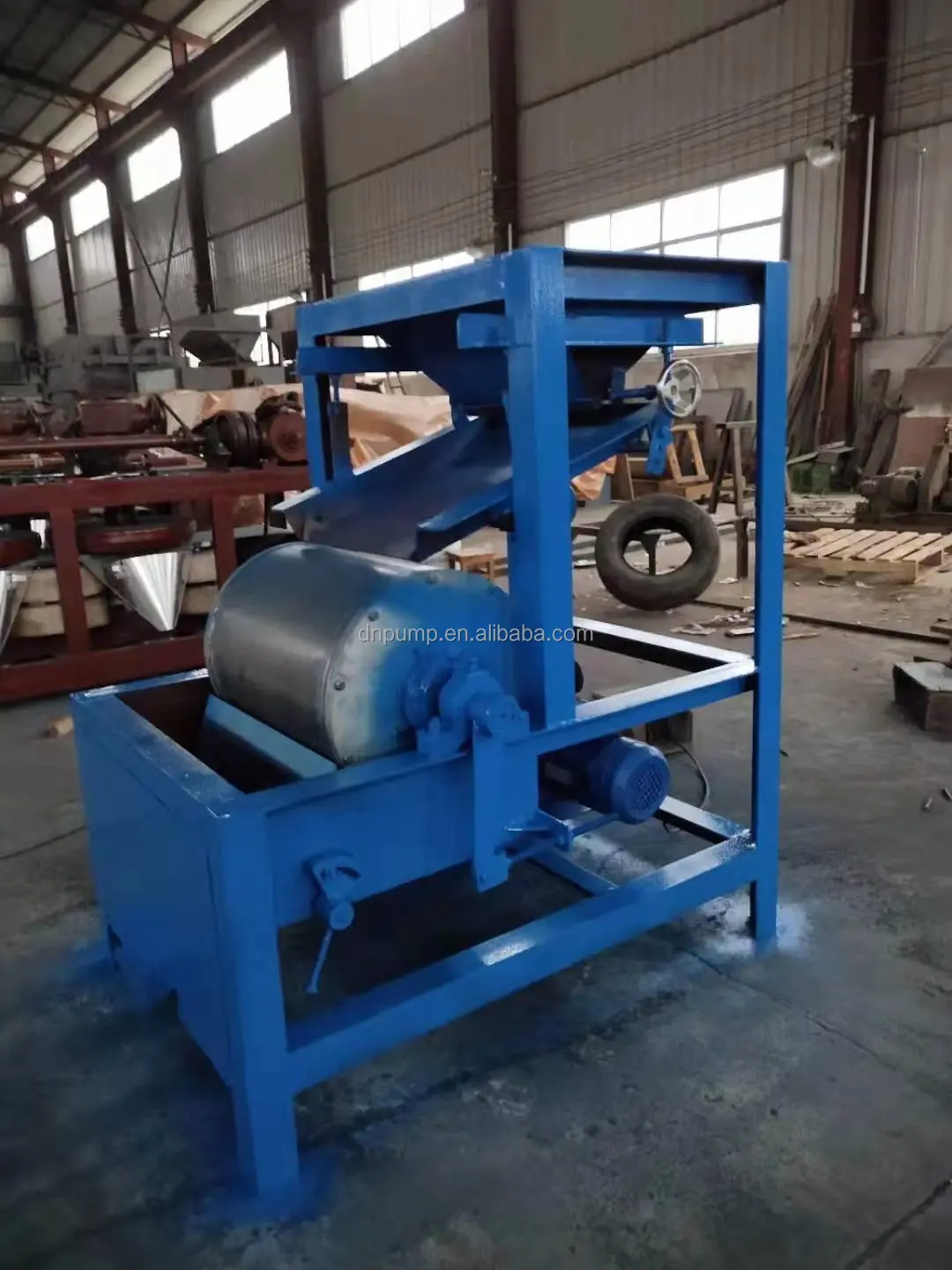

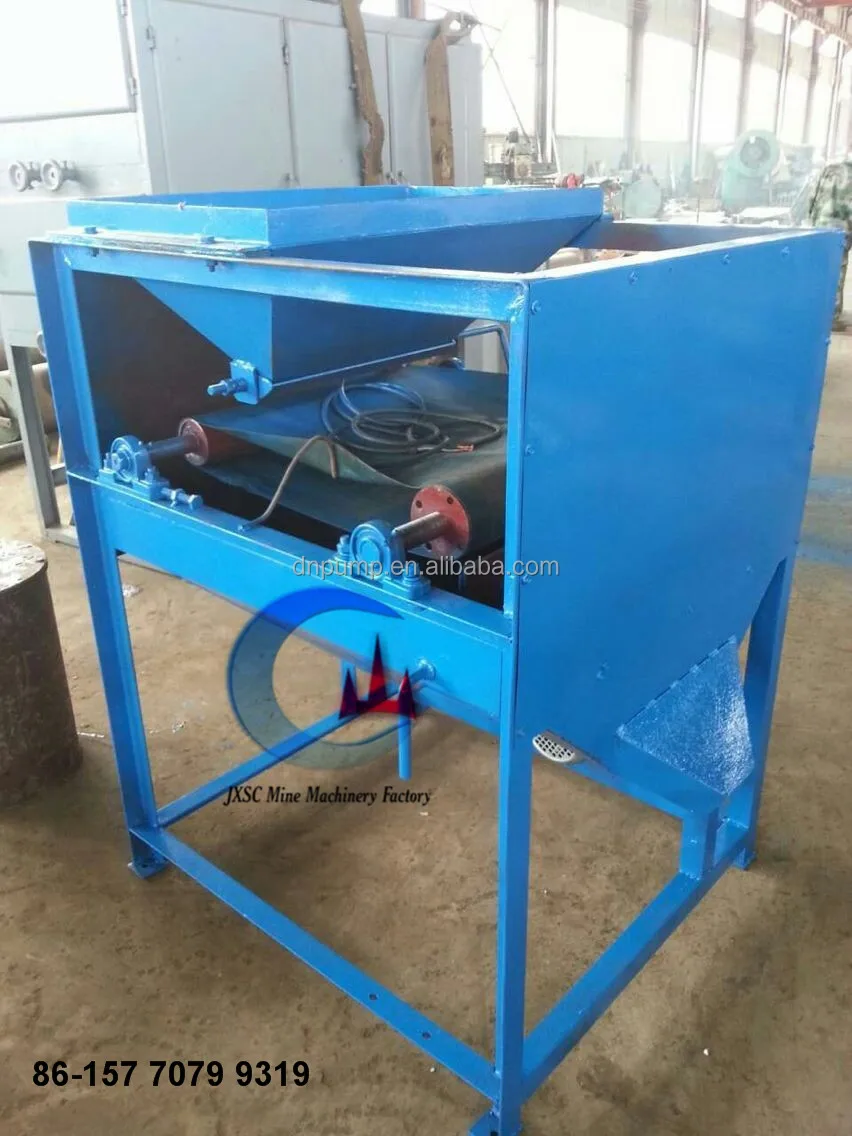

One roller low&high intensity magnetic separator

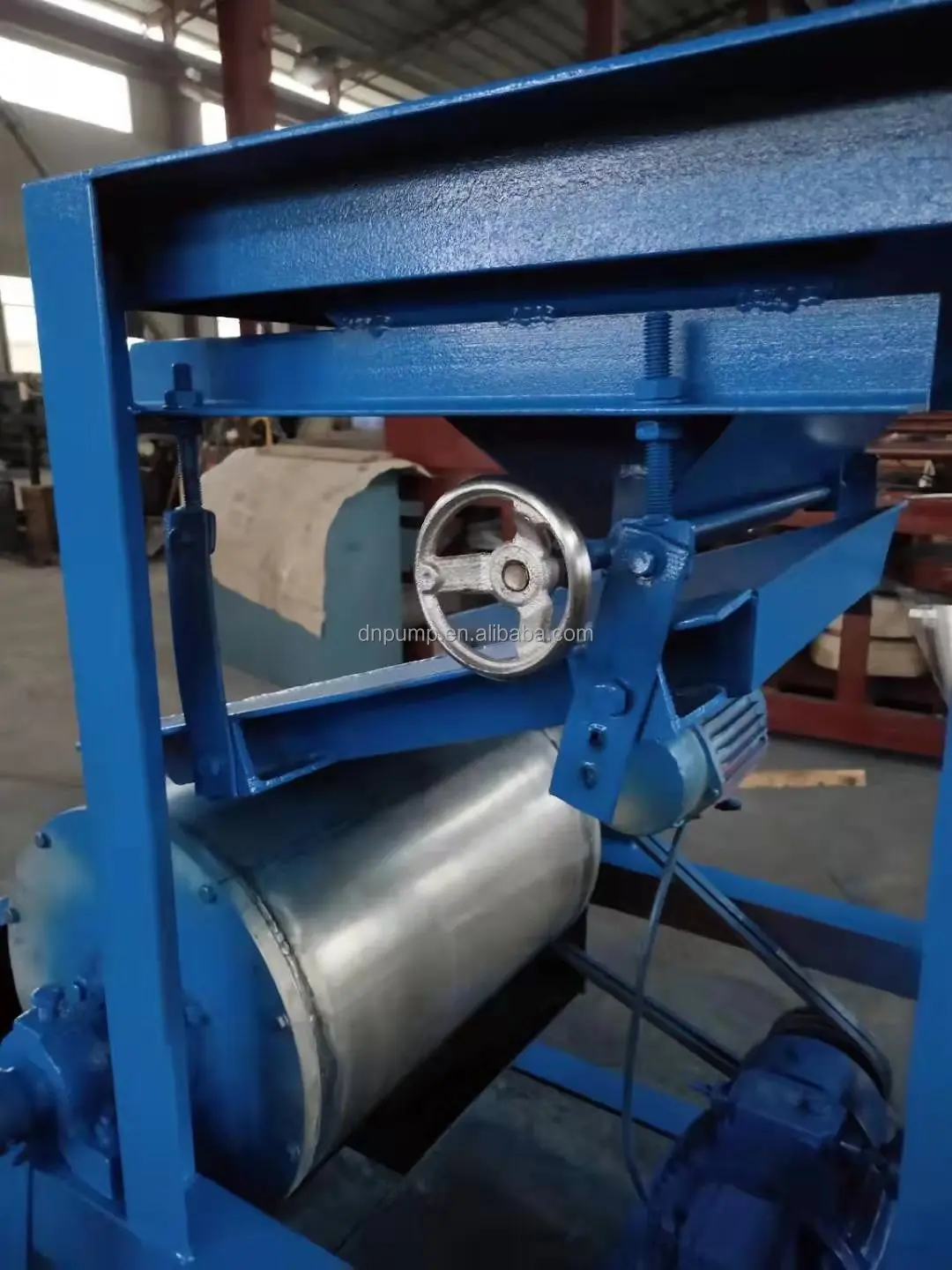

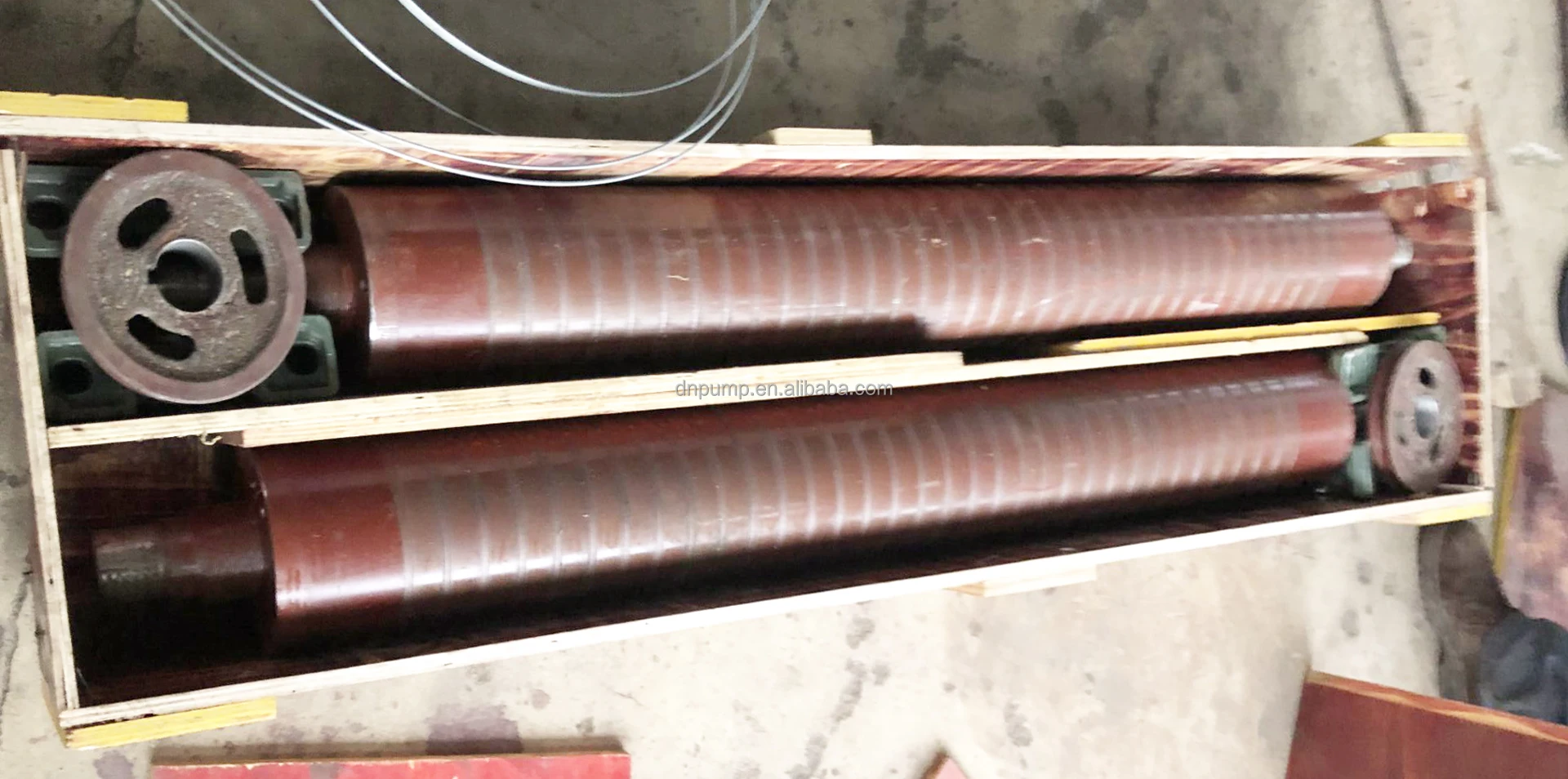

Magnetic roller fittings
Specifications
Model | cylinder size(mm) | capability(t/h) | power(kw) |
HYF-1060 | D100*600 | 0.2-1 | 0.37 |
HYF-1080 | D100*800 | 0.3-1.4 | 0.37 |
HYF-1210 | D120*1000 | 0.4-2 | 0.55 |
HYF-1610 | D160*1000 | 0.6-2.5 | 0.55 |
HYF-2060 | D200*600 | 0.45-2.3 | 0.55 |
HYF-2010 | D200*1000 | 0.7-3.8 | 0.75 |
HYF-2475 | D240-750 | 0.9-4.5 | 0.75 |
HYF-2410 | D240*1000 | 1.2-5 | 1.1 |
HYF-3060 | D300*600 | 1-4.5 | 1.1 |
HYF-3010 | D300*1000 | 1.6-7 | 1.1 |
HYF-3860 | D380*1000 | 1.8-55 | 1.1 |
Successful cases
We have provided the magnetic Separator for many customers in Sudan,Mali, Mozambique, Nigeria, Suriname, Ghana, South Africa,Uganda, Zambia, Tanzania, Angola, Canada, Austrialia, Chile, Peru,ect. For Alluvail gold washing plant, coltan ore mining plant,diamond washing plant, Iron ore washing plant,ect.

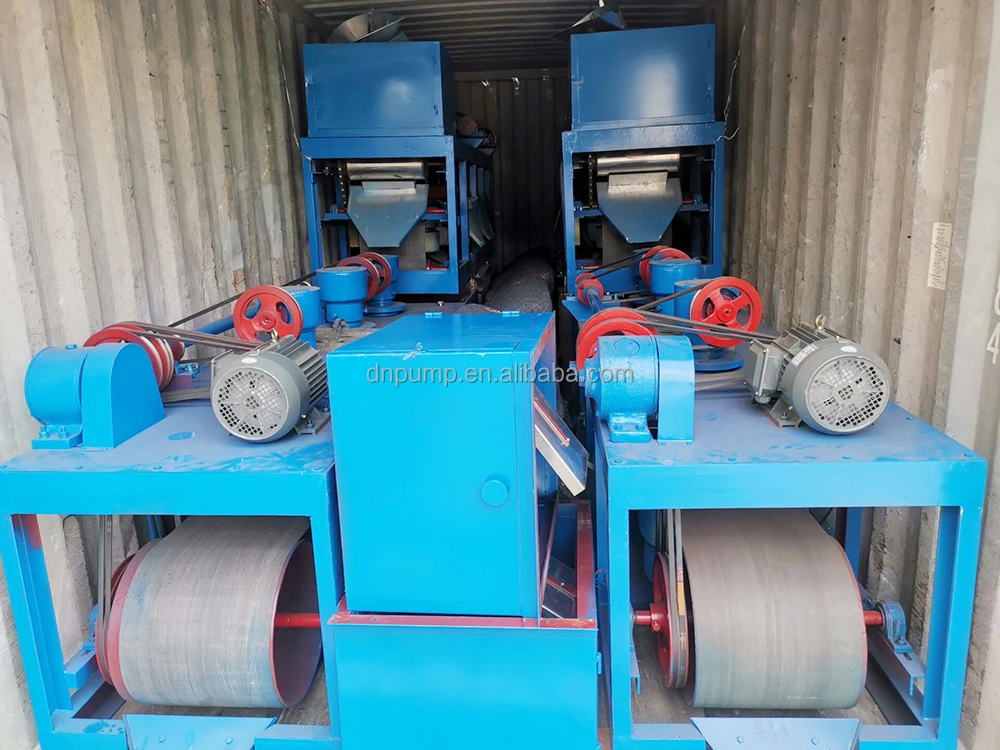

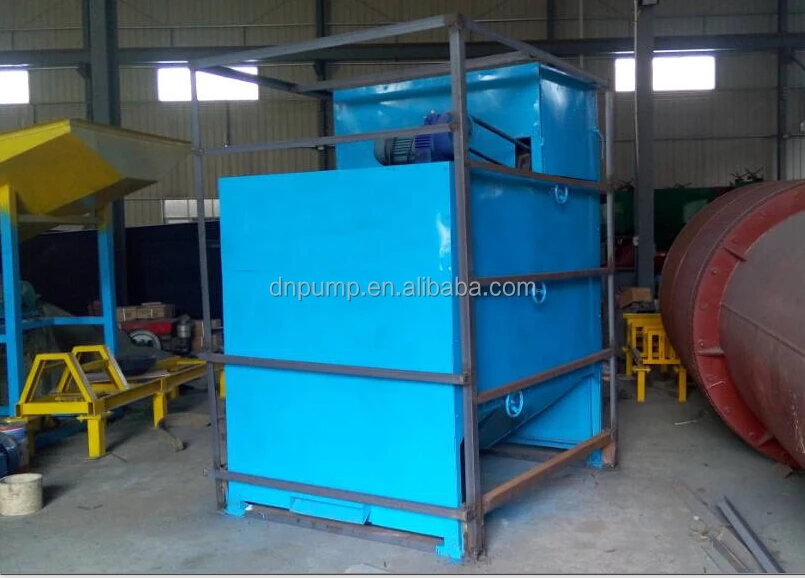

Product packaging
●Ways Of Packing
1.Small parts packed in the wooden cases.
2.Big parts packed by plastic membrane.
3.The whole big machine is loaded in the container.
● Shiping by sea/air freight
or any way the customer requires.
Our Company
7*24 hours online consulting service, we provide you with the prophase plan, process flow design and manufacturer equipment according to your special demand.
Send technicians to the job site guiding the installation and adjustment, training operators and finishing the check and accept together with you.
FAQ
●Pre-sales service: We provide you with the prophase plan, process flow design and manufacturer equipment according to your special demand.
●Sales service: Send technicians to the site to guide the installation and commissioning, train the operators, and complete the acceptance with you.
●After-sales service: To establish long term friendship, we will regularly pay return visit to customers. Supplying technique,
building design, instruction, installation and debugging for free.
●Lifelong service: One year warranty to make sure your machine runs constantly.Always offer lifelong service and provide spare parts for a long term.
●How is the quality of your products?
Answer: Our products are manufactured strictly according to national and international standard, and we will take a test on every grinder before delivery.
●How about the Guaranteed?
Answer: All of our products are guaranteed for one year. If products quality is not consistent with the description as we
described or the promise before you place order, we promise 100% refund.
●How about price?
Answer: For the complete same machine, we can promise our quality is the best when the price same as other competitors, and our price can be lowest when the quality at standard level.
●How about the service and payment terms?
Answer: We can accept T/T or other payment ways you request; 30% deposit, 70% balance before delivery, which is international trade practice; Finished product pictures will provide to customers before delivery.
●Sales service: Send technicians to the site to guide the installation and commissioning, train the operators, and complete the acceptance with you.
●After-sales service: To establish long term friendship, we will regularly pay return visit to customers. Supplying technique,
building design, instruction, installation and debugging for free.
●Lifelong service: One year warranty to make sure your machine runs constantly.Always offer lifelong service and provide spare parts for a long term.
●How is the quality of your products?
Answer: Our products are manufactured strictly according to national and international standard, and we will take a test on every grinder before delivery.
●How about the Guaranteed?
Answer: All of our products are guaranteed for one year. If products quality is not consistent with the description as we
described or the promise before you place order, we promise 100% refund.
●How about price?
Answer: For the complete same machine, we can promise our quality is the best when the price same as other competitors, and our price can be lowest when the quality at standard level.
●How about the service and payment terms?
Answer: We can accept T/T or other payment ways you request; 30% deposit, 70% balance before delivery, which is international trade practice; Finished product pictures will provide to customers before delivery.
