Дешевый GPS приемник RTK SOUTH C6 батарея 9200 мАч оборудование для исследования внешний USB накопитель GPS геодезический GNSS с IUM
- Категория: >>>
- Поставщик: Shanghai Hexin Survey Instrument Company Ltd.
Сохранить в закладки 1600758488530:
Описание и отзывы
Характеристики

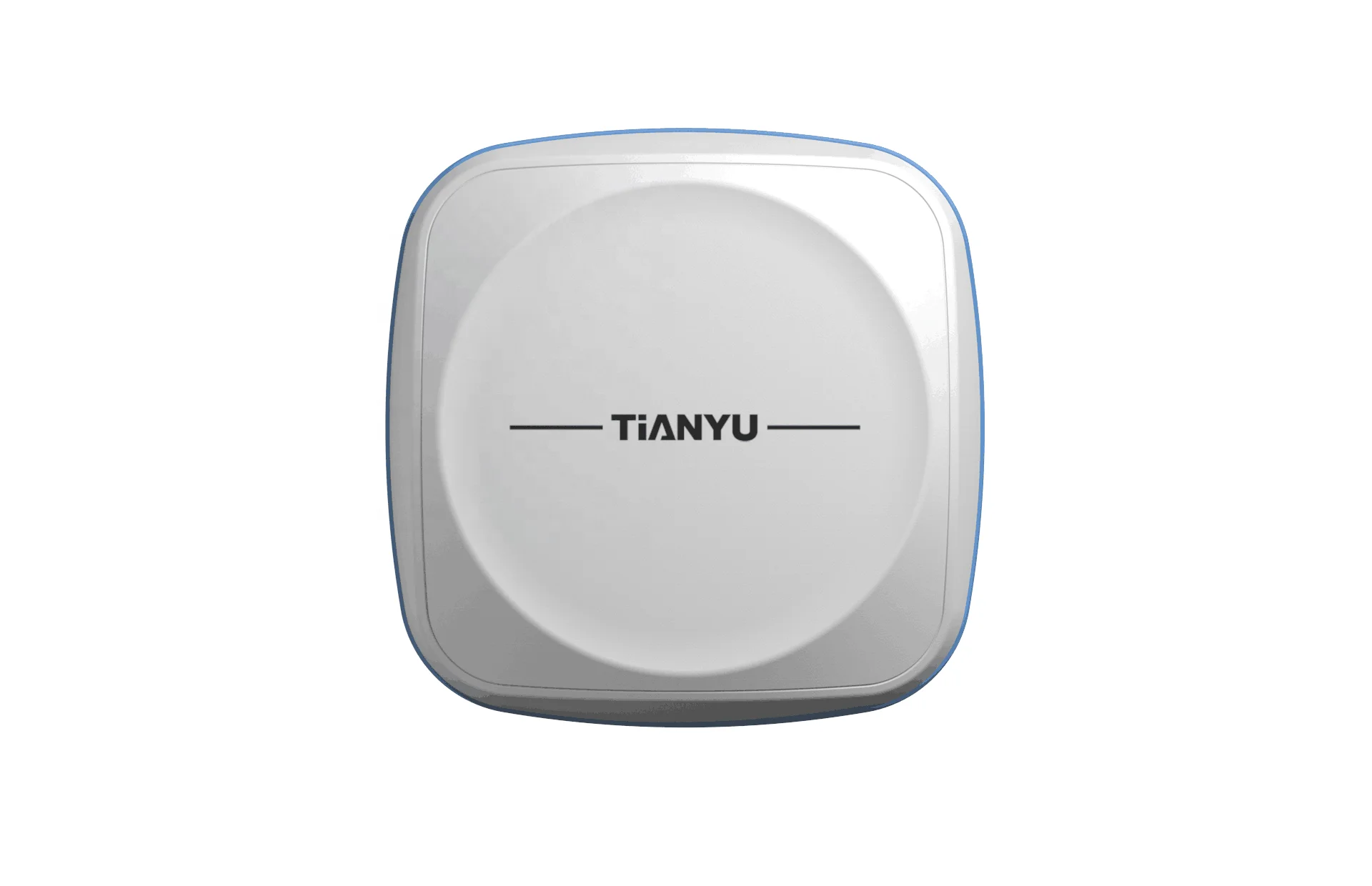

Product Description
Powered by Board-803
New generation of powerful GNSS mainboard Board-803 with 1598 channels enables C6 to support a wide range of satellite signals, including GPS, GLONASS, BeiDou, Galileo, QZSS, SBAS, etc, with greater single stability and positioning accuracy.
5KM radio link
Built-in transceiver integrated radio, working frequency 410-470MHz.TrimTalk450S,TrimMark3, SOUTH，CHC，SATEL,HI-TARGET are all compatible.Equipped with FarLink "Simultaneous" radio module, based on Farlink protocol, it can increase the sensitivity and efficiency of radio signal, achieve the typical working range as 8KM operation, and meet the needs of customers for small and mediumscale
Barrier-Free Measurement
Built-in 6800mAh high-capacity battery, the battery life is more than 15 hours, one charge, meets all-day work. Equipped with fast charging charger, which can be fully charged within 5 hours. The battery core can be recharged with long life, and performance is more secure and reliable.
WiFi and Web Server
By connecting through the integrated WiFi of C6, you can log on an user- friendly management platform on the browser of your phone or computer. All status monitoring and parameter settings can be achieved in a fast and easy way.
IMU survey
Built-in IMU compensator, correct the coordinates according to the tilt direction and angle of the centering rod automatically within 60°,assist you quickly and accurately survey or stake out points without leveling the pole, error less than 3cm within 45°
inclination, improve working efficiency by 20%.
inclination, improve working efficiency by 20%.
Linux OS
Powered by the new generation of embedded Linux operating system, C6 has a greatly improved RTK performance and efficiency. One unique core processing mechanism is able to response to more than one command at one time.
RECOMMENDED PARTNERS
Rugged Controller H6
Android 8.1
5” touch screen
4GB/32GB
Alphanumeric keypad
Ip67
External Radio S1
10/25W Output
SOUTH/Trimtalk Protocol
403-473MHz
Blue tooth 4.0
Ip67
Field Software
Android software SurvX
Easy-to-use work flow
Useful survey tools
Google map supported DXF, DWG import & display
Specification
RECEIVER SPECIFICATION | ||
Channels | 1598 | |
GPS Tracking | L1,L1C,L2C,L2P,L5 | |
GLONASS Tracking | G1,G2 | |
BeiDou Tracking | B1,B2,B3 | |
Galileo Tracking | E1,E5A,E5B,AltBOC | |
QZSS | L1,L2C,L5 | |
SBAS | L1* | |
IRNSS | L5* | |
Positoning Rate | 1-20Hz | |
RECEIVER ACCURACY | ||
Code Differential | Horizontal 0.25m±1ppm (rms) Vertical 0.50m±1ppm (rms) | |
Static | Horizontal 2.5mm±0.5ppm (rms) Vertical 5mm±0.5ppm (rms) | |
Real-Time Kinematic | Horizontal 8mm±1ppm (rms) Vertical 15mm±1ppm (rms) | |
Network RTK | Horizontal 8mm±0.5ppm (rms) | |
*By controller | Vertical 15mm±0.5ppm (rms) | |
COMMUNICATION | ||
I/O | 5pin LEMO external power + RS232 7pin LEMO USB (OTG) + Ethernet Radio antenna interface | |
UHF Radio Module | X-link 1W 410-470MHz | |
Protocol | TrimTalk 450s, TrimMark3, PCC EOT, SOUTH | |
WiFi | 802.11b/g/n Hotspot Data Link | |
Blue tooth | Blue tooth 2.1 +EDR and 4.0 | |
NFC | <10cm | |
IMUMEASUREMENT | ||
Tilt Range | Up to 60° | |
Accuracy | ＜2cm(within 30°) ＜5cm(within 60°) | |
INTERFACES | ||
Button | One | |
LED Indicator | Blue tooth, Data Link, Satellite, Power | |
DATA STORAGE | ||
Type & Storage | SSD 8GB External USB pen drive | |
Date Transfer | USB transfer Supports FTP/HTTP download | |
Format (Differential) | CMR+, sCRMx, RTCM 2.1, RTCM 2.3, RTCM 3.0, RTCM 3.1, RTCM 3.2 | |
GPS Output Format | NMEA 0183, PJK plane coord., binary code, Trimble GSOF VRS, FKP, MAC | |
Network Model | NTRIP fully supportable | |
POWER SUPPLY | ||
Battery | Internal Li-on, 6800mAh, 3.7V PowerCase supported | |
Operating Time | 15h | |
PHYSICAL | ||
Dimension | 84mm (H), 135mm (W) | |
Weight with batt. | 890g | |
Operating Temp. | -45°C to 60°C | |
Protection Class | IP67 | |
Shock | 2m drop on hard surface | |
Vibration | 40G 10ms sawtooth wave | |

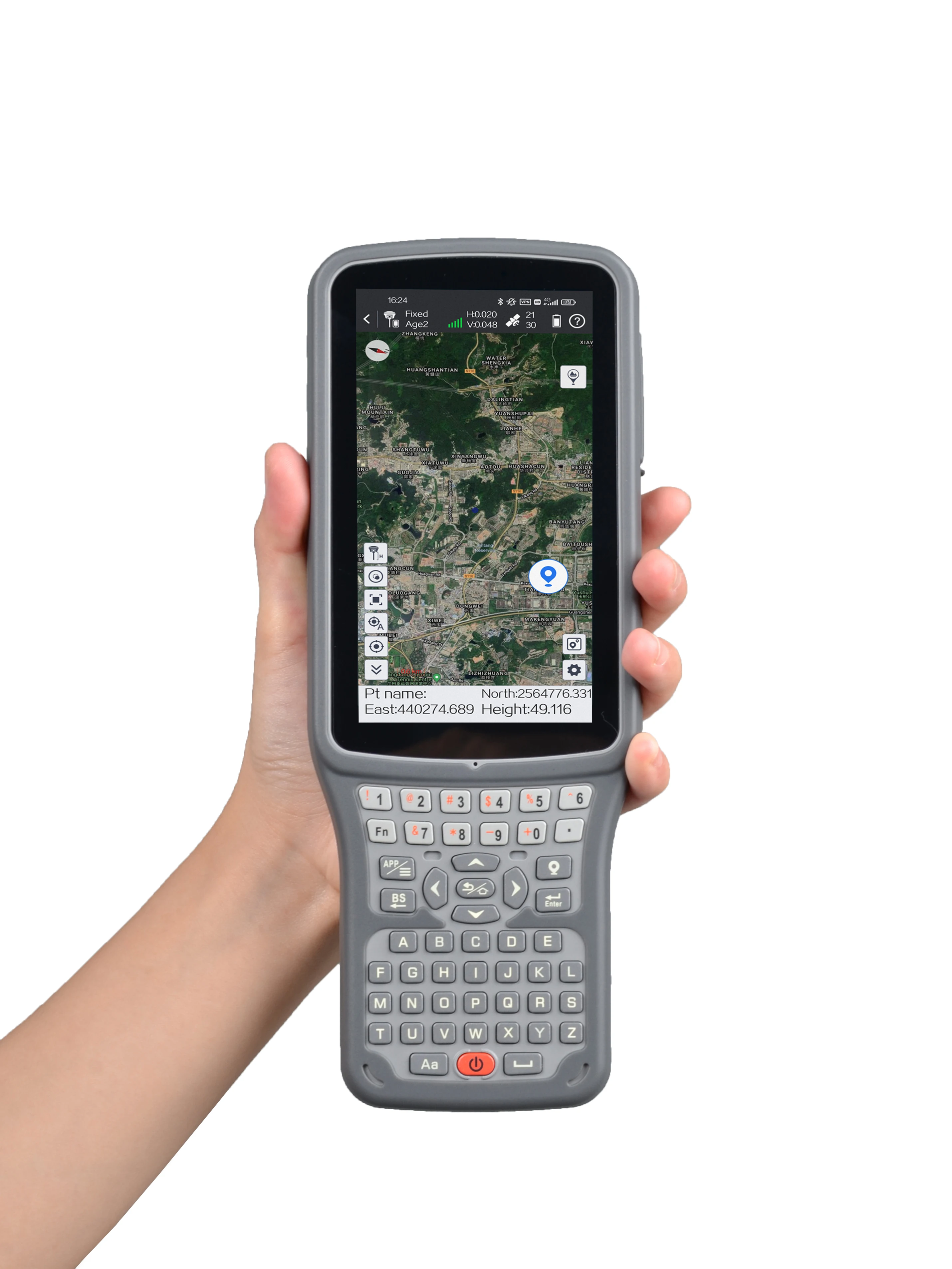

H6 is SOUTH new generation professional Android controller. It is installed Android 8.1 OS and adopts full keypad with separate
keys for 26 letters and numbers makes the input in the field more faster.
keys for 26 letters and numbers makes the input in the field more faster.
H6 as an Industrial controller has rugged cover which reaches to IP67. The device is waterproof and 1.5m drop proof, your data
will be protected and the reliability of the device in the most challenging environments.
will be protected and the reliability of the device in the most challenging environments.
In addition, the 9200 mAh Li-ion battery fulfills the long time working time need. Dual nano SIM card slots supports 4G network bring perfect experience of high speed net connection.
Integrated with various sensors, like NFC, gyroscope, E-compass, G-sensor, etc. New generation Blue tooth V4.1 working distance is more than 20 meters , the advanced WIFI module makes the working range up tp 30 meters in good condition.
SPECIFICATIONS——H6 | ||
SYSTEM | ||
Operating system | Android 8.1 | |
CPU | Octa-core 2.0GHz | |
RAM | 4GB | |
ROM | 64GB | |
Storage extension | Support 128GB extension | |
COMMUNICATION | ||
SIM frequencies | GSM: B2/B3/B5/B8 | |
FDD-LTE :B1/B2/B3/B4/B5/B7/B8/B12/B13/B17/B20/B25/B28 | ||
TDD-LTE B38/B39/B40/B41 | ||
TDSCDMA B34/B39 | ||
WCDMA B1/B2/B5/B8 | ||
CDMA1x/CDMA2000 BC0 | ||
Dual SIM card slot | Support two nano sim | |
USB | Type-C, support OTG | |
WiFi(WLAN) | IEEE 802.11a/b/g/n, 2.4G/5G | |
Blue tooth | V4.1 | |
PHYSICAL | ||
Display | 5 inches capacitive touch screen (720×1280 dpi) | |
Keypad | Full keypad | |
Audio | Integrated speaker, microphone | |
Camera | 13 megapixel camera with auto-focus | |
Flash light | High light Flash LED | |
Gyro | support | |
NFC | support | |
G-Sensor | support | |
Compass | support | |
GNSS | GPS/GLONASS/BDS | |
POWER | ||
Battery Capacity | 9200mAh | |
Stand-by Time | 240 Hrs | |
Operating Time | 15 Hrs | |
ENVIROMENT | ||
Waterproof/Dustproof | IP67 | |
Shockproof | 1.5m | |
Operation temperature | -20℃~+60℃ | |
Storage temperature | -30℃~+70℃ | |
PHYSICAL PROPERTY | ||
Size | 235mm*90mm*35mm | |
Weight | 520g | |
Terms of payment
Generally, we accept Trade Assurance, Paypal, Advance T/T, and West union.
If you prefer other payment terms, please let us know.
If you prefer other payment terms, please let us know.
Packing & Delivery
Packaging & Shipping
To better ensure the safety of your goods, professional,environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
With 10 years' experience in geodetic surveying and cadastration surveying, we are a professional and leading enterprise in the surveying industry in Mainland China.
We specialize in the R&D and manufacturing and sales of all kinds of surveying products, including total station, electronic theodolite, electronic distance meter, automatic level, laser level, reflector prism, surveying accessory, GPS receiver, mapping software, etc.
The marketing model advocated by us is not a simple sense of "selling products", instead, pre-sales service, services during operation and after-sales service are integrated in entire operating activities.
It makes the customers feel that they purchased not only a commodity, but also a professional service. We welcome new and old customers from all walks of life to contact us for future business relationships and achieving mutual success!
FAQ
1:How to turn off voice broadcast of receiver?
(1). Enter the WEBUI, find the voice switch in the settings page and turn it off.
(2). Controller Software→Device→Device Setting, turn off the “enable voice”, and click “OK”.
2:Can the base station and rover station be interchangeable?
The difference between the rover station and the base station is that the accessories are different, the function and hardware configuration are the same. You can use the controller to choose the working mode of the device and set it as the base station or rover station.
3:What is CORS?
CORS is called a continuous operating reference station system. It can be understood as a base station that is erected at a fixed known point and works continuously for 24 hours, and sends its own data to a specific serverthrough the network.The use of CORS operation eliminates the need for a basestation, and CORS is equivalent to a base station in a normalnetwork operation.
4: What services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW.
Accepted Payment Currency:USD.
Accepted Payment Type: T/T,PayPal,Western Union.
Language Spoken:English,Chinese.
(1). Enter the WEBUI, find the voice switch in the settings page and turn it off.
(2). Controller Software→Device→Device Setting, turn off the “enable voice”, and click “OK”.
2:Can the base station and rover station be interchangeable?
The difference between the rover station and the base station is that the accessories are different, the function and hardware configuration are the same. You can use the controller to choose the working mode of the device and set it as the base station or rover station.
3:What is CORS?
CORS is called a continuous operating reference station system. It can be understood as a base station that is erected at a fixed known point and works continuously for 24 hours, and sends its own data to a specific serverthrough the network.The use of CORS operation eliminates the need for a basestation, and CORS is equivalent to a base station in a normalnetwork operation.
4: What services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW.
Accepted Payment Currency:USD.
Accepted Payment Type: T/T,PayPal,Western Union.
Language Spoken:English,Chinese.
If you have any questions,please click on the text or the picture below to contact us.
Похожие товары
Лидер продаж 2023, порошок глутаминовой кислоты, L-глутаминовая кислота оптом
5,00 $ - 6,50 $
Клапан управления общей топливной магистралью XINYIDA 0 445 120 199 4994541 для инжектора двигателя Cummins
98,00 $ - 128,00 $
Защитная цилиндрическая ручка дверной замок Рычажная ключ из нержавеющей стали для главной спальни
2,50 $ - 4,00 $

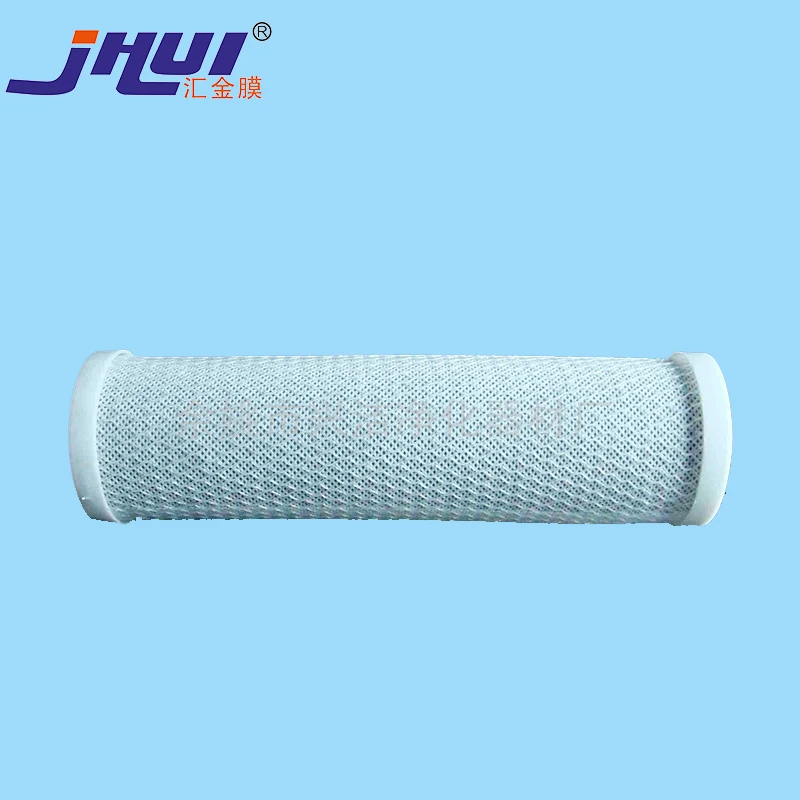

Экологичный элемент фильтра для воды промышленный активированный уголь

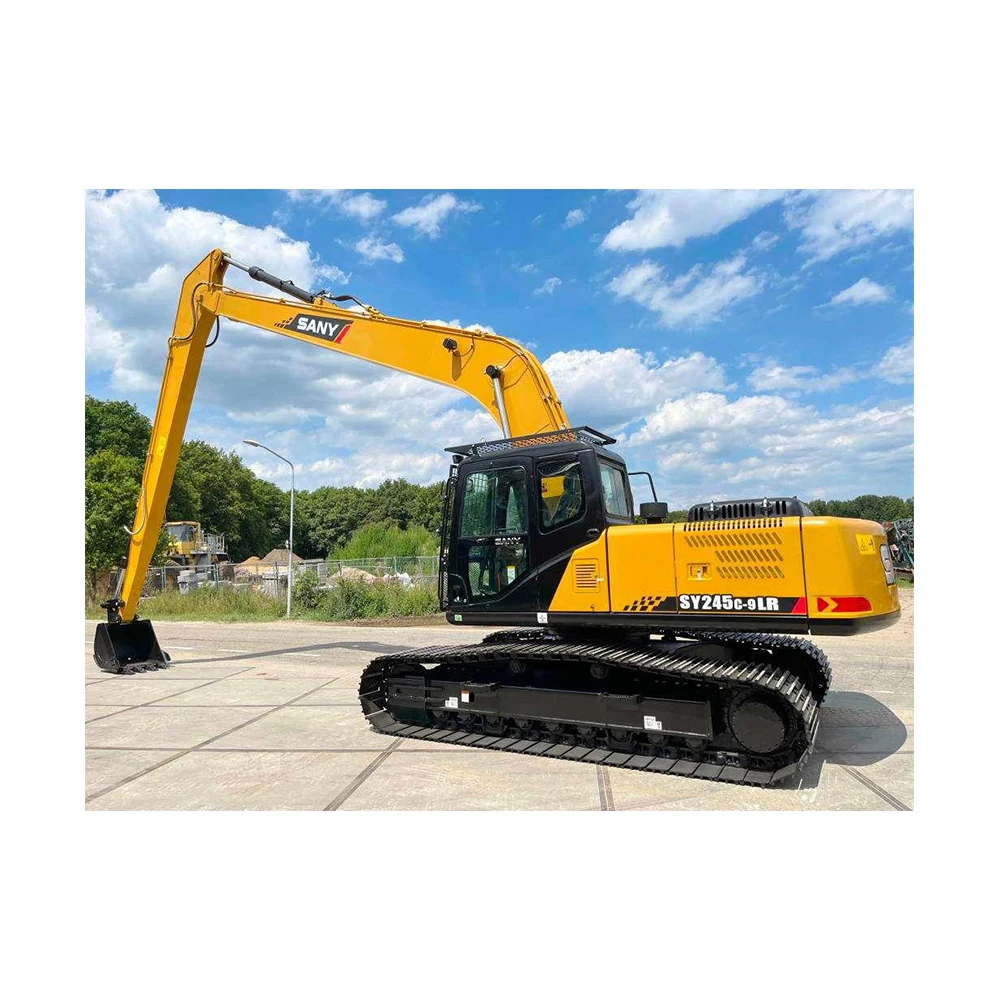

Привлекательный дизайн высокая эффективность использования топлива Sany SY245C-9LR экскаватор на цены по прейскуранту завода-изготовителя оптовой цены из производителя
151 500,00 $ - 156 000,00 $

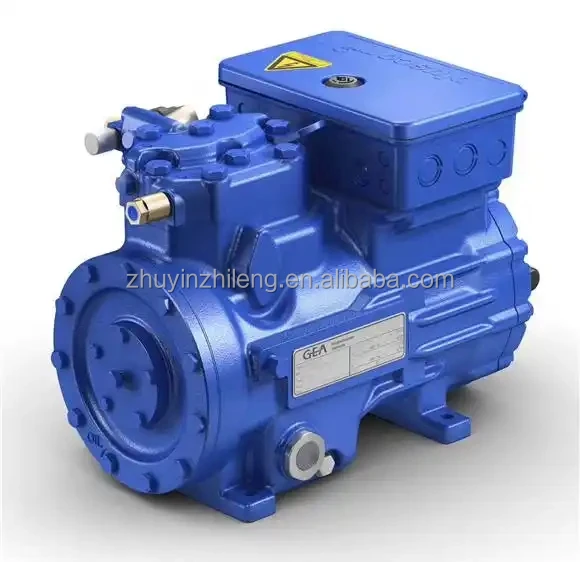

Поставка 3-фазного R134a Bock sermi герметичный поршневой компрессор HG12P/60-4S gea bock компрессор
580,00 $ - 605,00 $

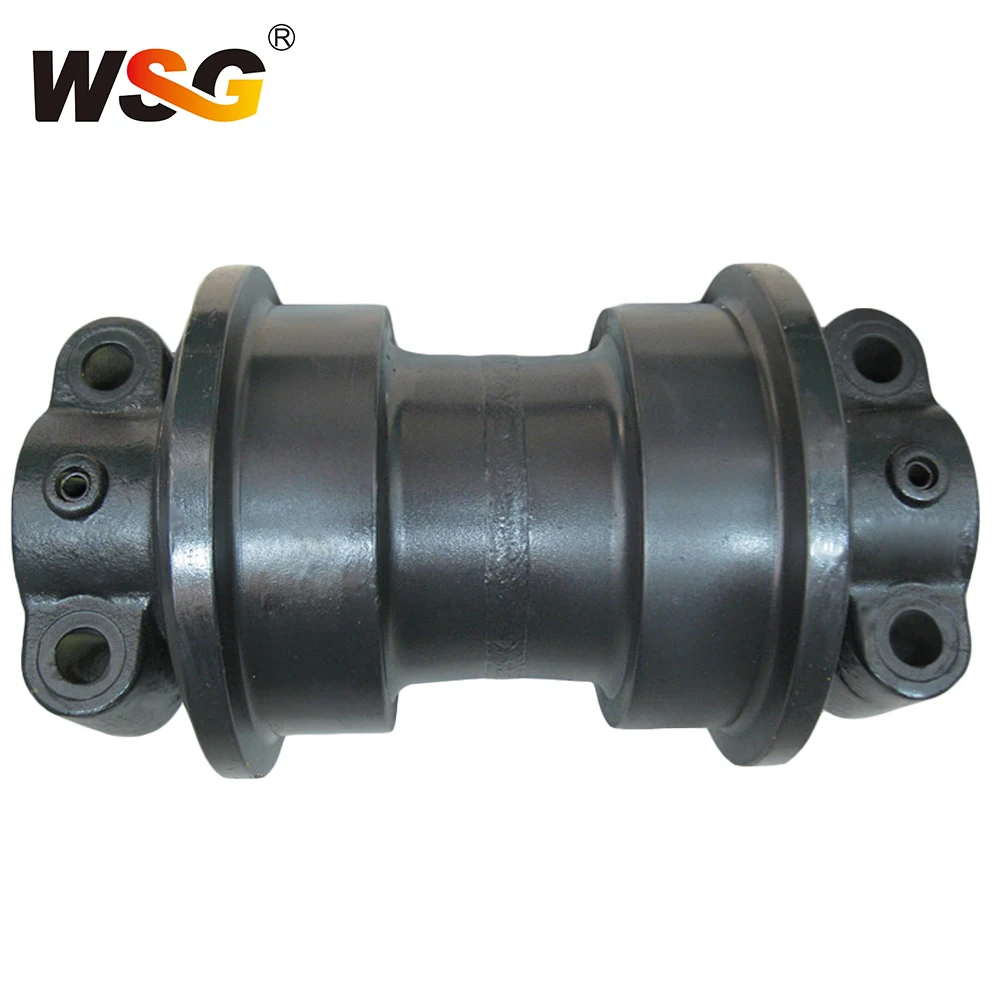

Направляющая v для строительной машины, гусеничный каток CAT320 1634143, фрикционный нижний каток экскаватора
