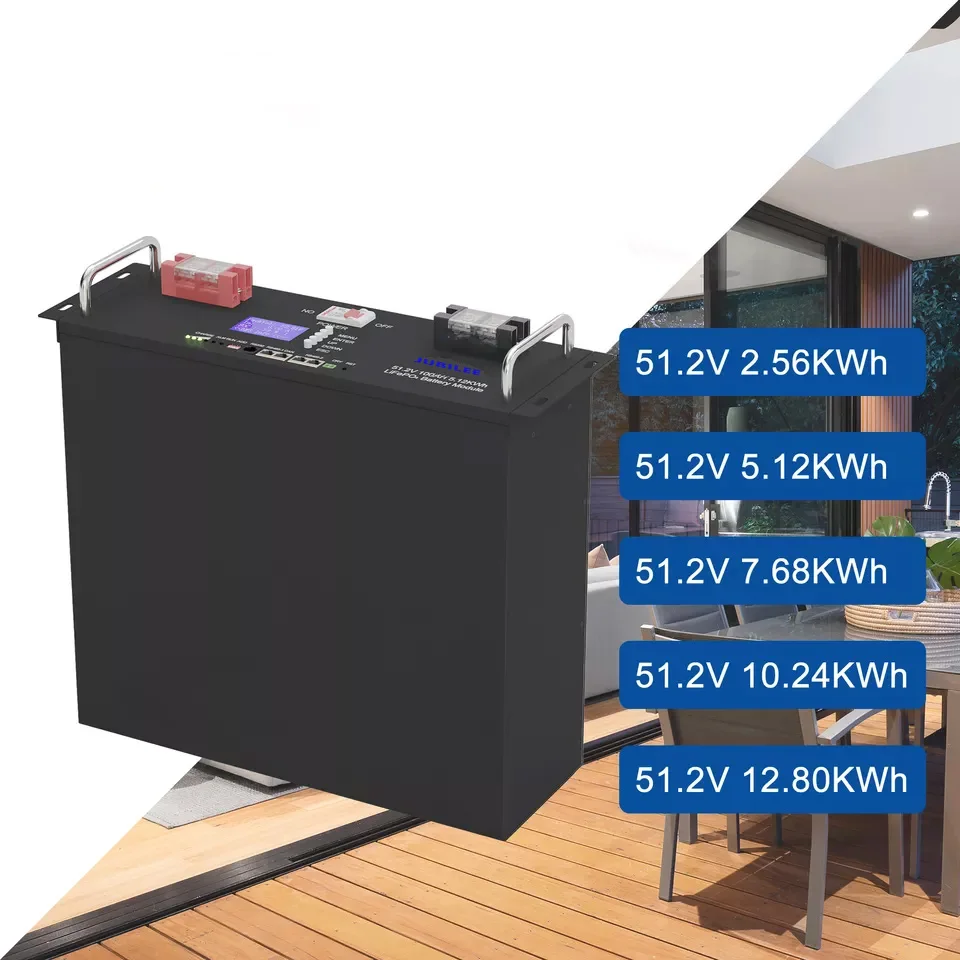

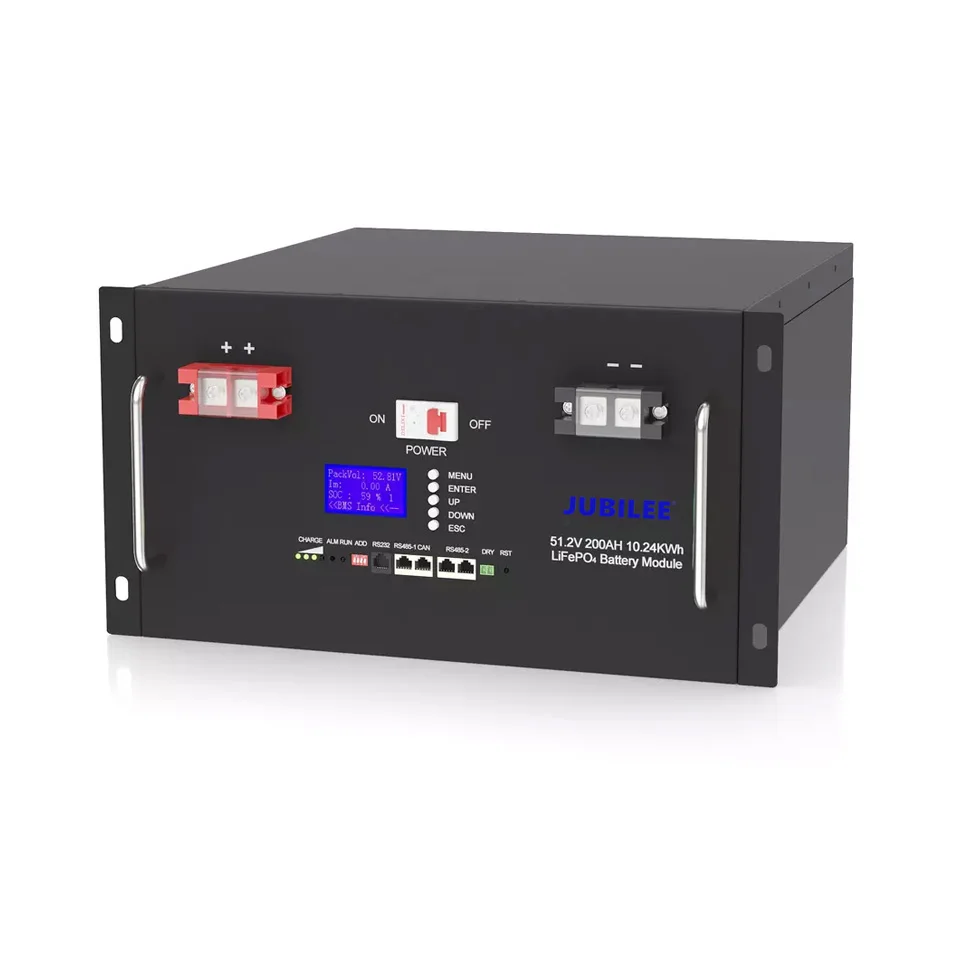

48 В 51 2 5 кВт 10 15 20 батарея для хранения солнечной энергии 100 А/ч 300 литий ионная
- Категория: Batteries >>>
- Поставщик: Dongguan Jubilee Energy Technology Co. Ltd.
Сохранить в закладки 1600758501417:
Описание и отзывы
Характеристики
Products Description
Voltage | 48V | 48V | 48V | 48V | |||
Capacity | 50AH | 100AH | 150AH | 200AH | |||
Energy | 2.56KWH | 5.12KWH | 7.68KWH | 10.24KWH | |||
Operation Voltage | 42-54VDC | 42-54VDC | 42-54VDC | 42-54VDC | |||
Max Charging and Discharging Current | 50A | 100A | 100A | 100A | |||
Max Power | 2560W | 5120W | 7680W | 10240W | |||
Life Time | 15-20 years | ||||||
Life Cycles | 6000 Cycles | ||||||
Storage Time/Temperature | -20°C to 60°C @60+/-25% Relative Humidity | ||||||
Operation temperature | -20C to 60°C @60+/-25% Relative Humidity | ||||||
Storage temperature | 0Cto 45C @60+/-25% Relative Humidity | ||||||
Lithium Battery Standard | UL1642,IEC62619,UN38.3,ROHS,CE-EMC | ||||||
Enclosure protection rating | IP21 | ||||||
Dimensions(L×W×H) | 360*140*57OMM | ||||||
Weight | 24KG | 47KG | 50KG | 120KG | |||
Electrical Characteristics | Item | Specification | ||||
Nominal Voltage | 51.2V | |||||
Nominal Capacity | 100AH | |||||
Energy | 5120WH | |||||
Internal Resistance | ≤30MΩ | |||||
Cycle Life | ＞6000cycle | |||||
Months self Discharge | <3% | |||||
Efficiency of charge | 100%@0.2C | |||||
Efficiency of Discharge | 96%-99%@1C | |||||
Standard Charge | Charge Voltage | 58.4±0.2V | ||||
Charge Mode | 0.2C to 58.4V, then 58.4V,charge current 0.02C(CC/CV | |||||
Charge Current | 50A | |||||
Max.Charge Current | 100A | |||||
Charge Cut off Voltage | 58.4V±0.2V | |||||
Stancard Discharge | Continuous Current | 100A | ||||
Max. Pulse Current | 300A(30S) | |||||
Discharge Cut off Voltage | 40V | |||||
Environmental | Charge Temperature | 0℃ to 45℃ (32F to 113F) @60 25% Relative Humidity | ||||
Discharge Temperature | -20℃ to 60℃ (-4F to 140F) @60± 25% Relative Humidity | |||||
Storage Temperature | 0℃ to 40℃ (32F to 104F) @60± 25% Relative Humidity | |||||
Water Dust Resistance | IP65 | |||||

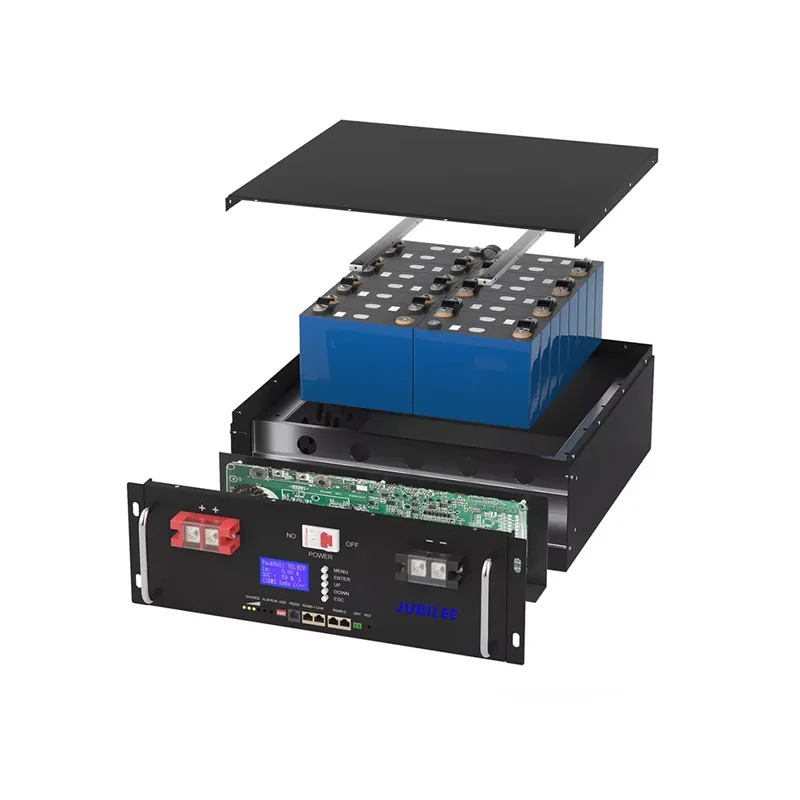

Mechanical | Cell & Method | 3.2V100AH-16S1P | ||||
Shell Material | Iron shel | |||||
Dimensions (in./mm.) | 635*400*192MM | |||||
Weight (lbs./kg.) | 46.3KG | |||||
Terminal | 100A through terminal | |||||
Protocol (optional) | RS485/RS232/CAN | |||||

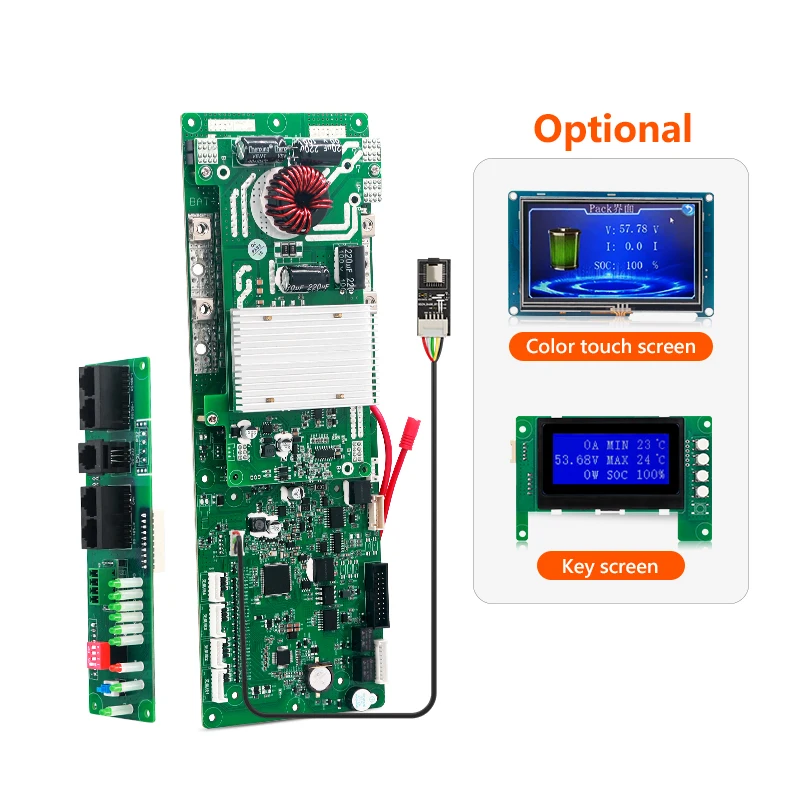

BMS | 16S100A | |||||
Company Profile
Dongguan Jubilee Energy Technology Co., Ltd. specializing inR & D, manufacturing and sales of power supplies, solar power station,solarpanel and other related products for 18 years.
The company's core products include home energy storage and energy storage system, industrial high voltage energy storage, BESS container energy storage system, portable emergency power station, RV/golf cart lithium ion battery and etc. At the same time, we provide a variety of household and commercial use of customized solar energy BESS solutions. Meanwhile, we have our own long-term close cooperated inverter and solar panel manufacturers which have passed various qualification certifications. Our products have been exported to the United States, Germany, Japan, France, South Africa, the Middle East and other European and Southeast Asian countries.
Our company is dedicated in establish a long-term stable cooperative relationship with our customers, to provide them with high-quality products and professional pre-sales and after-sales.
The company's core products include home energy storage and energy storage system, industrial high voltage energy storage, BESS container energy storage system, portable emergency power station, RV/golf cart lithium ion battery and etc. At the same time, we provide a variety of household and commercial use of customized solar energy BESS solutions. Meanwhile, we have our own long-term close cooperated inverter and solar panel manufacturers which have passed various qualification certifications. Our products have been exported to the United States, Germany, Japan, France, South Africa, the Middle East and other European and Southeast Asian countries.
Our company is dedicated in establish a long-term stable cooperative relationship with our customers, to provide them with high-quality products and professional pre-sales and after-sales.
Our Advantages
OEM & ODM SERVICE
Meet your any requirement; and offer you satisfied product and project.
18 YEARS EXPERIANCE
The professional technology and team is more reliable.
Meet your any requirement; and offer you satisfied product and project.
18 YEARS EXPERIANCE
The professional technology and team is more reliable.
STOCK FOR READY TO SHIP
2-5 days to reach in our some oversea warehouse; we keep stock about popular ones in our factory.
7*24H PROFESSIONAL TEAM
Any time pls just contact us!
INNOVATIOIN&COMPETITIVENESS
Keep high competitive power and we have 12 patents and 26 engineers now.
2-5 days to reach in our some oversea warehouse; we keep stock about popular ones in our factory.
7*24H PROFESSIONAL TEAM
Any time pls just contact us!
INNOVATIOIN&COMPETITIVENESS
Keep high competitive power and we have 12 patents and 26 engineers now.
Certifications
Packing & Shipping
FAQ
Q1:Can I get some samples to test before placing the order? How many days about it? Is sample free of charge?
A: Yes, It’s 3 days for our stock one, and around 7-15 working days for customized, it depends on the customer’s requirement. It’s charged sample fee and freight together.
Q2: What is MOQ for logo printing?
A: Normally MOQ 1 set as trial order about our existing stock or 10 sets for customized ones. We accept OEM&ODM about product.
Q3: What is your payment term?
A: T/T, Paypal, Credit Card, Western Union are available.
Q4: How about the quality about the products?
A:We will offer 3 years warranty about energy storage, 5-12 years about solar system,
and we 'll test all goods and send you test reports before out of factory.
Q5:Do you have any certifications of products?
A: We have ISO9001:2000, UN38.3,UL Report, FCC, PSE, METI, CE, RoHS, MSDS.
Q6: Are you a manufacturer or trading company?
A: We are a professional manufacturer. Both OEM & ODM service can be accepted.
Q7: Where is your main market?
A: Most of our customers are from USA, United States, Germany, Japan, France, South Africa, Middle East and many other European and Southeast Asian countries.
A: Yes, It’s 3 days for our stock one, and around 7-15 working days for customized, it depends on the customer’s requirement. It’s charged sample fee and freight together.
Q2: What is MOQ for logo printing?
A: Normally MOQ 1 set as trial order about our existing stock or 10 sets for customized ones. We accept OEM&ODM about product.
Q3: What is your payment term?
A: T/T, Paypal, Credit Card, Western Union are available.
Q4: How about the quality about the products?
A:We will offer 3 years warranty about energy storage, 5-12 years about solar system,
and we 'll test all goods and send you test reports before out of factory.
Q5:Do you have any certifications of products?
A: We have ISO9001:2000, UN38.3,UL Report, FCC, PSE, METI, CE, RoHS, MSDS.
Q6: Are you a manufacturer or trading company?
A: We are a professional manufacturer. Both OEM & ODM service can be accepted.
Q7: Where is your main market?
A: Most of our customers are from USA, United States, Germany, Japan, France, South Africa, Middle East and many other European and Southeast Asian countries.
Похожие товары
Высококачественная литиевая батарея глубокого цикла 24 В 48 Lifepo4 200 ач для солнечной
560,00 $ - 589,00 $

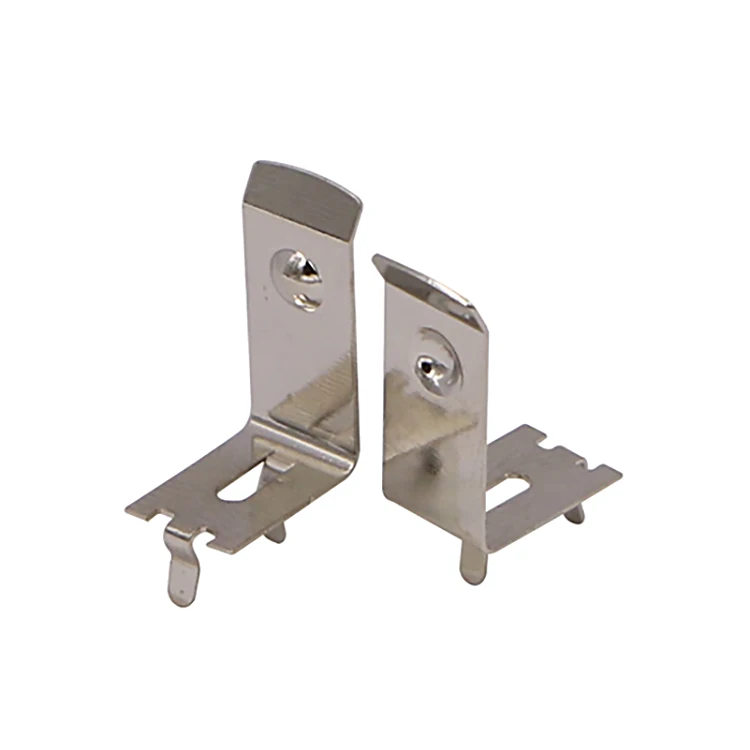

Poding по индивидуальному заказу для AA батарея 0 3 мм Батарея зажимы 14500 сталь контактный разъем ограничению на использование опасных материалов в производстве не содержит никель пластины
0,06 $ - 0,13 $

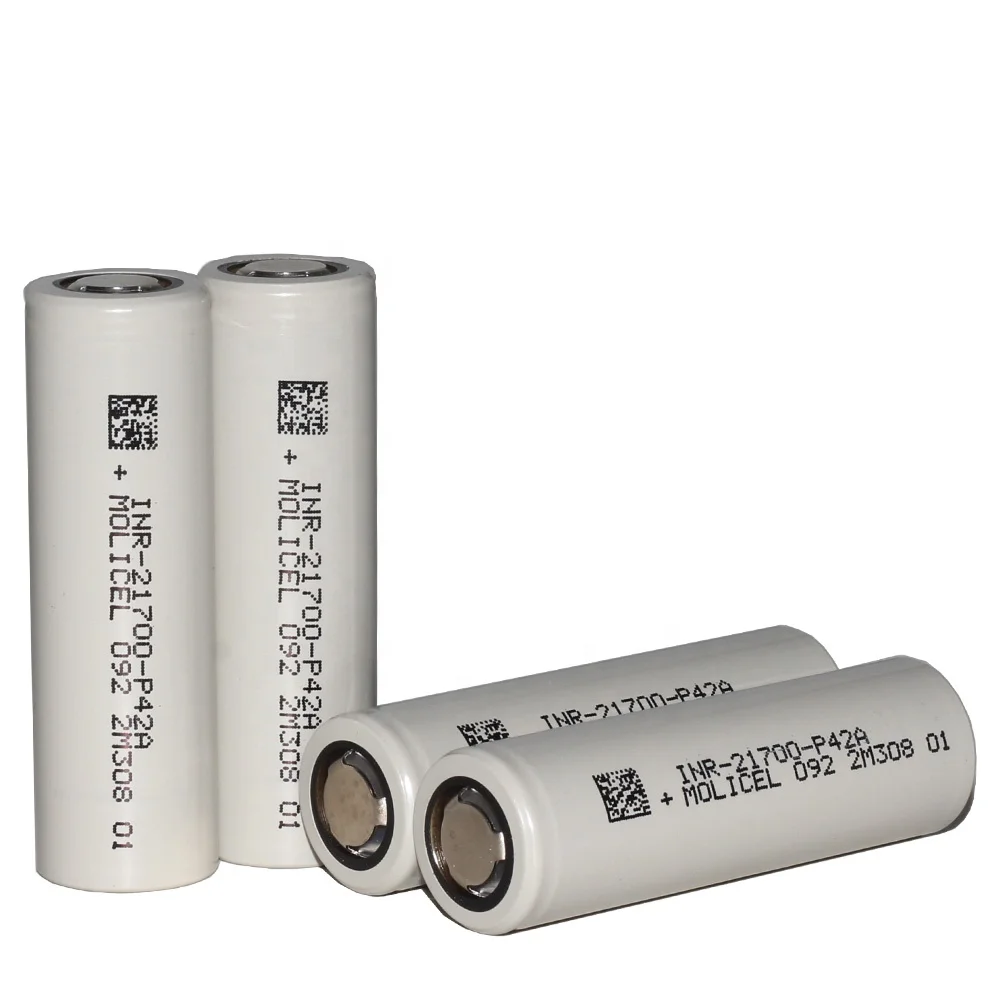

Molicel 3 6 V 21700 Molicell P42A 4200mAh Макс 45A поддержка разряда-40 градусов Цельсия низкотемпературный
4,45 $ - 4,80 $
Лучший комплект батарей 15 кВт 48 В/51,2 в 304AH 320Ah для хранения литий-ионной солнечной энергии
560,00 $ - 1 280,99 $

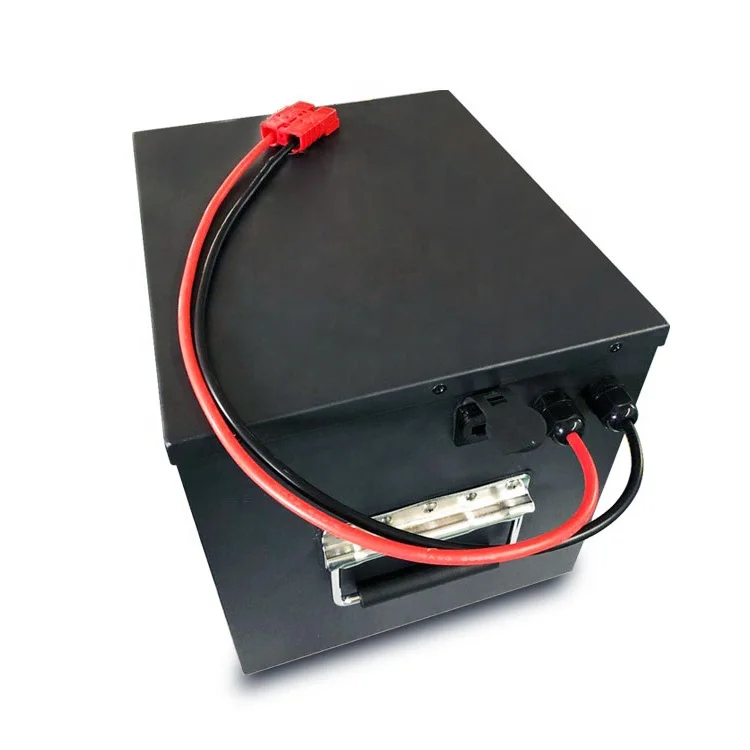

Многократного цикла глубокого заряда-разряда в создании литий-ионных батарей 72v 30ah 60ah 100ah LifePo4 батарея для электрического скутера/мотоцикла из автомобильного аккумулятора 6000
412,00 $ - 448,00 $

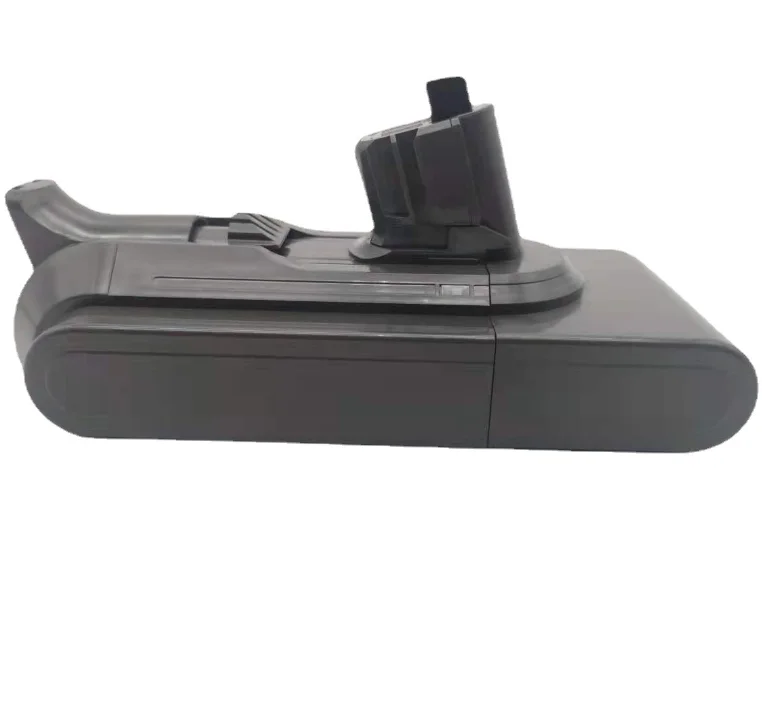

25 2 В 3000 мАч пылесос Замена батареи для V11
