Высоковольтный сварочный аппарат с большим Мотором для беличьего клетки индукционный пайки
- Категория: >>>
- Поставщик: Nantong Zhenhuan Trade Co. Ltd.
Сохранить в закладки 1600759608881:
Описание и отзывы
Характеристики
MACHINE DESCRIPTION

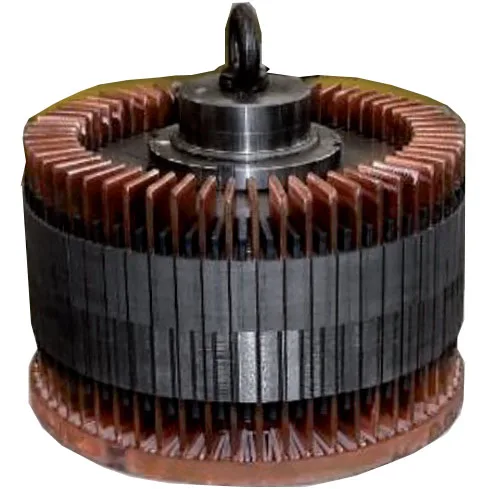

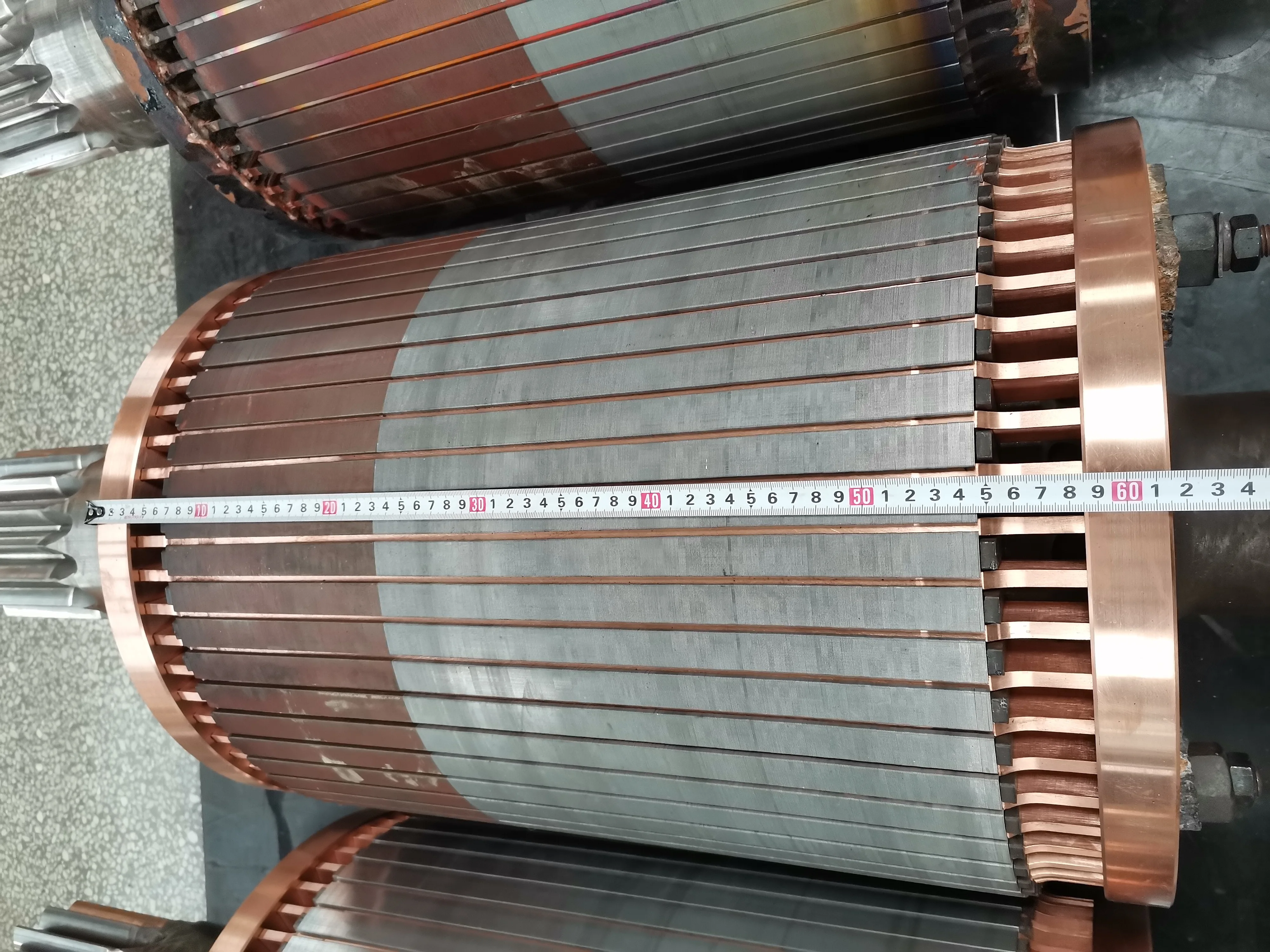

This motor rotor end face brazing machine is used for brazing and heating of motor rotor guide bars. The equipment has strong
professionalism, high degree of automation, simple operation, high welding quality of workpieces, no stress on the guide bars
after welding, and no broken bars.
professionalism, high degree of automation, simple operation, high welding quality of workpieces, no stress on the guide bars
after welding, and no broken bars.
MAIN FEATURES
1. Rated output power: 200kw, equipped with output transformer isolation;
2. Rated input voltage: three-phase 380VAC, 50Hz
3.Resonant frequency: 6-10KHz automatic tracking;
★4. Equipment efficiency ≥96%, power factor ≥0.96
MACHINE ADVANTAGE

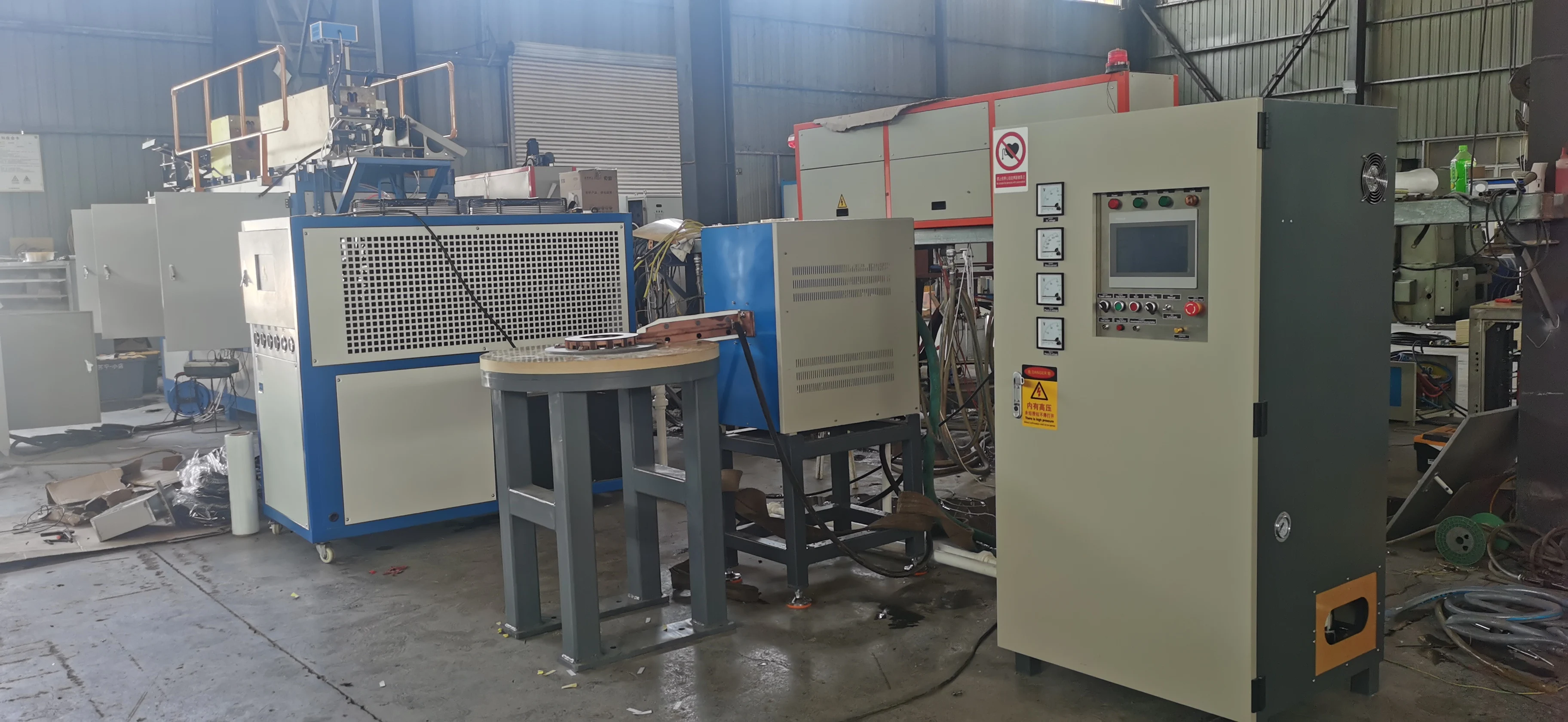

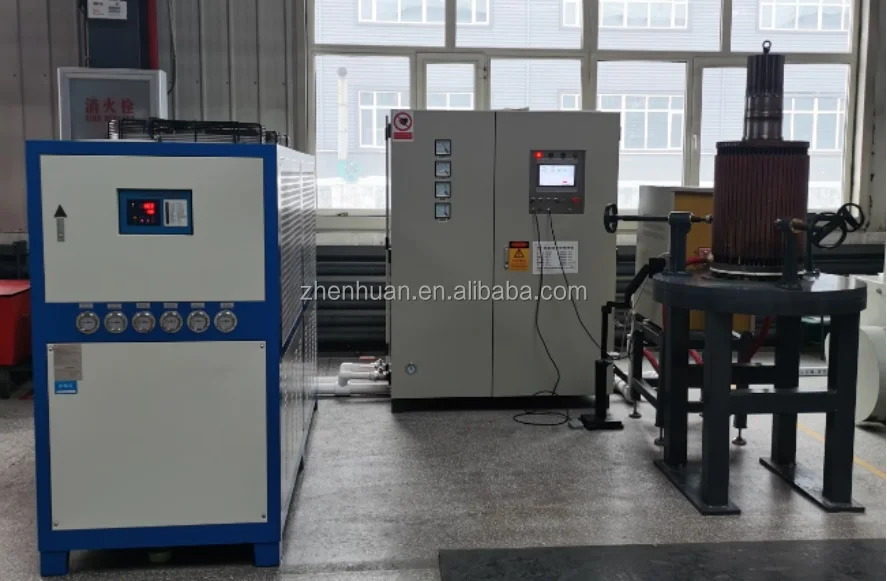

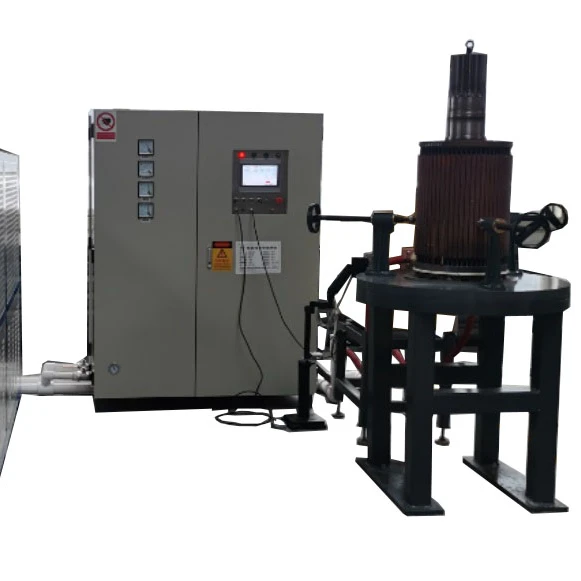

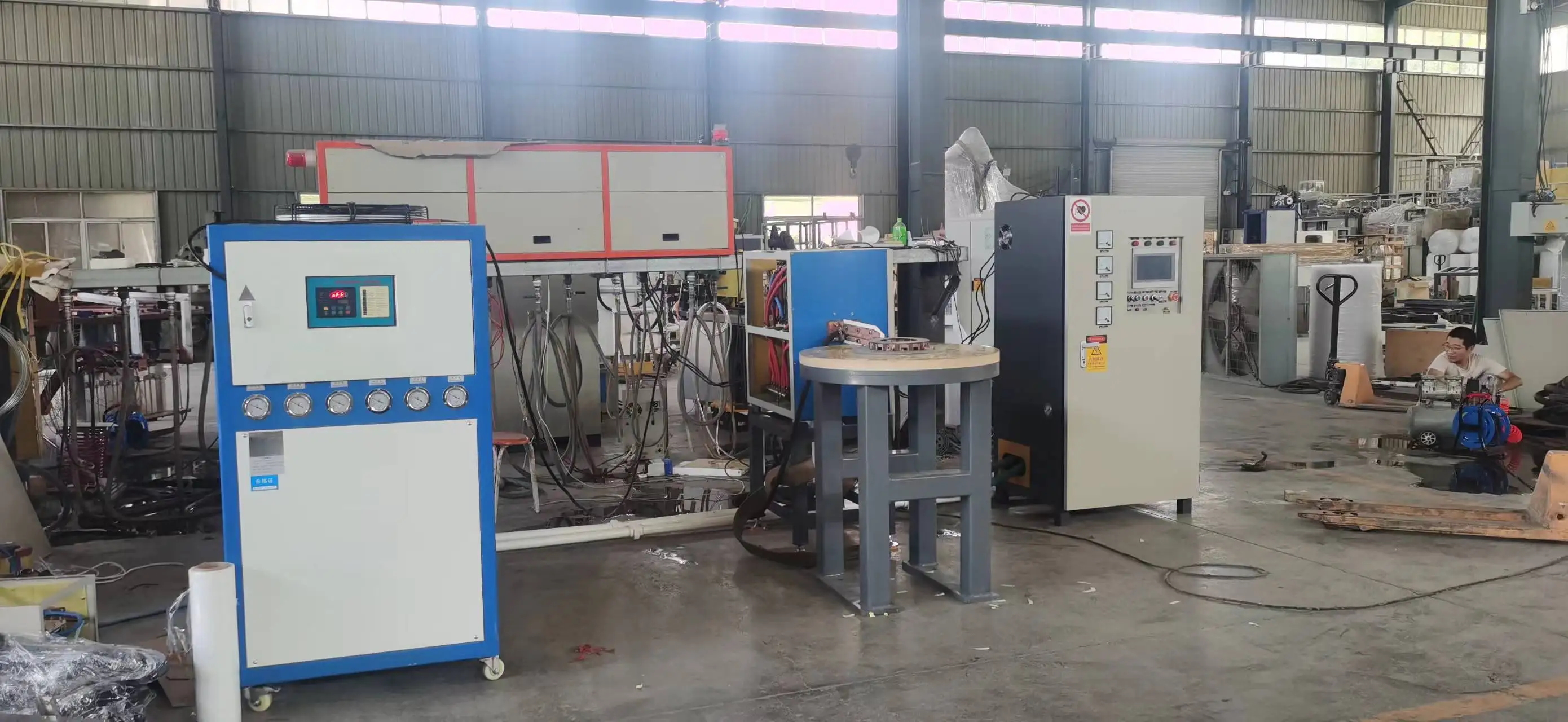

4.1 The whole set of equipment consists of IGBT intermediate frequency power supply (using water cooling), capacitor cabinet,
transformer, heating inductor, motor rotor bar brazing bed, temperature control system (including temperature control PLC,
man-machine interface operation screen) chiller. Its structure is as follows:
transformer, heating inductor, motor rotor bar brazing bed, temperature control system (including temperature control PLC,
man-machine interface operation screen) chiller. Its structure is as follows:

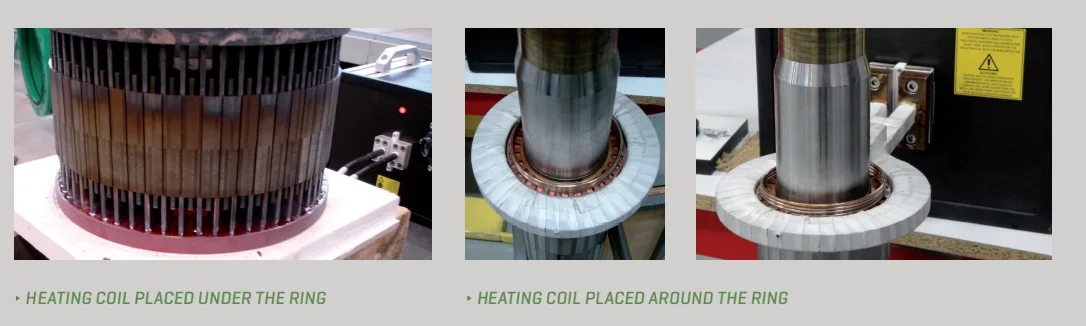

4.2 Introduction of heating sensor: According to the structural characteristics of the motor end ring, a unilateral bottom plane
heating inductor is used, the cooling method of the inductor is water cooling, and the heating part is embedded with a
high-frequency low-loss silicon steel sheet magnetic conductor to improve the heating efficiency.
heating inductor is used, the cooling method of the inductor is water cooling, and the heating part is embedded with a
high-frequency low-loss silicon steel sheet magnetic conductor to improve the heating efficiency.
4.3 Motor rotor bar brazing heating machine body The motor rotor guide bar brazing bed has sufficient rigidity and durability,
small thermal deformation, anti-fabrication and anti-corrosion, the lower frame is welded by section steel, and the platform
surface is covered with high-temperature epoxy glass fiber insulation board and heat-resistant mica board, anti-magnetic,
anti-magnetic hot. 4.4. Temperature automatic control system The automatic temperature control system is composed of an infrared temperature sensor with laser alignment, a temperature regulator, and an operating table, which is dedicated to short-wave copper metal measurement by a famous German brand (confidential).
small thermal deformation, anti-fabrication and anti-corrosion, the lower frame is welded by section steel, and the platform
surface is covered with high-temperature epoxy glass fiber insulation board and heat-resistant mica board, anti-magnetic,
anti-magnetic hot. 4.4. Temperature automatic control system The automatic temperature control system is composed of an infrared temperature sensor with laser alignment, a temperature regulator, and an operating table, which is dedicated to short-wave copper metal measurement by a famous German brand (confidential).
5.Chiller
5.1 Closed circulation industrial chiller: rated cooling power ≥ 64KW (to meet the rated power 50% duty cycle
operation), water tank capacity: ≥ 200 liters. It has the protection functions of phase error, overload, water temperature andwater level, and is linked with the power supply to provide water pressure detection and protection.
operation), water tank capacity: ≥ 200 liters. It has the protection functions of phase error, overload, water temperature andwater level, and is linked with the power supply to provide water pressure detection and protection.
5.2 The compressor adoptsPanasonic compressor (Panasonic, Japan), which is a world-renowned brand of hermetic scroll compressor, which is 20-30% more energy efficient than reciprocating compressors, and has stable and reliable operation, high efficiency, low failure, low vibration, low noise, and maintenance. convenience and so on.
5.3 304 stainless steel water tank can effectively avoid corrosion and water leakage
5.4 High-performance stainless steel pump can ensure long-term uninterrupted work
5.5 The in-line condensing
system is designed to achieve good heat exchange efficiency
system is designed to achieve good heat exchange efficiency
5.6 The piping system adopts 304 stainless steel seamless
pipe/non-ferrous metal material 5.7 Filters are installed in the media circulation loop and cooling water supply pipeline
According to the usage power of 600KW, select a 50-horse chiller to cool the entire equipment
pipe/non-ferrous metal material 5.7 Filters are installed in the media circulation loop and cooling water supply pipeline
According to the usage power of 600KW, select a 50-horse chiller to cool the entire equipment
MACHINE SPECIFICATION
Item | Data |
Code | ZH-250 |
Current | 500A |
Power | 250kW |
Voltage | 380V |
IF-FRE | 12KHz-25KHz |
Welding temperature | 300-900 degrees celsius |
Weight | 2000kg |
