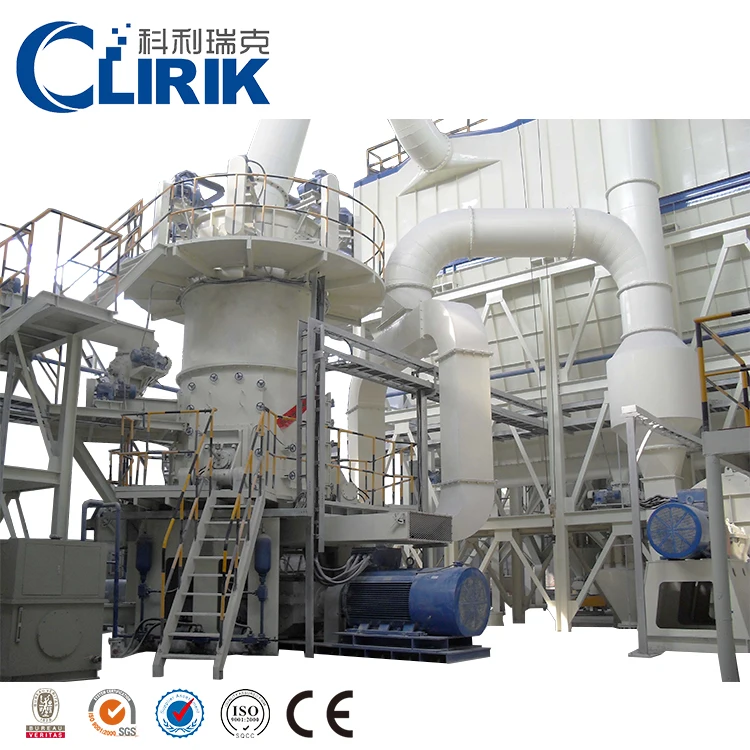

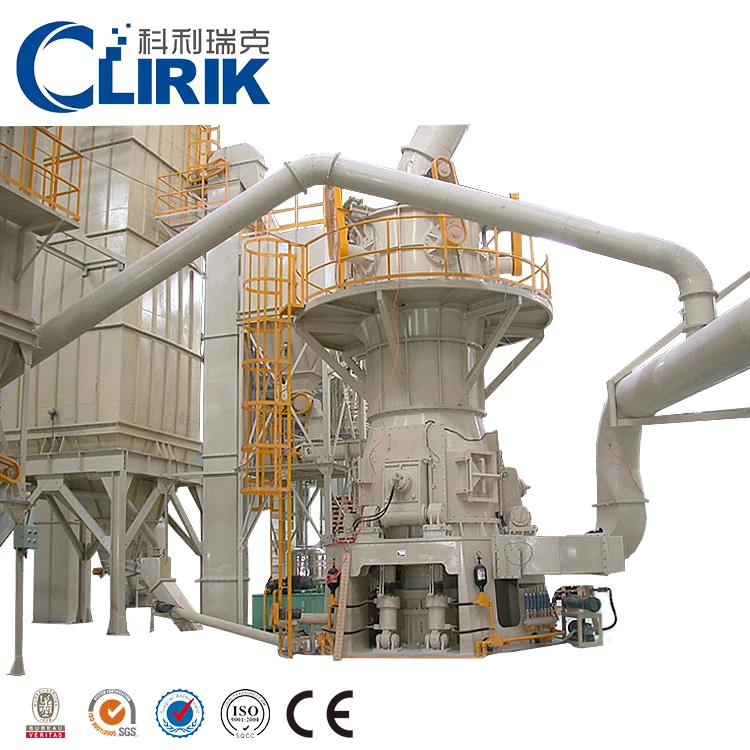

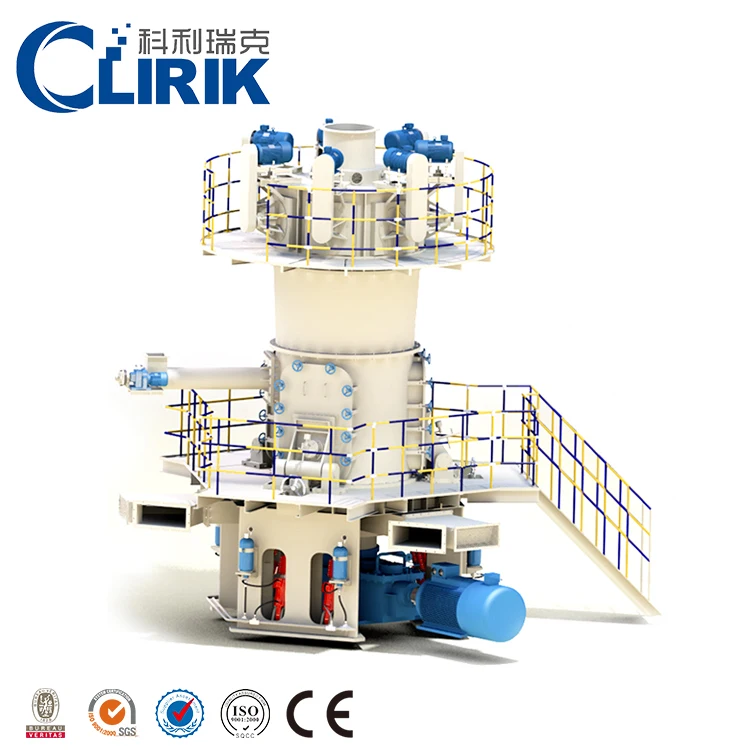

Вертикальная роликовая мельница Clirik для известняка линия по производству порошка каолина барита
- Категория: >>>
- Поставщик: Shanghai Clirik Machinery Co. Ltd.Shanghai Ltd.
Сохранить в закладки 1600759895220:
Описание и отзывы
Характеристики
Product Overview

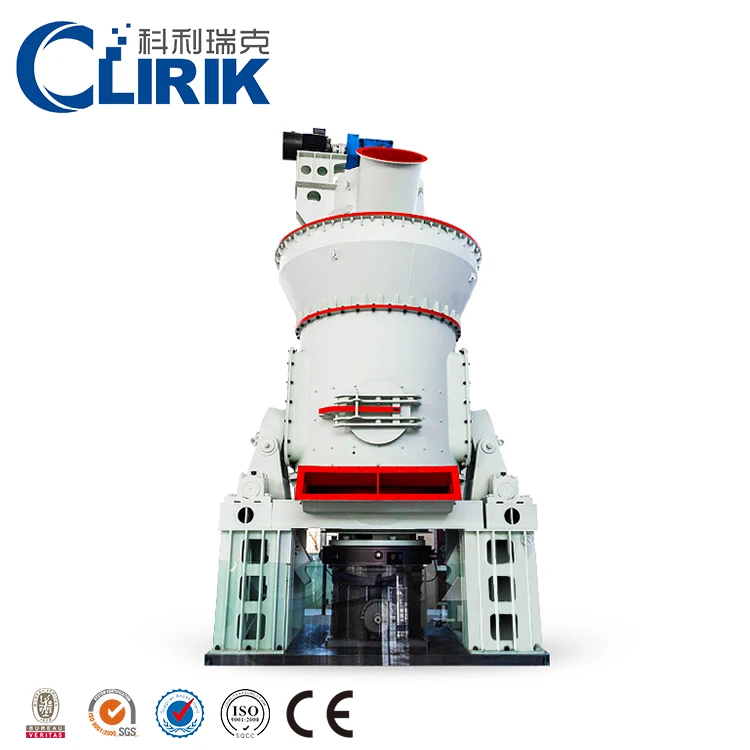

The calcium carbonate powder ultrafine vertical roller mill machine is a new type of vertical roller mill suitable for grinding non-metallic ultra-fine powder, which is developed by improving the existing vertical roller mill technology on the basis of absorbing the advantages of foreign ultra-fine vertical roller mill and analyzing the needs of domestic customers.
Independent research and development of calcium carbonate powder ultrafine vertical roller mill machine used Adopt multi-head powder separator, Clirik classifier perfect solved the particle cutting point height rate of screening questions, compared with the traditional horizontal classifier, fully guaranteed the fineness of finished product can reach 20% ~ 70% (powder size<2um)(Detection machine: Malvern Micro laser particle size analyzer).
After years of material research and development, Clirik’s new wear-resistant alloy steel has been successfully applied to roll, ball mill bearing and other wear-resistant parts, which gives wear-resistant parts extremely long service life and prolonging the replacement cycle of wear-resistant parts.
Independent research and development of calcium carbonate powder ultrafine vertical roller mill machine used Adopt multi-head powder separator, Clirik classifier perfect solved the particle cutting point height rate of screening questions, compared with the traditional horizontal classifier, fully guaranteed the fineness of finished product can reach 20% ~ 70% (powder size<2um)(Detection machine: Malvern Micro laser particle size analyzer).
After years of material research and development, Clirik’s new wear-resistant alloy steel has been successfully applied to roll, ball mill bearing and other wear-resistant parts, which gives wear-resistant parts extremely long service life and prolonging the replacement cycle of wear-resistant parts.
Calcium carbonate powder ultrafine vertical roller mill machine parameter:
Main configuration and production | ||||||
Model Item | CLUM1425 | CLUM1632 | CLUM1736 | |||
Working Diameters(mm) | 1400 | 1600 | 1700 | |||
Number of rollers(pieces) | 3 | 3 | 3 | |||
Number of classifier(pieces) | 6 | 6 | 6 | |||
Power of classifier(Kw) | 6X15 | 8X22 | 8X22 | |||
Main unit power (Kw) | 220- 250 | 315-355 | 355-410 | |||
Blower power(Kw) | 180-200 | 250-280 | 325-355 | |||
Feed size (mm) | <10mm | <10mm | <10mm | |||
Moisture of feeding material | <3% | <3% | <3% | |||
Less than 2μm=30% output(t/h) | 9-12 | 12-16 | 14-18 | |||
Less than 2μm=45% output(t/h) | 5.5-7.5 | 7-9 | 10-12 | |||
Less than 2μm=60% output(t/h) | 3-4 | / | / | |||
Material: Based on CalCite Particle size distribution:measured by micro laser diffraction particle size analyzer in British Malvern3000 instruments | ||||||
Product Advantage
1.Low Operation Cost
Use the special anti-wear alloy materials for grinding roller and plate liner. Long service time for wear parts,low maintenance.The grinding curves of the roller shell and liner plate are uniquely designed, easy to form the stable material bed,low vibration,high product efficient.It is 20% higher than other equivalent vertical mill in capacity,saving 40% powder consumption compared with ball mill.
Adopting the multi-rotor classifier,the final particles size for D97 5-45 micron are attainable.Equipped with the PLC frequency converter control system, the calcium carbonate powder ultrafine vertical roller mill machine can produce 2 micron (20-70%) powder and adjust powder selection patterns according to client’ different requirements. it has greatly increased the final powder added value and application areas due to the advantages of narrow particle size distribution, unit form particles shape and controllable 2 micron content.
The pressure being applied to the grinding roller auto-controlled by the PLC/DSC enables the accurate control of grinding pressure and highly efficiency without manual operation .The roller shell and grinding disc liner plate gap is dual protected by electronic and mechanical caging devices to avoid the heavy vibration and impact.Reducer box and lubricating system are equipped multiple inspection and cycle with double pumps.
Product Advantage of CLUM series calcium carbonate powder ultrafine vertical roller mill machine roller and grinding disc do not touch each other directly,there does not have the metal impact noise in low vibration .Compared with ball mill the running noise is 20-25 db lower which would not hurt human’s health. Hermetic seal ensures that the system operates under negative pressure.The final powder is conveyed to the final product silo without dust leakage.The environment is clean, meeting the national environmental protection requirements.
Use the special anti-wear alloy materials for grinding roller and plate liner. Long service time for wear parts,low maintenance.The grinding curves of the roller shell and liner plate are uniquely designed, easy to form the stable material bed,low vibration,high product efficient.It is 20% higher than other equivalent vertical mill in capacity,saving 40% powder consumption compared with ball mill.
2.High Additional Value
Adopting the multi-rotor classifier,the final particles size for D97 5-45 micron are attainable.Equipped with the PLC frequency converter control system, the calcium carbonate powder ultrafine vertical roller mill machine can produce 2 micron (20-70%) powder and adjust powder selection patterns according to client’ different requirements. it has greatly increased the final powder added value and application areas due to the advantages of narrow particle size distribution, unit form particles shape and controllable 2 micron content.
3.Safe And Reliable
The pressure being applied to the grinding roller auto-controlled by the PLC/DSC enables the accurate control of grinding pressure and highly efficiency without manual operation .The roller shell and grinding disc liner plate gap is dual protected by electronic and mechanical caging devices to avoid the heavy vibration and impact.Reducer box and lubricating system are equipped multiple inspection and cycle with double pumps.
The sufficient lubrication and cooling of the bearings for the grinding roller is ensured therefore no excess of lubricating oil in the bearing chamber and no leakage could occur.Equipped with multiple intelligent protection devices the calcium carbonate powder ultrafine vertical roller mill machine main unit can realize the continuous operation with stable,safe and high-efficient performance rather than stop running.
4.Environmental Friendly
Product Advantage of CLUM series calcium carbonate powder ultrafine vertical roller mill machine roller and grinding disc do not touch each other directly,there does not have the metal impact noise in low vibration .Compared with ball mill the running noise is 20-25 db lower which would not hurt human’s health. Hermetic seal ensures that the system operates under negative pressure.The final powder is conveyed to the final product silo without dust leakage.The environment is clean, meeting the national environmental protection requirements.
Product Application
Calcium carbonate powder ultrafine vertical roller mill machine can grind non-flammable and non-explosive materials under 7 (the Moh’s hardness), such as quartz, dolomite, feldspar, calcite, talcum, barite, fluorite, iron ore, copper ore quartz, especially for slag, cement clinker, zircon sand, fly ash and carborundum, coal, etc.
Working Principle

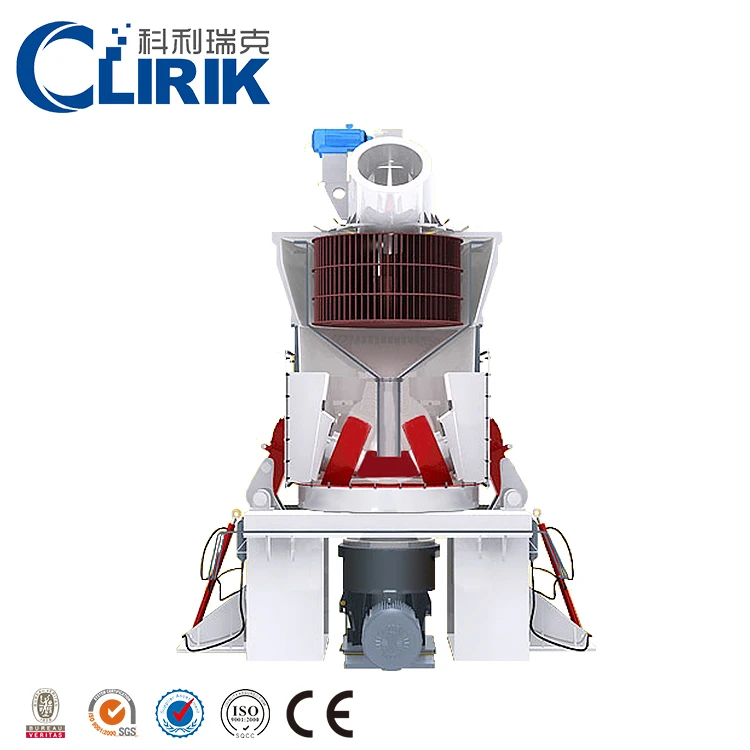

Calcium carbonate powder ultrafine vertical roller mill machine mainly consists of the motor, reduction gear, grinding rollers, grinding plate, pressure-applying device, classifier, mill body. oil station, and electrical system.
Calcium carbonate powder ultrafine vertical roller mill machine fine powder continue to move towards the fringe of the grinding plate until they are taken away by strong air flow at the air ring. While the materials along with the air flow pass through the separator located above the grinding plate, the coarse particles return to the grinding plate for re-pulverization due to the action of the rotor blade, the fine particles along with the air flow leave the mill interior and are collected and discharged as finished powder product by the powder collector.
Company Profile
Why did you choose Clirik as your calcium carbonate powder ultrafine vertical roller mill machine manufacturer?
Shanghai Clirik Machinery Co., Ltd, located is a large professional manufacturer with import & export rights specializing in research, manufacture and sales of crushing machinery, mining equipment, and grinding machines, such as micro powder grinding equipment, ultra-fine grinding equipment, stone grinding equipment, mineral grinding machine, hammer crushers, jaw crushers and associated accessories.
We have engaged in crushers and micro powder grinding mill equipment for over 8 years. has strong capability in R&D, design and
manufacturing.
manufacturing.
To better meet the challenges of modernization and the needs of international market competition, Clirik still insists on communication and cooperation with prestigious scientific research institutions from both home and abroad to strengthen
its ability in machinery design, production, maintenance, testing and reform.
its ability in machinery design, production, maintenance, testing and reform.
In addition, with the joint efforts of the experienced sales team and our circumspect after-sales service chains, our products have been exported to more than dozens of countries and areas all over the world like Eastern Europe, Middle East, Africa, Southeast Asia, South America, Oceania, etc.
Full service:
Raw material testing-program design-equipment manufacturing-installation-commissioning-technical training-up to standard and production-after-sales service.
Factory direct supply :
More than 30 years of experience in R&D and manufacturing, and 120+ countries and regions coverage. The source manufacturer has no middleman, higher cost performance, and excellent quality, ingenuity.
Ingenuity :
Clirik provides solutions for calcite grinding/crushing and screening, tailor-made solutions for you.
Automatic equipment production, the pipe wall is thicker and resistant to compression and deformation, environmentally friendly materials are harmless, and support customization.
Raw material testing-program design-equipment manufacturing-installation-commissioning-technical training-up to standard and production-after-sales service.
Factory direct supply :
More than 30 years of experience in R&D and manufacturing, and 120+ countries and regions coverage. The source manufacturer has no middleman, higher cost performance, and excellent quality, ingenuity.
Ingenuity :
Clirik provides solutions for calcite grinding/crushing and screening, tailor-made solutions for you.
Automatic equipment production, the pipe wall is thicker and resistant to compression and deformation, environmentally friendly materials are harmless, and support customization.
Other Products offered
If our CLUM series of Calcium carbonate powder ultrafine vertical roller mill machine cannot meet your needs, we have other series of calcium carbonate mills for you to choose from.
FAQ
1. Are you a middle man or a manufacturer?
Our Shanghai Clirik Machinery is a professional mining equipment manufacturer.
2. Buy Calcium carbonate powder ultrafine vertical roller mill machine to provide after-sales warranty service?
The main machine provides a one-year warranty service, and we have sufficient spare parts inventory. You can ship 7-15 days after your order.
3. What modes of transportation do you have?
We have land transportation, sea transportation, air transportation and other modes of transportation. You buy each item we will verify the packaging, to ensure that you can receive the goods for installation and production.
4. What payment methods can we accept?
Accepted Delivery Terms: FOB, CFR, CIF, EXW, CPT, DDU, Express Delivery
Accepted Payment Currency: USD
Accepted Payment Type: T/T, L/C, Western Union
Our Shanghai Clirik Machinery is a professional mining equipment manufacturer.
2. Buy Calcium carbonate powder ultrafine vertical roller mill machine to provide after-sales warranty service?
The main machine provides a one-year warranty service, and we have sufficient spare parts inventory. You can ship 7-15 days after your order.
3. What modes of transportation do you have?
We have land transportation, sea transportation, air transportation and other modes of transportation. You buy each item we will verify the packaging, to ensure that you can receive the goods for installation and production.
4. What payment methods can we accept?
Accepted Delivery Terms: FOB, CFR, CIF, EXW, CPT, DDU, Express Delivery
Accepted Payment Currency: USD
Accepted Payment Type: T/T, L/C, Western Union
Похожие товары

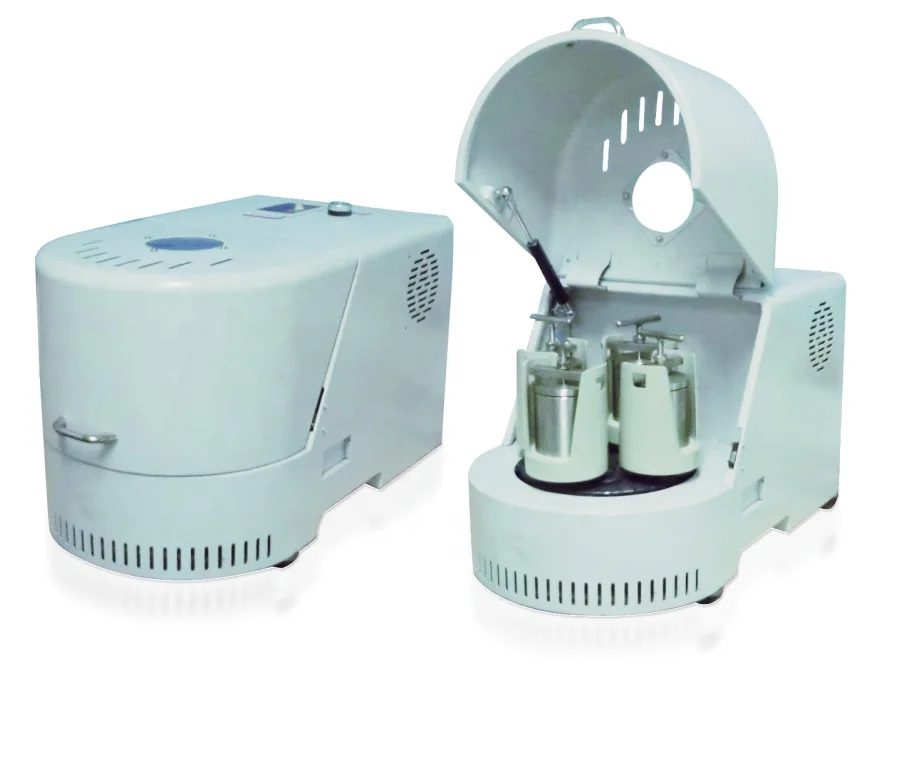

Компактная Планетарная шаровая мельница с дополнительными кувшинами и шариками для лабораторных исследований
2 800,00-3 000,00 $

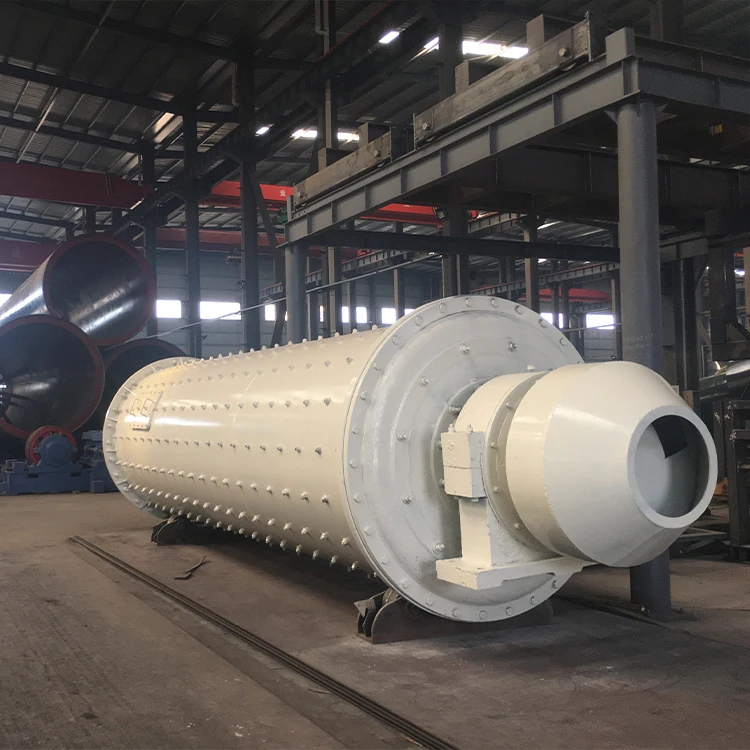

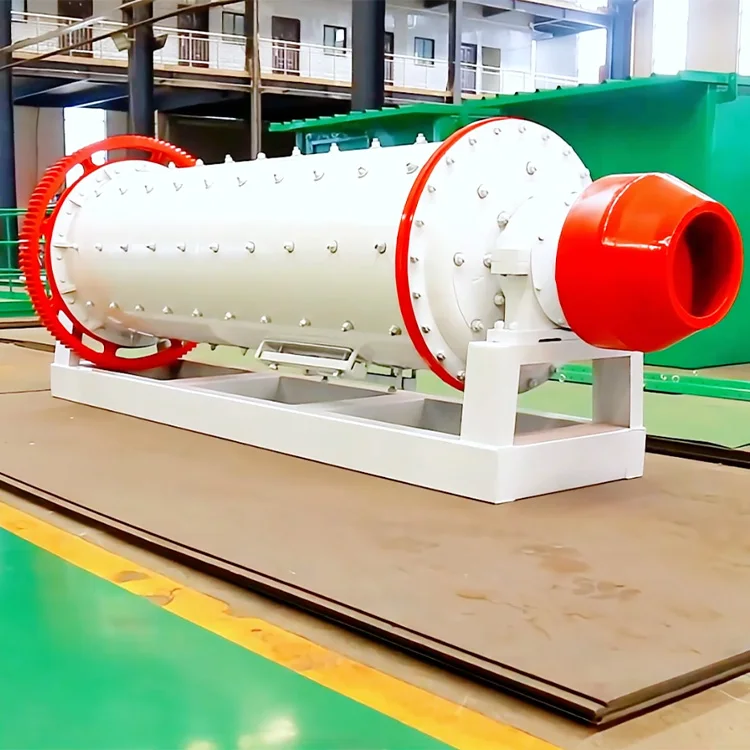

Большая емкость шаровая мельница для оловянных руд производитель шлифовальных станков
12 400,00-18 600,00 $
30Tph тальк шлифовальные мельницы для монгольских шахт
4 900,00-5 000,00 $

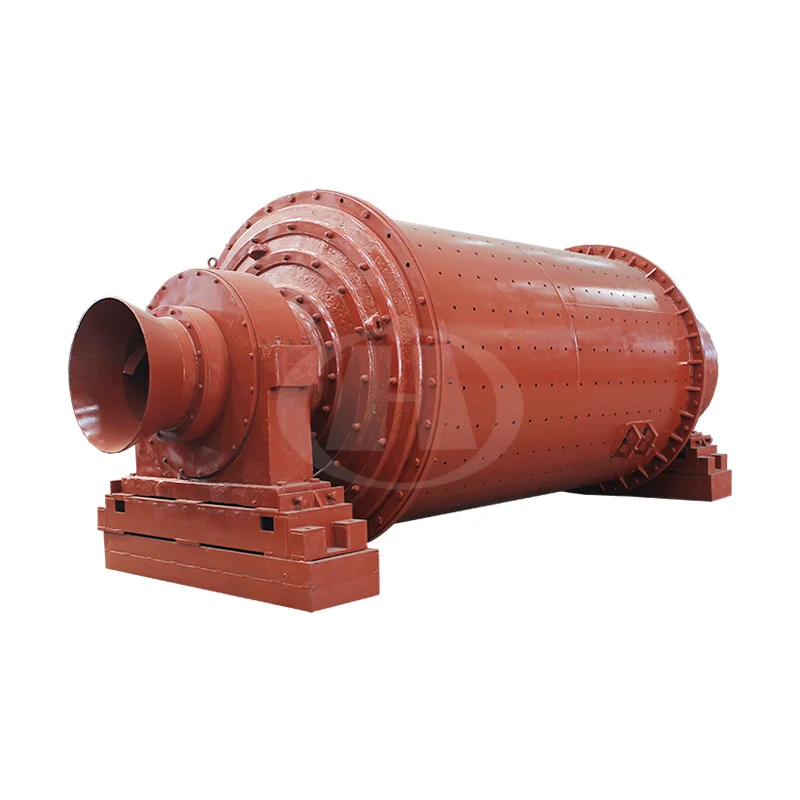

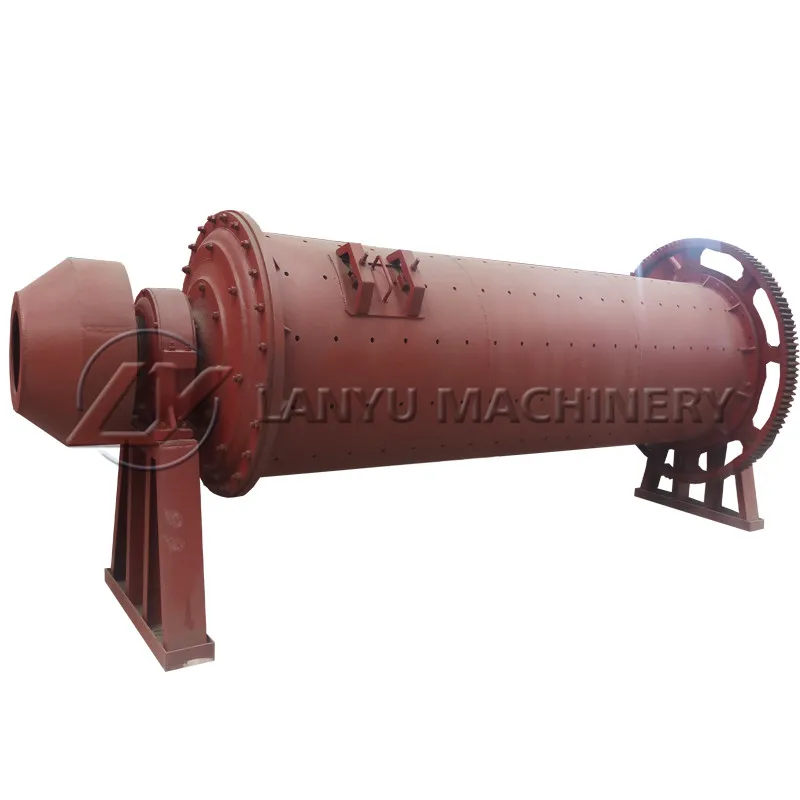

Хорошая цена шаровая мельница с ультратонким тальком
8 000,00 $

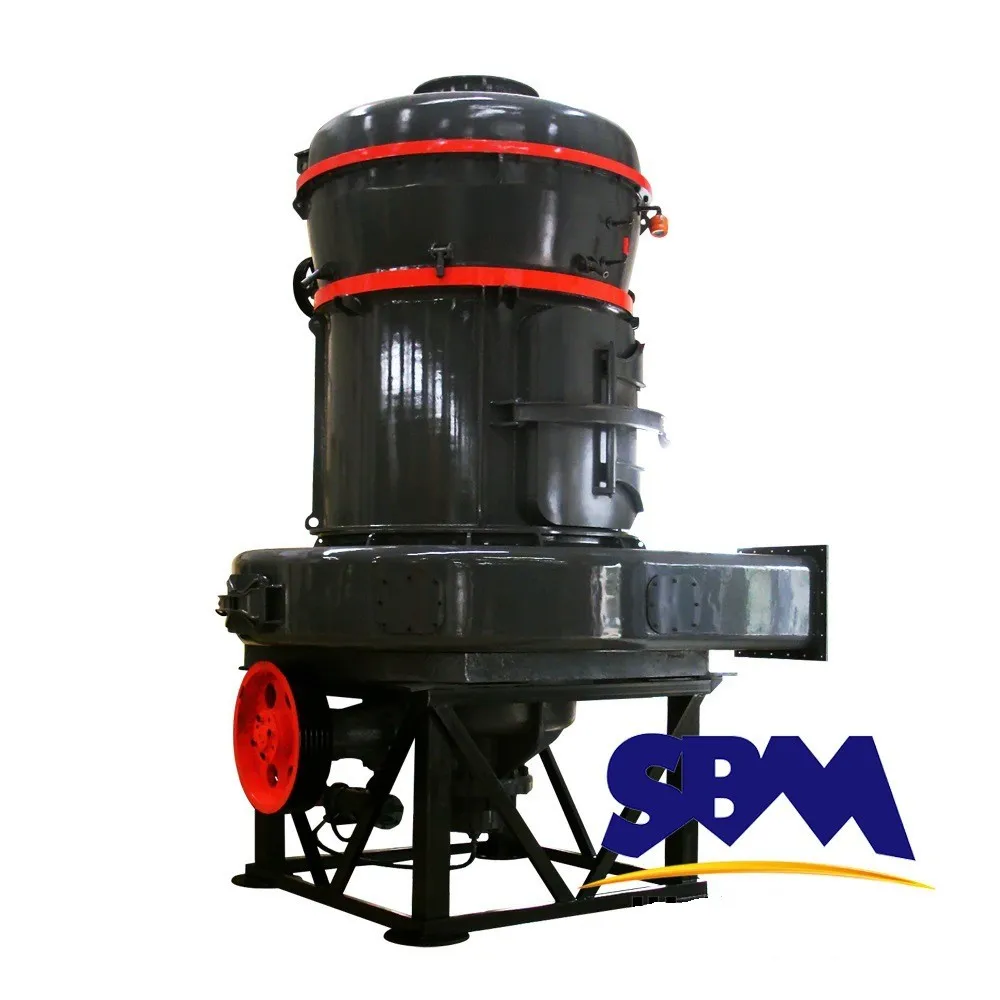

Хорошее качество Ce Iso сертифицированный мраморный тальк порошок Европейский Mtw трапециевидная мельница
45 800,00 $
Большая емкость шаровая мельница для оловянных руд производитель шлифовальных станков
12 400,00-18 600,00 $

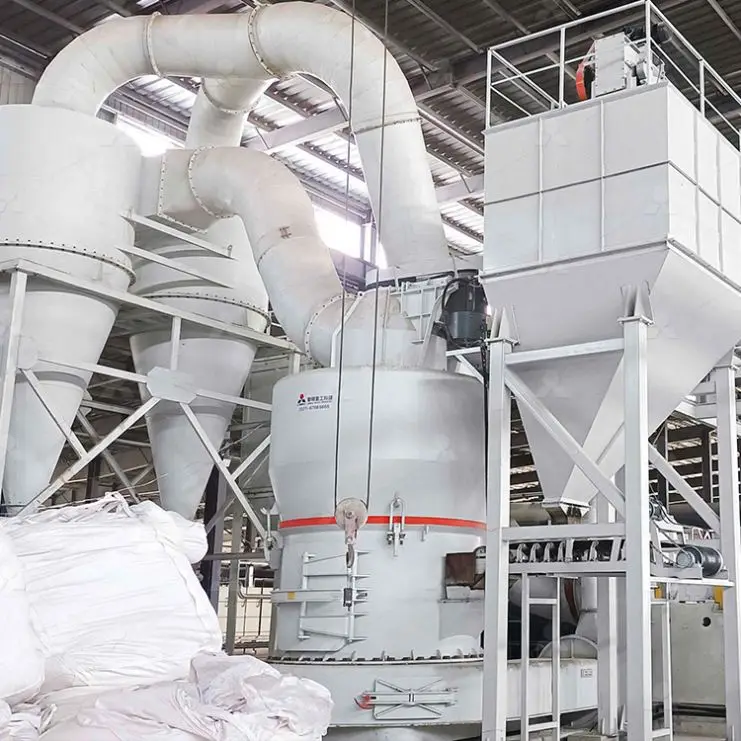

Высокопроизводительные тальковые Порошковые шлифовальные заводы в Монголии
