Светодиодный светильник для бадминтона 200 лм/Вт 240 Вт

Сохранить в закладки 1600760141569:


Цена:8 326,27-8 663,07 ₽*

Количество:

  • В избранное

Описание и отзывы

Характеристики

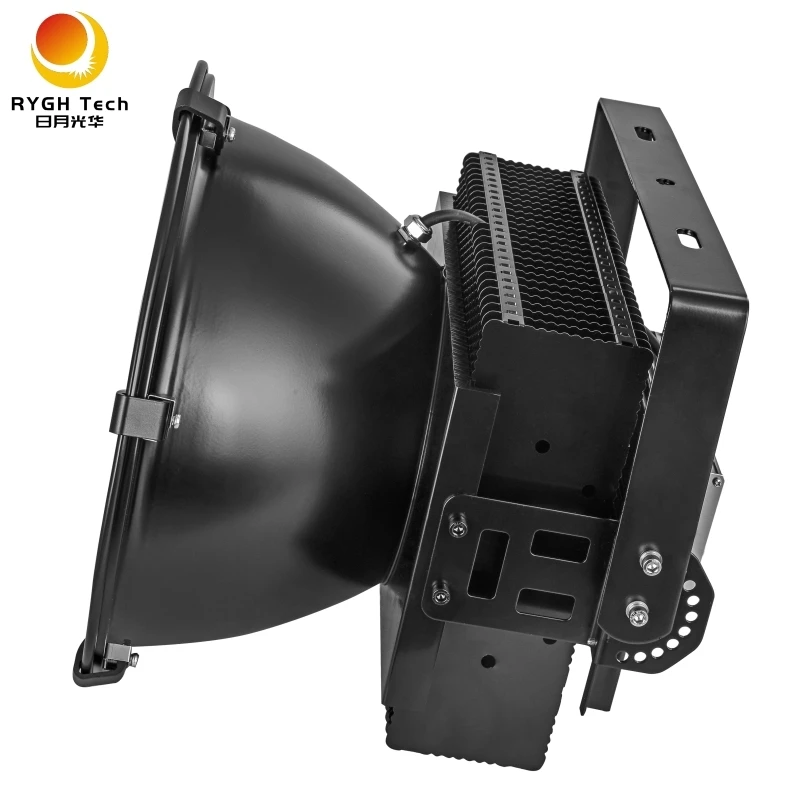

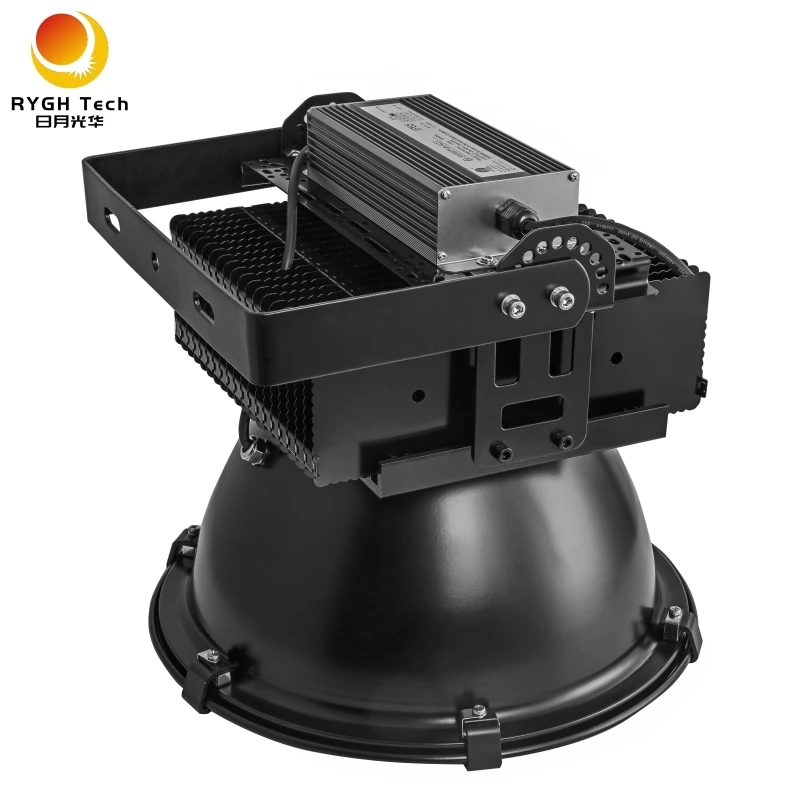

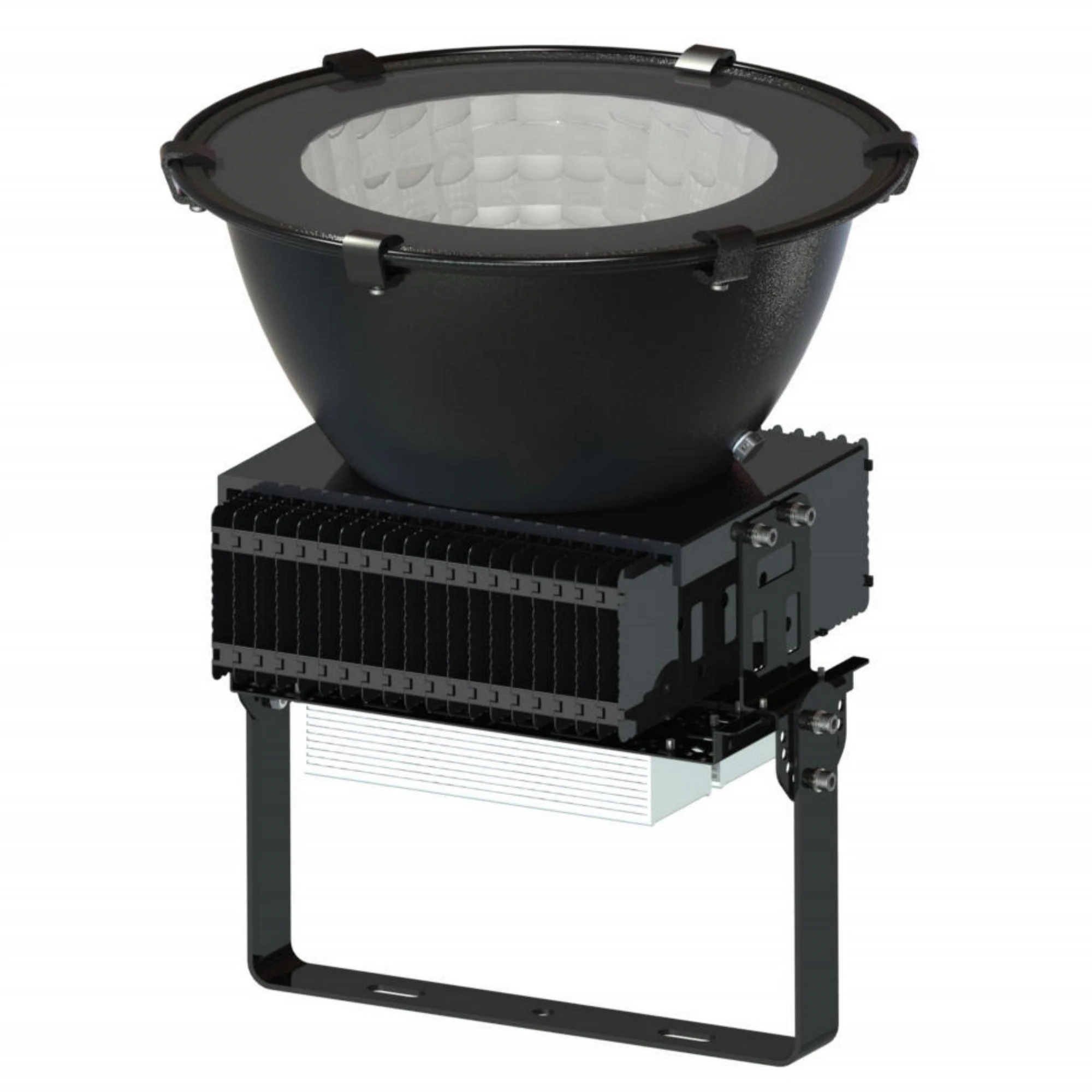

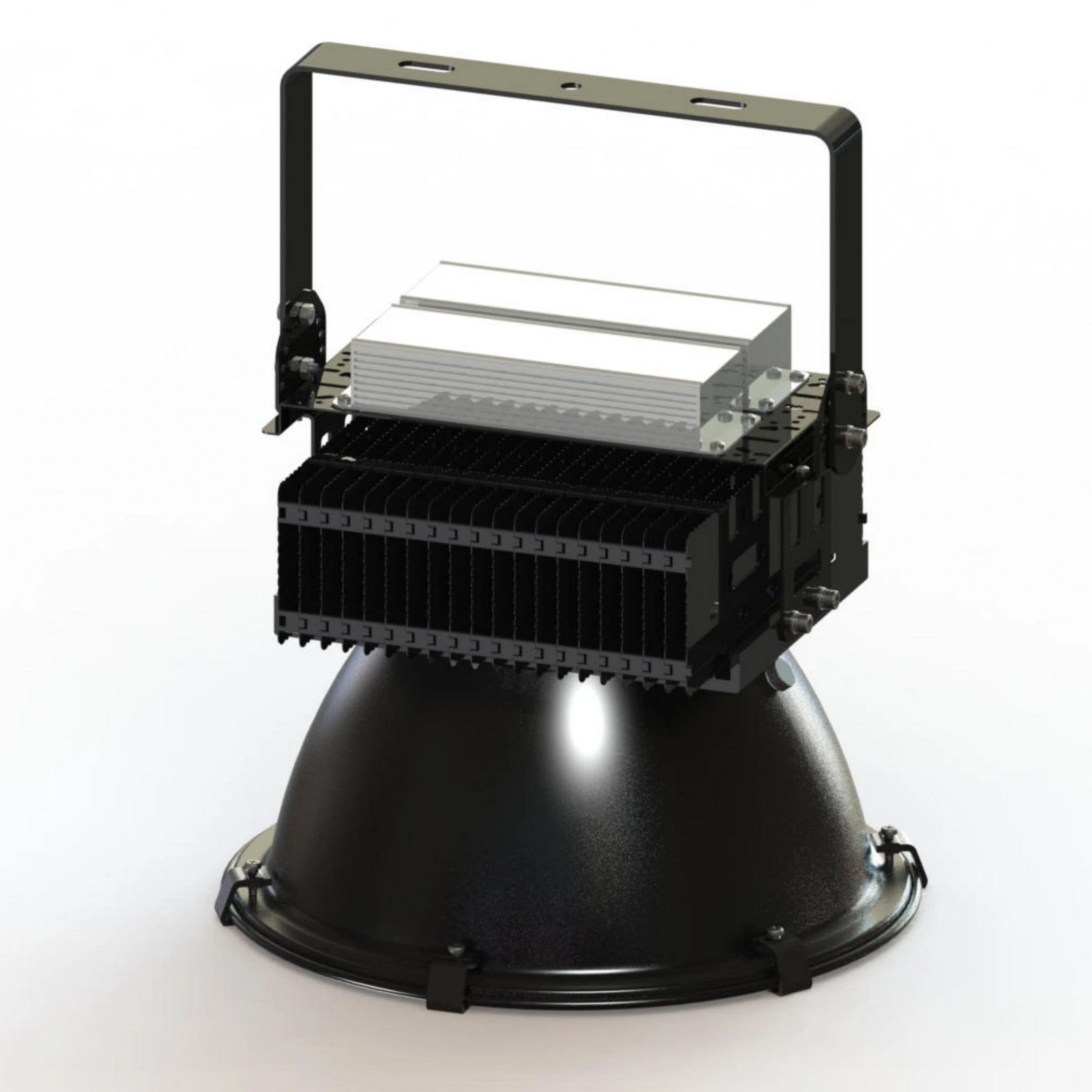

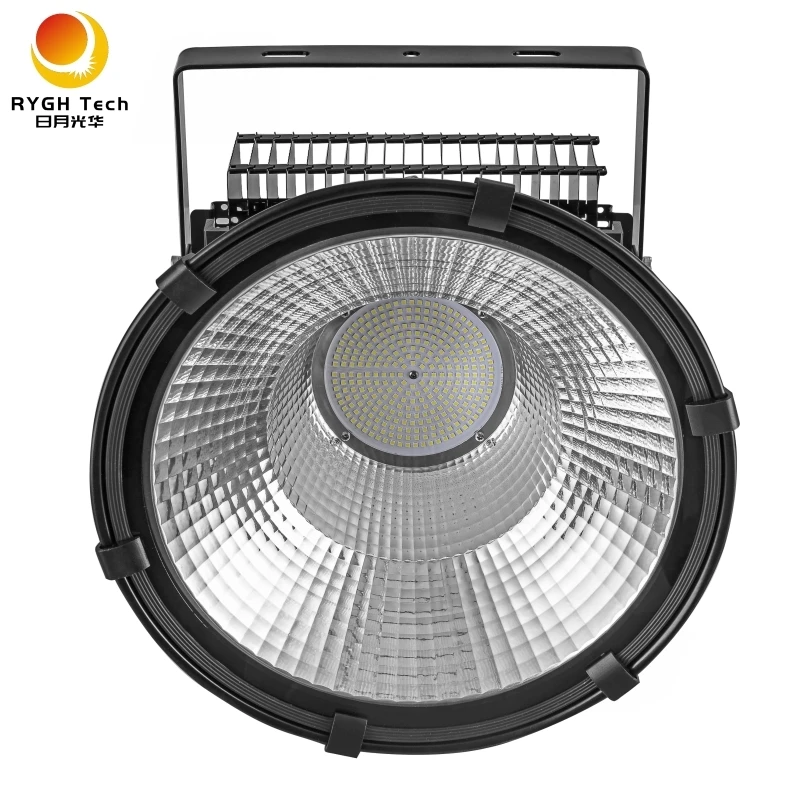

TD LED High Bay Light Specifications


Features:


1. New mould, Fin type AL heatsink


2. High efficiency, 120-130lm/w available


3. Aluminium + glass lens, beam angle 25°60°


4. IP65 for outdoor use
































































































































Model no.



RYGH-TD-150W



RYGH-TD-240W



RYGH-TD-320W



RYGH-TD-400W



RYGH-TD-480W



Rated power



150 Watt



240 Watt



320 Watt



400 Watt



480 Watt



Input voltage



AC 85-305V, 50/60Hz / 347-480V, 50/60Hz Optional



LED Chip



3030 SMD



LED Driver



MEANWELL, INVENTRONICS, SOSEN, Happysky, etc



Material



AL+Glass



CRI



70/80/90/95/98



Power Factor



>0.95



CCT



WW, NW, CW



Light efficacy



120-130LM/W



IP rating



IP65



IK rating



IK08



Operation temperature



-35~+50℃



Beam angle



25°60°



25°60°



25°60°



60°



60°



Warranty



5 Years



Life span



50,000 hours



Dimension



φ366.8 *H404mm



φ366.8 *H453.5mm



φ366.8 *H455.5mm



φ416 *H496mm



φ416 *H498mm



Certificate



CE, RoHs



Packing size



43*43*36.5cm



43*43*36.5cm



43*43*36.5cm



47*47*48.5cm



47*47*48.5cm



PCS/CTN



1



N.W.



5.3KG



7KG



8KG



9KG



11KG



G.W.



7KG



8.5KG



9.5KG



10.5KG



12.5KG






 TD stadium light_01.jpgTD stadium light_02.jpgTD stadium light_03.jpgTD stadium light_04.jpgTD stadium light_05.jpgTD stadium light_06.jpgTD stadium light_07.jpgTD stadium light_08.jpgTD stadium light_09.jpgTD stadium light_10.jpgTD stadium light_11.jpgTD stadium light_12.jpgTD stadium light_13.jpgTD stadium light_14.jpgTD stadium light_15.jpgTD stadium light_16.jpgTD stadium light_17.jpgTD stadium light_18.jpgTD stadium light_19.jpgTD stadium light_20.jpgTD stadium light_21.jpgTD stadium light_22.jpg


Environment Requirement


Working Temperature:-35~+50℃


Storage Temperature:-35~+50℃


Working Humidity:0%~85%


Storage Humidity:0%~90%








Application:


It can be widely applied in Port, Wharf, Tower Crane, Golf Course, Football Field, Stadium etc.





Warning


1. Please install the lamp according to the installation to avoid dropping and electric shock.


2. Don't exchange the lamp as will to avoid dropping ,electric shock and damage of the lamp.


3. Working voltage is not to be exceeded AC 85-305V, 50/60Hz / 347-480V, 50/60Hz Optional





Attention


1. Don't install the lamp to non-stable place.


2. Installed by qualified electrician.


3. Switch off the switch box and contact certified electrician if the lamp works abnormally





Warranty


3-5-year warranty since the date of purchase is offered for all LED high bay Lights.


Warranty Terms


1. Under the terms of this warranty, if the product has a failure occurring under normal usage within warranty period, RYGH will provide free maintenance service based on the proof-documents and invoice (copy) of failure product.


2. RYGH will not provide paid maintenance service under conditions within warranty.


a. Failure or damage due to force majeure.


b. Failure or damage due to transport or unloading.


c. Failure or damage due to incorrectly usage or fail to comply with the User's Guide and Caution.


d. Failure or damage due to demolition, repair, alteration without Manufacturer's authorization.


3. Please deliver the failure product by original packing for maintenance service, RYGH will not be responsible for any failure or damage in transportation if customer uses non-original packing or improper packing.


4. RYGH reserves the right for final explanation of aforesaid terms.


Caution: RYGH will not be responsible for any other failure or damage by incorrect usage.
