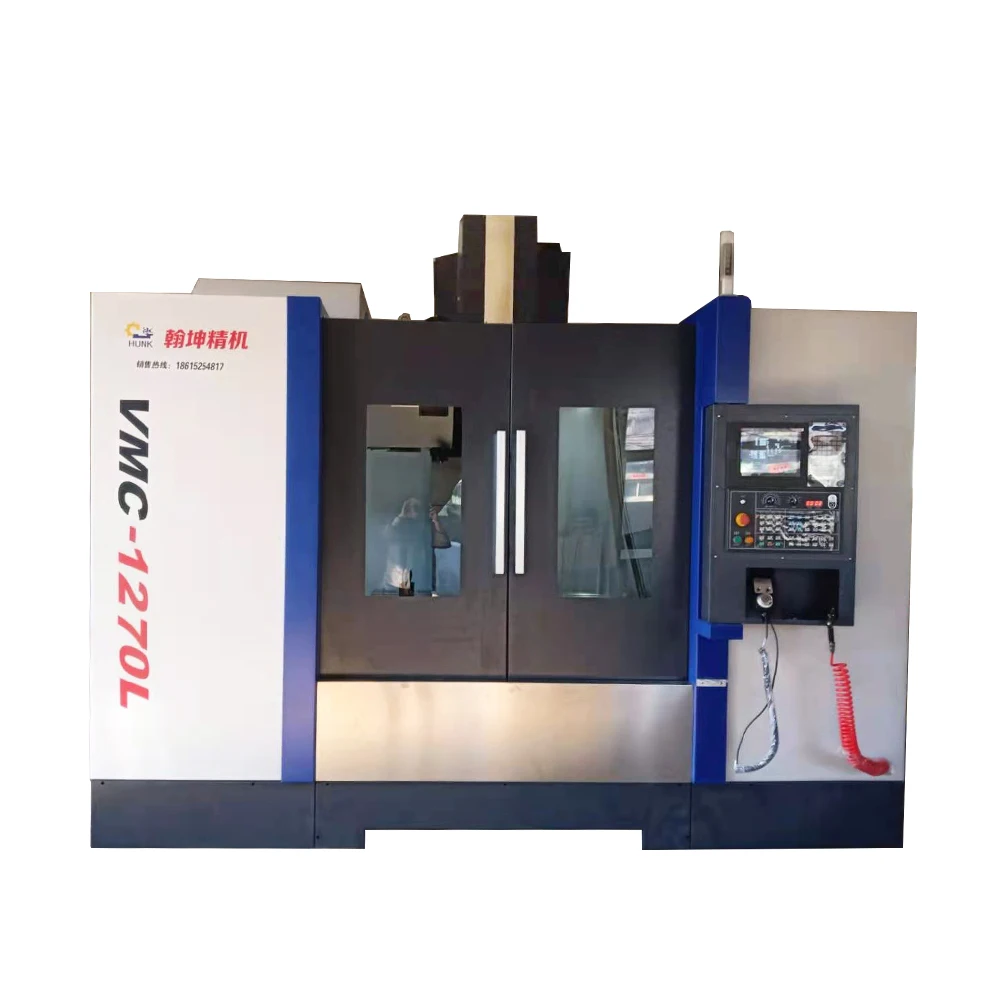

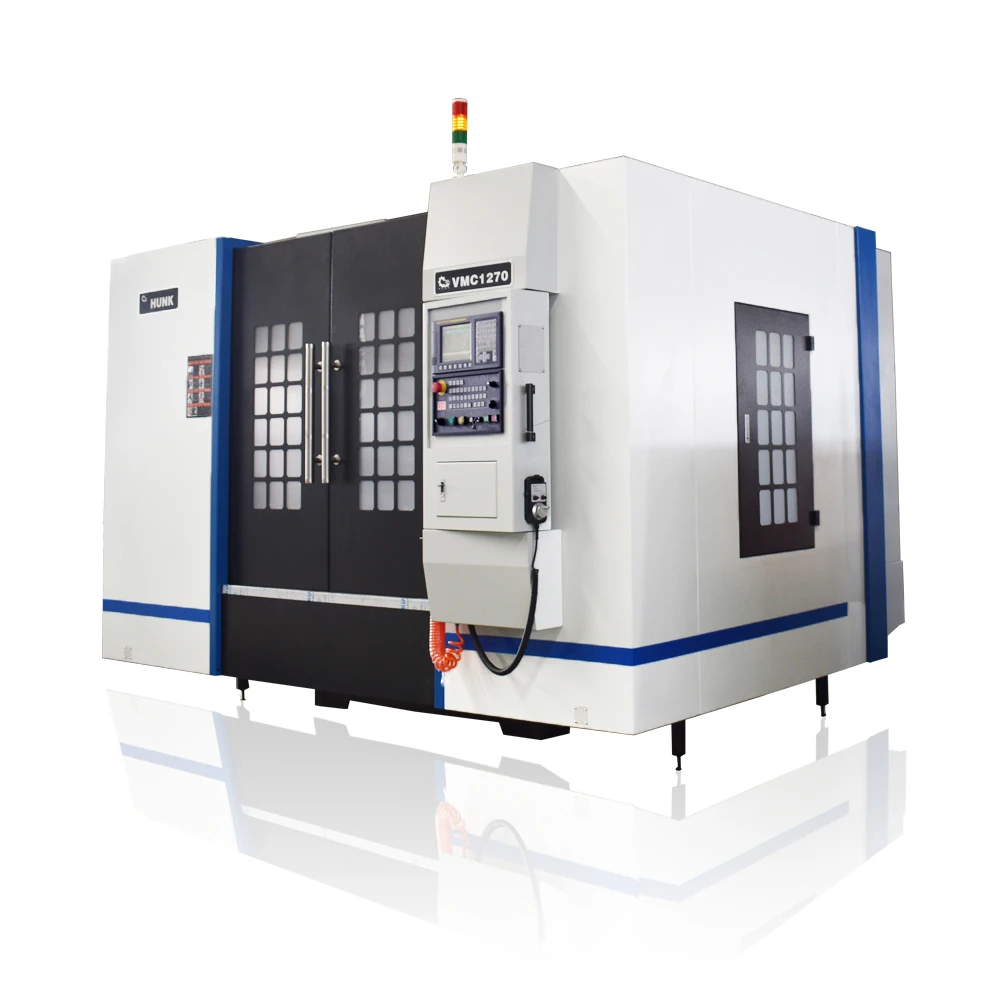

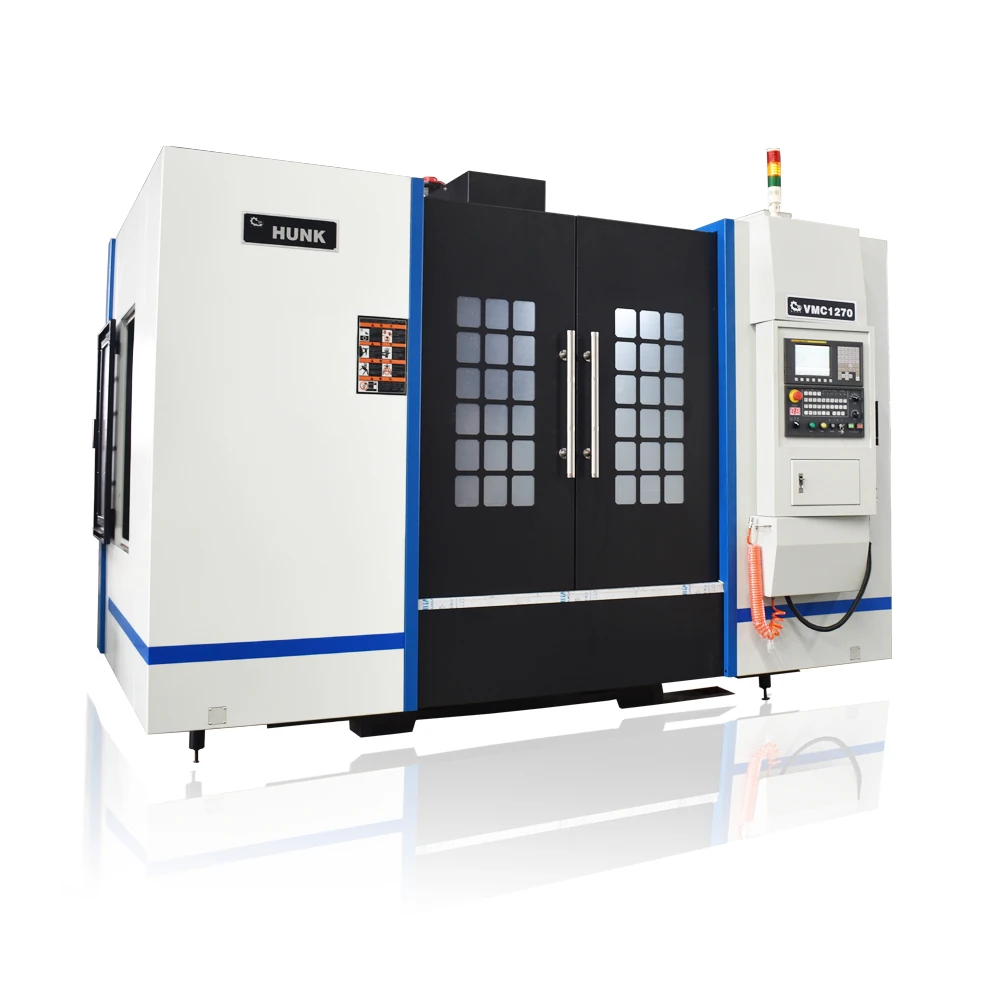

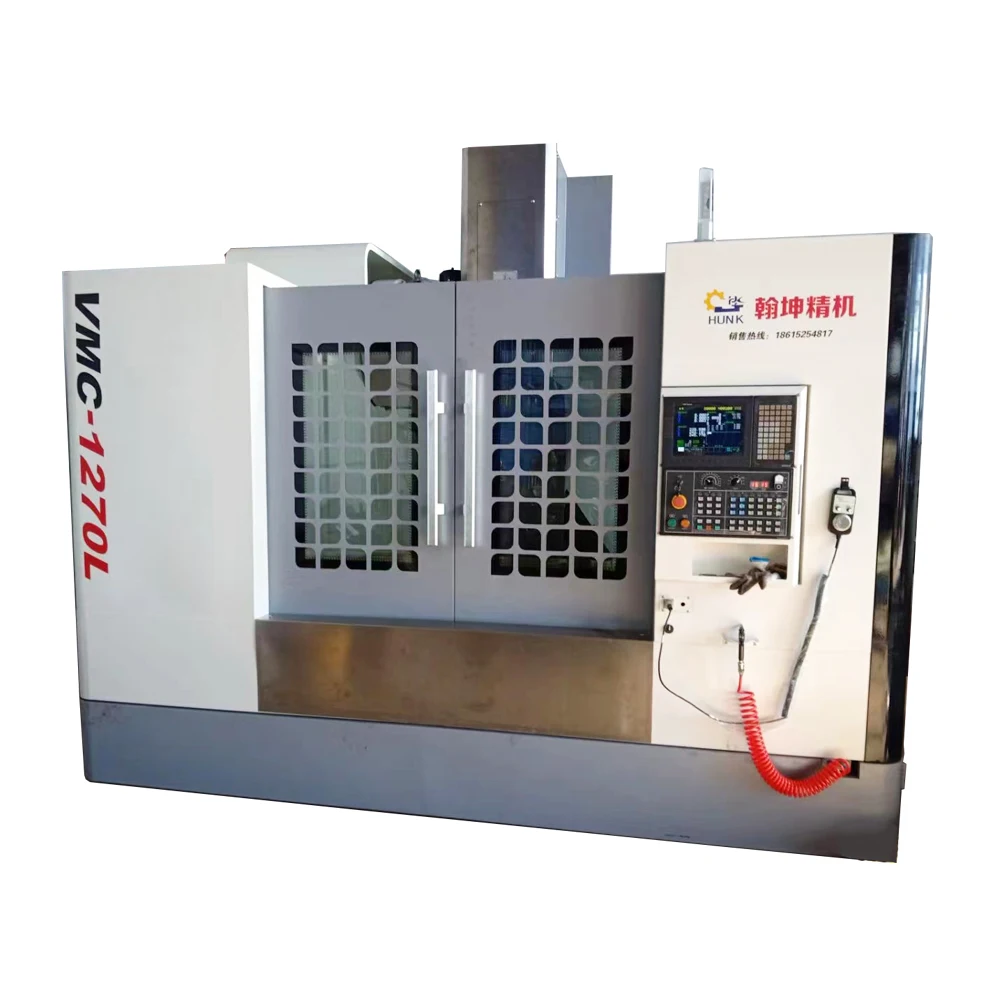

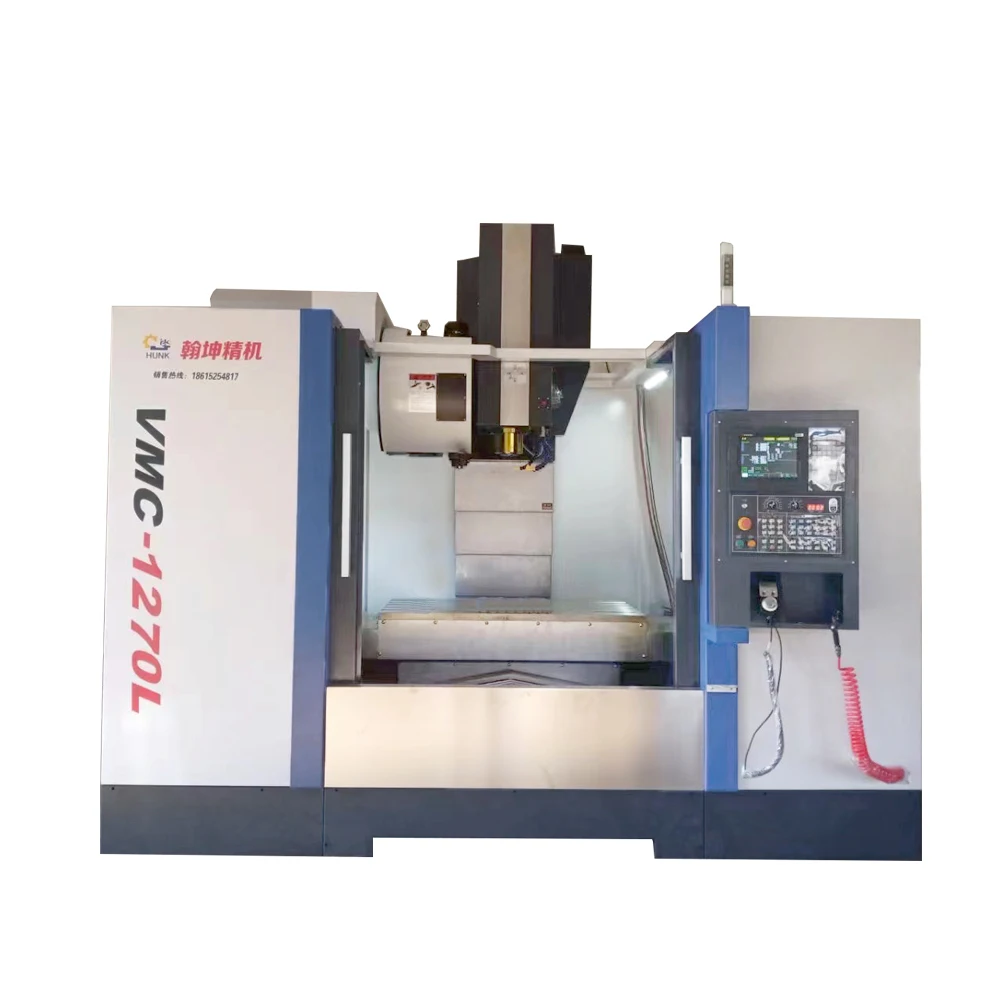

5 осевой фрезерный станок SIEMENS828D VMC1270L Китай Лидер продаж новый Пятиосевой обрабатывающий центр
- Категория: >>>
- Поставщик: Jinan Shangneng CNC Equipment Co. Ltd.
Сохранить в закладки 1600760290256:
Описание и отзывы
Характеристики
Application
It can complete the drilling, milling, boring, reaming, expansion, and other rigid tapping process . so it is suitable for many varieties, medium and small batch production. It can finish the processing of complex, high precision parts . It can be matched the four rotary shaft , in order to meet the requirements of special parts.
Products Description
Standard configuration:
1)15kw servo motor, spindle speed 8000rpm, BT40;

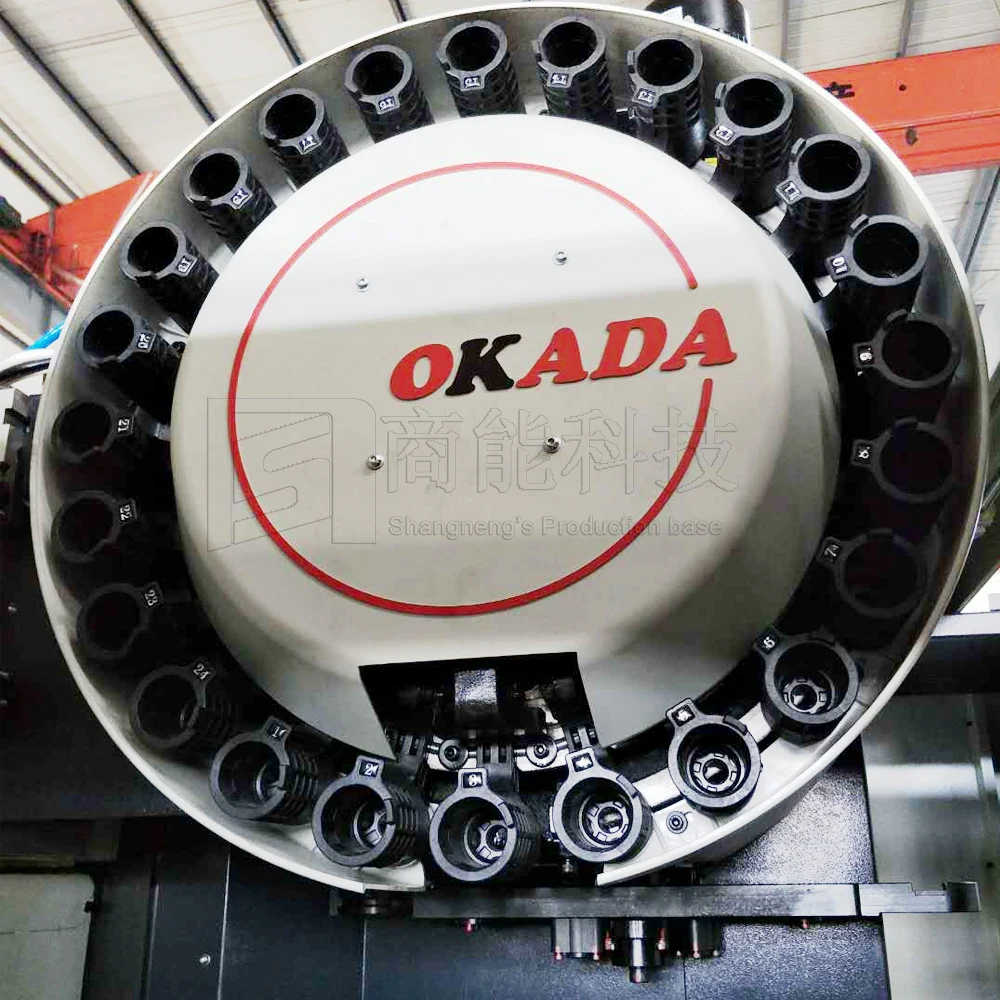

2) 24(standard) tools, Drum-type tool magazine,
3) Nozzle coolant, Belt Driven,
4) HIWIN (Taiwan) ballscrew,
5) Rexroth (Germany) linear guideway
6) ROYAL/POSA/KENTURN (Taiwan) spindle,
7) Schneider( France) electric parts,
8) Heat exchanger
2) 24(standard) tools, Drum-type tool magazine,
3) Nozzle coolant, Belt Driven,
4) HIWIN (Taiwan) ballscrew,
5) Rexroth (Germany) linear guideway
6) ROYAL/POSA/KENTURN (Taiwan) spindle,
7) Schneider( France) electric parts,
8) Heat exchanger
Optional configuration:
1）No tool magazine；
2) 24 tools Umbrella-type tool magazine
3) Spindle speed 10000r
4) Spindle speed 12000r (with oil cooler),spindle conneted to the drive motor directly, PMI roller type linear guideway;
5) Spindle speed 12000r (with oil cooler),spindle conneted to the drive motor directly, Rexroth roller type linear guideway;

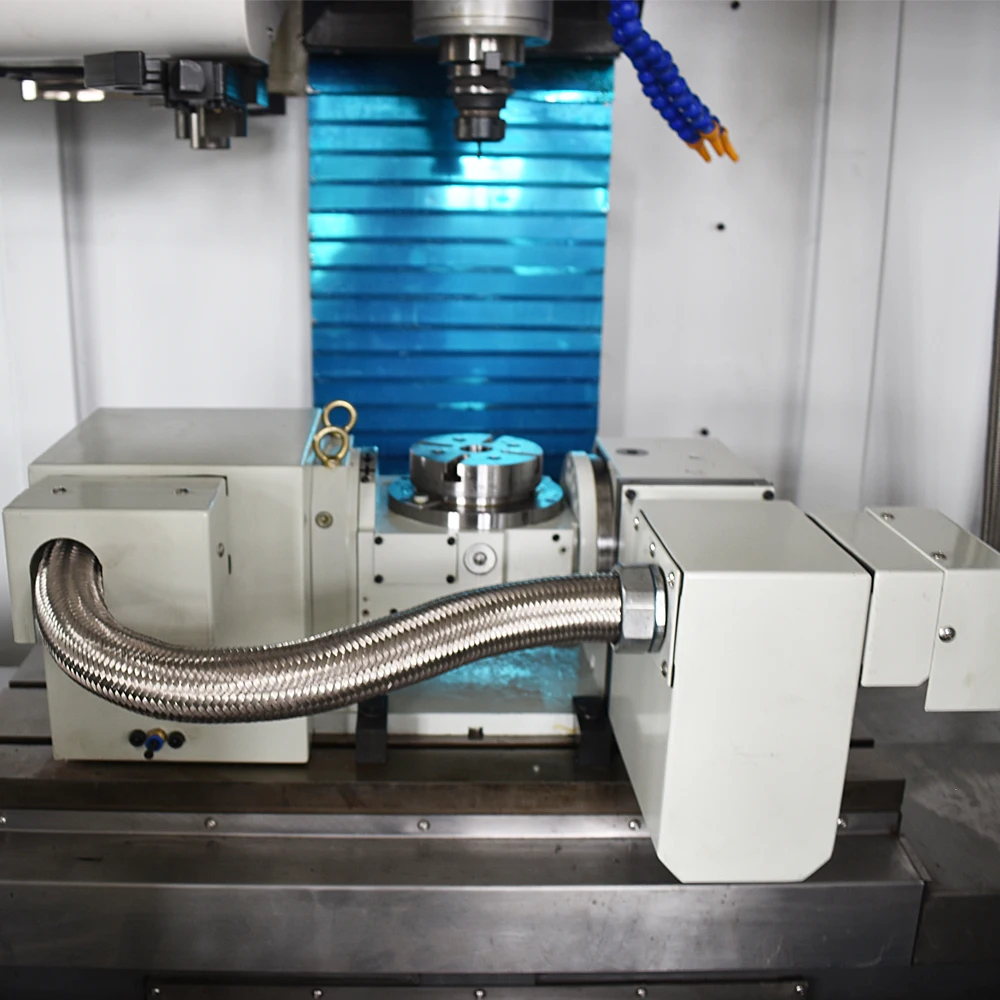

6) 4th axis ( bar type, made in China),center height 125mm, with tailstock;
7) 4th axis (bar type, GAS Taiwan) CNC-170R/200R, with tailstock;
8) 4th axis (bridge type,GAS Taiwan)170R/200R/250R
9)5th axis (GSA Taiwan)CNCT-100/200/250/320;
Option Control system:
1) SIEMENS808D2
2) SIEMENS828D
3) MitsubishiM70B
4) MitsubishiM70A
5) Fanuc 0i-MF 5
6) Syntec 21TMA
7) GSK218/KND1000MC
2) SIEMENS828D
3) MitsubishiM70B
4) MitsubishiM70A
5) Fanuc 0i-MF 5
6) Syntec 21TMA
7) GSK218/KND1000MC

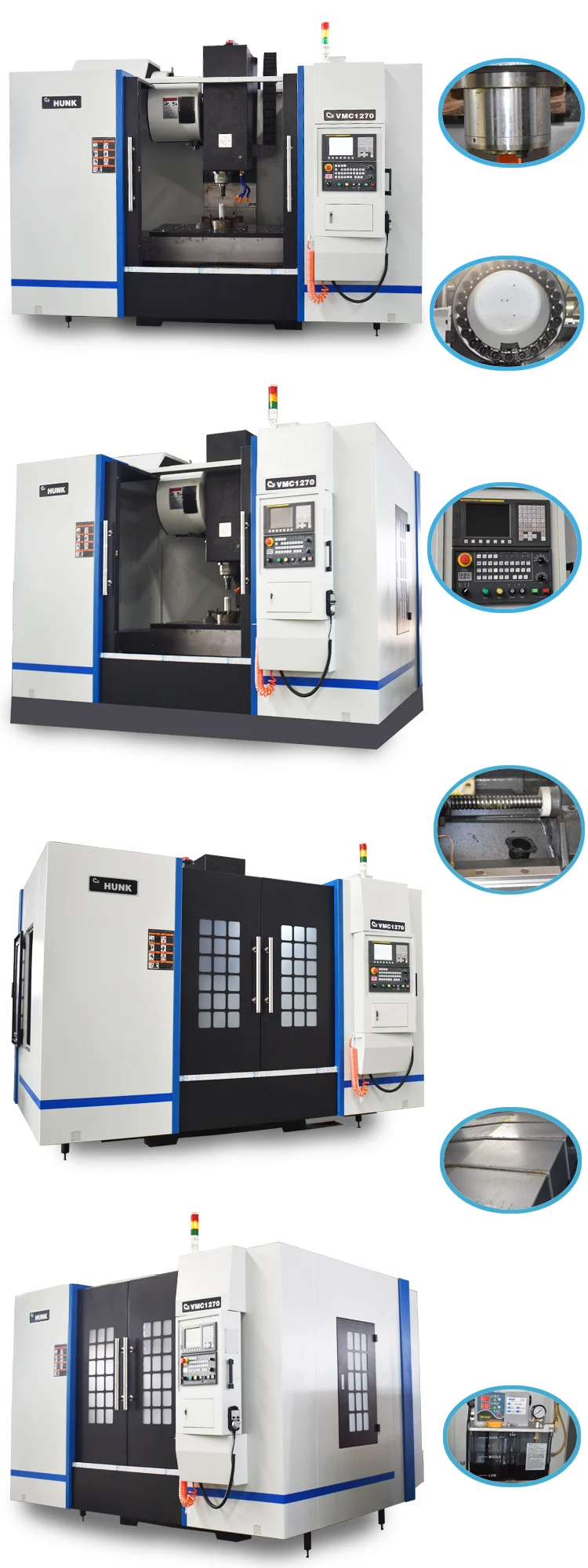

Details Images
Technical parameter
Item | VMC1270L |
Table size | 1360 x 700mm |
Load capacity | 800kgs |
X-axis travel | 1200mm |
Y-axis travel | 700mm |
Z-axis travel | 600mm |
Distance from Spindle center to table | 87-687mm |
Distance from Spindle center to column slide way | 785mm |
Tool shank | BT40/BT50 |
Spindle speed | 6000/8000rpm |
Spindle motor power | 15KW |
Max. diameter of tool | 120mm |
Max. length of tool | 200mm |
Max. weight of tool | 8kgs |
X/Y -axis rapid moving speed | 24000 |
Z-axis rapid moving speed | 18000mm |
feed rate | 20-6000mm/min |
positioning accuracy | 0.01mm |
repeated positioning accuracy | 0.005mm |
Production Line

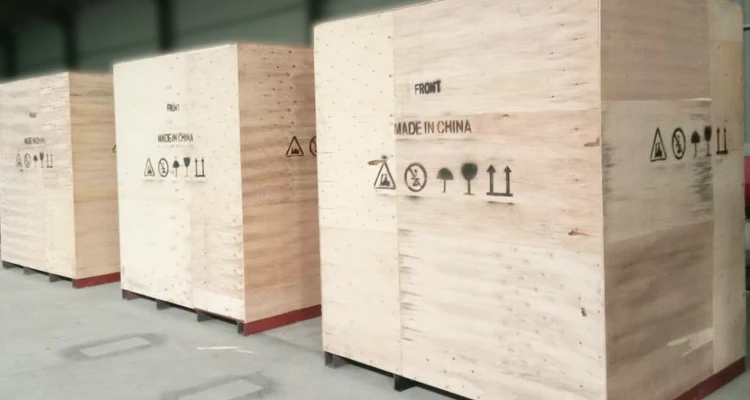

Product packaging
FAQ
Q: Do you have after sales support?
A: Yes, we are happy to give advice and we also have skilled technicians available, We need your machines running in order to keep
your business running.
Q: Once we've bought a machine from you, are you able to supply us with material?
A: We can assist you in finding the appropriate materials to suit your machine
Q: Do you sell only standard machines?
A: No, most of our machines are built according to customers specifications, using top brand name components.OEM is acceptable
Q: Do you have a warranty on your machines?
A: One year warranty excluding electrical components.
Q: What sales terms do you have?
A:T/T, L/C,West Union.
Q: Do you have instruction manuals?
A: We provide you with instruction manuals, electricity layouts, civil requirements, and machine drawings or Video Support,
Q: Once machine arrives at our factory what happens then?
A: We will send you a technician or engineer that will commission and install your machine, with training for your staff if required at a separate fee.
Q: What do I need to offload my machine from the container?
A: You are not responsible for the offloading of your machinery, and it is recommended that you use a reputable rigging company.
Q: What kind of controls/Parts do you use on your machines?
A: AMS, OMRON, Schneider, Siemens, and ASK,ABBA,OPTIMA(ITALIA),HSD
Q: What is your delivery time?
A: Depending on the type of machine, duration of 10 days to 45 days from date of order.
Q: Do we receive any updates while machine is in the manufacturing process?
A: Yes.Regular updates on progress will be sent to you.
A: Yes, we are happy to give advice and we also have skilled technicians available, We need your machines running in order to keep
your business running.
Q: Once we've bought a machine from you, are you able to supply us with material?
A: We can assist you in finding the appropriate materials to suit your machine
Q: Do you sell only standard machines?
A: No, most of our machines are built according to customers specifications, using top brand name components.OEM is acceptable
Q: Do you have a warranty on your machines?
A: One year warranty excluding electrical components.
Q: What sales terms do you have?
A:T/T, L/C,West Union.
Q: Do you have instruction manuals?
A: We provide you with instruction manuals, electricity layouts, civil requirements, and machine drawings or Video Support,
Q: Once machine arrives at our factory what happens then?
A: We will send you a technician or engineer that will commission and install your machine, with training for your staff if required at a separate fee.
Q: What do I need to offload my machine from the container?
A: You are not responsible for the offloading of your machinery, and it is recommended that you use a reputable rigging company.
Q: What kind of controls/Parts do you use on your machines?
A: AMS, OMRON, Schneider, Siemens, and ASK,ABBA,OPTIMA(ITALIA),HSD
Q: What is your delivery time?
A: Depending on the type of machine, duration of 10 days to 45 days from date of order.
Q: Do we receive any updates while machine is in the manufacturing process?
A: Yes.Regular updates on progress will be sent to you.
