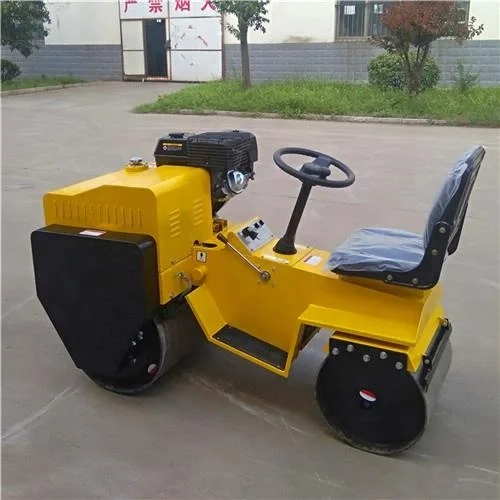

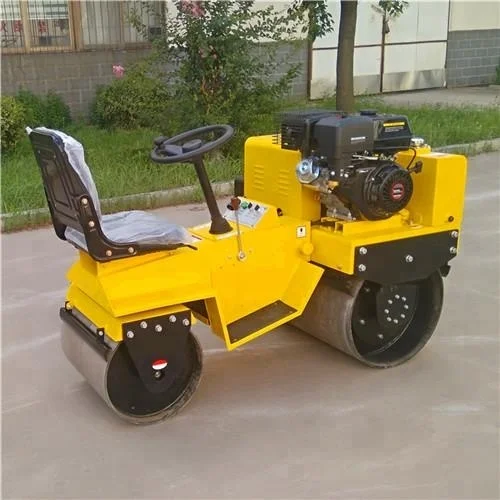

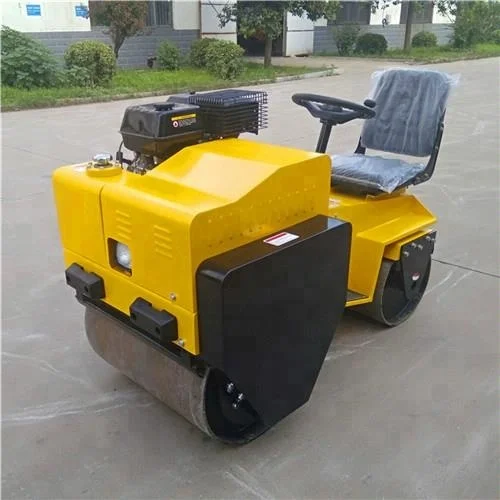

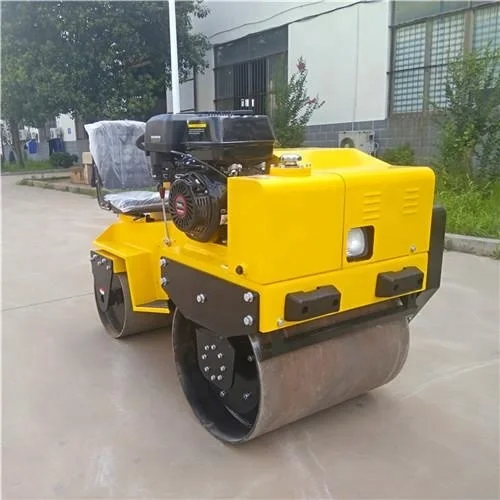

Mini road roller ride-on double drum vibratory roller compactor 0.8 ton baby road rollers for sale



Product Description


 Shandong Storike Engineering & Mechanism Co., Ltd is specialized in the sales and production of small road roller, compact ram, mobile lighting car, hydraulic power station, troweling machine and other construction machine. Our products are widely used in municipal and highway pavement road roller maintenance, small area compacting and depressed trough compacting building and construction materials such as all kinds of non-cohesive materials, sandy soil, gravels, sand-macadam mixtures, stabilized soil, bituminous concrete, etc. Especially it is most economical for foundation treatment of country road, large community road, water conservancy construction and real estate development and backfill compaction of other mini-type projects.





1.We use the famous brand engine, like Honda, Changchai. Also can be equipped the engine with EPA certification.


2.We use the famous brand pump and motor. The pump use the brand Sauer, the motor use the brand Danfoss.


3.Our road roller passed CE, SGS and ISO9001 certification.


Road roller SVH70-1











Specifications












































































































































































ITEM NO/DETAILSSVH70SVH70C
ENGINE
EngineHONDA GX390CHANGFA/CHANGCHAI180F
Engine typeSingle cylinder, OHV, air-cooled, four-stroke, gasolineSingle cylinder, vertical, air-cooled, four-stroke, diesel
Number of cylinders1
Output power (KW)9.74.8
Rating speed(RPM)3600
Fuel consupmtion(G/KWH)313320
Lubricating oil volume(L)1.11.65
DRIVING
Electrical equipment(V)12
Drive modeVariable plunge pump, stepless speed change, chain drive
Walking speed (KM/H)0--5
Theoretical climbing ability(%)30
STEERING
Steering modeMechanical steering
Steering systemRear wheel steering
EXCITING SYSTEM
Vibration wheelFront
Drive formMechanical transmission, electromagnetic clutch
Vibration frequency (HZ)70
Vibration amplitude (MM)0.5
Exciting force(KN)20
SPRINKLING SYSTEM
Water spray formGravity-type water
CAPACITY
Hydraulic oil capacity(L)12
Fuel capacity(L)6.53.5
Water tank capacity (L)18
SIZE
Working width(MM)875
Overall length(MM)1550
Machine height(MM)1210
Turning radius(outer)(MM)2300
Ground clearance(MM)160
Wheel track(MM)1110
Width of wheel(MM)700 front, 500 back
Diameter of wheel(MM)530 front, 425 back
Drum thickness(MM)10
WEIGHT
Weight(KG)780
Static load(N/CM)55




Product Structure


 Road roller SVH70-2Road roller SVH70-4Road roller SVH70-3





Product Features


1.The machine is equipped with the brand power,brand-name quality assurance,superior performance,easy to start.


 2.The machine is selected of international brand-name Hydraulic variable pump and quantitative mator,continuously variable,it can walk backward and forward.


 3.It has Hydraulic steering,steering light and flexible.


4.It has completed control function,to fully control the machine running at any time.


5.It uses the Japanese-made Nsk(seiko)bearings ,to ensure the machine's performance.


6.It is installed of luxury seats,easy adjustment,comfortable work.


7.It has streamlined body design,more beautiful and generous.


8.The machine's surface is treated by spray.


9. The product has passed CE certification.





According to your detail requirement, please find the road roller you really need.
1.Optional diesel engine or gasoline engine.

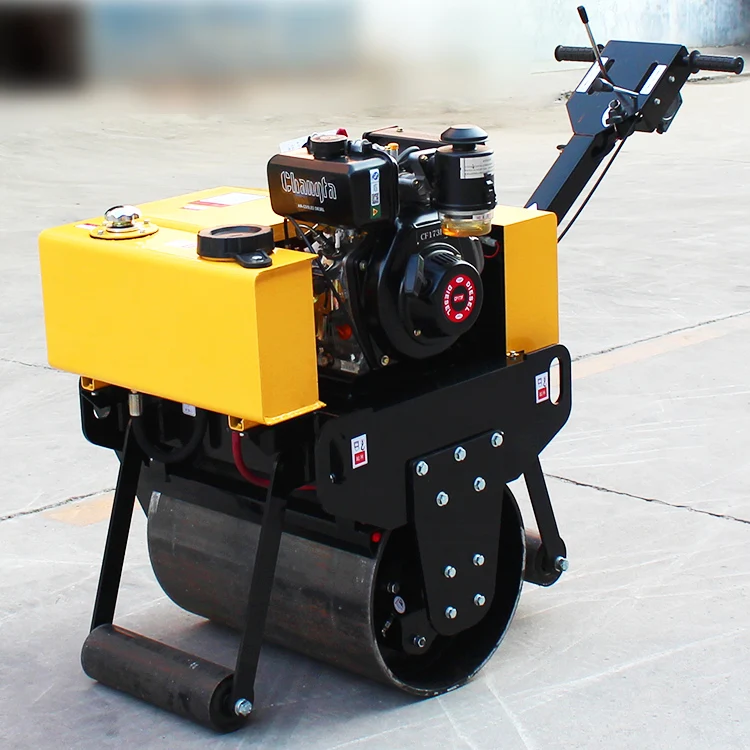

2.Single drum walk behind road rollers.
3.Double drum walk behind road rollers.
4.Ride-on small vibrating road roller.
5.Full hydraulic ride on road rollers.
6.Big drum road rollers with the cabin.
7.Static drum/sheep foot drum/rubber drum rollers.
8.Customized according to your requirements.





Road roller SVH70-6Road roller SVH70-7





Comments Feedback


Road roller ST100-9





Exhibition


Road roller ST100-10





Packing Shipping


Road roller SVH70-10





Product Application


Our products are used in municipal, highway pavement maintenance operations,


also apply to groove, pipe trench backfill compaction in the construction engineering,building construction and square homework, rolling lawns, etc.Road roller ST100-6





Hot Sales 300 KG to 8 Ton Road Rollers    walk behind road roller   ride on road roller  single drum road roller   double drum road roller    330 kg walk behind road roller         550kg walk behind double mini road roller   800KG walking type hydraulic road roller 800KG ride on road roller    1 ton road roller   1.2 ton hydraulic road roller  2 ton road roller 3 ton road roller    4 ton asphalt rollers    5 ton roller compactor    8 ton road rollercara
