Интеллектуальное освещение VILLON 10 525 GHz датчик движения VRM005M VER2.0 MMWave модуль радара
- Категория: >>>
- Поставщик: Shenzhen Huineng Perception Technology Co. Ltd.
Сохранить в закладки 1600761661834:
Описание и отзывы
Характеристики
Product Description

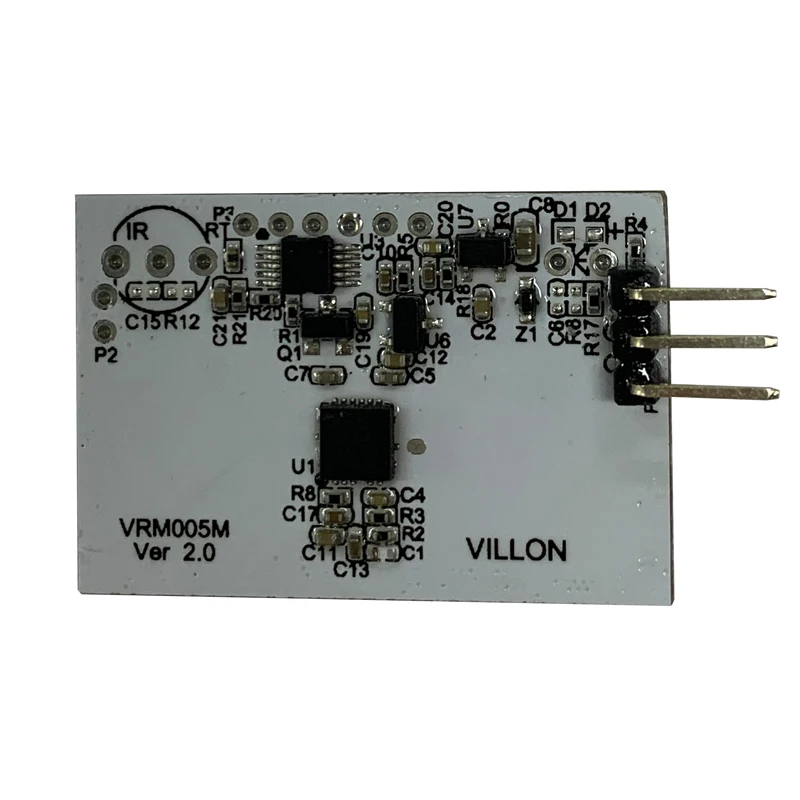

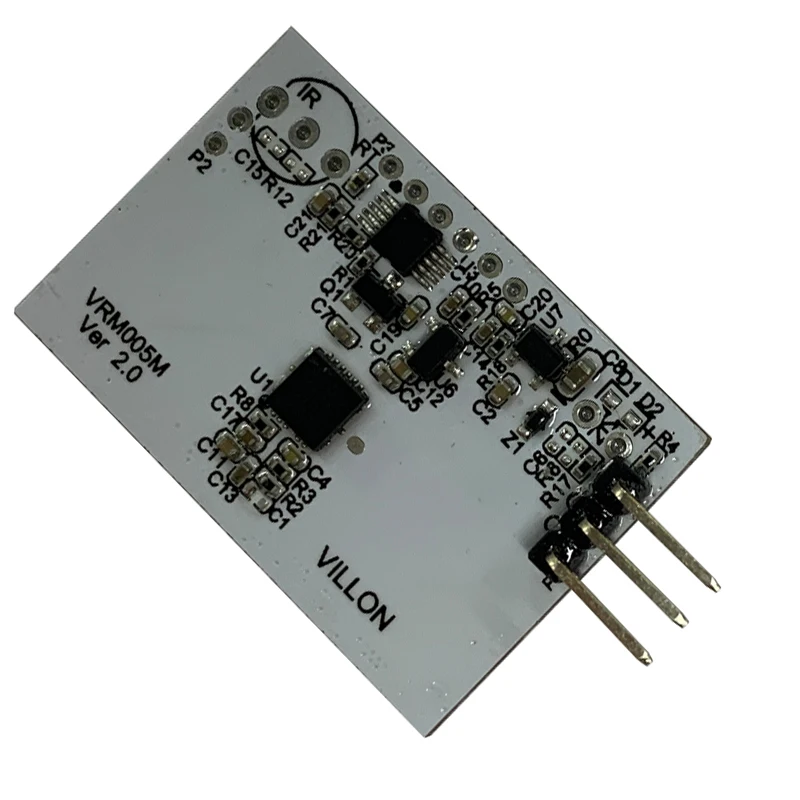

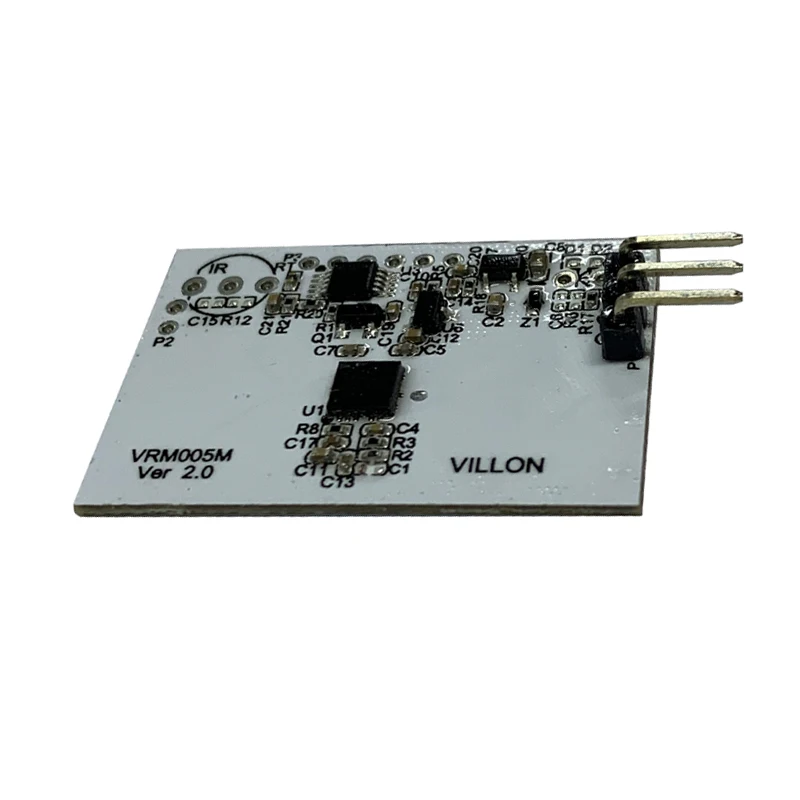

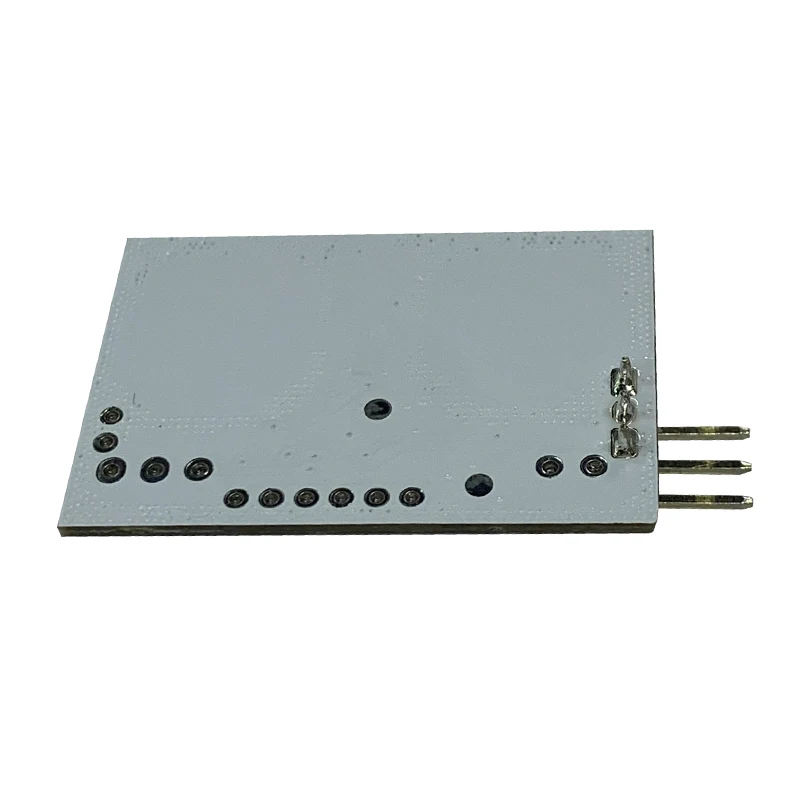

The VRM005M VER2.0 is 34mm*23mm*3mm in size. It is a micro/motion sensing module designed based on the X-band radar chip with a center frequency of 10.525GHz. This product has the advantages of no through the wall, anti-interference, small size, noise and high harmonic suppression, high stability and consistency. This product is suitable for embedded hidden installation, not affected by temperature/humidity, oil smoke, water mist, etc., can be widely used in intelligent lighting, security, home and other areas requiring automatic induction control.
Range of perception：
The perceived distance of the product is the radius of 3-5 meters (adjustable), the axial is 0.3~10m(adjustable, wall hanging), the perceived Angle is 110°±10°.• Test results may vary with different test environments or moving targets;
• Metal shell will shield radar electromagnetic wave, affecting the perceived distance;
•The above test results are obtained at the standard test site. For specific test environment and conditions, you can consult relevant technical personnel；
• Metal shell will shield radar electromagnetic wave, affecting the perceived distance;
•The above test results are obtained at the standard test site. For specific test environment and conditions, you can consult relevant technical personnel；
• There are errors in the perception range and certain uncertainties in the weak perception area.
• After the test has been switched on and off for three consecutive times, 5s will be delayed when the fast test mode is switched on for the fourth time. The distance is the default normal value. After the power is off, it will enter the normal working mode by default when it is directly powered on the next time.
• After the test has been switched on and off for three consecutive times, 5s will be delayed when the fast test mode is switched on for the fourth time. The distance is the default normal value. After the power is off, it will enter the normal working mode by default when it is directly powered on the next time.
Product Paramenters
Place of Origin | China |
Guangdong | |
Brand Name | VILLON |
Model Number | VRM005M VER2.0 |
Usage | Motion perception |
Size | 34mm*23mm*3mm |
Sensing Range | Radius 3~5m(adjustable, hanging height 3m) |
Product name | MMwave radar sensor module |
Transmit frequency | 10.525GHz |
Input voltage | 3.3-12V |
Output voltage | 3V |
Application Scenario
Intelligent Lighting
Intelligent Security
Intelligent Care
Smart Pet Feeding Machine
Smart Home
Smart Sanitary Ware
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
VILLON SENSE focuses on the field of intelligent perception, providing customers with intelligent information and intelligent product solutions. With long-term development in the field of intelligent terminal, VILLON SENSE has numerous high-quality customer resources and professional R & D team, which has won the favor and trust of the majority of enterprises. The main product line includes microwave radar, image sensing and other smart sensors for lighting fixtures, IPC cameras, smart cat eyes, visual doorbells, smart pet feeders, multispectral cameras, USB video conferencing cameras and other applications.
Why Choose Us
We have our own production plant, and establish strategic cooperation with other excellent manufacturers, to provide customers with the most valuable and high quality products.
We have a professional and efficient talent team, can provide customers with professional one-stop purchasing services, and the quality is guaranteed.
The company has strong technical strength, advanced production and testing equipment, production in strict accordance with national standards
FAQ
1. Who are we?
We are based in Guangdong, China,There are total about 51-100 people in our office.
We are based in Guangdong, China,There are total about 51-100 people in our office.
2.What can you buy from us?
MMwave Sensor Module,USB Camera Module,P-Sensor,etc.
MMwave Sensor Module,USB Camera Module,P-Sensor,etc.
3.Why should you buy from us not from other suppliers?
We are a high-tech enterprise focusing on MMwave Sensor Module,USB Camera Module and P-Sensor, research and development, production, sales and service.We can customize the service.
We are a high-tech enterprise focusing on MMwave Sensor Module,USB Camera Module and P-Sensor, research and development, production, sales and service.We can customize the service.
4.How to contact us ?
You could leave messages to us directly or send inquiry . We will reply you within 12 hours.
Enjoy your shopping and have a nice time！
You could leave messages to us directly or send inquiry . We will reply you within 12 hours.
Enjoy your shopping and have a nice time！
Похожие товары

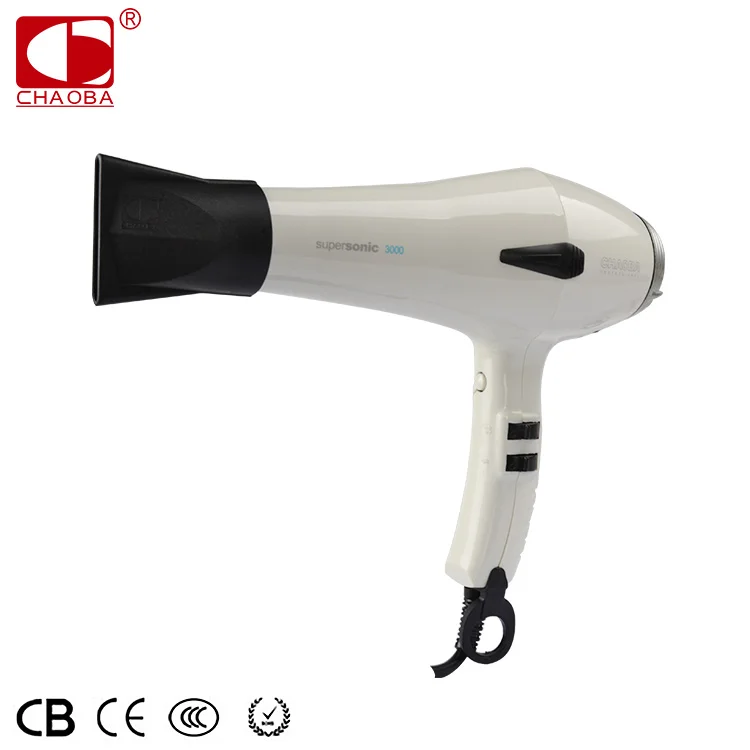

CHAOBA сверхзвуковой 3000 2019 новый хит продаж Профессиональный фен для волос с штепсельная вилка стандарта США

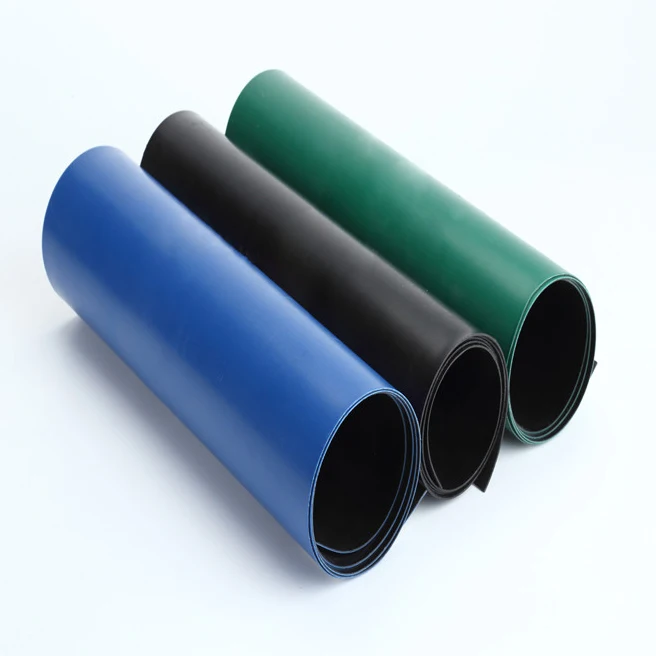

Подводка пруда Hdpe китайская геомембрана водонепроницаемая поверхность для рыбного бассейна техническая
0,45 $ - 1,06 $

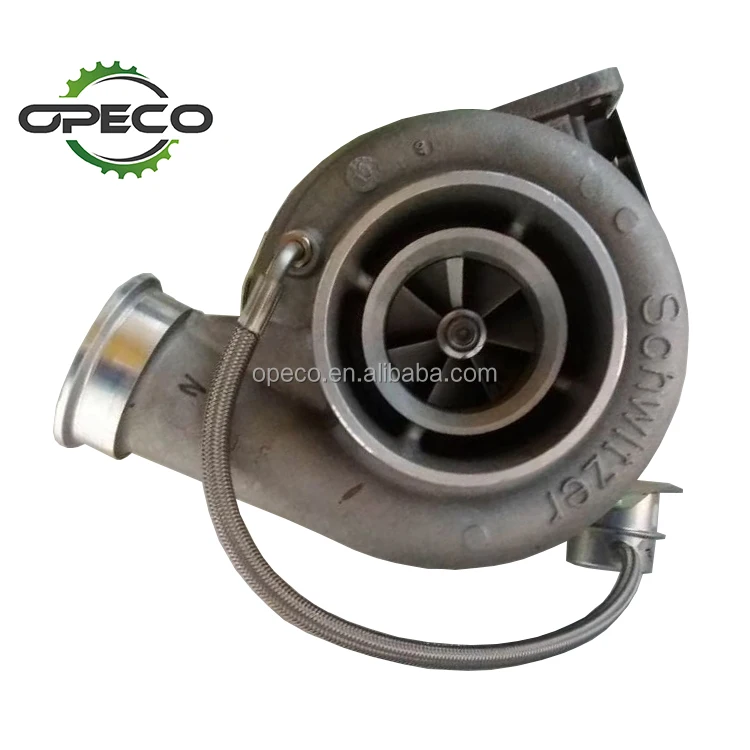

Для Liebherr D2840LF25 D2840LF25 Евро 3 Турбокомпрессор S300G 319702 51,09100-7601 51091007601 10331034 51091009601 51091009602

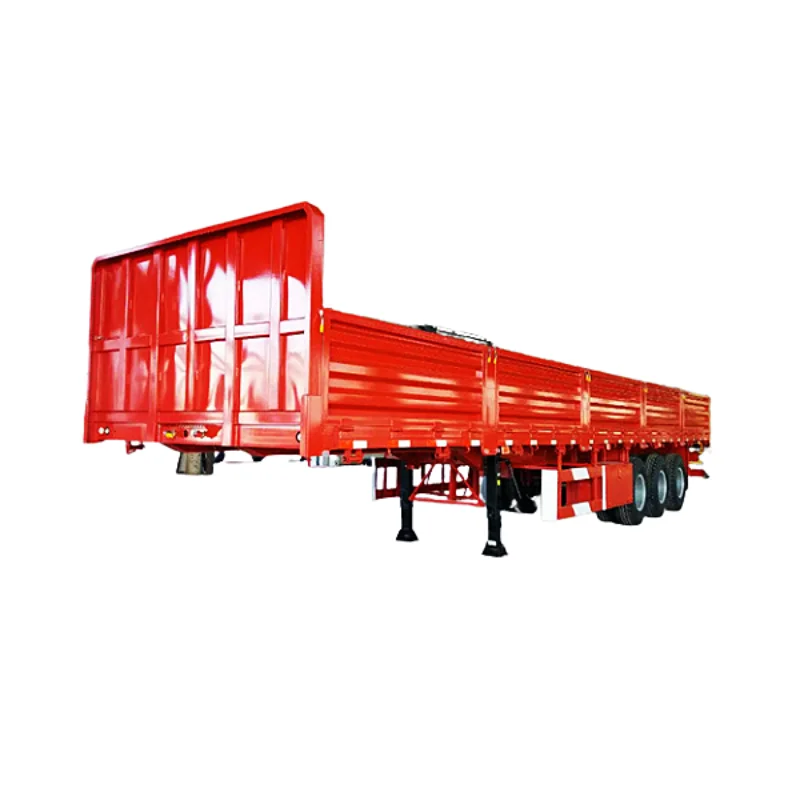

3 оси 40 футов контейнерный лоток грузовой полуприцеп с боковой крышкой
10 000,00 $ - 11 500,00 $
Различные стили и цвета, сомалейские дизайнеры, французский жаккард, удобная Высококачественная жаккардовая шелковая ткань
300,00 $
Модные дизайнерские красные плюшевые пушистые сандалии на заказ оптом, дешевые сланцы из искусственного лисьего меха на плоской подошве, тапочки для женщин
4,50 $ - 5,50 $

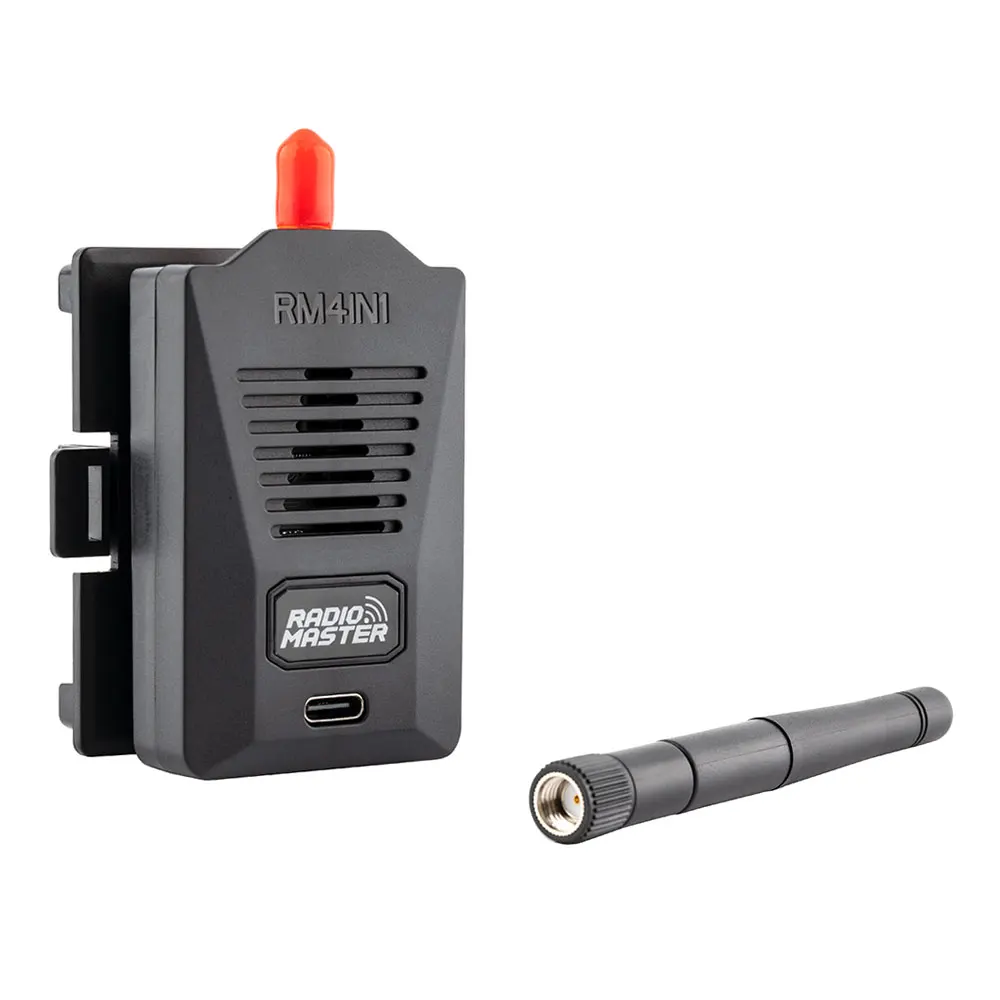

Радиомастер 2,4 ГГц RM 4 в 1 модуль FPV NANO & JR интерфейс дистанционного управления для Zorro, боксеры, TX16S MKII, TX12 MKII
