Product Description
Model
|
HPE ProLiant DL380 Gen11 Server
|
Form Factor
|
2u rack
|
Processors
|
Up to 2 of the 4th Generation In tel® Xeon® Scalable ProcessorsProcessor core available: 16 to 60 core, depending on processor. Processor cache: 22.5 MB to 112.5 MB L3, depending on processor. Processor speed: 3.1 GHz maximum, depending on processor
|
Chassis Types
|
• 8SFF (SAS/SATA/NVMe) with optional SFF Universal Media Bay (P50728-B21), and/or up to 6SFF rear drive bay options • 24SFF bay (SAS/SATA/NVMe) with up to 6SFF rear drive bay options to a total 30 SFF drives • 8LFF supporting 2SFF front, and up to 4LFF rear or 2SFF rear drive bay options • 12LFF with optional 4LFF rear for a total 16LFF drives
|

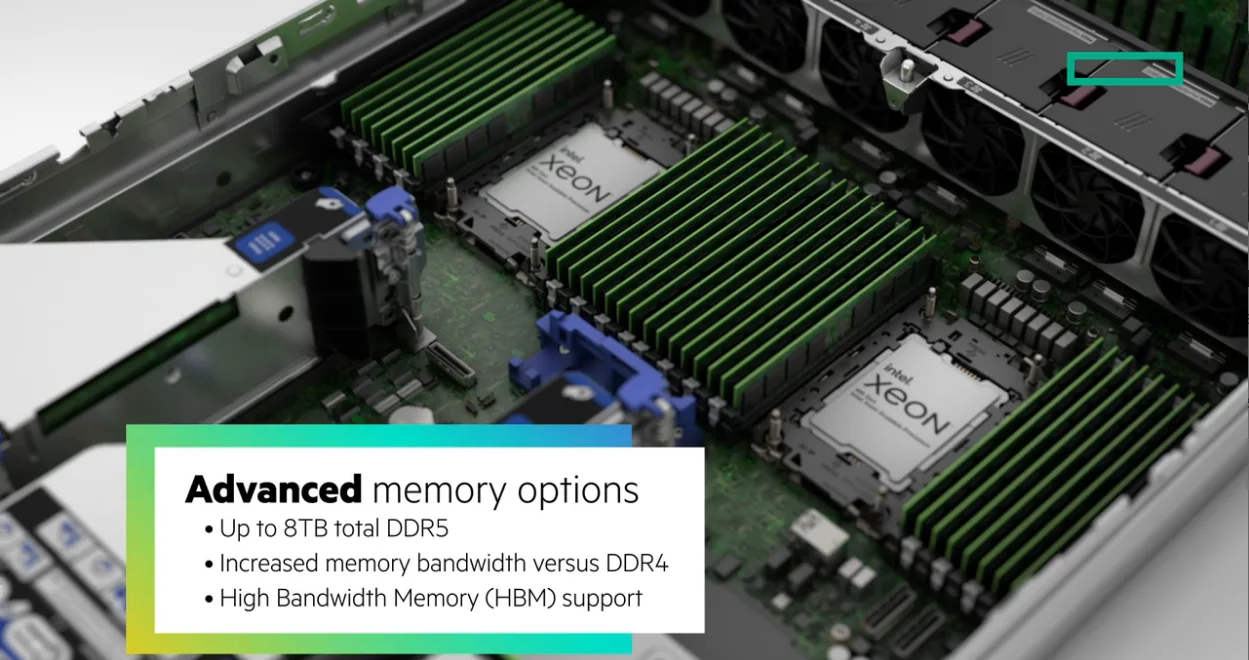

Memory
|
Maximum memory: 8 TB with 256 GB DDR5 Memory slots: 32
|
Optical drive type
|
Optional DVD-ROM Optional via Universal Media Bay External support only.
|
Expansion slots
|
Up to 8 PCIe Gen5, and 2 OCP 3.0
|
Power Supply
|
800W, 1000W, or 1600W Dual hot-plug redundant 1+1 H P E Flexible Slot Power Supplies, depending on model.
|
Network controller
|
1 Gb, 10 Gb, 10/25 Gb, 100 Gb, or 200 Gb, in PCIe adapter or OCP 3.0 form factor
|
Storage controller
|
H P E SR932i-p and/or MR216i-o and/or MR416i-o and/or MR216i-p and/or MR416i-p and/or MR408i-o
|

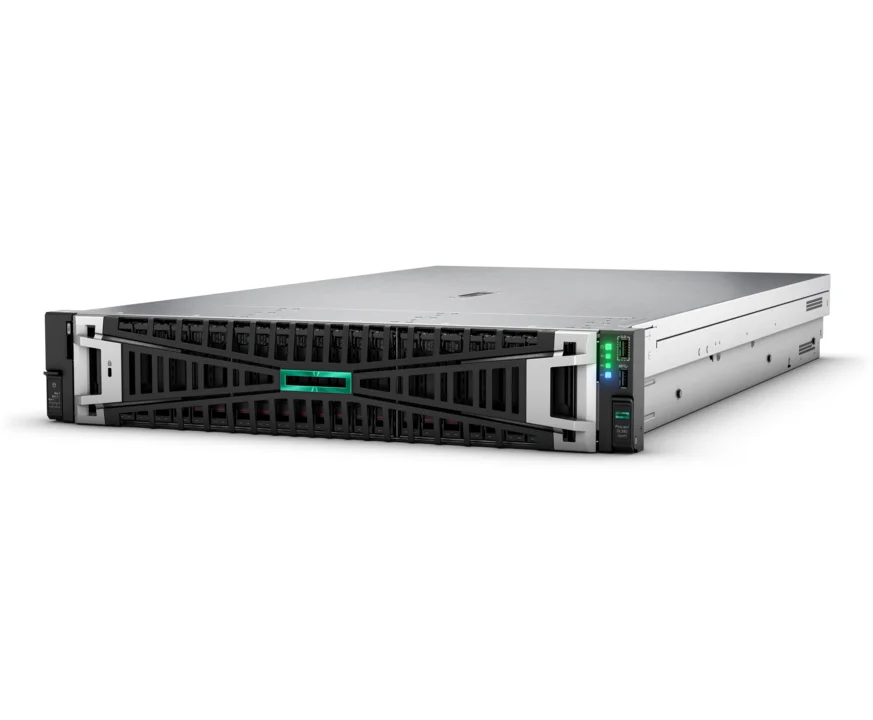

HPE ProLiant DL380 Gen11
Adaptable for diverse workloads and environments, the secure 2P 2U HPE ProLiant DL380 Gen11 delivers worldclass performance with the right balance of expandability
and scalability. Designed for supreme versatility and resiliency while being backed by a comprehensive warranty make it ideal for multiple environments from Containers to Cloud to Big Data. Standardize on the industry’s most trusted compute platform.
