Низкая цена освещение для шкафа безопасности 12 В 2 5 А 30 Вт переключатель питания светодиодный драйвер постоянного напряжения полосы

Низкая цена освещение для шкафа безопасности 12 В 2 5 А 30 Вт переключатель питания светодиодный драйвер постоянного напряжения полосы

Категория: >>>
Поставщик: Shenzhen Tonglida Electronic Co. Ltd.

Цена:416,67 ₽ - 449,56 ₽*

Количество:

В избранное

Описание и отзывы

Характеристики

Product Show

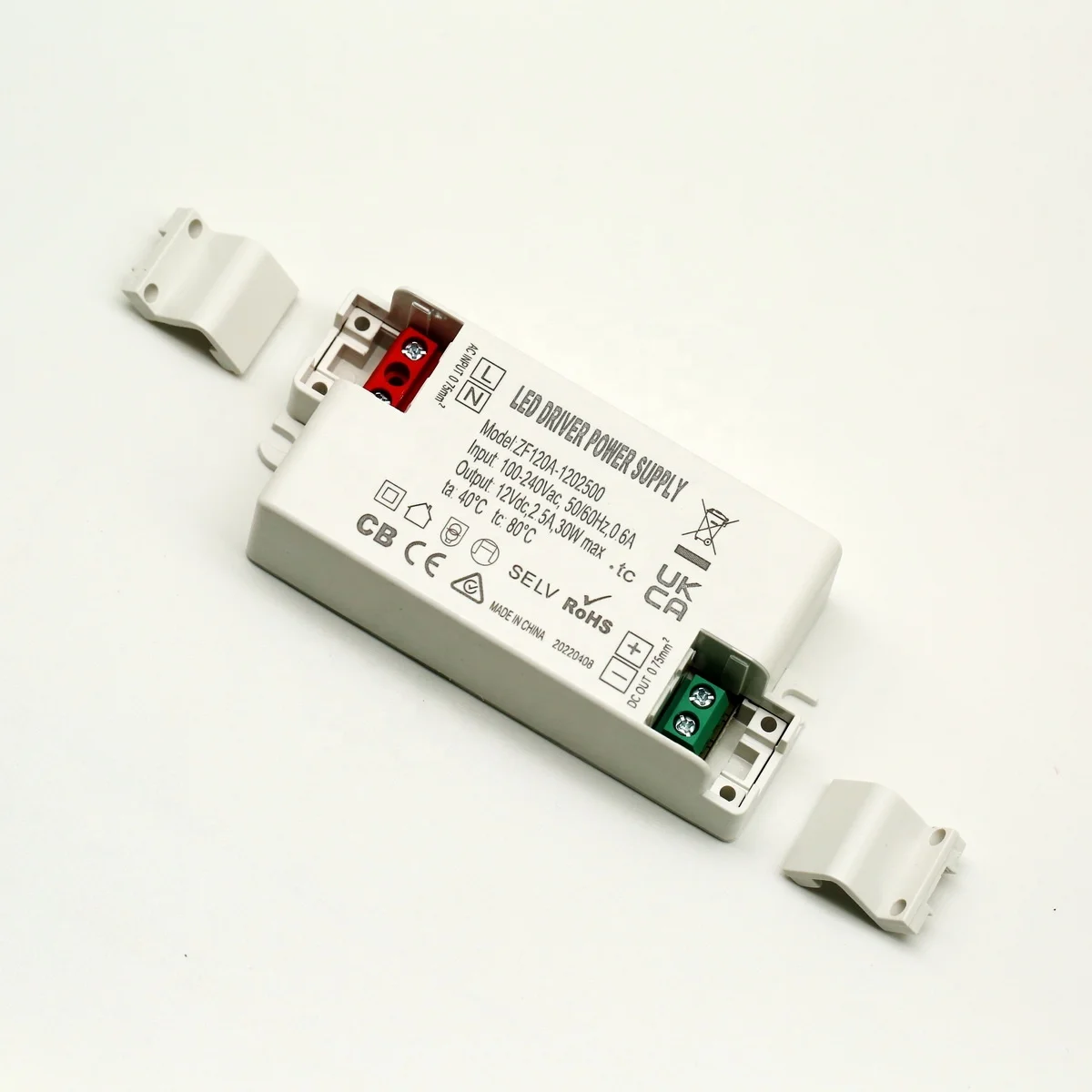

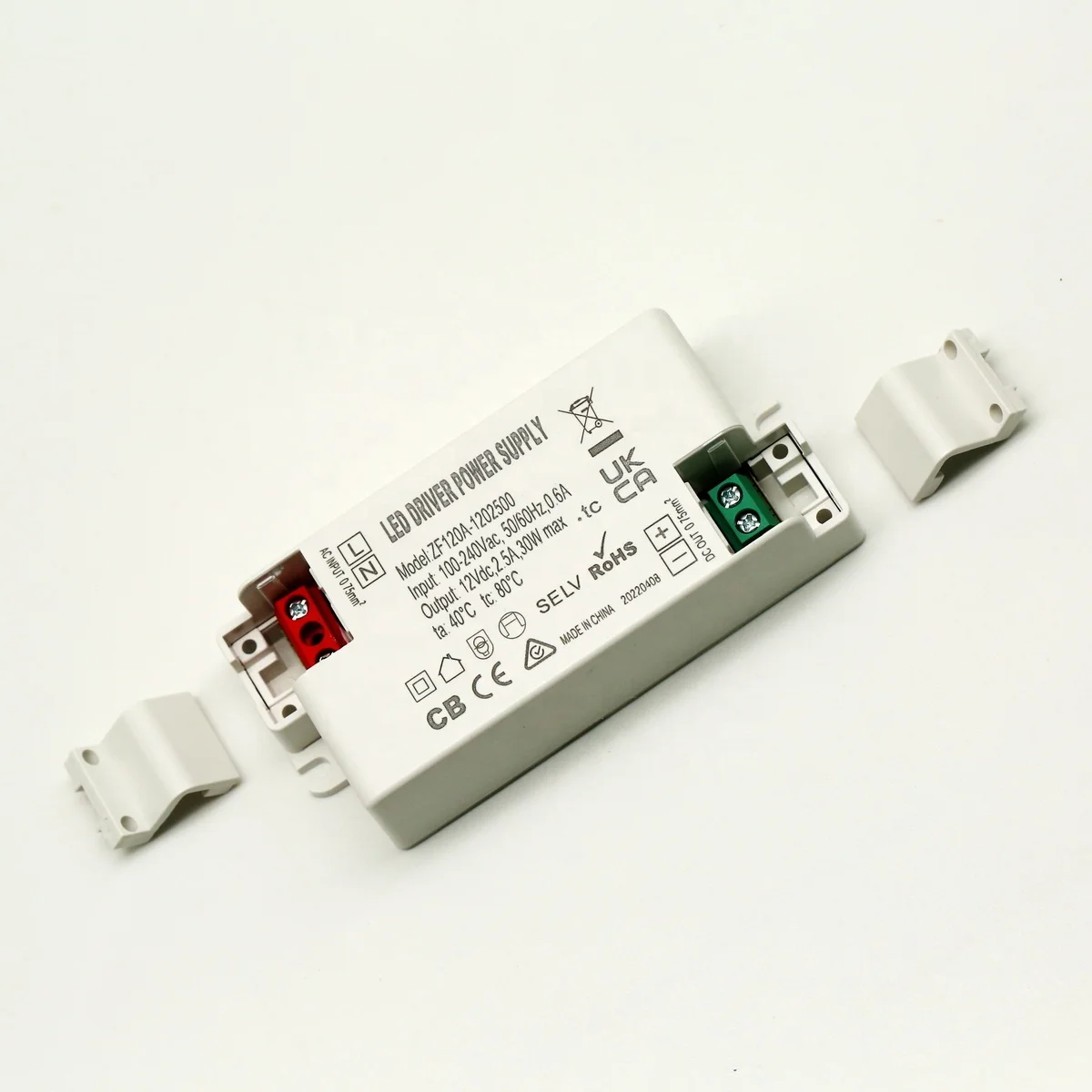

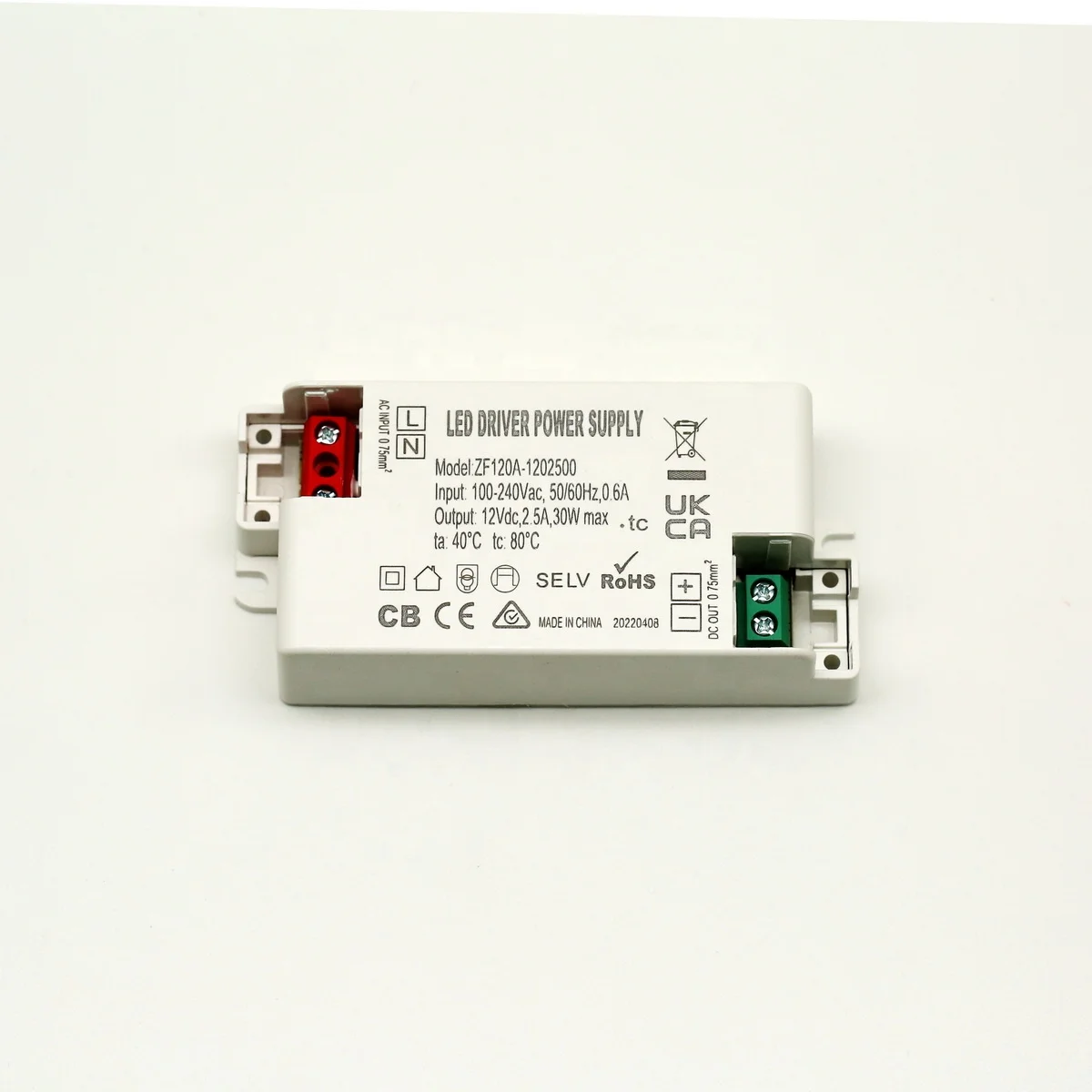

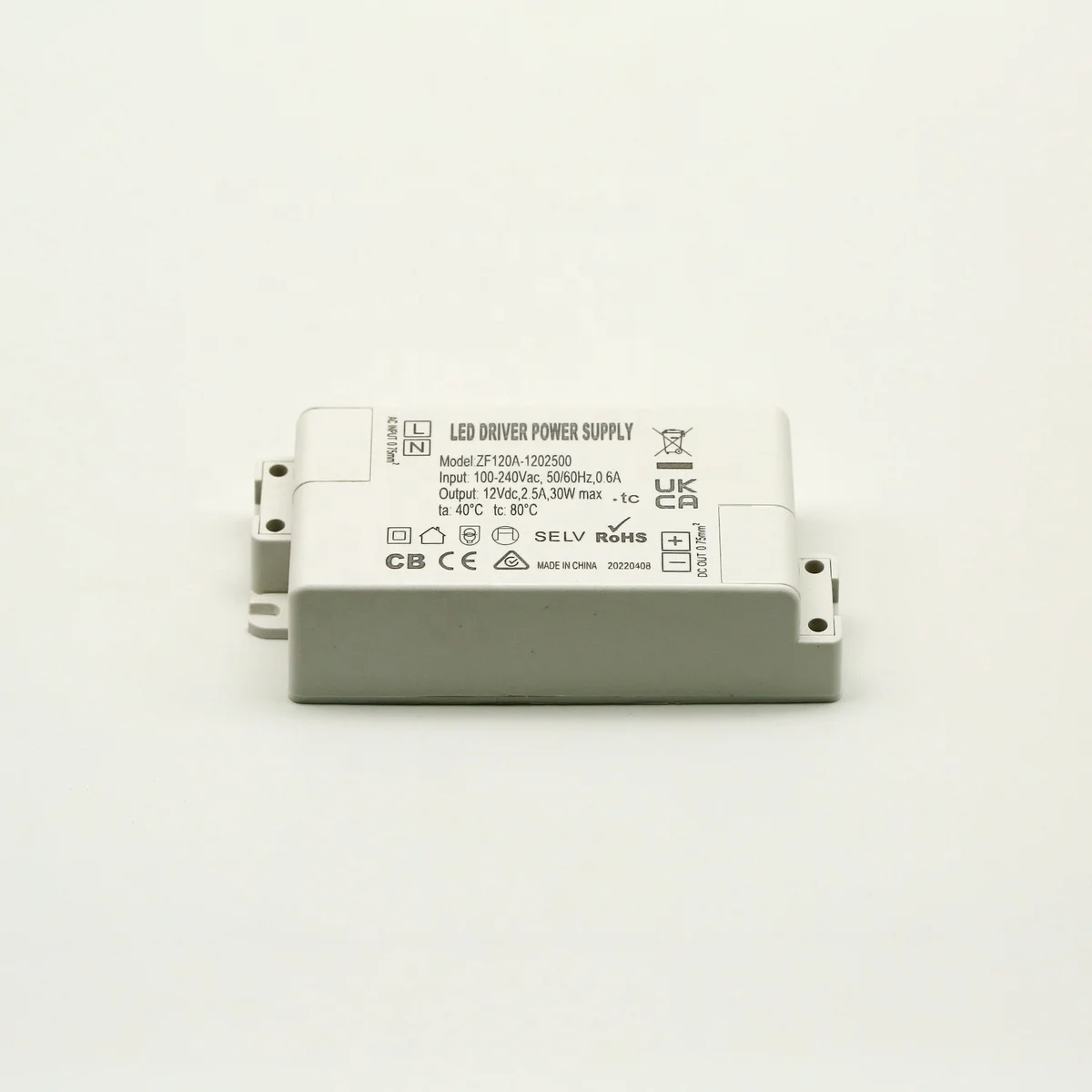

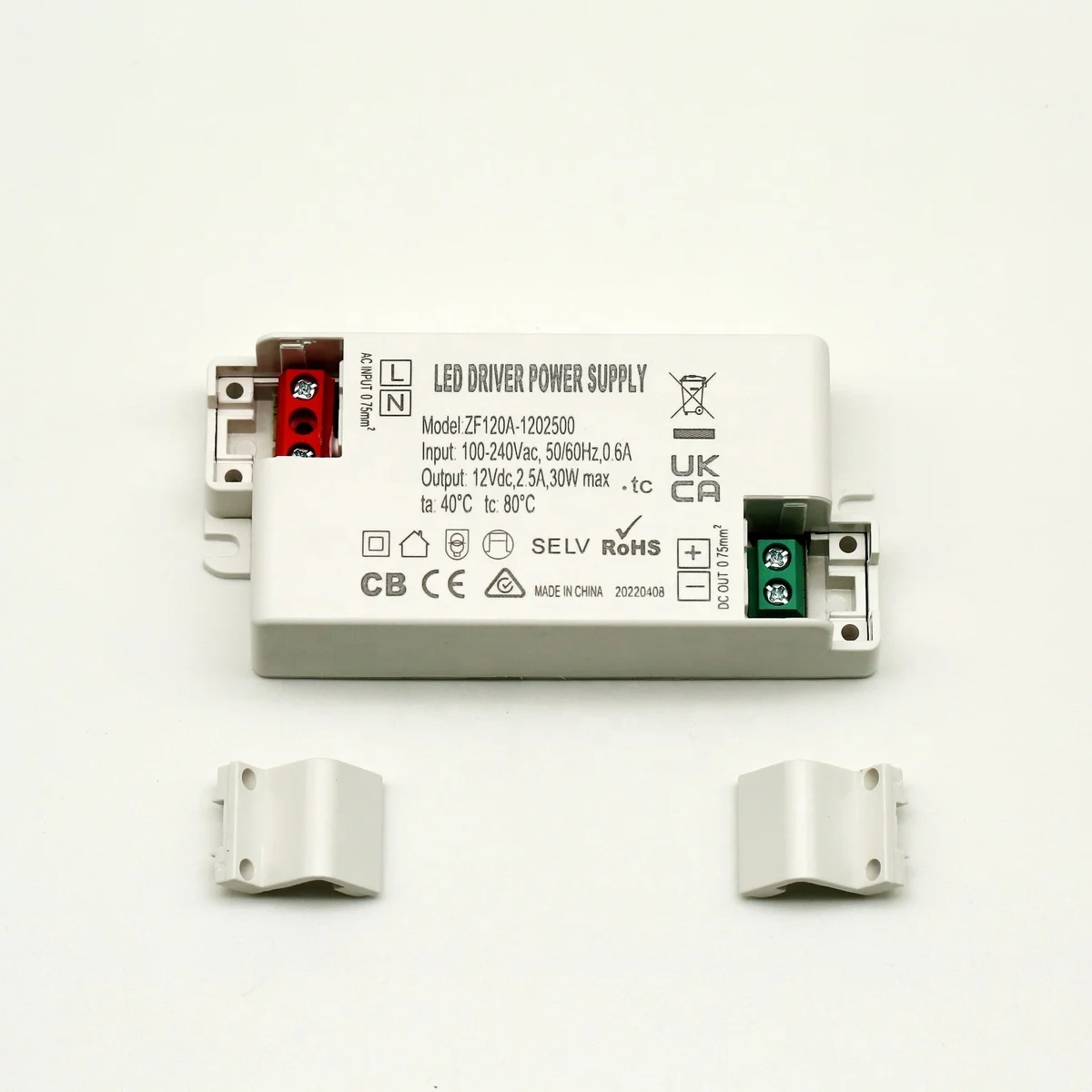

ZF120A-1202500 30W Constant Voltage Led Driver

More Products

Products Name with link

About Tonglida

Established in 2009, Shenzhen Tonglida Electronic Co., Ltd. is a professional high-tech corporation focus on high quality Switching Power Supply . Our product lines include AC DC Switching Power Supply, LED Driver, Power Adaptors, Battery Charger. Our Products are widely applied in the fields of communications equipment, security equipment, LCD monitors, lighting equipment. our clients cover every walk of life."Total Quality Assurance and Customer Satisfaction" are the central goals of our company. Our approach and philosophy is to provide a first class service to our customers, supported by quality products and after sales support. Continuous investment in new technology, research & development and marketing allows JIANG to offer innovative, aesthetically pleasing and reliable products which will stand the test of time.

EQUIPMENT

Certifications

Specifications

Model	ZF120A-1202500
DC output voltage	12V
Output voltage error	±1%
Rated output current	2.5A
Output current range	0-2.5A
Wave and noise	100mVp-p
Inlet stability	±0.5%
Load stability	±0.5%
DC output power	30W
Efficiency	80%
AC input voltage range	85-264VAC
Input current	0.5A/115V 0.25A/230V
AC impulse current	Cold-start current 13A/115V 26A/230V
Leakage current	<0.5mA/240VAC
Over load protection	105%~150% rated output powe
Over load protection		Protection:Hiccup mode
Over voltage protection	12V
Over voltage protection		Protection:Shut down output voltage
short circuit protection	Protection:Hiccup mode
Temperature coefficient	±0.03%(050)
Setup rise hold up time	200ms,100ms,30ms
Vibration	10~500Hz,2G 10min./1cycle,Period for 60min,Each axes
Withstand voltage	I/P-O/P:2.5KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
Isolation resistance	I/P-O/P:100M Ohms / 500VDC / 25 / 65% RH
Working temperature and humidity	-10~+60°C, 20~90%RH
Store temperature and humidity	-20~+85°C, 10~95%RH
Overall dimension	954423mm
Weight	110g
Safety standards	UL1310: Class 2 Power Units CAN/CSA C22.2 nO. 223: Power Supplies with Extra-low Voltage Class 2 Outputs
EMC	IEC 61347-1:2015 IEC 61347-2-13:2014 IEC 61347-2-13:2014/AMD1:2016

Our Service

Welcome OEM and ODM Service
We provide high quality recommended products to our any quantity order.
Three years quality warranty is guaranteed.
If our products have any problems due to our mistakes ,We will resend them to you togerther with your next order.
