Product Description

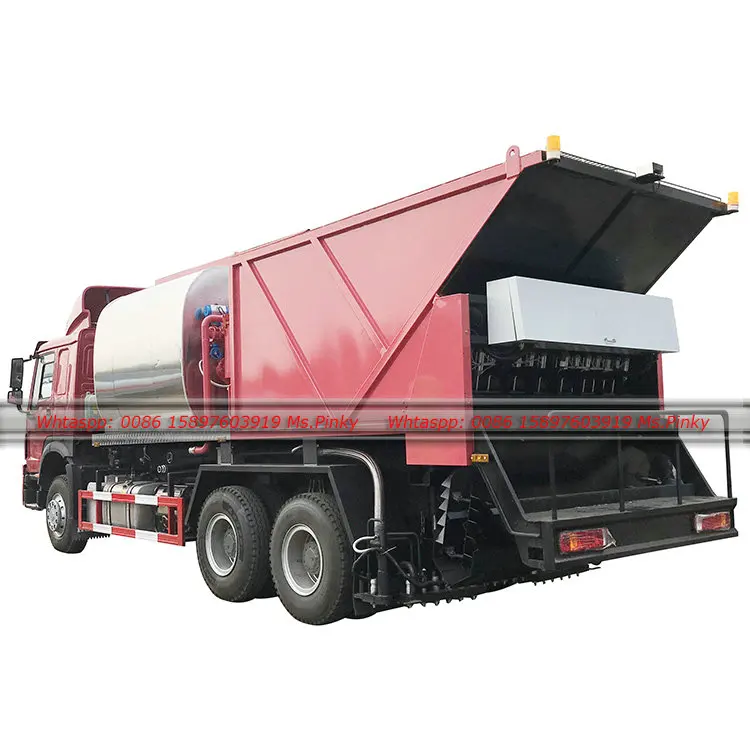

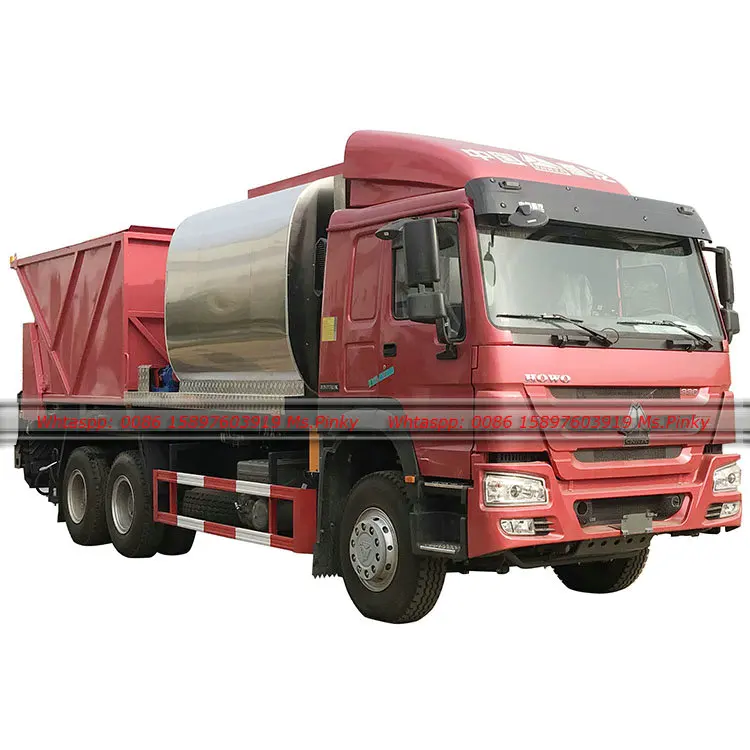

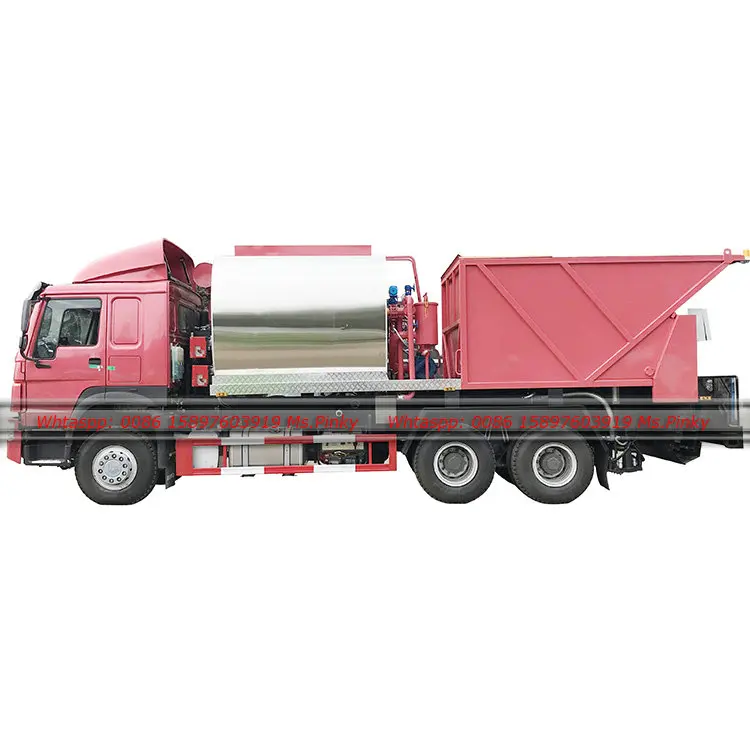

336HP HOWO Asphalt Crushed Stone Synchronous Seal Car Road Machines synchronous chip sealer Bitumen spreader truck
synchronous gravel sealing layer is used for the gravel sealing process of highway surface, bridge deck waterproof and lower sealing layer. It is a special equipment for spraying the asphalt binder and distributing the aggregate synchronously, so that the asphalt binder and the aggregate have the fullest surface contact to achieve the maximum adhesion between them.
336HP HOWO Asphalt Crushed Stone Synchronous Seal Car
Model: HOWO 6*4 336HP
Tank capacity of asphalt : 8m³
Stone silo：12m³
spreading width: 4000mm
nozzle spacing: 125mm
heating mode: liyalu diesel burner + heat transfer oil automatic heating
spraying medium: hot asphalt, SBS modified asphalt, emulsified asphalt and modified emulsified asphalt.
Specification
No. | Name | Model specs | |
1 | HOWO | ||
Driving: 6*4 | |||
Gear box: HW19710 | |||
Engine: WD615.69 336HP 6-Cylinder in Line Euro 2 | |||
Power steering 8118# | |||
Front axle: VGD95, Rear axle: HC16*2 | |||
Tire: 295/80R22.5 | |||
2 | wheelbase | 4600+1300mm | |
3 | Asphalt tank capacity | 8000Liters Inner tank capacity | |
Stone silo | 12000Liters Internal lifting | ||
4 | Thickness of insulation layer | 50mm Rock wool insulation | |
Covered with stainless steel | 1mm thick stainless steel plate | ||
5 | Power take off | Full power take-off.Working power source:Zero start spraying | |
6 | Triple gear pump | CPC4-50-20-16 | |
7 | Proportional valve | EFBG-03-160-HF | |
8 | Asphalt pump motor | 05-130-BD31 | |
9 | Asphalt pump | QGB950 | |
10 | Number of nozzles | 32 pcs . Control mode: 1 control 1 | |
11 | burner | G20 | |
12 | Heat conducting oil pump | RY25-25-160 | |
13 | Heat transfer oil pump motor | 380V-2.2KW-2 grade | |
14 | Stone spreading method | gravity . Stone chip sprinkling system:16 way material gate (computer control) | |
15 | Control system mode | Cab touch screen computer control + rear work platform control (standby) | |
16 | Control system | Siemens modular design, faster and smoother operation, low failure rate | |
speed sensor | Ni5-G12 Germany | ||
17 | temperature controller | WZP-230 shanghai | |
18 | alternator | 5.5KW Honda gasoline generator | |
Details Images
Structure and characteristic
The synchronous gravel truck is mainly composed of asphalt distribution system, stone distribution system, electrical operation system and auxiliary machine system.

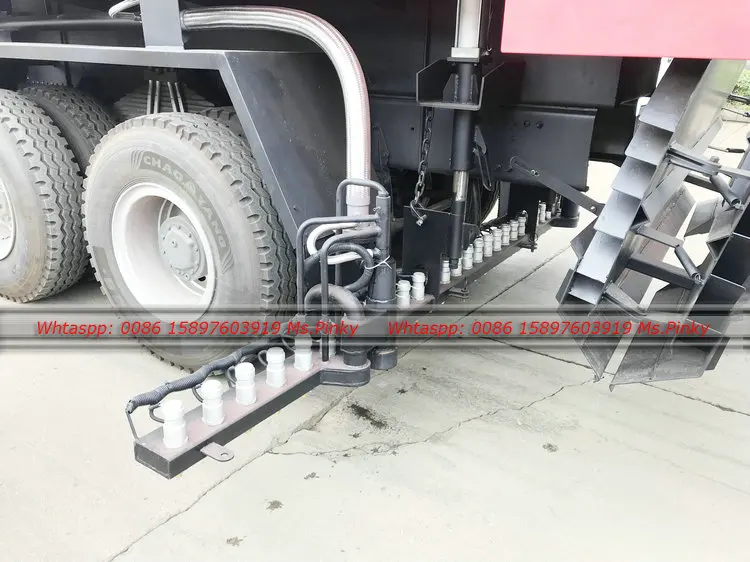

1. Asphalt distribution system the spraying system is mainly composed of asphalt tank, heating part, hydraulic part, control part and spraying part.
◆ The outer wall of the asphalt tank is made of stainless steel frosted plate, with insulation filler added in the middle. The inner part is composed of heating boiler and heat transfer oil pan pipe, and the appearance is clean and generous. An air control valve group is added outside the tank to realize the large and small circulation of asphalt in the pipeline and avoid local overheating and aging of asphalt.
The synchronous gravel truck is mainly composed of asphalt distribution system, stone distribution system, electrical operation system and auxiliary machine system.
1. Asphalt distribution system the spraying system is mainly composed of asphalt tank, heating part, hydraulic part, control part and spraying part.
◆ The outer wall of the asphalt tank is made of stainless steel frosted plate, with insulation filler added in the middle. The inner part is composed of heating boiler and heat transfer oil pan pipe, and the appearance is clean and generous. An air control valve group is added outside the tank to realize the large and small circulation of asphalt in the pipeline and avoid local overheating and aging of asphalt.

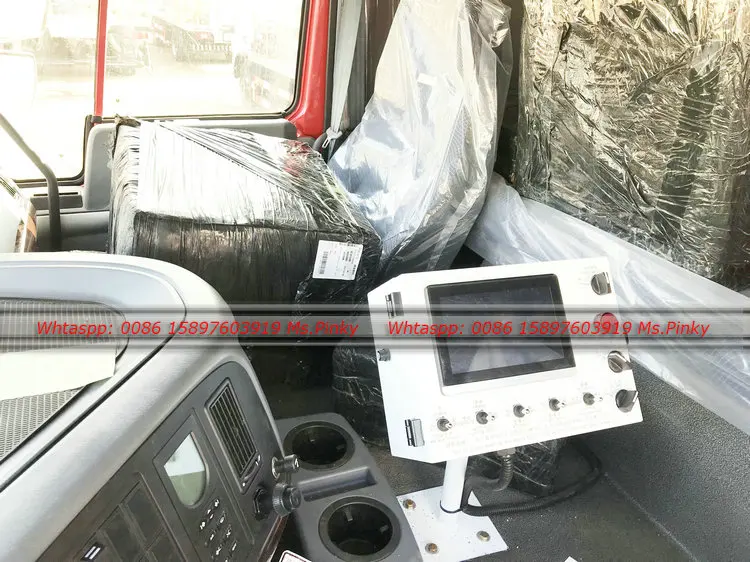

Electrical operation system
◆ Provide accurate distribution parameters to operators according to different work needs. Through the setting of display screen parameters on the rear console, the actual measurement parameters can be accurately changed continuously Which reflects the operation of the equipment.
◆ The manual operation is simple, and the manual / automatic switch can be realized, which improves the work efficiency.
◆ The width of asphalt spraying and stone spreading can be adjusted according to the width of the pavement. ④ The limit switch device is used to control the lifting and lowering of the nozzle rack and the bin, so as to avoid the injury of the human and machine caused by the over travel.
◆ Equipped with automatic alarm device for heat transfer oil, with the functions of upper limit and lower limit alarm for material level and lower limit alarm for asphalt.
◆ Provide accurate distribution parameters to operators according to different work needs. Through the setting of display screen parameters on the rear console, the actual measurement parameters can be accurately changed continuously Which reflects the operation of the equipment.
◆ The manual operation is simple, and the manual / automatic switch can be realized, which improves the work efficiency.
◆ The width of asphalt spraying and stone spreading can be adjusted according to the width of the pavement. ④ The limit switch device is used to control the lifting and lowering of the nozzle rack and the bin, so as to avoid the injury of the human and machine caused by the over travel.
◆ Equipped with automatic alarm device for heat transfer oil, with the functions of upper limit and lower limit alarm for material level and lower limit alarm for asphalt.
Stone spreading system
The stone spreading system consists of a silo, a gate control mechanism and a spreader.
◆ Silo: the silo is installed with an internal shadow type central top turning shaft, and the through shaft is used to ensure the stability of silo lifting;
◆ Material door control mechanism: the material door is controlled by 16 channels, and the angle spiral angle controller is adopted. To make the material door reach a certain opening degree, the opening angle of the material door can be set on the angle controller, which is very convenient, accurate, and can effectively adjust the distribution uniformity, changing the uneven distribution of traditional stones; ③ Spreader part: the spreader consists of a distributor plate and a blanking plate. The regulating range of the distributing plate and the blanking plate is large, and it is applicable to stones of different specifications (S3 ~ s24mm).
Electrical operation system
◆ Provide accurate distribution parameters to operators according to different work needs. Through the setting of display screen parameters on the rear console, the actual measurement parameters can be accurately changed continuously Which reflects the operation of the equipment.
◆ The manual operation is simple, and the manual / automatic switch can be realized, which improves the work efficiency.
◆ The width of asphalt spraying and stone spreading can be adjusted according to the width of the pavement. ④ The limit switch device is used to control the lifting and lowering of the nozzle rack and the bin, so as to avoid the injury of the human and machine caused by the over travel.
◆ Equipped with automatic alarm device for heat transfer oil, with the functions of upper limit and lower limit alarm for material level and lower limit alarm for asphalt.
The stone spreading system consists of a silo, a gate control mechanism and a spreader.
◆ Silo: the silo is installed with an internal shadow type central top turning shaft, and the through shaft is used to ensure the stability of silo lifting;
◆ Material door control mechanism: the material door is controlled by 16 channels, and the angle spiral angle controller is adopted. To make the material door reach a certain opening degree, the opening angle of the material door can be set on the angle controller, which is very convenient, accurate, and can effectively adjust the distribution uniformity, changing the uneven distribution of traditional stones; ③ Spreader part: the spreader consists of a distributor plate and a blanking plate. The regulating range of the distributing plate and the blanking plate is large, and it is applicable to stones of different specifications (S3 ~ s24mm).
Electrical operation system
◆ Provide accurate distribution parameters to operators according to different work needs. Through the setting of display screen parameters on the rear console, the actual measurement parameters can be accurately changed continuously Which reflects the operation of the equipment.
◆ The manual operation is simple, and the manual / automatic switch can be realized, which improves the work efficiency.
◆ The width of asphalt spraying and stone spreading can be adjusted according to the width of the pavement. ④ The limit switch device is used to control the lifting and lowering of the nozzle rack and the bin, so as to avoid the injury of the human and machine caused by the over travel.
◆ Equipped with automatic alarm device for heat transfer oil, with the functions of upper limit and lower limit alarm for material level and lower limit alarm for asphalt.
Equipment advantages
◆ exclusive use of full hydraulic drive mode, no need to add any auxiliary power to make the operation more simple and convenient.
◆ exclusive use of high-efficiency heat transfer oil boiler for temperature rise, which greatly improves the temperature rise speed, breaking the traditional flue heating method.
◆ the equipment adopts an internal lifting hopper to realize the stone chip spreading construction, which is more convenient for culvert construction, under bridge construction and curve construction;
◆ the equipment is completely controlled by electricity and has a high degree of automation. It can accurately calculate the amount of asphalt spraying and stone chip spreading during the construction of the equipment;
◆ angle meter is used for material door control to ensure the accuracy of equipment feeding;
◆ reduce the labor intensity of construction, save human resources and reduce construction cost,Improve work efficiency and quality;
◆ stable operation of the whole machine, uniform distribution, and free adjustment of asphalt spreading width;
◆ a good thermal insulation layer ensures that the thermal insulation performance index is ≤ 20 ℃ / 8h, and the corrosion resistance is durable;
◆ it can spray various asphalt media and spread stones from S3 to s24mm;
◆ the equipment adopts nozzles with high processing accuracy to ensure the spraying consistency and spraying effect of each nozzle;
◆ exclusive use of full hydraulic drive mode, no need to add any auxiliary power to make the operation more simple and convenient.
◆ exclusive use of high-efficiency heat transfer oil boiler for temperature rise, which greatly improves the temperature rise speed, breaking the traditional flue heating method.
◆ the equipment adopts an internal lifting hopper to realize the stone chip spreading construction, which is more convenient for culvert construction, under bridge construction and curve construction;
◆ the equipment is completely controlled by electricity and has a high degree of automation. It can accurately calculate the amount of asphalt spraying and stone chip spreading during the construction of the equipment;
◆ angle meter is used for material door control to ensure the accuracy of equipment feeding;
◆ reduce the labor intensity of construction, save human resources and reduce construction cost,Improve work efficiency and quality;
◆ stable operation of the whole machine, uniform distribution, and free adjustment of asphalt spreading width;
◆ a good thermal insulation layer ensures that the thermal insulation performance index is ≤ 20 ℃ / 8h, and the corrosion resistance is durable;
◆ it can spray various asphalt media and spread stones from S3 to s24mm;
◆ the equipment adopts nozzles with high processing accuracy to ensure the spraying consistency and spraying effect of each nozzle;
Bitumen spreader Truck/Asphalt Distributor Truck: Rectangular/Oval cross-section asphalt tank with 60mm -80mm thickness rock wool insulation layer, low center of gravity and large load.
The outermost of the tank is Covered by 1mm cold plate
The asphalt distributor produced by our company is working in foreign country road for hot Asphalt sprayer
The Customer is very satisfied
Packing & Delivery
Naked package, shipping by RoRo or Bulk shipping or by container.
