Автоматизированная настольная сварочная станция паяльная машина для PCB
3 100,00-3 600,00 $

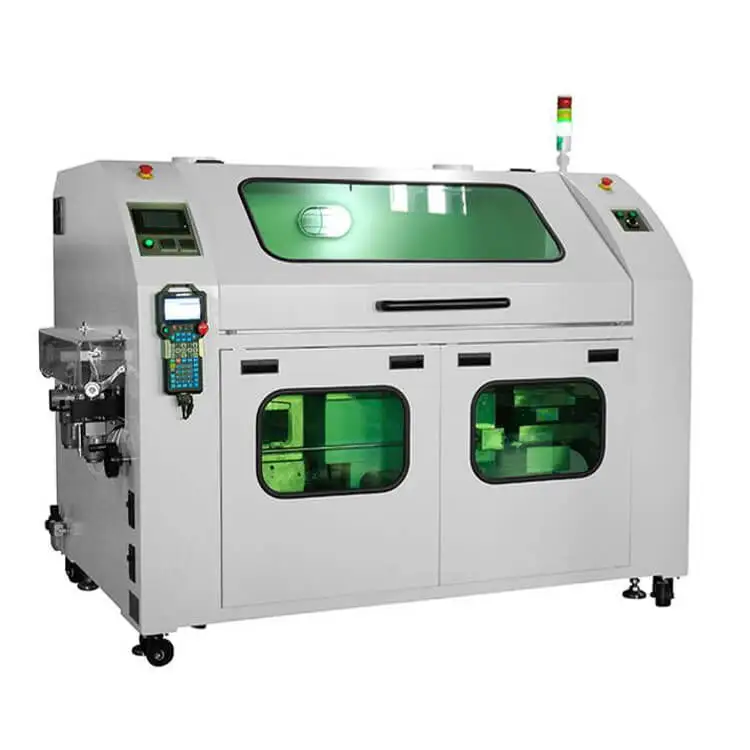

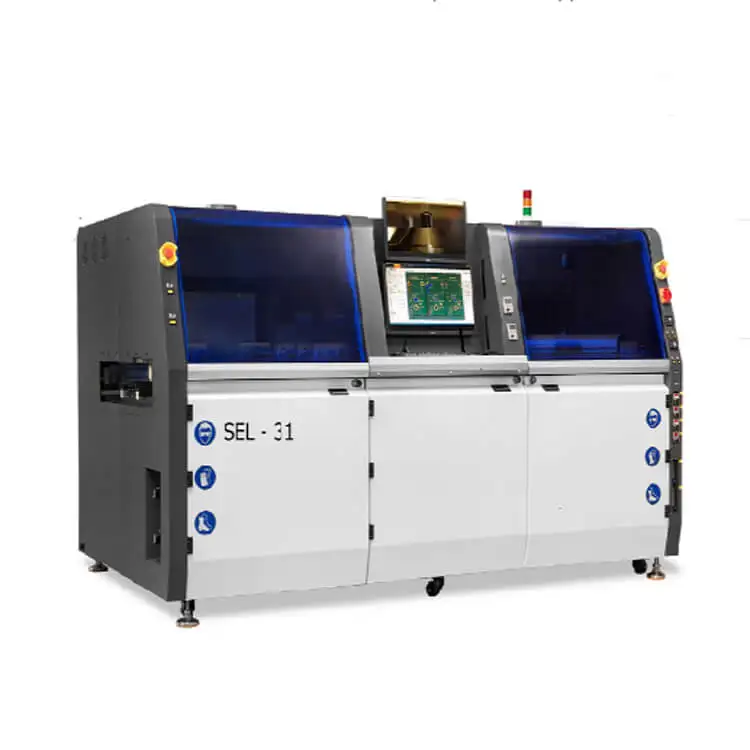

Высококачественная селективная паяльная машина для линии производства dip
- Категория: >>>
- Поставщик: Shenzhen Yufuxin Technology Co. Ltd.Shenzhen Ltd.
Сохранить в закладки 1600767135966:
Описание и отзывы
Характеристики
Product Description
Features:
1. Equip with spraying， preheating and welding units which can complete the whole welding process in a small machine.
2. Small size, small footprint, length:1435mm.
3. Standard electromagnetic pump solder tank, no wear parts, easy maintenance.
4. Rotary track design which allows loading and unloading PCB on the same side of the machine.
5. Standard equipped with teaching camera, spray cleaning function.
6. Realtime monitoring and recording of welding process.
7. Transmission system adoption a roller conveyor,increase welding space,better close to the edge components of welding.
8. Adopts precise nozzle with 130um diameter which is imported from Germany and can uniformly spray flux in the required welding
area.The minimum injection area is3mm which saves atleast 90%flux compared with the traditional spraying.
9. All the movements are drived by servo motor.The movements are stable and smooth.The precision accuracy is around 0.05mm.
10. The soldering module has high precision axis system to ensure the accurate soldering path and with particular process,the
system will eliminate the chance of bridging.
11. Process monitor screen and automatic soldering wave height detecting are very friendly for users.
1. Equip with spraying， preheating and welding units which can complete the whole welding process in a small machine.
2. Small size, small footprint, length:1435mm.
3. Standard electromagnetic pump solder tank, no wear parts, easy maintenance.
4. Rotary track design which allows loading and unloading PCB on the same side of the machine.
5. Standard equipped with teaching camera, spray cleaning function.
6. Realtime monitoring and recording of welding process.
7. Transmission system adoption a roller conveyor,increase welding space,better close to the edge components of welding.
8. Adopts precise nozzle with 130um diameter which is imported from Germany and can uniformly spray flux in the required welding
area.The minimum injection area is3mm which saves atleast 90%flux compared with the traditional spraying.
9. All the movements are drived by servo motor.The movements are stable and smooth.The precision accuracy is around 0.05mm.
10. The soldering module has high precision axis system to ensure the accurate soldering path and with particular process,the
system will eliminate the chance of bridging.
11. Process monitor screen and automatic soldering wave height detecting are very friendly for users.
Specification
Machine name | YFX-450 |
Dimension | L1280mm X W1400mm X H1650mm |
General power | 5kw |
Consumption power | 1--3kw |
Power supply | AC 220V 50HZ |
Net weight | 380KG |
Reuiqred air source | 3-5 Bars |
Required air flow | 8-12L/min |
Core Components | PLC |
Required N2 pressure | 3-4 Bars |
Place of Origin | China |
Required N2 flow | >2Cubic/hour |
Voltage | 220V |
Required exhausting | 500--800CMB/H |
Usage | soldering wire |
Warranty | 1 Year |
Key Selling Points | Automatic |
Carrier | Can be used as needed |
Product name | Automatic PCB Soldering Machine |
Application | Circuit Board Automatic Soldering |
Keyword | Autonatic Soldering Machine |
Soldering material | Tin Wire |
Function | Striping +cutting +solderinging |
Packing & Delivery
vacuum packing and wooden case
Company Profile
Shenzhen Yufuxin Technology Co., Ltd. is high-tech SMT assembly line Manufacturer, focusing on SMT assembly line equipment research and development,building new advanced solutions in SMT assembly line , LED Production line, semiconductor assembly line, energy machines assembly line and other areas.
FAQ
Q: What we can do for you?
A: We provide Whole coating line (Auto coating line ,economic coating line ) DIP Line,SMT Line and so on.Professional Technical
Support and Service.
Q: What is your delivery date?
A: The delivery date is about 20-25 days.
Q: What is your payment terms?
A: TT 100% payment in advance.
Q:This machine is easy to use ? if I have no experience, I can also operate it well ?
A:Yes, our machine is designed to use easily, Normally it will take you 1 day to learn how to operate, if you are a technician, it will much faster to learn.
Q:Do you provide the user manual and operating videos to support us ?
A:We will provide the English user manual for free , and the operation video is available.Our software is all English.
Q: If we come to your factory, you will provide the free training ?
A:Yes, warmly welcome you to visit our factory, we will arrange the free training for you.
Q:What service you can provide when we have some problem during the operation?
A:We can invite our engineers to your company for guidance, but you are responsible for the air tickets and accommodation,we can
also provide remote guidance
Q:What is the payment way ?
A:We accept the payment terms: T/T, WesterUnion, Moneygram, Paypal, etc.
A: We provide Whole coating line (Auto coating line ,economic coating line ) DIP Line,SMT Line and so on.Professional Technical
Support and Service.
Q: What is your delivery date?
A: The delivery date is about 20-25 days.
Q: What is your payment terms?
A: TT 100% payment in advance.
Q:This machine is easy to use ? if I have no experience, I can also operate it well ?
A:Yes, our machine is designed to use easily, Normally it will take you 1 day to learn how to operate, if you are a technician, it will much faster to learn.
Q:Do you provide the user manual and operating videos to support us ?
A:We will provide the English user manual for free , and the operation video is available.Our software is all English.
Q: If we come to your factory, you will provide the free training ?
A:Yes, warmly welcome you to visit our factory, we will arrange the free training for you.
Q:What service you can provide when we have some problem during the operation?
A:We can invite our engineers to your company for guidance, but you are responsible for the air tickets and accommodation,we can
also provide remote guidance
Q:What is the payment way ?
A:We accept the payment terms: T/T, WesterUnion, Moneygram, Paypal, etc.
