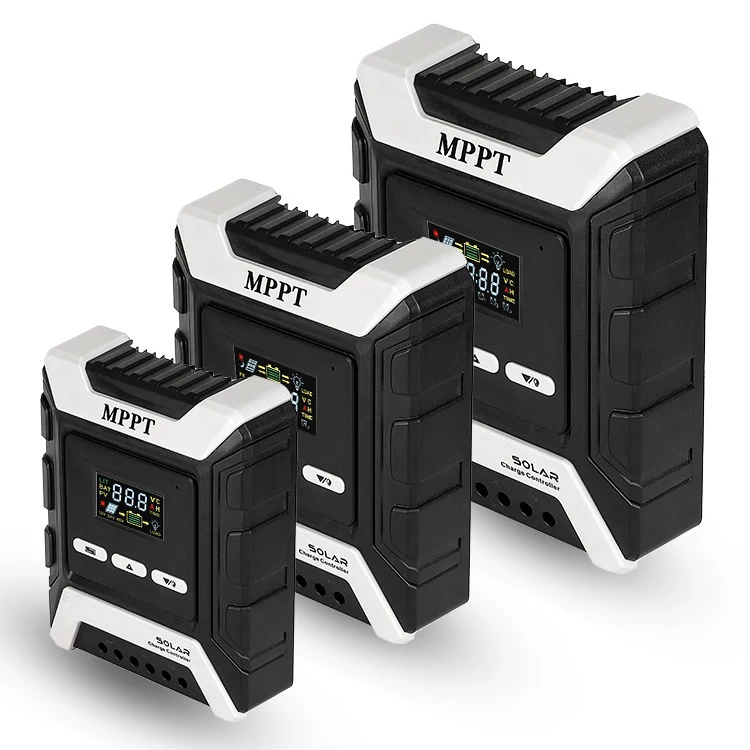

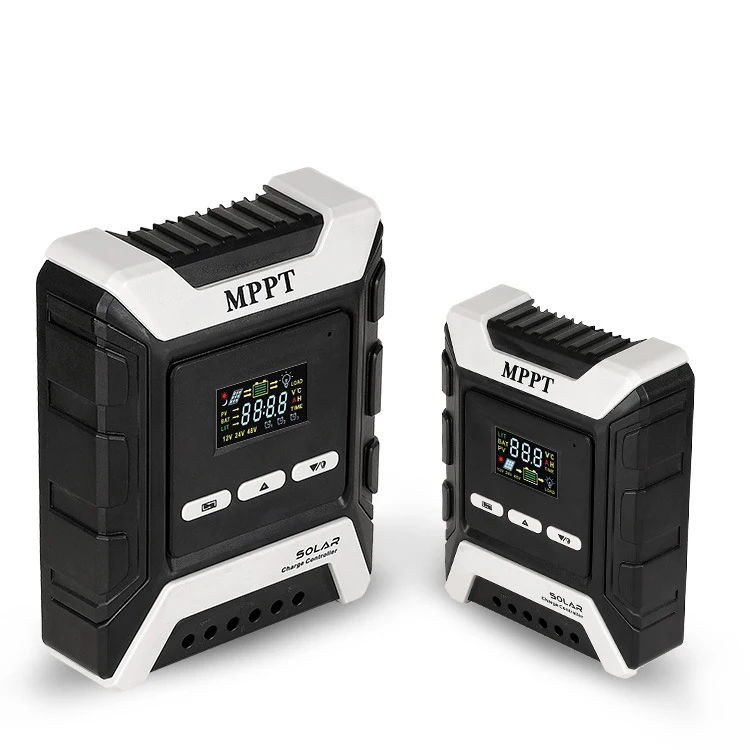

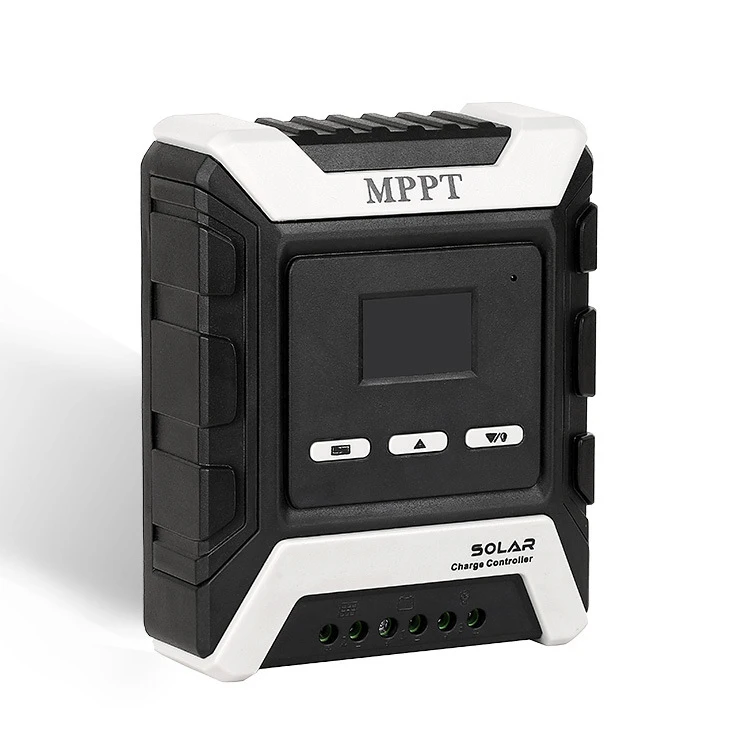

12v 24v 36v 48v 96v 10A 20A 30A 40A 60A 80A smart mppt solar charge controller price
Product Description

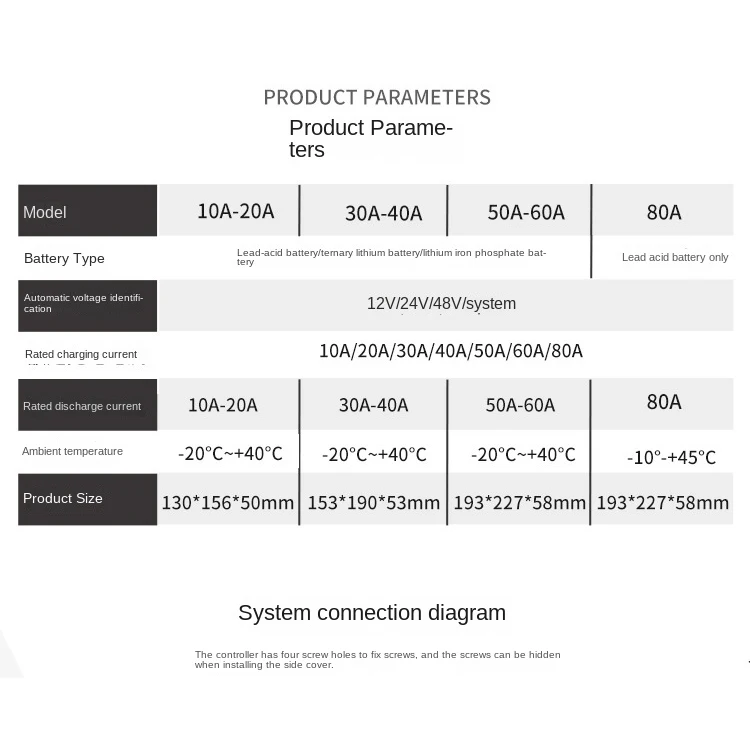

Model | 10A/20A | 30A/40A | 50A/60A | 80A | ||||||||||||
Parameter Characteristics | ||||||||||||||||
System Voltage | 12v/24v/48v | 12v/24v/48v | 12v/24v/48v | 12v/24v/48v | ||||||||||||
Max.Solar Power Input | 240w/480w/960w | 480w/960w/1600w | 720w/1440w/2880w | 960w/1920w-3840w | ||||||||||||
DC Input | ||||||||||||||||
MPPT Voltage | 12v-80v | 12v-80v | 12v-80v | 12v-80v | ||||||||||||
Open-Circuit Voltage | 15v-80v | 15v-80v | 15v-80v | 15v-80v | ||||||||||||
Module Current | 20A | 40A | 60A | 80A | ||||||||||||
DC Output | ||||||||||||||||
Load Current | 0-20A | 0-40A | 0-60A | 0-80A | ||||||||||||
LVR | 12.5V/28.2V/56.4V | 12.5V/28.2V/56.4V | 12.5V/28.2V/56.4V | 12.5V/28.2V/56.4V | ||||||||||||
LVD | 11.5V/23V/46V | 11.5V/23V/46V | 11.5V/23V/46V | 11.5V/23V/46V | ||||||||||||
Battery | ||||||||||||||||
Charging current | 10A/20A | 30A/40A | 50A/60A | 80A | ||||||||||||
Chargung completed | 14.2V/28.4V/56.6V | 14.2V/28.4V/56.6V | 14.2V/28.4V/56.6V | 14.2V/28.4V/56.6V | ||||||||||||
Floating charging voltage | 14.4V/28.8V/57.6V | 14.4V/28.8V/57.6V | 14.4V/28.8V/57.6V | 14.4V/28.8V/57.6V | ||||||||||||
Constant charging | 15V/30V/60V | 15V/30V/60V | 15V/30V/60V | 15V/30V/60V | ||||||||||||
Working Temperature | -20℃~+40℃ | |||||||||||||||
Peoduct size | 130*156*50mm | 159*190*53mm | 193*227*58mm | 193*227*58mm | ||||||||||||
N.W/G.W | 0.55KG/0.68KG | 0.8KG/0.85KG | 1.11KG/1.32KG | 1.11KG/1.32KG | ||||||||||||
Specification
Features :
* High efficiency MPPT control algorithm, MPPT efficiency ≥99.5%, whole Machine conversion efficiency upto 98%;
* Charge mode: three stages (fast charge, constant charge, floating charge), improve boost voltage charge(activate the battery performance), it prolongs service life of the batteries;
* Discharge mode: ON/OFF mode, PV voltage control mode, Dual Time control mode, PV&Time control mode;
* Customers can choose battery types: (Flooded, Sealed lead acid, Gel battery) charging, Other types of the batteries can also be defined;
* Most information could be provide by LCD like: System type, PV input voltage, PV input current, Day/Month/Total generated energy, battery type, battery voltage, charging current, charging power, Load current, Load power and so on;
* RS485 communication, we can offer communication protocol also, it’s convenient for user’s integration management.
* CE, RoHS, FCC certifications approved. We can help clients to approve other certifications.
* 2 years warranty.And 3~10 years extended warranty service also can be provided.
* High efficiency MPPT control algorithm, MPPT efficiency ≥99.5%, whole Machine conversion efficiency upto 98%;
* Charge mode: three stages (fast charge, constant charge, floating charge), improve boost voltage charge(activate the battery performance), it prolongs service life of the batteries;
* Discharge mode: ON/OFF mode, PV voltage control mode, Dual Time control mode, PV&Time control mode;
* Customers can choose battery types: (Flooded, Sealed lead acid, Gel battery) charging, Other types of the batteries can also be defined;
* Most information could be provide by LCD like: System type, PV input voltage, PV input current, Day/Month/Total generated energy, battery type, battery voltage, charging current, charging power, Load current, Load power and so on;
* RS485 communication, we can offer communication protocol also, it’s convenient for user’s integration management.
* CE, RoHS, FCC certifications approved. We can help clients to approve other certifications.
* 2 years warranty.And 3~10 years extended warranty service also can be provided.
Company Profile
FAQ
1. who are we?
We are based in Jiangsu, China, start from 2020,sell to Southeast Asia(40.00%),North America(15.00%),Africa(10.00%),Mid East(8.00%),South America(5.00%),Eastern Europe(5.00%),Oceania(5.00%),Eastern Asia(2.00%),Western Europe(2.00%),Central America(2.00%),Southern Europe(2.00%),South Asia(2.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Street Light,LED Street Light,Solar Street Light,Lamp Pole,flood light
4. why should you buy from us not from other suppliers?
Lecuso is a company that provides technological innovation and energy applications, and is committed to improving the living environment through energy-saving technology, efficient lighting, and green energy. As a leader in solar applications and LED light
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
We are based in Jiangsu, China, start from 2020,sell to Southeast Asia(40.00%),North America(15.00%),Africa(10.00%),Mid East(8.00%),South America(5.00%),Eastern Europe(5.00%),Oceania(5.00%),Eastern Asia(2.00%),Western Europe(2.00%),Central America(2.00%),Southern Europe(2.00%),South Asia(2.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Street Light,LED Street Light,Solar Street Light,Lamp Pole,flood light
4. why should you buy from us not from other suppliers?
Lecuso is a company that provides technological innovation and energy applications, and is committed to improving the living environment through energy-saving technology, efficient lighting, and green energy. As a leader in solar applications and LED light
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
Похожие товары
Контроллер солнечных батарей Mppt контроллер 12 в 60 А В 24 для панелей
8 045,22 ₽
Гибридный контроллер солнечной батареи 12 в 24 48 60 А mppt
11 241,26 ₽ - 12 784,18 ₽

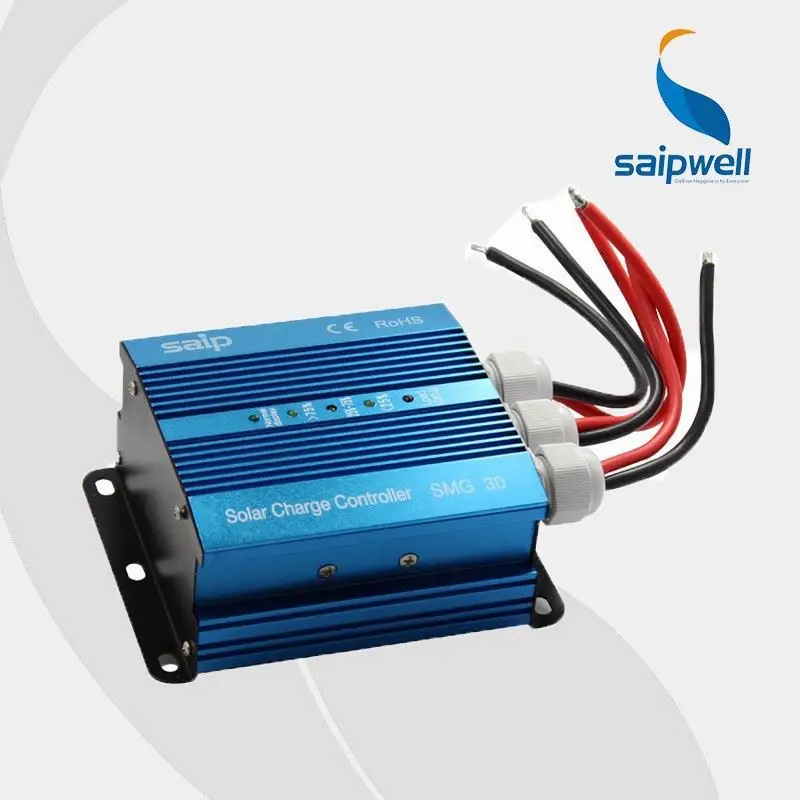

Saip/Saipwell прямые продажи pwm контроллер солнечного зарядного устройства серии SMG

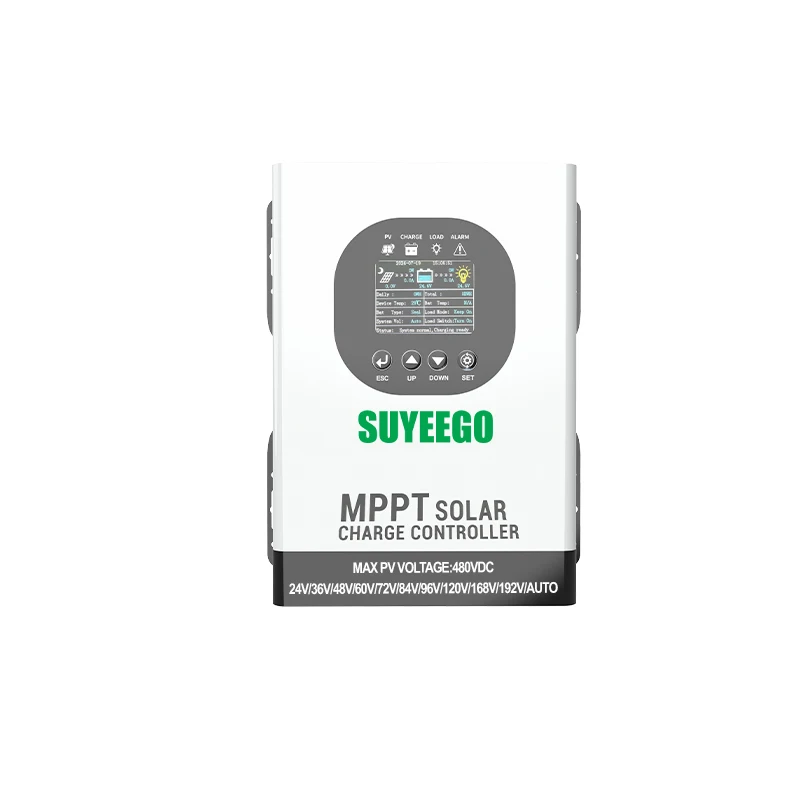

Контроллер зарядного устройства на солнечной батарее 60A высокое входное напряжение 480VDC автоматический MPPT контроллер солнечного заряда 24 В 48 96 120 192
8 706,47 ₽ - 8 926,89 ₽

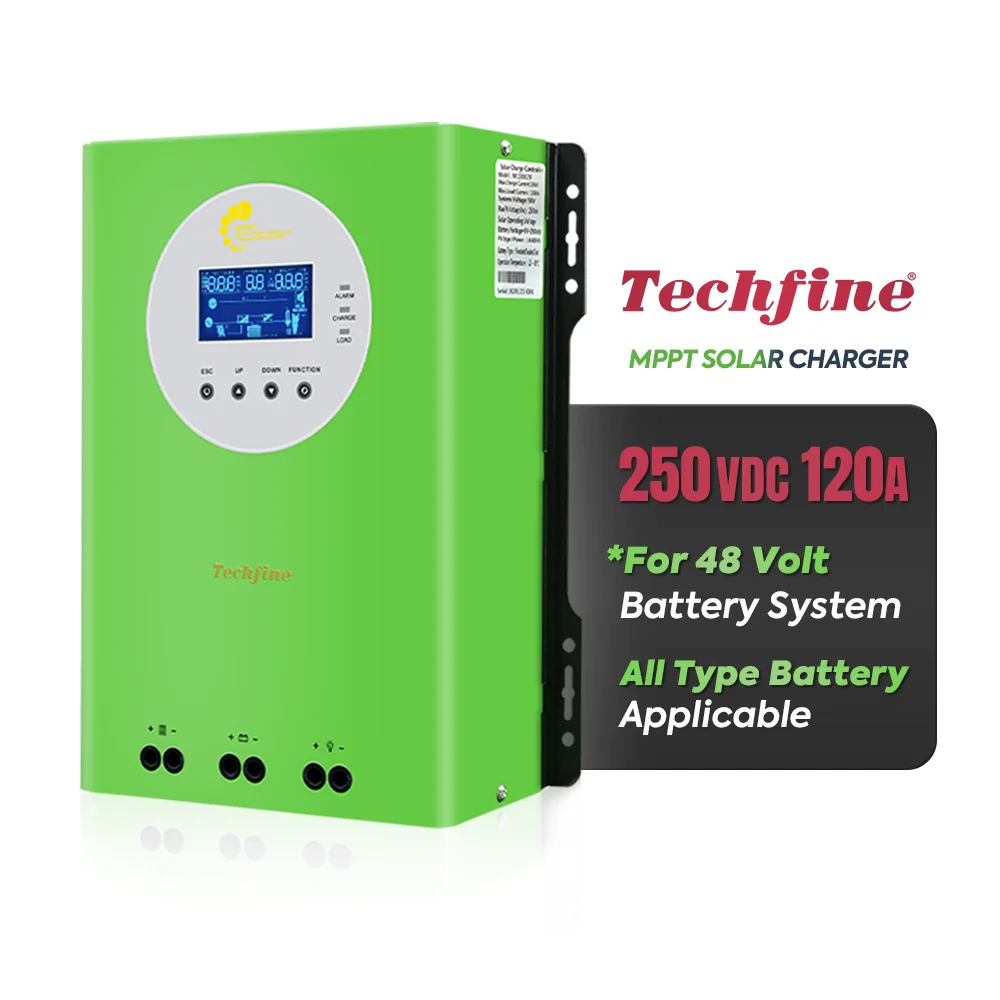

Высокое напряжение 10200 Вт 250Vdc PV вход MPPT Солнечное зарядное устройство 48 V 120a 120 amp Mppt контроллер солнечного заряда для Вольт аккумуляторной системы
