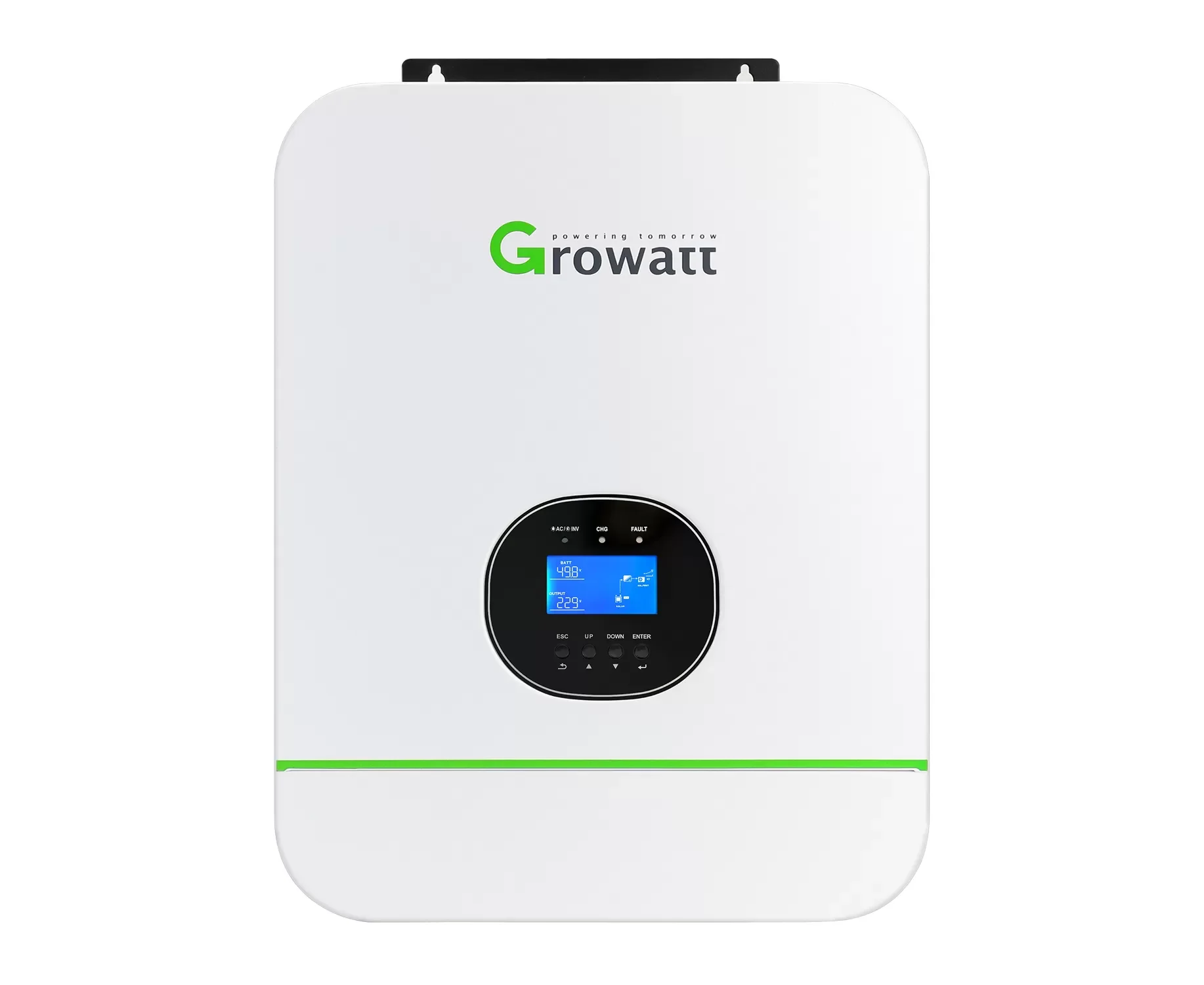

Инвертирующий усилитель мощности Growatt 5 кВт 48 В солнечный инвертор с Wi Fi SPF 5000TL
- Категория: >>>
- Поставщик: Tisun Solar Co. Ltd.
Сохранить в закладки 1600767322558:
Описание и отзывы
Характеристики
Product Description
Product Paramenters
Datasheet | SPF 2000TL HVM-24 | SPF 3000TL HVM-24 | SPF 2000TL HVM-48 | SPF 3000TL HVM-48 | SPF 5000TL HVM/HVM-P | |||||
Battery Voltage | 24VDC | 48VDC | ||||||||
Battery Type | Lithium/Lead-acid | |||||||||
INVERTER OUTPUT | ||||||||||
Rated Power | 2000VA/ 2000W | 3000VA/ 3000W | 2000VA/ 2000W | 3000VA/ 3000W | 5000VA/ | |||||
5000W | ||||||||||
Parallel Capability | No | 6 units maximum | ||||||||
AC Voltage Regulation (Battery Mode) | 230VAC ± 5% @ 50/60Hz | |||||||||
Surge Power | 4000VA | 6000VA | 4000VA | 6000VA | 10000VA | |||||
Efficiency (Peak) | 93% | |||||||||
Waveform | Pure sine wave | |||||||||
Transfer Time | 10ms typical, 20ms Max | |||||||||
SOLAR CHARGER | ||||||||||
Maximum PV Array Power | 1500W | 1800W | 4500W | |||||||
MPPT Range @ Operating Voltage | 30VDC ~ 80VDC | 60VDC ~ 115VDC | ||||||||
Maximum PV Array Open Circuit Voltage | 102VDC | 145VDC | ||||||||
Number of Independent MPP Trackers/ Strings Per MPP Tracker | 1/1/1 | |||||||||
Maximum Solar Charge Current | 50A | 30A | 80A | |||||||
Maximum Efficiency | 98% | |||||||||
AC CHARGER | ||||||||||
Charge Current | 30A | 15A | 60A | |||||||
AC Input Voltage | 230 VAC | |||||||||
Selectable Voltage Range | 170-280 VAC (For Personal Computers) ; 90-280 VAC (For Home Appliances) | |||||||||
Frequency Range | 50Hz/60Hz (Auto sensing) | |||||||||
PHYSICAL | ||||||||||
Protection Degree | IP20 | |||||||||
Dimension (W/H/D) | 315/400/130mm | 350/455/130mm | ||||||||
Net Weight (kgs) | 8 | 8.5 | 8 | 8.5 | 11.5 | |||||
OPERATING ENVIRONMENT | ||||||||||
Humidity | 5% to 95% Relative Humidity(Non-condensing) | |||||||||
Altitude | <2000m | |||||||||
Operating Temperature | 0°C – 55°C | |||||||||
Storage Temperature | -15°C – 60°C | |||||||||

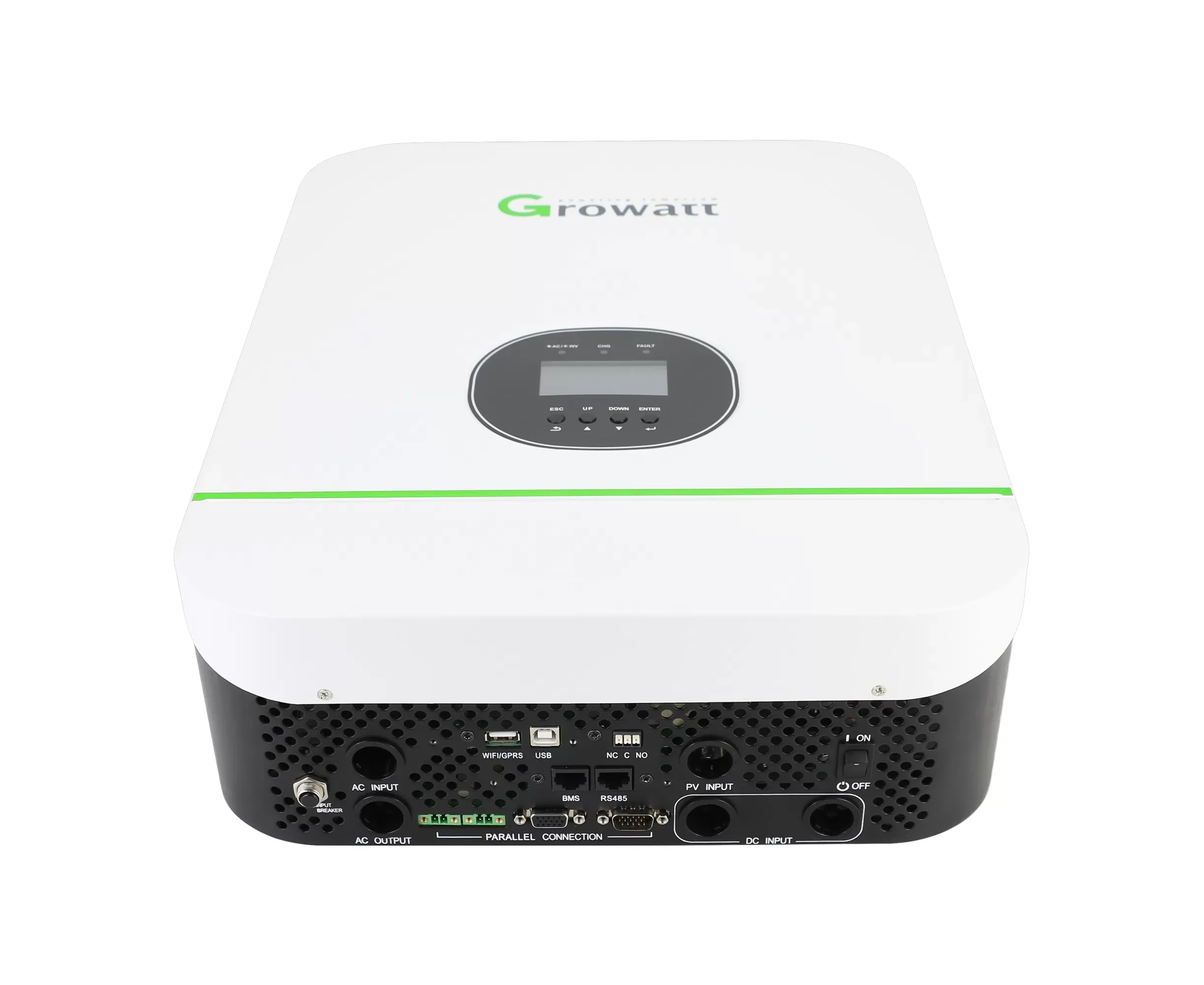

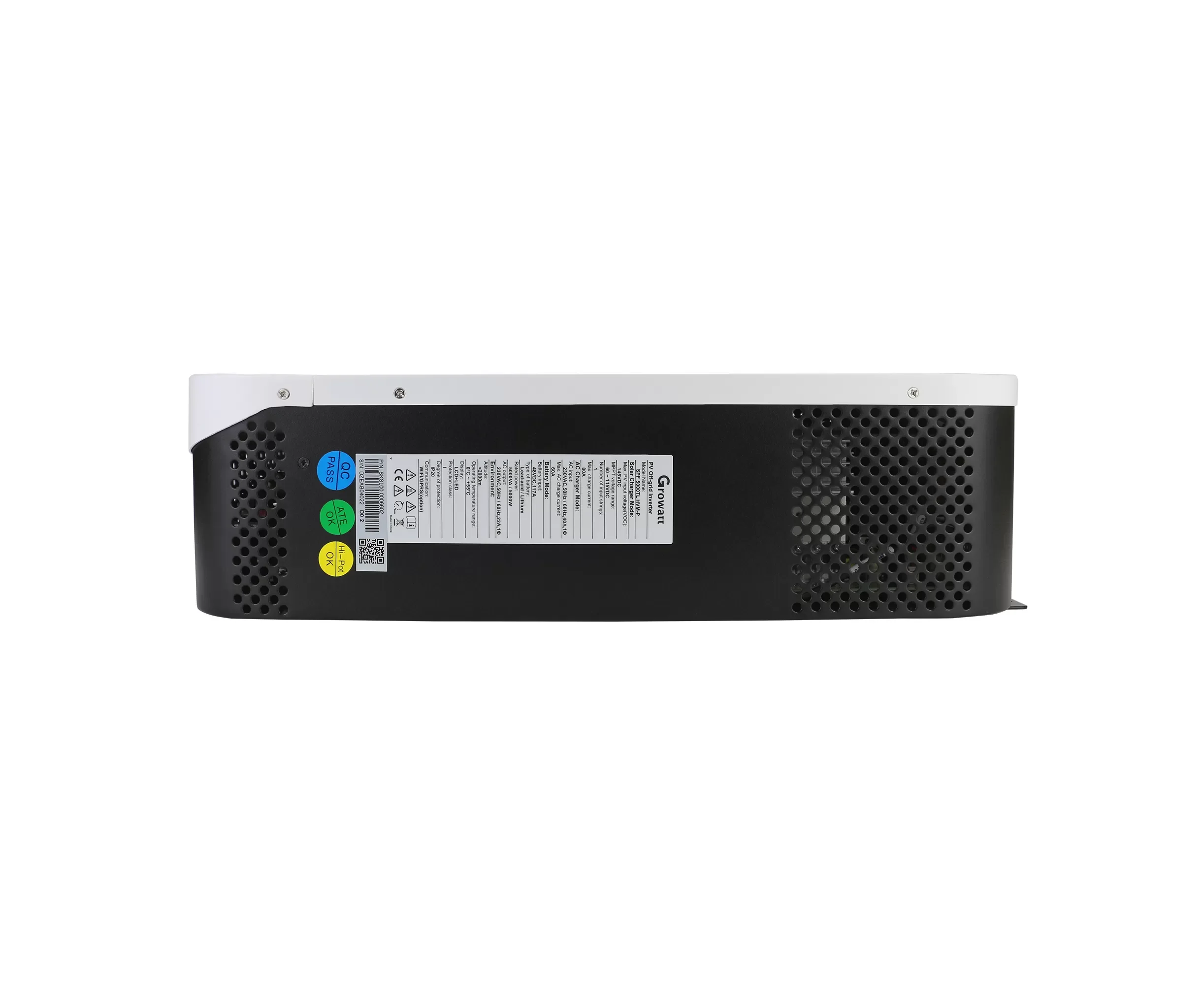

Product Display

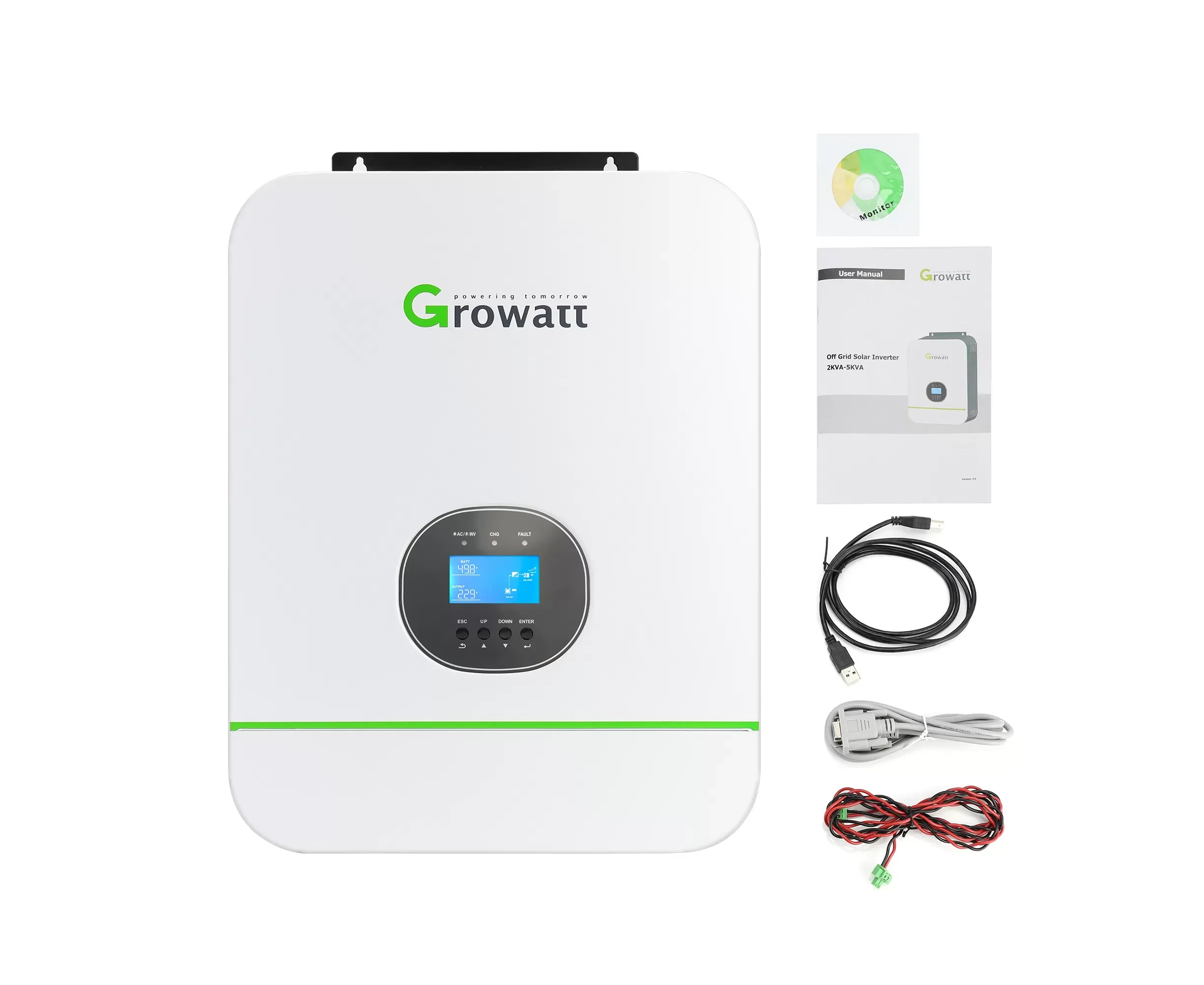

Packing & Delivery
Company Profile
Tisun Solar Co.,Ltd
Tisun Solar Co.,Ltd is located in Hefei city, Anhui Province, which is one of the main production bases of the photovoltaic industry all over the world. We are professional manufacturer and exporter for Solar Power System & Solar Panel & Inverter & Battery & Bracket, etc. Tisun insists on self-developed products. The quality, performance and price of our products are superior to those on the market. We exported to more than 120 countries, such as Germany, the UK, USA, South Africa, and so on.
There is more than 50 salesmen and 300 staff in Tisun Solar. They have extensive experience in photovoltaics, inverters, batteries, controllers and solar generator technologies, product development and project management. Each of them is an authority in the field with over ten years of experience.
Choose Tisun! Choose professional! Look forward to successful cooperation with you!
Certifications
FAQ
1. Who are we?
We are based in Anhui, China, start from 2023,sell to Northern Europe(25.00%),Southern Europe(25.00%),Western Europe(15.00%),Eastern Europe(11.00%),Africa(5.00%),Eastern Asia(5.00%),South Asia(5.00%),Domestic Market(5.00%),Mid East(4.00%). There are total about 51-100 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.What can you buy from us?
Solar Panel,Solar Energy System,Solar Inverter,Solar Mounting System,Solar Cells
4. Why should you buy from us not from other suppliers?
Tisun Solar was founded in 2017, a professional and fast growing company. We are manufacturer and exporter for Solar Power System & Solar Panel & Inverter & Battery & Bracket, etc.Tisun insists on self-developed products and export to all over the world.
5. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA,DEQ,DDP,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese
We are based in Anhui, China, start from 2023,sell to Northern Europe(25.00%),Southern Europe(25.00%),Western Europe(15.00%),Eastern Europe(11.00%),Africa(5.00%),Eastern Asia(5.00%),South Asia(5.00%),Domestic Market(5.00%),Mid East(4.00%). There are total about 51-100 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.What can you buy from us?
Solar Panel,Solar Energy System,Solar Inverter,Solar Mounting System,Solar Cells
4. Why should you buy from us not from other suppliers?
Tisun Solar was founded in 2017, a professional and fast growing company. We are manufacturer and exporter for Solar Power System & Solar Panel & Inverter & Battery & Bracket, etc.Tisun insists on self-developed products and export to all over the world.
5. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA,DEQ,DDP,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese
Похожие товары

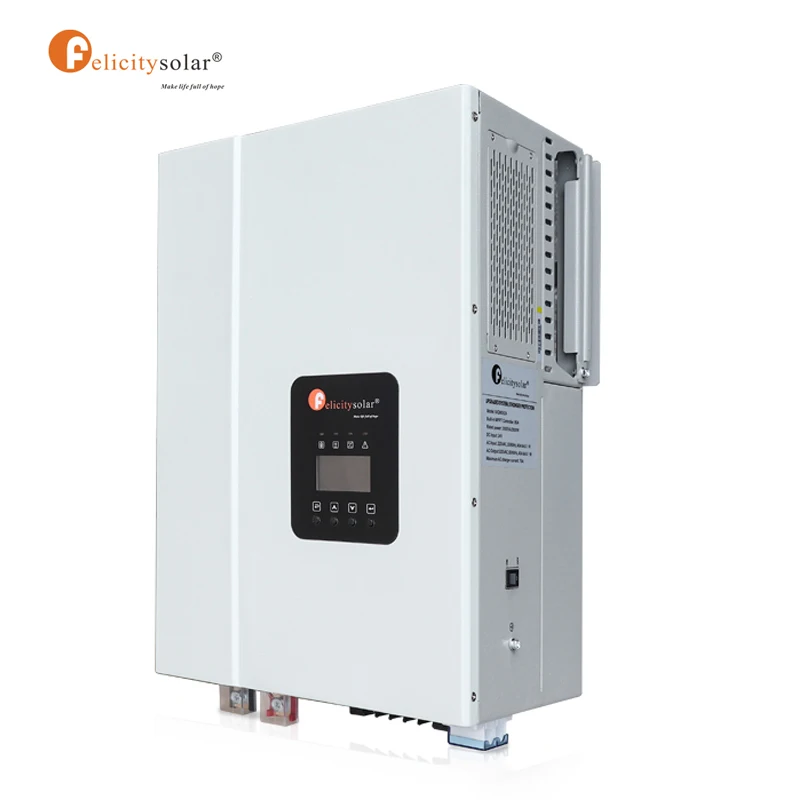

3 фазные автономные mppt инверторы солнечной энергии Felicitysolar для системы солнечных панелей
60 394,21 ₽ - 70 312,96 ₽

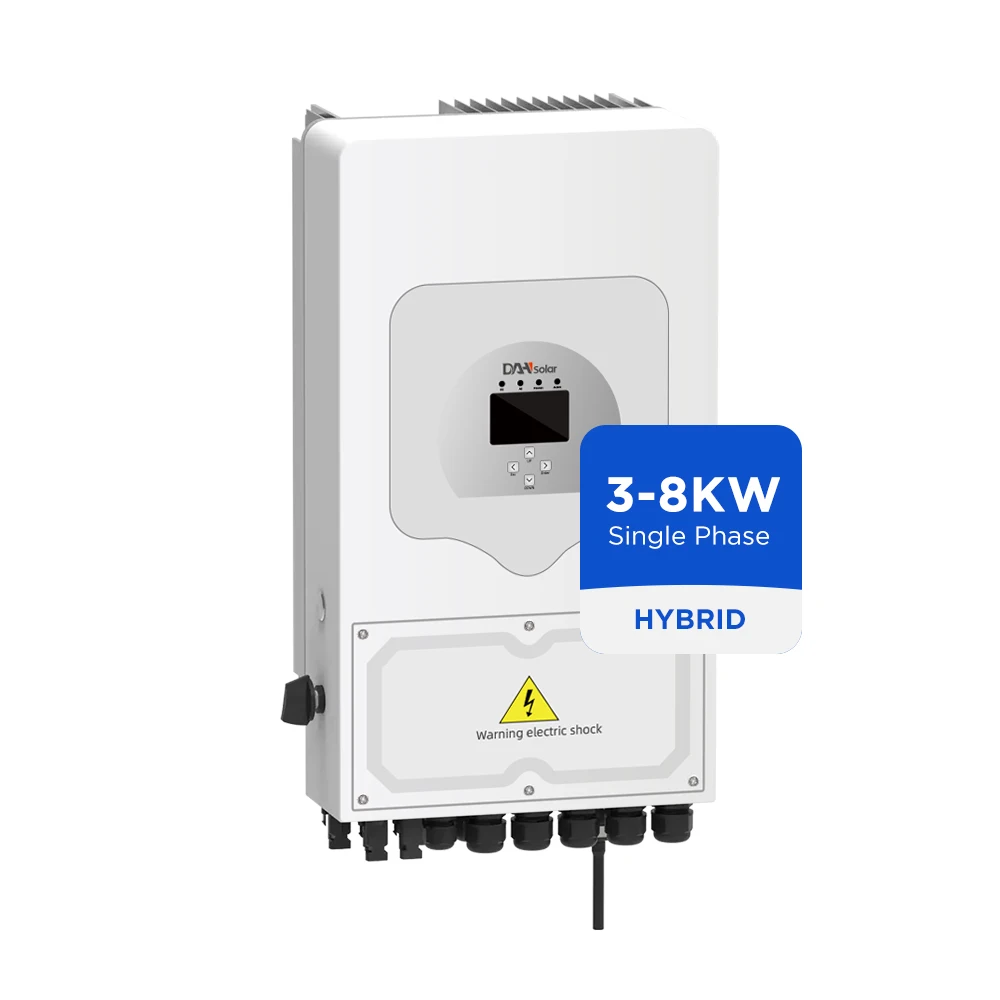

Deye 5KW 6KW 8KW SUN-6K-SG05LP1-EU / SUN-8K-SG01LP1-EU однофазный Гибридный инвертор
85 852,35 ₽ - 96 983,40 ₽
Оптовая цена 48 В 3 фазы 8000 Вт солнечный гибридный инвертор
65 022,96 ₽ - 69 431,30 ₽

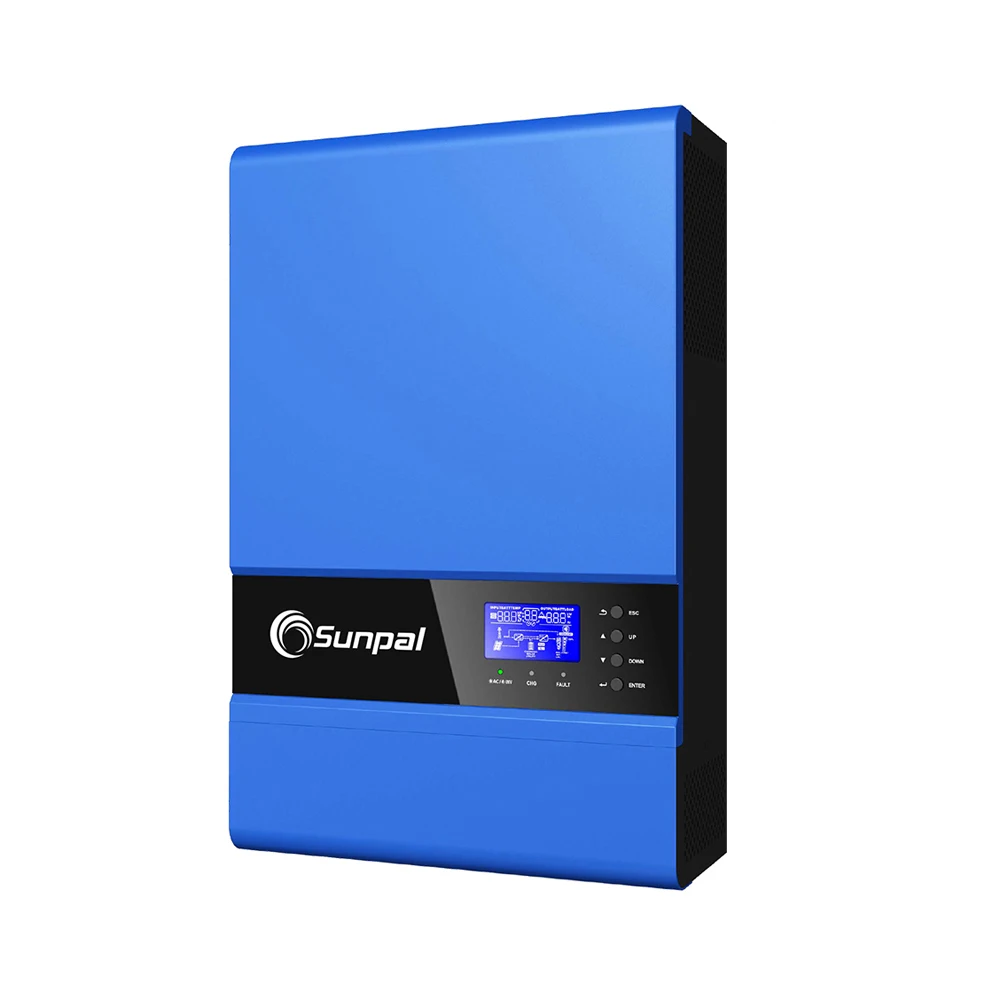

Инвертор немодулированного синусоидального сигнала 5 кВт 8 10 12 Гибридный автономный инвертор с питанием от батареи
32 952,32 ₽ - 66 014,84 ₽

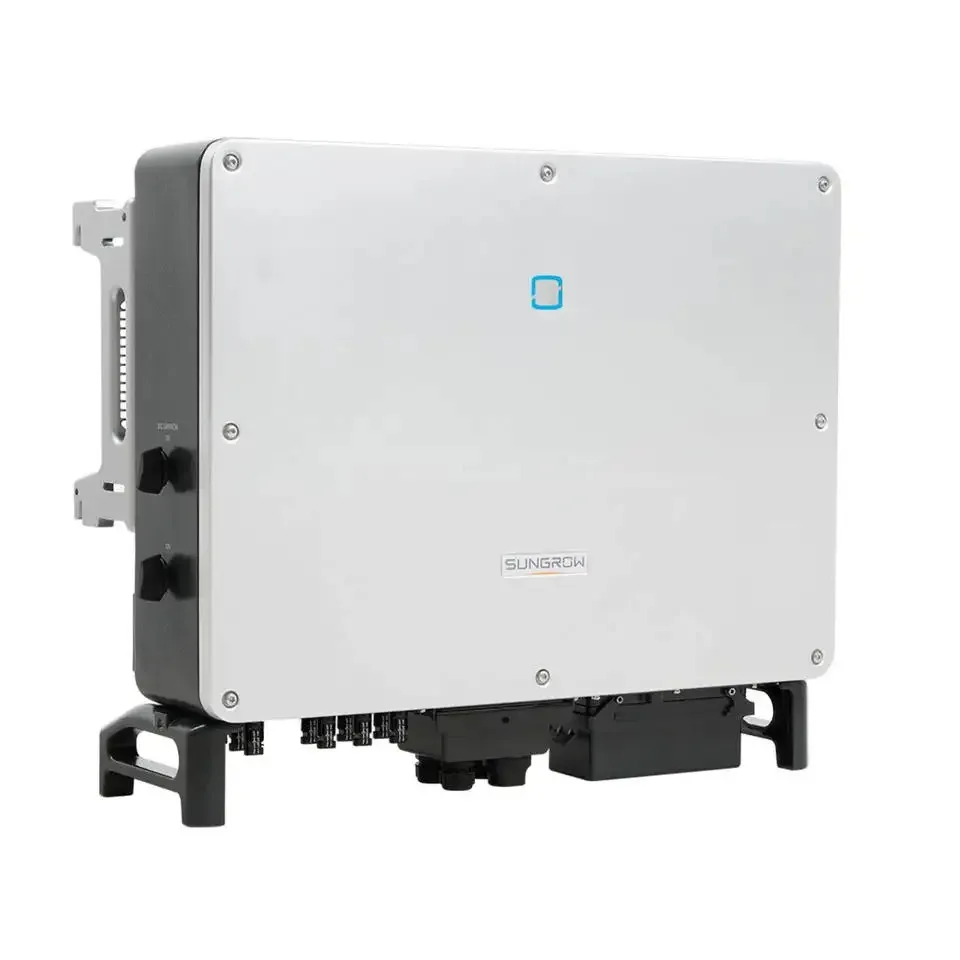

Солнечный инвертор Sungrow SG33/50CX On Grid 5 MPPTs 33 кВт 50
198 926,17 ₽ - 220 306,60 ₽

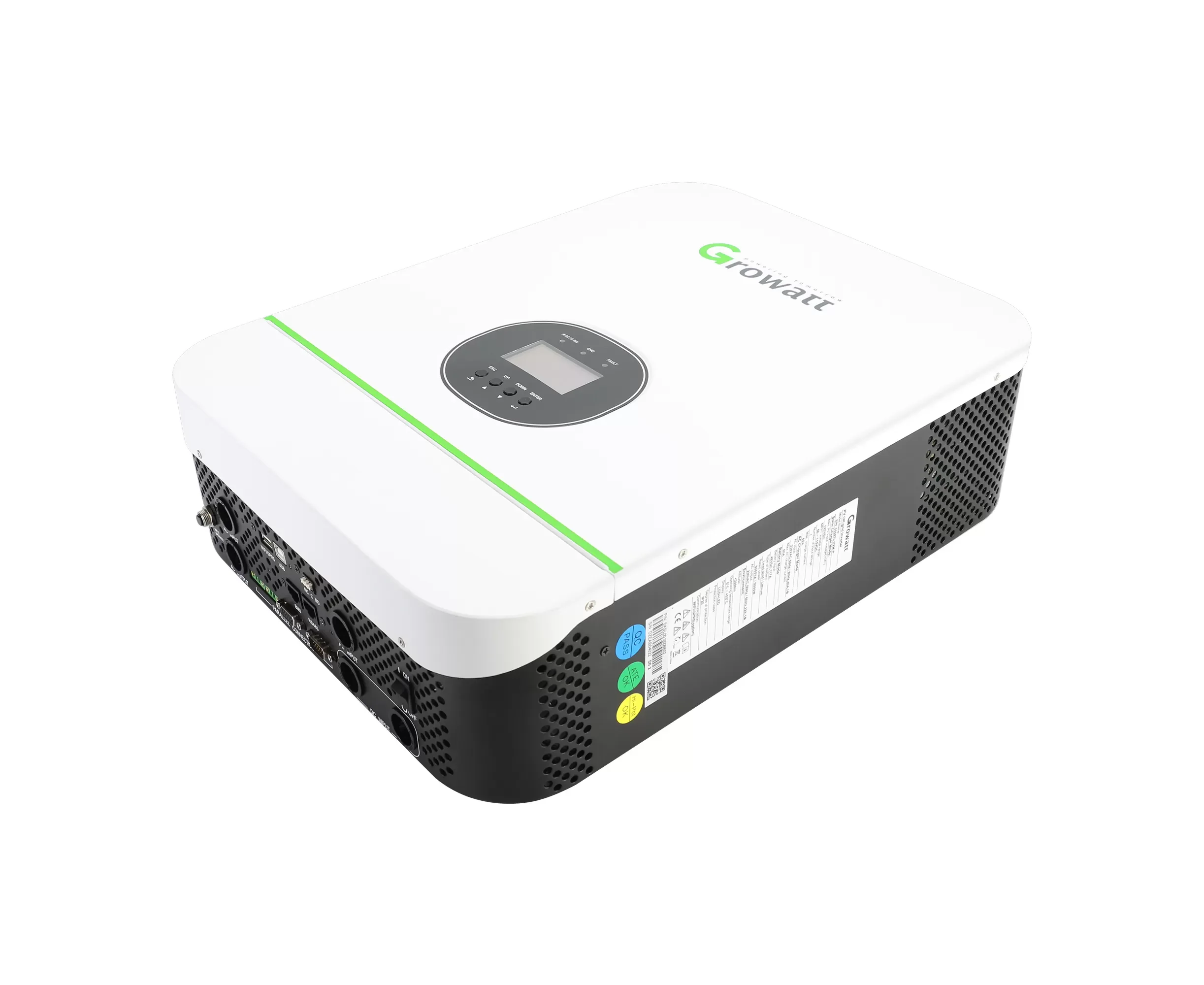

GROWAT инвертор для хранения вне сети SPF 4000-12000 т DVM/- MPV Солнечный
