Омега, Секция гипсокартона, оптовая продажа продукции, металлический станок для формовки гвоздиков и гусениц
813 269,25 ₽ - 867 487,20 ₽
Высококачественная стальная проволочная сетка Лестница лоток делая машину кабельный лестница перфорированная рулонная формовочная машина с заводским дизайном
- Категория: >>>
- Поставщик: Guangzhou Kingreal Machinery Co. Ltd.
Сохранить в закладки 1600767581374:
Описание и отзывы
Характеристики
Machine Description

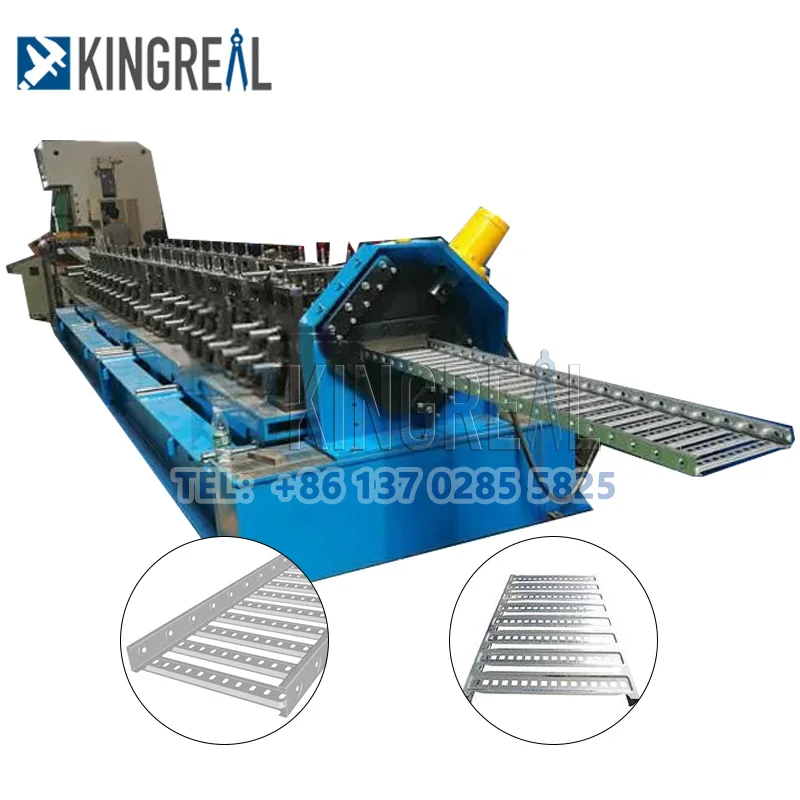

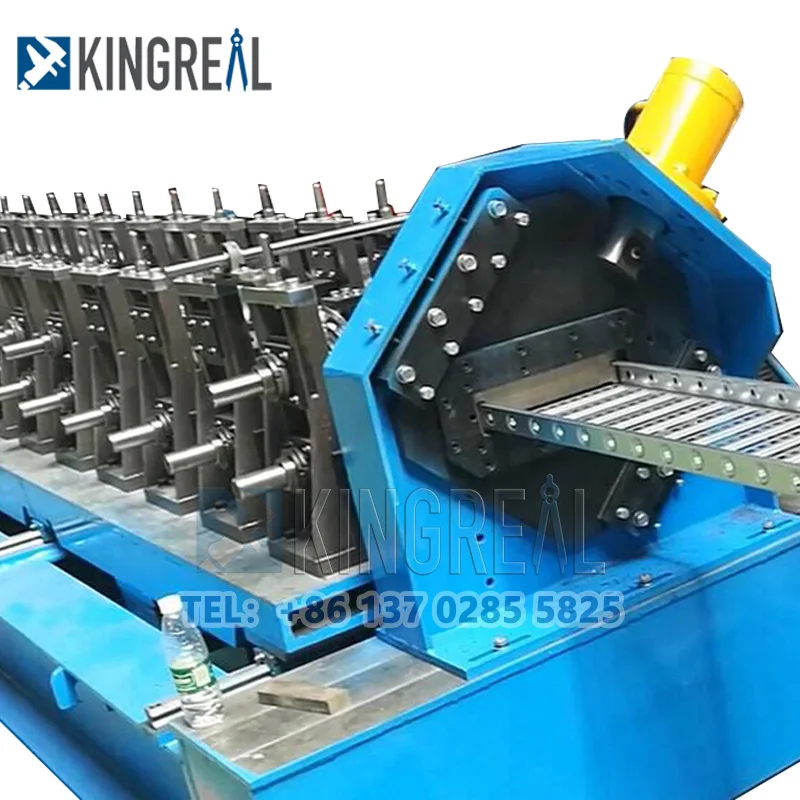

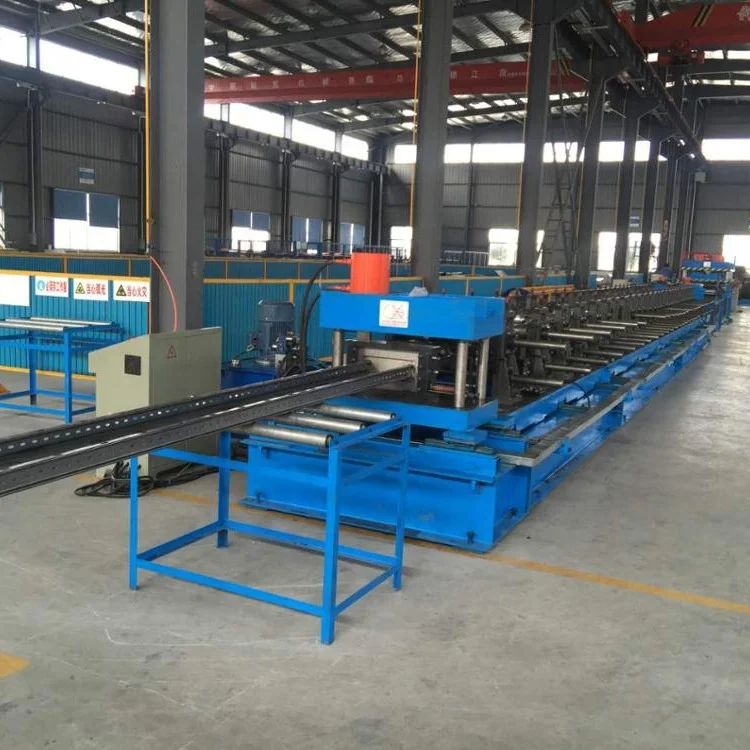

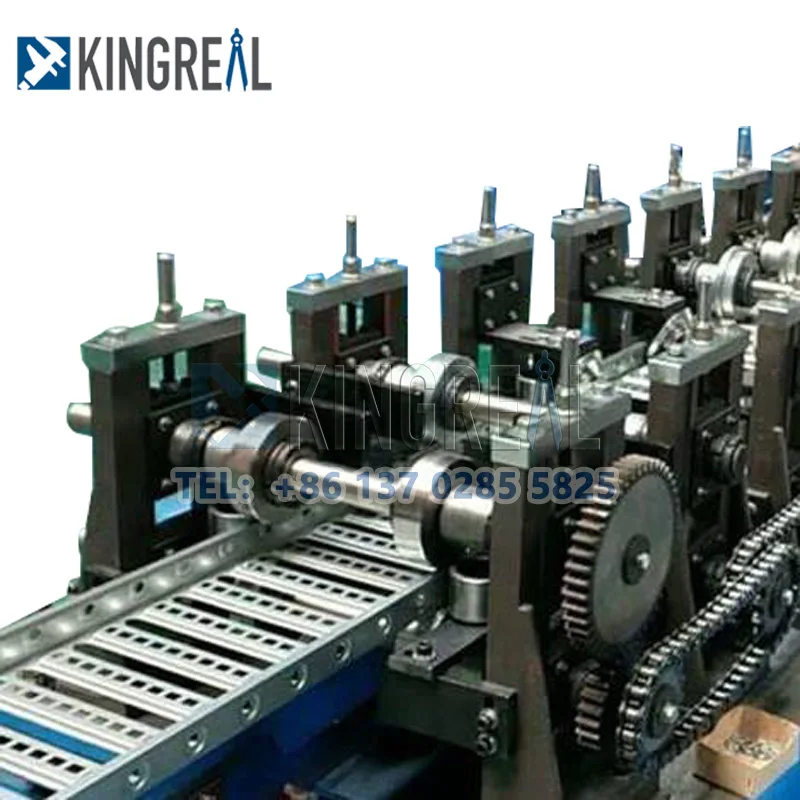

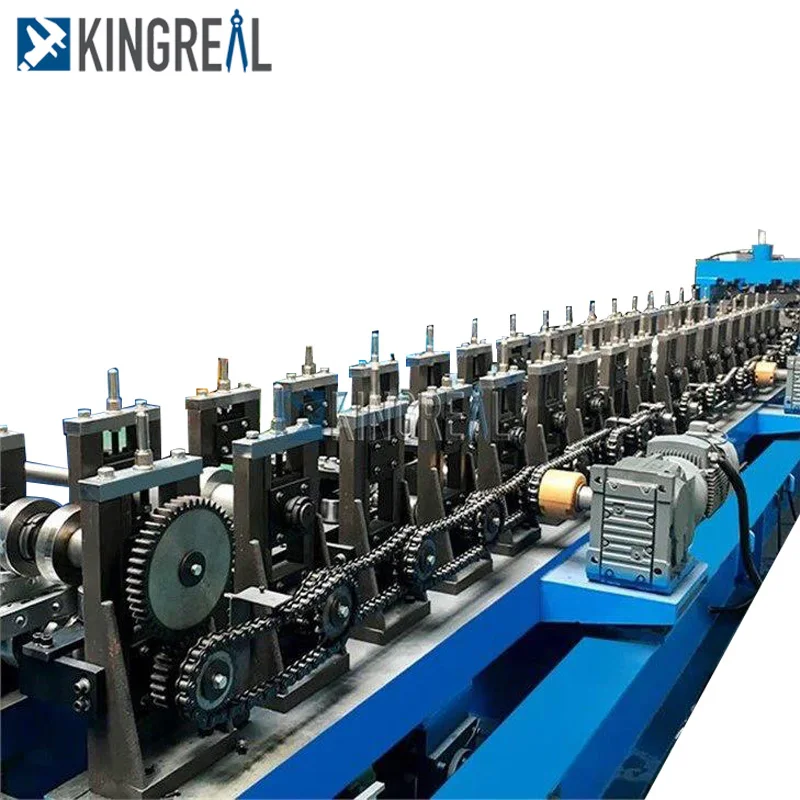

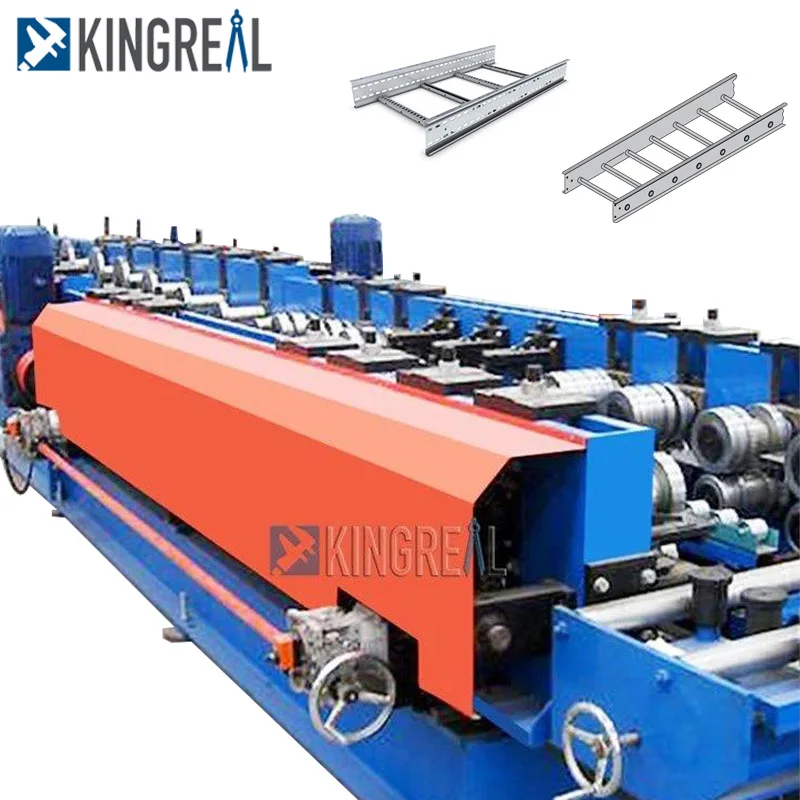

KINGREAL Ladder Tray Roll Forming Machine
The machine for creating channel ladder cable trays can create ladder-side bridges in four different sizes: 100, 150, 200, and 250. By switching out the spacer sleeve of the roll, the specifications of the ladder-side bridges that are created can be flexibly altered.

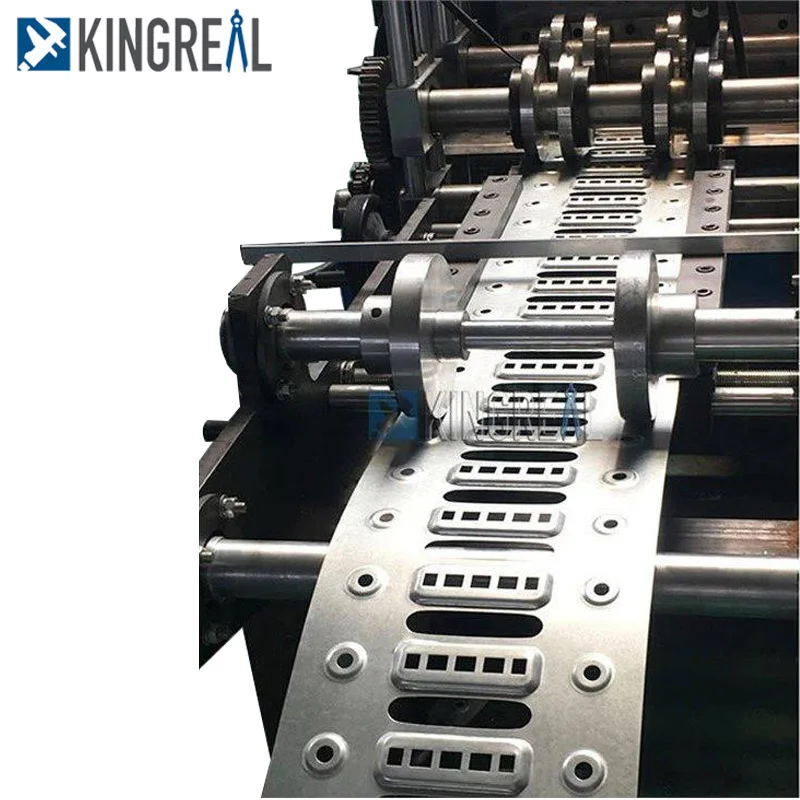

The main machine is a combination and adjustable form, without changing the rolls, one set of rolls can complete the rolling of any specifications of the bridge profiles. This production line is a special piece of machinery for the production of one-time forming the cable trays, with servo feeding and online punching.
The main machine is a combination and adjustable form, without changing the rolls, one set of rolls can complete the rolling of any specifications of the bridge profiles. This production line is a special piece of machinery for the production of one-time forming the cable trays, with servo feeding and online punching.
Technique Feature
Pressing thickness: | 1.5-3mm, height: 100-200mm |
Working line speed: | 0-12m/min |
Number of rollers Sets: | 20 Sets |
Axle material: | 45# steel quenched and tempered, shaft diameter 90mm |
Main motor power: | 22kw cycloid reducer, 1 set |
Transmission mode: | gearbox universal joint transmission |
Number of universal joints: | Model 160, 13 in total |
Voltage parameters: | 380V/3PH/50Hz |
Width of Strip: | ≤500mm |
Total Power: | Approve 50Kw |
Advantages Of This Machine

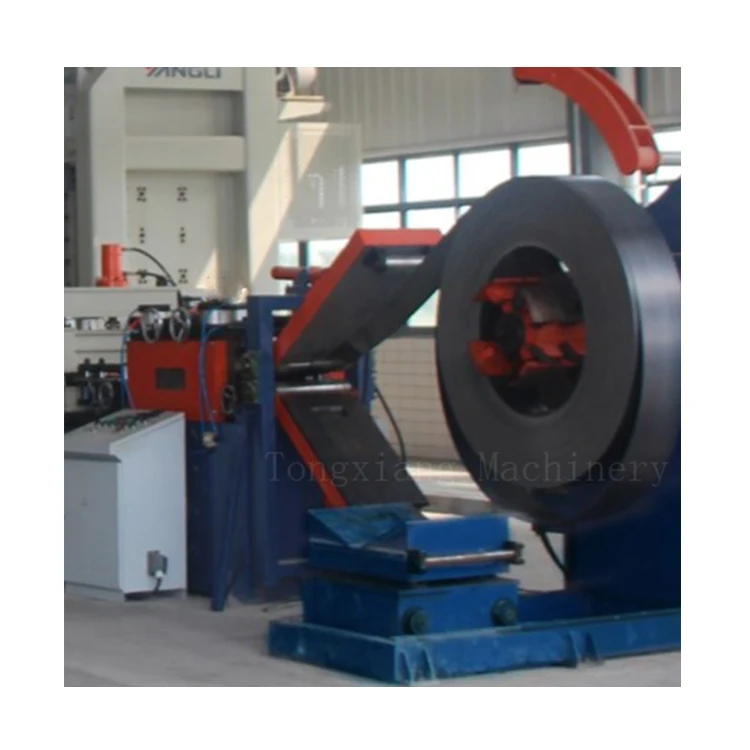

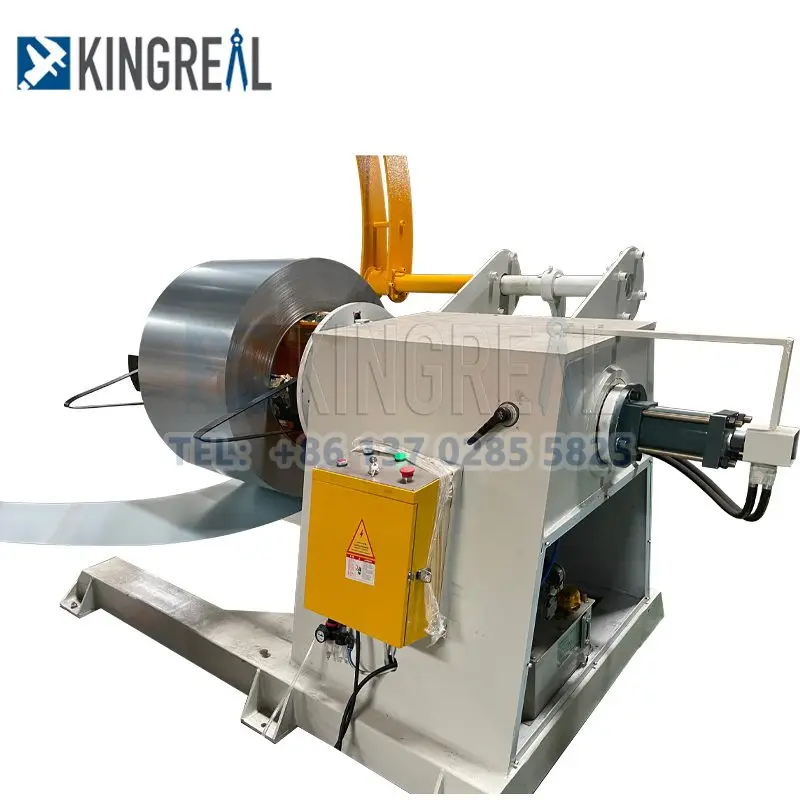

The Kingreal 2 in 1 decoiler&straightener apply to unwinding and straightening work of coil sheet metal.This combination contains decoiler and straightener.
To respond to changing demands,we have hydraulic decoiler and manual decoiler,and optional trolley for full-automatic metal loading.The straightener provides high precision straightening.
To respond to changing demands,we have hydraulic decoiler and manual decoiler,and optional trolley for full-automatic metal loading.The straightener provides high precision straightening.
By doubling the number of rollers we ensure straightness of materials and high-accuracy finished products.
Multi Cutting Methods
For different products we use different methods to cut them.Usual cutting methods includes hydraulic cutting,sawing and rotary
cutting.
cutting.
According to speed of the machine,methods can be divided into shutdown cutting,deceleration cutting,high-speed follow shearing,fly shearing,etc. The cutting speed of machine can reach 150m/min maximum depends on different shapes of products.

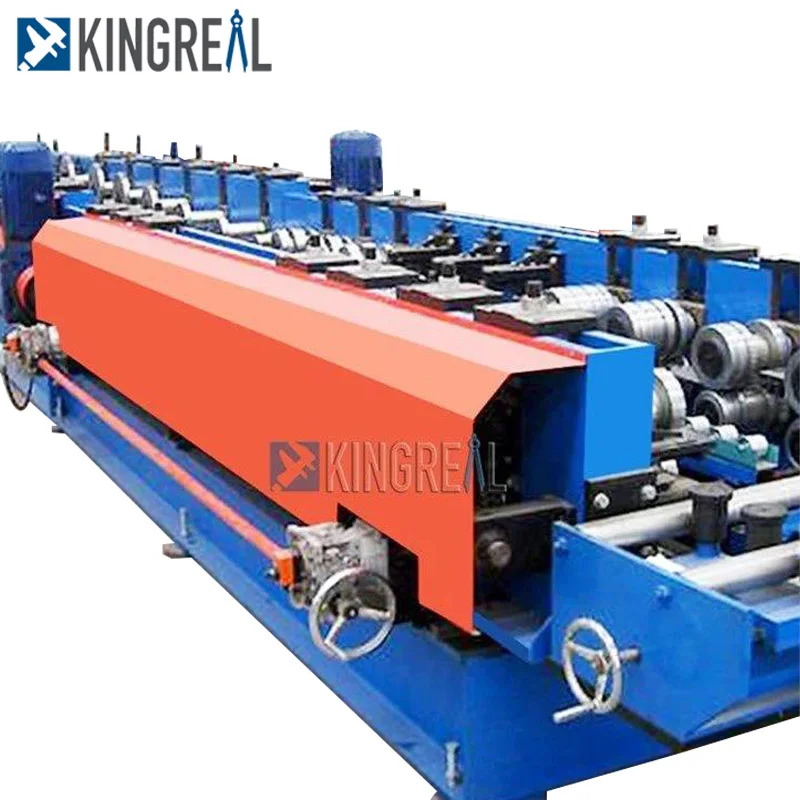

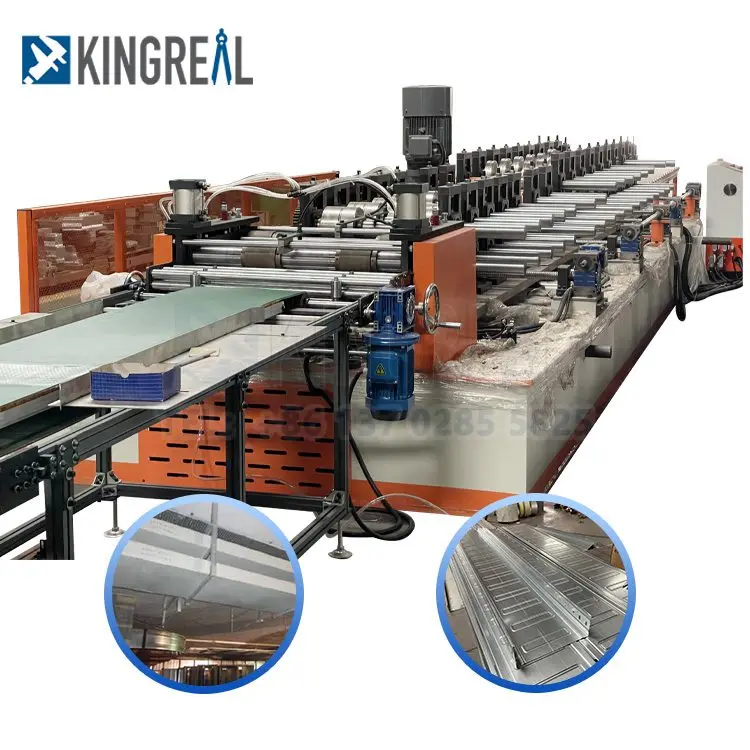

Multi Stations Roll Forming Machine
We can design a variety of profiles to be produced by one machine in accordance with client’s requirements,and to save space.
Also by using programs we simultaneously control the sequential production of different lengths of multiple profiles to provide clients with flexible production solutions.

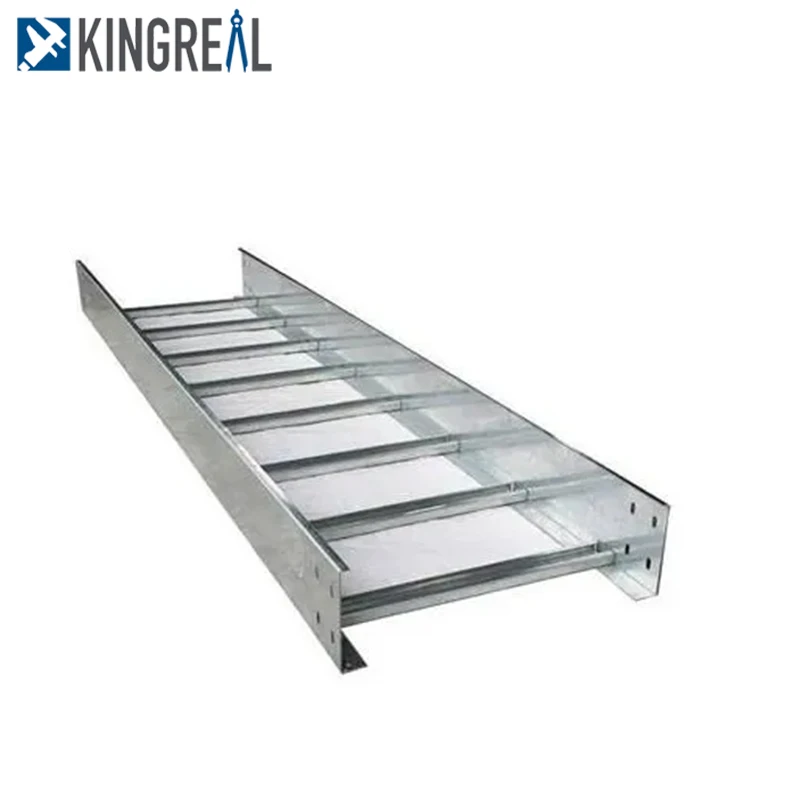

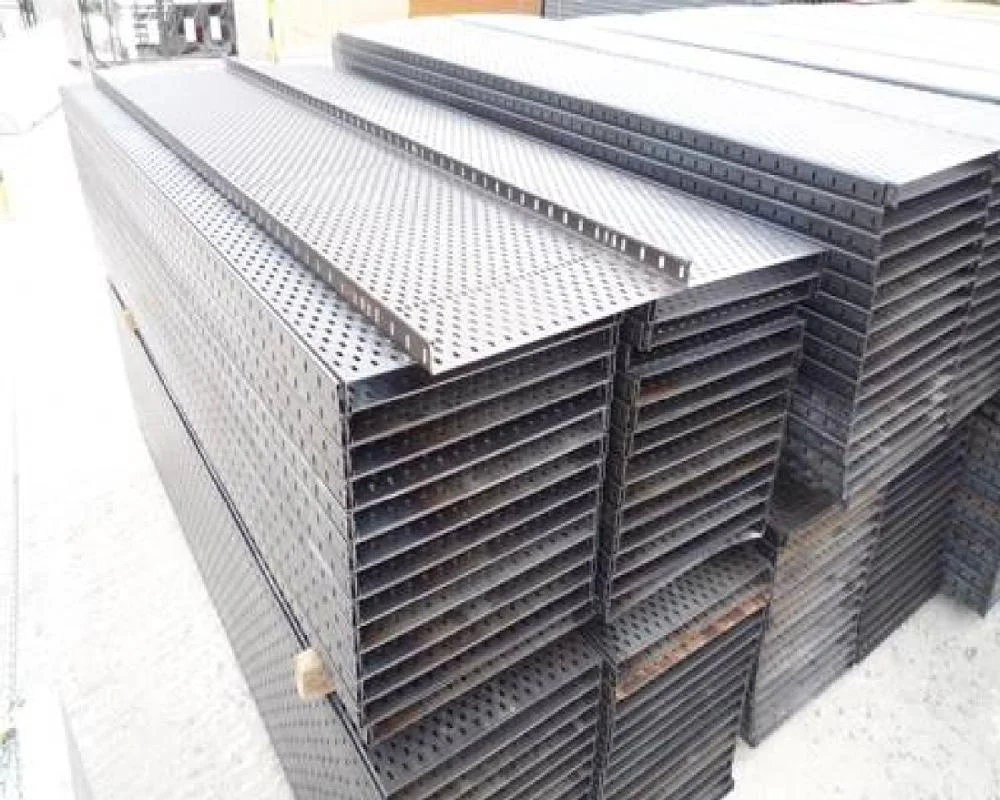

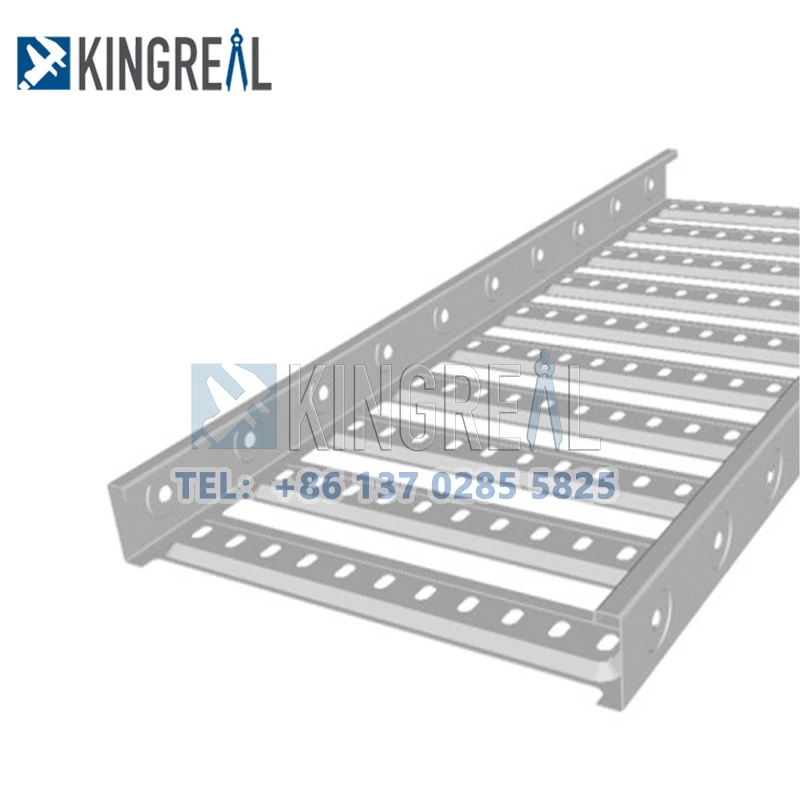

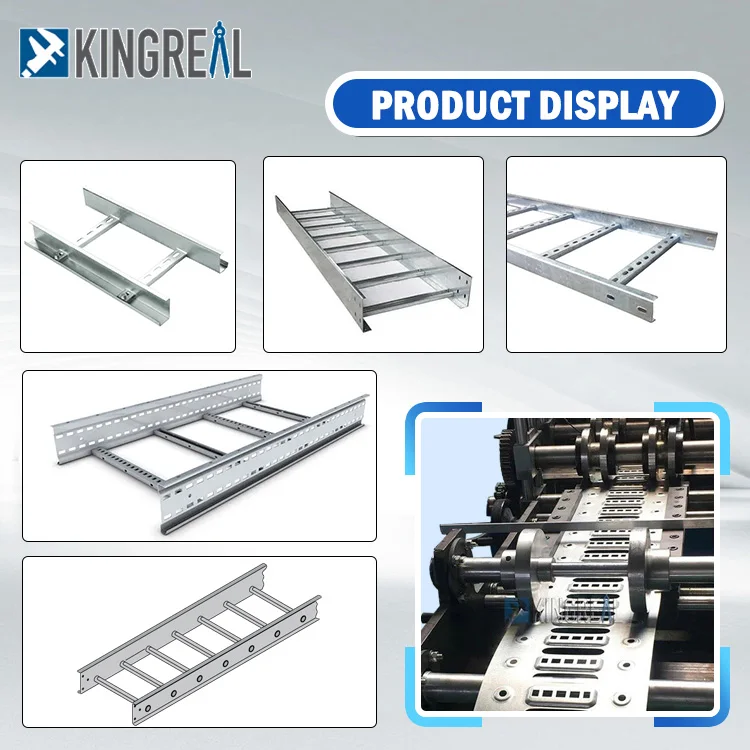

Final Products

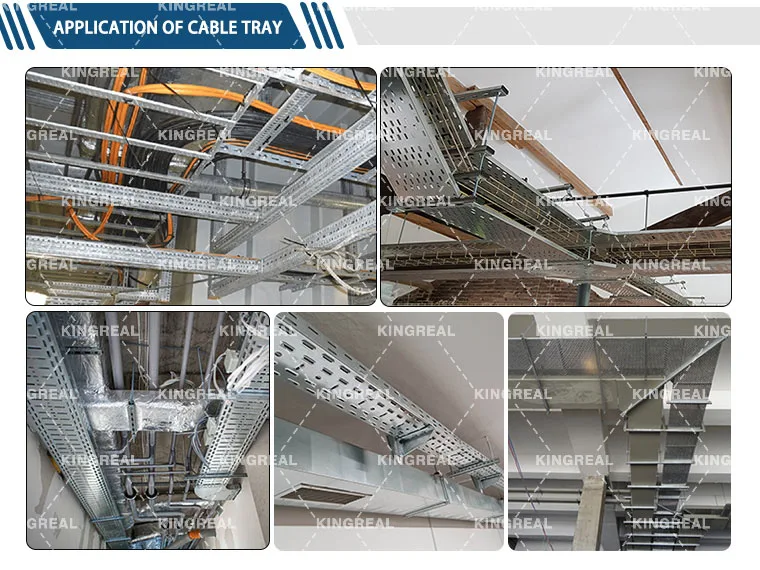

Application
Company Profile
KINGREAL MACHINERY：
20 Years+ Production Experience, Professional Roll Forming Machine Manufacturer In China！
Why Choose Us
In order to be able to effectively solve customer needs in the first time, KINGREAL has set up localized service points in many countries and regions, such as India, Russia, Turkey, the United Arab Emirates and Qatar.
Localized service points in other countries and regions are also in progress
How to Provide Installation Services ？
In order to help our customers to solve machine installation problems, KINGREAL will provide both online and local installation services.
1. Online installation guide
- Photos and videos of machine will be sent - Online group will be initiated to discuss together
-Regular video conference be held to keep communication and contacting
2. Local installation
2. Local installation
KINGREAL will arrange engineers to go abroad to install the machine at the customer's place to ensure the normal operation of the machine, and will provide all technical guidance. Exact costs to be negotiated.

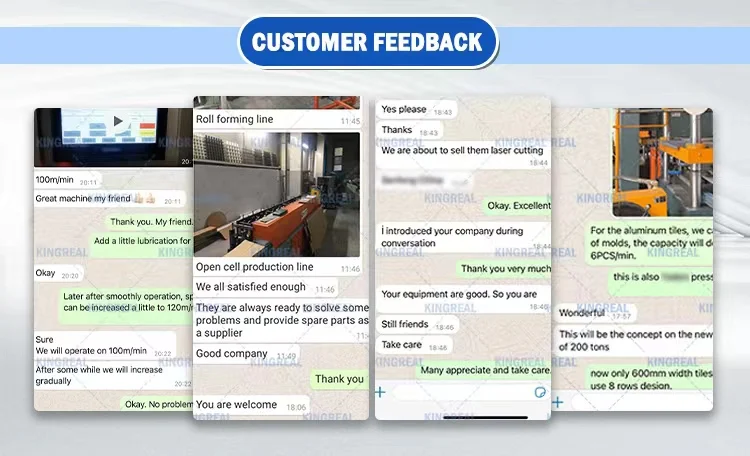

Customer Feedback
KINGREAL has rich experience in production and sales, and is committed to providing customers with the best solutions to solve customer problems. At present, it has been recognized by customers from all over the world.
Related products
Q1. What's your Warranty ？
A1. 12 months except human error, during which all parts damaged because of quality problem will be changed for free.
Parts that are out of warranty will be provided in factory price.
A1. 12 months except human error, during which all parts damaged because of quality problem will be changed for free.
Parts that are out of warranty will be provided in factory price.
Q2. What's your delivery Time ？
A2. Within 60-80 days after receiving prepayment. Some machines in stock, can be delivered at any time.
A2. Within 60-80 days after receiving prepayment. Some machines in stock, can be delivered at any time.
Q3. What's your payment terms ？
A3. 40% deposit is paid before production, the balance paid after inspection confirmation before shipment.
A3. 40% deposit is paid before production, the balance paid after inspection confirmation before shipment.
Q4. What's your Install and Training ？
A4. If buyers come to our factory to inspect, the training to install and operate is provided face to face.
If not, Manual book and video is provided to show how to install and operate.
A4. If buyers come to our factory to inspect, the training to install and operate is provided face to face.
If not, Manual book and video is provided to show how to install and operate.
Q5. Do you provide after-sales service?
A5. We provide 24-hour online service for our customers.
A5. We provide 24-hour online service for our customers.
A. We will debug the machines freely in our factory make sure everything is OK before shipment.
When engineer go to your place to debug the machines, all according expense shall be paid by you.
When engineer go to your place to debug the machines, all according expense shall be paid by you.
Q6. Can you ensure the safety of the machine during transportation?
A6. Yes we can, we use iron wire for fixing machines in container, also small wood pads to hold machines tight and don't move around during shipment.
A6. Yes we can, we use iron wire for fixing machines in container, also small wood pads to hold machines tight and don't move around during shipment.
