Product Description

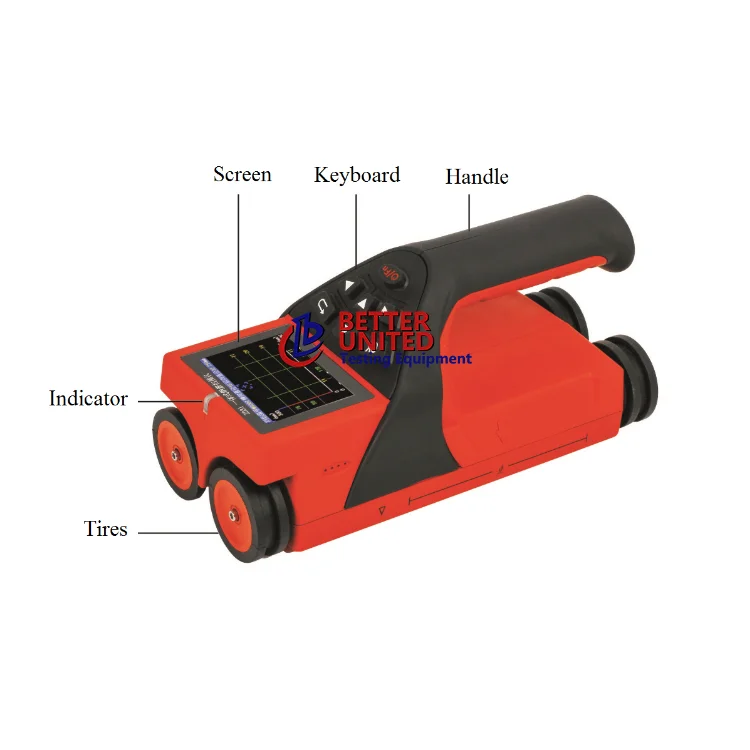

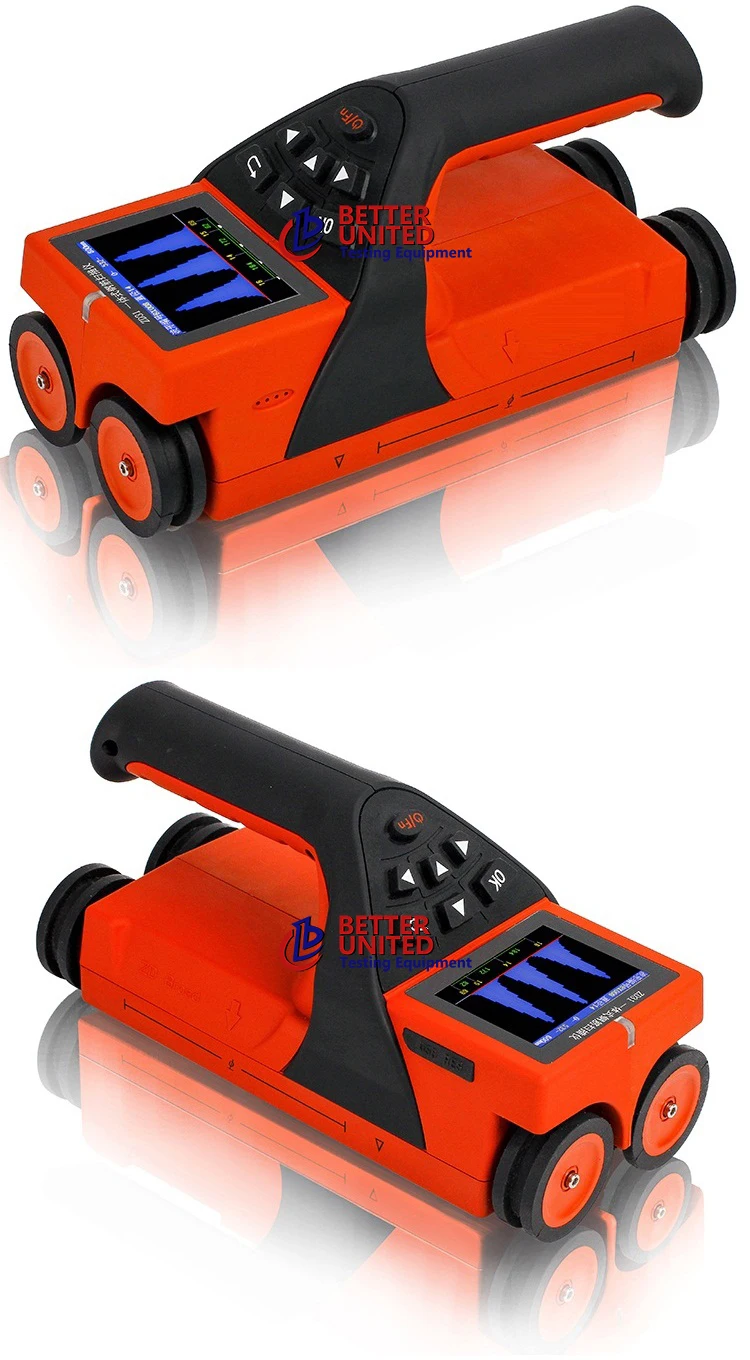

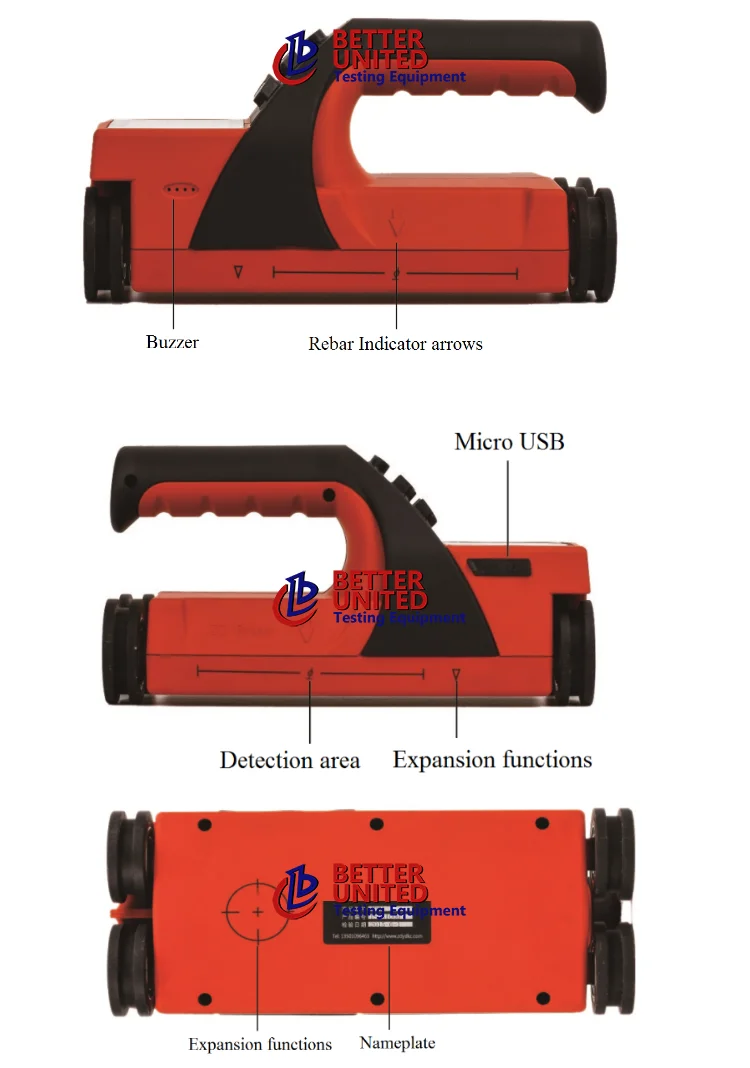

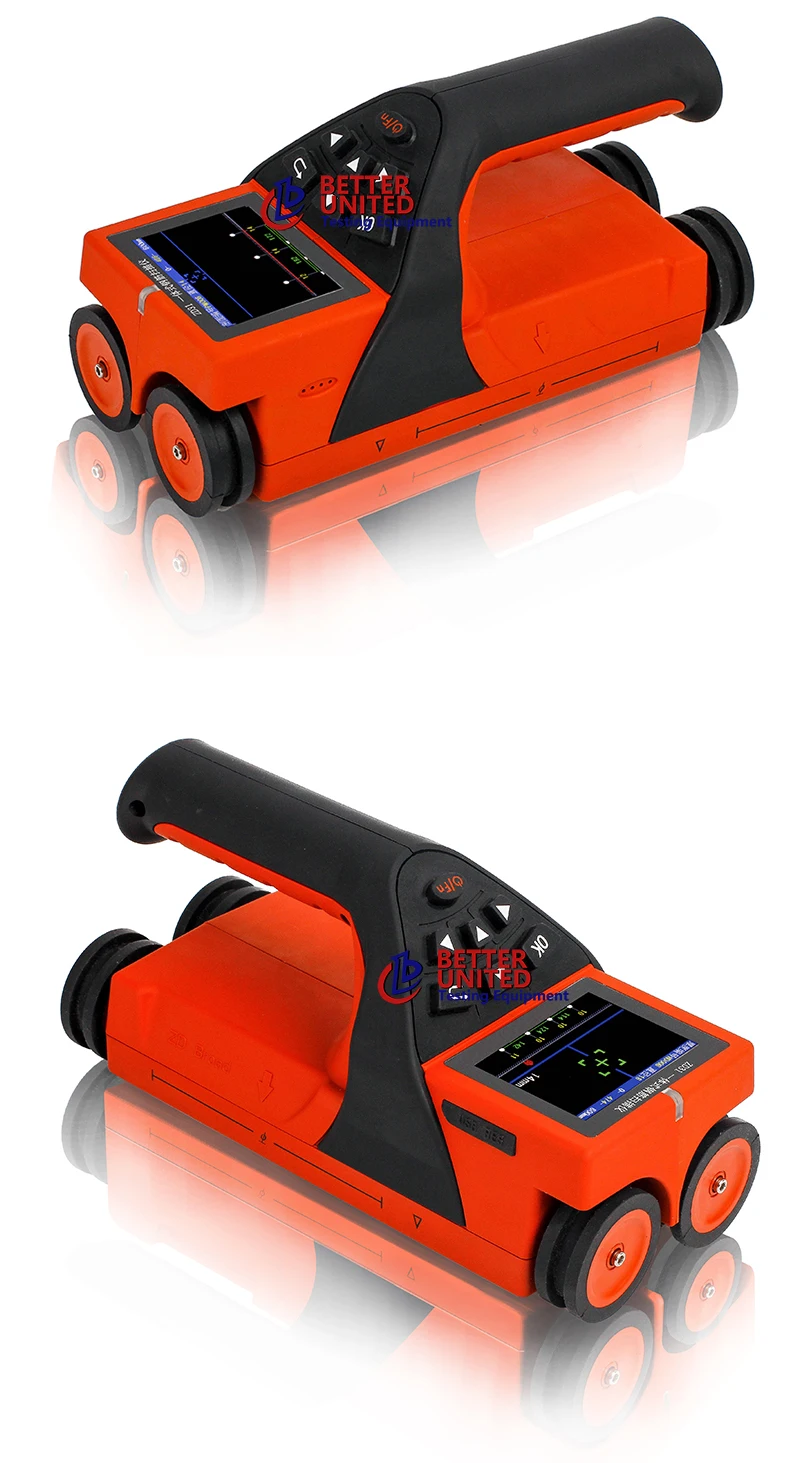

Integrated Rebar Detector
Description:
ZD310 Integrated Rebar detector are mainly used for detecting the internal reinforcement position, the protective layer thickness, reinforcement spacing and diameter of rebar. It can accurately draw the distribution map of the whole rebar, to provide test data with high precision and high speed; the integrated structure of the host and the sensor coil, making it is convenient and quick when carrying and field operation ; It is characterized in coil structure design, faster speed, higher accuracy, stronger resolution.
Features：
1.2.8 inch high resolution color LCD screen (320 x 240 pixels), whether in indoor or outdoor, any situation can be clearly visible detection data;
2.Multi-coil structure design, faster, higher precision, stronger resolution;
3.Using USB mode data transmission and charging, you can quickly upload the stored data to the computer through the USB.
4.With built-in high-capacity lithium battery, the power consumption is low, in the case of battery is full the standby time is about 16 hours;
5.Data management mode in the data storage, view, delete and other functions, can store about two hundred thousand rebar measuring point data;
6.The problem of reinforcing steel bar leakage is solved by using super dense tendon resolving power;
7.Select configuration Standard test block which can be configured with special and unique design;
8.Using the host and sensor coil integrated design, compact size, light weight, easy to carry;
9.Adjacent steel bar intermediate position real-time judgment, indicating light prompt, can avoid around the steel bar, easy drilling coring;
10.The instrument bag is shockproof, has a protective lining inside, and is equipped with a waterproof cover for easy carrying;;
11.Equipped with medium and large steel bar detection software, it is convenient for professional data analysis, data processing and generating complete report in PC.e.
2.Multi-coil structure design, faster, higher precision, stronger resolution;
3.Using USB mode data transmission and charging, you can quickly upload the stored data to the computer through the USB.
4.With built-in high-capacity lithium battery, the power consumption is low, in the case of battery is full the standby time is about 16 hours;
5.Data management mode in the data storage, view, delete and other functions, can store about two hundred thousand rebar measuring point data;
6.The problem of reinforcing steel bar leakage is solved by using super dense tendon resolving power;
7.Select configuration Standard test block which can be configured with special and unique design;
8.Using the host and sensor coil integrated design, compact size, light weight, easy to carry;
9.Adjacent steel bar intermediate position real-time judgment, indicating light prompt, can avoid around the steel bar, easy drilling coring;
10.The instrument bag is shockproof, has a protective lining inside, and is equipped with a waterproof cover for easy carrying;;
11.Equipped with medium and large steel bar detection software, it is convenient for professional data analysis, data processing and generating complete report in PC.e.
Specification
Mode | ZD310 | ||
Applicable range of Rebar（mm） | φ6～φ50 | ||
Protective layer thickness range（mm） | Small range：1～80 Large range：5～185 | ||
Maximum Allowable Error of Protective Layer Thickness（mm） | ±1 | 1～60 | |
±2 | 60～100 | ||
±3 | 101～120 | ||
±5 | 121～160 | ||
±8 | 161～185 | ||
Applicability of Diameter Measurement (mm) | ϕ 6～Ф50 | ||
Maximum Error of Diameter Measurement (Specification) | ±1 | ||
Scanning mode | Thickness model, JGJ Testing | ||
Scanning range | Borderless | ||

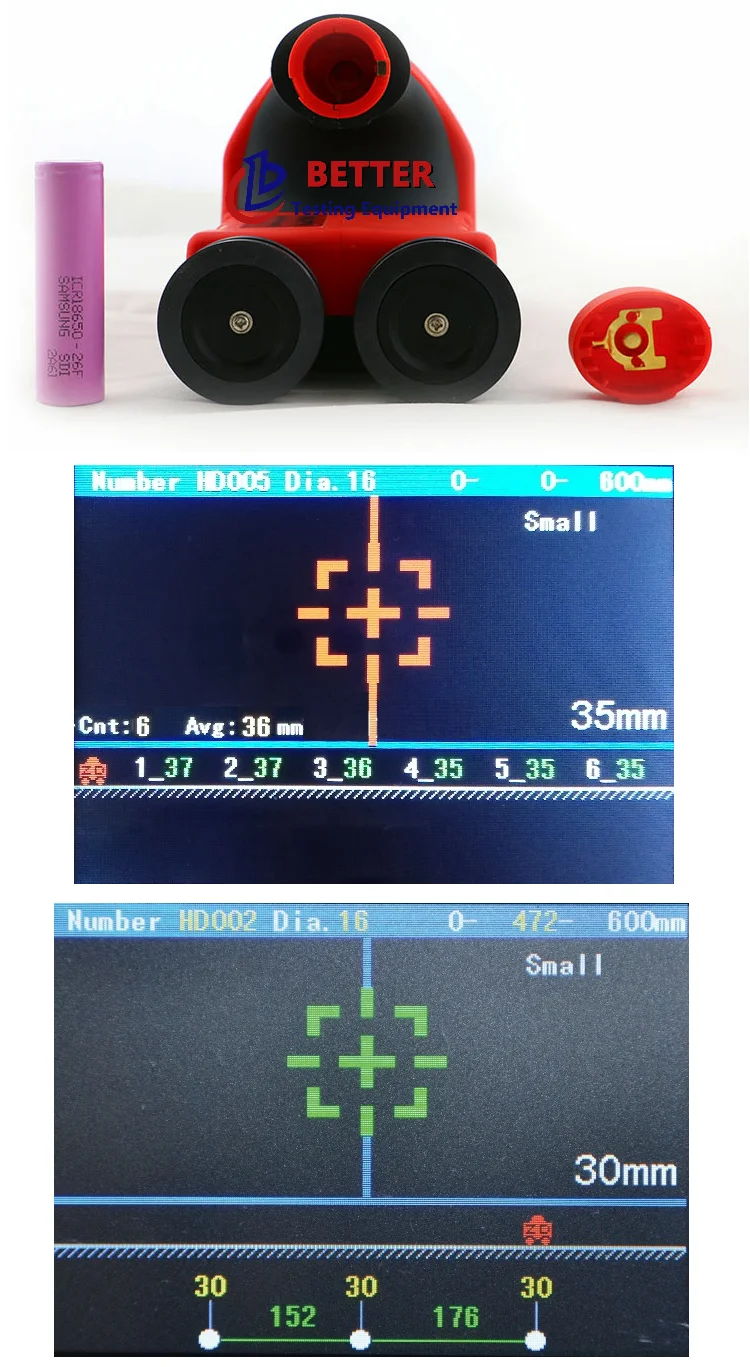

JGJ Testing | Achieve single point 1-6 measurements, automatically calculate the average | ||
Data transmission mode | USB\\ wireless | ||
Screen | 2.8-inch High Resolution Color LCD Screen (320 x 240 pixels | ||
Power supply | Built in high capacity lithium battery | ||
Set shutdown time | 5min、10 min、15 min、30 min、60 min、90 min | ||
Working hours | ≥16h | ||
Screen | 320×240 | ||
Storage | 200K Measuring point of steel bar | ||
Communication | USB interface | ||
With error correction | -3.0～+3.0（±0.5、±1.0、±1.5、±2.0、±2.5、±3.0） | ||
Operation | Silicone keypad | ||
working temperature | -10℃～+42℃ | ||
Size（mm） | 219×92×106 | ||
Weight（Kg） | 0.60(Battery included) | ||
Packing & Delivery
Company Profile
FAQ
Похожие товары

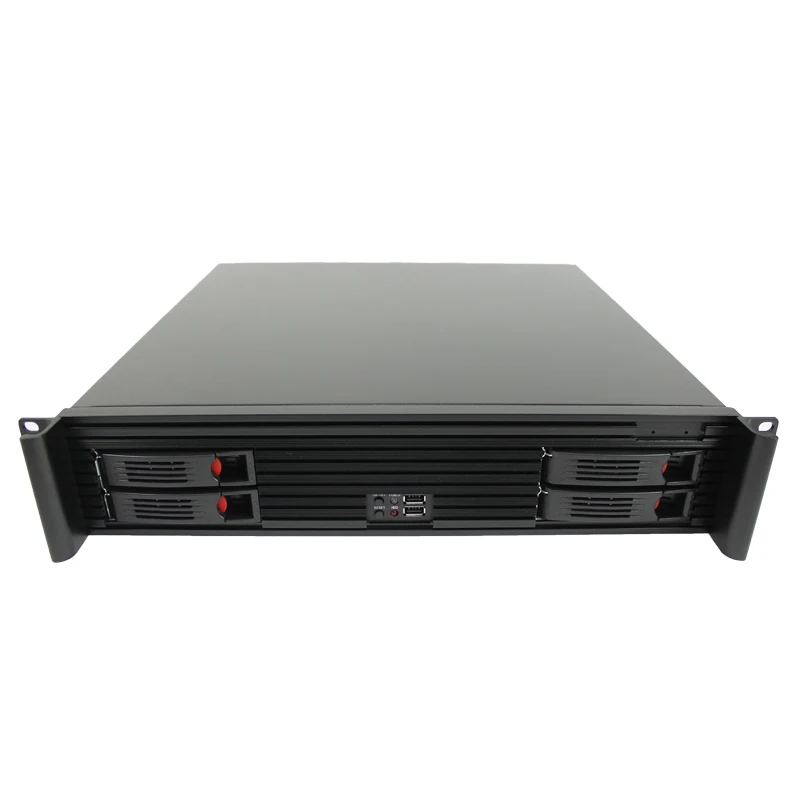

2U Rackmount 4-Bay основной корпус сервера хранения с вентилятором поддержка 9,6*9,6 плата и 4*3,5 дюймов hdd
