Bonens 3266P 0 25 Вт Водонепроницаемый потенциометр с ip67 триммером b500k

Bonens 3266P 0 25 Вт Водонепроницаемый потенциометр с ip67 триммером b500k

Категория: >>>
Поставщик: Tong Yue Xin Commercial And Trading Co. Ltd. (Chengdu)

Цена:*

Количество:

В избранное

Описание и отзывы

Характеристики

TUV and ROHS 3266P 0.25W waterproof potentiometers with ip67

Our Advantage:

1) More than 11 Years Manufactuer Experience in Potentiometer.

2) 8 years of Alibaba Gold Supplier.

3) Factory Price and OEM Provide.

4) TUV ROHS ISO9001 CE

5) Low MOQ:100 Piece

3266P Trimming Potentiometer Products show

3266P Trimming Potentiometer Out line drawing

3266P Trimming Potentiometer Description

Electrical Characteristics	Range of nominal resistance	10~5M
	Resistance tolerance	±10%
	Terminal resistance	≤±1%R or 2
	Contact resistance variation (CRV)	≤±1%R or 3
	Insulation resistance	≥ 1G (100V AC)
	Withstand voltage	600V (DC or AC peak value)
	Effective electrical travel	≥70% of mechanical travel
Environment Characteristics	Rated power	0.25W ( 300V max)
	Temperature range	-55°C~ 125°C
	TCR	±250x10-6/°C
	Collision (390m/S2, 4000 times)	R≤±1%R
	Vibration (10-500HZ, 0.75mm, 6h)	R≤±1%R, Uab/Uac≤±2%R, Electrical break≤100S
	Temperature variation (-55°C/30min,	R≤±2%R,
	125°C/30min, 5 cycles)	Uab/Uac≤±2%R
	Climate category (IEC68-2-2)	R≤± (5%R 0.1), Insulation Resistance

	Electrical endurance (0.25W, 1000h)	R≤± (5%R 0.1),CRV≤±3%R or 5

	Mechanical endurance (200 cycles)	R≤± (10%R 0.5), CRV≤±3%R or 5

	Steady damp heat (IEC68-2-3, Ca, 96h)	R≤± (5%R 0.1), Insulation Resistance≥100M

Physical Characteristics	Total mechanical travel	12±2 laps
	Starting torque	≤25mN.m
	Standard package	50 pcs /tube

Our Trimming Potentiometer Series

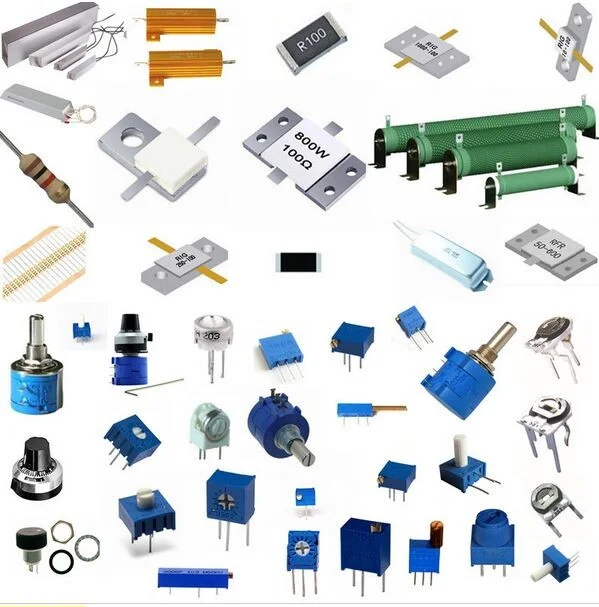

Our other main products for your reference

Trimming Potentiometer Packing

About us

TongYueXin Commerical and Trading Co.,Ltd(Chengdu) is a technical factory of mainly manufacturing and develp
high power resistor,wirewound potentiometer,metal glass glaze potentiometer,carbon film potentiometer,precision parts andEMINoise filter.

The established maxim of our company is technical innovation, keeping improvement and meeting customer

demands.

Rich and varied goods is your selection guide. High quality is absolutely the credibility of the guarantee. Reasonable price is your final choice.

Our products is also used in the field of the military industry .Our factory are continuing to offer a great deal of qualified goods in the field of the military industry
