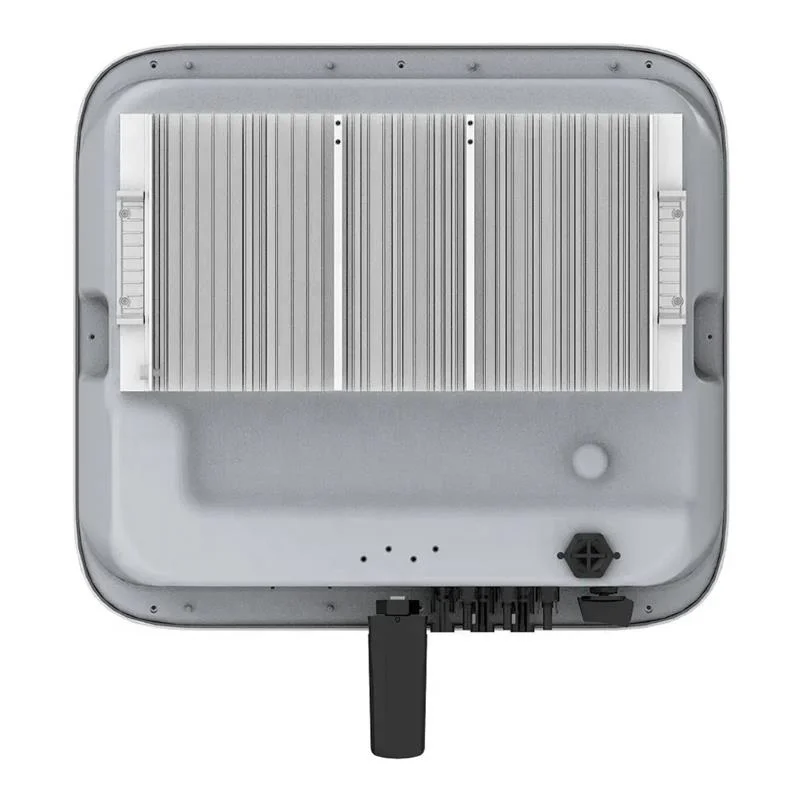

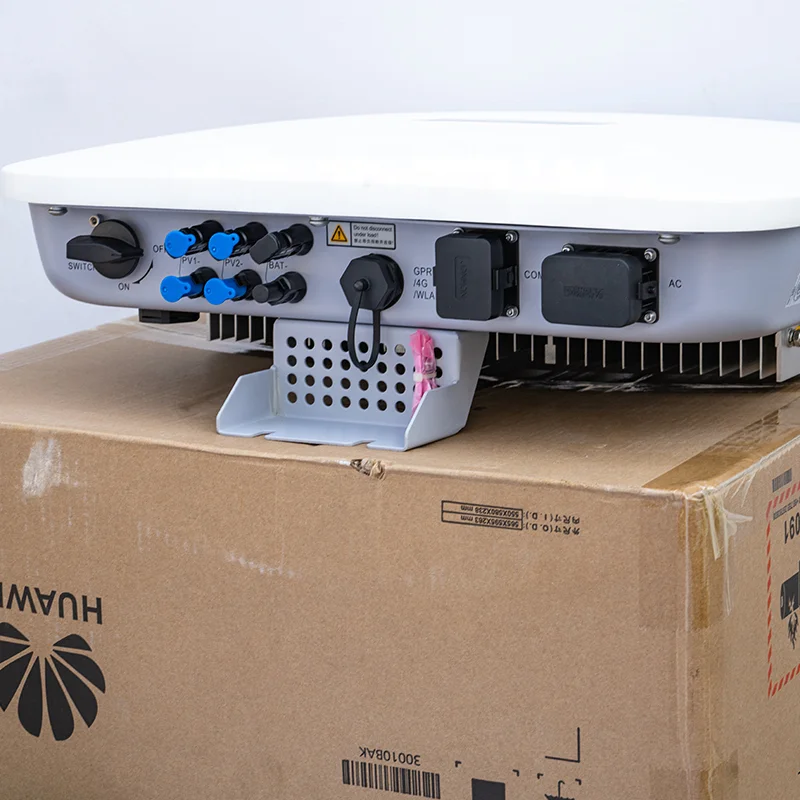

Высококачественный Гибридный солнечный инвертор Huawei умный контроллер pv 5 кВт 6 8 10 12 внутрисетевой
- Категория: >>>
- Поставщик: Tisun solar Co. Ltd
Сохранить в закладки 1600768762314:
Описание и отзывы
Характеристики
Product Description
Product Paramenters
Technical parameters | SUN2000-5KTL-M1 | SUN2000-6KTL-M1 | SUN2000-8KTL-M1 | SUN2000-10KTL-M1 | SUN2000-12KTL-M1 | |||||
Efficiency | ||||||||||
Maximum efficiency | 98.4% | 98.6% | 98.6% | 98.6% | 98.6% | |||||
The input | ||||||||||
Recommended max. PV power 1 | 7500wp | 9000wp | 12000wp | 15000wp | 18000wp | |||||
Max. input voltage 2 | 1100V | |||||||||
Start voltage | 200v | |||||||||
Max. input current per MPPT | 11A | |||||||||
Maximum short circuit current | 15A | |||||||||
Operating voltage range 3 | 140V~980V | |||||||||
Rated input voltage | 600V | |||||||||
Maximum input number | 2 | |||||||||
Max. input number per MPP tracker | 2 | |||||||||
Input (DC Battery) | ||||||||||
Compatible Battery | HUAWEI Smart String ESS 5kWh – 30kWh | |||||||||
Operating voltage range | 600 V ~ 980 V | |||||||||
Max operating current | 16A | |||||||||
Max charge Power | 10,000 W | |||||||||
Max discharge Power | 5,500 W | 6,600 W | 8,800 W | 10,000 W | 10,000 W | |||||
The output | ||||||||||
Grid connection | Three-phase | |||||||||
Rated output | 5,000W | 6,000W | 8,000W | 10,000W | 12,000W | |||||
Maximum apparent power | 5,500VA | 6,600VA | 8,800VA | 11,000VA | 12,000VA | |||||
Maximum active power | 5,000W | 6,000W | 8,000W | 10,000W | 12,000W | |||||
Rated output voltage | 220Vac/380Vac,230vAC/400Vac,3W/N+PE | |||||||||
Output voltage frequency | 50HZ/60HZ | |||||||||
Maximum output current | 8.5A | 10.1A | 13.5A | 16.9A | 18.4A | |||||
Max. total harmonic distortion | <3% | |||||||||
Output （Backup Power via Backup Box-B1） | ||||||||||
Maximum apparent power | 3,300 VA | |||||||||
Rated output voltage | 220 V / 230 V | |||||||||
Maximum output current | 15 A | |||||||||
Power factor range | 0.8 leading ... 0.8 lagging | |||||||||
Features & Protections | ||||||||||
Input-side disconnection device | Yes | |||||||||
Anti-Islanding protection | Yes | |||||||||
DC reverse polarity protection | Yes | |||||||||
Insulation monitoring | Yes | |||||||||
DC surge protection | Yes, compatible with TYPE II protection class according to EN/IEC 61643-11 | |||||||||
AC surge protection | Yes, compatible with TYPE II protection class according to EN/IEC 61643-11 | |||||||||
Residual current monitoring | Yes | |||||||||
AC overcurrent protection | Yes | |||||||||
AC short-circuit protection | Yes | |||||||||
AC overvoltage protection | Yes | |||||||||
Arc fault protection | Yes | |||||||||
Ripple receiver control | Yes | |||||||||
Integrated PID recovery | Yes | |||||||||
Battery reverse charging from grid | Yes | |||||||||
Nighttime Power Consumption | Yes | |||||||||
Packing & Delivery
Certifications
Company Profile
Tisun Solar Co.,Ltd
Tisun Solar Co.,Ltd is located in Hefei city, Anhui Province, which is one of the main production bases of the photovoltaic industry all over the world. We are professional manufacturer and exporter for Solar Power System & Solar Panel & Inverter & Battery & Bracket, etc. Tisun insists on self-developed products. The quality, performance and price of our products are superior to those on the market. We exported to more than 120 countries, such as Germany, the UK, USA, South Africa, and so on.
There is more than 50 salesmen and 300 staff in Tisun Solar. They have extensive experience in photovoltaics, inverters, batteries, controllers and solar generator technologies, product development and project management. Each of them is an authority in the field with over ten years of experience.
Choose Tisun! Choose professional! Look forward to successful cooperation with you!
FAQ
1. Who are we?
We are based in Anhui, China, start from 2023,sell to Northern Europe(25.00%),Southern Europe(25.00%),Western Europe(15.00%),Eastern Europe(11.00%),Africa(5.00%),Eastern Asia(5.00%),South Asia(5.00%),Domestic Market(5.00%),Mid East(4.00%). There are total about 51-100 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.What can you buy from us?
Solar Panel,Solar Energy System,Solar Inverter,Solar Mounting System,Solar Cells
4. Why should you buy from us not from other suppliers?
Tisun Solar was founded in 2017, a professional and fast growing company. We are manufacturer and exporter for Solar Power System & Solar Panel & Inverter & Battery & Bracket, etc.Tisun insists on self-developed products and export to all over the world.
5. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA,DEQ,DDP,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese
We are based in Anhui, China, start from 2023,sell to Northern Europe(25.00%),Southern Europe(25.00%),Western Europe(15.00%),Eastern Europe(11.00%),Africa(5.00%),Eastern Asia(5.00%),South Asia(5.00%),Domestic Market(5.00%),Mid East(4.00%). There are total about 51-100 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.What can you buy from us?
Solar Panel,Solar Energy System,Solar Inverter,Solar Mounting System,Solar Cells
4. Why should you buy from us not from other suppliers?
Tisun Solar was founded in 2017, a professional and fast growing company. We are manufacturer and exporter for Solar Power System & Solar Panel & Inverter & Battery & Bracket, etc.Tisun insists on self-developed products and export to all over the world.
5. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA,DEQ,DDP,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese
Похожие товары
Стул рыболовный Многофункциональный складной
Limastar H4 галогенная фара 12 в 100/90 Вт прозрачная
0,57 $ - 0,80 $
Мяч для заварки чая фильтр диффузор чайное ситечко из нержавеющей стали в винтажном стиле; Роскошные повседневные серебряные круглые с украшением в виде кристаллов для заварки чая
2,00 $ - 2,50 $
Kobelco Gearbox Final Drive

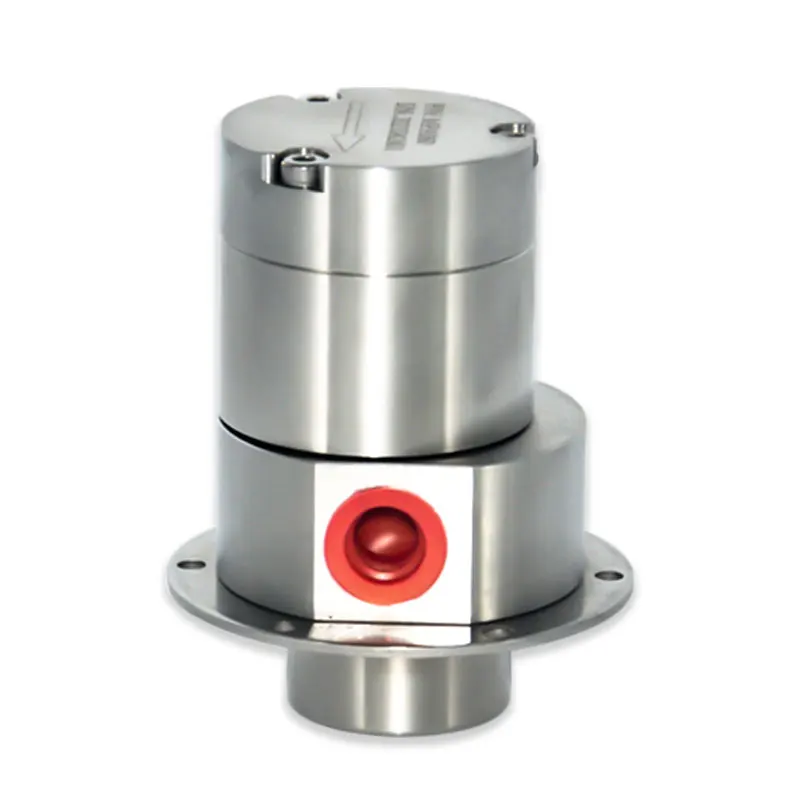

Магнитный зубчатый насос высокого давления для машины для консервирования жидких банок krones ag pak
288,00 $

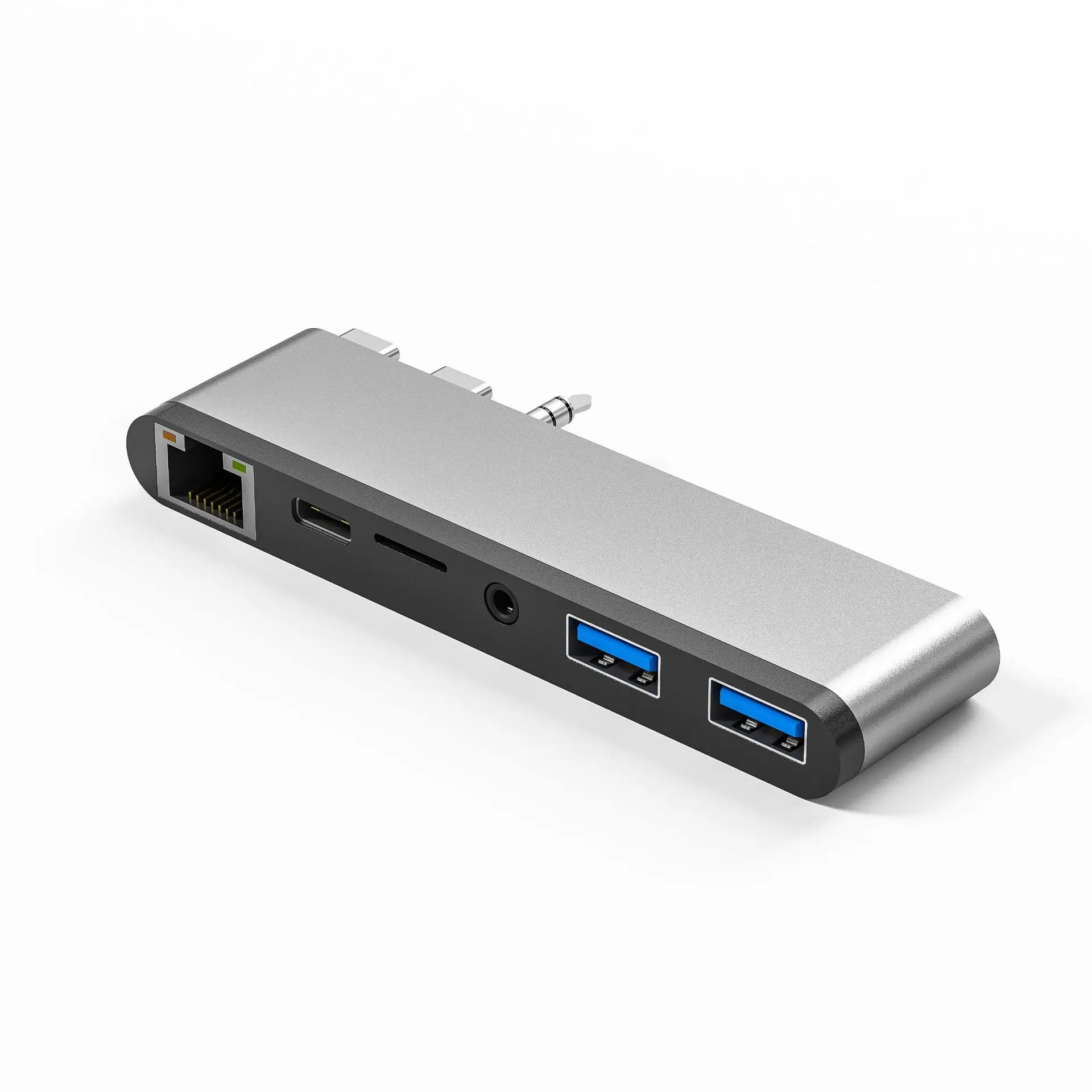

Jmax Dual Type-C Hub 6 em 1 с 2 портами USB3.0 100/1000 Мбит/с RJ45 аудио разъем и SD PD порт USBC Hub для ноутбука Macbook 2021 Pro
10,31 $ - 12,19 $

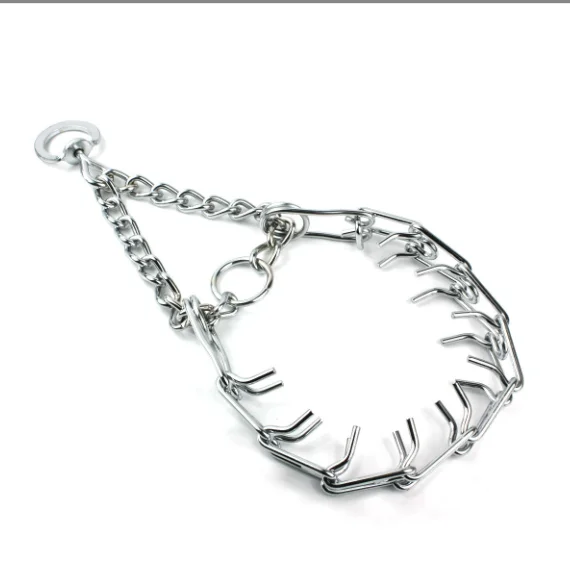

Металлическая цепочка для собак
