YOUJU промышленная машина ручная для производства кирпича QTJ4 40 мелкомасштабная бетонных блоков Бетономешалка

YOUJU промышленная машина ручная для производства кирпича QTJ4 40 мелкомасштабная бетонных блоков Бетономешалка

Категория: >>>
Поставщик: Linyi Youju Machinery Co. Ltd.Linyi Ltd.

Цена:2 400,00-2 800,00 $*

Количество:

В избранное

Описание и отзывы

Характеристики

Products Description

QTJ4-40 MANUAL CONCRETE BLOCK MAKER MACHINE

YOUJU Industries Machines Manual Brick Machine QTJ4-40 Small Scale Concrete Brick Block Making Machine

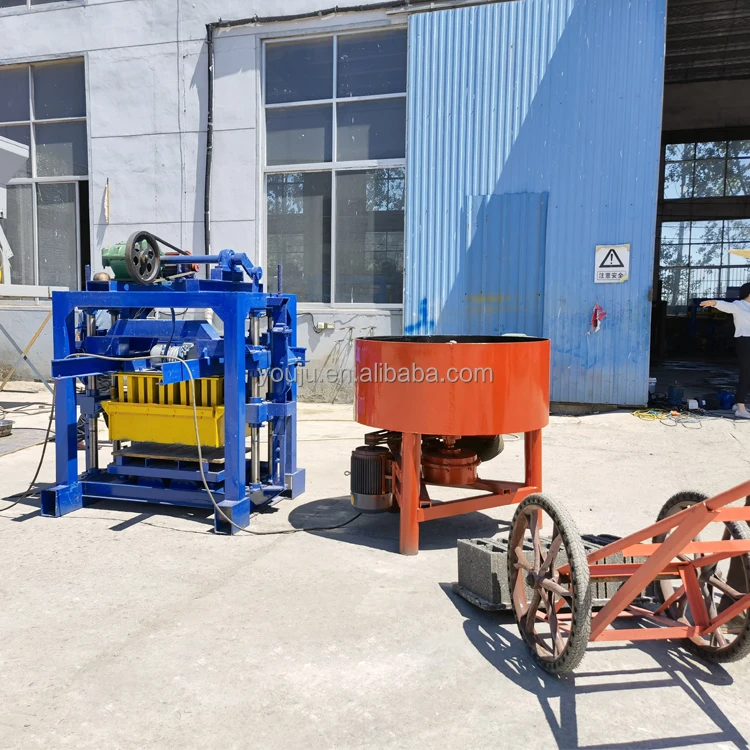

QTJ4-40 type manual block machine to make concrete blocks is made up of the machine frame, lifting system, vibration system, mould assembly, electrical control components etc.

The QTJ4-40 hollow block machine stationary type small platform vibration concrete block making machine adopts mechanical and electric combination type to make all kinds of action. It is easy to operate , work and maintain.
Block production adopts table vibration feeding material ,fluctuation vibration molding,block forming speed, good compactness, high strength. Mould lifting, block forming in place, Upper and lower vibrator start with the completion of the electrical control and mechanical parts interworking ,devices running precisely, reduce the faulty operation damage.

YOUJU Industries Machines Manual Brick Machine QTJ4-40 Small Scale Concrete Brick Block Making Machine

QTJ4-40 Manual Block Maker Machine To Make Concrete Blocks

Material needed before installation

1、Electric leakage protector(three-phase four-wire) 100A×1piece
2、General power line specifications (Chinese standard) :External use 16 square, the host with 10 square to introduce switch, mixer with 6 square.
3、35 # gear oil 10 kg (For the mixer)
4、Engine oil 2 kg (host machine lubrication)
5、Tool: spanner which the head lived, open spanner 14-17, 19-22, 24-27, 30-36,
the plum blossom screwdriver, wire clamp, fur brush(40mm).

YOUJU Industries Machines Manual Brick Machine QTJ4-40 Small Scale Concrete Brick Block Making Machine

QTJ4-40 CEMENT BLOCK MAKER MACHINE EQUIPMENT INSTALLATION

YOUJU Industries Machines Manual Brick Machine QTJ4-40 Small Scale Concrete Brick Block Making Machine

Requirements
（1）The assembling place should be flat, foundation should be solid, have enough place for storing raw material and putting finished products.
(2) Power source, water supply and raw material need to do well necessary rain and moisture-proof measures.

Installation
(1) Put the main block machine in the precast cement ground, after putting down, make level and alignment, the vibration platform with four angle as a benchmark, unevenness ≤1°.
(2) To Assemble the mixer, usually use the vertical type 350.
(3) The electric switch of host machine and mixer assembled near to operator, in order to convenient to operate. Switch on the power, adjust the motor steering. If the down vibrator appears vibration power small, can change the vibrator steering and exchange the two phase power line’ wire line, that can reach good vibration power.
(4) After assembled, check the 250 reducer(have been added the engine oil before leave factory), the shaft sleeve and other need to lubricate, all fill the lubrication oil.In the mixer should fill 10kgs 35# engine oil or gear oil, then assemble the motor on mixer, be careful the parallel and firmness of triangle belt. Check every parts of screw whether solid, if loose, tightening in time.

YOUJU Industries Machines Manual Brick Machine QTJ4-40 Small Scale Concrete Brick Block Making Machine

Technical parameters

YOUJU Industries Machines Manual Brick Machine QTJ4-40 Small Scale Concrete Brick Block Making Machine
Overall Dimension	1350 x 1460 x 1800 mm
Pallet Size	850 x 450 mm
Overal Power	9.5KW
Capacity	2880 pcs/day
Vibration Frequency	2800 RPM
Vibration Force	35KN

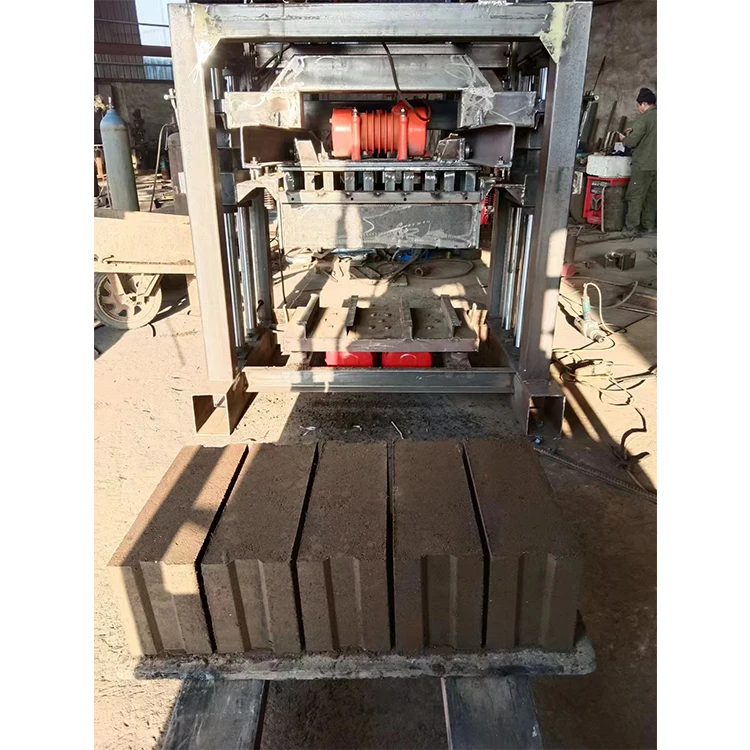

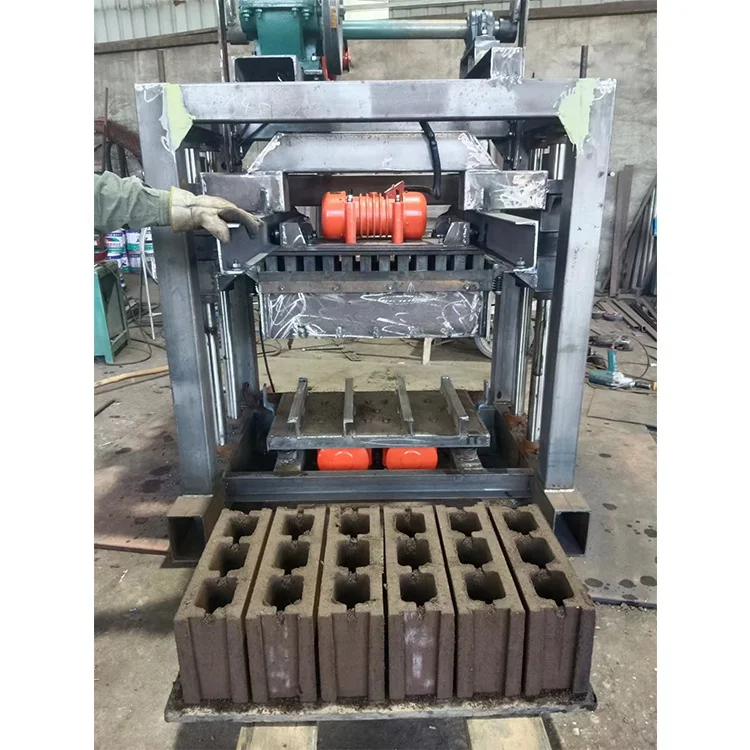

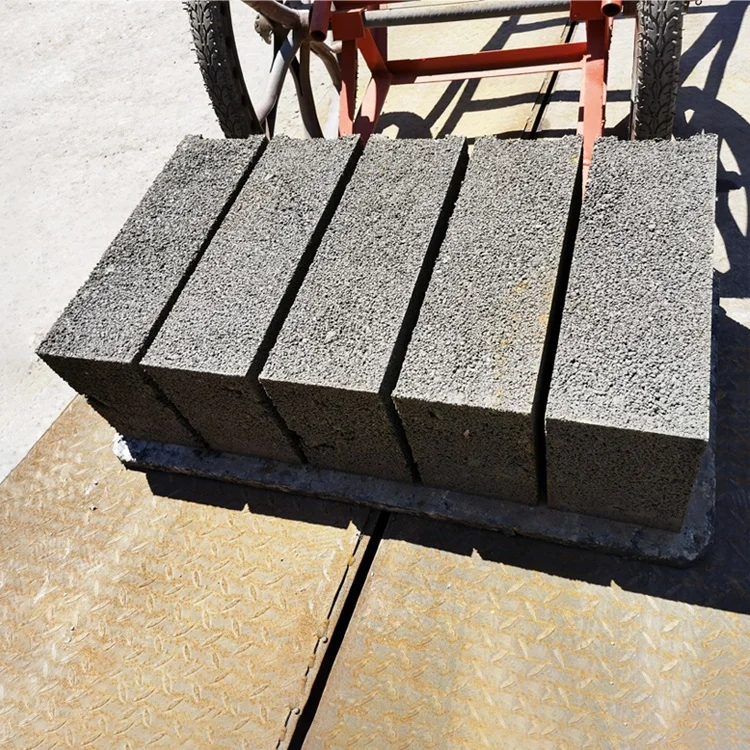

Block Samples

Packing & Delivery

Customer worksites

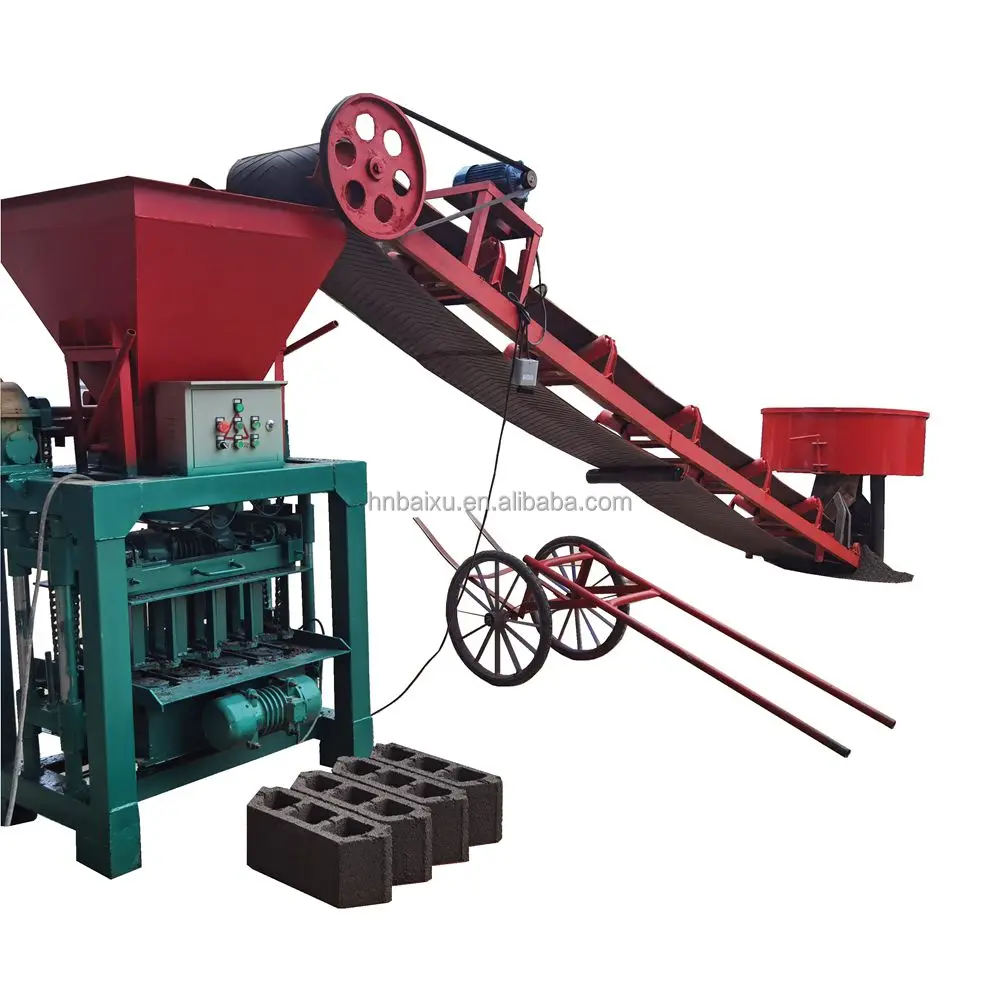

Recommend Products
